Produktbeschreibung
- V2025.3 Super MB Pro M6+ pro with Newest Software Installed on 4 GB Lenovo X220 I5
- We will activate SSD for you ready to use. What's more, this package offer saves you money than buying them alone.
- Supports wifi connection, for WIN10,it is Well said by most of customers.Supports +Vediamo and DTS Monaco.

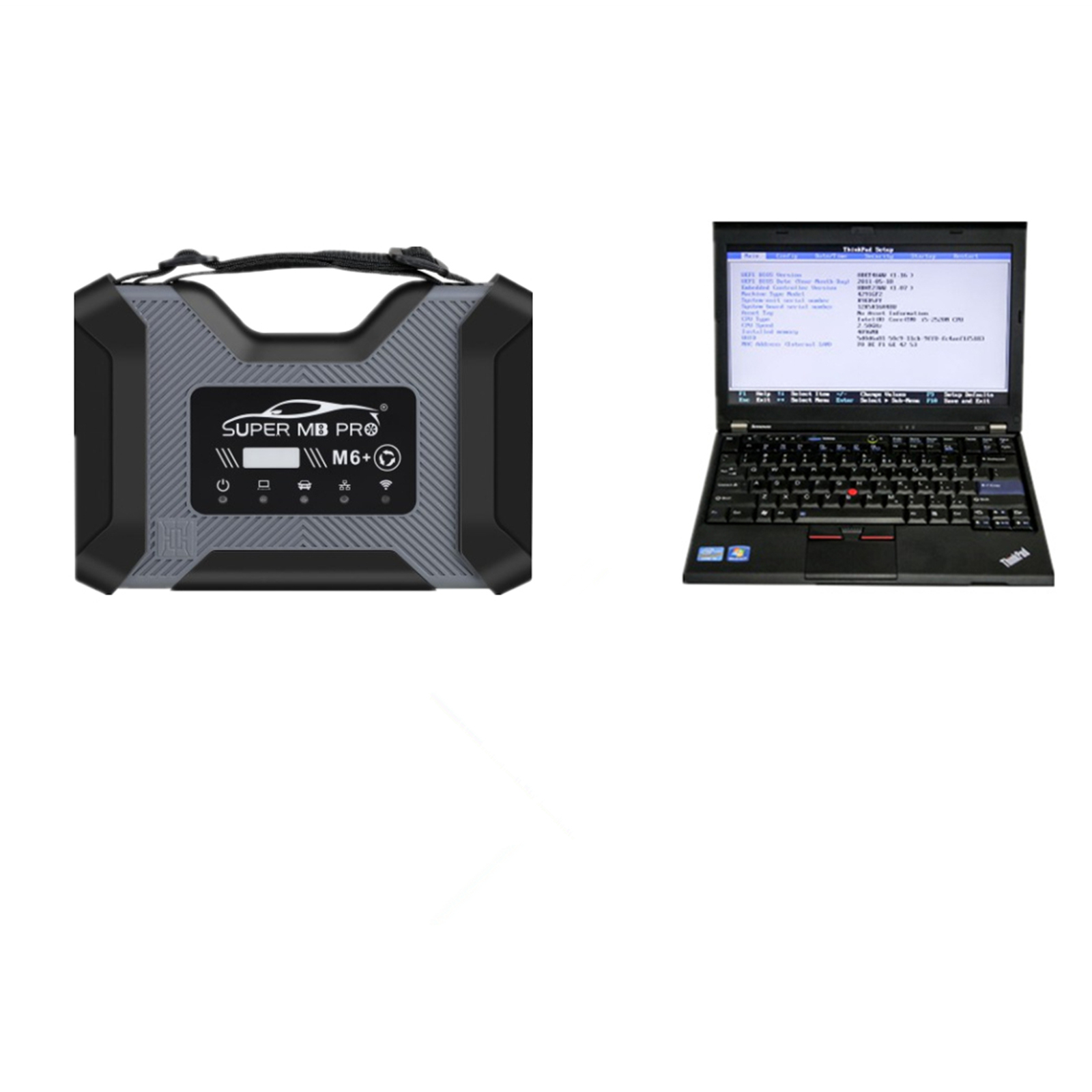

Super MB Pro M6+ pro Diagnosis Tool Full Package with Plus 2025.3 MB Star Diagnos 512G SSD Supports DOIP Installed on 4 GB Lenovo X220 I5 for Direct Use
Note:We will install the Software and test for you ready to use(takes 1-2 days), convenient and save you time ( Software default language is English, if you want other languages, please leave message)(Not all the software can be changed to German, xentry、epc、wis、das can be changed into German,but the DTS only has English.)
Based on M6, Super MB PRO M6+ pro has greatly improved product functions and compatibility, and is 100% compatible with the original Mercedes-Benz software.
Highlight of M6+Pro
1.
100% compatible with the original Mercedes-Benz software.
2.The front label of the M6+ Pro uses a design
with trademark rights and art copyrights to improve product recognition. It has dded a multi-function switch button to switch to BWM test with one click.
3.The communication between the M6+ Pro and the computer is through a USB3.0 cable or a ethernet cable, which improves the compatibility of the product with computers and tablets. (Compatible with both old and new computers and tablets, no need to choose old-fashioned computers and tablets with network ports.)
4.M6+ Pro supports remote C-side operation. The client does not need to install special diagnostic testing software. Just connect the M6+ Pro to a local computer that can access the Internet, and we can remotely provide customers with paid diagnosis and detection services of vehicle failure. Customers can also set up a local remote diagnostic test in the local area network. The above ways greatly improve the product flexibility.
5.M6+ Pro supports BMW Aicoder, wired and wireless programming and coding of F and G series, and supports BMW modification, hidden functions activation.
6.M6+ Pro supports BMW APP software, provides mobile phone English version of Bimmercode (coding hidden functions activation) Bimmerlink (diagnostics codes clearing) and other mobile phone software, supports MHD .Bimmergeeks .. XHP Flashtool. ODIS-e.XDelete.THOR-the M Flasher.PRO- Tool and other mobile apps.
7. M6+ Pro supports vehicles with DOIP communication protocol, such as the new Volkswagen, Audi, Skoda, Bentley, Lambo, etc. A dedicated transition button is provided.
8. Support new models such as W223 c206 213 167.
9.
Best Replacement of Super MB Pro M6+ and SD C4
10.Xentry W204, DAS W211, HTTWIN, W140 Tested OK
11.Support the old cars and new 12v car, 24v diesel truck & bus, MPV etc
Product Functions:
M6+ Pro, M6+ and M6 product function comparison chart
|
M6 Product Functions |
M6+ Product Functions |
M6+ Pro Functions |
XENTRY |
√ |
√ |
√ |
XENTRY Truck |
√ |
√ |
√ |
DTS |
√ |
√ |
√ |
VIDEO |
√ |
√ |
√ |
MB DOIP |
√ |
√ |
√ |
MB WIFI |
√ |
√ |
√ |
PC USB |
× |
√ |
√ |
PC RJ45 |
√ |
× |
√ |
Vehicle Voltage Real-time Display |
× |
× |
√ |
BWM Aicoder |
× |
√ |
√ |
BWM APP |
× |
√ |
√ |
Other DOIP |
× |
√ |
√ |
M6+ Pro Connection Instructions
1. Connection between MB diagnostic software and hardware
(1)Connect the M6+ Pro hardware box to the car diagnostic interface via the test line. The red indicator light ① on the host is always on, and the system indicator ② is flashing during startup. After startup, ② is always on and beeps once, indicating the startup is finished.
(2)Wired connection: Connect the USB port ⑦or the RJ45 port⑧ of the M6+ Pro hardware box to the USB or the RJ45 port of the computer or tablet via a USB cable or a ethernet cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and the IP address of the network connection property will be changed to 169.254.255.*, Subnet mask: 255.255.0.0, Default gateway 169.254.255.255, Preferred DNS: 169.254.255.255, click “Advanced”, add multiple IP addresses as 172.29.127.*, 255.255.0.0. After the computer or tablet is connected to the network, ④ the indicator light will be on.

(3) Wireless connection: You cannot find the wireless network by plugging in the USB cable. Unplug the USB cable from the M6+ Pro hardware box port, and you will find a M6+ Pro DOIP-**** network on the computer or tablet, just connect it. ⑤ The green light of the wireless indicator is always on, the wired light is off, no setting is required, the password is 123456789.
(4) After opening the BEN software lock on the computer side, the original diagnostic test software can be used normally.
(5) For remote C-end operation, please consult us.
2, Connection between BWM software and hardware
(1)Connect the M6+ Pro hardware box to the car diagnostic interface via the test line. The red indicator light ① on the host is always on, and the system indicator ② is flashing during startup. After startup, it is always on and beeps once, indicating the startup is finished.
(2)Wired connection: Connect the USB port ⑦or the RJ45 port⑧ of the M6+ Pro hardware box to the USB or the RJ45 port of the computer or tablet via a USB cable or a ethernet cable, and a new network connection will appear on the network management interface of the computer or tablet (WIN10 driver-free), and change the network connection attribute IP address to 169.254.255.*, Subnet mask: 255.255.0.0, Default gateway 169.254.255.255, Preferred DNS: 169.254.255.255, Click “Advanced” and add a multi-IP address as 169.254.0.* 255.255.255.0. After the computer or tablet is connected to the network, the indicator light ④ will be always on. Press and hold the switch button ⑩ on the side for 3 seconds and then release it. You can see that the ④ green indicator light is always on and then flashing, indicating that the test can be performed normally. It will return to the initial state after it is powered on again.
(3)The wireless network can NOT be found by plugging in the USB cable. Unplug the USB cable from the M6+ Pro hardware box port, and you will find a M6+ Pro DOIP-**** network on the computer or tablet. You can connect without any settings, and the password is 123456789, ⑤The wireless indicator green light is always on, ④The wired indicator is off. Press and hold the ⑩ switch button on the side for 3 seconds and release it, you can see ⑤the wireless green indicator light is always on and turns to flashing, indicating that the test can be performed normally. It will return to the initial state after it is powered on again.
(4) The computer-side BWM software adopts wired or wireless connection, and the mobile phone BWM APP software adopts wireless connection.
(5) For remote C-end operation, please consult us.
3. For DOIP function and hardware connection of other diagnostic test software, please refer to BWM software and hardware connection method.
M6+ PRO Mercedes-Benz and BMW configuration
1. Plug the M6+PRO into the power supply or connect the OBD to the test vehicle, and plug in the USB/LAN cable of the M6+PRO.
2. Turn on the computer and plug in the computer USB/LAN cable.
3. Open the computer network configuration interface and find the Realtek USB FE Family Controller network/the network adapter that comes with the PC.

4. Click “Properties”--TCP/IPV4, and set the IP address as shown in the figure below.
5. Click “Advanced”, and add a group of network IP addresses as shown in the figure below.
6. Click “OK”. After the configuration is successful, the display is as follows.
7.For the same computer, if you replace a new M6+PRO, you need to reset the IP address. After the setting is completed, the computer is successfully bound to the M6+PRO and there is no need to set the IP address again for wired and wireless Internet access. (Use LAN port connection mode, no need to re-set IP when changing devices).
8.You can test Mercedes-Benz normally. Please connect the diagnostic cable with SUPER MB PRO logo.
9. BMW wireless BMWAiCode configuration(only for F+G chassis)
Connect to the M6+PRO -***, password:123456789, wirelessly, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash. The computer-side BMWAiCoder configuration is as follows:
10. BMW wired BMWAiCode configuration(only for F+G chassis)
Connect the USB/LAN cable, press and hold the M6+PRO switch button for 3S, and the M6+PRO host wired indicator light will flash. The computer-side BMWAiCoder configuration is as follows:
11. BMW wired and wireless configuration(only for F+G chassis)
Connect to the M6+PRO -*** wirelessly, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash. On the computer side, select the following for direct connection. Wired is similar, no setup required.
12. BMW wired configuration(only for F+G chassis)
Connect the USB cable, press and hold the M6+PRO switch button for 3S, and the M6+PRO host wired indicator light will flash. The computer configuration is as follows:

13. BMW Wireless configuration(only for F+G chassis)
Connect to the M6+PRO -*** wirelessly, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash. The computer side is selected as follows:

14.The mobile phone BWM APP adopts wireless connection. (only for F+G chassis)
Connect to the M6+PRO -***, password: 123456789, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash.
15. Supported BMW models and years.
M6+ and M6 product function comparison chart
|
SD C4 Plus |
Super MB PRO M6 |
Super MB PRO M6+ pro |
OEM BENZ C6 |
Image |
 |
 |
 |
 |
Update |
HDD/SSD |
HDD/SSD |
HDD/SSD |
HDD/SSD |
OEM Compatibility |
√ |
√ |
√ |
√ |
Programming |
√ |
√ |
√ |
√ |
Diagnosis |
√ |
√ |
√ |
√ |
XENTRY |
√ |
√ |
√ |
√ |
XENTRY Truck |
√ |
√ |
√ |
√ |
DTS |
√ |
√ |
√ |
√ |
Vediamo |
√ |
√ |
√ |
× |
MB DOIP |
√ |
√ |
√ |
√ |
MB WIFI |
√ |
√ |
√ |
√ |
PC USB |
√ |
× |
√ |
√ |
PC RJ45 |
√ |
√ |
× |
√ |
BWM Aicoder |
× |
× |
√ |
× |
BWM APP |
× |
× |
√ |
× |
Other DOIP |
× |
× |
√ |
× |
Cooling |
Heat Sinks |
Heat Sinks+Fans |
Heat Sinks+Fans |
× |
Old Mercedes |
√ |
√ |
√ |
× |
New Mercedes |
√ |
√ |
√ |
√ |
Product Accessories Comparison Chart
SKU |
Accessories |
SP586 |
1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable |
SP586-C |
1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB cable |
SP586-B |
1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB cable
1pc x 14PIN Cable |
Software includes:
BENZ 2025.03 hard disk software SATA disk 512G WIN10
Mercedes-Benz Xentry/DAS car version 2025.03, truck version 2025.04
Maintenance information: WIS September 2021 independent version
Accessory query: EPC November 2018 (4.8.0.0)
StarFinder 2024
PL‑2K accessory price query January 2022 (2.45)
SDmedia offline version January 2014
Engineer version Vediamo 5.01.01
Engineer version: DTS 8.16, 9.02
Support Languages: English, Croatian, Czech, Danish, Dutch, Finish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian; Spanish, Swedish, Turkish, Chinese.
The language of xentry、epc、wis、das can be changed to German,but the DTS only in English and the system of laptop can only support English)
Passenger Car Supported List:
A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126),
E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140) SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197),
M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221),S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216),
CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107),SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)
Van Supported List:
MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)
Truck Supported List:
Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model series
Unimog Supported List:
U20, UGN, UHN
Bus Supported List:
TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/O403, CONECTO, O404, O405-O408,
Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500, O500/OH, OH, OH368, OF, OF384, LO, O400, FURTHER MODEL SERIES
Super Sports Car Supported List:
SLR(199)
Lenovo X220 I5 CPU 1.8GHz WIFI, Second Hand Laptop With 4G Memory
Specification:
Brand: Lenovo
Condition: Used
Type: Laptop/Notebook
Screen Size: 14.0
Processor Type: Intel (R) Core(TM) I5-2520M CPU
Processor Speed: 2.50 GHz
Processor Configuration: Dual Core
Memory: 4GB
Warranty: 3Months
Note: This laptop do not have optical drive for CD.
This laptop is Second Hand .
Package Includes:
1pc x SUPER MB PRO M6+ pro
1pc x OBD2 16pin Cable
1pc x USB Cable
1pc x 38PIN Cable
1pc x 38P Adapter
1pc x 14PIN Cable
1pc x 4PIN Cable
1pc x SSD
1set x Lenovo X220 laptop ( Second Hand)
