Launch X431 X-PROG 3 Immobilizer & Key Programmer for X431 V, X431 V+, X431 PAD V, PAD 7
Highlights:
1. All-in-One Key Programmer. Integrates Multiple Function Models
2. Reads & Writes Most Engine/ Gearbox ECUs Without Disassembling the Shell
3. Supports VW/ AUDI MQB Platform Engine ECU Replacement or Cloning (Read engine ECU data directly from the key).
4. Works with Reprogramming Device to Backup/ Restore Programming Data (For Bosch/Siemens engine ECU).
5. Enables Reading/ Writing EEPROM, On-Board MCU, and BMW CAS4+/ FEM Chips, Mercedes-Benz Infrared Keys, Generating Special Keys, Reading BMW Engine ISN Code.
6.You can buy MCU3 Adapter to do Benz All Keys Lost and ECU TCU Reading.
7.Compatible with Multiple X-431 Series Diagnostic Tablet (X431 Pro Elite, CRP919E BT, CRP919X BT, X-431 V, X-431 V+, X431 Pro5, X431 ProS, X431 Pro3s+, X-431 PAD V, X-431 PAD VII, PAD IX, Immo PAD, Immo Pro, Immo Plus, Immo Elite, X-DIAG Pro3 etc)
8. Update VAG MQB NEC35XX D70F3524, D70F3525, D70F3526, D70F3529, D70F3532, D70F3537 add key & all keys lost NEW!!!
9. For advanced key programming, you can check optional extended IMMO software, all vehicle manufacturers will be available (over 100 other brands).
Note: XPROG3 cannot work standalone. It is strongly recommended to connect the diagnostic tool with the VCI connector using a USB cable for effective data transmission.
Launch-X431 GIII XPROG 3 Supported Car List
Launch X431 X-Prog3 Car and EEPROM List
Advantages
1. Supports VW/AUDI MQB platform engine ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports VW/AUDI MQB platform gearbox ECU replacement or cloning.
3. Supports ECU replacement for the fifth-generation of Audi (0AW/0B5) gearbox.
4. Supports reading, writing & cloning the ECU for the fourth-generation of VW UDS engine.
5. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
6. Works with reprogramming device to backup/restore programming data (For Bosch/Siemens engine ECU).
Supported Brands
VW, Audi, Skoda, SEAT, BMW, Mercedes-Benz, Toyota… (updates to be continue)
Compatible With Multiple X-431 Series Diagnostic Tablet:
X431-Throttle, X431-Throttle III, X431-Torque, X431-Torque III, X431-Turbo, X431-PAD II AE
X-431 PRO GT, X-431 PRO V4.0, X-431 PRO 3 V4.0, X-431 PRO 5, X-431 PAD III V2.0, X-431 PAD V, X-431 PAD VII
X-PROG3 Features:
1. Compatible with X-431 series diagnostic scanners, X-PROG 3 enables reading/writing EEPROM, on-board MCU and BMW CAS4+/FEM chips, Mercedes-Benz infrared keys, generating special keys, reading BMW engine INS code.
2. Supported brands: VW, AUDI, SKODA, SEAT, BMW, MERCEDES-BENZ, TOYOTA, etc. More models continue to be updated.
3. Supported systems: Automatic Transmission, Instrument System, CAS, Body System, Lock System, etc.
4. Compatible with: X-431 PRO GT, X-431 PRO V4.0, X-431 PRO 3 V4.0, X-431 PRO 5, X-431 PAD III V2.0, X-431 PAD V, X-431 PAD VII
5. Reads & writes most Engine/Gearbox ECUs without disassembling the shell
Launch X431 XPROG3 Core Functions
1. Integrated the functions of key matching/copy, anti-theft IC reading & writing, and ECU reading & writing, etc.
2. Supports common ECU/MCU/EEPROM major manufacturers, with over 1200 product models, and constantly updating.
3. Supports ECU replacement for all lost without disassembly for VW/AUDI non-35XX instrument (it can be read directly through independent harness without removing the IC).
4. Supports ECU replacement for the fourth-generation of VW/AUDI engine;
5. Supports ECU replacement for the fifth-generation of VW/AUDI Bosch and Siemens engines.
6. Supports the all lost and replacement for the fourth generation of AUDI EZS, comfortable ECU, and KESSY IC.
7. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
8. Supports the BMW CAS4/CAS4+ module replacement.
9. Supports the ECU cloning and replacement for BMW Siemens engines.
10. Erase the password for Mercedes-Benz engine and gearbox within 3S.
11. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.
Supported Chip Brands:
It supports common mainstream ECU MCU manufacturers, with more than 1,000 product models, and they are continuously being updated.
Supported EEPROM Brands:
It supports common mainstream EEPROM manufacturers, with nearly 1,000 product models, and they are continuously being updated.
Launch X-prog3 supports following ECU/TCU cloning function:
Supported ECU MCU List:
Support more than 1000 models, keep updating
Atmel | NSC |
Fujitsu | Philips |
Infineon | Renesas M16 |
MC68HC05 | Renesas M32 |
MC68HC08 | Renesas M32R |
MC68HC11 | Renesas R32C |
MC68HC12 | Renesas R8C |
MediaTek | Renesas V850 SPI |
MicroChip | Renesas V850 UART |
Nordic | Samsung |
ST | SiLabs |
Support EEPROM List:
Support more than 1000 models, keep updating
4Wire | GI | Numonyx | SST |
Adesto | GigaDevice | OKI | ST |
AKM | Grundig | ON Semi | Toshiba |
Altera | HOLTEK | Other | Winbond |
Amic | Hynix | PCT | Xicor |
Atmel | I2C | Philips | xUSSR |
BOSCH | ITT | Pioneer | YMC |
Catalyst | KHIC | PMC | Spansion |
Chingis | Macronix | Ramtron | SPI |
Dallas/Maxim | MicroChip | Rohm | NEC |
EON | Micron | Samsung | NSC |
ESMT | MicroWire | Seiko | Ford |
EXEL | Mitsubishi | Siemens | Fujitsu |
Fairchild | Motorola | Sony |
How to Use X-PROG3 to Read and Write Data?
Method 1: Directly connect to OBD16 for key matching, data reading and writing, etc
Method 2: Place the anti-theft EEPROM or MCU chip in the chip burning socket, and then insert the chip burning socket into the slot of the immobilizer programmer locker and lock it to realize the data interaction between the IC anti-theft chip and the diagnostic host
Method 3: After removing the ECU from the car, connect the anti-theft ECU pin to the DIY slot of the immobilizer programmer through the cable to realize the data interaction between the anti-theft ECU and the diagnostic host.
New Software Update
V10.95 (Feb 28th, 2024)
1) Added a total of 48 RH850_encrypted single-chip machine read and write functions,
including R7F701008, R7F701011, R7F701016, R7F701021, R7F701OO9, R7F701012, R7F701017, R7F701022, R7F701026, R7F701002, R7F701010, R7F701013, R7R01018, R7F701023, R7F701027, R7F701014, R7F701019, R7F701024, R7F701028, R7F701032, R7F701040, R7F701042, R7F701044, R7F701046. R7F701050, R7F701003, R7F701015, R7F701020,R7F701025, R7F701029, R7F701033, R7F701041, R7F701043, R7F701045, R7F701047, R7F701051, R7F701030,R7F701034, R7F701048, R7F701052, R7F701054, R7F701056, R7F701006, R7F701007, R7F701049, R7F701053
2). Add a total of 13 VW IMMO MQB instrument read-out functions, including D70F3524, D70F3525_V1, D70F3525_V2, D70F3525_V3, D70F3525_V4, D70F3526_V1, D70F3526_V2, D70F3526_V3, D70F3526_V4, D70F3529, D70F3532_V1, D70F3532_V2, D70F3537
3). Added OBD pre-process function for BMW FEM/BDC immo system.
Jan. 2024.
Adds MQB calculator. Obtain sync data for free.
Need
Instrument panel CS code 16 bytes
Ecu 16 bytes CS code
Tcu 16 bytes CS code
ELV 16 bytes CS (if present)
V10.80 (May 25th, 2023)
1. Added the key learning and instrument replacement functions for Johnson Control MQB instruments (including chips A2C81589600, A2C81589700, D70F3526, and D70F3529).
2. Added the key learning, all keys lost, and instrument replacement functions for Johnson control instruments as of year 2014
3. Added the instrument cloning function for VDO NEC 35XX MQB instruments (including chips A2C81 589600, A2C81 589700, D70F3526 and D70F3529)
4. Added the functions “All Keys Lost” and instrument replacement for the fourth-generation 35XX instruments.
Specification:
Interface | DB26, DB15 |
Input Power | DC12V |
Working CurrentMax | 500mA |
Power Consumption | 5W |
Storage Temperature | -20℃~70℃ |
Working Temperature | 0℃~50℃ |
Package List:
1pc x Launch X-PROG 3
1pc x Power adaptor
1pc x Main diagnostic cable
1pc x The fourth-generation data acquisition cable
1pc x The fourth-generation of EEPROM data acquisition cable(without dismantling dashboard)
1pc x BENCH mode cable
1pc x MCU converter V1
1pc x MCU converter V2
1pc x MCU cable with multiple leads
1pc x EEPROM chip adaptor
1pc x Benz infrared analog acquisition key
1pc x MCU cable with multiple leads
1pc x EEPROM converter
1pc x User Manual

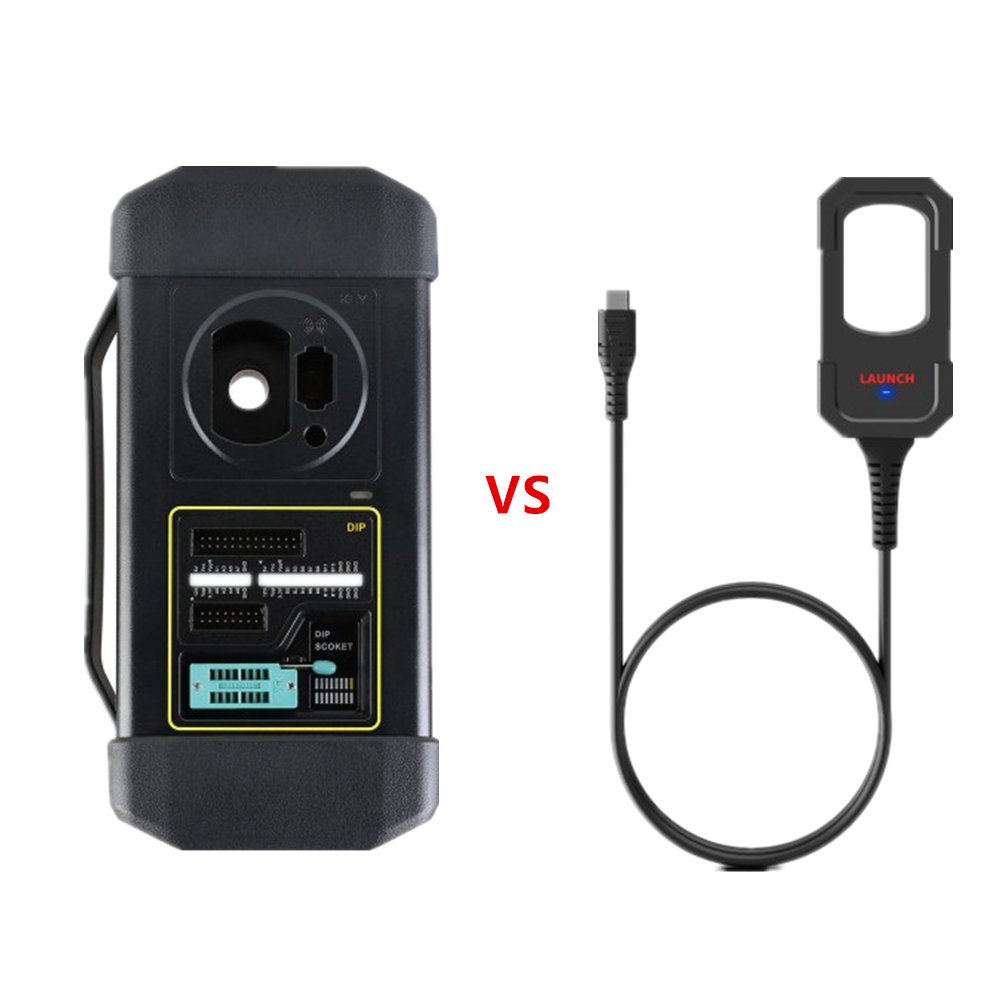

Launch X431 X-PROG vs. X-PROG3
Item | Launch X431 X-PROG | Launch X431 X-PROG3 |
Read/Write EEPROM | No | Yes |
Read/Write MCU | No | Yes |
Mercedes Benz Keys | No | Yes |
Key simulator | No | Yes |
VW 4th IMMO Dump Mode All Keys Lost | No | Yes |
Read engine in Bench mode | No | Yes |
VW 4th IMMO enumeration all keys lost | No | Yes |
Read gearbox data | No | Yes |
Read and write keys | Yes | Yes |
Read BMW engine ISN code | No | Yes |
Replace OBD reading component | Yes | Yes |
Read & Write BMW CAS4+ and FEM chips | No | Yes |
Read engine in Boot mode | No | Yes |
Read & Write Audi 5th generation steering column chips | No | Yes |
Specification | ||
Interface | DB15 | DB15,DB26 |
Input Power | DC12V | DC12V |
Working current Max | 200mA | 500mA |
Power consumption | 2W | 5W |
Storage Temperature | -20℃-70℃ | -20℃-70℃ |
Working Temperature | -10-50 0℃ | 0-50℃ |
Size | 142 x72 (mm) | 228 x120 (mm) |
