Original Autel XP400 PRO Key and Chip Programmer for Autel IM508/ IM608

Marke: Autel Art.-Nr.HKSK282-B Auf Lager. Geschichte 3 verkauft.

Sofort Kaufen: 508.00
EU Ship Please Check :Ship from Czech No Tax
6.18 Sales,June.15th-24th,do not miss out!
Versand:
Kostenloser Versand Express VersandserviceLieferzeiten: DHL:5-7 Arbeitstage. Yanwen: 7-12 Arbeitstage. See details »
Gewicht:
2.1KG
Paket:
33.5cm*26cm*10.5cm     ( Inch: 13.16*10.21*4.12 )
Rückkehr:
Erstattung: innerhalb 7 Tagen. Der Kunde vertr?gt Versandkosten Read details ?

Produktbeschreibung

Autel XP400 PRO Key and Chip Programmer Can Be Used with Autel IM508/ IM608/IM608PRO/IM100/IM600
Autel XP400 PRO Key and Chip Programmer Can Be Used with Autel IM508/ IM608/IM608PRO/IM100/IM600

Description:

Autel XP400Pro is a replacement for XP400. It adds more functionality for BM-W, Merc-edes-Be-nz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more.  Also, added functions for EWS3, W209, NEC, and more.

Autel XP400 PRO Key and Chip Programmer

Highlights of Autel XP400 Pro:

1. XP400 Pro is an Advanced All-in-One Key Programmer
2. One Year Free Update Online on Autel Official Website
3. Could Be Used with Autel IM508 and Autel IM608, Also IM100 and IM600 as well
(Notice: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth)
4. Supports Key Renewal on 11 Key Types with Additional Adapters - IMKPA, Key Programming Accessories Kit
Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro.


Why You Need XP400 Pro?

1. Expanded EEPROM functions for more component access
2. 170+ types Odometer component reading functions
3. 180+ Immobilizer ECU component types

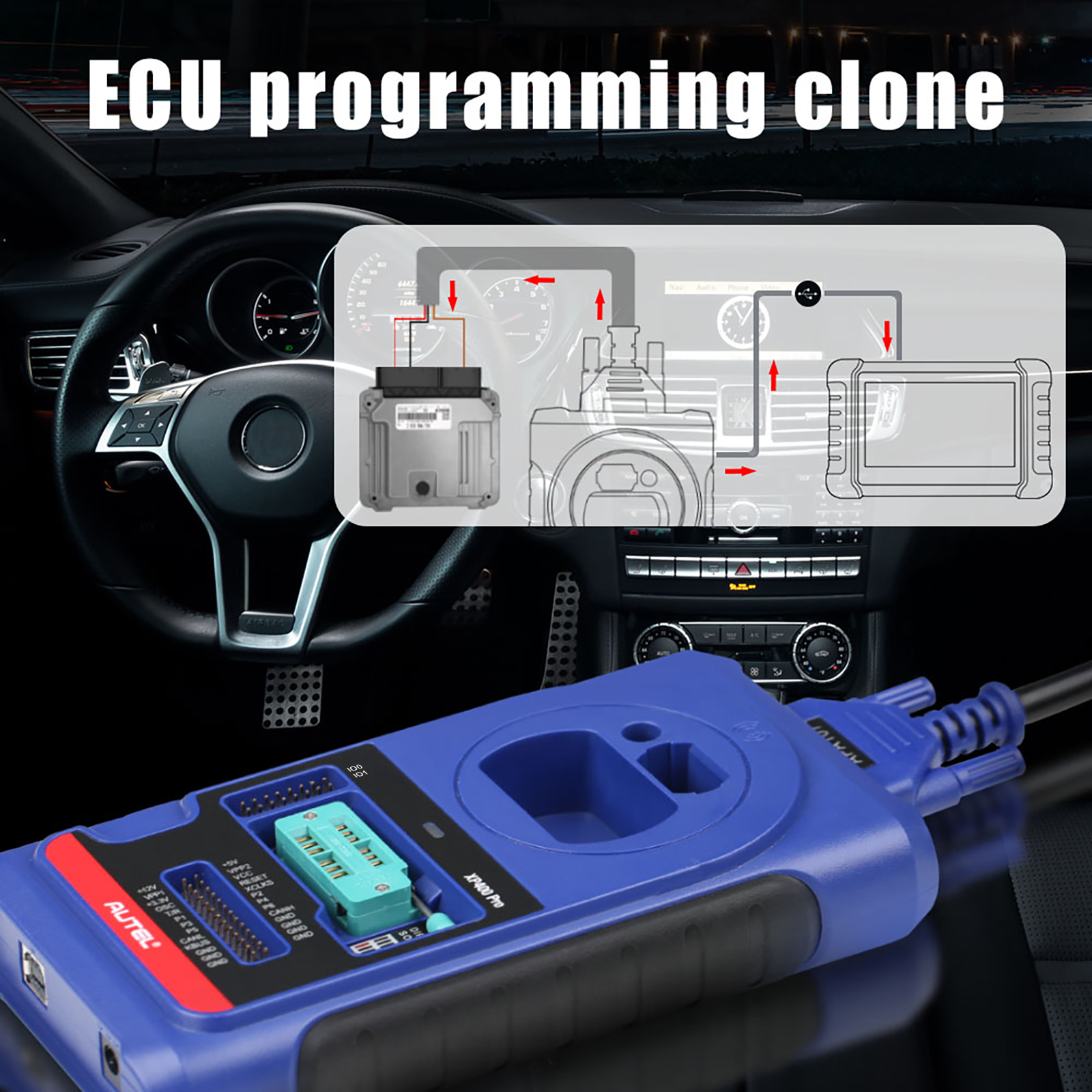

4. 40+ Engine ECU component types
5. 2000+ MCU component types
6. 440+ EEPROM component types
7. Compatible with IM508 and IM608
8. Includes 1-Year Warranty
9. Free Software Updates for Life of Tool

 Autel XP400 Pro

ADVANCED KEY PROGRAMMING VEHICLE COVERAGE when combined with XP400PRO:

Be-nz
* One-tap Key Programming via OBD
* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost

BM-W
* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
* Add Key/All Key Lost

Volks-wagen/ Au-di
* One-tap Online Programming
* Add Key/All Key Lost Via OBD for 2013 - 2020 Models

G-M
* Read IMMO Password, Add Key/ All Key Lost up to 2020

Fo-rd
* Add Key/All Key Lost (No PIN Needed) up to 2020

Maz-da
* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
* Read IMMO Password, Add Key/All Key Lost up to 2020

Ren-ault
* Add Key/All Key Lost (No PIN Needed) up to 2020

LandR-over/Jag-uar
*Add Key/All Key Lost up to 2019

Vo-lvo
* Semi-smart Key Learning via OBD up to 2018
* Smart/Blade/Fobik Key Learning via Dump

Powerful IMMO Functions:

1. Auto Detect Make/ Model/ Year/ System
2. Read PIN (All Key Lost)
3. Key Learning
4. IMMO ECU Reset/Adaption
5. IMMO ECU Refresh/Coding
6. Remote Learning
7. AU-DI Q5/ A4/A5 2015-2017 Key Learning
8. VW MQB Key Learning
9. BM-W FEM/BDC Key Learning and Adaption
10. BM-W CAS4 Key Learning and Adaption
11. Merc-edes Key Learning
12. 2015-2018 Land Ro-ver & Jag-uar write key via dump
13. Vol-vo Smart Key Learning/ knob-style smart key


Advanced Programming Functions:

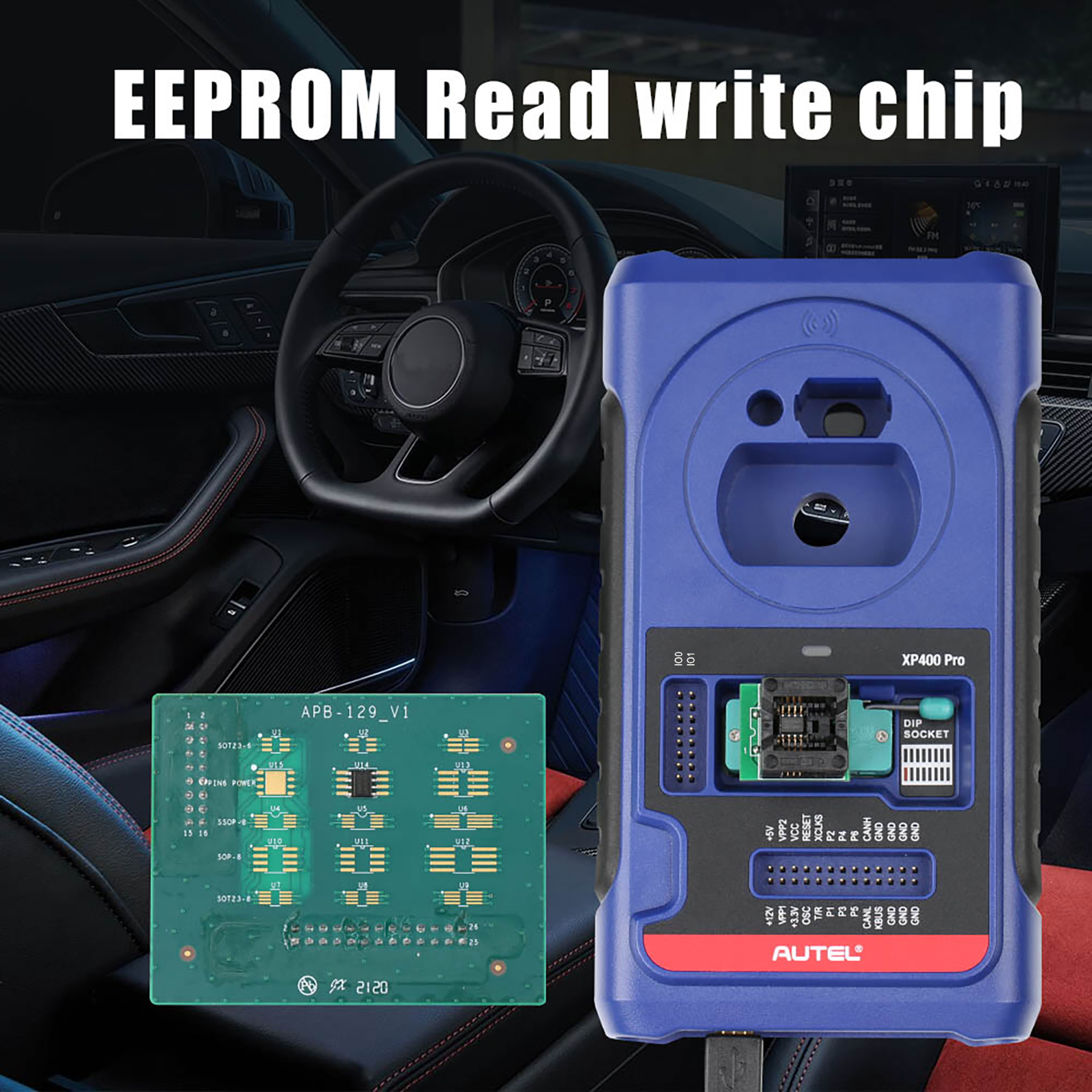

1. EEPROM Read/Write

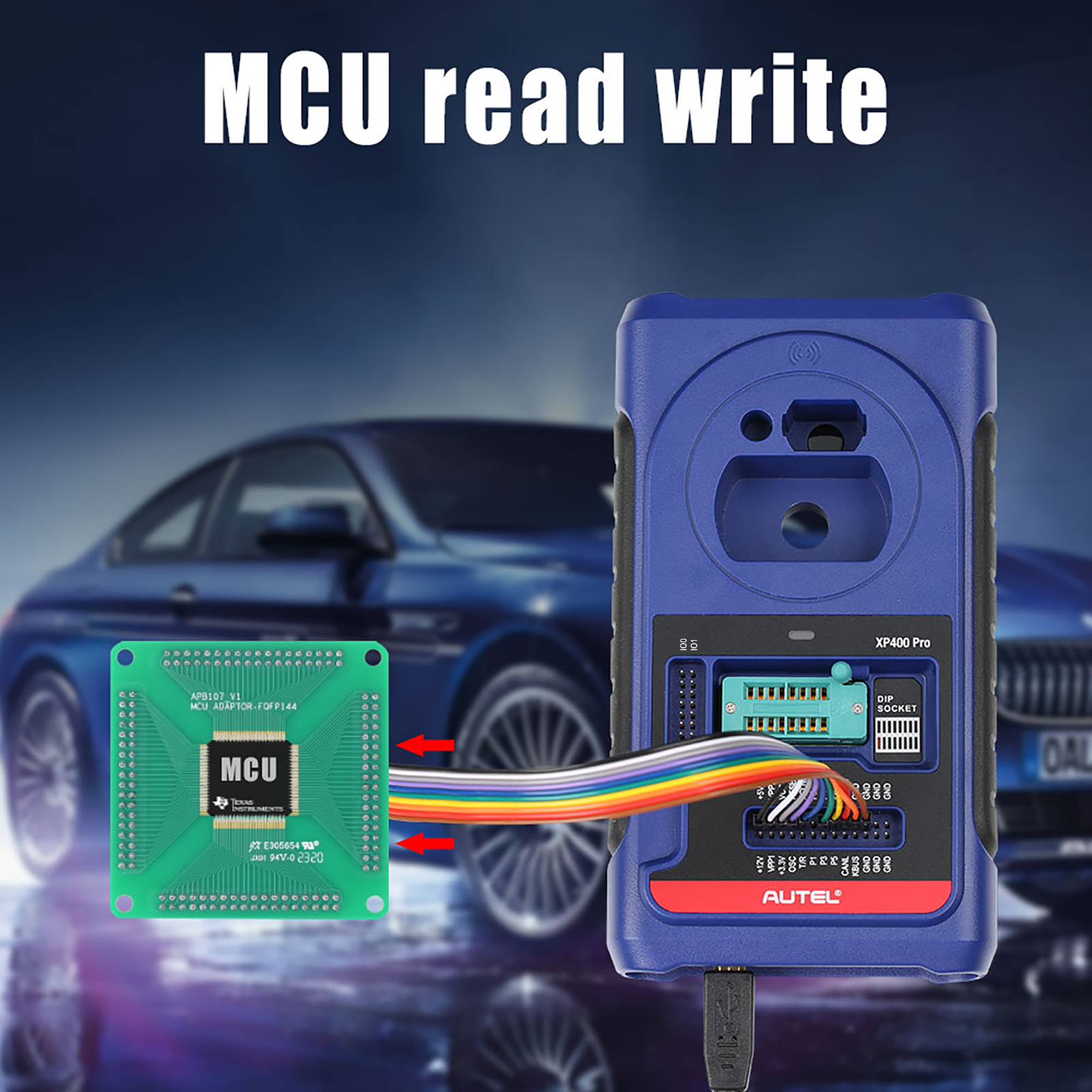

2. MCU Read/Write
3. Key Programming

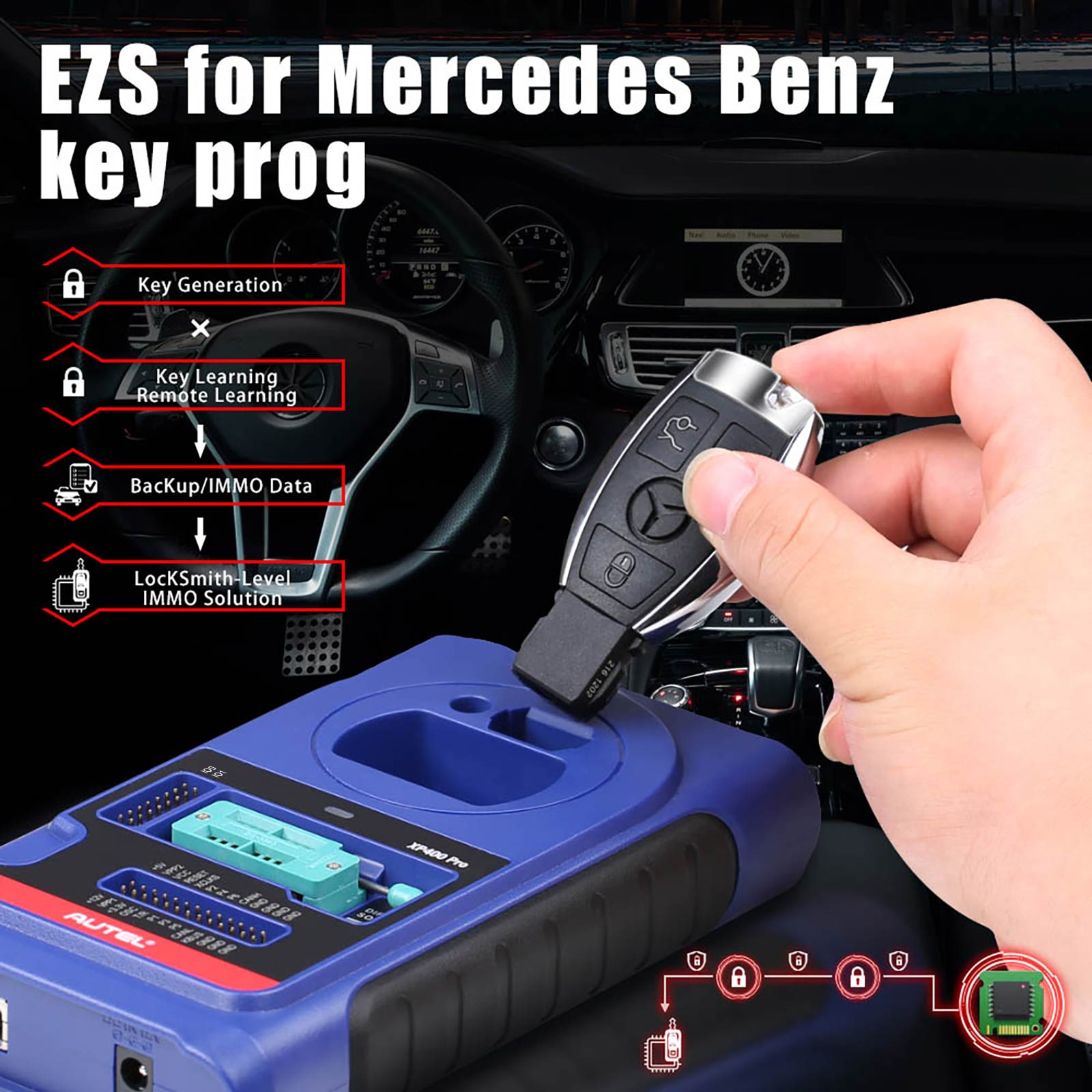

4. Merc-edes Key Read/Write
5. Remote Frequency Detect

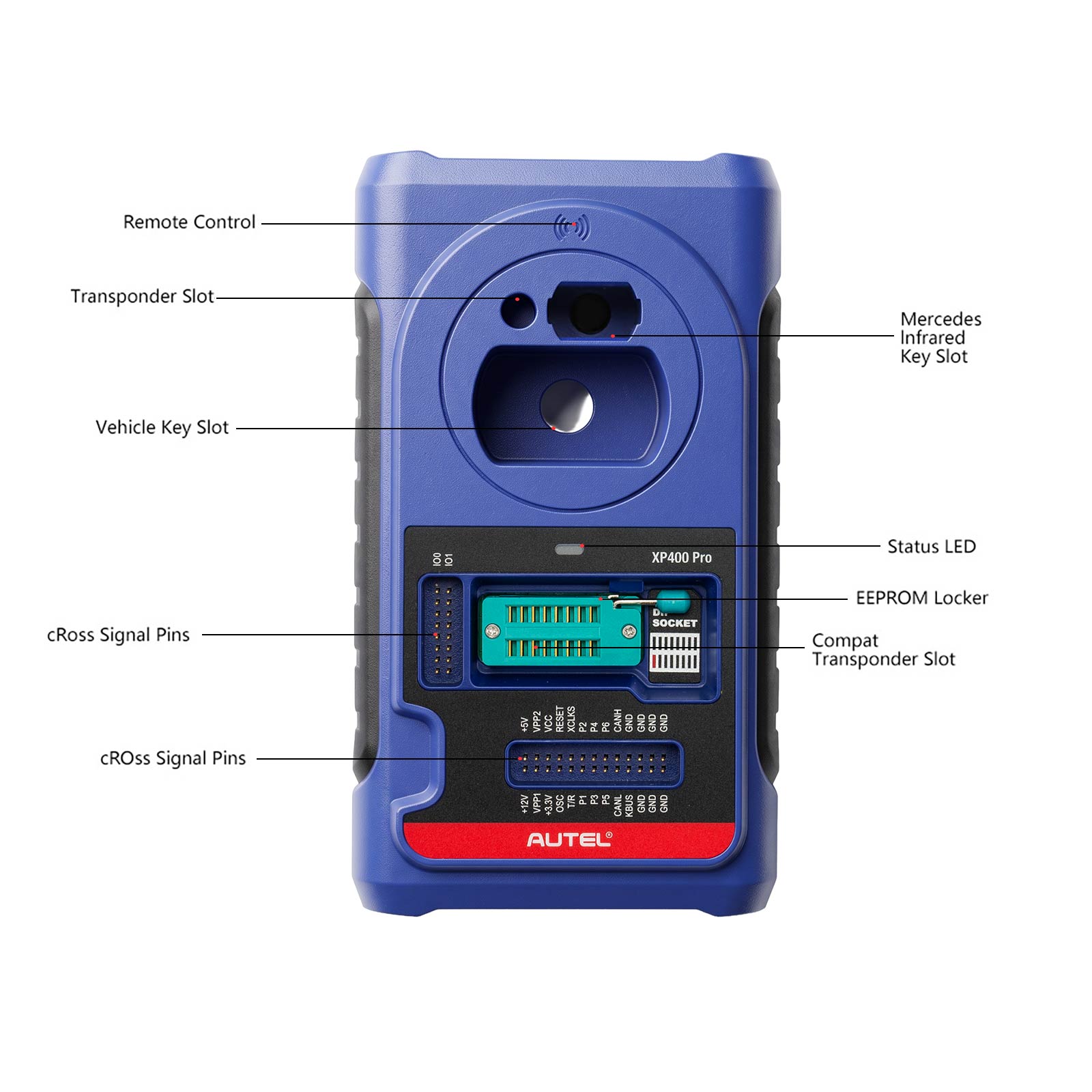

Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro (please check the below illustration).




Very Important!!!XP400 is not allowed to connect to car !!!otherwise, the XP400 will be damage!!!

Comparison Table for XP400, XP400 Pro and Xhorse VVDI Prog:
Features XP400 X400 Pro VVDI Prog
EEPROM read/ write 330 chip types 445 different chip types newly added support (AM29FXXX seriesMB29FXXX series) 429 different chip types
MCU read/ write 1541 chip types 2067 chip types 1758 different chip types
Engine ECU read/ write 40 chip types 41 chip types add write support for SIMTEC76(AM29F800BB)_WRITE Engin ECU read (74 types)
Immoblizer ECU read/ write 40 chip types 41 chip types add write support for SIMTEC76(AM29F800BB)_WRITE Engin ECU read (74 types)
Odometer read/ write 168 chip types 181 chip types 171 chip types
Airbag read/ write read odometer module 9 types read odometer module 171 types (update in July) read odometer module 171 types
Frequency detection read airbag module 5 types read airbag module 5 types read airbag module 54 types
Key read/ write 315/ 433/ 868MHz 315/ 433/ 868MHz N/A
Unlock key N/A support 11 key types (Audi/ BMW) 6 key types
Write key via dump Mitsubishi, suzuki, fiat, landrover, Jaguar Mitsubishi, suzuki, fiat, landrover, Jaguar Support 40+ vehicle makers
Easy to use/ stability 1. menus are too value and can't select intuitively
2. with high-definiton wiring diagrams (not sufficiently covered)
1.Stability of key read/ write, chip read/ write, IR key read/ write are greately enchanced.
2.menus are too vague and can't select intuitively
3.with high-definiton wiring diagrams (not sufficiently covered)
1.menus are clear and easy to use
2.with high-definiton wiring diagrams (sufficiently covered)
3.high stability of chip read/ write

XP400Pro Adds Support for Following Chips:

EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJI-TSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BE-NZ-->> ESL_W209_W906(Moto-rola) read/write/erase function
IMMO-->> BM-W-->>EWS3 module read/write function
REMOTE_RENEW (renew key)-->> NEC-->> V51 and V5 chip read/write/erase



XP400 Pro Adds Support for Following IMKPA Accessories (Need to Buy IMKPA Accessories Separately)

APB113 PCF79XX adaptor board
APB114 EWS3 adaptor board
APB115 NEC adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXX adaptor board
APB120 TMS370 adaptor board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board

Autel XP400 PRO

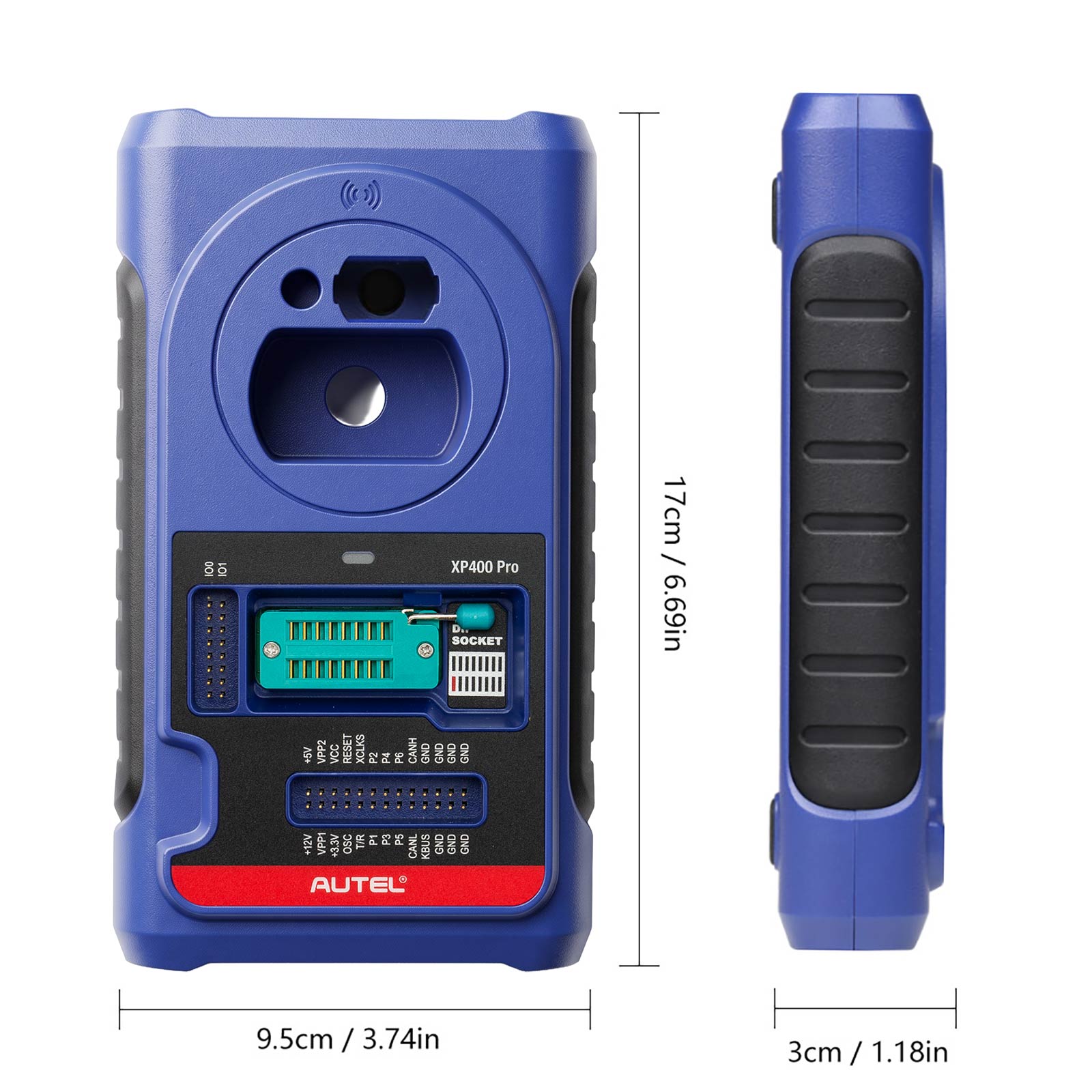

XP400 Pro Specifications:

Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)
Port Type: B-USB, DB26, DC12
Input Voltage: 5 VDC, 12VDC
Operating Current: < 500 mA
Maximum Consumption: 2.5 W

XP400 Pro

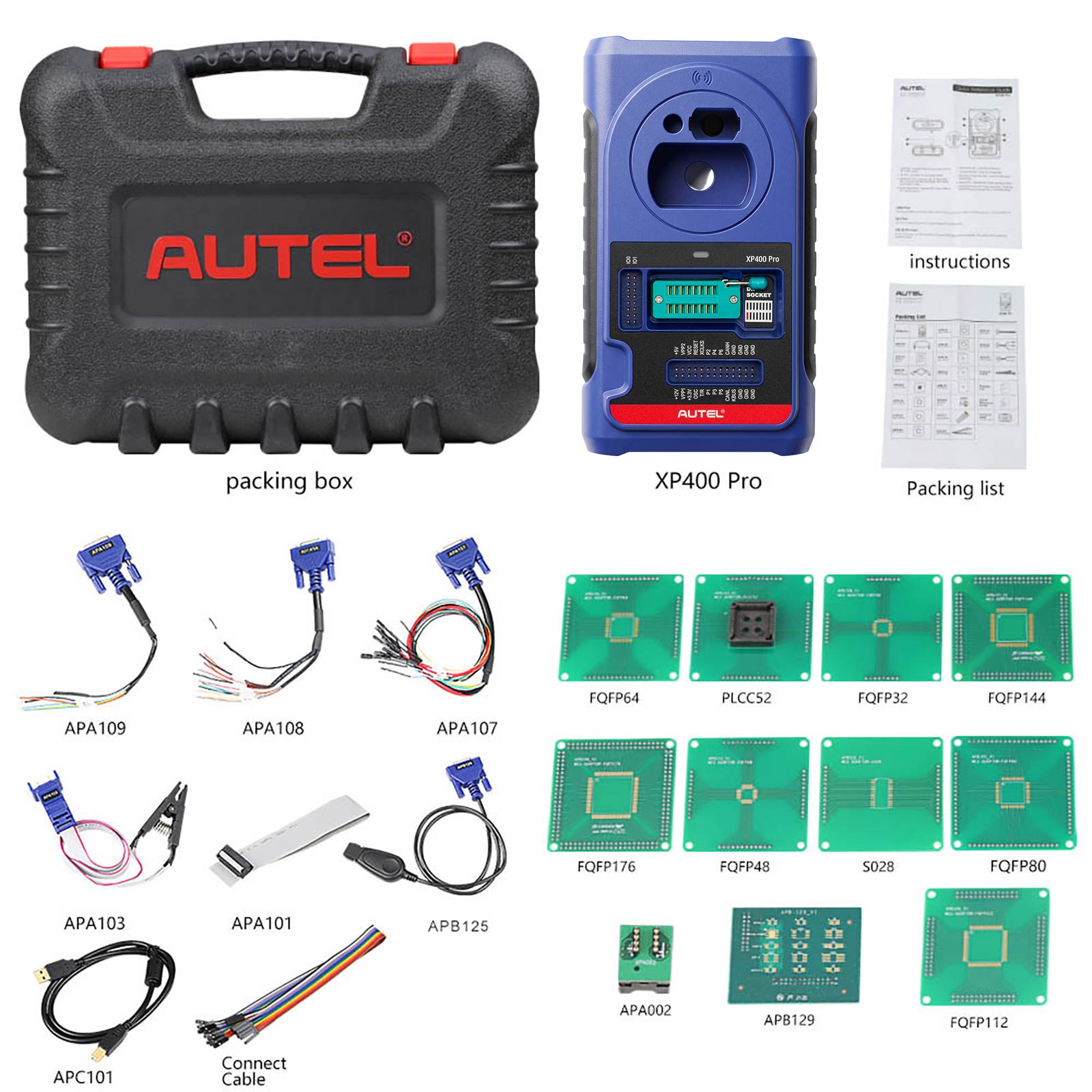

Package includes:

1pc x XP400 Pro Main Unite

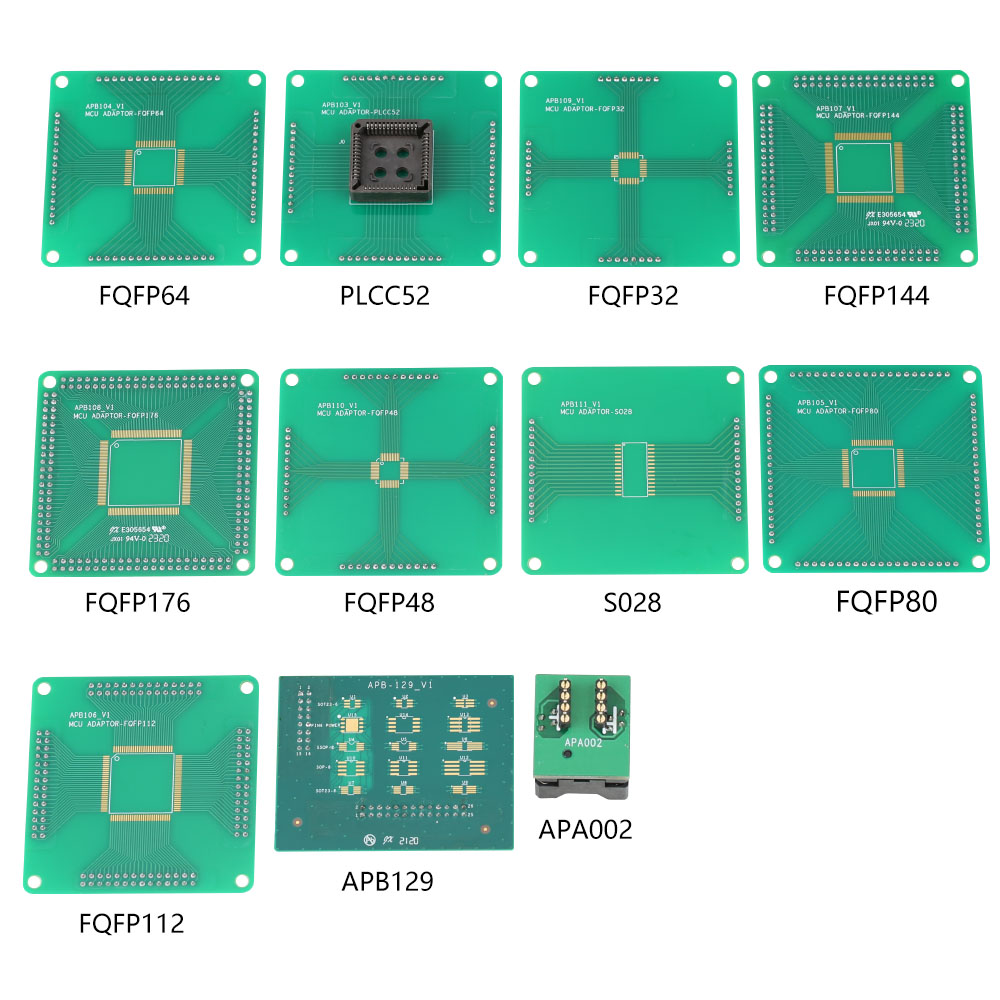

1pc x APB129 – EEPROM Adapter
1pc x APA002 – EEPROM Socket
1pc x APB125 – Mercedes Infrared Collector
1pc x APB103 – MCU_PLCC52 Adapter
1pc x APB104 – MCU_FQFP64 Adapter
1pc x APB105 – MCU_FQFP80 Adapter
1pc x APB106 – MCU_FQFP112 Adapter
1pc x APB107 – MCU_FQFP144 Adapter
1pc x APB108 – MCU_FQFP176 Adapter
1pc x APB109 – MCU_FQFP32 Adapter
1pc x APB110 – MCU_FQFP48 Adapter
1pc x APB111 – MCU_SO28 Adapter
1pc x APA101 – Spare Signal Cable
1pc x APC101 – USB Cable (Standard USB –Type B USB)
1pc x APA103 – EEPROM Clamp
1pc x APA107 – ECU Cable
1pc x APA108 – MCU Cable
1pc x APA109 – MC9S12 Cable
1pc x Dupont Line




About Delivery

EU Warehouse Shipping: 3-5 working days. We have stocked up hot sale items in EU(Czech) Warehouse ,which is more convenient for you. Free TAX, faster shipping with cheaper price.

DHL Shipping: 3-4 working days, To help you clearance we will help declare a lower price on the invoice. If address is remote area, customer need pay remote freight or we will ship by Normal Post or Yanwen Express.

Yanwen Express: 7-10 working days, usually No Tax for European Countries or Remote Area . The tax was pre-paid, when package reached, there's no tax no extra fee for customers.

Note:
1.All of the items will be shipped to PAYPAL Shipping Address,please confirm your address on PAYPAL before you buy.
2.Your order will be usually shipped out the same or next business days once the payment is made, except on weekends and holidays.


Contact information:

Email: Sales@DiagOBD2.de
Skype: diagtool.de
Mobile:+86 15223201143
WhatsApp: +86 15223201143
Online service support

Handy Version: Bitte scannen das Bild, koennen Sie per Handy Kaufen!!!




Technischer Service

This post discusses errors that might occur when using the Autul XP400 Pro and the steps to take to resolve these issues. (Same solution with XP400)

Vehicle Linking Error

A communication error occurs if the diagnostic tablet fails to communicate with the XP400 Pro. Please do the following to correctthe error:

1. Verify that the XP400 Pro has been authorized by the diagnostic

tablet.

2.Verify the Internet connection is strong and stable.

3. Verify that the power LED on the XP400 Pro is lit solid green.

PC Communication Error

A communication error occurs if the XP400 Pro fails to communicate with PC. Please do the following to correct the error:


1. Verify that the power LED on the XP400 Pro is lit solid green.

2.Ensure no firewall software on the PC is preventing communication

and that the USB port is functioning properly.

3.Ensure the USB communication status LED is blinking green.

Contact technical support if the above steps fail to resolve the communication error.
