X100PRO3 is a professional key matching machine with special functions OBD2/EOBD diagnostic function. It is an upgraded version of X100 PRO2, which cancels the odometer change and adjustment function, but adds EPB, ABS, TPS reset functions, which can meet the needs of more needs of multiple car owners.
Update version of X100 Pro2
Key programming+diagnosis+ 7 special functions
Pin coding reading + ECU initalizing + chip programming
X100 PRO3 Main works for most of Europe, Asia, America, Australia Car Models Key Programmer
language support: English, German, Spanish,Portuguese, French,Italian.Polish,Russian
Free Update With LifeTime on Xtool Official Website
1. It do not support mileage correction
2. Do not support for WiFi
IMMO Key Programming Function:
1. New keys programming
2. Read keys fromimmobilizer memory
3. New immobilizer programming
4. New ECU programming
5. New mechanical key number programming
6. Vehicle Identification Number programming
7. Reset ECM & Reset Immobilizer
8. Easy to operate by guiding menu programming
9. New remote controller programming
7 Kinds of Special Reset Service Functions
Oil Reset Service: Performs reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate, and turns off the warning light;
Electronic Parking Brake (EPB) Service: Maintains the electronic braking system safely and effectively through deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
Steering Angle Sensor (SAS) Service: Performs calibration for the Steering Angle Sensor (SAS), which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.
IMMO Service: enables you to disable the lost vehicle keys and program a replacement key fob.
ABS Bleeding: ABS brake bleeding to get a firm brake pad after air exhaustion.
And many more ...
Complete OBD2 functions
Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
Xtool X100 Pro3 vs X100 Pro2
|Item Name||X100 Pro2||X100 Pro3|
|Odometer||√, not good||×|
|Oil Light Reset||×||√|
How to make Update
1.Go to Xtool Official Website and go inside the X100 PRO3
2.Contact the X100 PRO3 with the Laptop
3.Download the Update helper then click the update for the newest software
How to back to normal when the device displays a white screen or no application.
Step 1: Connect PRO3 to a Windows PC, find the memory card, and format it.
Step 2: Log in the upgrade tool and click upgrade
(Attention!!! During the upgrade, please do not operate the key of the machine or disconnect the data line. After the upgrade prompt is successful, unplug the data cable and reconnect it.)

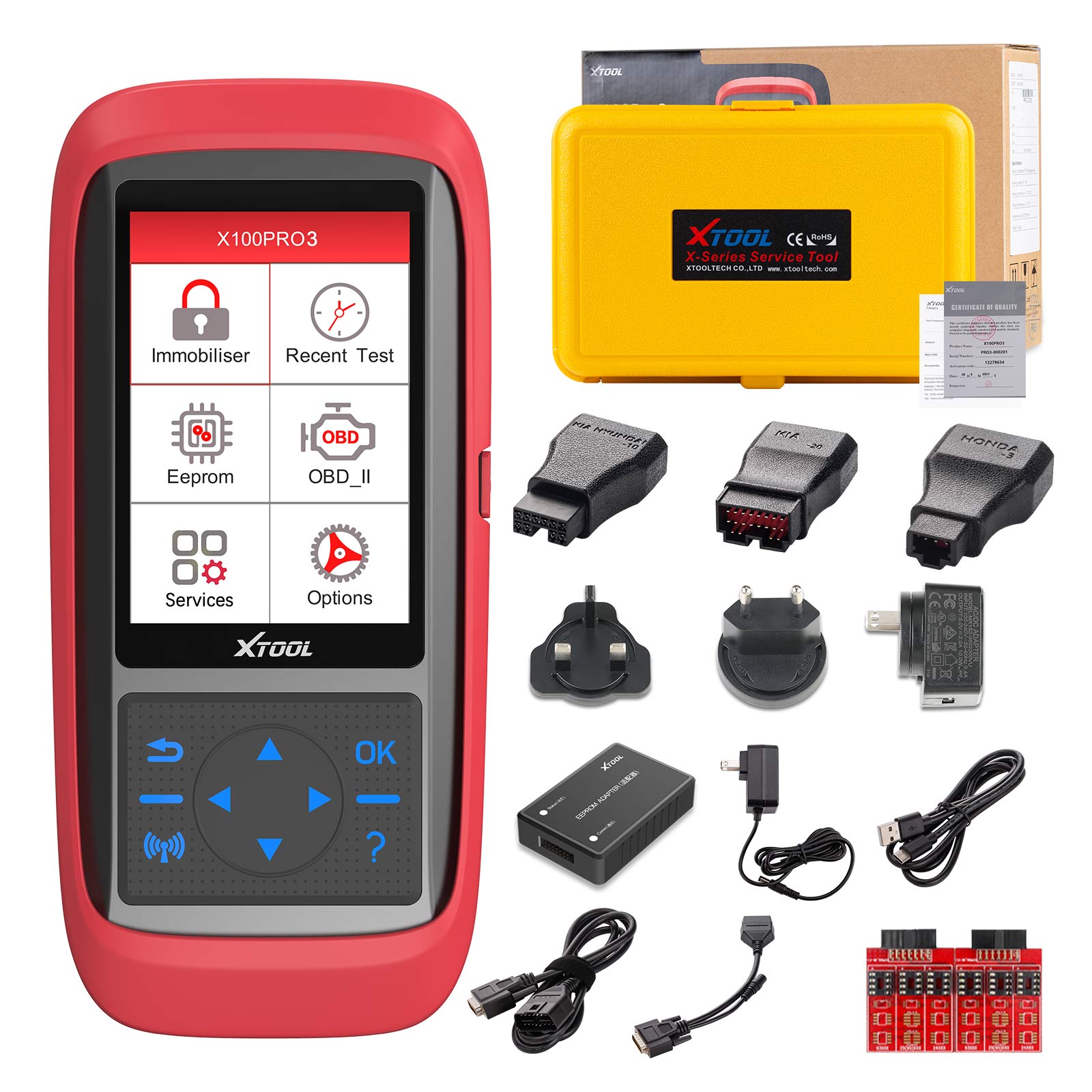

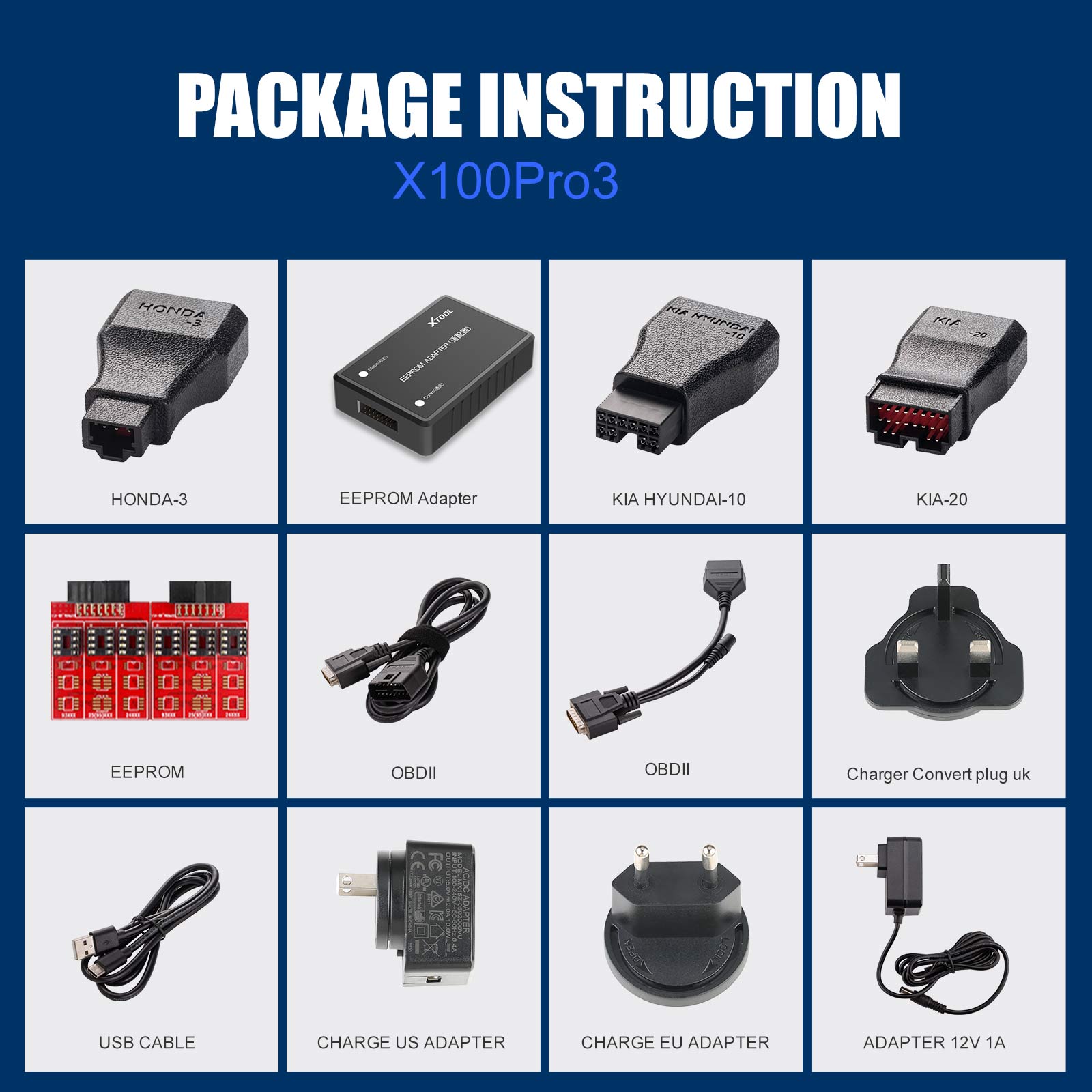

1PC x X100 Pro3
1PC x HONDA-3
1PC x OBDII-16
1PC x KIA HYUNDAI-10
1PC x KIA-20
1PC x EEPROM
1PC x EEPROM Adapter
1PC x Power Adapter 12V 1A
1PC x Main Cable
1PC x Micro USB Cable
1PC x US Power Adapter
1PC x EU Power Adapter
1PC x Plastic Box
