XTOOL M822 Adapter Key Programmer For Toyota 8A AIl Keys Lost Work With XTOOL X100 PAD3 X100 MAX IK618 IP616 IP819 IP819TP
XTOOL M822 Adapter Key Programmer For Toyota 8A AIl Keys Lost Work With XTOOL X100 PAD3 X100 MAX IK618 IP616 IP819 IP819TP
Product Introduction:
Users can do the Toyota all keys lost matching with the help of XTOOL M822 adapter, saving you a lot of time of plugging and unplugging the key emulator.
Product Features:
Toyota 8A AIl Blade Keys Lost Programming
2014-2019 For TOYOTA 4A/8A Smart Key Programming
Pincode-free
Add key/All keys lost
No specialized keys needed
Models Supported:
2014~2019
For Toyota LevinFor Corolla
For RAV4For Prado
For Land Cruiser
For Camry
For Highlander
For ReizFor Sienna
For HiaceFor Hilux
For Crown Kluger
For Aygo with IMMO box F3-F4-K6-S6
XTOOL devices that are compatible with M822:
XTOOL X100 PAD3, X100 PAD3 SE, X100 MAX, D8, D8BT, D9, D9PRO, A80, A80PRO, A80PRO MASTER, IP616, IP819, IP819TP, IK618
Connection Method via OBD:
1. Connect KC100/KC501 to the device via USB and prepare a KS-
2. Connect the device (or VCI box) with the M822 Adapter using the main cable.
3. Connect the Toyota cable to the car using OBD port.
4. Take the battery clip from the car out and use the battery clip to connect the cable to the battery.
5. Take out the fuse from the fuse box then plug the cable into it.
6. Find the 12V DC male port from the Toyota cable and connect it to the 12V DC female port from the main cable.
Note: For different models, the connection method might not be same. Sometimes an extend cable is needed, and the fuse might be different. Please check XTOOL tablets for detailed wiring diagram when connecting to vehicles and fuseboxes.

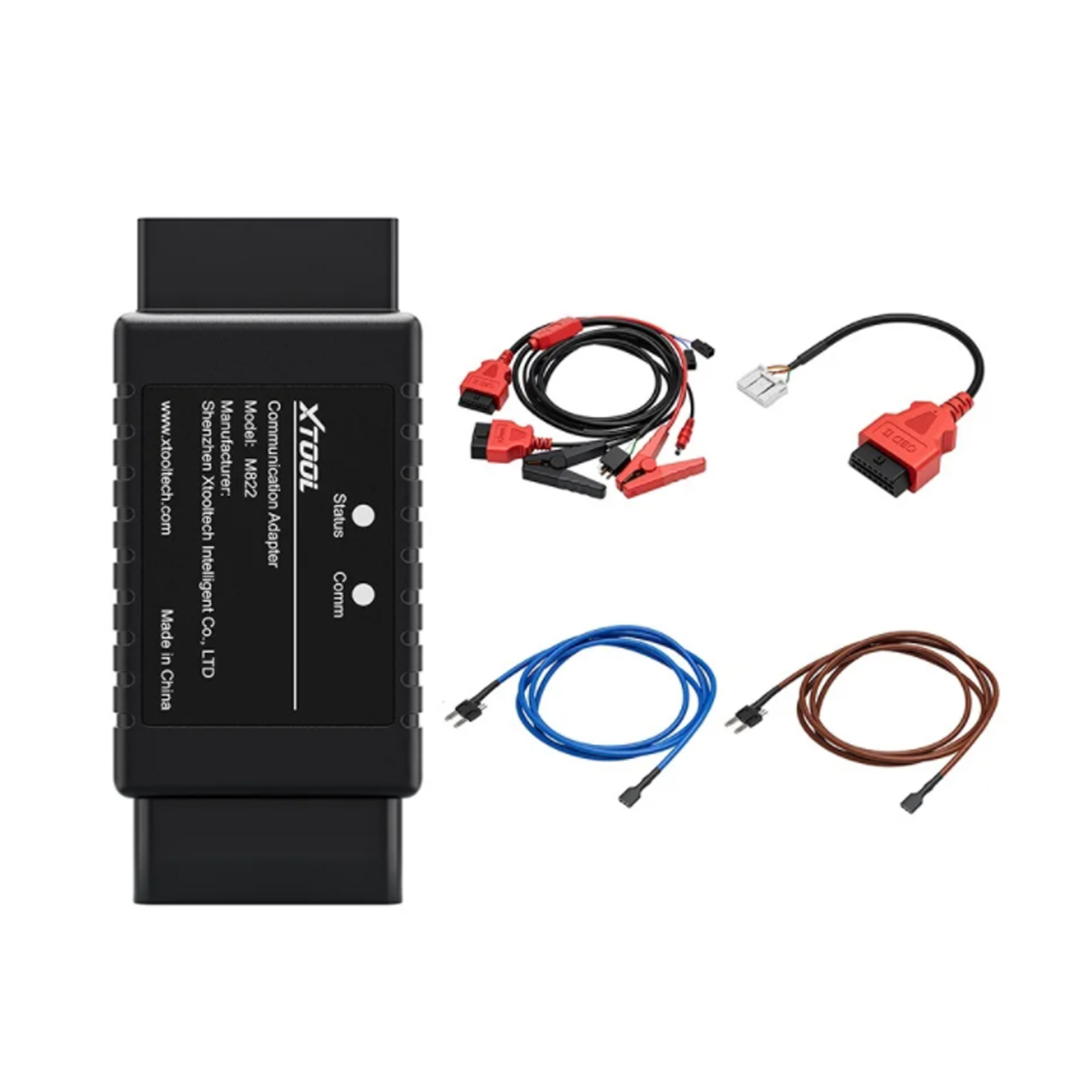

Package Includes:
1pc x XTOOL M822 Adapter
1pc x For Toyota-1 adapter cable
1pc x For Toyota-2 adapter cable
2pcs x 8A Jumpers
