3 Years Free Update XTOOL D9S PRO Auto Diagnostic Tool Full System Diagnosis 42 Services ECU Coding Key Programming Active Test CAN FD DoIP 3 Years Free Update
Neueste Preis: €1,099.00Sofort Kaufen: €1,027.00
7% off
Original Launch X431 tools with Good Offer
Hot Selling Products,EU Ship No Tax
Any help,please contact WhatsApp: +86 15223201143
Hot Selling Products,EU Ship No Tax
Any help,please contact WhatsApp: +86 15223201143
Versand:
Kostenloser Versand
Express VersandserviceLieferzeiten: DHL:5-7 Arbeitstage. Yanwen: 7-12 Arbeitstage. See details »
Rückkehr:
Erstattung: innerhalb 30 Tagen. Der Kunde vertr?gt Versandkosten Read details ?
Produktbeschreibung
- Full-System Diagnostic
- 40+Maintenance Functions
- 3 Years Free Update
D9SPRO is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual WIFI modules for stable data transfer between the tablet and VCI. It is designed for mechanics, electricians, and automotive repair stores, it provides full-system automotive diagnostics, live data, Bi-directional control tests, ECU coding and programming. D9SPRO also supports 42 standard special functions such as throttle adaptation, ABS bleeding, service light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage and compatibility with over 100 brands and 10,000 car models, the D9SPRO is a versatile and reliable tool for any automotive professional.
Product Features:
Full-System Diagnostic：Perform OE-Level diagnosis on all available systems. Support ECU information, read and clear DTC, live data and freeze frame and special function under system menus.
Online & Offline Programming：Support Online Programming for Volkswagen, Audi, BWM, Mercedes-Benz and programmable module installation for Ford and Mazda.
Topology Mapping Supported：Provides a visual representation of the communication status of each system in the vehicle during automatic scanning.
40+Maintenance Functions：Include top popular maintenance functions, like ABS Bleeding, Key Programming, Injector Coding, Oil Reset, EPB, etc.
Diagnostic system: Full system full function
Basic function: OBDⅡ, Auto VIN, Read ECU Information, Read code, Clear code, Read live data, Read freeze frame, Actuation test
Other function: Adaptation, Basic Setting, Display Advanced Identification, Security Access(Login), Coding
Supported languages: Arabic, German, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Traditional Chinese, Vietnamese, Turkish
Special Functions：
Oil Light Reset, ECU Configuration EPB, A/F settings, SAS, Start/Stop Reset, DPF, Airbag Repair, BMS Reset, Instrument Cluster, Throttle, Language Change, TPMS Reset, Transporter Mode, ABS Bleeding, Tire Upgrade, Injector Coding, Gear Learning, Key Programmer, Power Balance, Gearbox Match, EEPROM, Suspension, Electronic Pump Activation, Window Initialization, ADAS Calibration, Seat Calibration, Speed Limit, Headlight Clutch Adaption, SRS, AdBlue Reset, EGR Relearn, FRM Reset, Nox Reset, Write VIN, VGT Relearn, HV Battery, A/C Relearn, Rain/Light Sensor, Control unit Reset, Odometer Read
Wide Vehicle Coverage:
| LANCIA | FIAT | TOYOTA | LEXUS |
| SCION | HUMMER | BUGATTI | ROEWE |
| SQTYWL | GM | SEAT | CHANGHE |
| ABARTH | VAUXHALL | EURFORD | CITROEN |
| LIFAN | YQVW | AUSFORD | MAZDA |
| BMW | HONDA | ACURA | GAC GONGW |
| AUDI | NISSAN | INFINITI | NISSANGTR |
| GMC | HYUNDAI CV | SUBARU | HYUNDAI |
| KIA | DFPEUGEOT | RENAULTSAM | CHRYSLER |
| DODGE | JEEP | MIT | SSANGYONG |
| CHEVROLET | ROMEO | PORSCHE | RENAULT |
| ISUZU | TLISUZU | BENTLEY | BENZ |
| MAYBACH | BUICK | JAC | VW |
| MASERATI | BAOJUN | CADILLAC | CHANGAN FORD |
| LANBORGHINI | USAFORD | PEUGEOT | DACIA |
| PROTON | HOLDEN | GEELY | FERRARI |
| BRILLIANCE | ZHONGHUA | DAEWOO | SAAB |
| PERODUA | VOLVO | DAIHATSU | POLESTAR |
| ASTONMARTIN | LANDROVER | CHERY | DFCITROEN |
| LINCOLN | SKODA | SATURN | SMART |
| SUZUKI | CHINA MAZDA | MG | JAGUAR |
| GAZ | UAZ | LUXGEN | YQAUDI |
| GREATWALL | BYD | TRANSPORTER | CVVW |
| MINI | MAXUS | OPEL | ROLLS |
Product Comparison of D9PRO & D9SPRO
| Model | D9PRO | D9SPRO |
| operating system | Android 10 | Android 10 |
| processor | Quad core 1.8Ghz | Quad core 1.5Ghz |
| Memory | 2+128G | 4+128G |
| Screen size | 9.7 inches (1024*768) | 9.7 inches (1024*768) |
| Operation method | Tablet touch screen | Tablet touch screen |
| Connection method | Bluetooth/wired connection | WIFI/wired connection |
| Battery capacity | 10000mAh | 6400mAh |
| Charging method | Adapter (two connectors) | USB (three connectors) |
| Upgrade method | Device connected to WIFI for online upgrade | Device connected to WIFI for online upgrade |
| Free upgrade time | 3 years | 3 years |
| CAN FD | YES | YES |
| DOIP | YES | YES |
| USB interface | 3.0 | 3.0 |
| WIFI | 2.4G/5G | 2.4G/5G |
| Camera | ||
| Used with an Endoscope(optional) | YES | YES |
| Bracket | YES | YES |
| Navigation bar below | fixed | flexible |
Product Specifications:
| Items | Description |
| Operating System | Android 10 |
| Processor | 4 Core 1.50GHz |
| Memory | 4G RAM, 128 ROM |
| Display | 9.7 inch capacitive touch screen with 1024×768P resolution |
| Communication | WIFI |
| Connectivity | WIFI 2.4/5 GHZ | Type C |
| Camera | Rear camera, 8.0 Megapixel, AF with Flashlight. |
| Sensors | Gravity Accelerometer, Ambient Light Sensor |
| Auto Input/Output | Microphone/ Speaker |
| Working Voltage | 9 to 36V |
| Operating Temperature | -10 to 40℃ |
| Storage Temperature | -40 to 60℃ |
| Humidity | <90% |
| Dimension (L×W×H) | 313X218X30 mm |
| Protocol compatibility | CANFD, DoIP |
| Weight | 7.22KG |
| Live or not | Live |

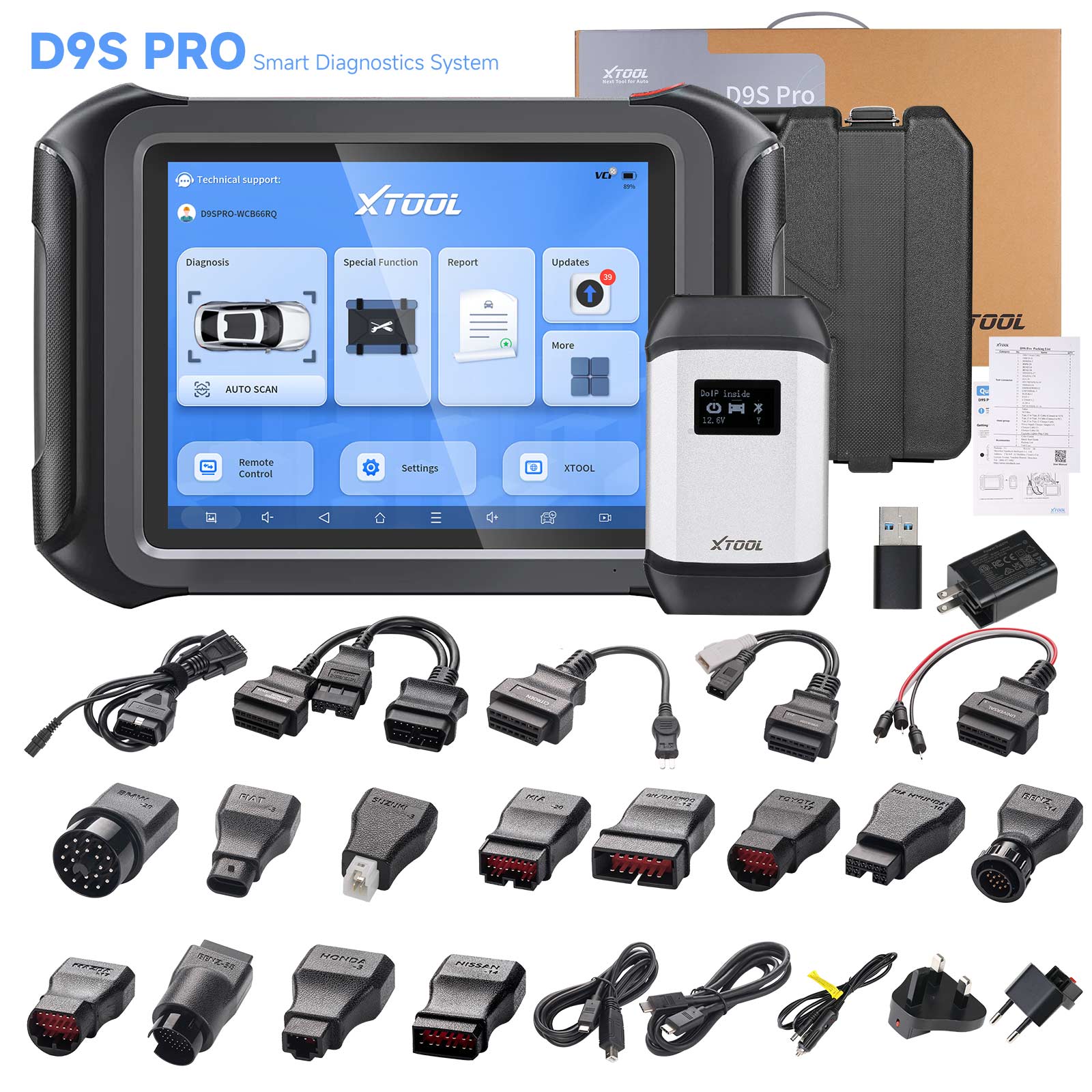

Package Includes:
| Category | No. | Name | QTY |
| Test Connectors | 1 | DB15 Main Cable | 1 |
| 2 | OBD II-16 | 1 | |
| 3 | HONDA-3 | 1 | |
| 4 | BMW-20 | 1 | |
| 5 | BENZ-14 | 1 | |
| 6 | BENZ-38 | 1 | |
| 7 | TOYOTA-17 | 1 | |
| 8 | MAZDA-17R | 1 | |
| 9 | KIA-20 | 1 | |
| 10 | HYUNDAI/KIA-10 | 1 | |
| 11 | NISSAN-14 | 1 | |
| 12 | GM/DAEWOO-12 | 1 | |
| 13 | UNIVERSAL-3 | 1 | |
| 14 | SUZUKI-3 | 1 | |
| 15 | FIAT-3 | 1 | |
| 16 | CITROEN-2 | 1 | |
| 17 | AUDI-4 | 1 | |
| 18 | MITSUBISHI-12+16 | 1 | |
| Host group | 19 | Tablet | 1 |
| 20 | VCI Box | 1 | |
| 21 | Type_C to Type_B Cable（Connect to VCI） | 1 | |
| 22 | Type_C to Type_A Cable（Connect to PC） | 1 | |
| 23 | Type_C to Type_C Charger Cable | 1 | |
| 24 | Power Supply Charger Adapter US | 1 | |
| 25 | Charger Cable EU | 1 | |
| 26 | Charger Cable UK | 1 | |
| 27 | Cigar Lighter Cable | 1 | |
| Accessories | 28 | Color Carton | 1 |
| 29 | Quick Start Guide | 1 | |
| 30 | Packing List | 1 | |
| 31 | Tool Case | 1 | |
| 32 | Desiccant | 1 |
