Original Xhorse VVDI Mini Key Tool for IOS & Android Replaces Xhorse VVDI Key Tool Remote Key Programmer

Produktbeschreibung

Xhorse VVDI Mini Key Tool for IOS & Android Replaces Xhorse VVDI Key Tool Remote Key Programmer

Pls note 2023 version No free token!
Copy 48 license can only be activated after finishing 10 pcs xhorse remotes.
Xhorse VVDI mini key tool comes as the replacement of VVDI key tool. It features size, weight, high speed and compatibility of mobiles. Works well for chip cloning and remote key copying and generation. VVDI mini key tool is Multi-Language Now, it's free to switch language.

VVDI Mini Key Tool Remote Tester features :

Copy Transponders
Requires connection with mobile phone
Generates remotes and transponders
Works like a RF and IR tester
Cheap price with powerfull function


Advantage of MINI Key Tool

1.Frequency test speed (super fast, frequnecy: 300-450Mhz, distance: 30 cm)
2.Database powerful,support more cars
3.Based on Mobile phone App via Bluetooth,very convenient, Both IOS and Android
4. Fast reading speed to get chip information
5. Get ID48 96bit authorization after you do 10 pcs xhorse remotes
6. Update Frequently
7. Compatible with large amont of xhorse universal remote keys

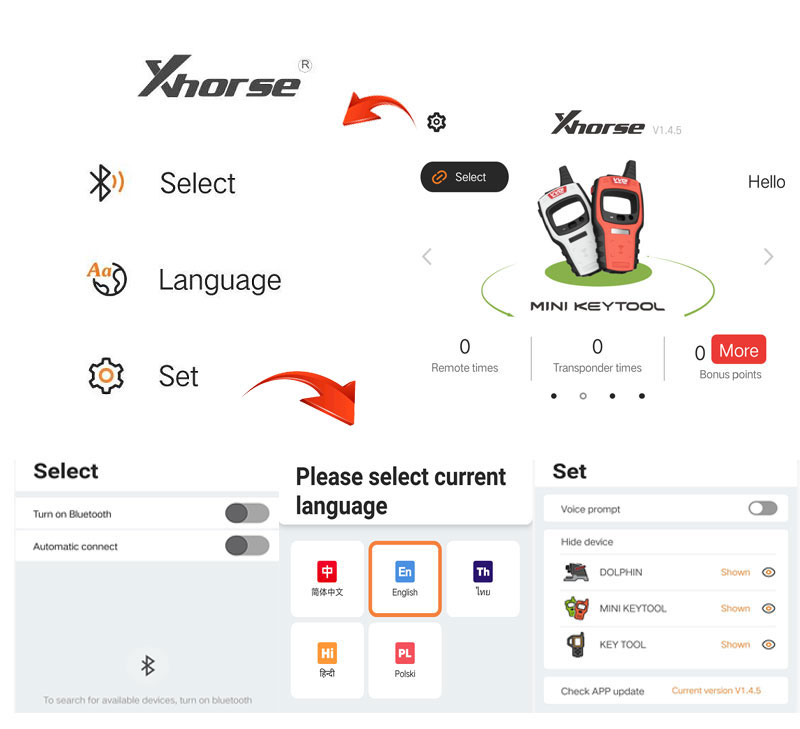

Xhorse App Language: English Chinese Spanish French Hindi Hebrew Italian Thai Polish Portuguese Korean and Indonesian


About GL version explaination
From different regions customer's feedback, they also need some other regions remote options(like ME region they also need some SE and EU database options)

So from 2.3.5 firmware there is GL version(Global) for customers
1. GL version from old 3 regions include(EU ME SE), those 3 old regions will automatically change to GL version from 2.3.5 firmware.
2. GL version will cover more remote options, will keep updating and adding more remotes
（if you find any options missing compare to old region version,you can contact us , we will update）
3. GL version already released more universal smart key generation options
4. If customer still prefer to keep old region version, just send us your device SN, we will setting back for you.
(GL or keep old region version,contact us from Xhorse APP online service or PM Xhorse support)

VVDI Mini Key Tool Function Introduction:

Main Functions:

• Remote Clone
• Remote Generation
• Garage Remote Generation
• Transponder Clone
• Generate Transponder
• Frequency Test
• Remote Renew
• IC/ID Clone
• Special Functions

It has ability to clone ID4C/4D, 46, 48, ID70, ID72 and can adapt to future updates.

It can also generate remotes for various car brands by connecting the mini key tool with the VVDI Mobile App available on both Android & iOS mobiles.

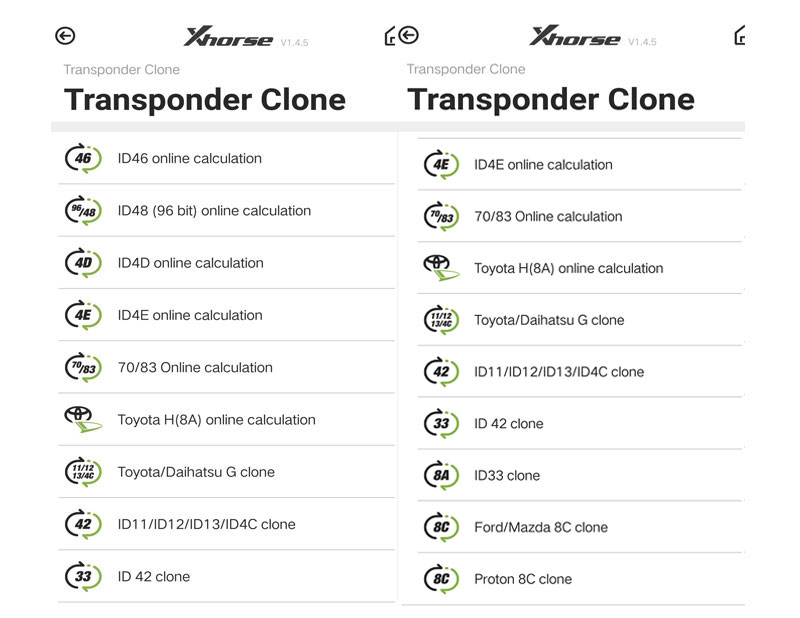

Transponder cloning:
Supports 46 42 4D 4E 11 33 8C 83 etc transponder cloning

Transponder Generating:
Support TP transponder & parts of special transponder
more than 700 vehicle models, reduce the stock of transponders efficiently.

Remote Cloning:
Support the HCS/Fixed code cloning, support non-HCS rolling code cloning, support PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.

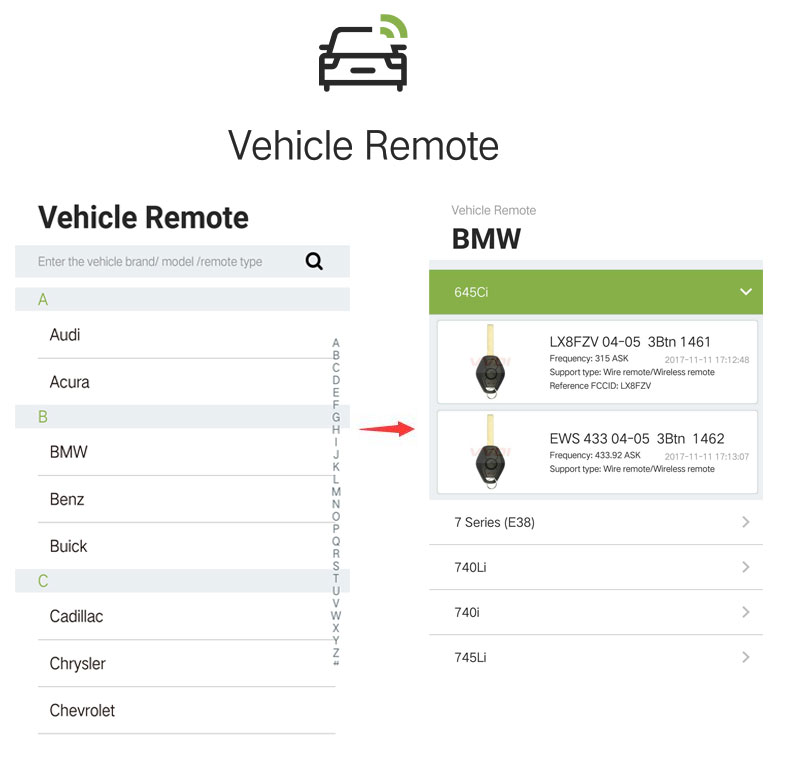

Remote Generate:
Support 128 brands, over 2000 vehicle models. Generate

more abundant and thorough key pictures, transponder types, key blanks and remote matching data.
Frequency Test:
Support the power test within the range of 300-450Mhz.

Garage Remote Generating:
Support more than 100 types


Mini KeyTool ID48 Cloning Tip:
"To effectively use the ID48 clone service, there are new policies in place that customers must follow. These include:
1. Setting up an Xhorse phone number account
2. Binding the device (Keytool, Mini Keytool, Keytool Max, or Keytool Max Pro) to the customer's Xhorse account
3. Logging in to the customer's Xhorse account on the Xhorse app and using that account, which must be the one that the device is bound to, for the ID48 clone service.
Note: Customers will not be able to use the ID48 clone service if their Xhorse account is not the one that is bound to the device."

VVDI Mini Key Tool Full Authorization (already activated):

• AI - Car Remote Type
• AI - Key Blade Type
• AI - PIN Code
• Remote - Vehicle Remote
• Remote - Garage Remote
• Remote -Proximity Remote
• Generate Transponder - 7935/46/4D/48/8C
• Generate Transponder - Toyota H (8A)
• Transponder Clone - ID48 (96 bits)
• Transponder Clone - ID46
• Transponder Clone - ID4D
• Transponder Clone - ID4E
• Transponder Clone - ID70/ 83
• Transponder Clone - ID11/ 12/ 13/ 4C/ 8C
• Transponder Clone - Toyota/ Daihatsu G
• Transponder Clone - Toyota H (8A)
• Transponder Clone - ID33/42
• Transponder Edit - 11/12/13/4C
• Transponder Edit - 46/47/48/4D/4E
• Remote Clone - Fix Code
• Remote Clone - Rolling Code
• Remote Clone - Make New
• Detect Remote Frequency
• Set Type of VVDI Super Transponder
• VVDI Special TP
• Special 4D to 4C
• Unlock Toyota Smart Key
• ID63 to ID83
• Hyundai/Kia PIN Code
• Copy BYD Smart Key
• Detect Ignition Coil Signal
• Online Technical Support
• Technical Center
• Video Center
• History

Toyota H Transponder:
Activate Toyota H transponder generation function

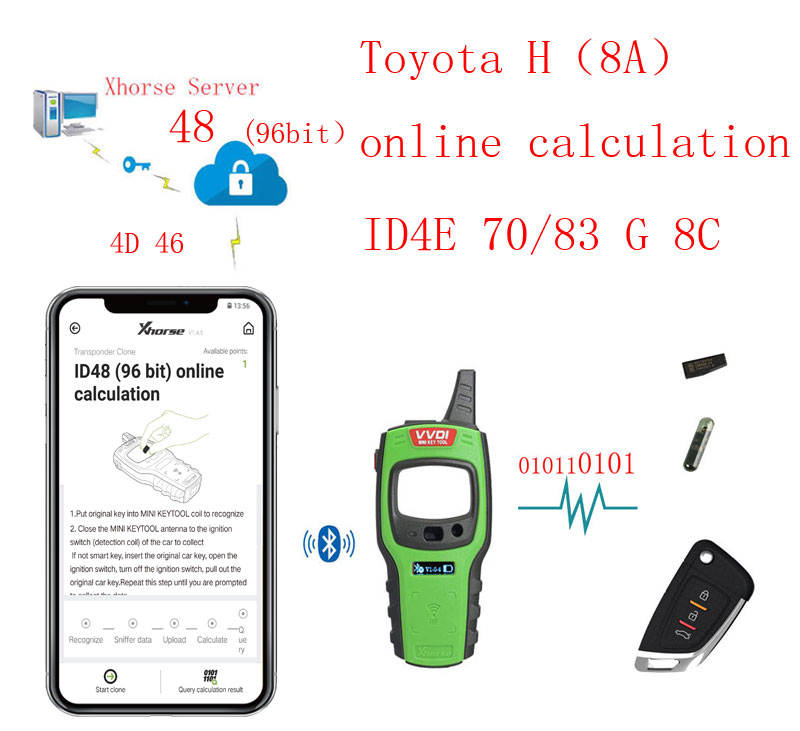

ID48 96 bit Transponder Online Calculation:

Highlights:

Small but powerful and professional
Timesaving: run fast (1 second to turn on/off the machine, recognize chips/frequency)

Pros and Cons:

Pros:
The mini key tool is small, light and portable
It’s easy to update app. Most update can be done on the application
Works as other app produced in the current mobile Internet era
Starts and runs very fast:  (20 seconds to test frequency)

Cons:
Power and network are required.
If there is power or network connection, you can do nothing with the key tool

Language:

Languages : You can change any language in the app yourself. But the database can only support English

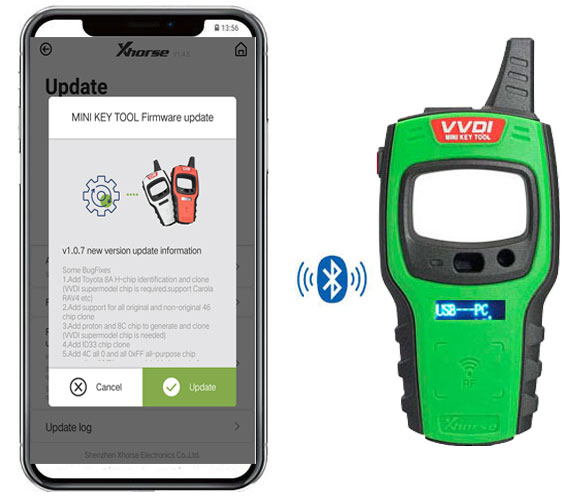

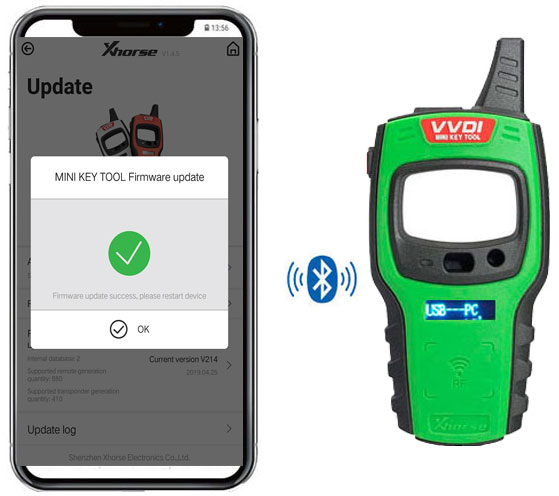

Firmware Update:


Database Update: (via a PC or mobile phone)
update on a PC

update on a mobile (iOS or Android)


Function authorization:

Function list:


1. Transponder Editing &Cloning
Detect most immobilizer transponder edit and clone common transponder in the market

Note: the mini key tool can copy 48 96 bit

2. Transponder Generation
Support TP transponder & parts of special transponder more than 700 vehicle models, reduce the stock of transponders efficiently.

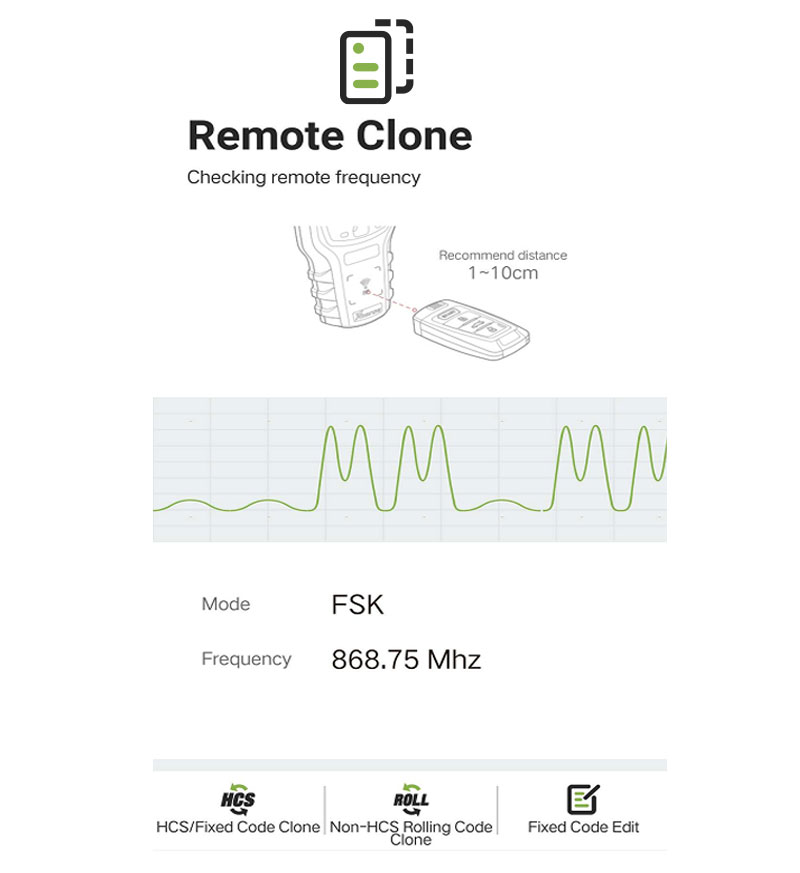

3. Remote Cloning
Support the HCS/Fixed code cloning, support non-HCS rolling code cloning, support
PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fixed code editing.

4. Garage Remote Generation
Support more than 100 types.

5. Remote Generation
Support 128 brands, over 2000 vehicle models. Generate more abundant and thorough key pictures, transponder types, key blanks and remote matching data.

6. Frequency Test
Support the power test within the range of 300-450MHz.

7. Toyota H transponder
Activate Toyota H transponder generation function

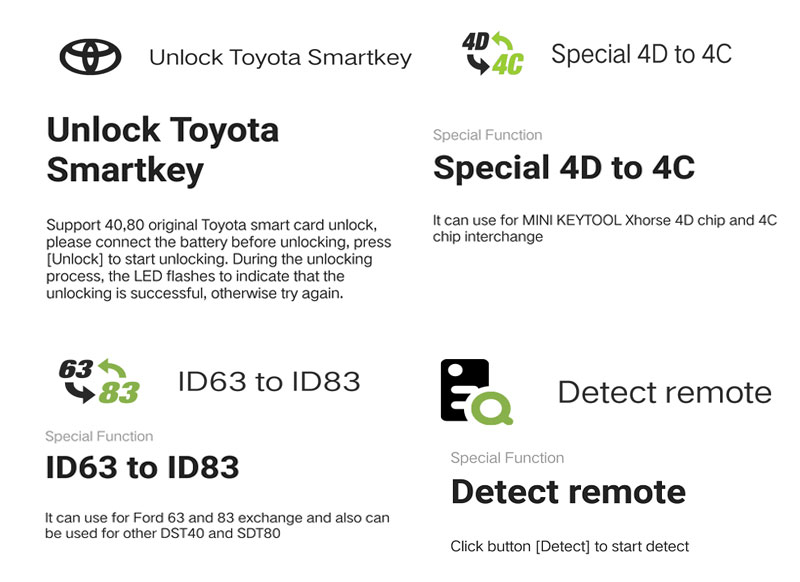

Special Functions:
1. Unlock Toyota smart keys
2. ID63 to ID83
3. Special 4D to 4C
4. Detect remote

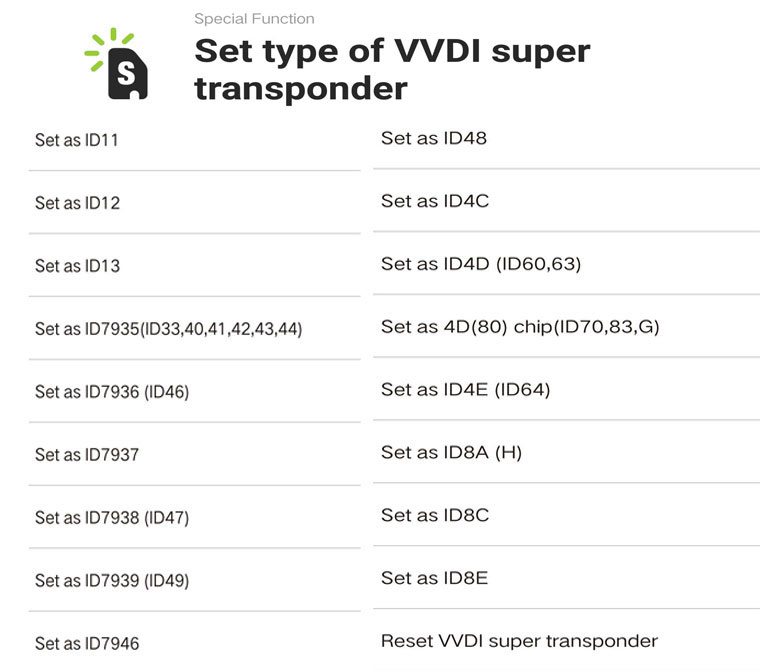

5. Set type of vvdi super chip

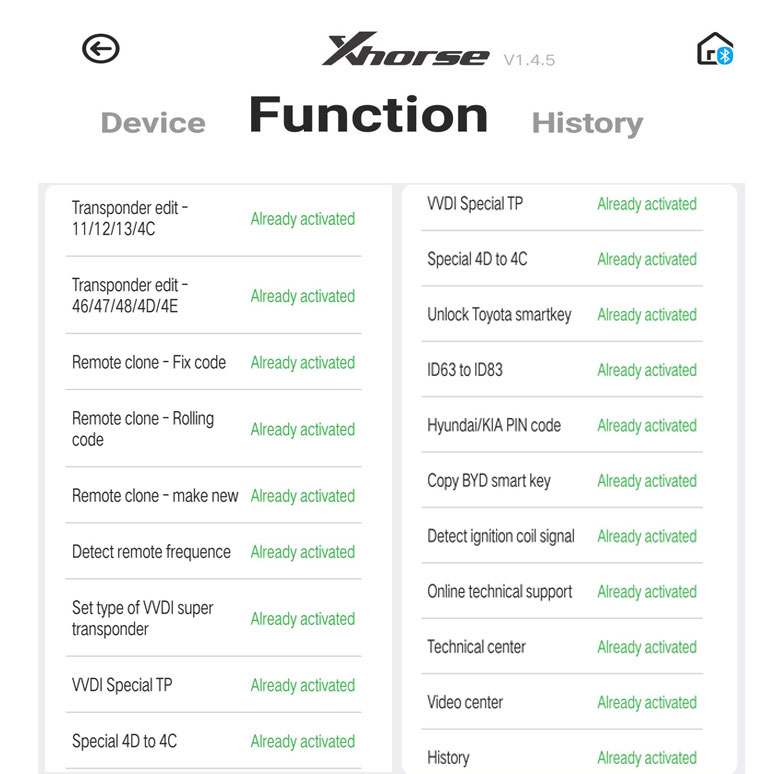

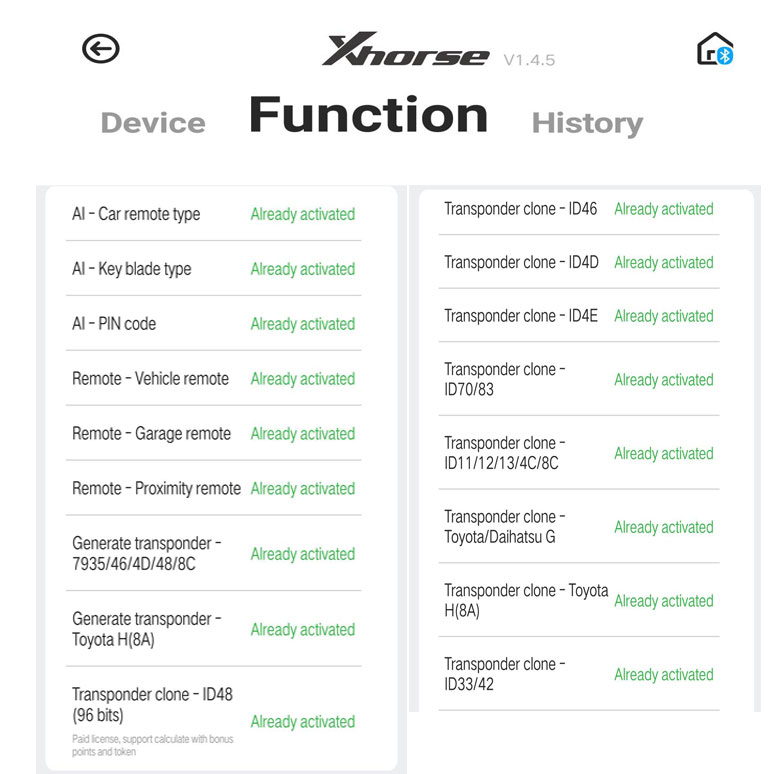

VVDI Mini Keytool FULL Authorization:

AI - Car remote type                                          Already activated
AI - Key blade type                                            Already activated
AI - PIN code                                                     Already activated
Remote - Vehicle remote                                  Already activated
Remote - Garage remote                                  Already activated
Remote -Proximity remote                                Already activated
Generate transponder - 7935/ 46/ 4D/ 48/ 8C  Already activated
Generate transponder -Toyota H (8A)              Already activated
Transponder clone - ID48 (96 bits)                   Already activated
Transponder clone - ID46                                 Already activated
Transponder clone - ID4D                                Already activated
Transponder clone - ID4E                                 Already activated
Transponder clone - ID70/ 83                           Already activated
Transponder clone - ID11/ 12/ 13/ 4C/ 8C        Already activated
Transponder clone - Toyota/ Daihatsu G          Already activated
Transponder clone - Toyota H (8A)                   Already activated
Transponder clone - ID33 /42                           Already activated
Transponder edit - 11/12/13/4C                        Already activated
Transponder edit - 46/ 47/ 48/ 4D/ 4E              Already activated
Remote clone - Fix code                                  Already activated
Remote clone - Rolling code                            Already activated
Remote clone - make new                                Already activated
Detect remote frequence                                  Already activated
Set type of VVDI super transponder                 Already activated
VVDI Special TP                                               Already activated
Special 4D to 4C                                              Already activated
Unlock Toyota smartkey                                   Already activated
ID63 to ID83                                                    Already activated
Hyundai/ KIA PIN code                                    Already activated
Copy BYD smart key                                       Already activated
Detect ignition coil signal                                 Already activated
Online technical support                                  Already activated
Technical center                                               Already activated
Video center                                                     Already activated
History                                                              Already activated

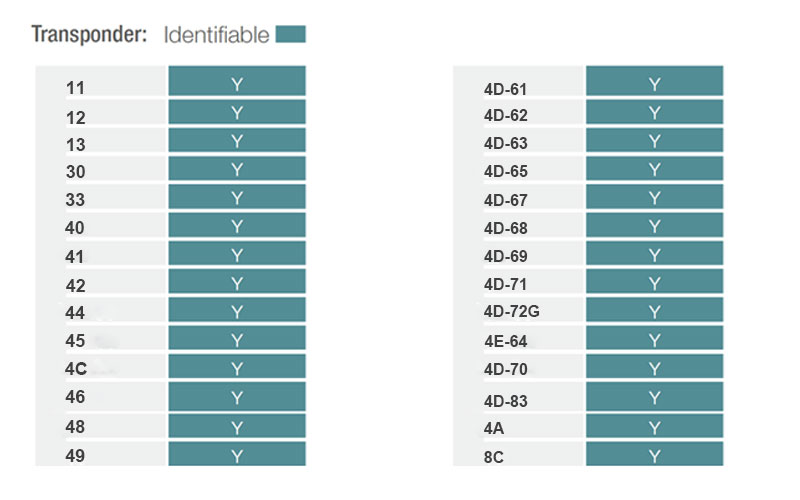

Transponder list:

Parameters:
Extra Power: 5V/1A
Usage Time: ≥10 Hour
Product Size: 108x194x28mm
Weight: 229g
Charge Current: 1A
Battery Capacity: 150mAh
Power: 600mW
Battery Voltage: 3.6-4.2V

Package:
1pc x VVDI Mini Key Tool Device
1pc x Remote Programming Cable
1pc x USB cable
1pc x User Guide
