EU Ship No Tax Xhorse VVDI BE Key Pro V4.1 Yellow Color with Key Shell 3 Button for Mercedes Benz 5pcs/lot NO Logo

Produktbeschreibung

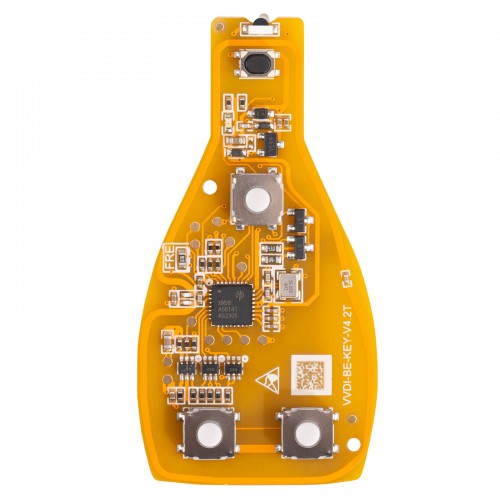

Xhorse VVDI BE Key Pro Improved Version Yellow Board 315Mhz/433Mhz + Key Shell 3 Button for Mercedes Benz
NO Logo

VVDI MB BE Key Yellow Board vs Green Board

The yellow board does not contain 200 bonus points, but cheaper than the green board.
Work the same, only colour difference.

Xhorse BE smart key:

• V4.1, super stable
• Frequency changeable 315Mhz/433MHz
• Reusable - you can reset it
• Programmed by all kinds of MB key programmer, such as Autel IM608, CGDI and VVDI MB, Key Tool Plus, Digimaster-III ,CKM100, AK500, MBE MB-KEY OBD2, NEC-57 MB-PRO and so on
• Can use Mercedes smart key 3 button or 2 button key and it worked lock/unlock/ trunk. Support key shell SA1794 or SA1794-b or SA1794-C
• Xhorse brand, superior quality.
• Applicable chip models:705 Moto(1997-2000) NEC(2001-2005) NEC(2006-2010) BGA(after 2011)

The ways to reset the frequency:

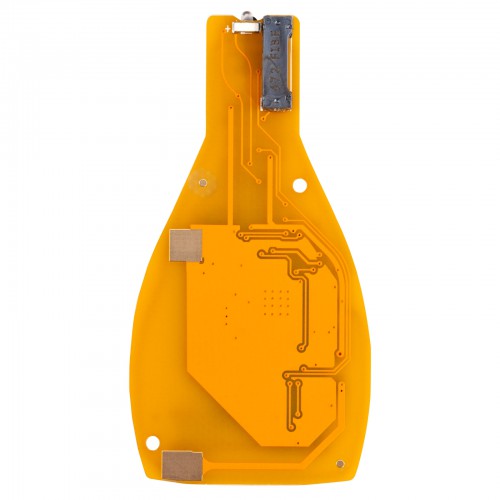

1) with the PCB SMD resistor. Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ.
2) Change frequency between 315MHz and 433MHz with VVDI MB Tool.


Xhorse VVDI BE Key Pro Features:

More compatibility
New design
High Stability
High reliability
Digital Signature
High quality with a reasonable price
No points will be accumulated

VVDI BE Key Pro improvements:

1. Fix the bug that W164/W639 EIS data doesn't synchronize the key.
2. Fix the bug that the BE key fails to turn on the ignition after repeat try.
3. Fix the bug of trunk remote open
4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.
5. Modify the rolling algorithm, fix some errors of BE key.
6. Add pre-roll algorithm: the HASH value can roll ahead.
7. Adopt car-grade quartz crystal, improve infrared communication stability.
8. Boost the infrared signal when you press the button.
9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor
Note: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.


Xhorse VVDI Mercedes BE Supported Models:​

BRAND	MODEL	FROM	TO	NOTE
MERCEDES	A CLASS	2011	2017
MERCEDES	A160	2011	2012	W169
MERCEDES	A170	2011	2012	W169
MERCEDES	A180	2012	2017	W176
MERCEDES	A220	2012	2017	W176
MERCEDES	A250	2012	2017	W176
MERCEDES	ALL MODELS	1997	2015
MERCEDES	B CLASS	2005	2017
MERCEDES	C CLASS	1997	2015
MERCEDES	C160	2001	2006	W203
MERCEDES	C180	1997	2015	W202 & W203 & W204
MERCEDES	C200	1997	2015	W202 & W203 & W204
MERCEDES	C220	1997	2006	W202 & W203
MERCEDES	C230	1997	2015	W202 & W203 & W204
MERCEDES	C240	1997	2006	W202 & W203
MERCEDES	C250	1997	2015	W202 & W204
MERCEDES	C280	1997	2006	W202 & W203
MERCEDES	C300	2008	2015	W204
MERCEDES	C320	2001	2006	W203
MERCEDES	CL CLASS	2001	2017
MERCEDES	CLA CLASS	2013	2017
MERCEDES	CLS CLASS	2004	2017
MERCEDES	CLS220	2014	2017	W218
MERCEDES	CLS250	2014	2017	W218
MERCEDES	CLS280	2008	2010	W219
MERCEDES	CLS300	2004	2006	W219
MERCEDES	CLS320	2005	2010	W219
MERCEDES	CLS350	2006	2014	W218 & W219
MERCEDES	CLS400	2014	2017	W218
MERCEDES	CLS500	2004	2017	W218 & W219
MERCEDES	E CLASS	1998	2015
MERCEDES	E200	1998	2016	W210 & W211 & W207 & W212
MERCEDES	E220	2010	2016	W210 & W211 & W207 & W212
MERCEDES	E230	1998	2009	W210 & W211
MERCEDES	E240	1998	2009	W210 & W211
MERCEDES	E300	1997	2016	W210 & W211 & W207 & W212
MERCEDES	E320	1997	2005	W210 & W211
MERCEDES	E350	2003	2016	W211 & W207 & W212
MERCEDES	E400	2004	2016	W211 & W207 & W212
MERCEDES	E420	1997	2009	W210 & W211
MERCEDES	E500	2002	2016	W211 & W207
MERCEDES	E550	2003	2016	W211 & W212
MERCEDES	G CLASS	2002	2018
MERCEDES	G320	2006	2018	W463
MERCEDES	G500	2006	2018	W463
MERCEDES	G55	2005	2018	W463
MERCEDES	G63	2002	2018	W463
MERCEDES	GL CLASS	2006	2018
MERCEDES	GL350	2012	2018	W166
MERCEDES	GL400	2014	2018	W166
MERCEDES	GL450	2013	2015	W166
MERCEDES	GL500	2012	2016	W166
MERCEDES	GLA CLASS	2014	2018
MERCEDES	GLA180	2014	2018	W156
MERCEDES	GLA200	2014	2018	W156
MERCEDES	GLA220	2014	2018	W156
MERCEDES	GLA250	2014	2018	W156
MERCEDES	GLK CLASS	2008	2015
MERCEDES	GLK280	2008	2009
MERCEDES	GLK300	2009	2012
MERCEDES	GLK350	2008	2015
MERCEDES	ML CLASS	2005	2018
MERCEDES	ML250	2012	2015	W166
MERCEDES	ML320	2005	2011	W164
MERCEDES	ML350	2012	2015	W166
MERCEDES	ML400	2015	2018	W166
MERCEDES	ML550	2012	2014	W166
MERCEDES	R CLASS	2005	2013
MERCEDES	S CLASS	1998	2013
MERCEDES	S250	2009	2013	W221
MERCEDES	S280	1998	2013	W220 & W221
MERCEDES	S300	2006	2009	W221
MERCEDES	S320	1998	2009	W220 & W221
MERCEDES	S350	2003	2013	W220 & W221
MERCEDES	S400	2000	2013	W220 & W221
MERCEDES	S420	2006	2009	W221
MERCEDES	S450	2009	2010	W221
MERCEDES	S500	1998	2013	W220 & W221
MERCEDES	S550	2006	2013	W221
MERCEDES	S600	2006	2013	W221
MERCEDES	SL CLASS	2002	2018
MERCEDES	SLK CLASS	2004	2017
MERCEDES	VIANO	2004	2017	W639 & W447
MERCEDES	VITO	2004	2017	W639 & W447
XHORSE	ALL MODELS

Package includes:

5pcs x VVDI BE key Pro yellow version+ Key Shell 3 Button
