iEasy320 CAN OBDII/EOBD Code Reader = iEasy300 abilities + oxygen monitor test + on-board monitor test + component test
VIDENT iEasy320 Enhanced OBDII/EOBD+CAN Code Reader
The iEasy320 is a portable CAN OBDII/EOBD code reader for professionals and DIYers.
It not only cover iEasy300 functionalities, but also is able to oxygen monitor test, on-board monitor test, and component test.
Works with most 1996 and newer OBDII& CAN compliant cars, light-duty trucks, SUVs, minivans and hybrid sold worldwide
Vident iEasy320 Manual
Support all the 10 OBDII test modes
Red-Yellow-Green LEDs and build-in speaker indicate emissions monitor status.
They can also help catch intermittent problems or confirm repairs during a drive cycle.
I/M readiness hot keys make it easy to use this tool right out of the package.
Quick display of status of all tests on a single screen
Read/ clear stored & pending codes, switch off Check Engine Light (MIL) and resets monitors
View on-screen fault code definitions (Generic, manufacturer specific, pending and permanent, where available) - thousands of definitions stored within the tool software
Look up fault code definitions from the tool's on-board database
Read freeze-frame data engine conditions such as fuel trim, engine coolant temp, etc., at the time the Malfunction Indicator Lamp (MIL) was set(a snapshot of sensor values
when a DTC occurred)
Read, records, graphs & playbacks real-time live data streams from the engine sensors- ideal for monitoring intermittent faults
Graph live engine data on-screen
View Oxygen Sensor test results (dependent on vehicle support)
View on board monitor test and component test
Retrieve protocol, VIN, Cal ID and CVN identifiers from ECU (dependent on vehicle support)
Enhanced Mode 6 functions—Non-continuously Monitored Systems test results.
Automatic VIN acquisition and decoding makes it much easier to read manufacturer specific codes and enhanced mode 6 data
Test and display the voltage of battery.
Support max. 4 graphic comparisons of data stream

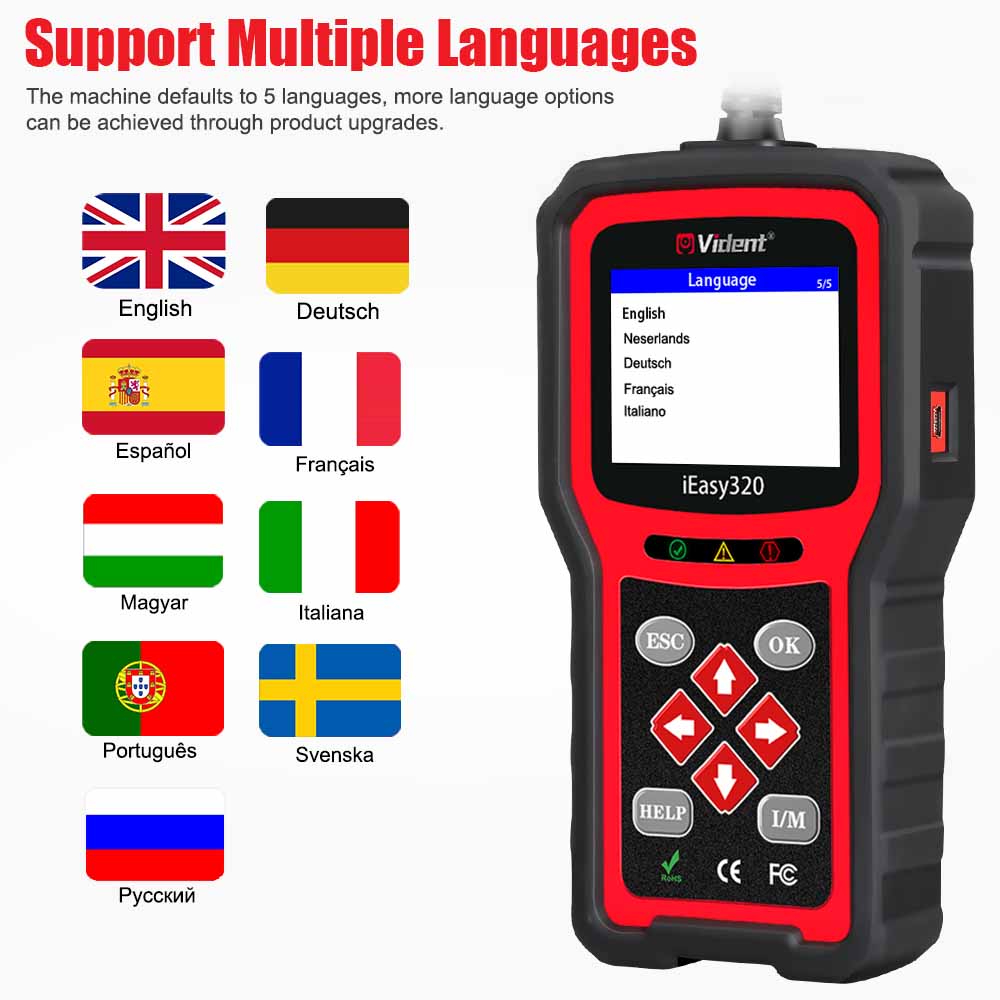

It has multilingual menu options (11 languages)
English, French, German, Polish, Russian, Spanish, Italian, Portuguese, Hungarian, Dutch, Sweden
Unique shortcut menu to enter update mode easily
Life time FREE software and firmware updates
Warranty and Service
Limited One Year Warranty
We warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions:
1) The sole responsibility of our company under the Warranty is limited to either the repair or, at the option of our company, replacement of the scan tool at no charge with Proof of Purchase. The sales receipt may be used for this purpose.
2) This warranty does not apply to damages caused by improper use, accident, flood, lightning, or if the product was altered or repaired Center.
3) We shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the scan tool. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
Display: 2.8” LCD color screen
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Power: 8 to 18 V provided via vehicle
J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN

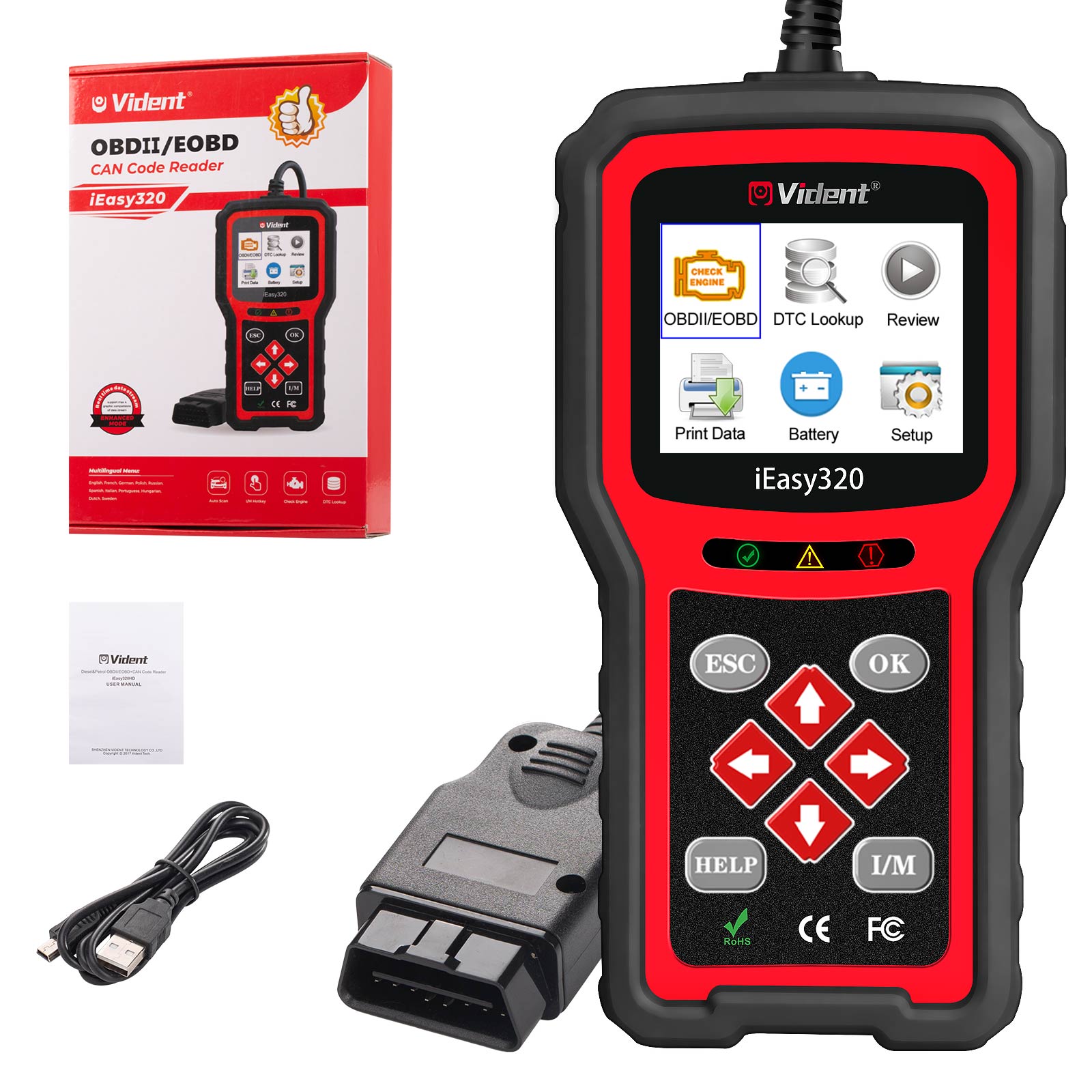

1pc x VIDENT iEasy320 OBDII/EOBD Code Reader
1pc x User Manual
1pc x USB PC cable for updating software
