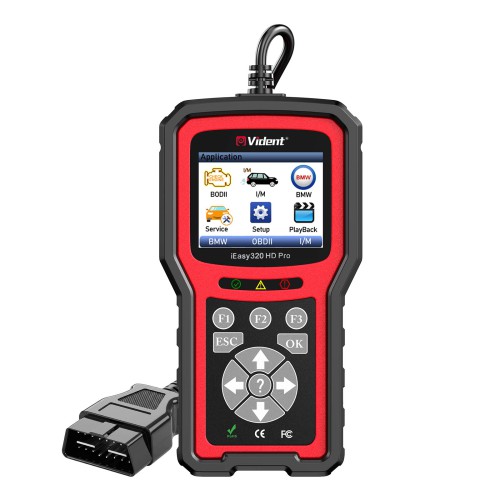

Vident iEasy320HD Diesel Truck Diagnostic Tool OBD2 Scanner Automotive Code Reader Trucks Cars OBD2 Diagnostic Tool
Produktbeschreibung
iEasy320HD is specially developed for heavy-duty vehicles(Diesel) and passenger cars(Gasoline or Petrol), which enables users to read DTCs, clear DTCs and view the datastream with a live color graphing.
It covers a wide range of vehicles since it offers multiple data bus protocols, such as J1587, J1939, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4).

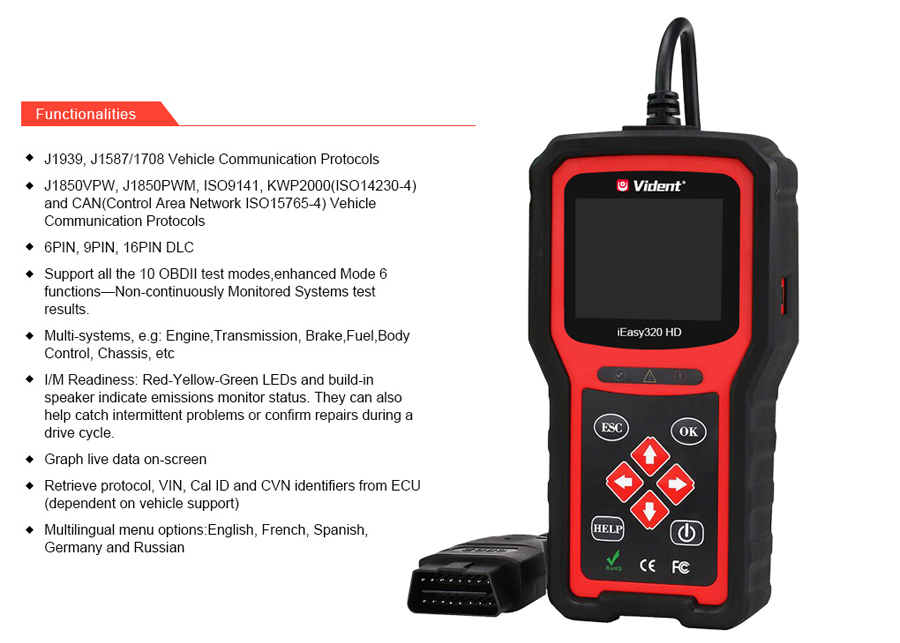

Product Features:
Supported Vehicle Communication Protocols:
J1939, J1587/1708, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4)
6PIN, 9PIN, 16PIN DLC
Display with 2.8" TFT panel
Support 5 Languages: English, French, Spanish, Germany and Russian
Support all the 10 OBDII test modes, enhanced Mode 6 functions—Non-continuous Monitored Systems test results.

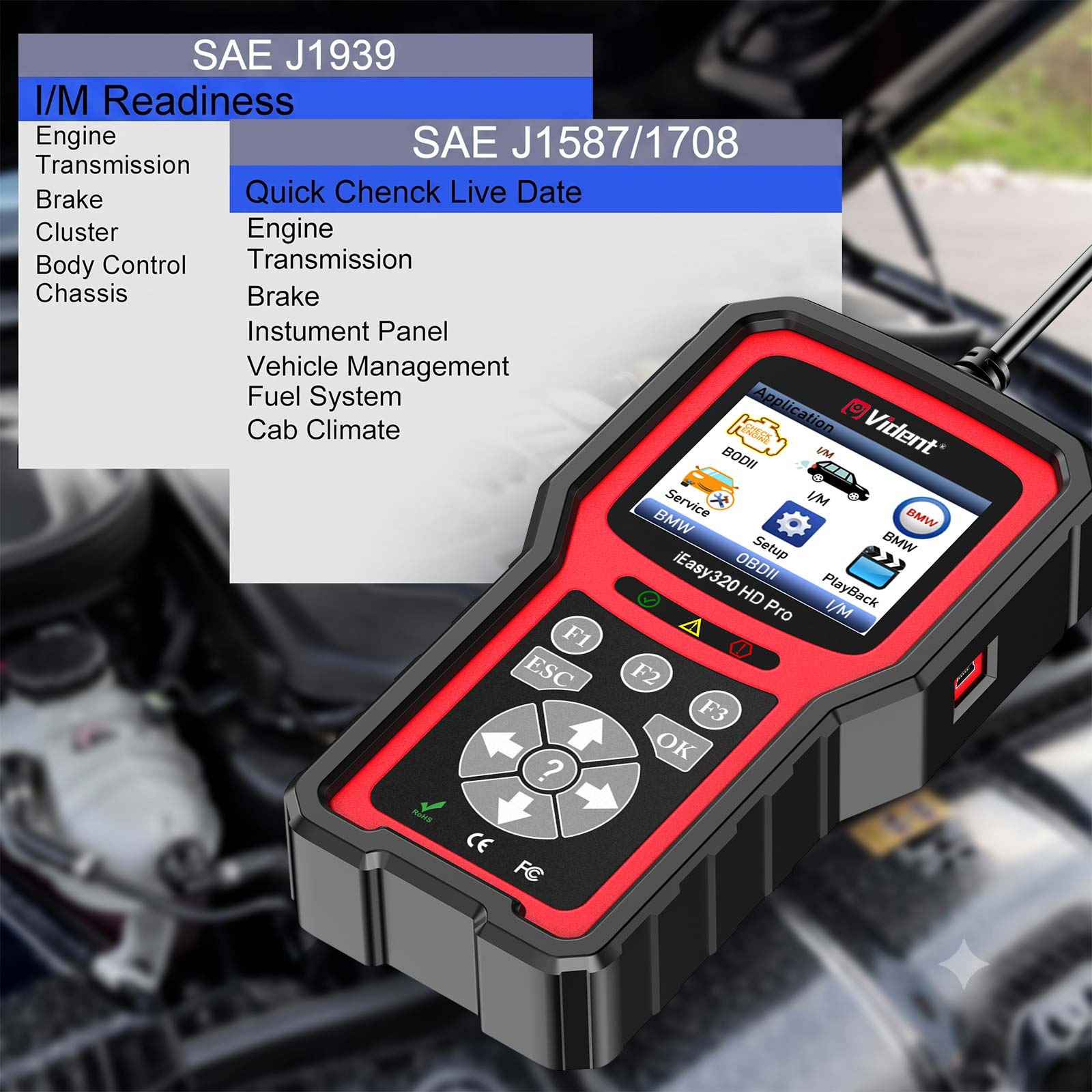

Multi-systems, e.g: Engine, Transmission, Brake, Fuel, Body Control, Chassis, etc
I/M Readiness: Red-Yellow-Green LEDs and build-in speaker indicate emissions monitor status. They can also help catch intermittent problems or confirm repairs during a drive cycle.
Graph live data on-screen
Retrieve protocol, VIN, Cal ID and CVN identifiers from ECU (dependent on vehicle support)
Vehicle Coverage:
All gas car and diesel truck for OBD code reader

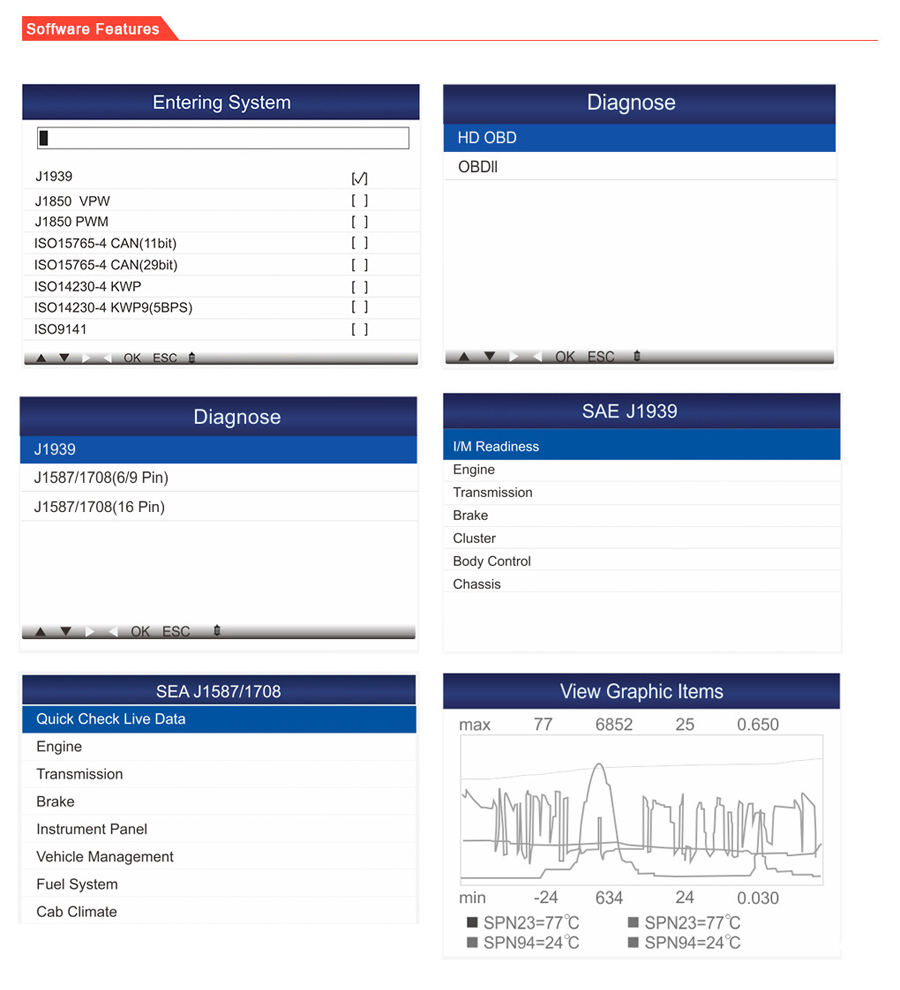

Software Features:

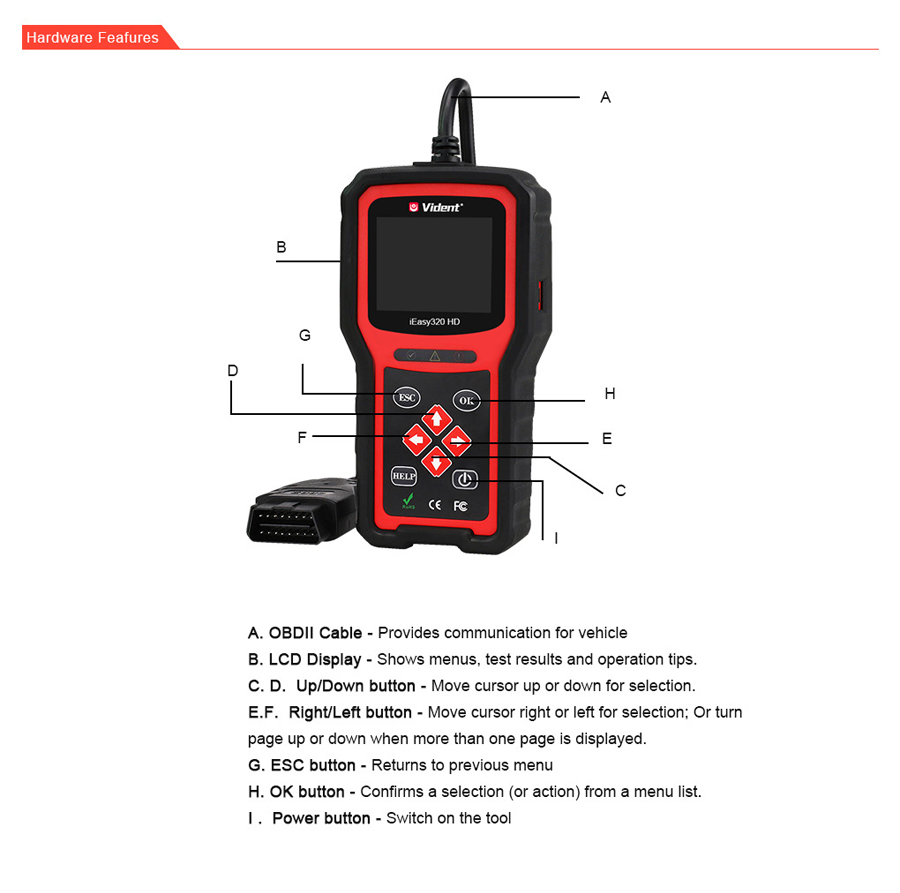

Hardware Features:
Product Specifications:
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Power: 8 to 18 V provided via vehicle
Supported Protocols: J1939, J1587/1708, J1850VPW, J1850PWM, ISO9141, KWP2000(ISO14230-4) and CAN(Control Area Network ISO15765-4)

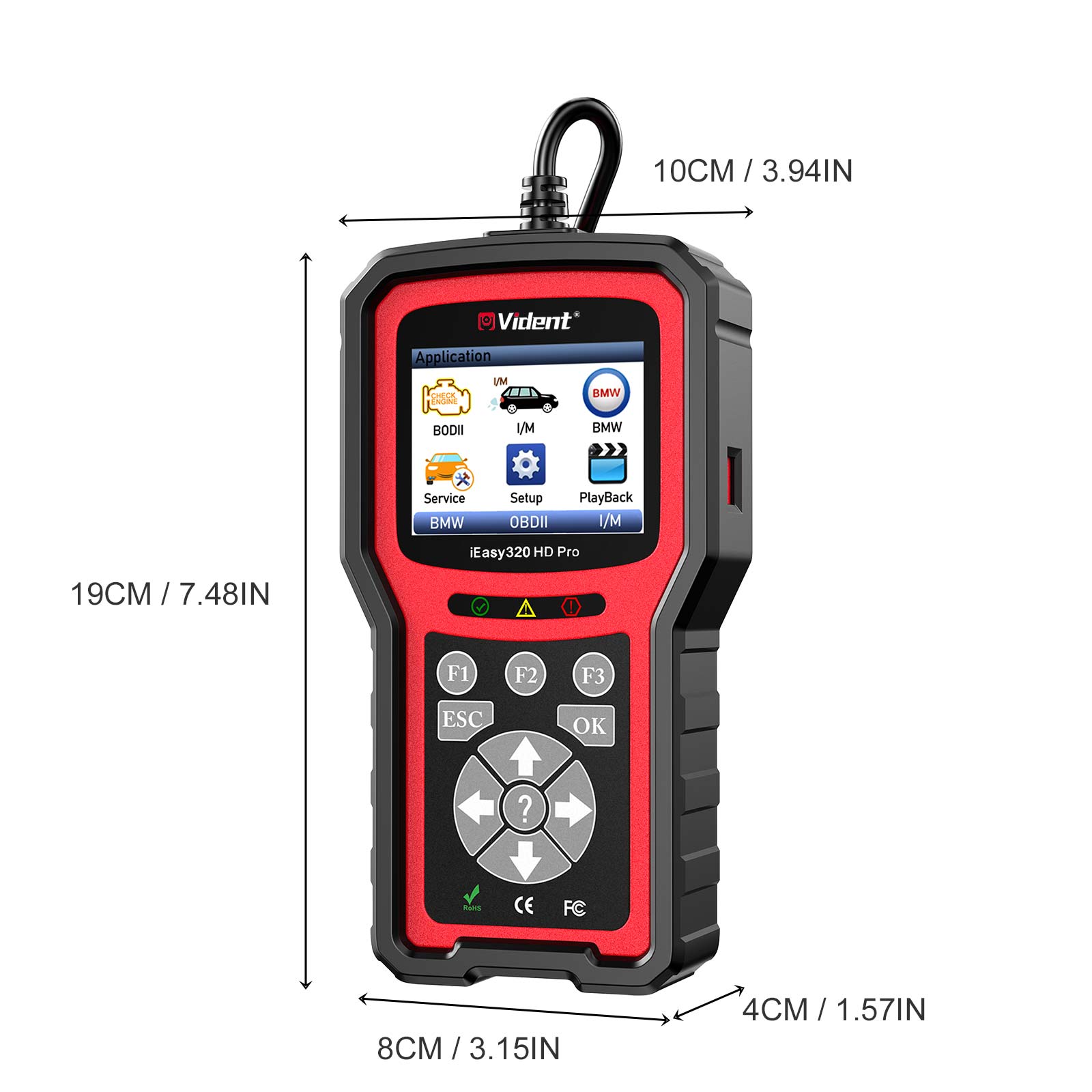

Unit Dimensions : 190mm(7.5”)*100mm(3.9'')*35mm(1.4”)
Weight: 380g

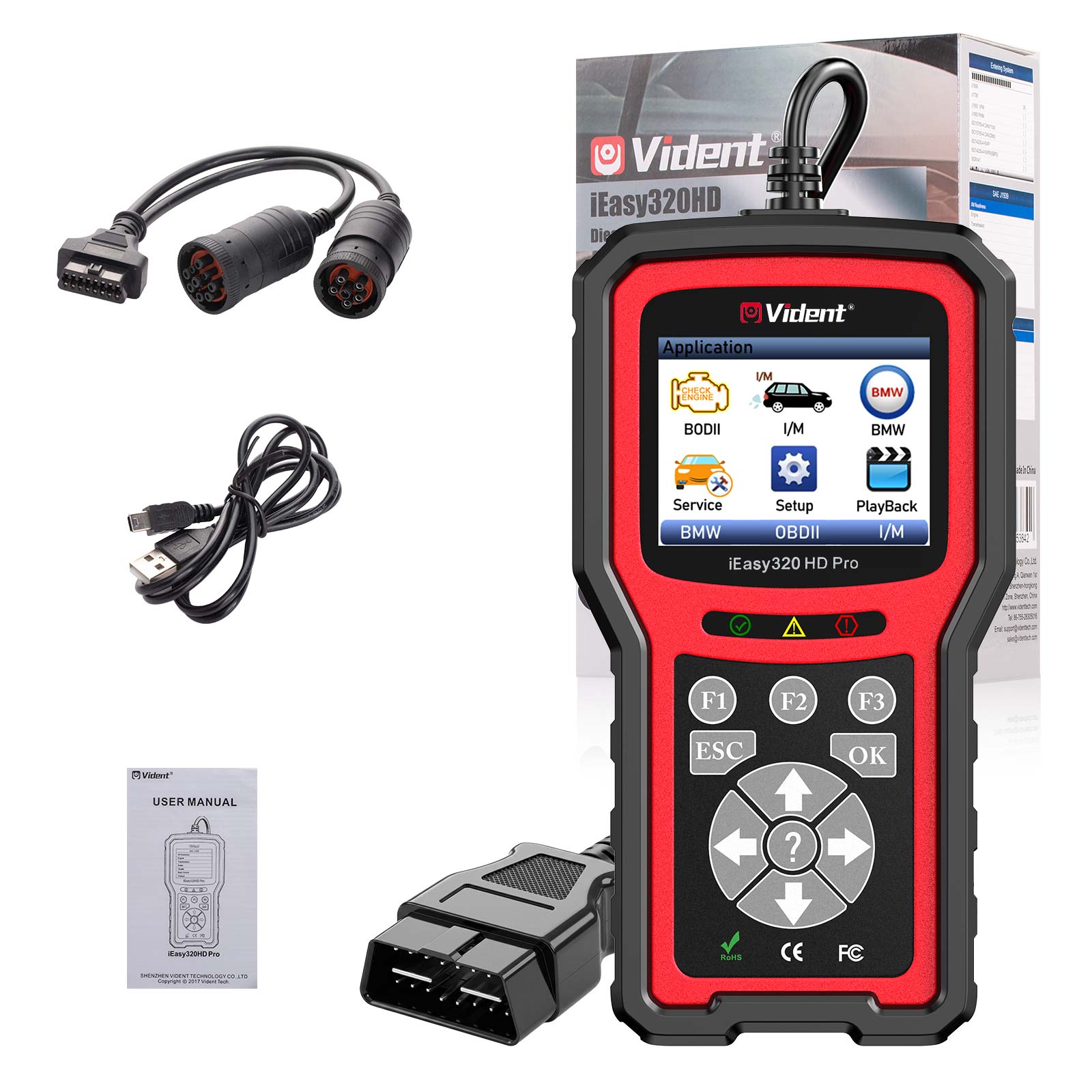

Package includes:
1pc x Vident iEasy320HD Code reader
1pc x User Manual
1pc x USB PC cable for updating software
