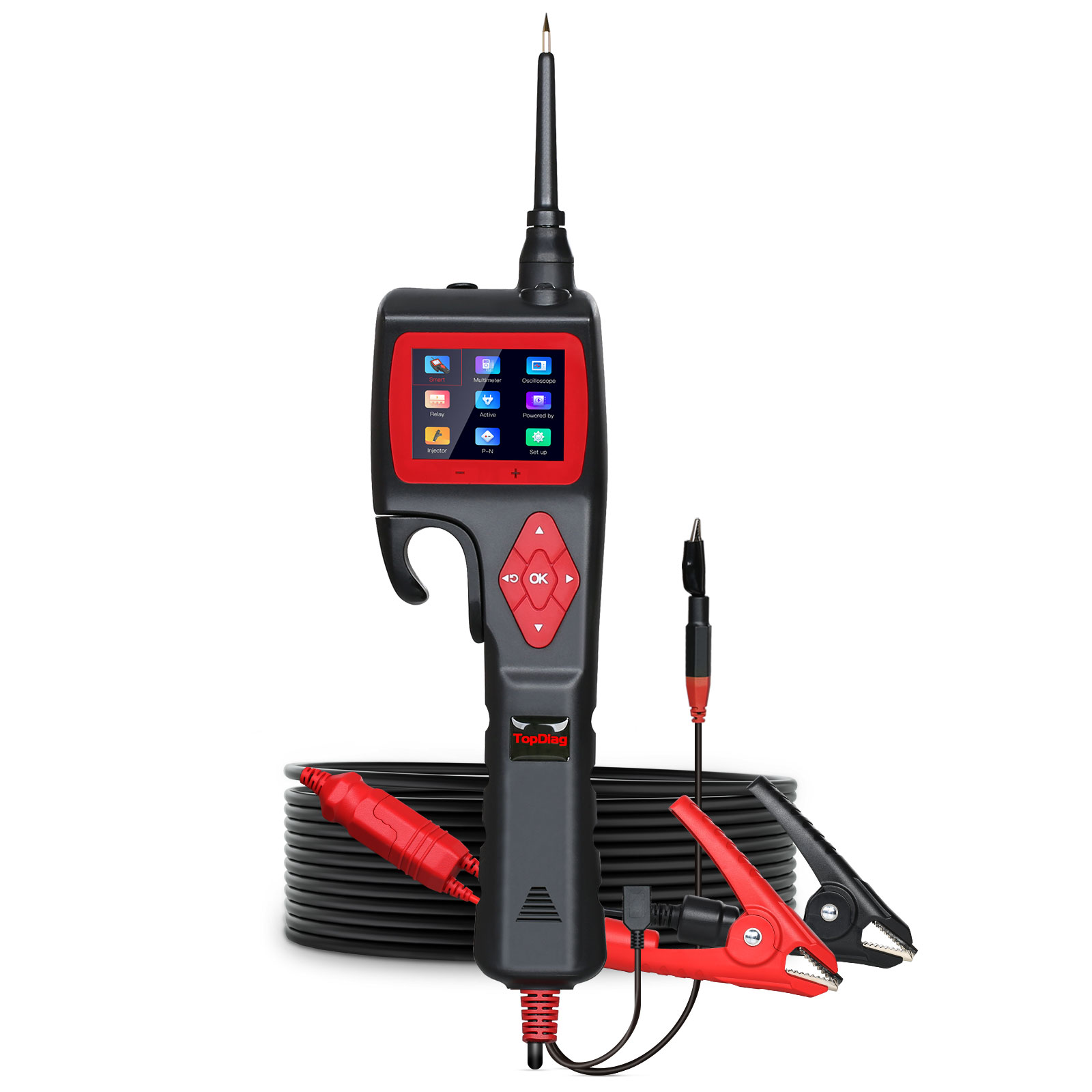

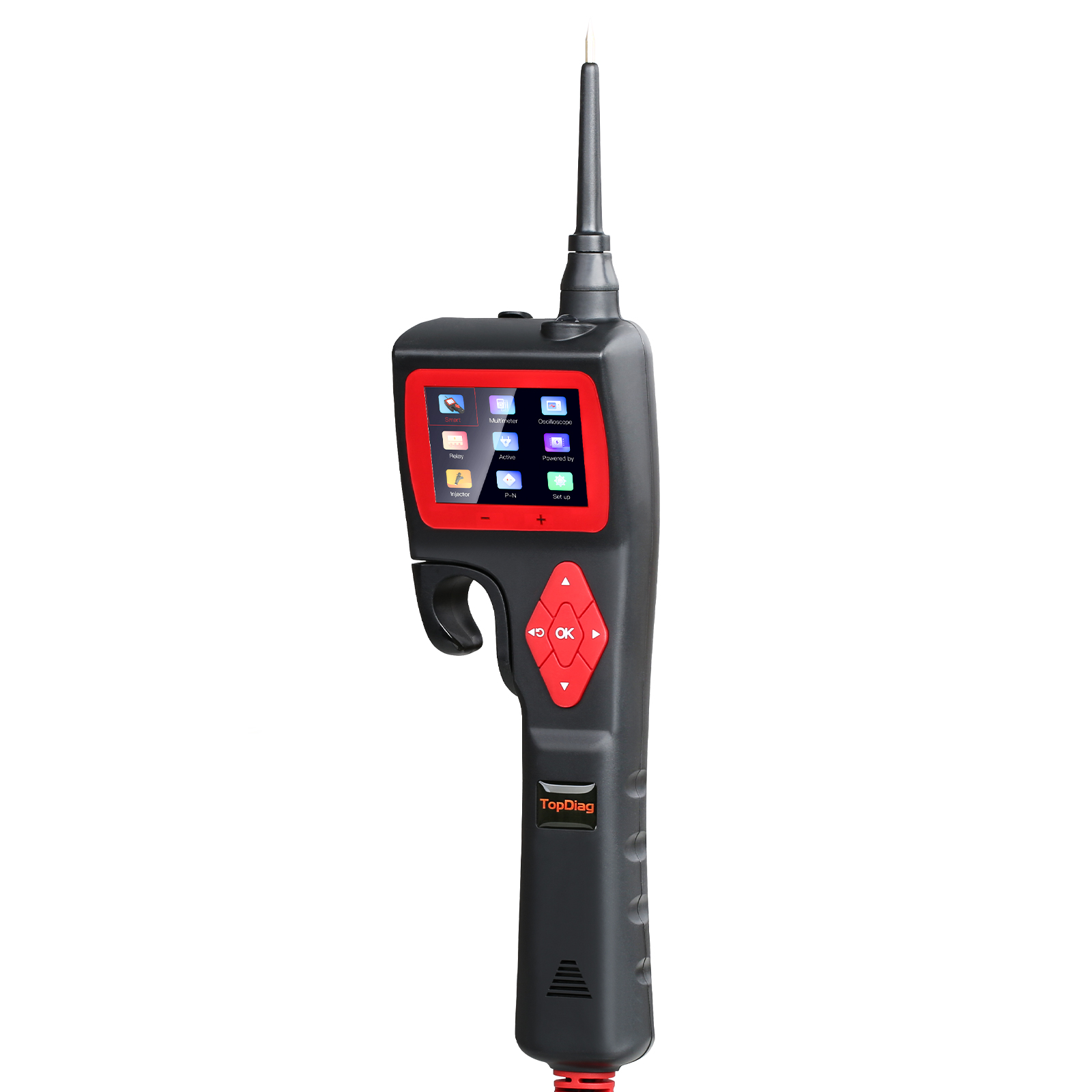

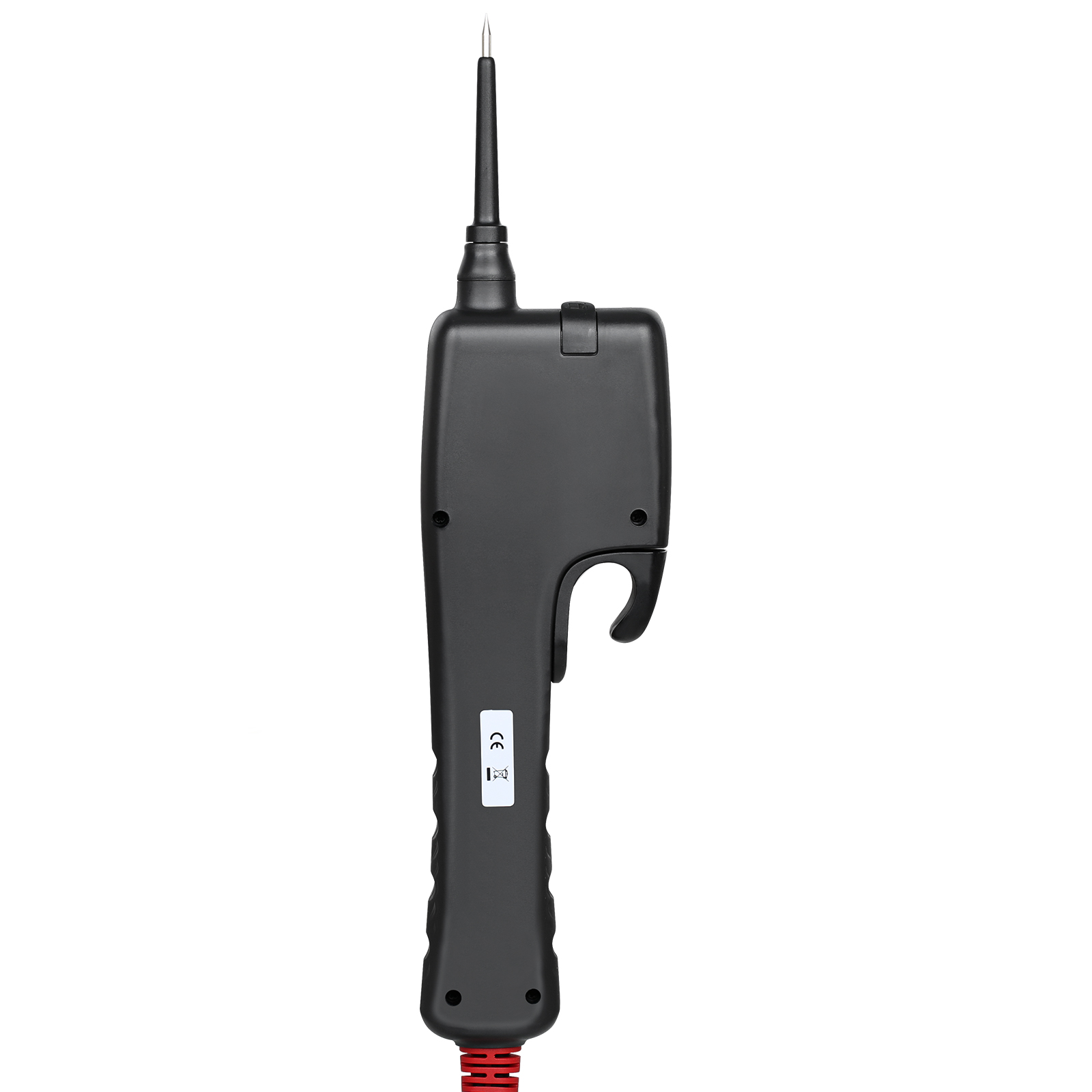

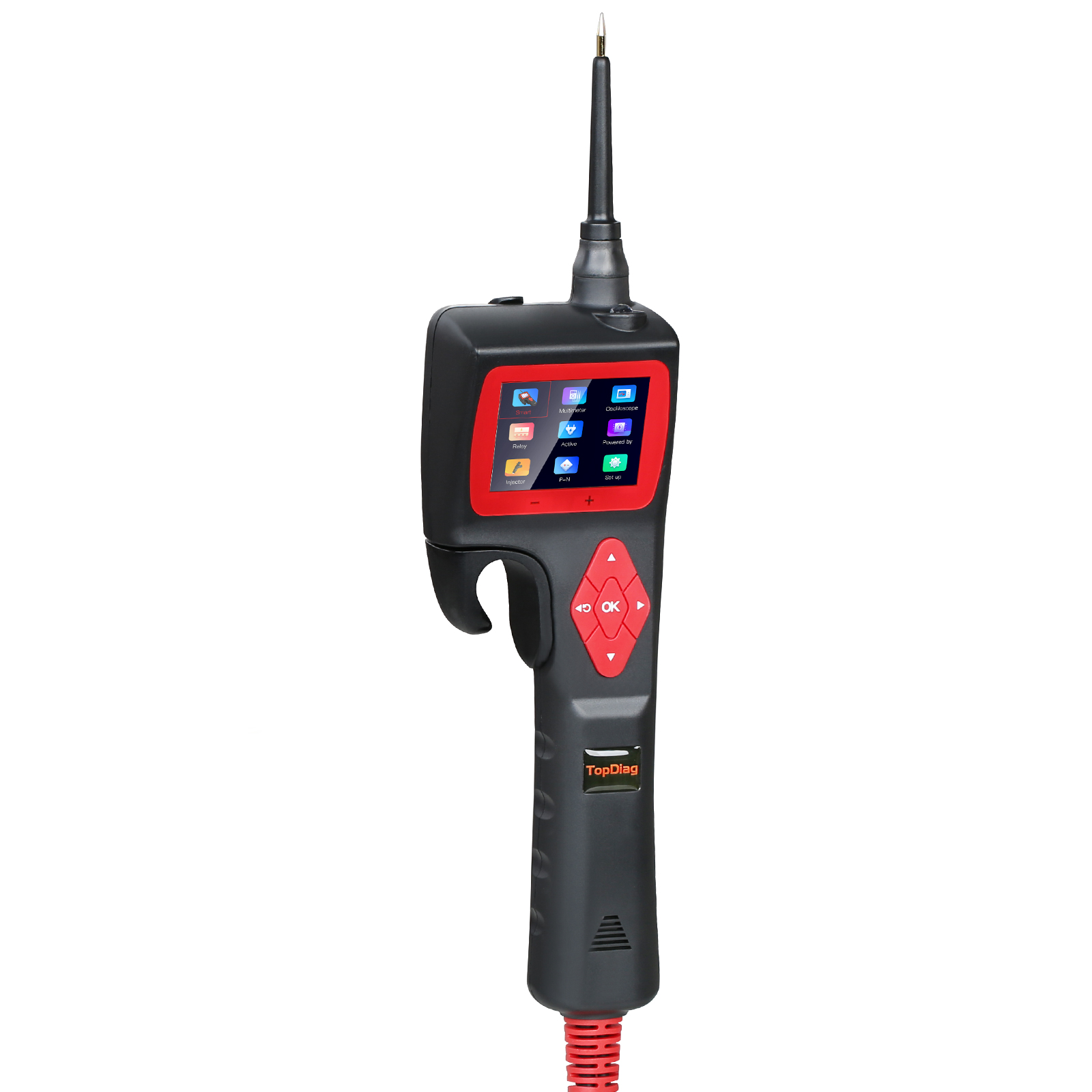

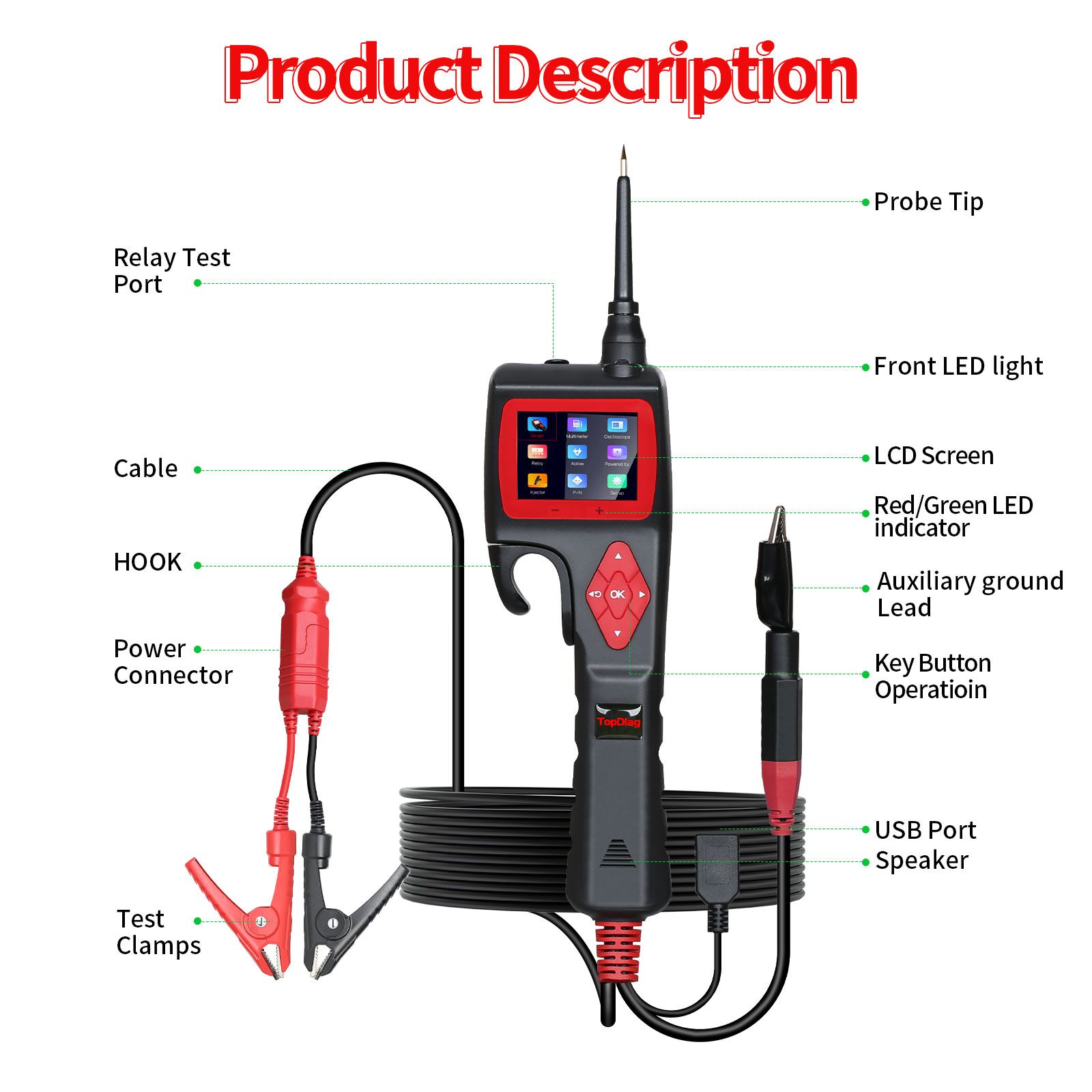

TOPDIAG P200 SMART HOOK Powerful Probe

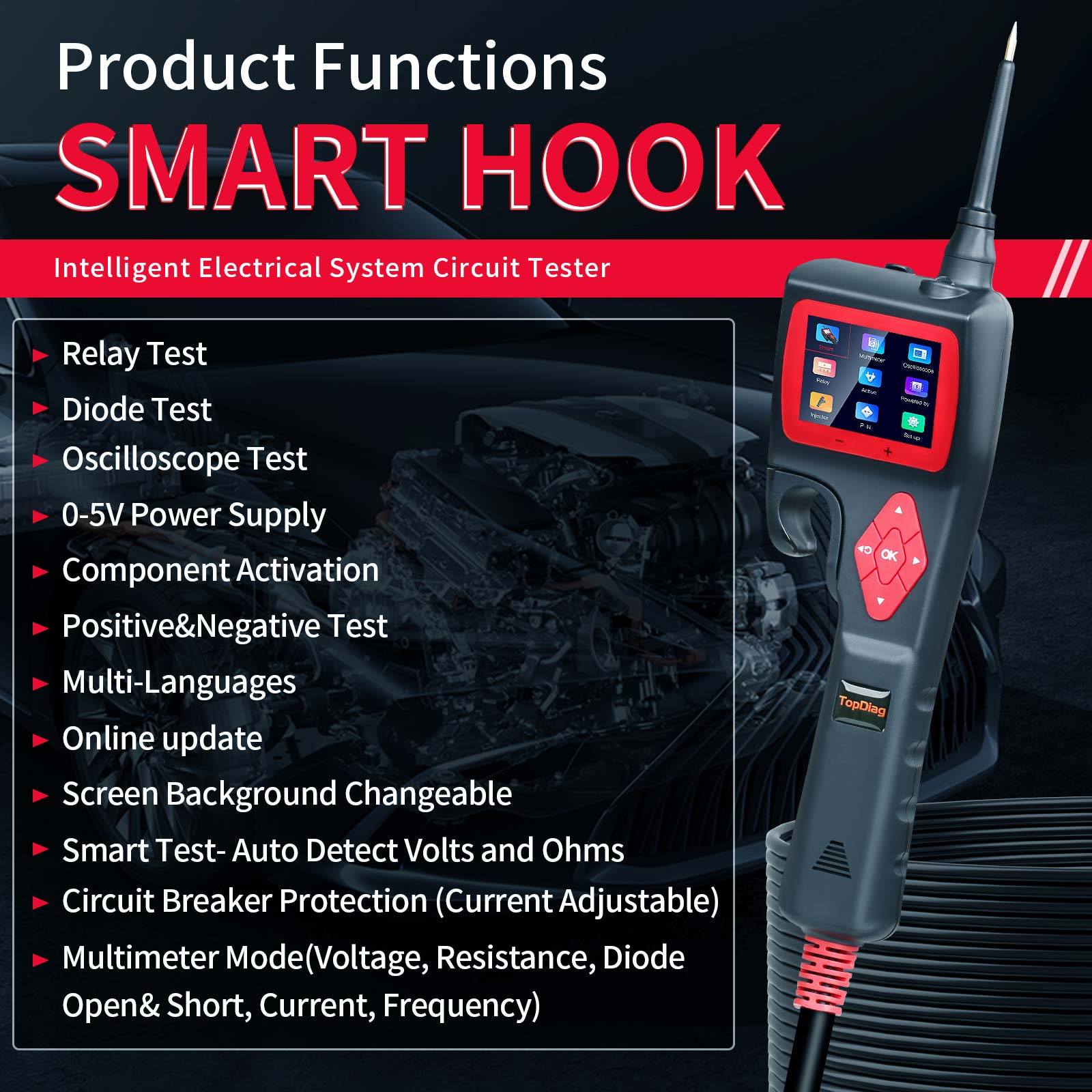

Features：

P200 SMART HOOK  Powerful Probe, the new generation of intelligent circuit analyzer, is the only circuit tester that can be upgraded on the market. It can test all 9V-30V electronic systems quickly. The test time can be greatly shortened, making it more convenient, faster and smarter!

1.Intelligent identification of voltage/resistance

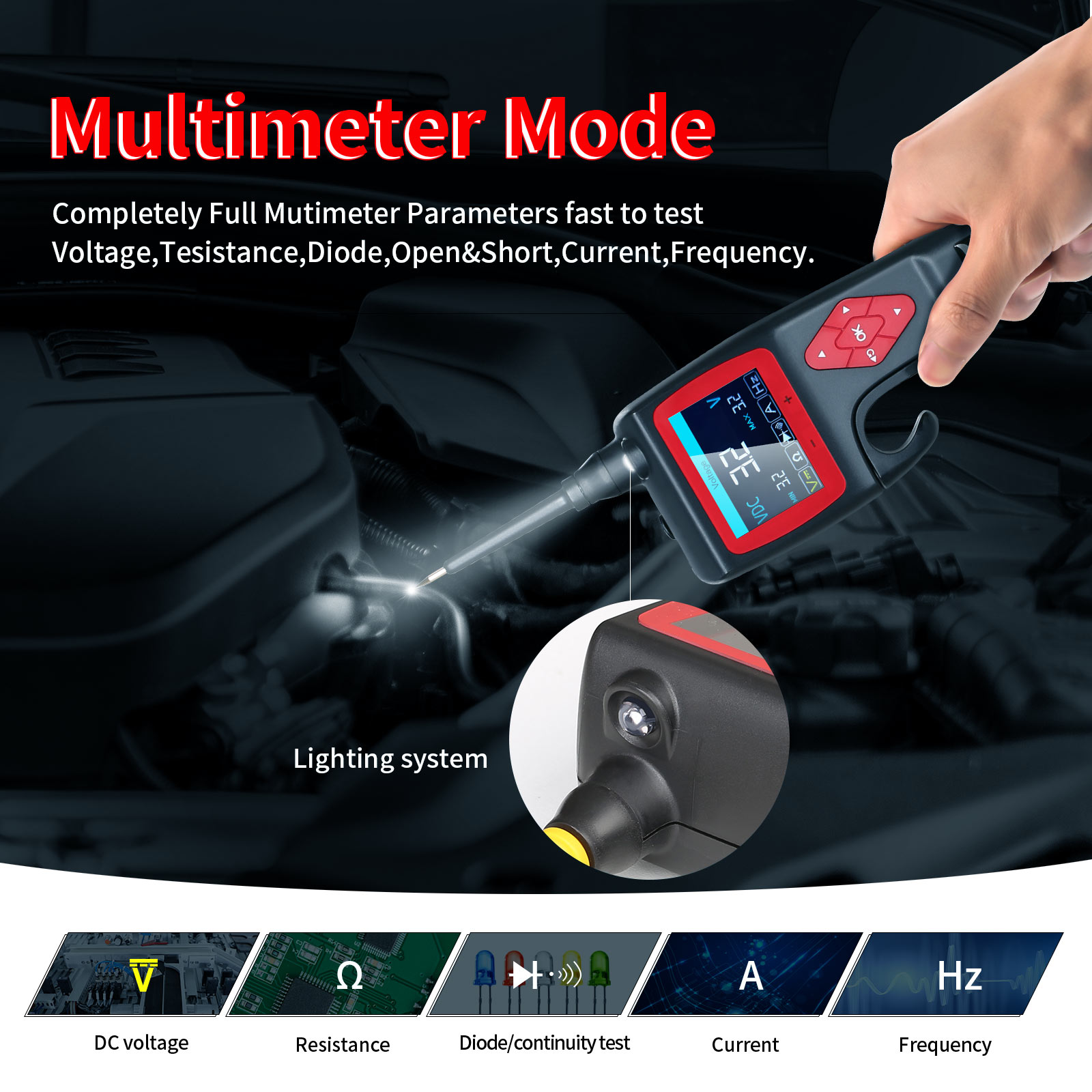

2.Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
3.Relay test
4.Injector test
5.Diode test

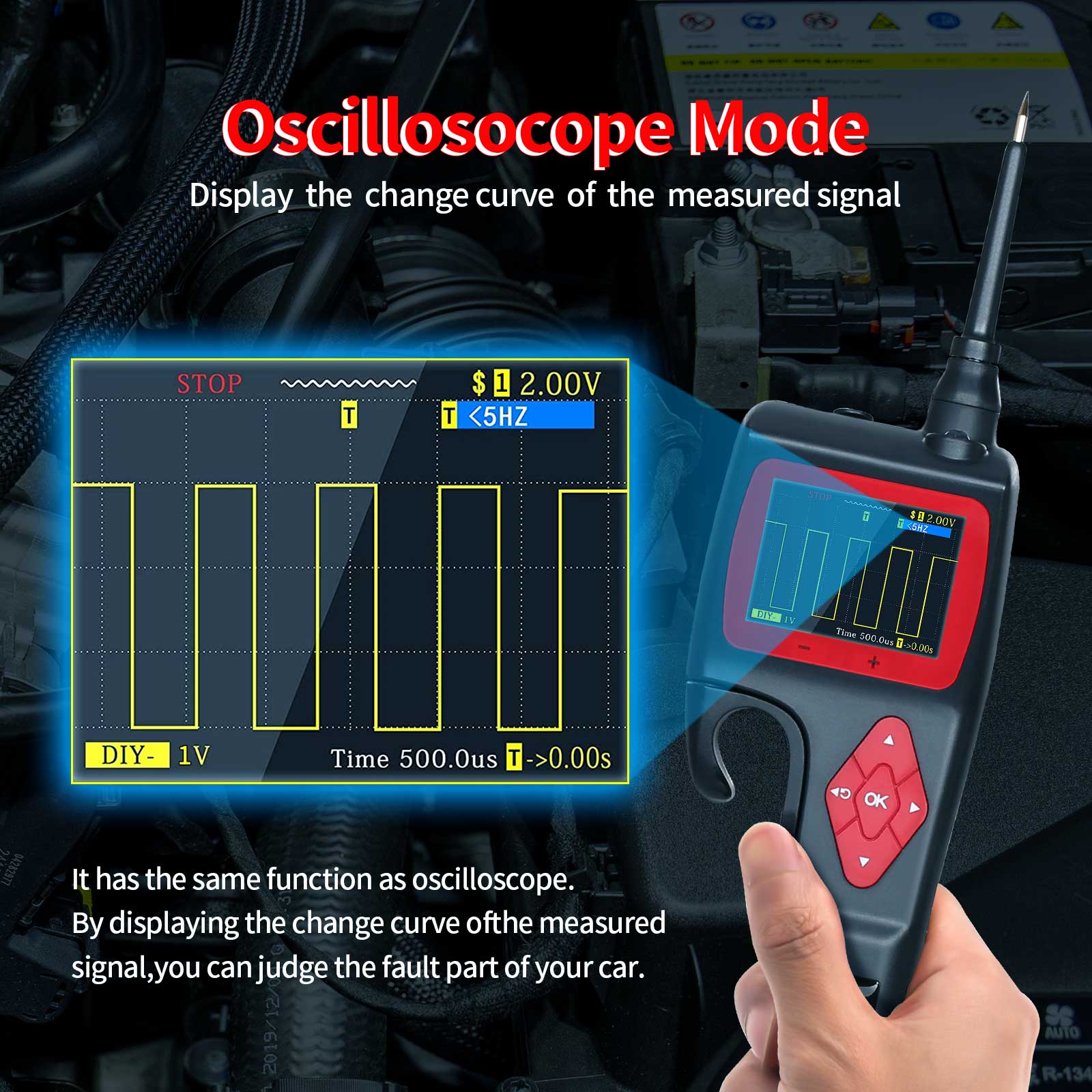

6.Oscilloscope function
7.0-5V adjustable power supply
8.Activation of vehicle components
9.Positive and negative polarity test
10.Intelligent circuit breaker protection (adjustable overload)
11.Screen style background optional
12.Network can be upgraded online
13.Built-in Multi-lingual settings.

Product specifications and parameters

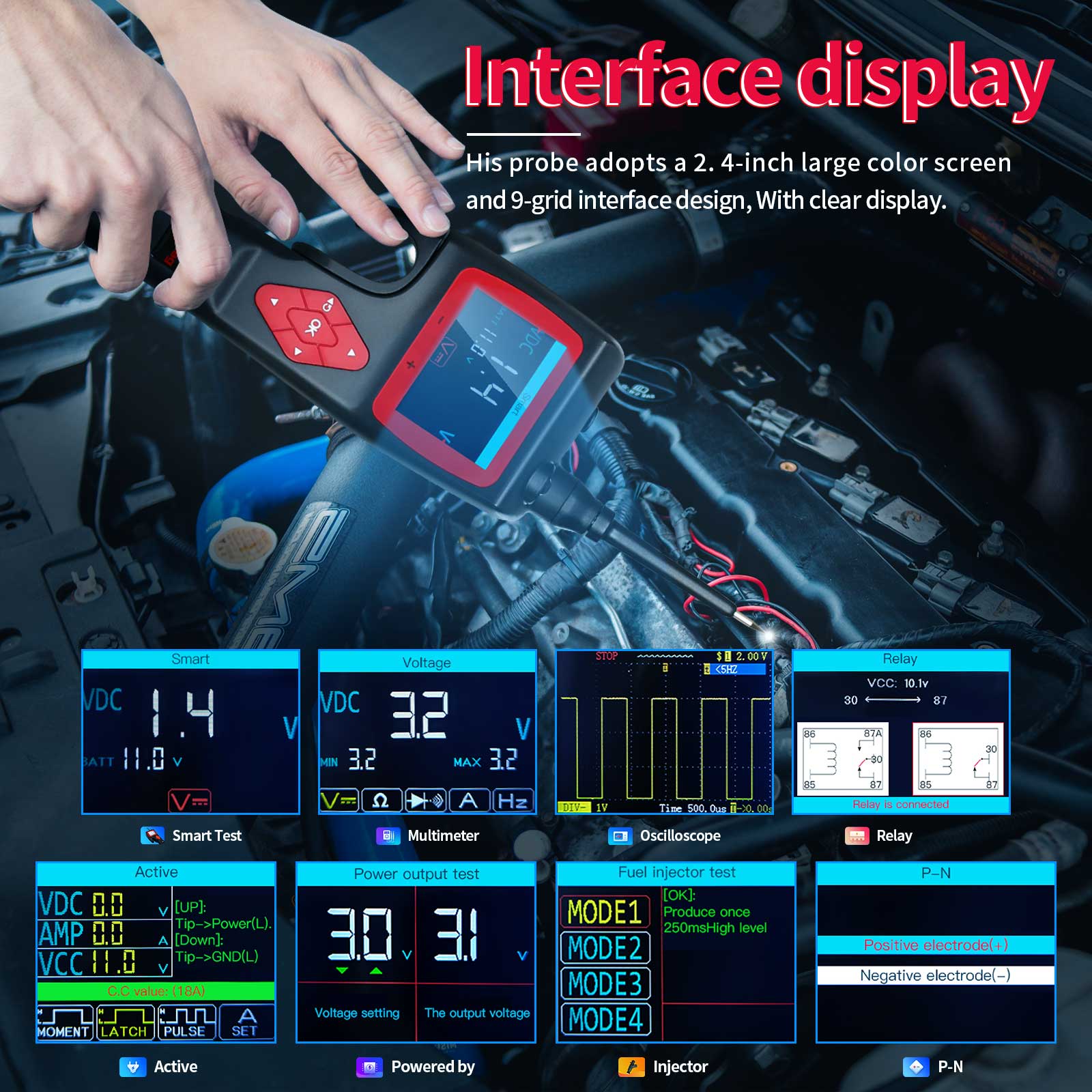

1) Display:............ (320*240 DPI) TFT true color display
2) Working temperature: ........... 0-60°C (32-140 F°)
3) Storage temperature:...........40-70°C (-40-185 F°)
4) External power supply: ... 12V or 24V powered by battery
5) Minimum working voltage:...9V
6) Maximum working voltage: 30V
7) Maximum measuring voltage: 150V
8) Minimum measuring voltage: .....................0.1V
9) Resistance measurement range:... 1 ohm~200K ohm
10) Current measuring range: ..................... 0~18A
11) Maximum continuous current: ..................... 18A

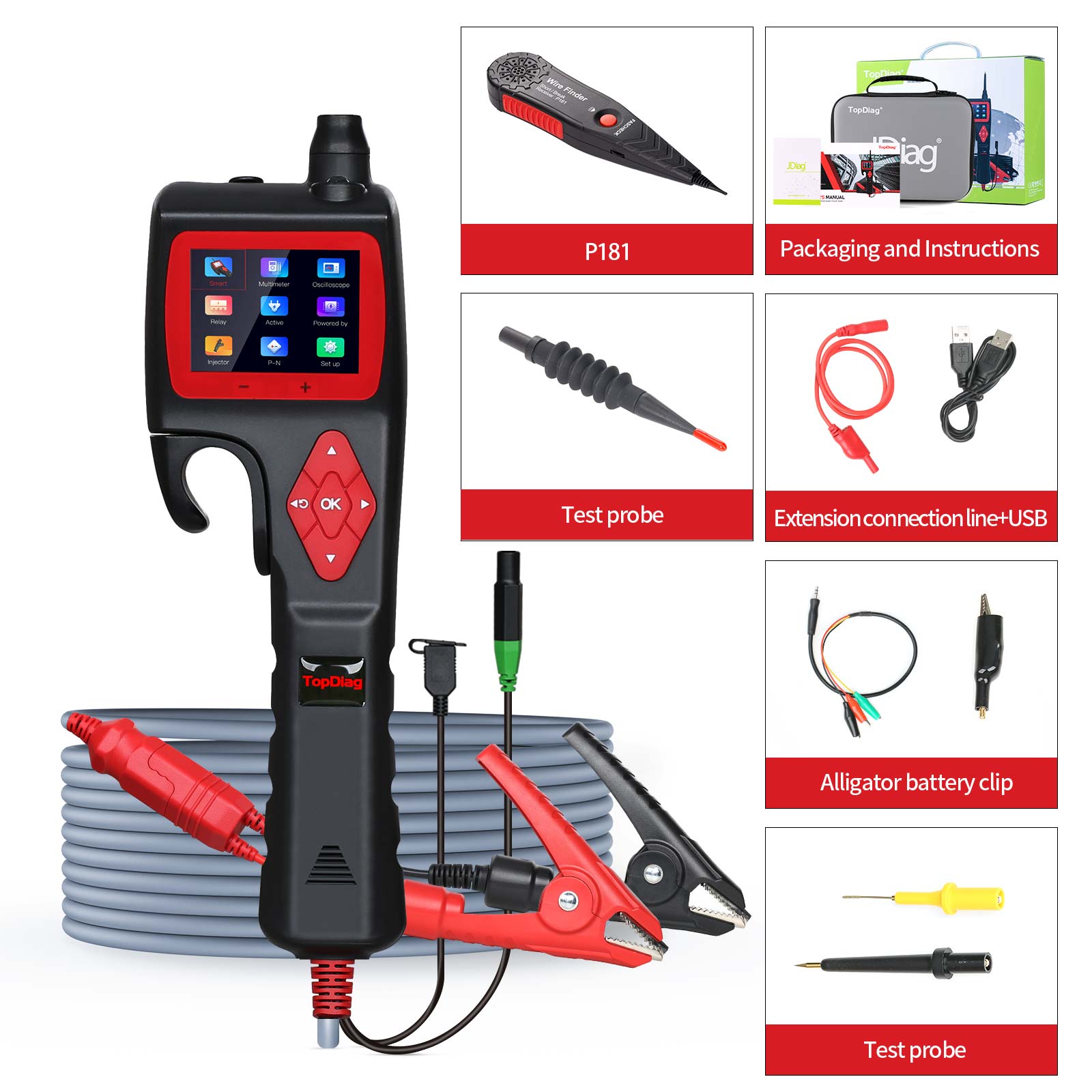

Product packing list:

1) Main unit(the length of line: 20ft/6m)
2) Solid copper test probe
3) Double pass test connection line
4) Alligator clip battery cable (Special Design)
5) Relay test line
6) Probe adapter
7) 25Amp fuse
8) Operation manual
9) Packing Toolbox

Package includes:

1pc x Host
1pc x  Wire Finder
1pc x Test Probe
1pc x Solid copper test probe tip
1pc x Extension connection line
1pc x Alligator battery clip
1pc x Relay test line
1pc x Probe adapter
