THINKCAR MUCAR 563HD Heavy-duty Diagnostic Scanner, Supports Full-system Diagnostics, 71 Truck Brands, 8 Maintenance Reset Functions

Produktbeschreibung

THINKCAR MUCAR 563HD Heavy-duty Diagnostic Scanner, Supports Full-system Diagnostics, 71 Truck Brands, 8 Maintenance Reset Functions

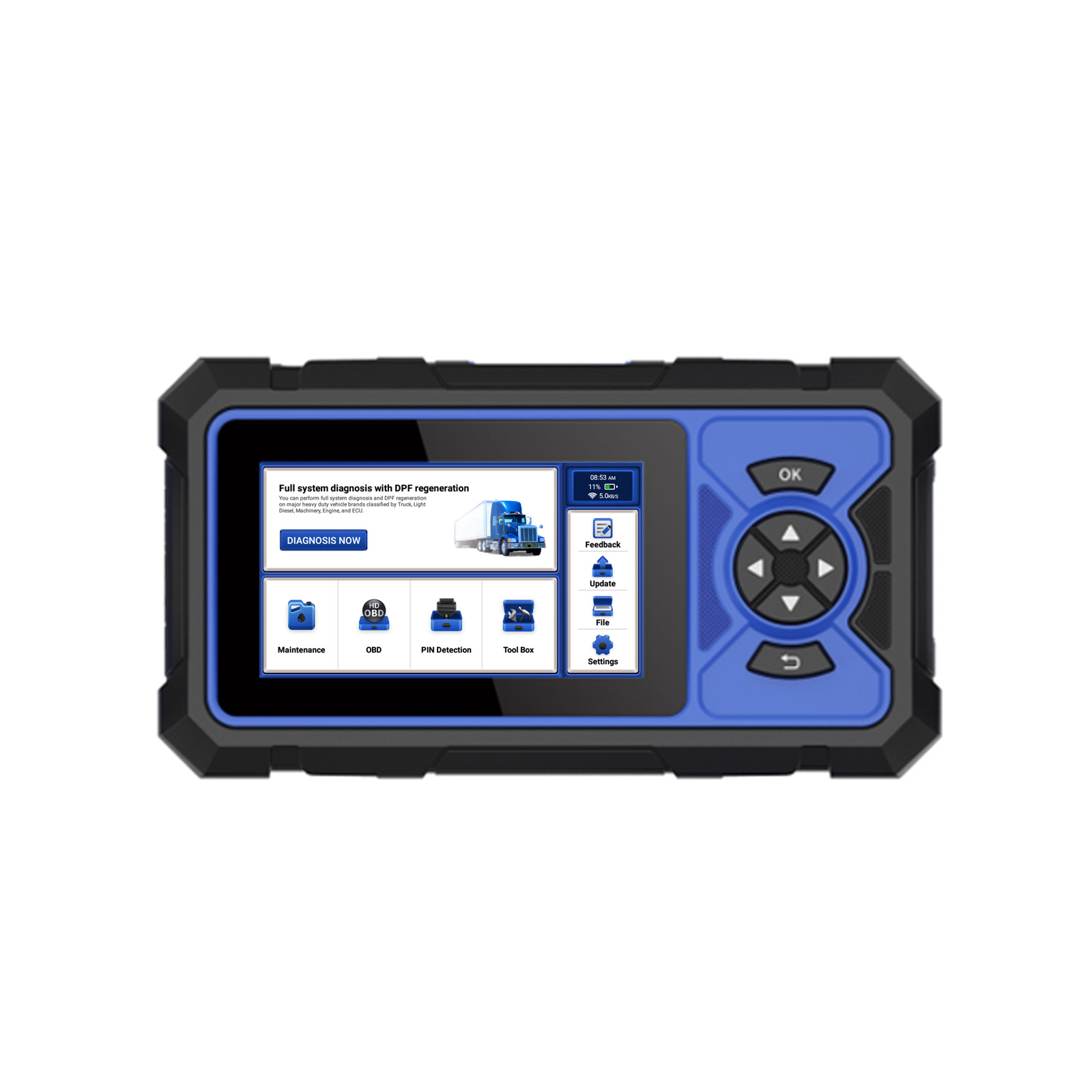

THINKCAR MUCAR 563HD is a professional diagnostic tool specifically designed for heavy-duty trucks and commercial vehicles. It covers 71 truck brands, supports full-system diagnostics, and offers 8 maintenance reset functions. Equipped with a 5-inch screen and a wired connection for stable and reliable data transmission, it also comes with 2 years of free updates to keep the device up to date.

The kit includes 3 OBD1 adapters (OBD-9, OBD-6, and CAT-9) for broader vehicle compatibility. An ideal entry-level heavy-duty diagnostic scanner for repair shops looking to expand into commercial vehicle maintenance.

Product Features:


Specialized Heavy-duty Truck Diagnostics

Covers 71 Truck Brands

Full-system Basic Functions

8 Maintenance Reset Functions

5-inch Display Screen

Wired Connection

2 Years of Free Updates


Software Functions:



Operating System: Android 8.1

Diagnostic Functions: Full system basic functions

Diagnostic Software: 71 heavy-duty truck models software

Diagnostic Protocols: SAE-J1850 PWM, SAE-J1850 VPW, ISO 9141, ISO-14230-2 ISO, ISO 14230-4 KWP, ISO 15765-4 CAN, J1708, J1939, CANFD

Connection Method: Wired

Online Programming: Not supported

Maintenance Functions: 8 (Oil Maintenance Reset, Injector Coding, Brake Reset, D#P#F Regen, Clutch Matching, Cylinder Cut Out Test, Speed Limit Reset, SCR Reset)

Remote Diagnosis: Not supported

TPMS: Not supported

ADAS: Not supported

Expansion Modules: Not supported

Diagnostic Smart Navigation: Not supported

Diagnostic Topology Map: Not supported

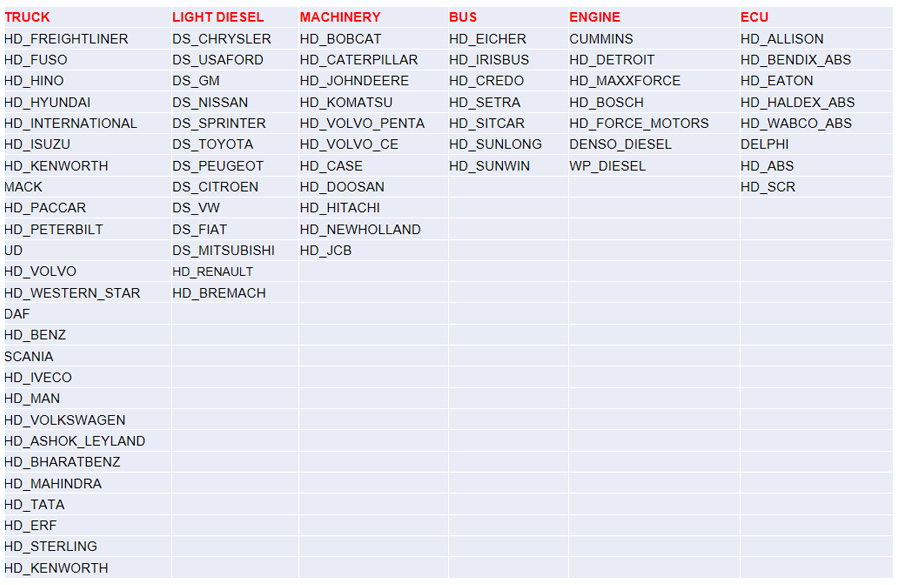

Vehicle Coverage:


Truck:

For FREIGHTLINER, for FUSO, for HINO, for HYUNDAI, for ISUZU, for VOLVO, for IVECO, for MAN...



Light Diesel：

For CHRYSLER, for GM, for NISSAN, for TOYOTA, for VW, for FIAT, for RENAULT...



Machinery:

For Bobcat, for CATERPILLAR, for JOHNDEERE,  for CASE, for HITACHI, for JCB...



Bus:

For EICHER, for IRISBUS, for CREDO, for SETRA, for SITCAR, for SUNLONG, for SUNWIN



Engine:

For CUMMINS, for DETROIT, for MAXXFORCE, for BOSCH, for DENSO...



ECU:

For ALLISON, for EATON for WABCO for DELPHI, for HALDEX...



Product Specifications:


Screen size: 5 inches

Resolution: 854×480

Processor: RK3326S, quad-core Cortex-A35, 1.6GHz (Y9S)

RAM: 2GB

ROM: 64GB

Expandable memory: Supported

Battery: 3150mAh / 3.8V

Camera: None

Bluetooth: Bluetooth 5.0

Wi-Fi: 2.4G/5G (dual-band)

Speaker: None

Microphone: None

Buttons: Power on/off

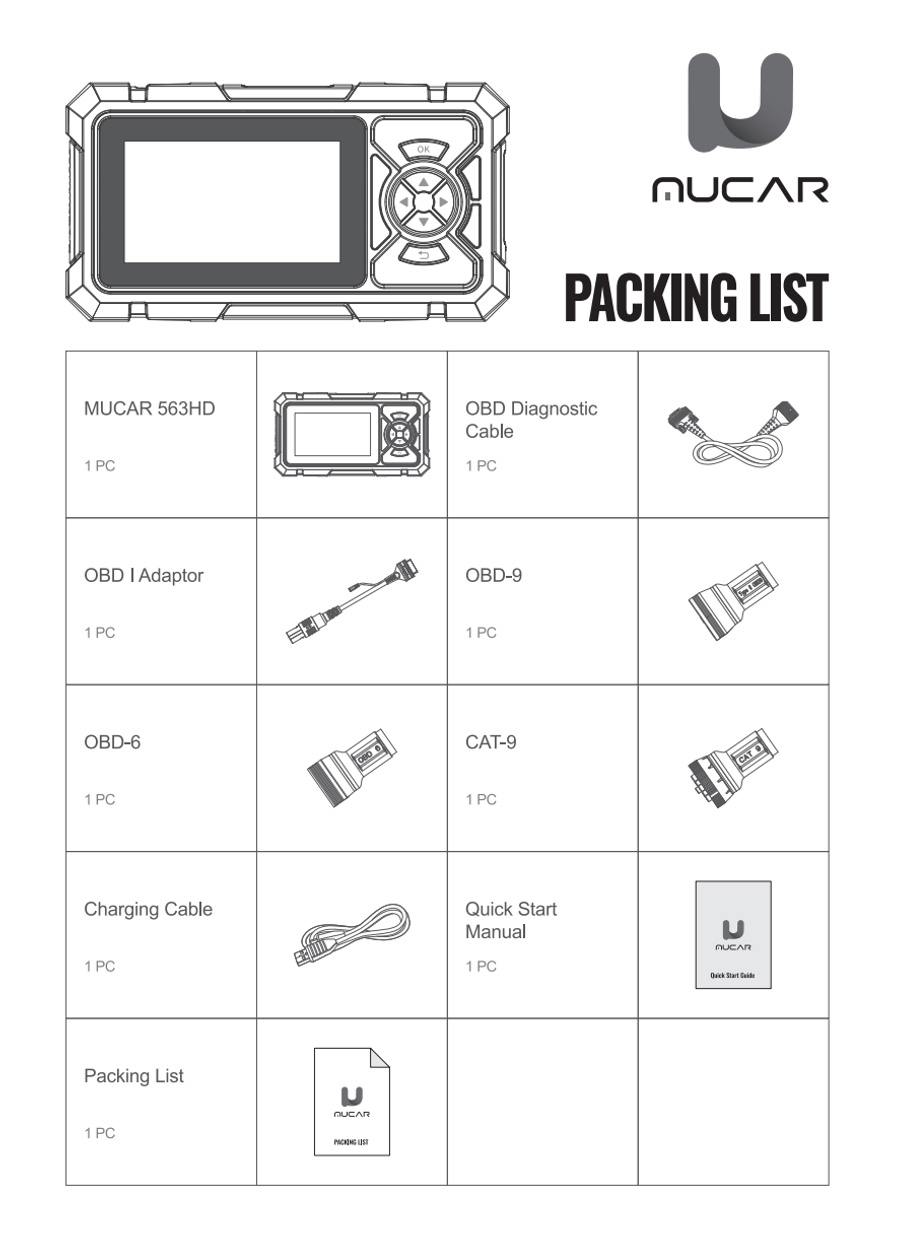

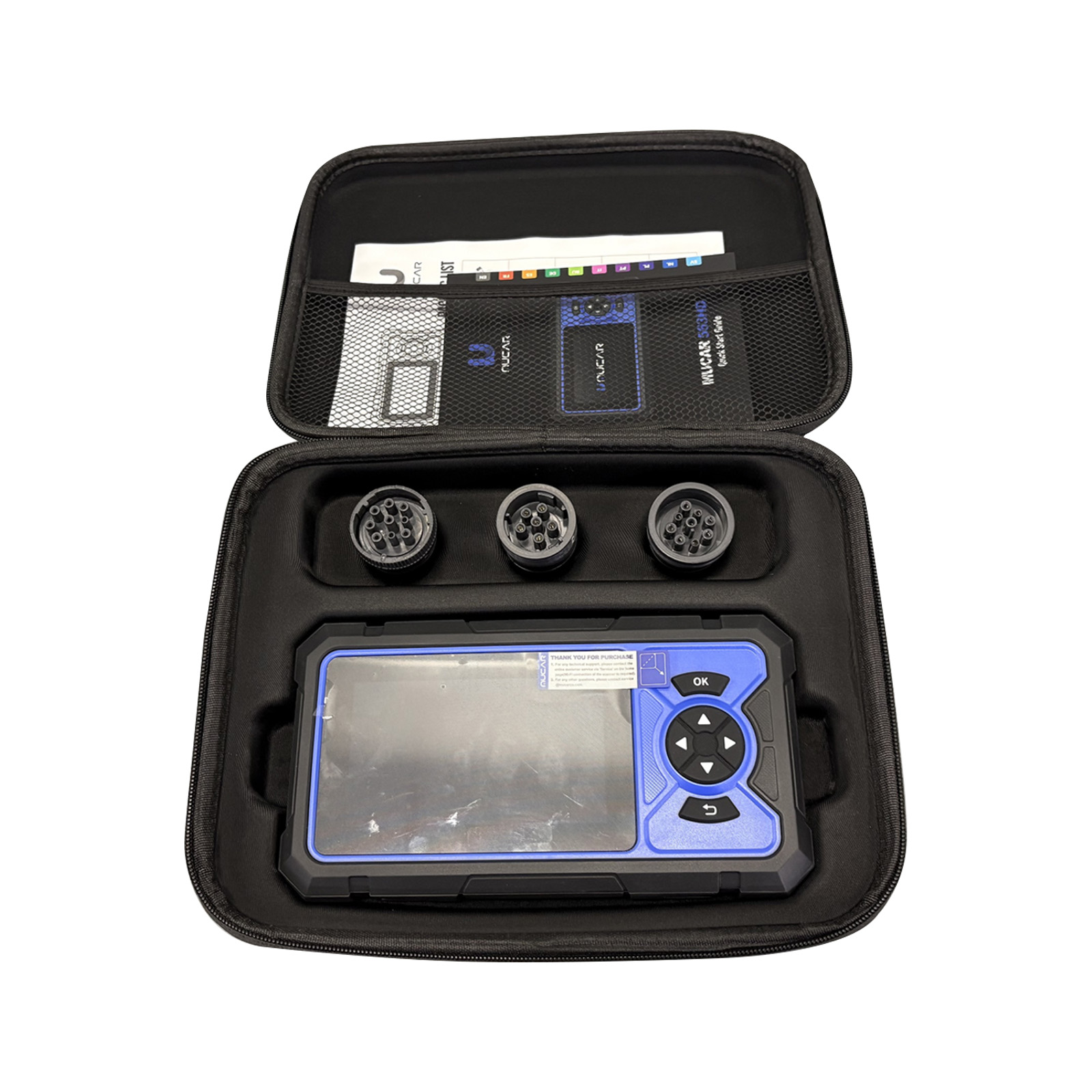

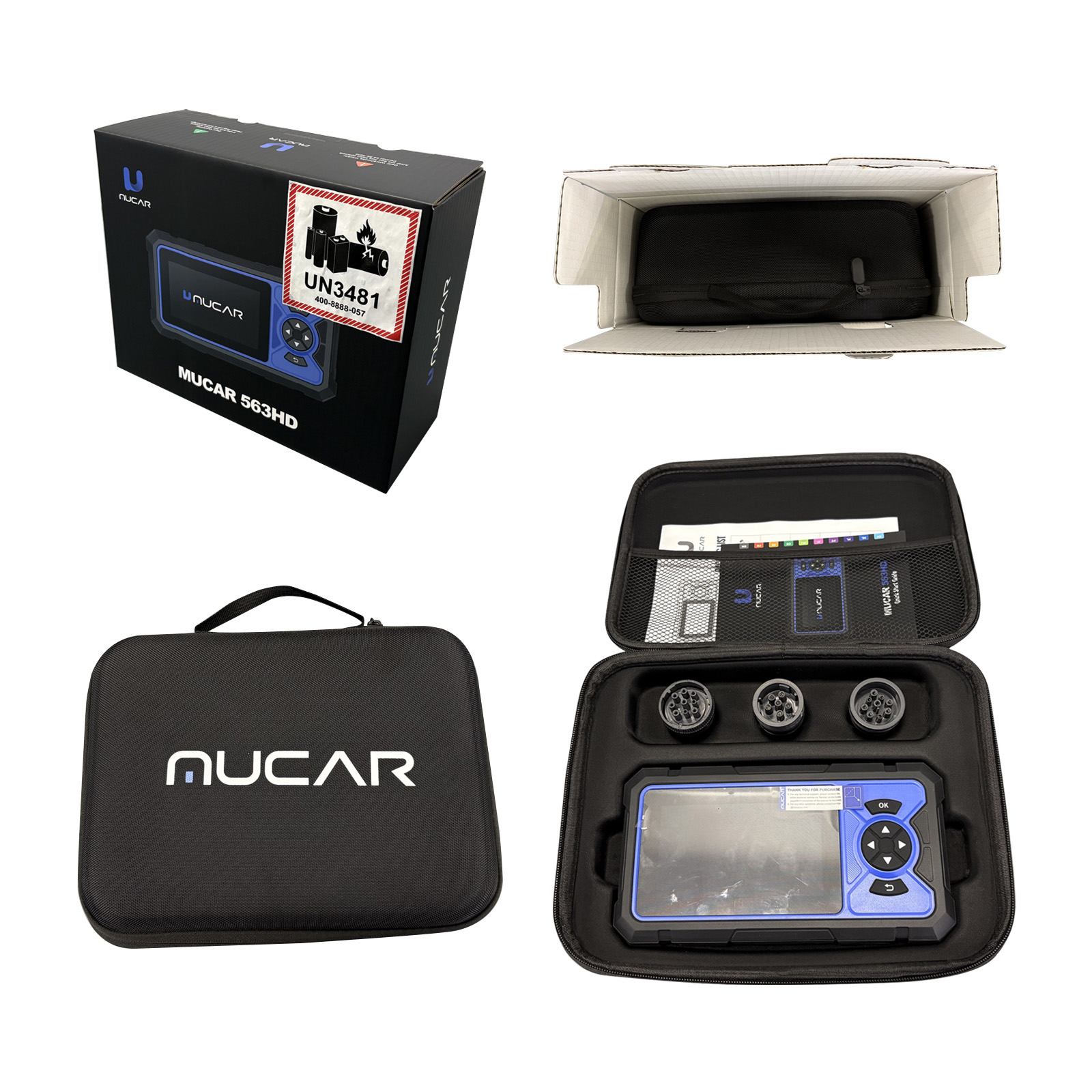

Package includes:



1pc x MUCAR 563HD Tablet

1pc x Diagnostic Cable

1pc x OBDI Adapter Cable

1pc x OBD-9 Adapter

1pc x OBD-6 Adapter

1pc x CAT-9 Adapter
1pc x Charging Cable
