- Red one is for China Market, Orange one is global version.
- Xhorse VVDI Key Tool Plus Pad combines functions of VVD2, VVDIMB, Key Tool Max, VVDI BIM, and VVDI PROG with the ability to expand the capabilities as needed.
Original Xhorse VVDI Key Tool Plus Pad All-in-One Programmer Full Configuration Free Update Online
Free Update Online
Global advanced version support all countries market
WE MAKE IT FIT FOR MORE LUXURY CAR BRANDS
VVDI Key Tool Plus Pad User Manual Free Download
Transponder generation and cloning of over 850 car models
Global advanced version
and full configuration
VVDI Key Tool Plus Newest Update: Support VVDI VW 5C (MQB478)
Support remote generation, smart key generation, frequency detection, remote clone for a variety of car mode
, VVDI MB
, Part VVDI PROG
, Key Tool Max
, part VVDI BIM Tool Pro
with the ability to expand the capabilities as needed. It's available to control the key cutting machines developed by Xhorse.
VVDI Key Tool Plus bind with Xhorse key cutting machine (
Condor xc-mini, Condor xc-mini plus
, Dolphin XP005
, Dolphin XP007) to get a free BGA token every day
. ID48 96bit (XNR-SS303
) and read MB Key password online will need vvdi mb token (XNR-SS240
), but both can read xhorse bonus points, copy 48 96 bit (100 points), and Mercedes calculation (200 points).
KEY TOOL PLUS All-in-one Security Solution for Locksmiths
KEY TOOL PLUS Has It All.
A Computer, A Mobile Phone, A Tablet, An Immo Programmer, A Remote Maker, A Transponder Generator, A Programmer, A Frequency Tester
|Key Tool Plus Pad Main Features
- CAS3\CAS3 +
- CAS4\CAS4 +
- ECU ISN Reading
|for Mercedes Benz
- FBS3 Keyless Go Keys
- Smart Key - All Keys, Lost Add A Key, Enable & Disable Keys
- EIS/EZS, ELC, ECU gearbox, and ISM replacement
for Volkswagen & Audi
- 3rd/4th/5th generation
Make Key from File Function
- supports Jaguar - Land Rover - Porsche - Volvo - Mitsubishi - and others
PROG+ Programming Functions
|Key Tool Plus Functions
- Transponder Detection
- Transponder Cloning
- Transponder Generation
- Remote Cloning
- Remote Generating
- Frequency Detection
- Remote Renew
- IC/ID Clone
- Vehicle Error Light Reset
- Key Cutting Machine Control
- OBD matrix switch
- Smart Key Simulator
- Radiofrequency simulator
- Integrated Key Identification Coil
- Mercedes Benz infrared read-head
- More functions to be added in future updates
- CAN and K Protocol Switch Pin
- Chip Pin Detection
- Toyota Smart Key Programming w/o Simulator
- Long-distance IMMO Collection
- WIFI: 2.4G/5G
- Bluetooth: 5.0 Bluetooth
- Operation System: Android 9.0
- Charging: PD3.0 Fast Charge
- 4GB RAM + 128GB ROM large storage capacity
- CPU: 8-Core high-performance processor
- Rear HD Camera: 13.0MP (designed to fit in multiple scenarios perfectly)
- Screen Size: 10.1" Screen, Super 10.1 Anti-glare display enables top operation experience.0)
- Battery Capacity: 10000mAh (Long battery life and PD3.0 fast charge,
Keep you productive throughout your day)
Xhorse Key Tool Plus Function:
Luxury Cars IMMO Programming
Ordinary Cars IMMO Programming
File Make Key
Control Xhorse Key Cutting Machines
More Functions Coming Soon
Outfitted to Outperform
Serve Your Work the Best
4GB RAM + 128GB ROM large storage capacity
8-Core high performance processor
Faster than most ordinary smart devices
4 aspects improving markedly:
Data processing, Instruction completing, Execution operation, Strong stability
√ CAN and K protocol switch pin
√ Chip pin detection
√ Toyota smart key programming without simulator
√ Long distance IMMO collection
√ OBD matrix switch
√ Radiofrequency simulator
√ Smart key simulator
√ Integrated key identification coil
√ BENZ infrared reading head
Key Tool Plus Support IMMO Programming for Luxury Cars
As a versatile automotive security device, KEY TOOL PLUS simplifies immo programming for luxury cars like Volkswagen, AUDI, BMW, BENZ, Porsche, Bentley, SEAT, etc.
Users can effortlessly finish the tough work in one single tablet.
Additionally, the support car models won't end here: more cars will be included in the list by Xhorse.
KEY TOOL PLUS features immo programming for thousands of car models around the world, literally covering the great majority of car models locksmiths may meet in work, so as to ensure the effectiveness and convenience of their daily work.
VW&AUDI IMMO Programming
- 3rd/4th/5th generation
KEY TOOL PLUS provides users with functions including key programming, key learning, ECU coding/adaption/replacing, diagnostic function, etc. to best resolve most problems they met in immo programming for Volkswagen and AUDI cars.
Mercedes-Benz IMMO Prorgamming
KEY TOOL PLUS offers users all-rounded and professional security solutions for Mercedes-Benz. The device helps with FBS3 Keyless-go smart key programming, all key lost, adding keys, enabling & disabling keys and EIS/EZS, ELV, ECU, gearbox, ISM replacing.
BMW IMMO Programming
Extremely Cost-effective, Surprisingly Professional
KEY TOOL PLUS can achieve BMW CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+ OBD
key learning, FEM/BDC key programming, File Make Key, ECU ISN reading, ECU and CAS synchronization, etc.
Getting work done has never been easier.
Other Car Models Supported
Prog Function OF Key Tool Plus Pad :
- For Toyota
- For Honda
- For Mazda
- For Ford
- For Cadillac
- For LandRover
- For Peugeot
- For Kia
- For Buick
- For Chevrolet
- For Volvo
- For Mitsubishi
- For Nissan
- For Suzuki
KEY TOOL PLUS is designed with Prog function
, which can work as a solder-free programmer, directly reading and writing common modules and chips for plenty of car models. Xhorse is the first to offer this integrated solution.
Supported EEPROM and FLASH
VVDI key tool plus Support Modules
- BMW: CAS3/CAS3+/CAS4/CAS4+/FEM/FRM/BDC
- BENZ: EIS/EIZ
- PORSCHE: BCM
- VOLVO: CEM/KVM
- BMW/AUDI/VW: ECU AND MORE
- HONDA/HYUNDAI/KIA: MB91F dashboard
- LANDROVER: RFA
All KEY TOOL Functions in One Tablet
Various Devices No More, Carry a Lighter Load
Key Tool Plus Pad Supported Transponders
- Transponder Clone
- Remote Clone
- Transponder Generation
- Remote Generation
- Transponder Reading
- Remote Renew
- Frequency Detection
- IC/ID Clone
- More Functions coming soon
- Eg. OBD diagnosis and MQB49 immo programming have just been released on KEY TOOL PLUS and it’s projected to support DOIP, CAN-FD, Toyota 8A smart key in the near future.
Key Tool Plus Pad Supported Remotes
- ID46 online calculation
- ID48 (96 bit) online calculation
- Toyota H(8A) online calculation
- Transponder generation and cloning of over 850 car models
- Special transponders and special cars and old car models
- Support remote generation, smart key generation, frequency detection, remote clone for a variety of car models
- HCS/fix code clone, non-HCS rolling code clone, fix code editing
- PT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fix code editing
Solve Programming Dilemma
IMMO Data Tool (File Make Key)
For some cars, key programming and other settings can't be finished via OBDⅡ. KEY TOOL PLUS gives amazing strength to solve the dilemma by delivering File Make Key function which can be used to add keys for them.
This very function features generating transponder via reading-related transponder data of the car immo module directly.
Example: Magotan/CC 48 transponder File Make Key
Support Audi, Jaguar, Volvo, Ford, BMW, Land Rover, Buick, Kia, Bentley, Peugeot, Cadillac, Toyota, Honda, Porsche, Chevrolet, Nissan, etc.
Meet Your Work Demands in Every Way.
KEY TOOL PLUS supports maintenance light reset, electric parking brake, TPMS, battery matching, throttle program, injector programming, steering angle programming, bitting decode, gearbox programming, headlight programming, etc.
More maintenance functions will be released soon.
Key Tool Plus Customer Feedbacks:
•2002 Toyota Yaris eeprom 25020 chip 4C✓
•1999 starlet eeprom 24c04 chip pcf93✓
•2007 Rav 4 reset immo ECU and made two keys manually✓
•2010 Land cruiser Amazon reset immo ECU and made 2 keys manually✓
•2004 Honda CR-V bench✓
•2003 s class w220 bench✓
• 2017 Renault duster bench✓
•2002 Peugeot 407 bench thought bsi ✓
•2013 Model Volvo S80✓
•2018 Model Volvo V40✓
•2019 Model Volvo V40 ✓
Its design concept is to unite the functions of your various devices and offers the advantage of ultra-convenience at hand.
Keep the Key Cutting Machine in Control
Available to control Xhorse key cutting machines (CONDOR, DOLPHIN, Panda, and more). PERFECTLY WORK AS AN OPERATION SCREEN

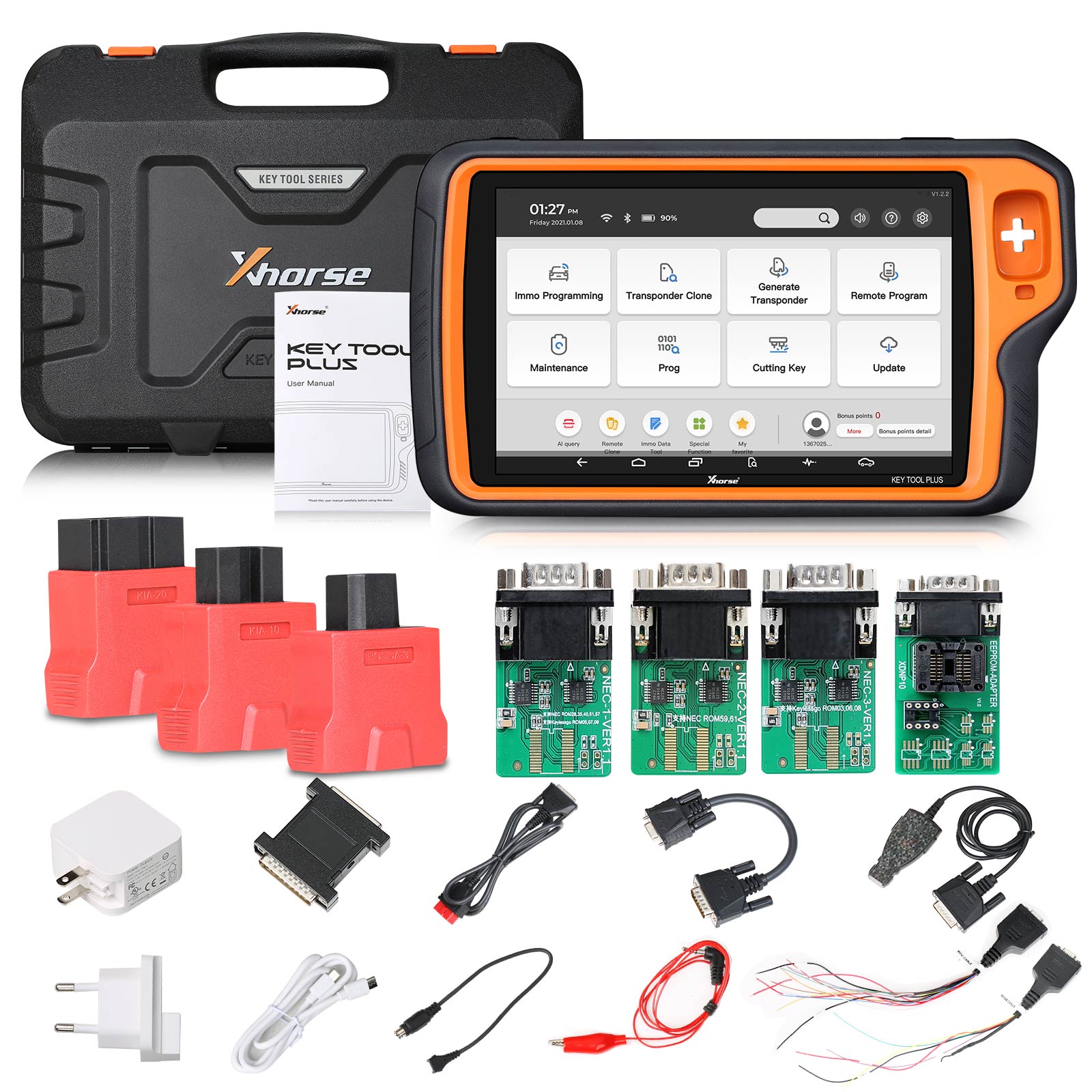

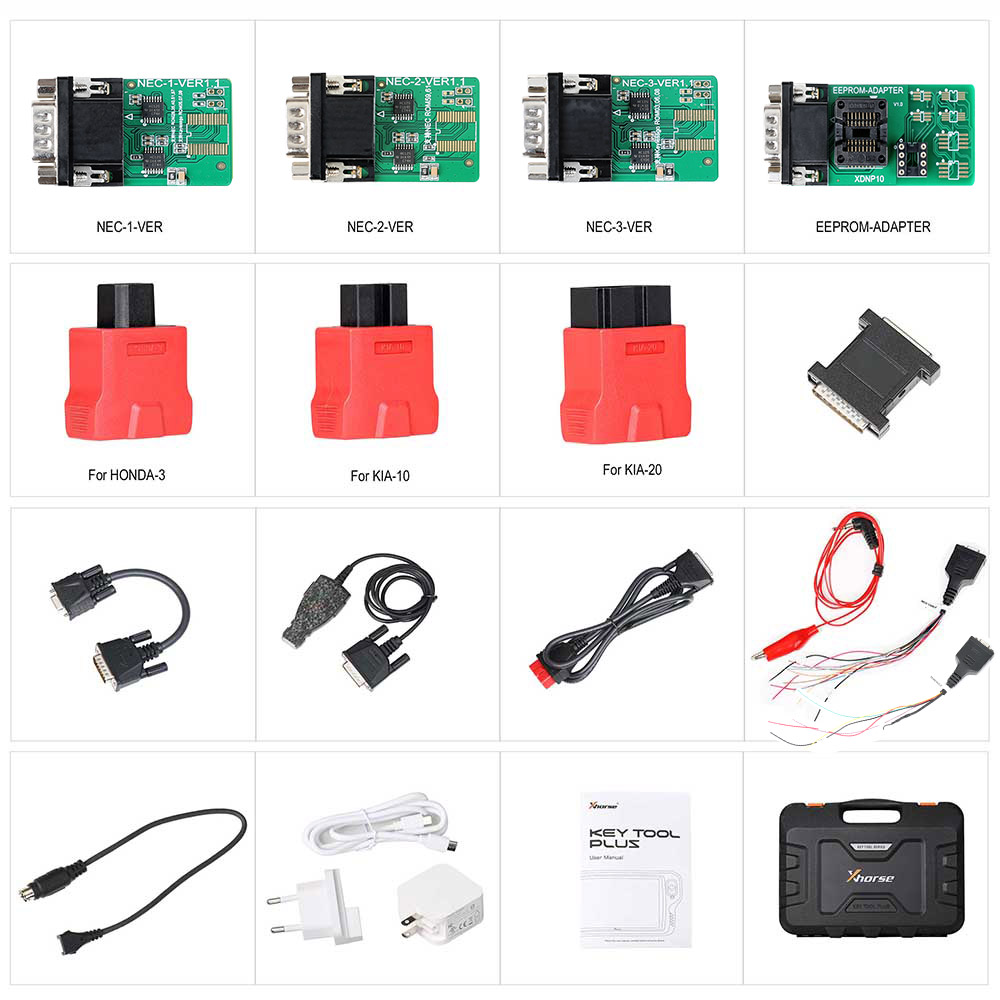

1pc x Pad Main Unit
1pc x User Manual
1pc x Power Adapter
1pc x USB Cable 3.0 Type C
1pc x OBD DB25 Cable
1pc x OBD to Kia 10 Pin Connector
1pc xOBD to Honda 3 Pin Connector
1pc x Remote Programming Cable
1pc x Chip Storage Container
1pc x Prog DB15 Cable
1pc x Prog EEPROM Adapter
1pc x MB IR Adapter
1pc x MB NEC1 Adapter
1pc x MB NEC2 Adapter
1pc x MB NEC3 Adapter
1pc x MB Power Adapter
1pc x MC9S12 Reflash Cable
1pc x ECU Cable
EU Warehouse Shipping: 3-5 working days. We have stocked up hot sale items in EU(Czech) Warehouse ,which is more convenient for you. Free TAX, faster shipping with cheaper price.
Yanwen Express: 9-14 working days ,we will prepay the tax,then do not need customers to pay tax for most european counties
( We will send by Yanwen Express by default because of EU high Customs tax. If Customers need the faster DHL shipping method and willing to pay the high tax .Pleasee leave message to us in time after placing the order)
DHL Shipping: 3-5 working days, To help you clearance we will help declare a lower price on the invoice. If address is remote area, customer need pay remote freight or we will ship by Normal Post or Yanwen Express.
1.All of the items will be shipped to PAYPAL Shipping Address,please confirm your address on PAYPAL before you buy.
2.Your order will be usually shipped out the same or next business days once the payment is made, except on weekends and holidays.
Mobile:+86 15223201143WhatsApp: +86 15223201143Handy Version: Bitte scannen das Bild, koennen Sie per Handy Kaufen!!!
Xhorse VVDI Key Tool Plus Pad new functions-Diagobd2.de
Xhorse VVDI Key Tool Plus Pad Unboxing-Diagobd2
xhorse key tool plus tokens and fee
1. Wann sind Token erforderlich, wenn Sie das Xhorse vvdi key tool plus verwenden?
When tokens required when use the Xhorse vvdi key tool plus?
2. So erhalten Sie Token für das vvdi key tool plus
3. Testergebnis des VVDI Key Tool Plus
Benz password online calculation
ID48 96bit cloning
Toyota 8A H online calculation.
1. Benz Token
How to get Mercedes Benz password online calculation token for Key Tool Plus?
Buy 1 token or 5 tokens. Require to provide device serial number to activate.
You can also use VVDI BE key pro or universal remotes to get token from key. 200 points= 1 token.
Add key costs 1 token (200 points) one time and All keys lost costs 2 tokens (400 points).
1 VVDI BE key comes with 200 points. BE key points can be used for MB calculation only.
Generate xhorse universal remote will get bonus points. You can exchange these points to MB token as well.
: 25 bonus points
: 40 bonus points
40 bonus points
60 bonus points
Link/Bind with Xhorse key cutting machines to get tokens (Condor Mini, Condor XC-002, Condor Mini Plus, Dolphin XP005)
Link 1 xhorse key cutter get 1 free token per day.
Link 2 xhorse key cutters get 2 free tokens per day.
(If you bind 2 or more key cutting machines, you can get up to 2 tokens per day only.)
after you gto the condor key cutting machine, you must provide your customer id information(passport, driving license ect) and serial number of condor series items to enjoy 1 free toekn
2. ID48 96 Bit Cloning Token
You can buy 1 token for ID48 96Bit or get token from bonus points (100 points for per cloning)
3. Toyota H (8A Smart card)
Toyota H (8A) smart card online calculation: 200 points (only required for the first generation, later it is free)
4. MQB Online Calculation Token
You can buy MQB Online Calculation Token
FAQs on Tokens:
Q: Why I cannot buy MB unlimited tokens for the new key tool plus? Answer:
A: No. The Key Tool Plus does not have unlimited tokens policy.
Q:If you cannot see points in key tool plus pad, where to check points & tokens?
A: Go to Account and bind device you will see points.same operation as in Xhorse App.
VVDI Key Tool Plus Test Result
from Generating the chip and remote to programming it to the car all with just 1 tool, key tool plus
2006 honda civic akl
2006 pontiac g6 akl
2015 Nissan rogue akl
2017 Ford f150 akl
And several add keys, it had not failed on anything yet.
2009 mini cooper all key lost cas 3++ istap through OBD with key tool plus . 5 min
programmed a remote on a 2019 Subaru
programmed Range Rover 2012 smart key with Xhorse key tool plus! It’s working good ! Easy to follow the instructions
2014 Scion TC (keyed) AKL
Simple, but still a success.
