July Sale EU-Schiff 2 Years Free Update OBDSTAR X300 Classic G3 A1 A2 with Full Licenses Airbag Reset & Cluster Calibration & ECU Clone & Test Platform

Produktbeschreibung

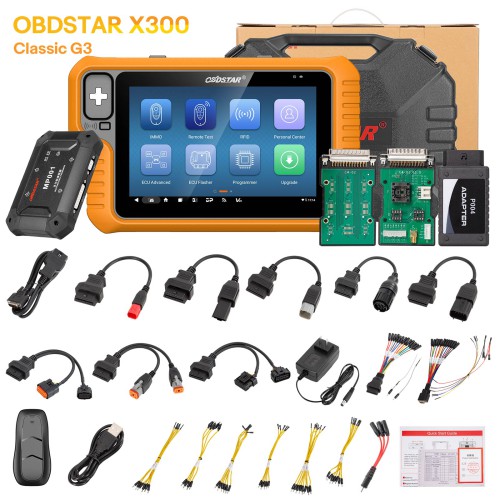

OBDSTAR X300 Classic G3 A1 A2 with Full Licenses

Please check the supported list before buying:

X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith master.


X300 Classic G3 Full Highlights

1. Fully activated Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform license. It is all-in-one-intelligent programming tool for IMMO Programming, Odometer correction, ECU Flasher, Airbag Reset, Battery Reset, Angle Steering and Test Platform
2. First locksmith tool getting PIN extraction/Cloning for BCMs on Bench! No need to cut into immo-boxes or buy dealer pins
3. Built in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;
4. Comes with MP001 programmer(replace P003/P003+ adapter) and P004 adapters in default
5. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
6. 2 Years Free Update, the update cost is 249USD/year before update expired, after update expired, the update cost is USD249+USD249/12*expired month(6 months at most)
7. Buy X300 Classic G3 programming tool now, get free Key Sim Kit and Motorcycle IMMO Accessories(M034, M037, M040, M041, M042, M043, M053, M054) at the same time
8. Benz key programming (add key, AKL) and ECU/TCU/ISM reset/program (Purchase Benz FBS3 kit)
9. KEY MASTER G3 X300 G3 Full Version COVERAGE list, newest updated on July 30th

Note: From June 1, 2026 onwards, the original A2 free gift will no longer be provided for free, but can be purchased separately

⚠️ Disclaimer: Some functions of this product involve instrument repair, replacement, and legal calibration only. It is prohibited to use them for illegal mileage alteration or fraudulent purposes. The user is solely responsible for lawful usage.

Hardware Advantages:

1. Built in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;

2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
Product Features:

Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;

2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;

3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;

4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;

5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;

6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;

7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6SM6 models.

Supported Vehicle Types:

Car, HD, E-Car, MOTO, Marine (jet-ski)

Software Functions:

Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

Function module list

A: IMMO  A1.1: CAR IMMO

                A1.2: HD IMMO

                A1.3: E-CAR IMMO

                A1.4: MOTO IMMO

                A1.5: MARINE IMMO


               A2.1 Remote Test

               A3.1 ECU Advanced

               A4.1 Make Key

               A4.2 R/W Transponder

               A4.3 Unlock Smart Key

               A5.1 EEPROM/MCU

               A5.2 Renew Key


B: ODO METER

                B1.1: Car ODO METER

                B1.2: MOTO ODO METER

                B2.1: Oil/Service Reset


C: ECU Flasher

                C1.1: CAR ECM

                C1.2 :CAR TCM

                C1.3: CAR BODY

                C2.1: MOTO ECM


D: Crash Reset

                D1.1: Battery Reset (MVBM)

                D1.2: Airbag Reset

                D1.3: SAS Reset


E: Test Platform

                E1.1: Dash Board

                E1.2: E-CAR ABS

                E1.3: Gear Lever

                E1.4: A/C panel

                E1.5: E-CAR BSG

                E1.6: E-CAR MHEV

                E1.7: E-CAR AUDIO

                E1.8: E-CAR EBA

Product Comparison:


Products Details		X300 DP Plus C	X300 Classic G3
Hardware	Operation system	Android 5.1.1	Android 11
	OTA	x	√
	Screen recording	x	√
	Wireless screen casting	x	√
	CPU	qual core ARM cortex A9 1.4GHz	Quad-core 64-bit Cortex-A55  2.0GHz
	Battery	3700mAh	9000mAh
	Storage capacity	1+32GB	4+64GB
	LCD	8.0 inch	8.0 inch fully laminated sunlight readable screen
	Camera	Rear camera 500W pixels	Rear camera 800W pixels, auto-focus
	Bluetooth	Bluetooth 4.2	Bluetooth 5.0(Compatible with BT 4.2)
	External interfaces	x	RJ-45√
		x	HDMI√
		TYPE-A	TYPE-A,TYPE-C
	WiFi	2.4G	Dual-band 2.4G/5GHZ
	VCI	STM32F105	STM32H723
		CANFD Adapter Required	CANFD built in√
		x	DOIP built in√
		x	Low Speed(Fault Tolerant) CAN  built in√
		x	RS232、RS485  built in√
		All other common protocol types	All other common protocol types
	RFID	P001 Required	Built in√
	Remote Test	RT100 Required	Built in√
	Renault Converter	Renault Converter Required	Built in√
	Weight	About 1kg	1.5kg (main unit)
	Dimension	254mm*174mm*35mm	270.5mm*165mm*39mm
Functions	Diagnosis	√	x
	OBDⅡ	√	√
	Car IMMO	√	√
	MOTO IMMO	√	√
	HD IMMO	√	√
	Marine IMMO	x	√
	E-Car IMMO	x	√
	RFID	x	√
	Make key	x	√
	Unlock Smart key	x	√
	Renew key	√	√
	Read/Write EEPROM MCU	√	√
	ECU advanced（Includes ECU unlock）	x	√
	Oil/Service reset	√	√
	Other service function	√	x
	Remote test	x	√
	ECU flasher IMMO（IMMO OFF、ISN、IMMODATA）	x	√
	ECU flasher（Clone）	√ Limited supported models, different with DC706 and G3	Paid activation
	Car/Motorcycle cluster recalibration	√	Paid activation
	Airbag reset	√	Paid activation
	Test Platform	x	Paid activation


Highlights Added：

               Add BENZ DSM(FBS4) C207/C292/W166/W212/W218/W447 3 part numbers(A0002703252/A0002703352/A0002703452) the following functions support:

               ECU Info.;

               Read Data(Backup);

               Reset Virgin;

               IMMO Data Synchro;

               Write VIN;

               Write Data.

               Add BENZ DSM222(FBS4) C217/W205/W222/W907/W910 3 part numbers(A0002704252/A0002704452/A0002704652) the following functions support:

               ECU Info.;

               Read Data(Backup);

               Reset Virgin;

               IMMO Data Synchro;

               Write VIN;

               Write Data(Recover).

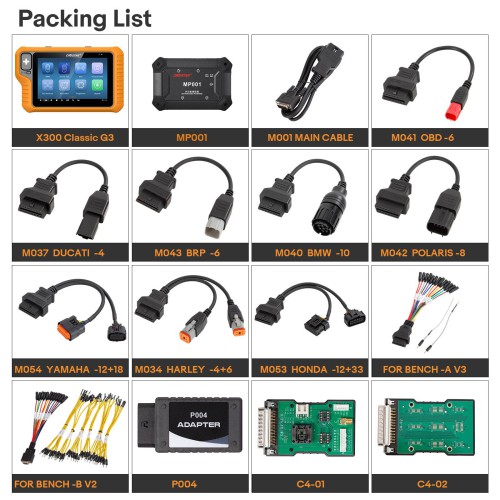

Package Includes:
1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness

Free Gift Kits
A1
1pc x KeySlim + USB to Type-C Cable
A2
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA


About Delivery

EU Warehouse Shipping(No Tax): 3-5 working days. We have stocked up hot sale items in EU(Czech) Warehouse ,which is more convenient for you. Free TAX, faster shipping with cheaper price.
Yanwen Express(No Tax): 8-12 working days ,we will prepay the tax,then do not need customers to pay tax for most european counties 【We will send by Yanwen Express by default(for the items not in stock in EU)because of EU high Customs tax. If Customers need the faster DHL shipping method and willing to pay the high tax .Pleasee leave message to us in time after placing the order】
DHL/UPS/Fedex Shipping: 3-5 working days, to help you clearance we will help declare price on the invoice. If address is remote area, customer need pay remote freight or we will ship by Normal Post or Yanwen Express.
Note:
1.All of the items will be shipped to PAYPAL Shipping Address,please confirm your address on PAYPAL before you buy.
2.Your order will be usually shipped out the same or next business days once the payment is made, except on weekends and holidays.
