OBDSTAR FCA 12+8 Cable

Marken: OBDSTAR Art.-Nr.SF251-C2 Auf Lager.

Sofort Kaufen: 25.00
Hot Selling Products,EU Ship No Tax
Any help,please contact WhatsApp: +86 15223201143
Versand:
Kostenloser Versand Flat Rate VersandserviceLieferzeiten : 12-25 Arbeitstage.See details »
Gewicht:
0.3KG
Paket:
22cm*17cm*4cm ( Inch: 8.64*6.68*1.57 )
Rückkehr:
Erstattung: innerhalb 7 Tagen. Der Kunde vertr?gt Versandkosten Read details ?

Produktbeschreibung

All FCA (FIAT/CHRYSLER/ALFA ROMEO) vehicles after 2018 are equipped with SGW security gateway module to prevent attacks on the vehicle network via the CAN bus. Directly plug in the OBD II-16 connector cannot communicate with the vehicles because SGW security gateway module can block the access to the vehicle's OBD2 port from non-original diagnoses. To solve this problem, you can connect to the 12PIN and 8PIN connections on the car via this FCA 12 + 8  cable to get normal communication with the car.
OBDSTAR FCA 12+8 Cable

All FCA (FIAT/CHRYSLER/ALFA ROMEO) vehicles after 2018 are equipped with SGW security gateway module to prevent attacks on the vehicle network via the CAN bus. Directly plug in the OBD II-16 connector cannot communicate with the vehicles because SGW security gateway module can block the access to the vehicle's OBD2 port from non-original diagnoses. To solve this problem, you can connect to the 12PIN and 8PIN connections on the car via this FCA 12 + 8  cable to get normal communication with the car.

Product Function:

OBD cluster calibration, OBD key programming, oil/service reset; also can be used with other diagnostic equpment for reading code and clearing code etc.

Vehicle Coverage:

1.CHRYSLER

2018-CHRYSLER 300

2018-CHRYSLER PACIFICA

2.DODGE

2018-DODGE CHALLENGER

2018-DODGE CHARGER

2018-DODGE DURANGO

2018-DODGE JOURNEY

2018-DODGE RAM

3.JEEP

2018-JEEP CHEROKEE

2018-JEEP GRAND CHEROKEE

2018-JEEP COMPASS

2018-JEEP WRANGLER

2018-JEEP RENEGADE

4.MASERATI

2018-MASERATI, include GHIBLI, LEVANTE,PRESIDENT

5.FIAT

2018-FIAT

How to use FCA 12+8 Cable

Find and unplug the 12PIN and 8PIN connectors of the SGW module, and then connect the FCA 12+8 directly to the 12PIN and 8PIN (connecting to the two connectors of the SGW) connector on the car. At this time, normal communication with the car can be realized.

Application Scenarios:

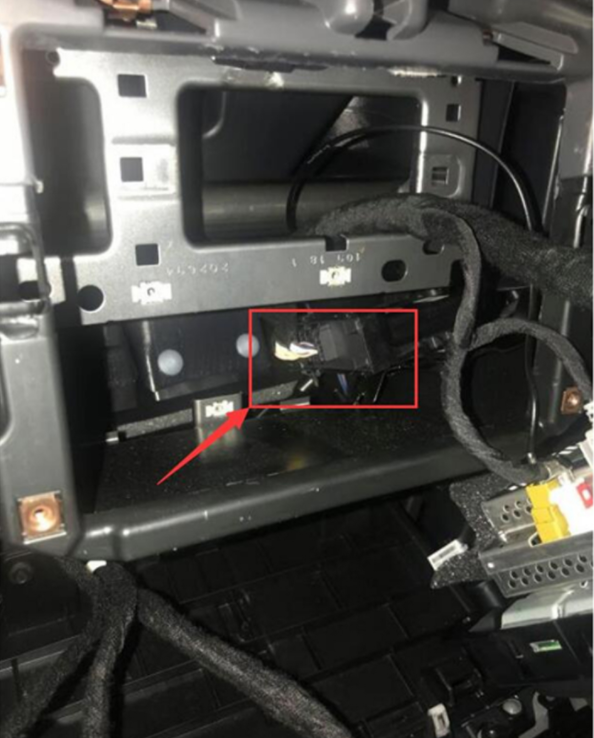

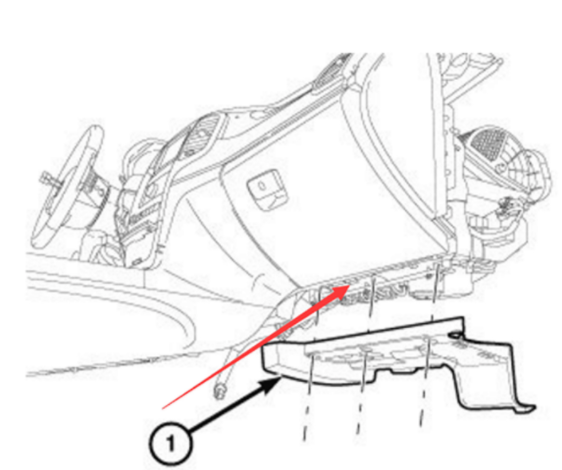

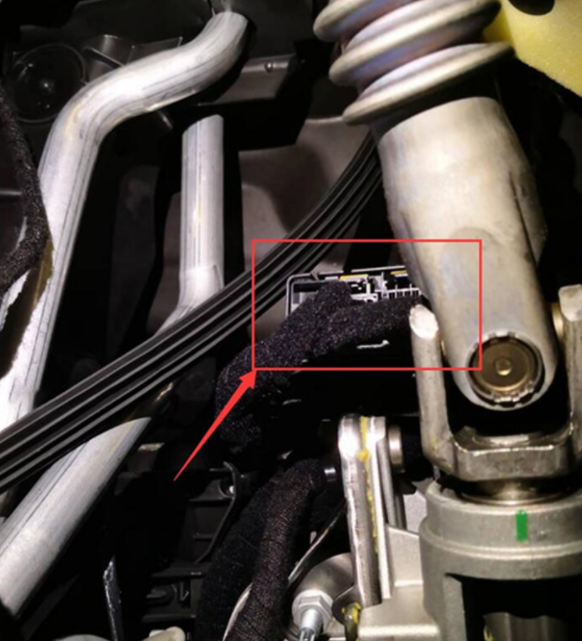

2018-DODGE RAM 1500/2500/3500



2018 DODGE DURANGO

2018 GRAND CHEROKEE





2018 MASERATI GHIBLI SGW LOCATION


Package Includes:

1pc x OBDSTAR FCA 12+8 Cable
