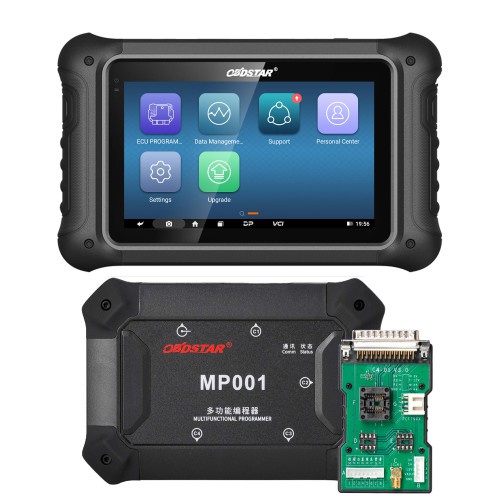

OBDSTAR DC706 Full Version with MP001 Programmer (Replace P002 P003 P003+)

Produktbeschreibung

OBDSTAR DC706 Full Version with MP001 Programmer (Replace P002 P003 P003+)
This package is OBDSTAR DC706 full version ECM/TCU cloning tool with OBDSTAR MP001 programmer (will replace P002 P003 P003+)

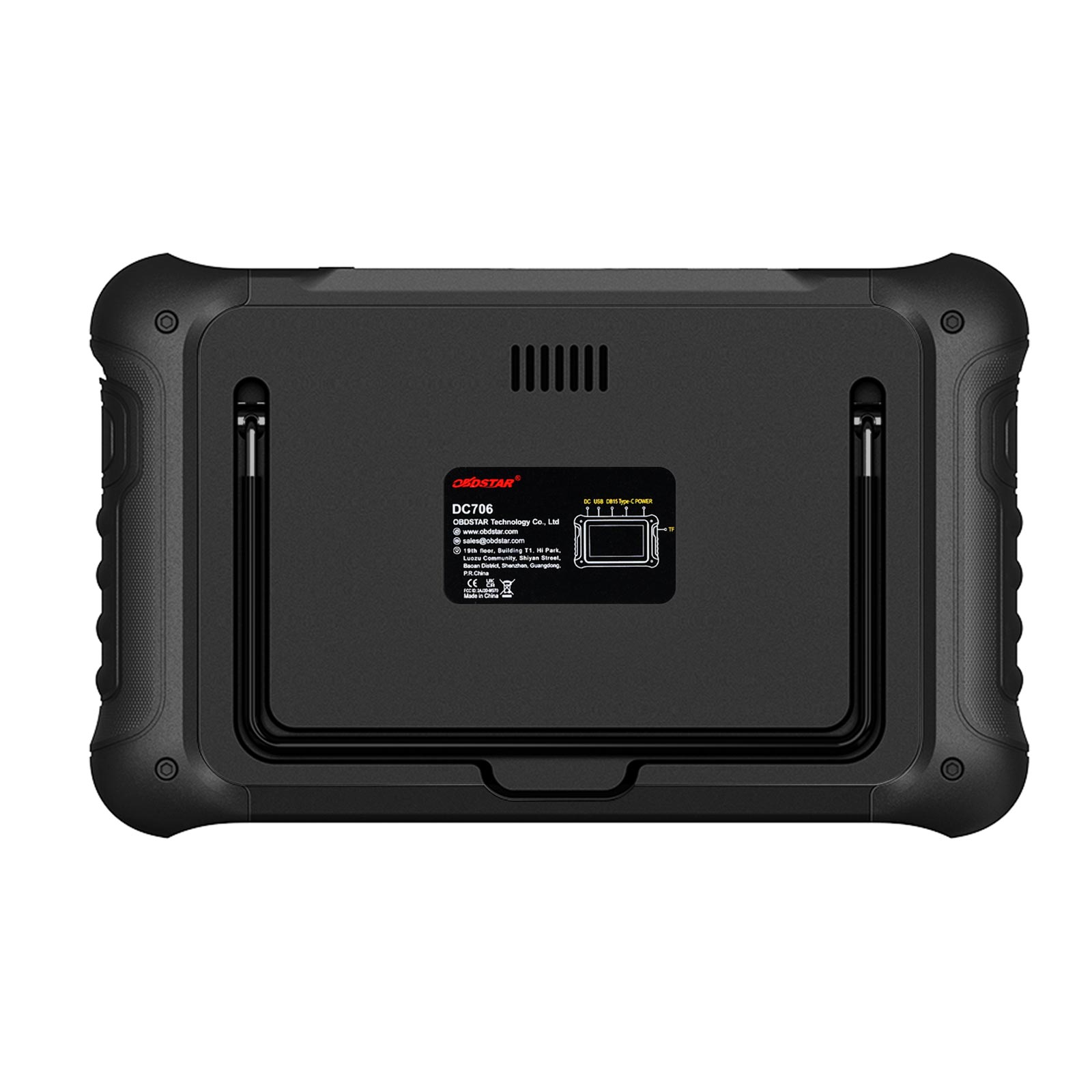

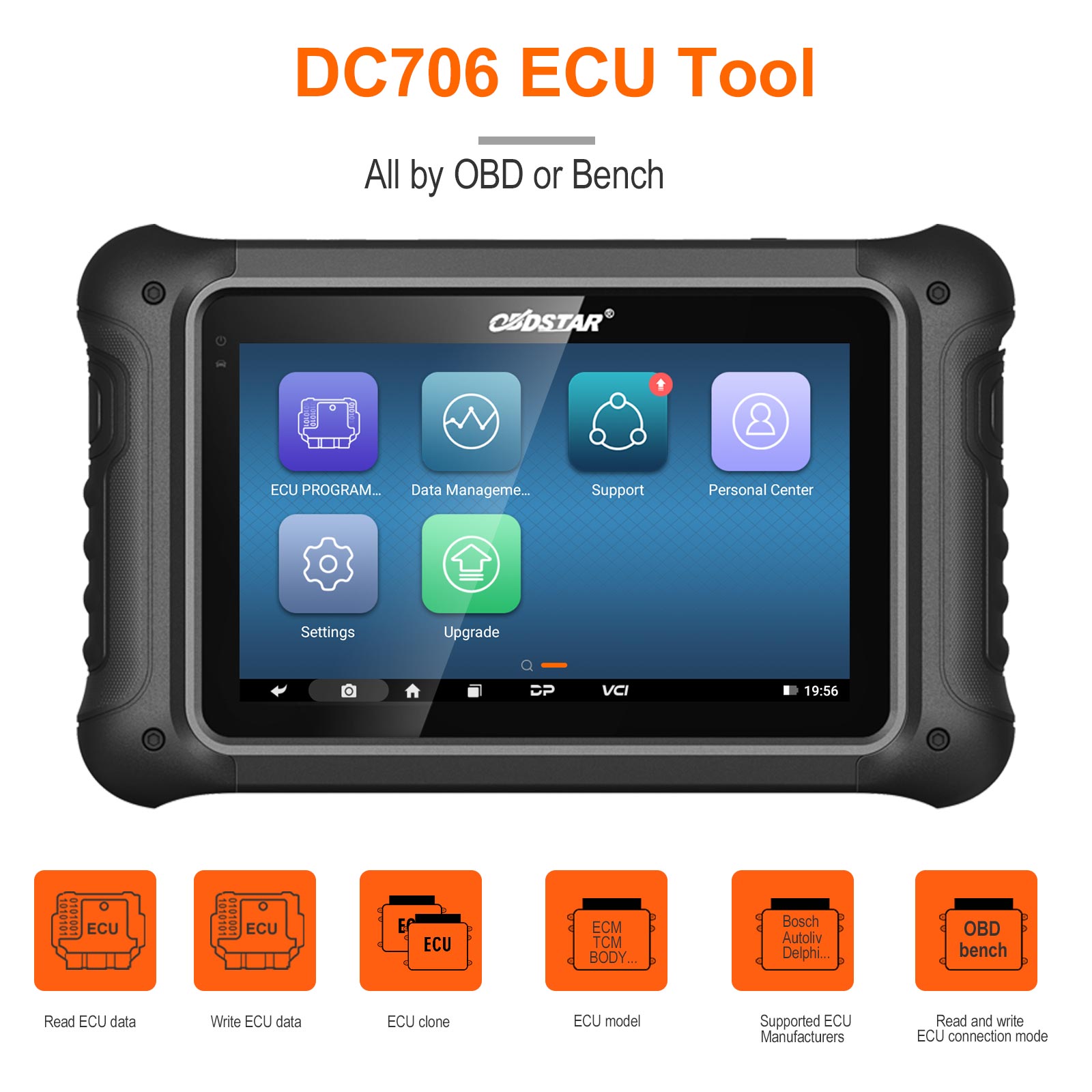

OBDSTAR DC706 ECU Tool Full Version

Highlights:

Stand-alone without PC
The tool this most closely resembles is IO Terminal. But it costs a third of the full version I/O Terminal.
Clone car and motorcycle BCM, ECU, TCU, RFH modules.
Supports MJD 8F2, MJD 8F3, MJD 6F3, IAW 8GF, 8GSF, 7GF, 9GF, 9GV, 10GF Cloning
Supports BMW MSD80 MSD85 MSD87 MSV80 MSV90 DME read/write, read ISN
Supports GPEC2 GPEC2A GPEC3 GPEC4 read, write, clone in boot mode
Supports Hyundai Kia SIM2K-240, SIM2K-241, SIM2K-305, SIM2K-250 SIM2K-251, SIM2K-260 read, write on bench, SIM2K-341, SIM2K-243 in boot
Supports VW Audi Skoda Seat Porsche Simos 18.10, Simos 18.1, Simos 18.3 read, write in boot mode
Supports RENAULT SIEMENS SIRIUS 34 AM29F400BB Clear IMMO Code(IMMO OFF)
Supports Fiat RFH BCM clone, DSG clone, GM Acdelco GM E39 E39A E80 E84 E83 E90 etc clone
Supports Benz DSM/DSM222 (FBS4) read/write
Frequently update online
1 year free update online, the updates are $249 if you wait until after it is expired and $179 if you catch it before expiration.
Supports OBD, bench and boot mode
Record every step you perform, showing wiring diagram and instruction guide
V31.00 software adds Checksum correction function (Aug. 6th, 2024)

NOTE:
OBDSTAR DC706 Full update subscription cost: Get 40% discount when purchasing your update subscription within 7 days of the expiration date or before the subscription expires, the cost is 179USD/Year. Over 7 days, charging at original price 249USD/Year.  Since it bounces a server, you will lose functionality without the updates. The good news is one cloning operation will cover the update cost if you plan ahead.

This package is the full configuration.

7 configurations optional

1. ECM clone (Car/Motorcycle)

2. TCM clone

3. Body/Other clone

4. ECM clone(Car/Motorcycle) + TCM clone

5. ECM clone(Car/Motorcycle) + Body/Other clone

6. TCM clone + Body/Other clone

7. ECM clone(Car/Motorcycle) + TCM clone + Body/Other clone (SE169-G)

OBDSTAR DC706 ECU tool, with 1-year free upgrade, is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.

The Global full version also supports Indian TATA and Mahindra (in ECM software)

For 6HP, Fiat IAW 9GF/9GV/7GF/10GF, Simos etc ECU, you will also need P003 bench adapter.

NOTE:

• Does not clone VAG DQ250 before year 2008.
• Device comes with English only.
• Please register the device to download software before using.
• OBDSTAR DC706 Distributor code is 0086A002.
• OBDSTAR DC707 ECM TCM BCM Vehicle List
• Don’t use the tablet charing cable as your power supply !!! For BENCH & BOOT (workbench) operation, please use a reliable high-power DC regulated power supply (current not less than 5A) to power the ECU. OBDSTAR’s standard power adapter (current 2A) is only used for device charging and is not recommended for ECU.
• Check OBDSTAR DC706 User Manual

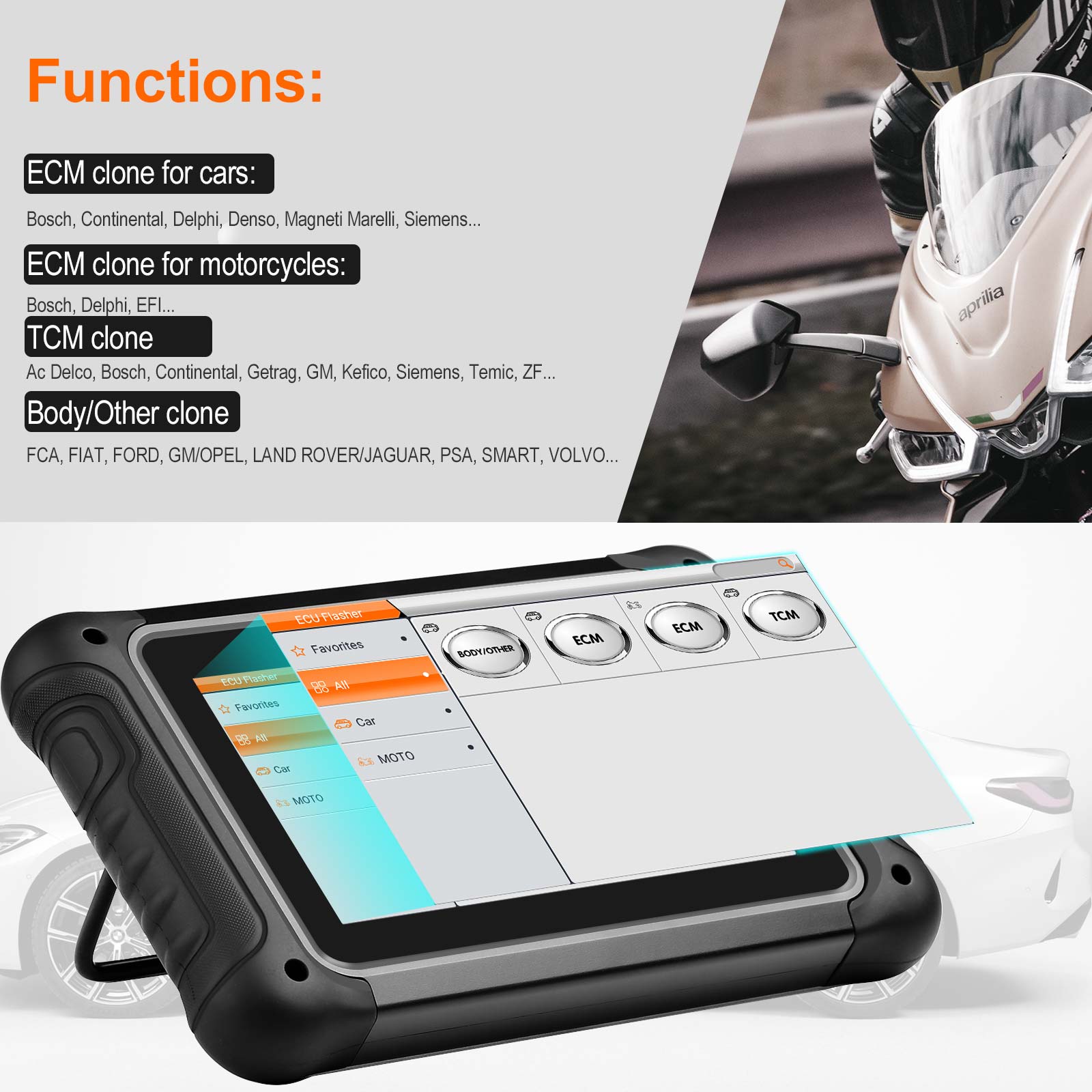

Product Function:

ECU Clone/ All by OBD or Bench
ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
ECM clone for motorcycles(Bosch, Delphi, EFI...)
TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)



Supported ECU Manufacturers:

ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo

Supported Brands:

Car
ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA


Motorcycle:

APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA




Advanced Functions:

1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 200+ ECM types(Partial functions require P003 adapter.)
3. Support dozens of TCM types
4. Support 100+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
5. Support VW DQXXX (TCM) calibrate mileage
6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
10. Support automatic identification
11. Strong help data files
12. All by OBD or Bench mode

More functions are in developing...


Product Specifications:


Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	3700mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	7.0 inch
LCD resolution	1024*600
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃~55℃ (14℉~131℉)
Storage temperature	-20℃~70℃ (-4℉~158℉)
Weight	About 1.3kg
Dimension	243mm*148mm*36mm


Function Display:

1) Main Page/Brand Supported

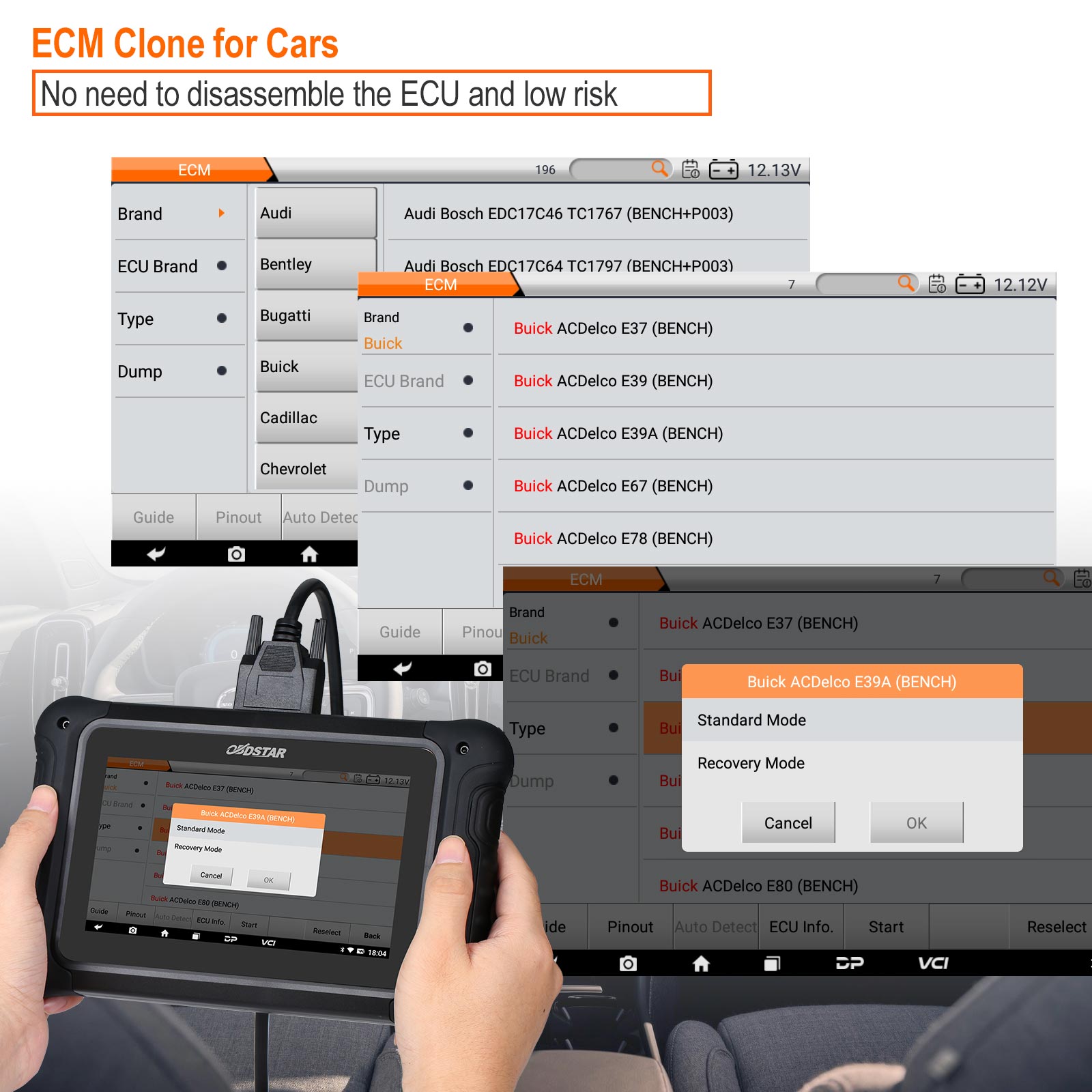

2) ECM Clone for Cars

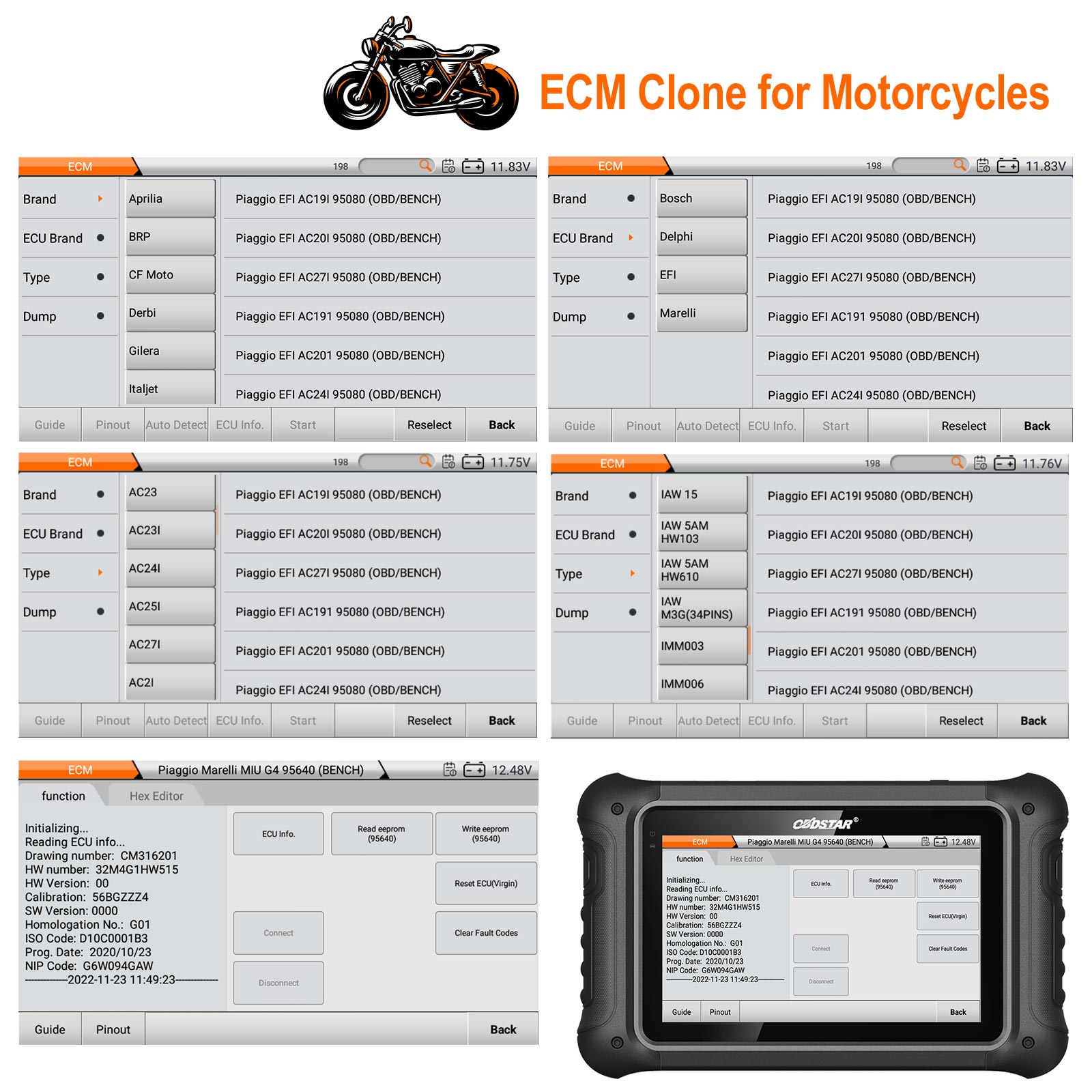

3) ECM Clone for Motorcycles



4) TCM Clone






5) Body/Other Clone

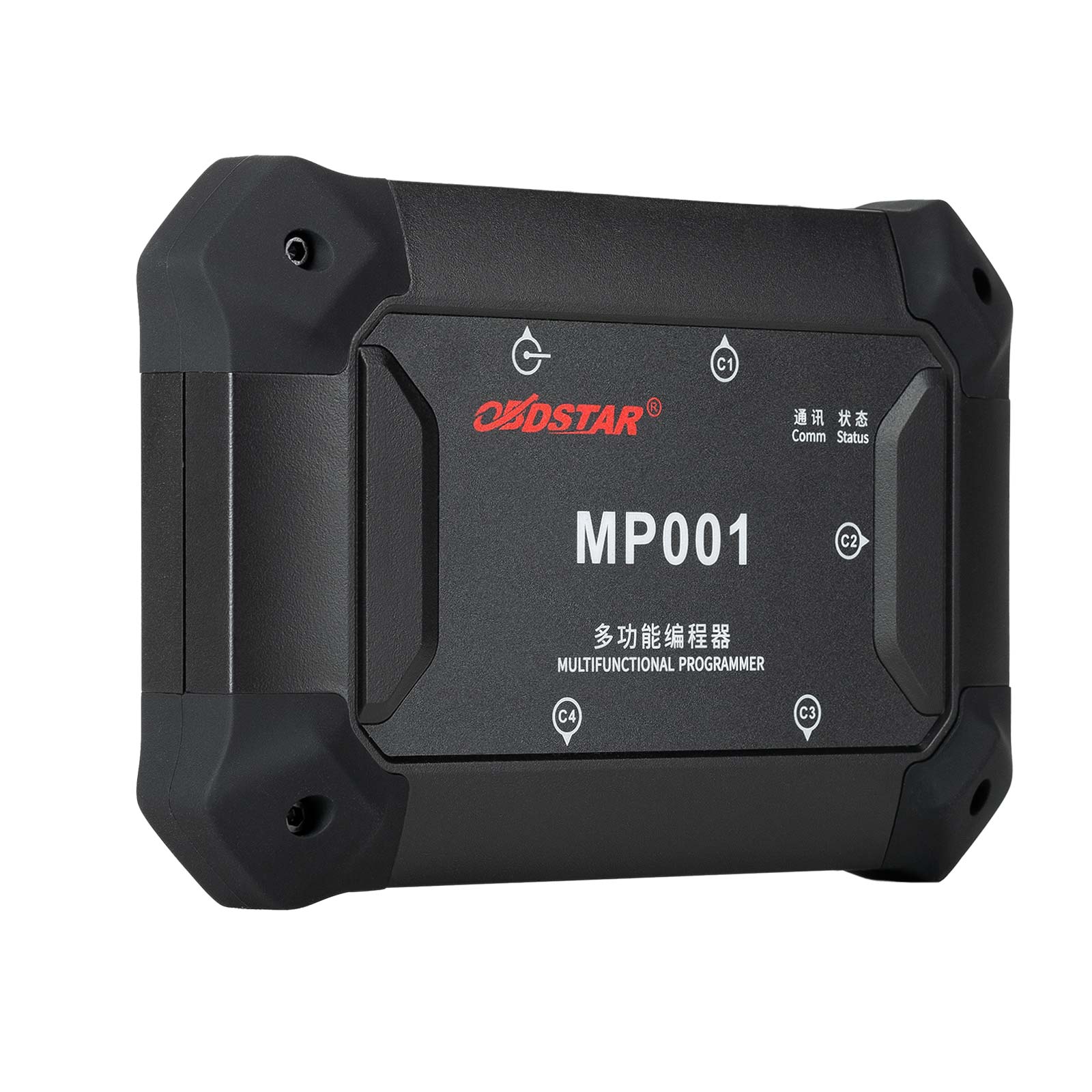

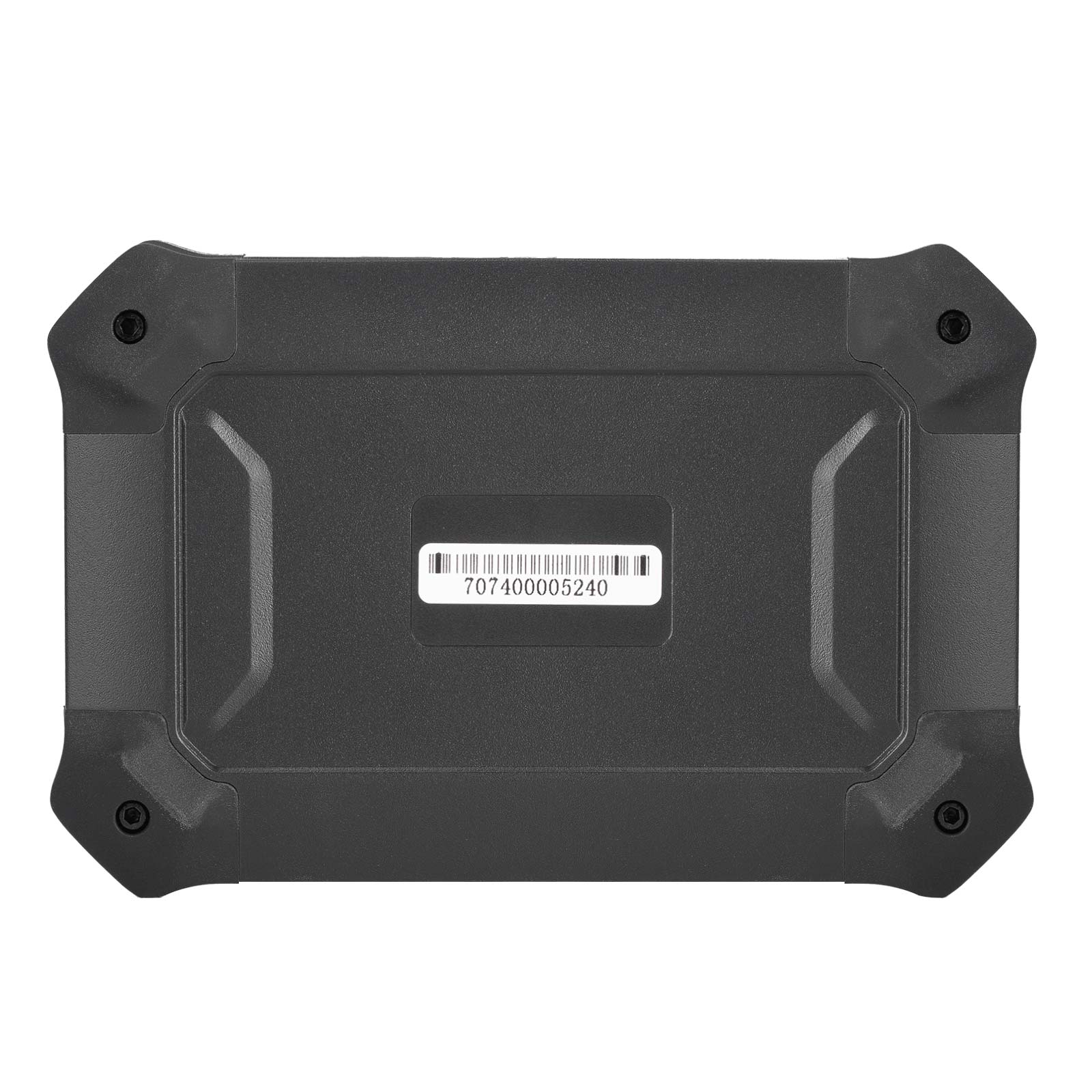

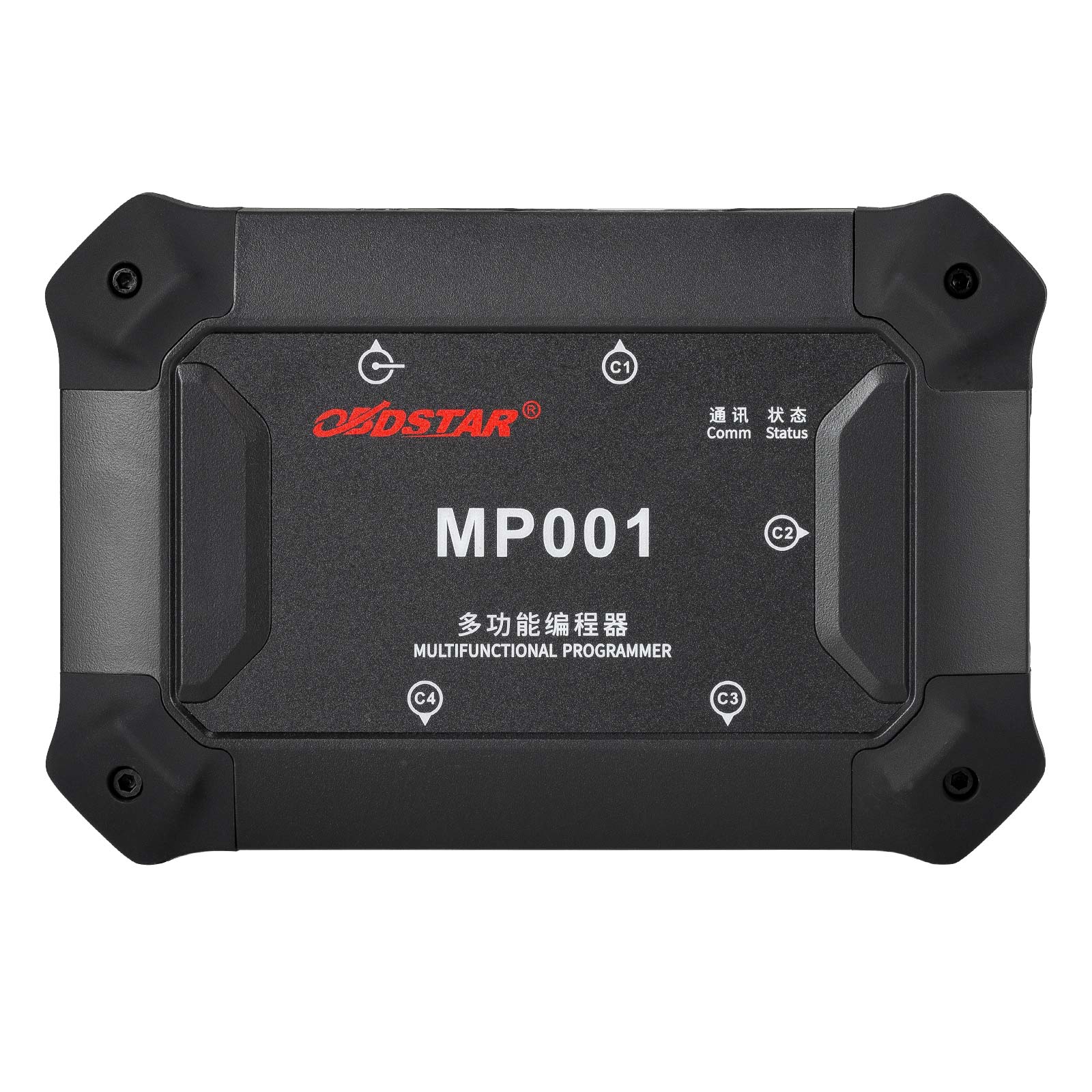

OBDSTAR MP001 Programmer for OBDSTAR P002 P003

MP001 is the latest automotive multi-function programmer developed by OBDSTAR. It fully supports EEPROM/MCU reading and writing/cloning/data processing for automobiles, commercial, new energy, motorcycles, marine (motorboats), etc., and is compatible with the P002 adapter (Toyota/Ford all-in-one adapter, Honda/Yamaha/Suzuki all-in-one adapter) and P003 adapter (some models of engine/gearbox clone K/CAN conversion, BOOT mode reading and writing) functions.

Software function

EEPROM/MCU reading and writing
Key flashing
Steering angle repair
Body computer data processing
Immo off
Pincode reading
Battery module repair
Instrument repair
and more functions are under development.

Features:

1. MP001 covers P003+ and has more SlMOS 18 than P003+( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
2. When read and write Chrysler GPEC2/2A etc, MP001 does not require a 120ohm resistor between CAN H and CAN L wires, P003/P003+ does need it.
3. MP001 can replace P003, P002 adapter as well.

Note:
MP001 has P003+, P003, P002 functions.
Different tablet device models require different configuration software.
To use MP001 programmer, you must have ECU bench jumper cables.

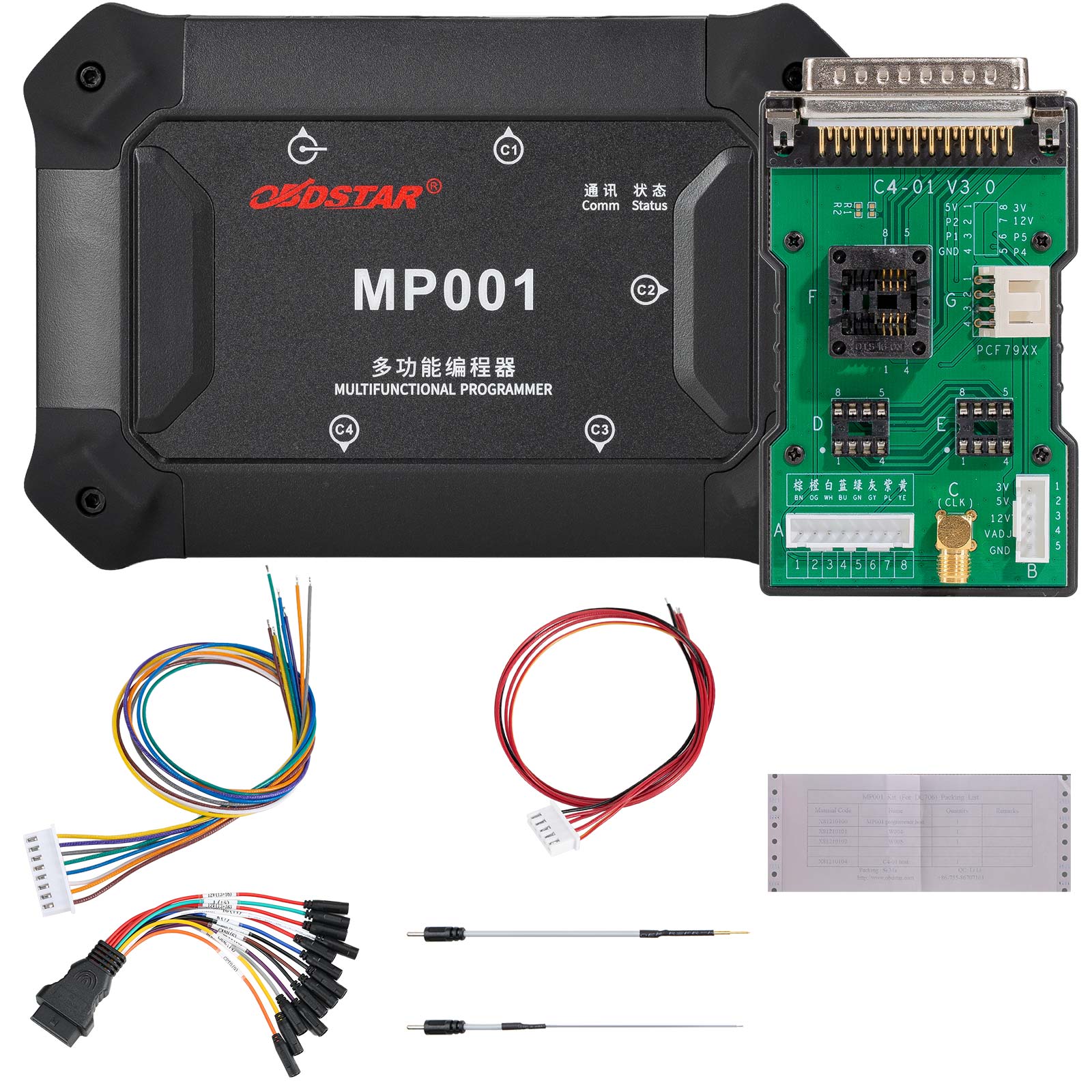

Package List:

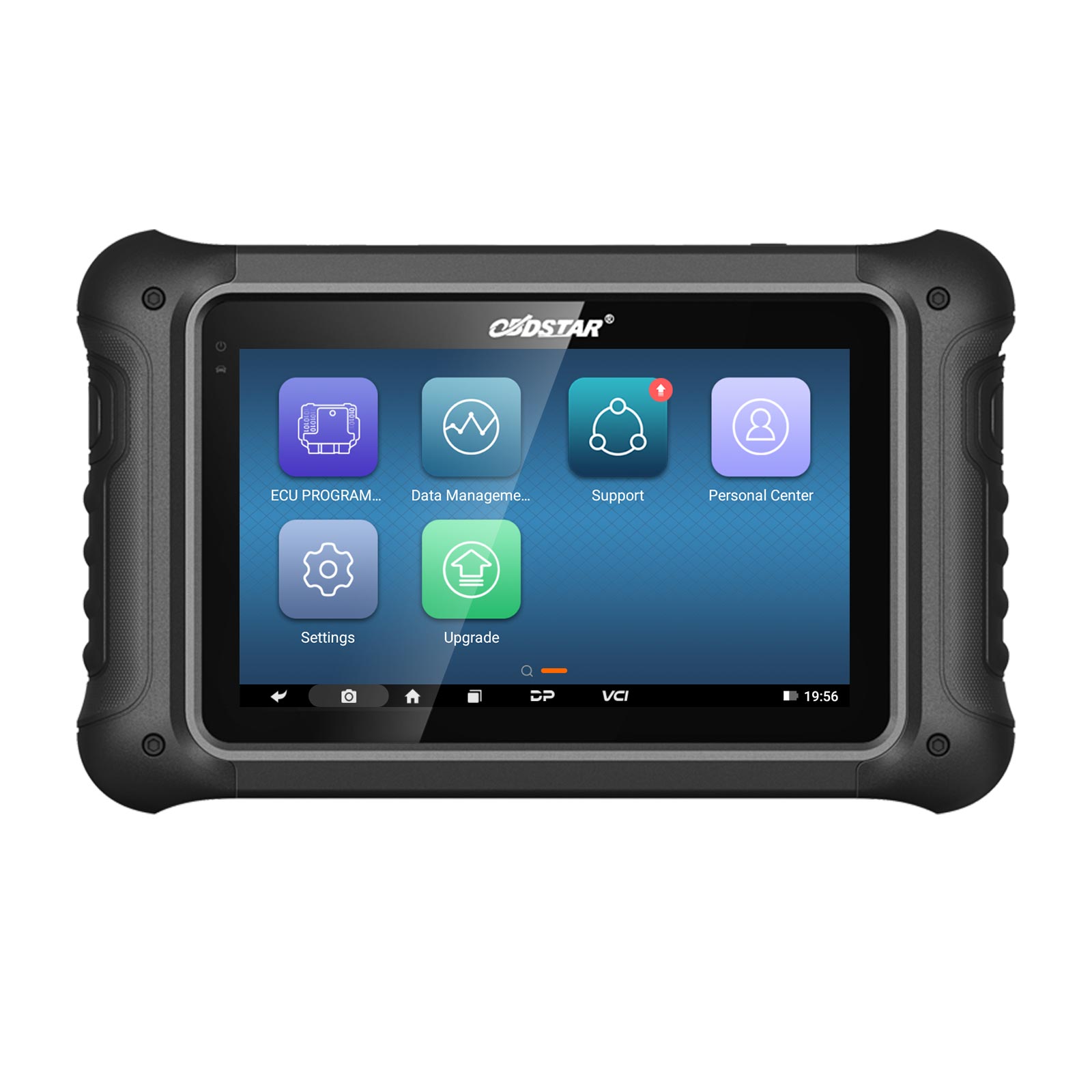

1pc x DC706 tablet PC
1pc x 12V2A charger
1pc x M001 main cable
1pc x P004 adapter

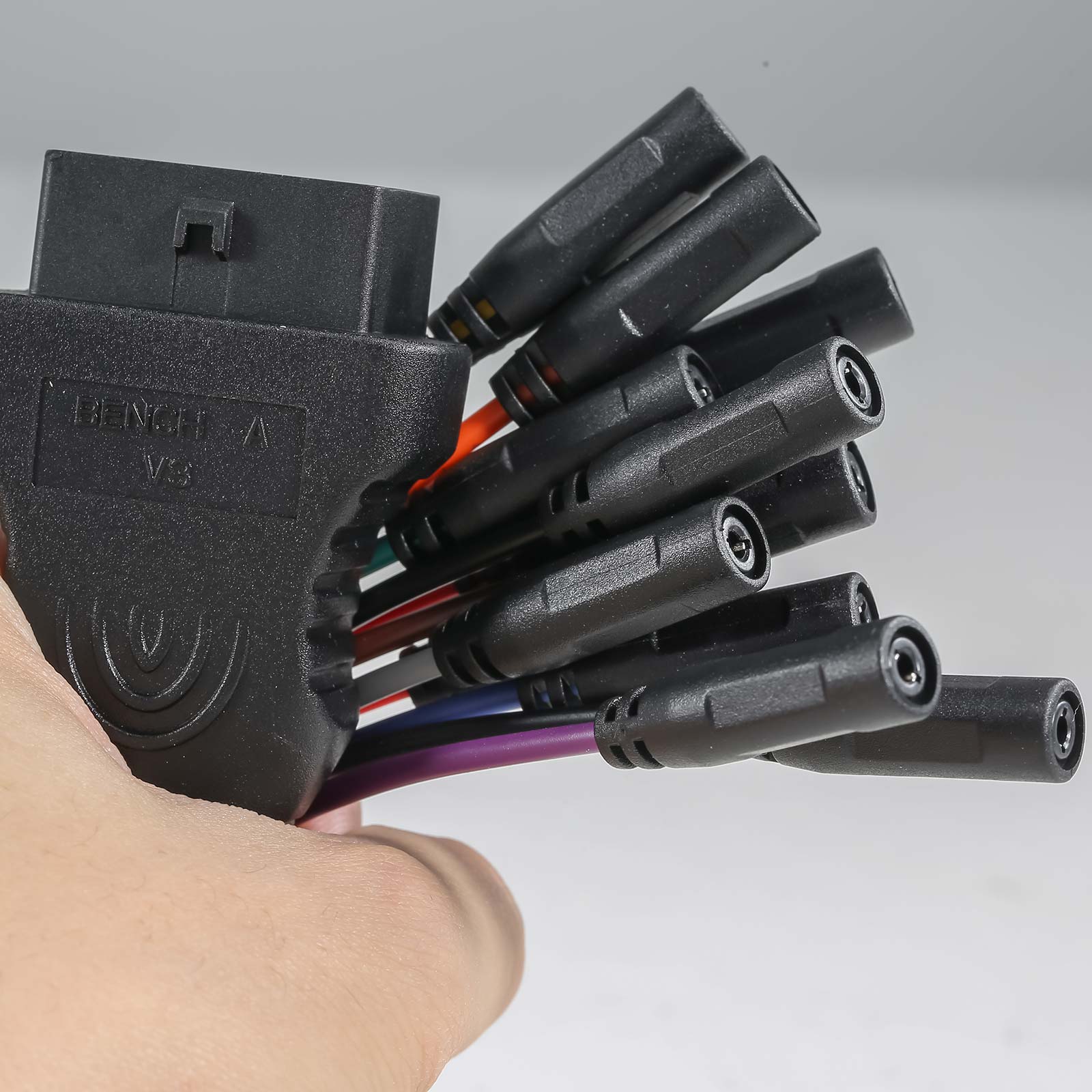

1pc x BENCH-B V2 Cable
1pc x jumper wire
1pc x 3-in-1 jumper

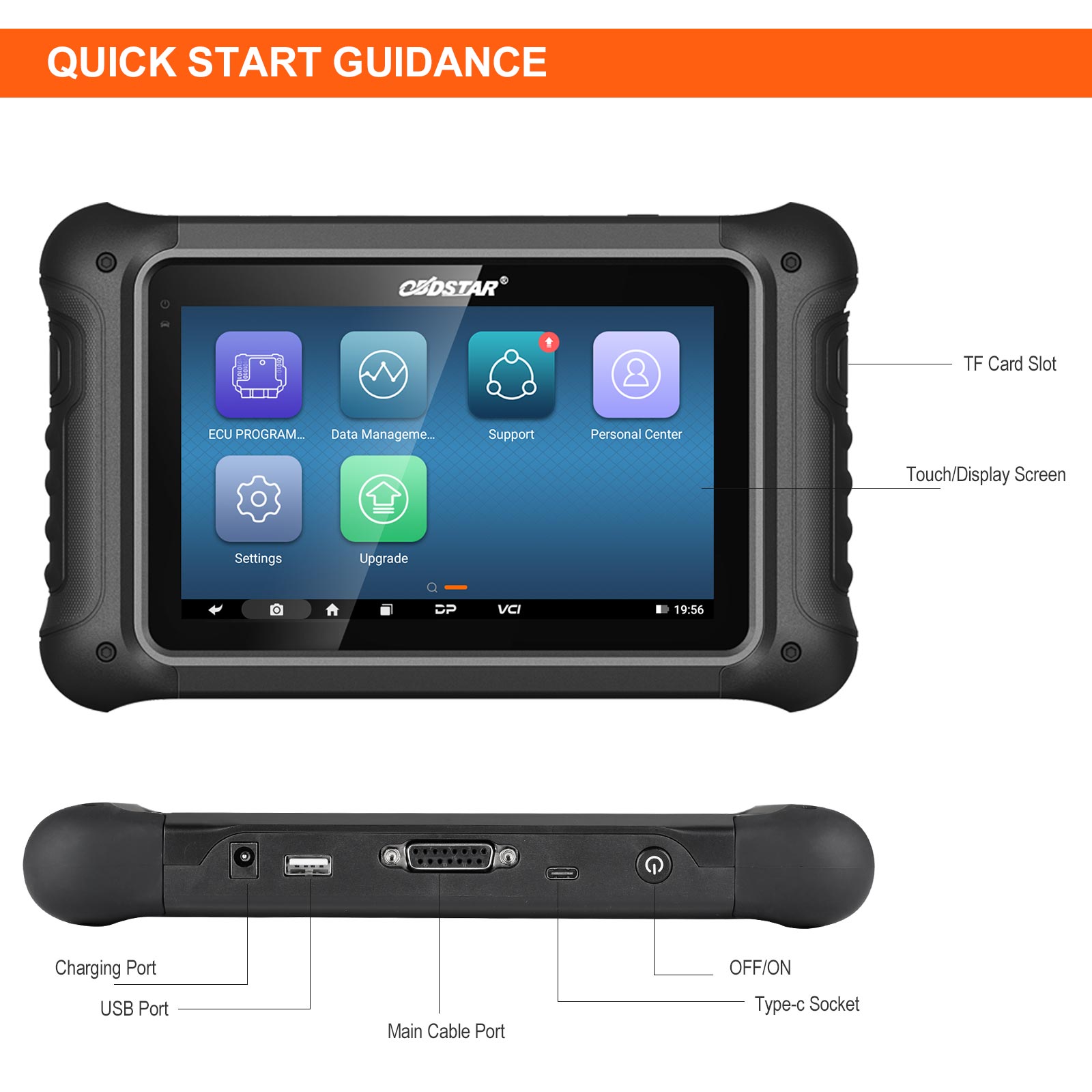

1pc x Quick start guide/certificate
1pc x OBDSTAR MP001 Programmer

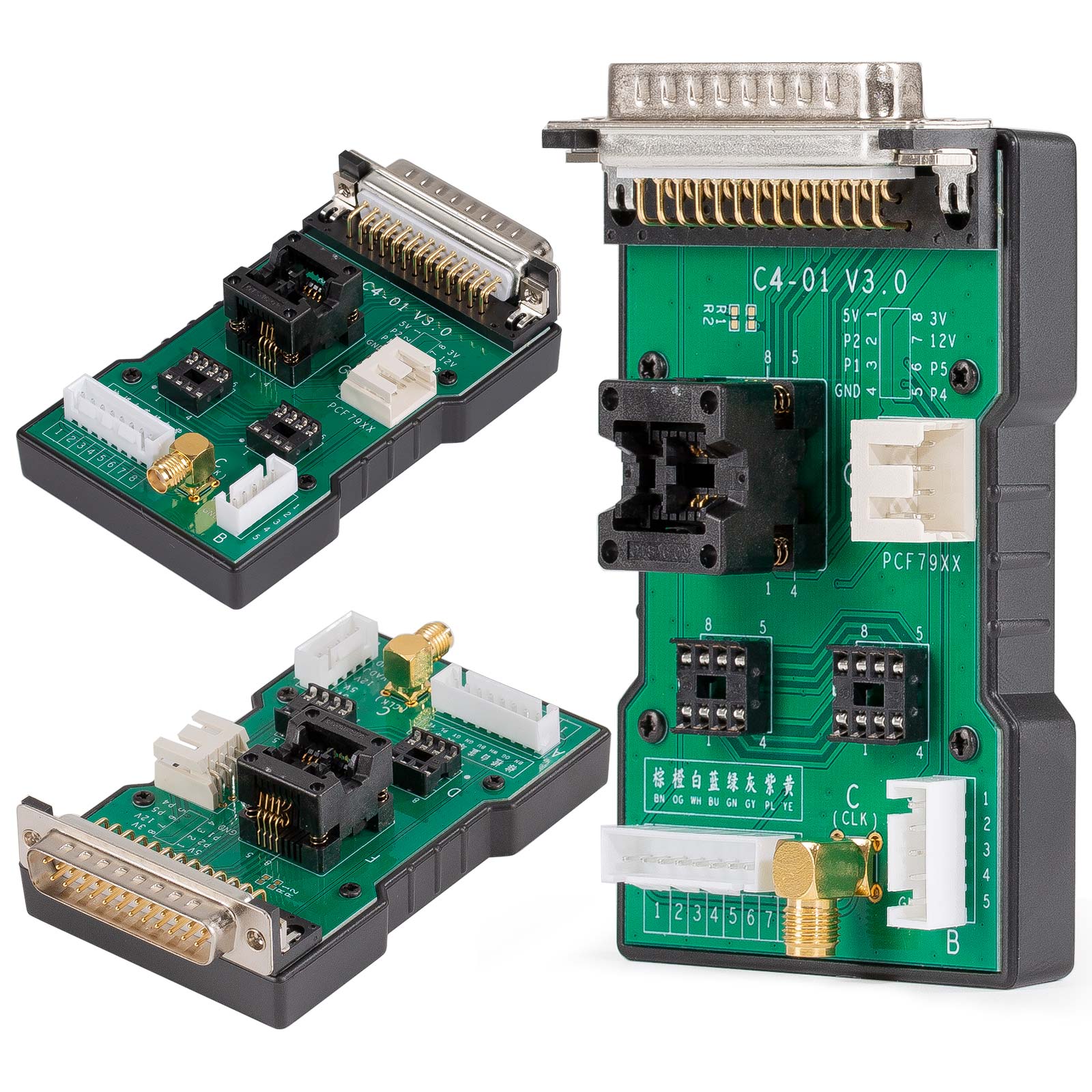

1pc x OBDSTAR C4-01 Host
1pc x W004 Read/Write soldering wire
1pc x W005 Read/Write soldering wire

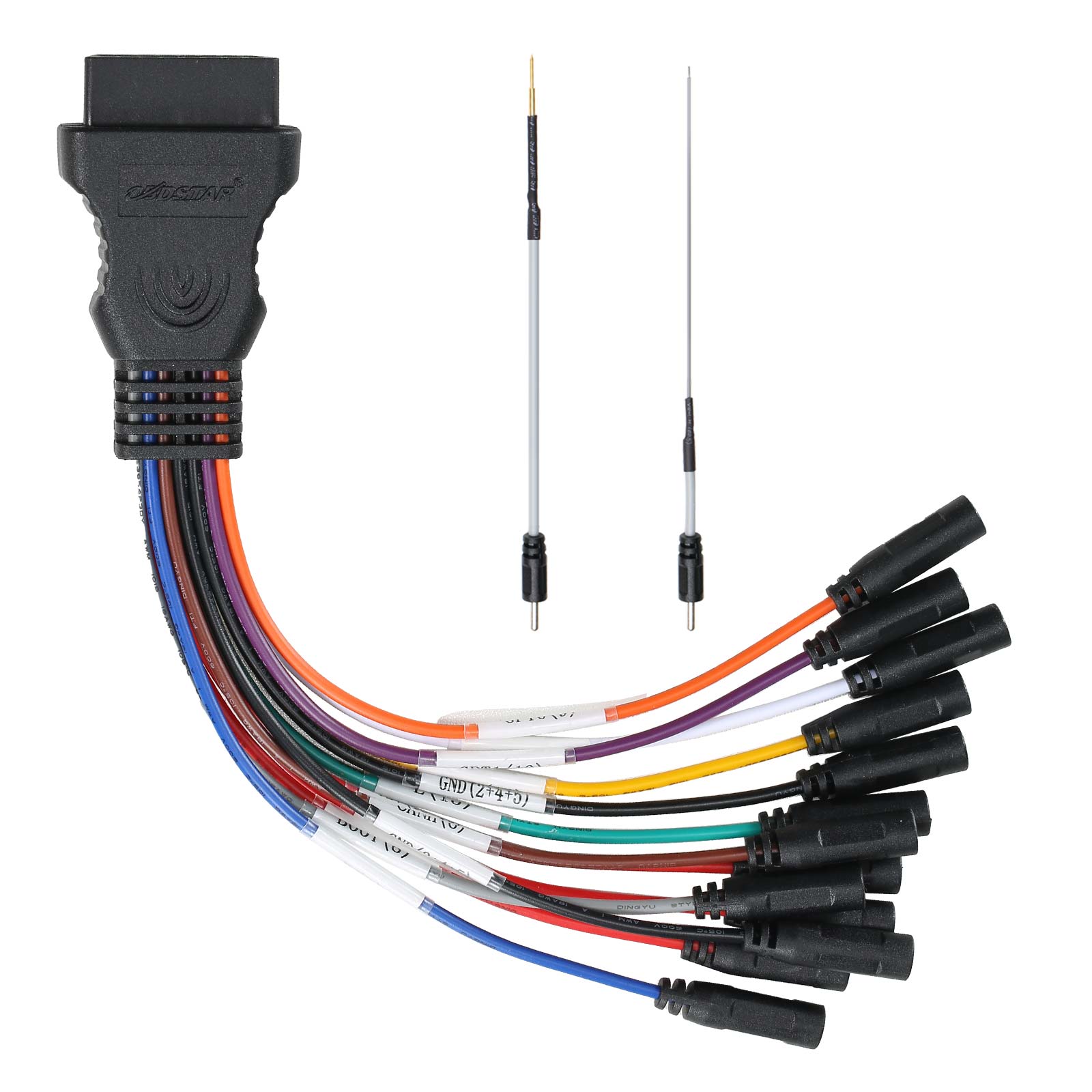

1pc x OBDSTAR ECU Bench Jumper
