Launch X-431 PAD VII PAD 7 Support Adas Calibration Automotive Diagnostic Tool Support Online Coding and Programming
This package Include SP371+SP458( LAUNCH X431 PAD 7+ V Diagnostic Upgrade Kit + Activation Card)
Highlights:
1. With 2 Years Free Update Online,after 2 years,the update cost is 904EUR for two years,570EUR for one year
2. This is Global Version Without IP Limitation
3. Realtime Remote Diagnosis Function via WiFi
4. Support Commercial Vehicle and Passenger Car Diagnose, Support J2534, CAN FD, DoIP.
5. Multi-Language Supported: German, English, French, Spanish, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
6. Full System Vehicle Coverage for U.S., Asian and European markets over 110 brands, which is continually updated
7. Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
8. Support Online Programming Till Year 2020: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru. (Can't perform in Canada,Portugal and Spain)
9. Upgrade and expand the X-431 PAD VII with more software and service via the new module 'MALL' as demanded
Launch Tech X-431 PAD VII Diagnostic Tool features a 13.3" touchscreen, 32 service functions, and Smartlink remote diagnosis. The outer shell is designed to withstand workshop hazards such as water and dust damage and is in compliance with IP65. The X-431 PAD VII uses a high-capacity and high power battery to ensure a longer battery life with a shorter charging time. The tool offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software. The X-431 PAD VII supports ADAS calibration and eight extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer, and battery tester.
X-431 PAD VII is a high-end comprehensive diagnostic tool with charging base newly developed on the basis of Android 9.0. It supports dual 2.4GHz &5GHz Wi-Fi communication. In addition to supporting the functions of padv products, it mainly features 13.3inch high-definition display, 8 + 256 storage space, especially with SmartLink C, which can support SmartLink remote diagnosis.
Superior Hardware Make Diagnosis Faster Than Ever
X-431 PAD VII is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII makes your advanced diagnosis faster than ever. The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII improves the connection between scanner and VCI into ‘Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.
Launch X-431 PAD VII Features:
1. Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
2. Topology mapping gives a visual checking on DTCs and all systems communication status
3. Support automotive communication protocols CAN/CANFD/DoIP and automotive communication standards J2534/D-PDU/RP1210
4. Auto-detects the communications protocol of the vehicle and assist to check automotive OBDII port pin damaged or not
5. Advanced diagnostic enable identify VIN automatically and access system quickly
6. Guided function for VW and AUDI
7. Optional ADAS calibration function increases more revenue
8. Advanced coding and programming function
9. An extended solutio to support TPMS service
10. 2.4GHz & 5GHz dual band communication ensures quick and stable connection
11. Empower technician to diagnose light, medium & heavy duty vehicles with Smarlink C
12. The basic functions include read & clear DTC, remote diagnosis, Bi-directional control, live data graph, wireless software update etc.
13. Build-in repair information and training video modules help to track and fix issue fast.
Functions:
1. Check the DTCs and all systems communication status visually by topology module mapping function.
2. Auto-detects the communications protocol of the vehicle uses, assist to check OBDII connector pin damaged or not.
3. Check the DTCs and all systems communication status visually by topology module mapping function.
4. Powerful diagnostic functions (advanced diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
5. Display I/M Readiness Status.
6. Read data stream: Support diverse data stream display modes and user-defined standard data stream.
7. Local diagnose: When the advanced diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Powerful Special Functions:
Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration, Communicates with ABS & Transmissions from Bendix, Wabco and Allison, Tech to Tech remote communication function
The powerful Smartlink C VCI powers the diagnostic to a new level. Users are available to perform remote diagnosis without being on-site and
the limitation of diagnostic functions, tools and vehicle types.
It is able to assist technician to identify the OBDII port pin automatically and display the real-time voltage for voltage condition
monitoring during live diagnostics.
32 Service Functions:
Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change
Vehicle Coverage:
Passenger Vehicles:
1. Australian: AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo
Heavy Duty Vehicles (Optional):
Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine
Smartlink C VCI
Smartlink C is a new generation advanced diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.
* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade
In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:
Expanded Vehicle Coverage With Extra Adapters
Meanwhile, the X-431 PAD VII also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice
LAUNCH X431 EV Diagnostic Upgrade Kit + Activation Card Compatible with X431 PAD V & PAD VII
1. User has already purchased new energy battery pack diagnostic configuration of the X-431 PAD V/X-431 PAD VII from the seller and received the Activation Card of new energy detection expansion package and diagnostic adaptor cables.
2.Choose either of the following methods to activate it on diagnostic scanner.
Method 1 - Via Job Menu
1).Update the main diagnostic app of the diagnostic scanner to V7.03.025 (X-431 PAD V) / V7.00.021 (X-431 PAD VII) or above and a new module “New Energy Diagnose” will appear on the Job menu. Refer to figure 1.
2).Tap New Energy Diagnose to enter the following screen. Refer to figure 2.
*Note: Vehicle Diagnosis in figure 2 covers all new energy vehicle diagnostic software included in the original product configuration. See figure 3.
3).Tap Battery Pack Detection, the system will identify whether the current user account has activated the battery pack diagnostic configuration or not.
A.If not activated, it will navigate to the Mall module directly. See figure 4. Tap Subscription Renewal Card Pay and enter the 24-digit password to activate it. After it is successfully activated, please go to Software Update to download and install the diagnostic software of the battery pack.
B. If already activated but not downloaded the battery pack diagnostic software, it will go to Software Update to download. See figure 5.
C. If already activated and downloaded the battery pack diagnostic software, it will enter the battery pack brand selection screen. See figure 6.
Method 2 - Via Mall
1).Update the main diagnostic app of the diagnostic scanner to V7.03.025 or above and tap Mall on the Job menu. See figure 7.
2).Tap Other Software Packages, and then tap New energy battery pack diagnostic software package to enter figure 8.
3).Tap Subscription Renewal Card Pay to enter figure 9.
4).Tap Subscription Renewal Card Pay, enter the 24-digit password and tap Confirm to activate it. See figure 10 & 11.
5).After it is successfully activated, please go to Software Update to download and install the diagnostic software of the battery pack. See figure 12.
6).After downloading is completed, tap New Energy Diagnose and then tap Battery Pack Detection. The system will enter the battery pack brand selection screen. See figure 6.
*Note: All illustrations and descriptions in this operation instruction are based on the latest information available at the time of publication. Due to continuing improvements, actual product may differ slightly from the product described herein.
Comparison Table for Launch X431 PAD VII, PAD V and PAD III V2.0:
Launch PAD III V2.0 | Launch PAD V | Launch PAD VII | |||
Configuration | |||||
Display | 10.1'' / IPS 1920*1200 | 10.1'' / IPS 1920*1200 | 13.3'' / 1920 x 1080 IPS | ||
CPU | 2.0GHz Octa-core | 2.0GHz Octa-core | 2.0GHz Octa-core | ||
Memory | 2 GB | 4 GB | 8 GB | ||
Storage | 64 GB | 64 GB | 256 GB | ||
Camera | 8MP Rear + 2MB Front | 13MP Rear + 8MB Front | 13MP Rear + 8MB Front | ||
VCI Connector | DBScar IV | Smartbox 3.0 | Smartlink C | ||
VCI Connection | Bluetooth | 2.4GHz & 5GHz dual WiFi | 2.4GHz & 5GHz dual WiFi | ||
Battery | 15000mAh | 9360mAh | 71.1Wh (≈19000mAh) | ||
Adjustable Supporting Holder | ● | ● | ● | ||
IP65 Waterproof & Dustproof | ● | ● | |||
Quick Charge Technology | ● | ● | |||
Charging Station | ● | ||||
PUSH PUSH Design | |||||
Size (mm) | 317 * 202 * 53 | 320 * 211 * 46 | 353 * 236 * 71 | ||
FEATURES | |||||
Operating System | Android™ 5.1.1 | Android™ 7.1 | Android™ 9.0 | ||
Full System Diagnosis | ● | ● | ● | ||
OBD II Full Function | ● | ● | ● | ||
Tech-to-Tech Remote Diangosis | ● | ● | ● | ||
Smartlink Remote Diagnosis | ● | ||||
Auto VIN Identification | ● | ● | ● | ||
Bi-Directional Control | ● | ● | ● | ||
Advanced Coding | ● | ● | ● | ||
VW & AUDI Guided Function | ● | ● | ● | ||
J2534 | ● | ● | |||
DoIP | ● | ● | |||
RP1210/D-PDU | ● | ● | |||
Advanced Programming | ● | ● | ● | ||
Complete TPMS Service | with X-431 TSGUN | with X-431 TSGUN | with X-431 TSGUN | ||
Advanced Key Programming | with X-PROG 3 | with X-PROG 3 | with X-PROG 3 | ||
ADAS Calibration | Optional | Optional | Optional | ||
Software Upgrade | WiFi | WiFi | WiFi | ||
Vehicle Coverage | Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional) | Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional) | Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional) | ||
Service Functions | 21 | 26 | 32 by local diagnosis Get More by Smartlink Remote Diagnosis |
||
SERVICE FUNCTIONS | |||||
Brake Reset | ● | ● | ● | ||
Oil Reset | ● | ● | ● | ||
SAS Reset | ● | ● | ● | ||
Battery Match | ● | ● | ● | ||
ABS Bleeding | ● | ● | ● | ||
Elec. Throttle RLRN | ● | ● | ● | ||
TPMS Reset | ● | ● | ● | ||
DPF Regeneration | ● | ● | ● | ||
Gear Learning | ● | ● | ● | ||
Immobilizer | ● | ● | ● | ||
Injector Coding | ● | ● | ● | ||
Sunroof Initialization | ● | ● | ● | ||
SUS Reset | ● | ● | ● | ||
AFS Reset | ● | ● | ● | ||
Gearbox Learning | ● | ● | ● | ||
Adblue Reset | ● | ● | ● | ||
Coolant Bleeding | ● | ● | ● | ||
EGR Adaption | ● | ● | ● | ||
Nox Sensor Reset | ● | ● | ● | ||
Seats Call Bration | ● | ● | ● | ||
Tyre Reset | ● | ● | ● | ||
Windows Calibration | ● | ● | |||
A/F Reset | ● | ● | |||
Stop/Start Reset | ● | ● | |||
Transport Mode | ● | ● | |||
Language Change | ● | ● | |||
AC System Relearn | ● | ||||
ACC Calibration | ● | ||||
Engine Power Balance Monitoring | ● | ||||
GPF Regeneration | ● | ||||
Rotation Angle Sensor Calibration | ● | ||||
High-Voltage Battery Health Detection | ● | ||||
More Reset Services | Via Smartlink Remote Diagnosis | ||||
Compatible Modules | |||||
X-431 ADAS PRO | ● | ● | ● | ||
X-431 ADAS Mobile | ● | ● | ● | ||
X-PROG 3 Immobilizer | ● | ● | ● | ||
X-PROG Immobilizer | ● | ● | ● | ||
BST360 Battery Tester | ● | ● | ● | ||
WiFi Printer | ● | ● | ● | ||
X-431 TSGUN TPMS device | ● | ● | ● | ||
VSP600 Videoscope | ● | ● | ● | ||
X-431 O2-1 Osciloscope | ● | ● | ● | ||
X-431 S2-2 Sensorbox | ● | ● | ● | ||
HD III Module | ● | ||||
Remote Diagnosis: Diagnose vehicles without being on-site with Launch scan tools Smartlink Remote Diagnosis: Diagnose vehicles without being on-site with Launch scan tools, OEM tools or other diagnostic tools of different brands. |
Launch X-431 PAD VII Specification:
X-431 PAD VII |
Smartlink |
|
Operation System |
Andorid 9.0 |
N/A |
CPU |
2.0GHz Octa-core |
N/A |
Display |
13.3' touch screen 1920*1080 |
3.5' touch screen 320*480 |
Memory |
8GB |
256M |
Storage |
256GB |
8GB |
Camera |
Rear 13MP, Front 8MP |
N/A |
WiFi |
Dual Band 2.4 & 5GHz |
Dual Band 2.4 & 5GHz |
Diagnostic Communication |
WiFi |
WiFi & BT & USB |
Working Temperature |
0℃~50℃ |
0℃~50℃ |
Dimension |
353*236*71 mm |
204*110*45 mm |

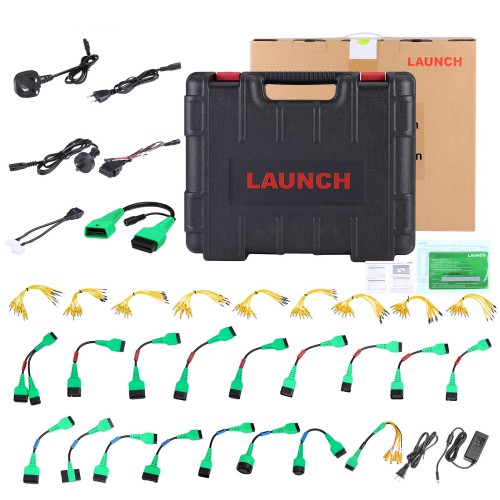

Package List:
1pc x carton
1pc x plastic box
1pc x PAD Ⅶ elite
1pc x smartlink
1pc x main cable
1pc x HDMI
1pc x USB-C
1pc x US power adapter
1pc x OBD2 16-pin adapter
1pc x UK power adapter
1pc x Australia power adapter
1pc x net cable
1pc x USB printer cable
1pc x quick start guide
1pc x product S/N
1pc x packing list
3pcs x software list
1pc x manual
1pc x Tesla-12+20 connector, RoHS
1pc x Special connector for Tesla airbag repair, RoHS
1pc x (PAD VII) 220V/1.3A, 8-suffix British AC wire, 1M, Pengshengye, RoHS
1pc x OBD16 male to female new energy extension cable, with DC cable, RoHS
1pc x X431 EV MAX battery pack detection 8PIN diagnostic connector, RoHS
1pc x X-431 PAD IV electric control adapter cable 1, RoHS
1pc x X-431 PAD IV electric control adapter cable 10, RoHS
1pc x X-431 PAD IV electric control adapter cable 11, RoHS
1pc x X-431 PAD IV electric control adapter cable 12, RoHS
1pc x X-431 PAD IV electric control adapter cable 2, RoHS
1pc x X-431 PAD IV electric control adapter cable 3, RoHS
1pc x X-431 PAD IV electric control adapter cable 6, RoHS
1pc x X-431 PAD IV electric control adapter cable 7,RoHS
1pc xX-431 PAD IV electric control adapter cable 8, RoHS
1pc x Battery pack test line 100 models, RoHS
1pc x Battery pack test line 101, RoHS
1pc x Battery pack test line 102, RoHS
1pc x Battery pack test line 103, RoHS
1pc x Battery pack test line 104, RoHS
1pc x Battery pack test line 105, RoHS
1pc x Battery pack test line 106, RoHS
1pc x Battery pack test line 107, RoHS
1pc x Battery pack test line 108, RoHS
1pc xBattery pack test line 109, RoHS
1pc xBattery pack test line 110 models, RoHS
1pc xBattery pack test line 112 models, RoHS
1pc xBattery pack test line 113, RoHS
1pc xBattery pack test line 114, RoHS
1pc xBattery pack test line 115 models, RoHS
1pc x Battery pack test line 116, RoHS
1pc x Battery pack test line 119, RoHS
1pc x1pc x Battery pack test line 124 types, RoHS
1pc xBattery pack test line 126 models, RoHS
1pc x Battery pack test line 127 models, RoHS
1pc x Battery pack test line 130 models, RoHS
1pc x Battery pack test line 152 models, RoHS
1pc x (PAD VII), 8-suffix Australian standard AC wire, 1M, Pengshengye, RoHS
1pc x(PAD VII) 220V/1.3A, 8-suffix European standard AC wire, 1M, Pengshengye, RoHS
1pc x Power adapter, 12V4A, 48W desktop, 8-suffix DC connector 5.5, US standard AC cable, 2M, Pengshengye, RoHS
1pc x New Energy Detection Extension Pack Overseas Configuration Operation Guide, RoHS
1pc x Activation Card
About Delivery
EU Warehouse Shipping: 3-5 working days. We have stocked up hot sale items in EU(Czech) Warehouse ,which is more convenient for you. Free TAX, faster shipping with cheaper price.
Yanwen Express: 9-14 working days ,we will prepay the tax,then do not need customers to pay tax for most european counties
( We will send by Yanwen Express by default because of EU high Customs tax. If Customers need the faster DHL shipping method and willing to pay the high tax .Pleasee leave message to us in time after placing the order)
DHL Shipping: 3-5 working days, To help you clearance we will help declare a lower price on the invoice. If address is remote area, customer need pay remote freight or we will ship by Normal Post or Yanwen Express.
Note:
1.All of the items will be shipped to PAYPAL Shipping Address,please confirm your address on PAYPAL before you buy.
2.Your order will be usually shipped out the same or next business days once the payment is made, except on weekends and holidays.
Contact information:
