LAUNCH X-431 SmartLink C HD LITE V2 Overseas Online Expansion Package Compatible with X-431 PRO Series (8-inch Tablets）

LAUNCH X-431 SmartLink C HD LITE V2 Overseas Online Expansion Package Compatible with X-431 PRO Series (8-inch Tablets）

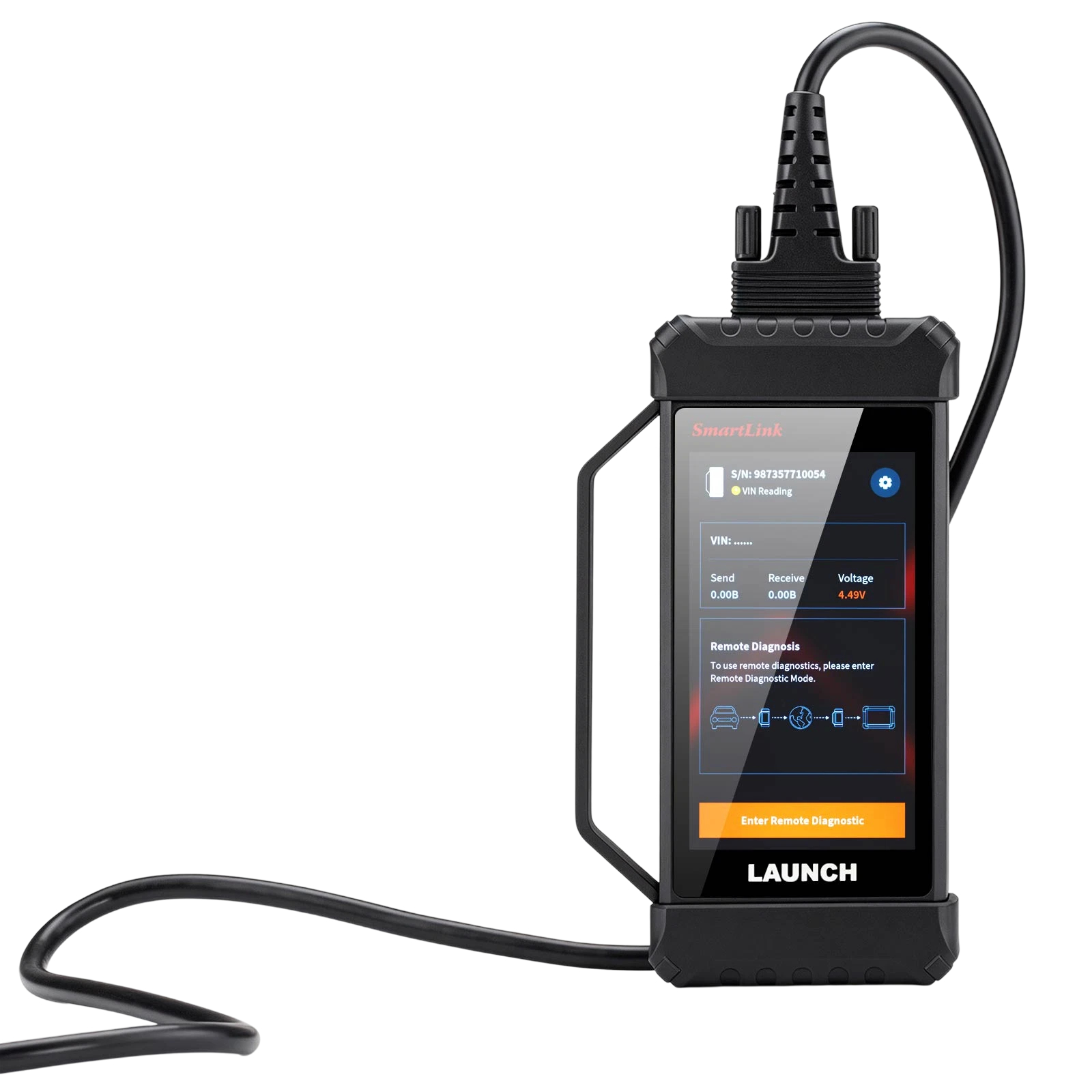

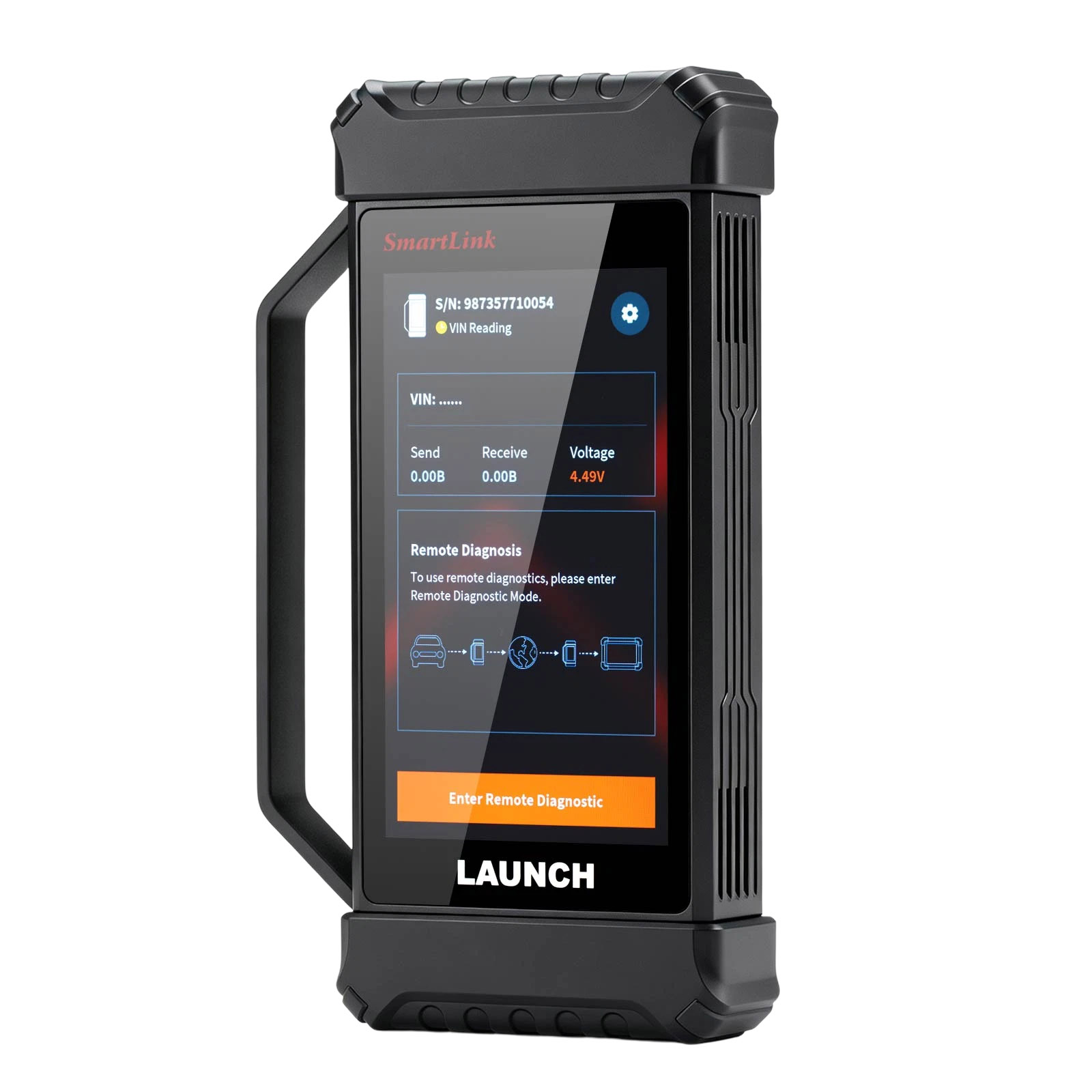

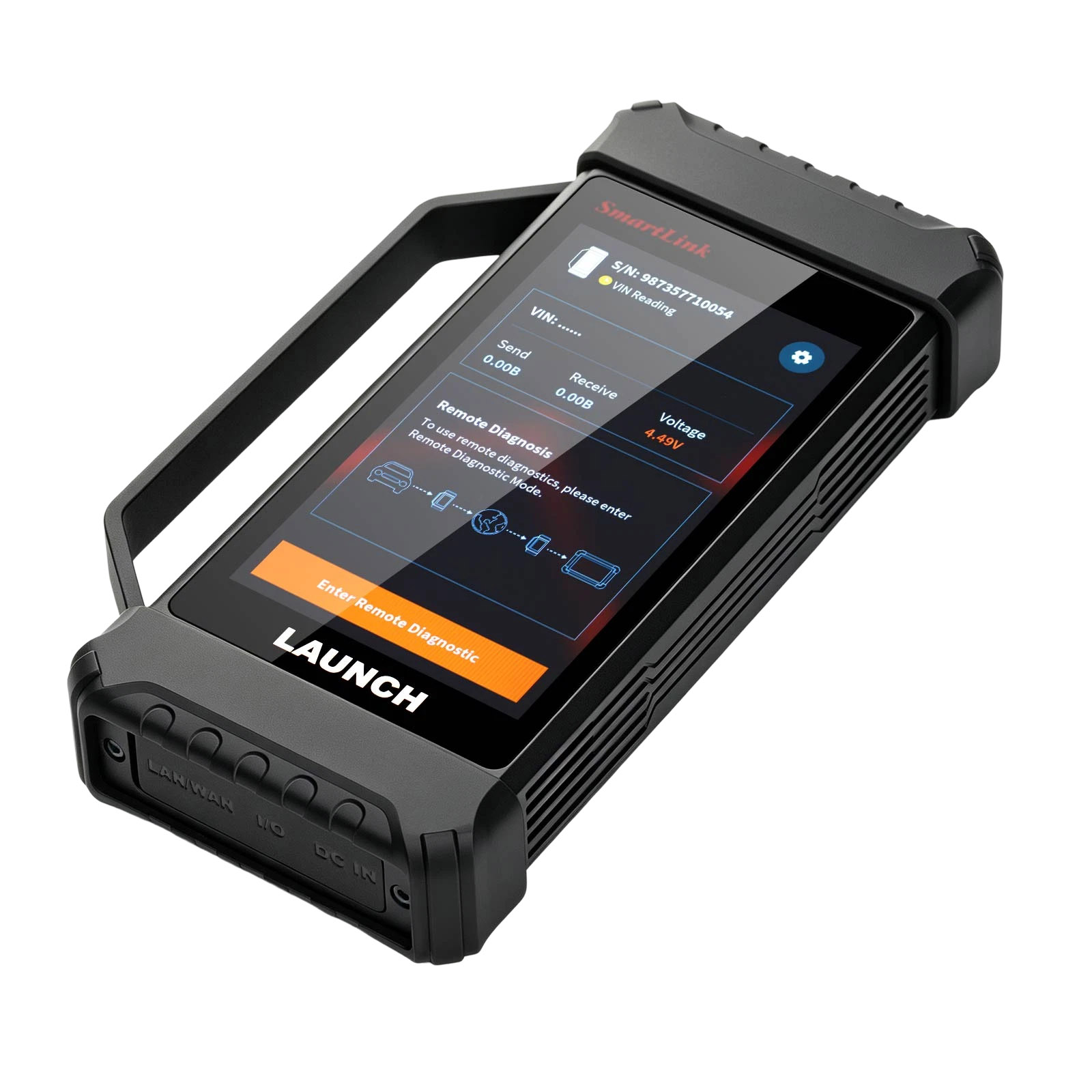

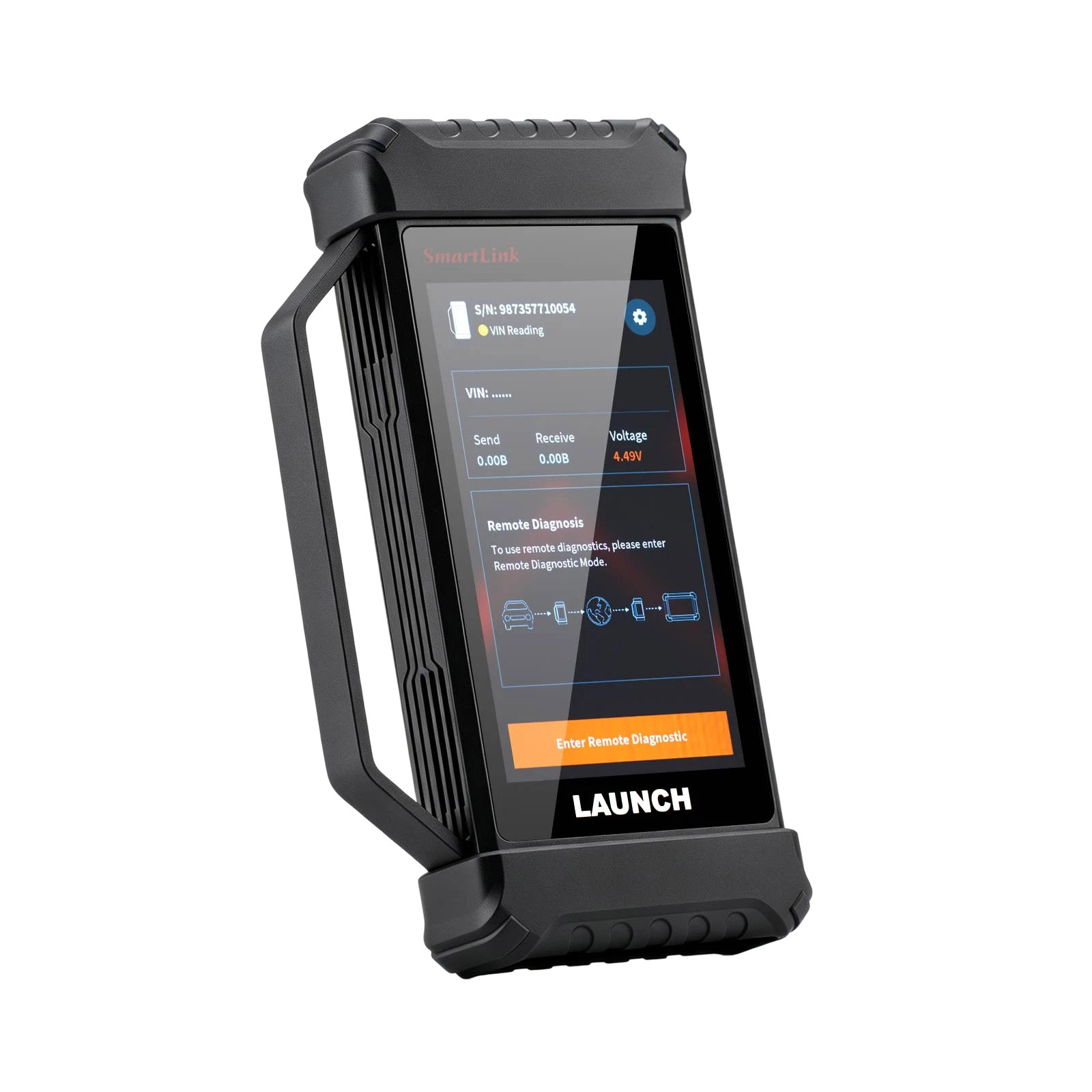

The X-431 SmartLink C HD LITE V2 is a next-generation commercial vehicle expansion package, equipped with the SmartLink C V4 . Building on the full core advantages of the SmartLink C V2, it features a more compact size and superior performance.

Product Features:

1. Hardware Performance Upgrade

The adapter's performance has been significantly enhanced: its CPU has been upgraded from a single-core to a dual-core processor, with the clock speed increased to 1.7 GHz. The RAM has been expanded from 256 MB to 1 GB, greatly accelerating computational response speed and making instruction execution more efficient. The CAN bus has been upgraded to 4‑way CAN FD, comprehensively improving communication bandwidth and transmission capabilities to meet the diagnostic requirements of more new vehicle models.

2. Diagnostic Function Upgrades

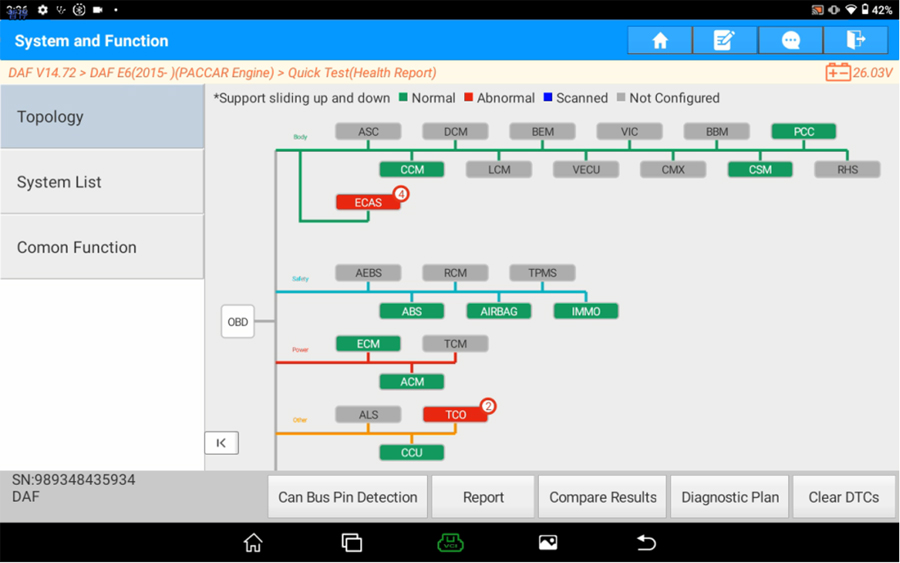

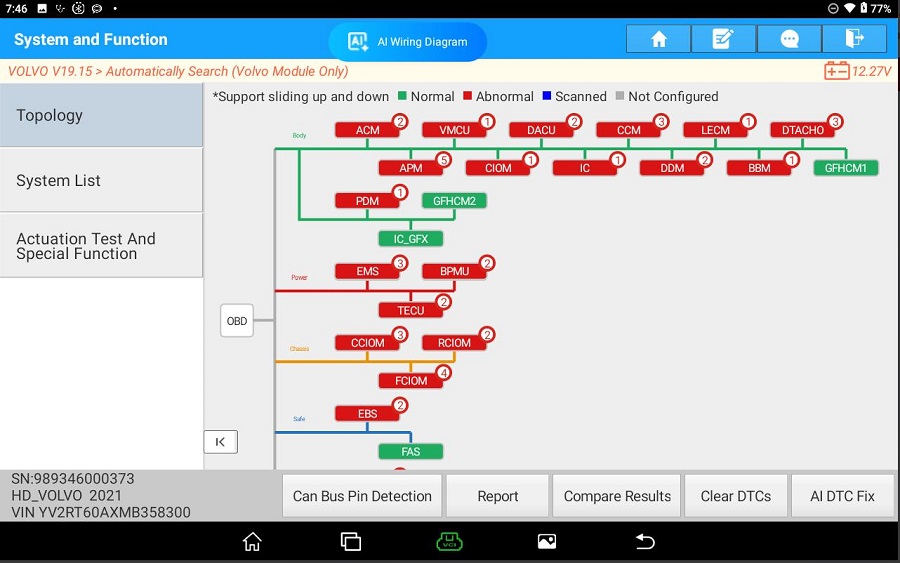

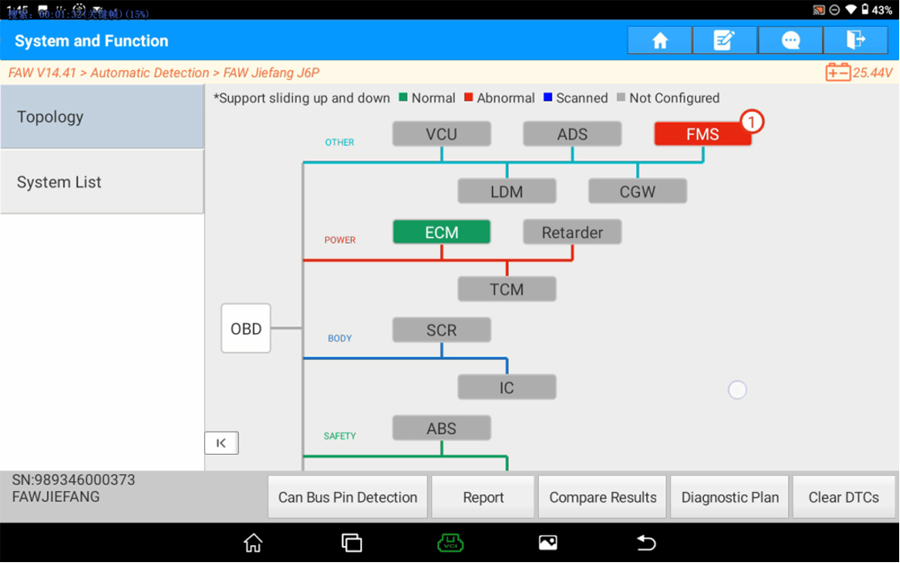

Visualized Diagnostic Functions: Supports graphical display of special functions, topology diagrams, and data streams. Data trends are intuitively visible, enabling more precise and efficient fault pinpointing, and eliminating the tedious interpretation of plain text.

High-Speed Scanning: Adopts multi-channel synchronous scanning technology to process diagnostic tasks in parallel. Compared with traditional single-channel scanning, it significantly improves efficiency, delivers faster diagnostic speed, and saves repair time.

AI Fault Repair: Visually displays fault points and provides targeted, highly feasible optimization solutions.



Product Highlights:

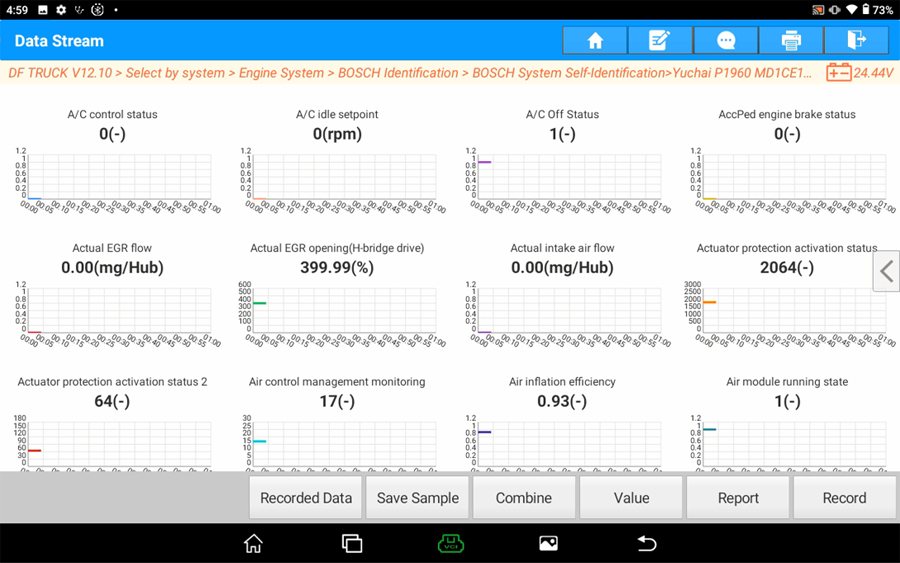

Read Data Stream: Offers various data stream display modes and enables users to set custom standard data streams.

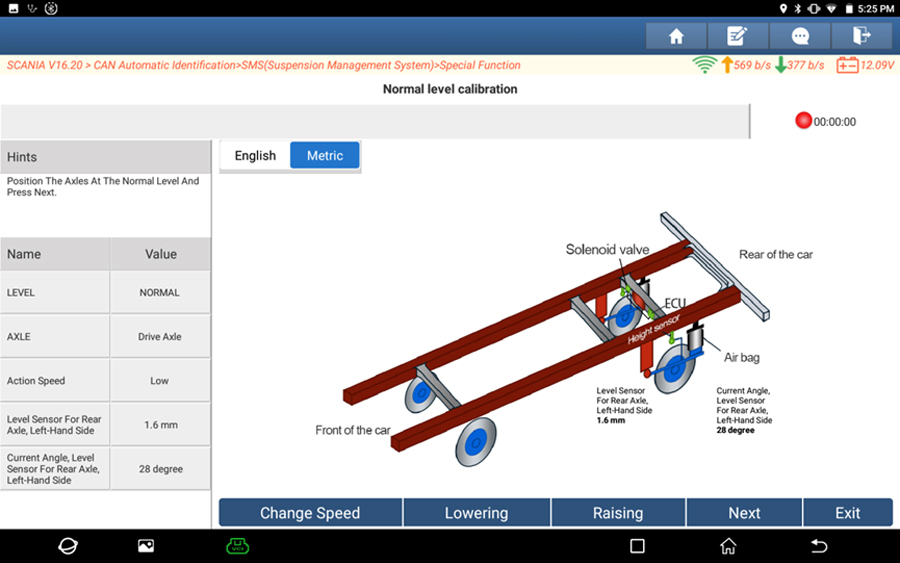

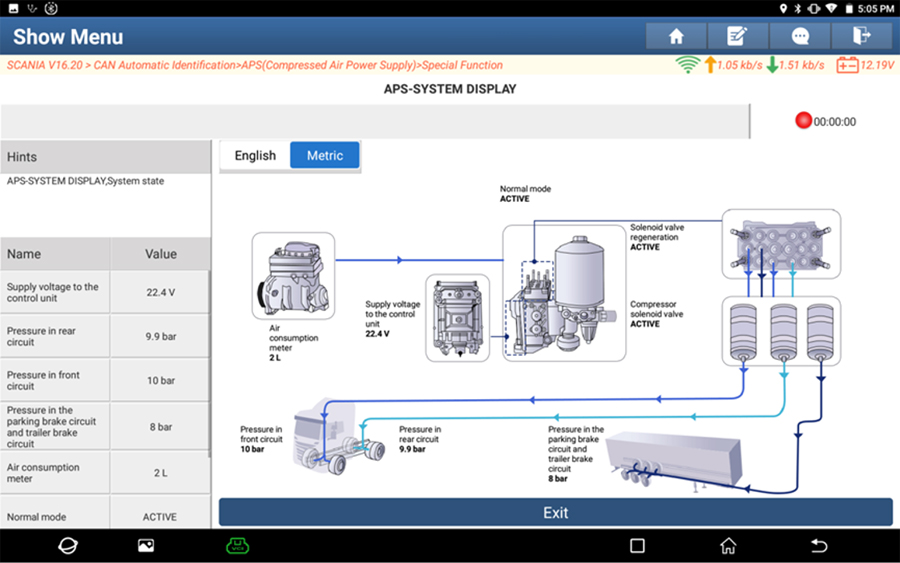

Graphical visualization of special functions: Covers D&P&F, APS system, urea injection, cylinder cut‑off detection, injector coding, suspension, clutch, and other functions, with intuitive display of dynamic vehicle data.

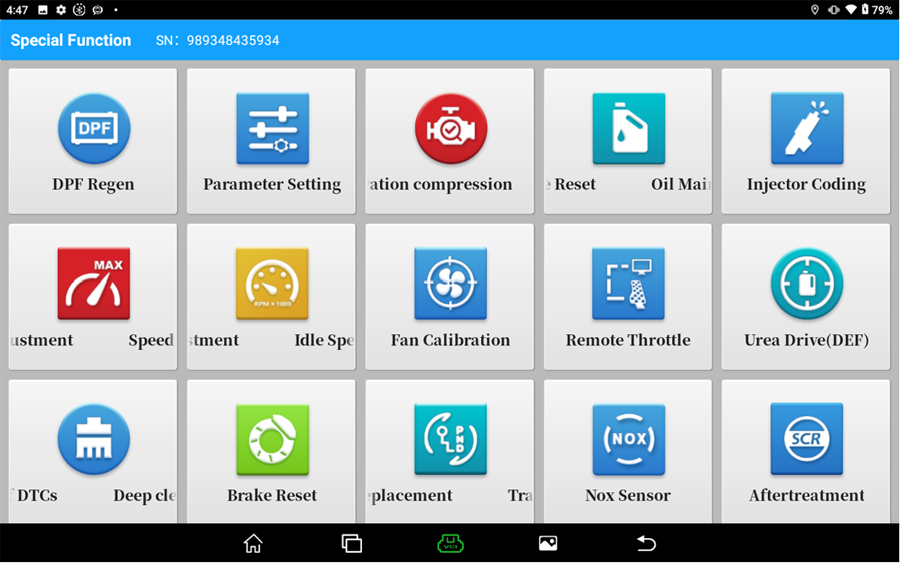

Special Functions: Supports commonly used special functions for most vehicle models, including D&P&F regeneration, parameter setting, cylinder cut‑off compression test, service reset, injector programming, speed limit adjustment, idle speed adjustment, fan calibration, remote throttle, urea injection drive, deep DTC clearing, transmission adaptation, NOx sensor, and others – covering a total of 18 special functions, with continuous updates.



AI Fault Repair: Intuitively pinpoint fault locations and deliver targeted, highly feasible optimization solutions



High‑Speed Diagnosis: Equipped with multi‑channel detection technology, it significantly improves operational efficiency and represents a major upgrade to vehicle diagnostic functions.



Product Specifications Comparison Between SmartLink C V2 and SmartLink C V4


	SmartLink C V2	SmartLink C V4
CPU	Single-core 528MHz	dual-core 1.7G
Working Voltage	DC 9V ~ 36V	DC 8V ~ 36V
Screen	3.95 inches, 320*480	5 inches, 1280*720
RAM	256M	1G
Storage	8G	8G
Communication	Local Diagnosis: WIFI/BT/USB SmartLink Remote Diagnosis: Wi‑Fi / Wired	Local Diagnosis: WIFI/BT/USB SmartLink Remote Diagnosis: Wi‑Fi / Wired
WIFI	WIFI 5	WIFI 6
Bluetooth	BT4.2	BT5.0
I/O	DB15 male, USB-B, RJ45, DC IN	DB15 female, USB-B, RJ45, DC IN
Working Tenperature	0℃ ~ 50℃	0℃ ~ 50℃
Size	200*47*110mm	187.6*32.8*106mm
Weight	0.55kg	0.35kg

Product Specifications:

System: Linux
Processor Clock Speed: Dual‑core 1.7 GHz
Input Voltage: 8–36 V
RAM: 1 GB
Storage: 8 GB

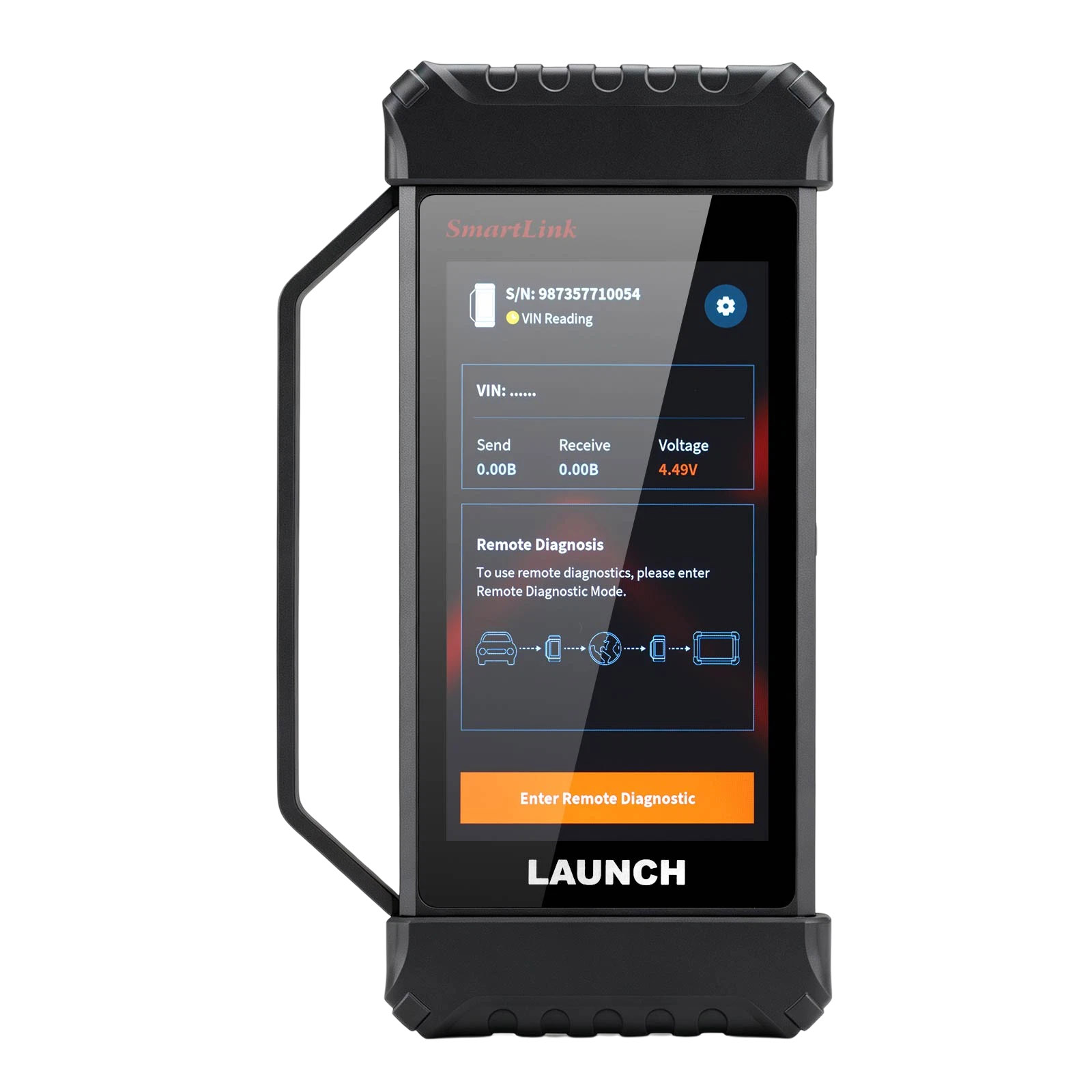

Display: 5‑inch capacitive multi‑touch screen, resolution 1280×720
Wi‑Fi: Wi‑Fi 6
Bluetooth: 802.11 a/b/g/n/ac/ax + BT 5.0
Operating Environment: Operating temperature: –10 to 50°C; Operating humidity: 20%–90%
Storage Environment: Storage temperature: –20 to 70°C; Storage humidity: 10%–90%

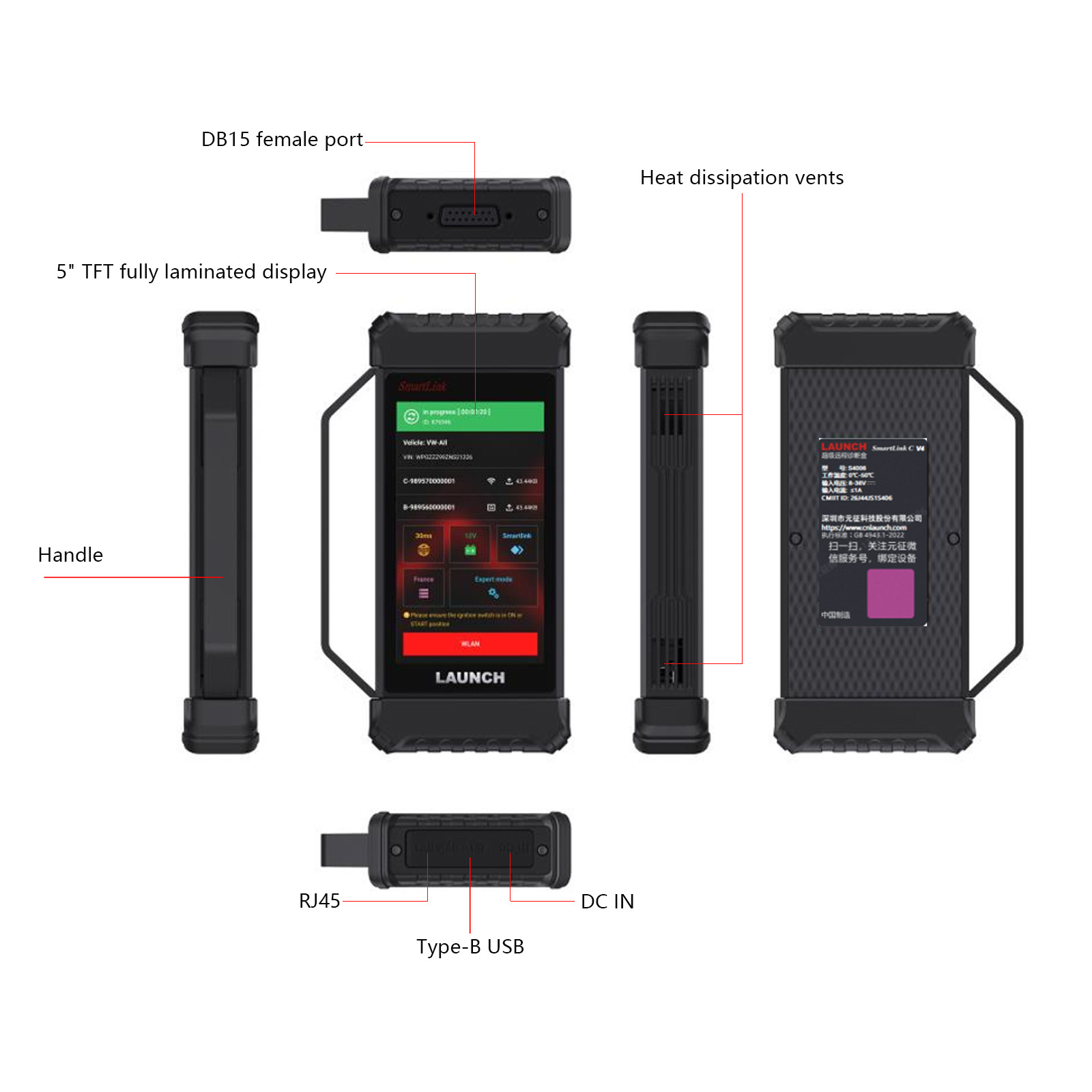

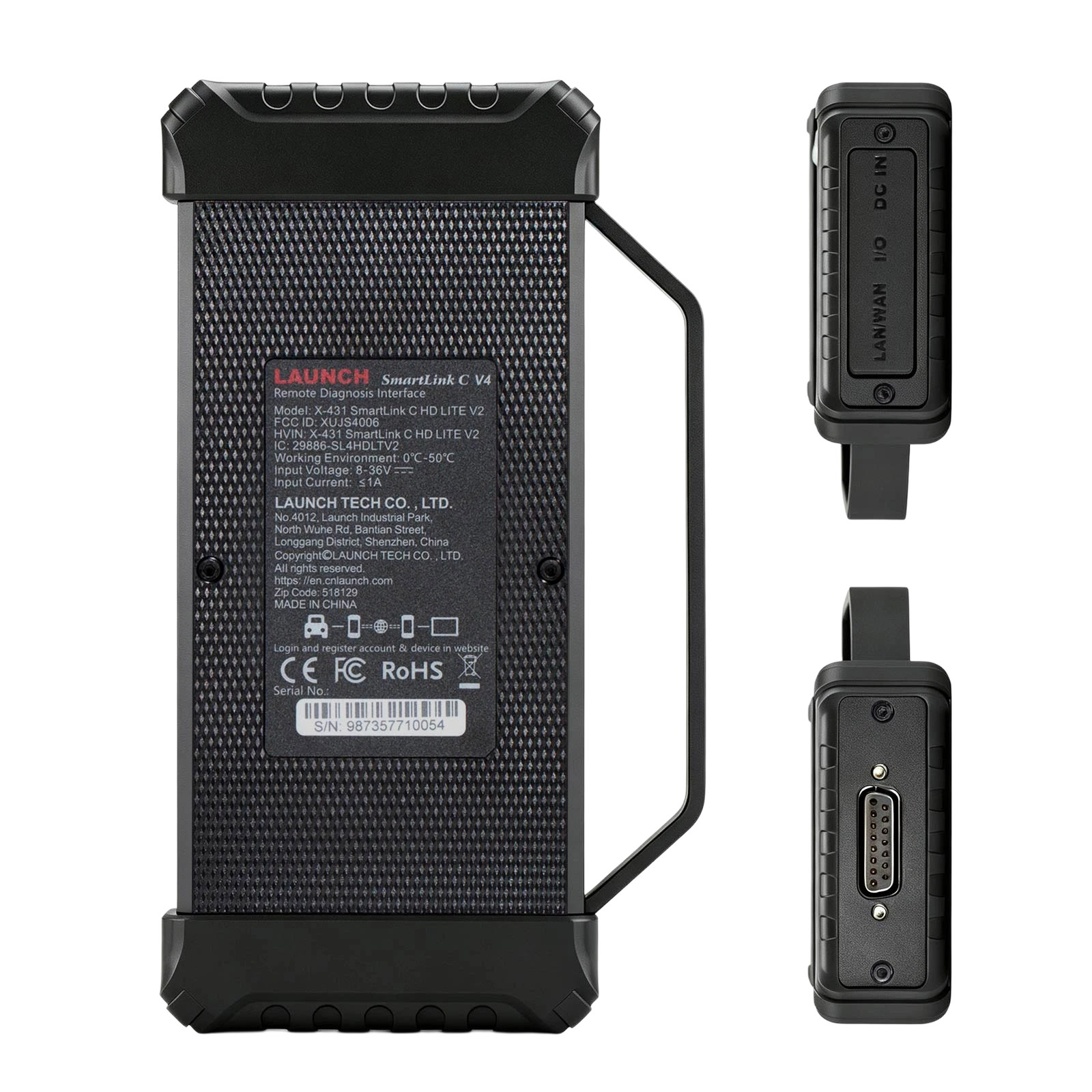

I/O Ports: USB 2.0 Type‑B, RJ45, DC IN, DB15 female connector
Diagnostic Communication: Wi‑Fi / Bluetooth / USB
Dimensions (Main Unit): Approx. 180 × 80 × 26.5 mm

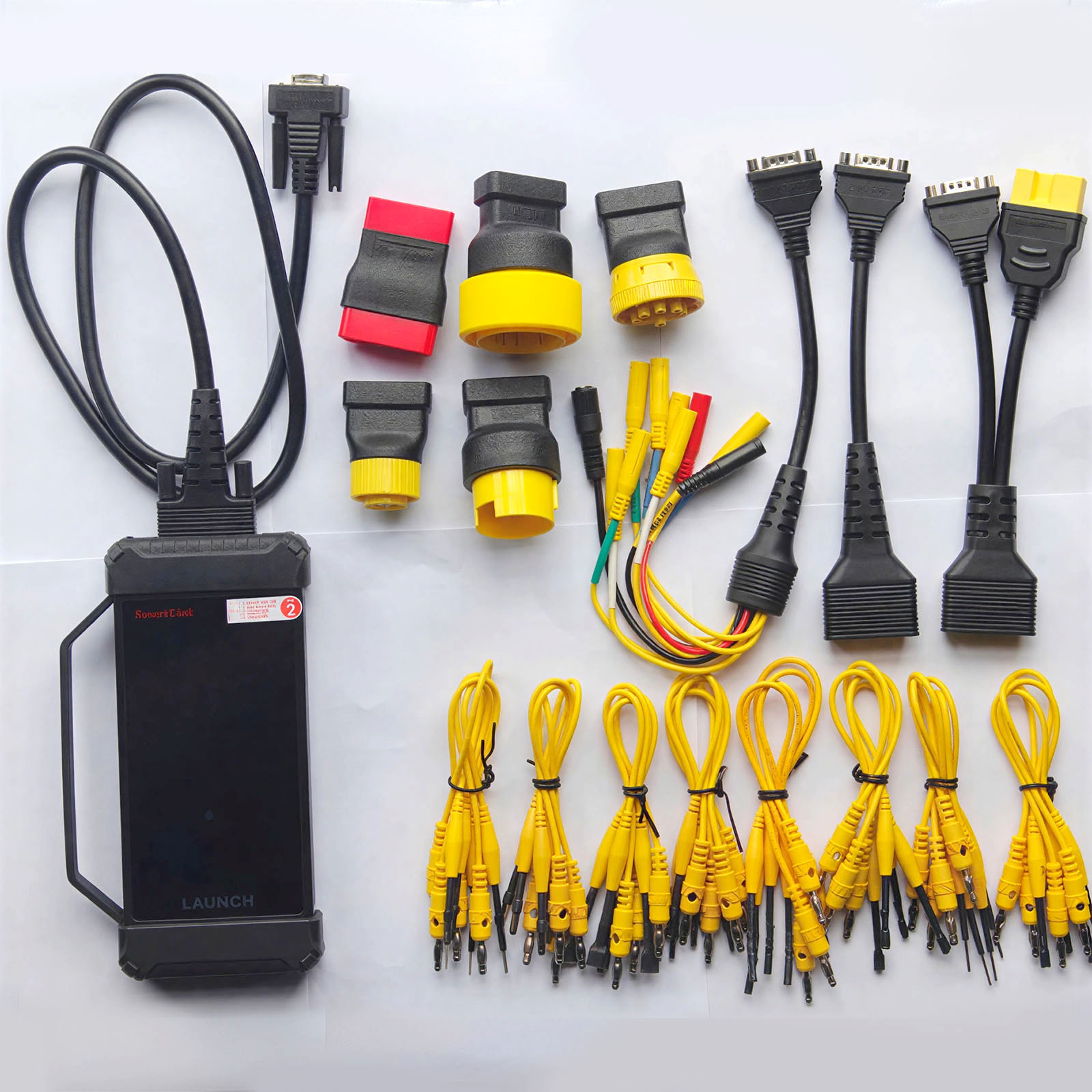

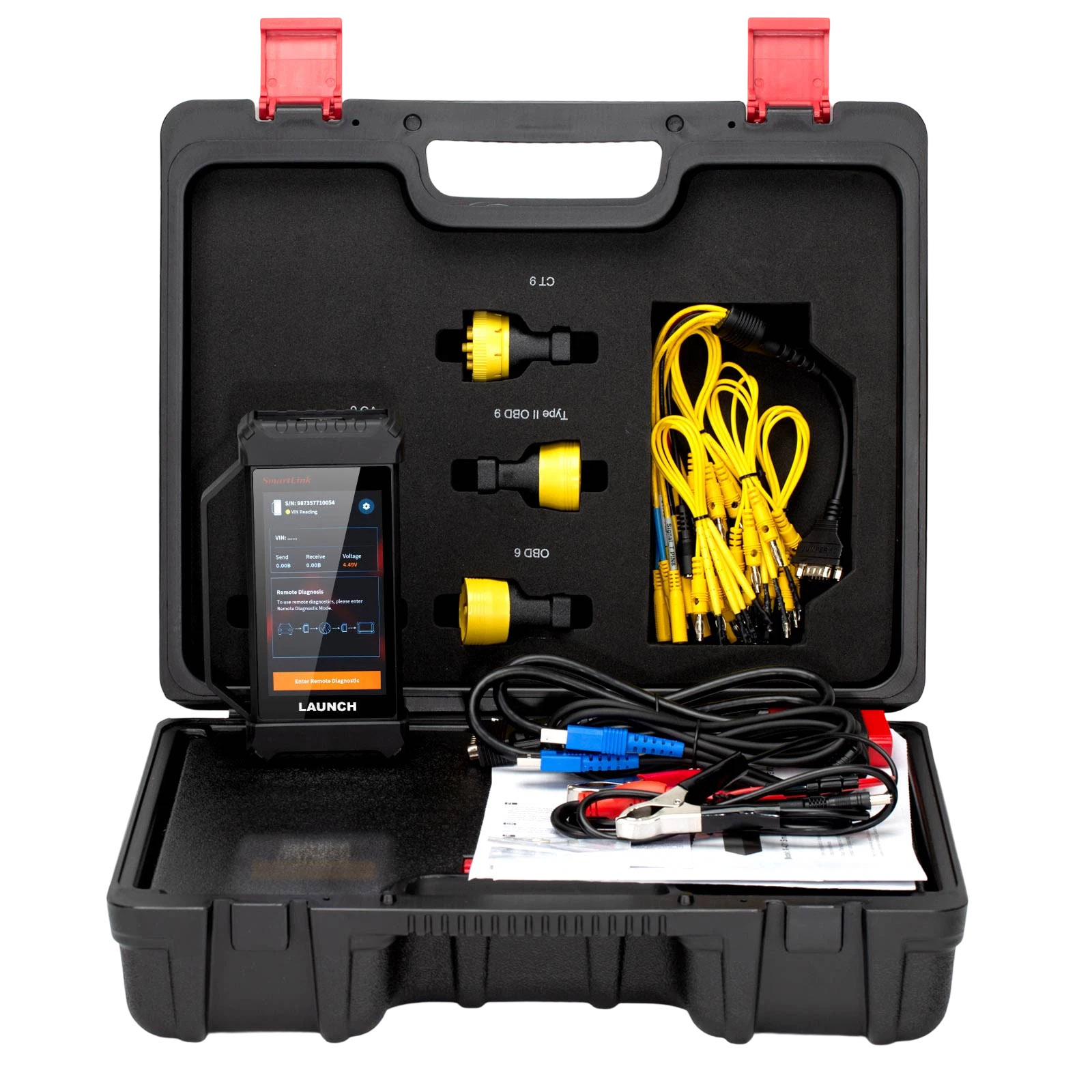

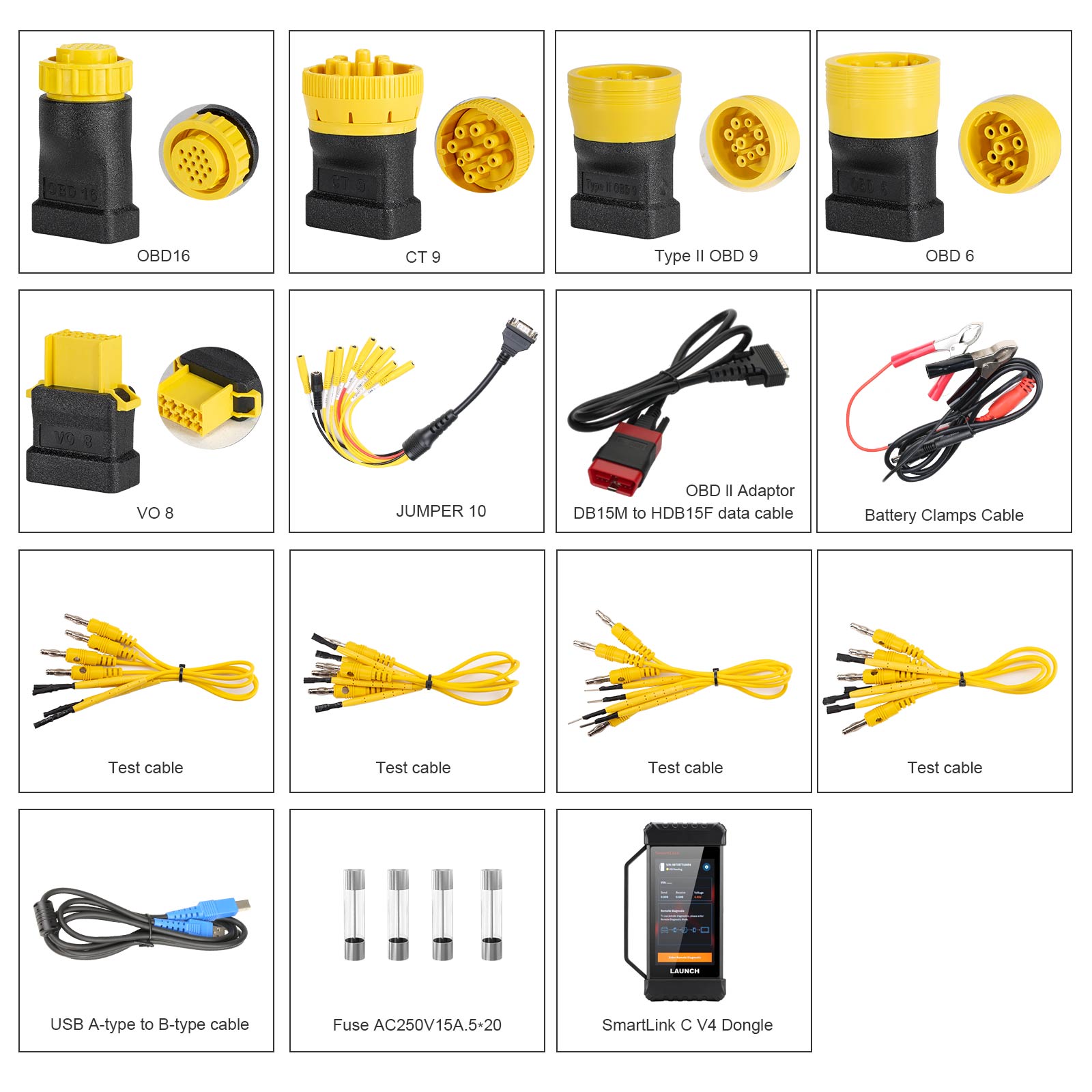

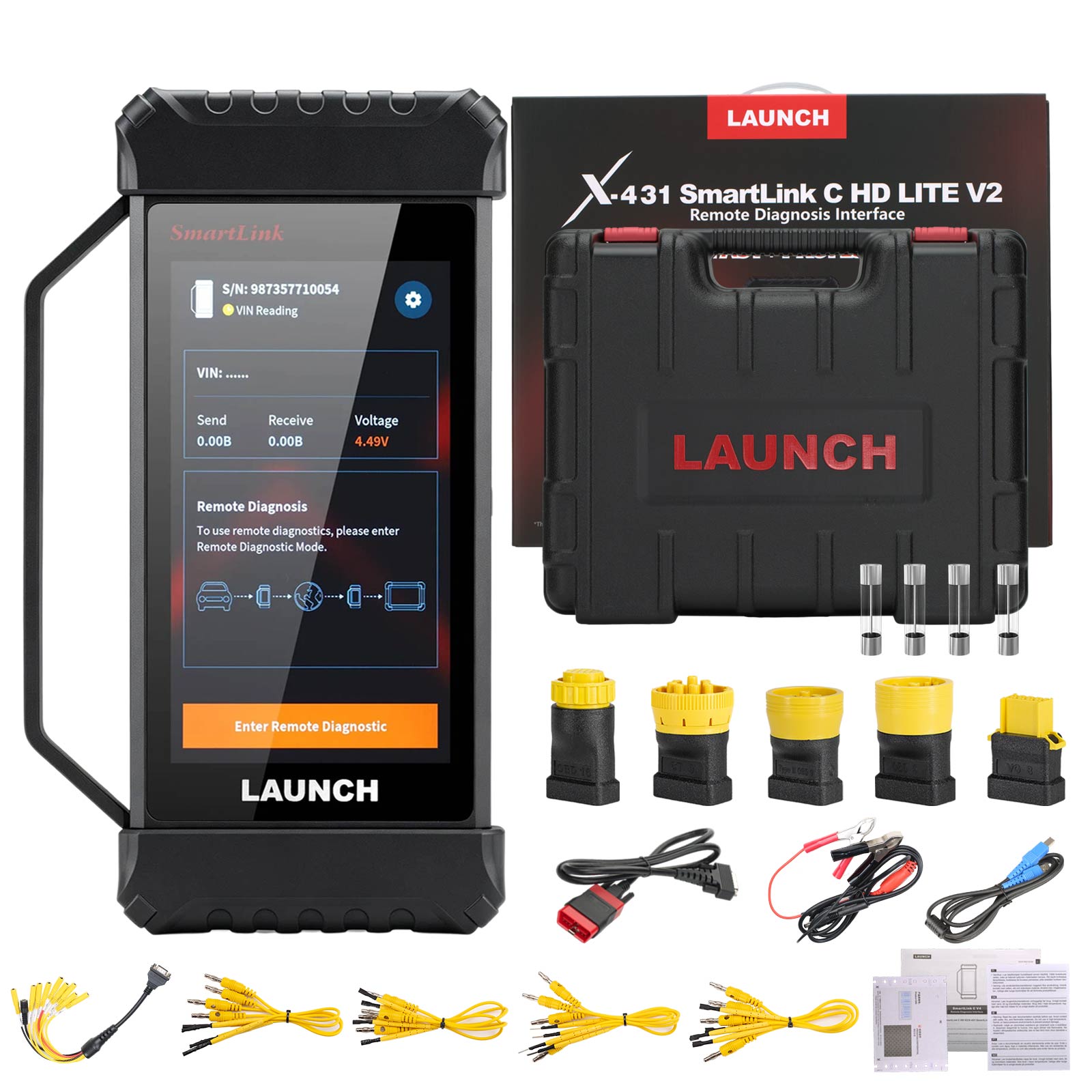

Package includes:

1 pc x X-431 SmartLink V4
1 pc x Universal Password Envelope
1 pc x Multilingual Quick Start Guide
1 pc x SmartLink dedicated RJ45 to RJ45 cable, blue
1 pc x USB Type‑A to Type‑B cable
2 pcs x Fuse F5A AC250V/5A, 6×30 mm
4 pcs x Fuse SFC AC250V/5A, 5×20 mm
1 pc x Cigarette lighter cable
1 pc x Dual‑clamp power cable
1 pc x MITSUBISHI‑12+16 / Fuso 12+16 PIN inline diagnostic connector (M/F 12+16)
1 pc x DEUTZ‑12 / Deutz 12 PIN integrated diagnostic connector (DE 12)
1 pc x VOLVO‑14 / Volvo 14 PIN integrated diagnostic connector (VO 14)
1 pc x RENAULT‑12 / Renault 12 PIN integrated diagnostic connector (RE 12)
1 pc x Type II OBD‑9 integrated diagnostic connector (Type II OBD 9)
1 pc x VOLVO‑8 / Volvo 8 PIN integrated diagnostic connector (VO 8)
1 pc x OBD 6 integrated diagnostic connector (OBD 6)
1 pc x ISUZU‑3 / Isuzu 3 PIN integrated diagnostic connector (IU 3)
1 pc x BENZ‑14 / Mercedes‑Benz 14 PIN integrated diagnostic connector (BZ 14)
1 pc x OBD 16 integrated diagnostic connector (OBD 16)
1 pc x CAT‑9 / Caterpillar 9 PIN integrated diagnostic connector (CT 9)
4 pcs x Electronic control adapter cable 9
4 pcs x Electronic control adapter cable 8
4 pcs x Electronic control adapter cable 7
4 pcs x Electronic control adapter cable 6
4 pcs x Electronic control adapter cable 5
4 pcs x Electronic control adapter cable 4
4 pcs x Electronic control adapter cable 3
4 pcs x Electronic control adapter cable 2
4 pcs x Electronic control adapter cable 1
1 pc x DB15M to HDB15F test main cable (including HD15M to OBD II 16‑pin male integrated test connector)
