LAUNCH X-431 PRO3S+ EV Diagnose Tool for EV Diagnostics & Battery Pack Analysis Supports Topology 40+ Service Functions CAN FD DoIP
Neueste Preis: €1,080.00Sofort Kaufen: €1,071.00
1% off
Versand:
Kostenloser Versand
Express VersandserviceLieferzeiten: DHL:5-7 Arbeitstage. Yanwen: 7-12 Arbeitstage. See details »
Rückkehr:
Erstattung: innerhalb 30 Tagen. Der Kunde verträgt Versandkosten Read details »
€1,071.00
Auf Lager.
Kostenloser Versand
Produktbeschreibung
- Supports 95% new energy vehicle models diagnosis and 40+ service functions.
- Supports dual mode diagnosis: local diagnostics and super remote diagnosis
- Supports AutoVIN, Guided Function, FCA AutoAuth, Topology mapping.

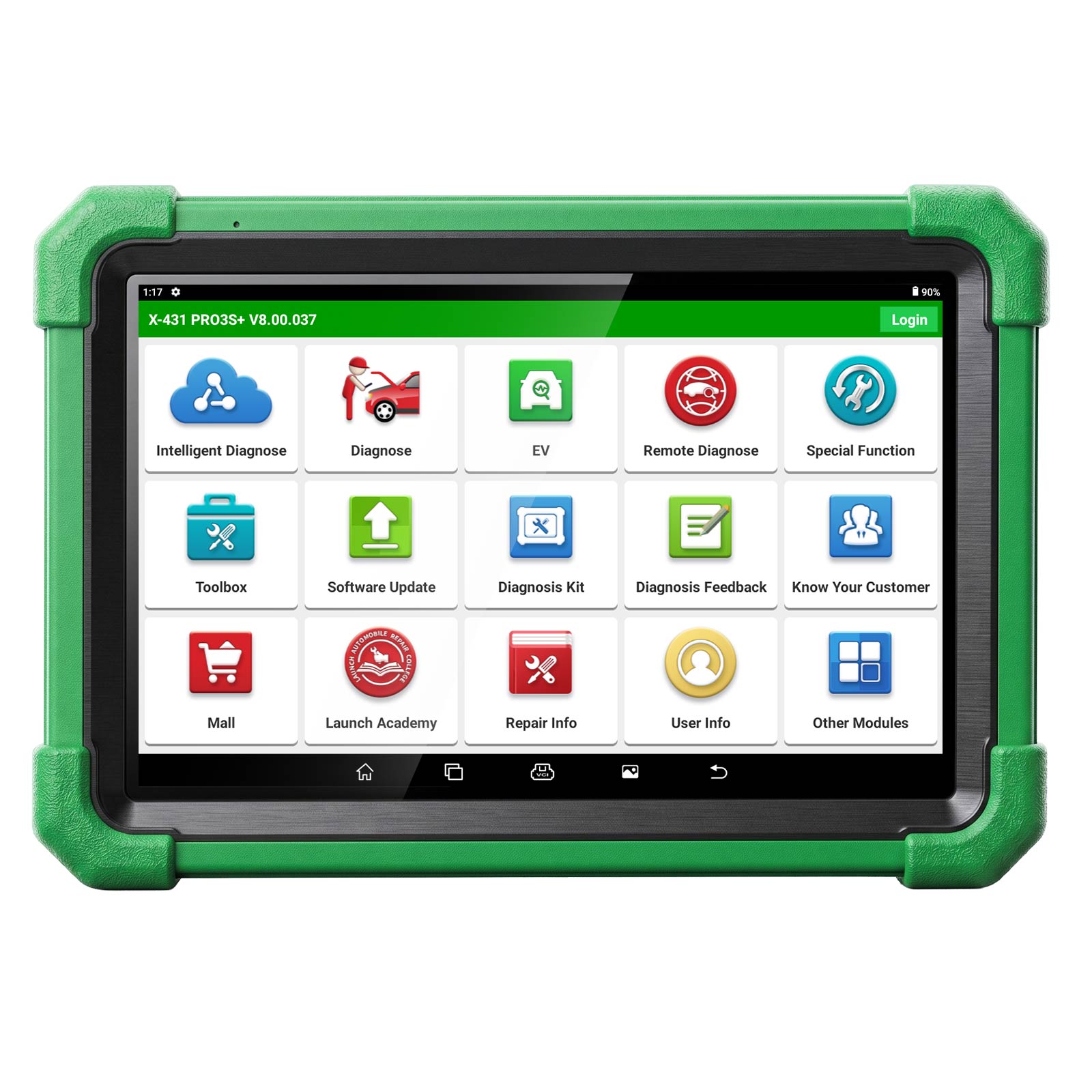

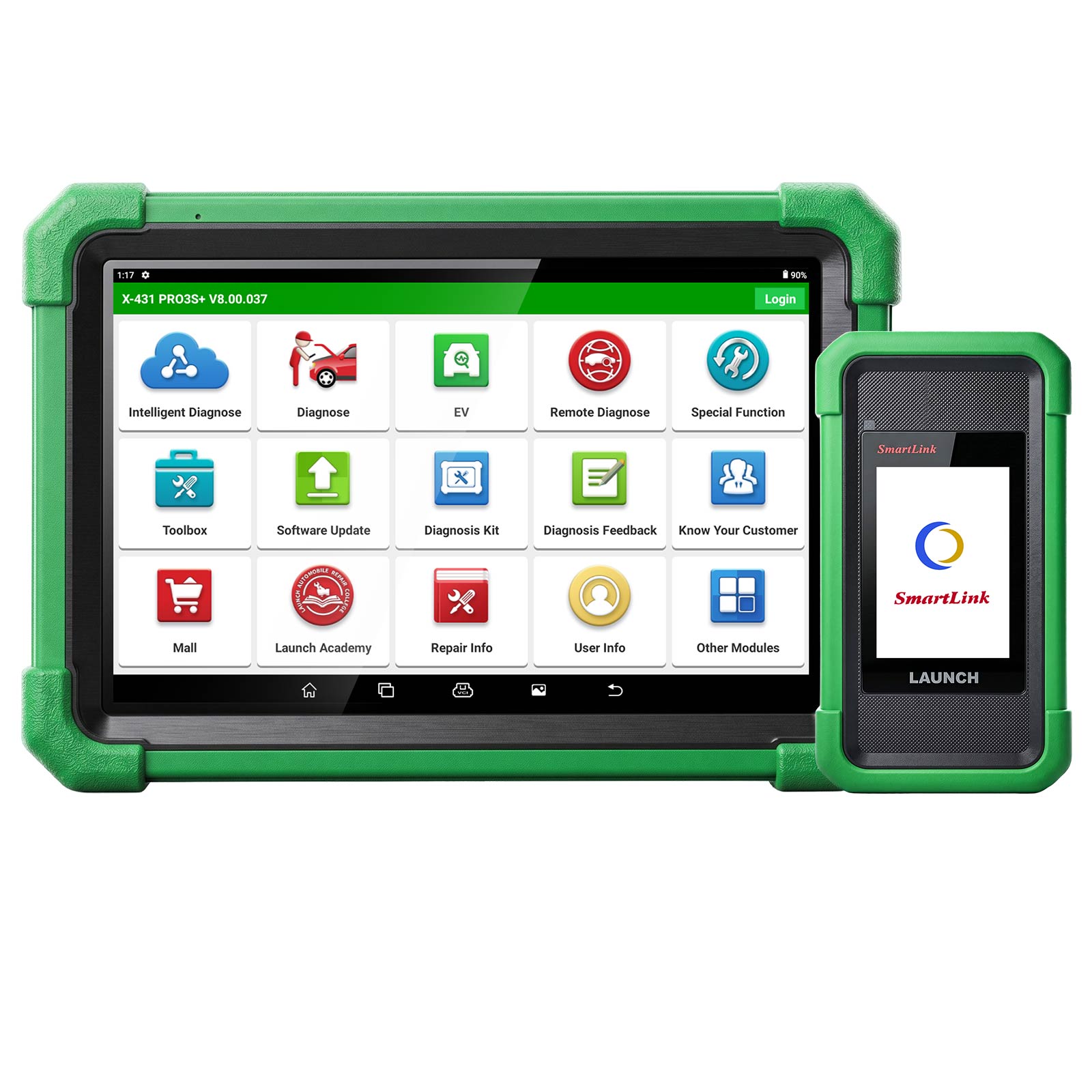

LAUNCH X-431 PRO3S+
LAUNCH X-431 PRO3S+ new energy diagnostic device integrates complete new energy vehicle diagnostics with battery pack analysis. Powered by the Android 10.0 operating system and featuring a 10.1-inch high-definition sunlight-readable screen, it comes standard with the SmartLink C V2 connector, supporting both local and remote diagnostic modes. It enables high-voltage system diagnostics for new energy vehicles and supports various battery pack diagnostic methods, accurately reading cell voltage and temperature data, intelligently calculating voltage differences, and quickly locating faults—making it an essential tool for new energy vehicle maintenance.
Highlights:
Features:
Highlights:
- Supports 95% new energy vehicle models. Wide electric vehicle coverage and 20+ battery packs supported.
- OE-level EV diagnostics and battery pack diagnostics.
- Battery pack data stream enables precise fault detection and faster repair.
- Fast reading of battery pack information: module count, SOC, SOH, temperature, etc.
- In-depth access to cell voltage and temperature data help guide repair decisions.
- Supports dual mode diagnosis: local diagnostics and super remote diagnosis
- Supports CAN FD, CAN 2.0, DoIP, J2534 and D-PDU protocols
- Supports AutoVIN, Guided Function, FCA AutoAuth
- Supports Topology mapping
- Supports CAN BUS PIN Detection
- Optional X-431 FIX Database.
- Supports diagnostic report generation, sharing, and printing.
- Supports multiple add-on modules: TPMS, ADAS, videoscope, battery tester, sensorbox, scopebox, IMMO programmer, X431 key programmer etc.
- Expandable vehicle coverage via MALL, including passenger cars, commercial vehicles, motorcycles, IMMO service, etc (purchase in Mall)
Features:
Powerful Hardware Upgrade
Android 10.0 OS
4GB RAM + 64GB storage
Stable system with strong compatibility
Display Upgrade
10.1-inch Gorilla Glass screen
Sunlight-readable for clear visibility
Battery Upgrade
Cells connected in series for high power output
6300mAh @ 7.6V
Strong power delivery with extended battery life
Enhanced Compatibility
New Type A port added
Supports external expansion tools such as oscilloscopes, sensors, and immobilizer programming devices
Human-Centered Industrial Design
Reinforced edges for impact protection
Swivel stand for easy support and hanging
Dust-resistant design
Powerful Diagnostic Functions:
Dual Diagnostic Modes
Supports Local Diagnostics
Super Remote Diagnostics
Super Remote Diagnostics
Server side supports:
X431 diagnostic devices
Specialized diagnostic devices (original equipment)
Third-party diagnostic devices
Diagnostic Functions
Smart Diagnosis, VIN Auto Recognition, Fault Guidance, Topology Map, Rapid Scan, Guided Functions, SGW Gateway, etc.
Mainstream Protocol Support
Supports J2534, D-PDU and other standards
Supports mainstream protocols such as CAN2.0, CANFD, DOIP, etc.

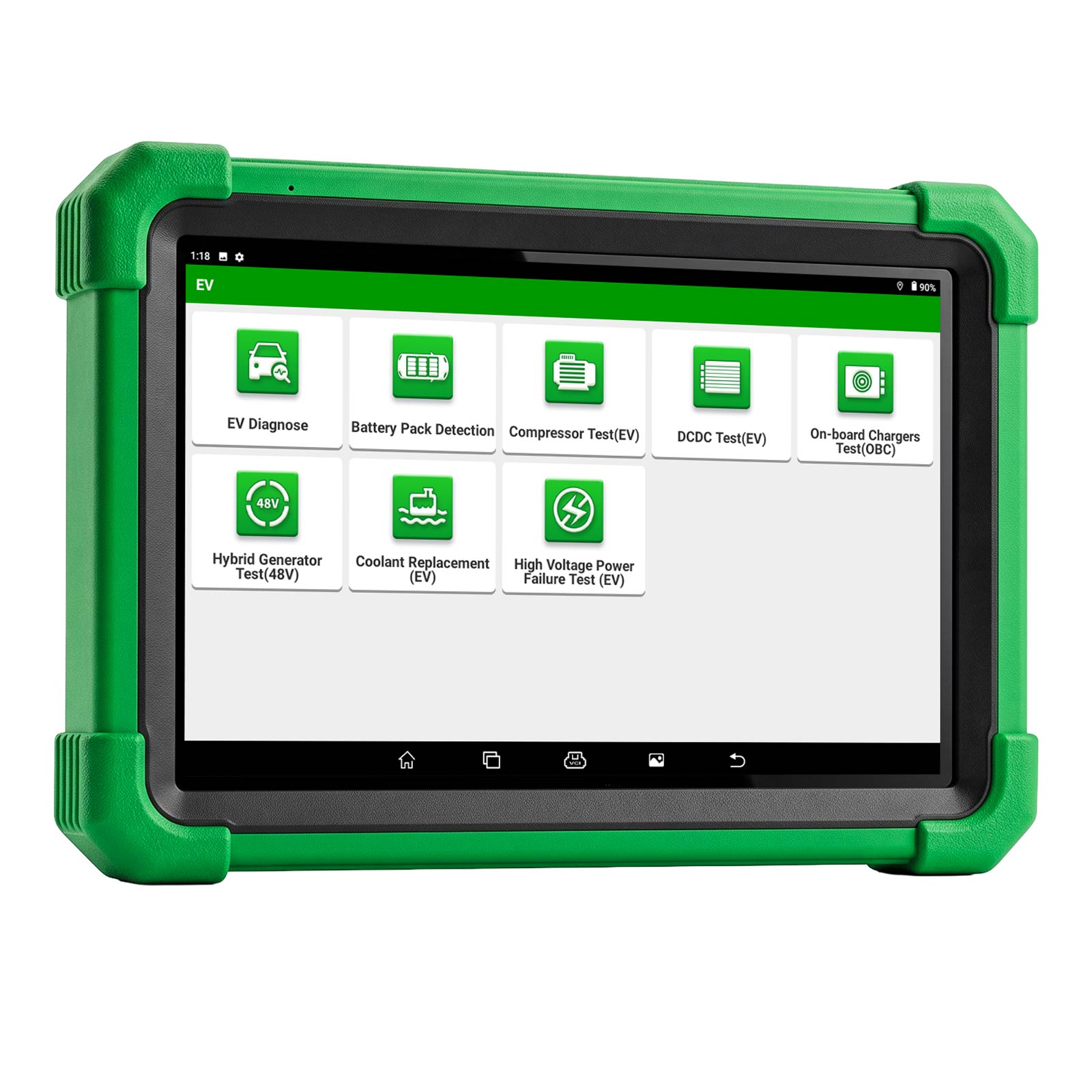

New Energy Vehicle Diagnostics
Supports over 95% of new energy vehicle models
Keeps pace with market trends with rapid model updates and precise diagnostics
Battery Pack Diagnostics
Multiple battery pack diagnostic methods
Comes with a complete set of connectors for new energy battery packs

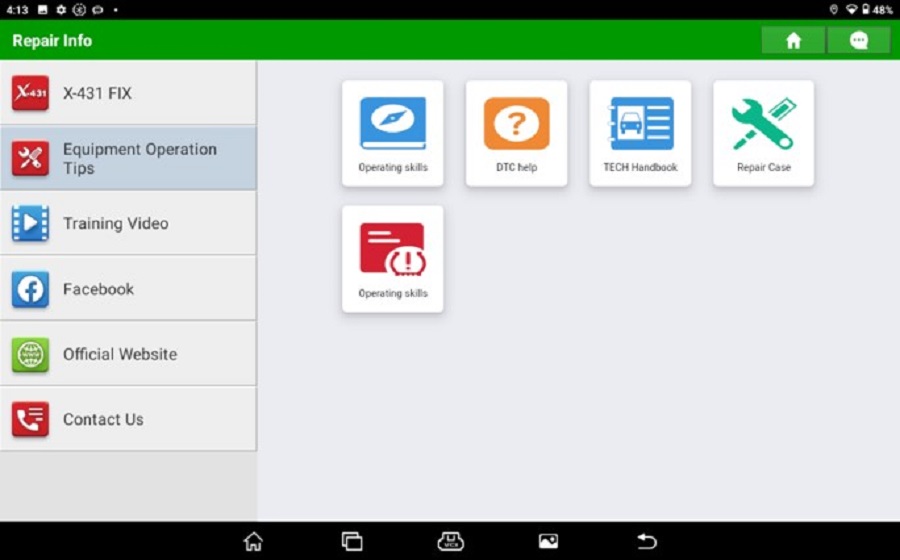

Resources
Supports the X431 FIX database
Provides a rich free resource library including repair cases, fault code help, technical manuals, operation tips, and more
High Expandability
Supports expansion for passenger cars, commercial vehicles, immobilizer, and motorcycles
Supports various hardware expansion modules: ADAS, immobilizer programmer, TPMS, oscilloscope, sensors, and over a dozen other expansion modules
Add-on models
TPMS
ADAS
O2-1 ScopeBox
O2-2 Scopebox
S2-2 Sensorbox
Videoscope
BST36- Battery tester
EM101N Scopebox
Multimeter EM101N
Current Clamp
ES Insulation
X-prog3 IMMO Programmer
Launch X431 key programmer
highlight Features:
Add-on models
TPMS
ADAS
O2-1 ScopeBox
O2-2 Scopebox
S2-2 Sensorbox
Videoscope
BST36- Battery tester
EM101N Scopebox
Multimeter EM101N
Current Clamp
ES Insulation
X-prog3 IMMO Programmer
Launch X431 key programmer
highlight Features:

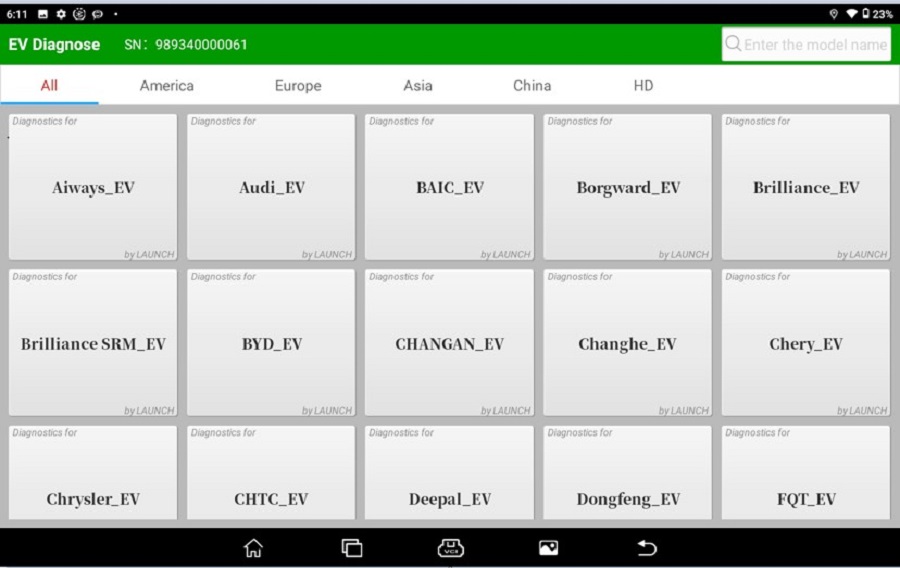

EV Diagnose
By comparing the differences between new energy vehicles and traditional vehicles, the diagnostic software logic has been optimized in terms of overall vehicle diagnostics, improving diagnostic speed while ensuring accuracy and enhancing the diagnostic experience. Currently, diagnostic software has been developed for multiple vehicle models, including BYD, Xpeng Motors, Leapmotor, Neta, Roewe, GAC, BAIC New Energy, Zeekr, etc., with a model coverage rate of over 95%. More models are continuously being updated…

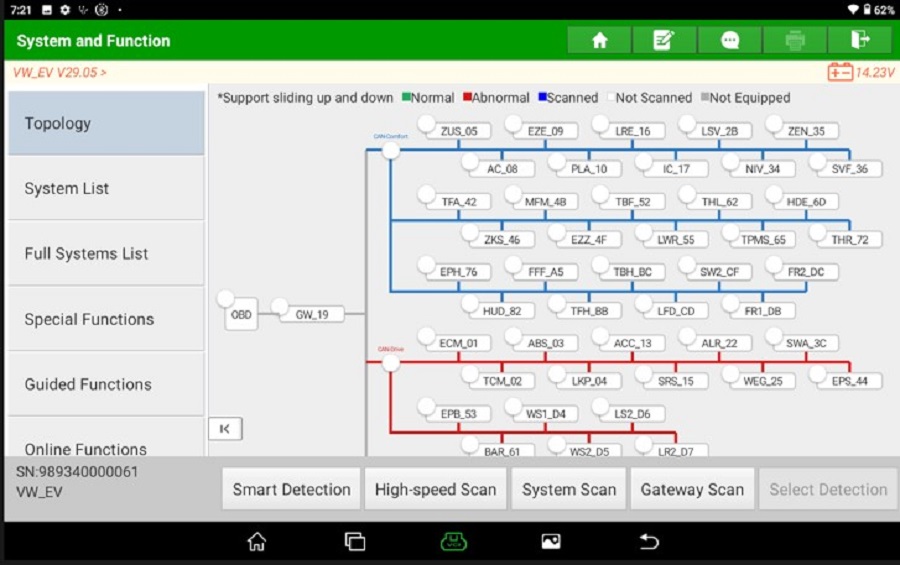

System and Function:
OEM-level diagnostic functions, graphical display of the entire vehicle system structure for a comprehensive view; rapid scanning to quickly locate faults; test plans guide repairs step by step. Through battery pack data streams, the cause of faults can be precisely located, improving diagnostic and repair efficiency.
OEM-level diagnostic functions, graphical display of the entire vehicle system structure for a comprehensive view; rapid scanning to quickly locate faults; test plans guide repairs step by step. Through battery pack data streams, the cause of faults can be precisely located, improving diagnostic and repair efficiency.

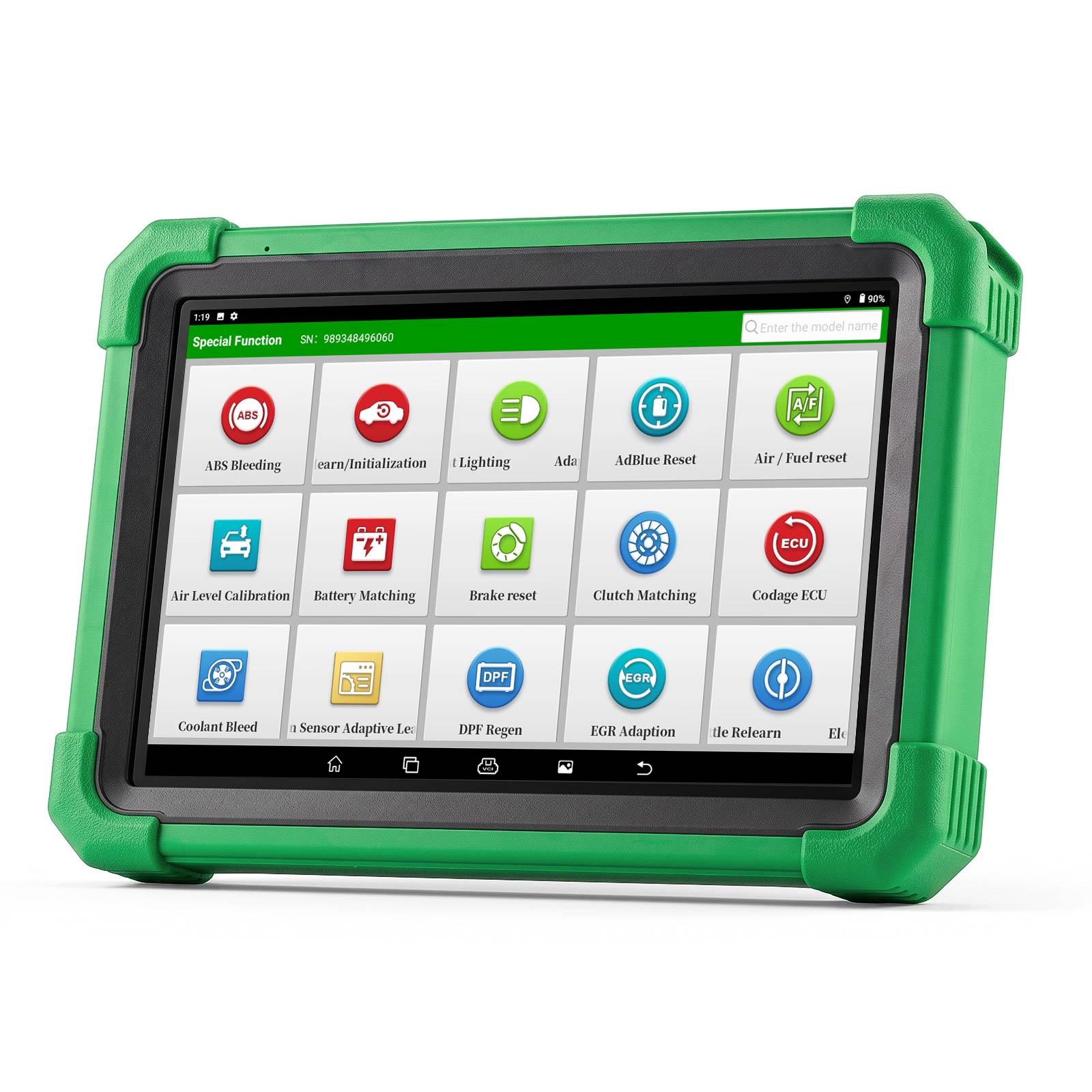

Features of LAUNCH X-431 PRO3S+ Tablet:
Powerful Hardware Upgrade
Android 10.0 OS
4GB RAM + 64GB storage
Stable system with strong compatibility
Display Upgrade
10.1-inch Gorilla Glass screen
Sunlight-readable for clear visibility
Battery Upgrade
Cells connected in series for high power output
6300mAh @ 7.6V
Strong power delivery with extended battery life
Enhanced Compatibility
New Type A port added
Supports external expansion tools such as oscilloscopes, sensors, and immobilizer programming devices

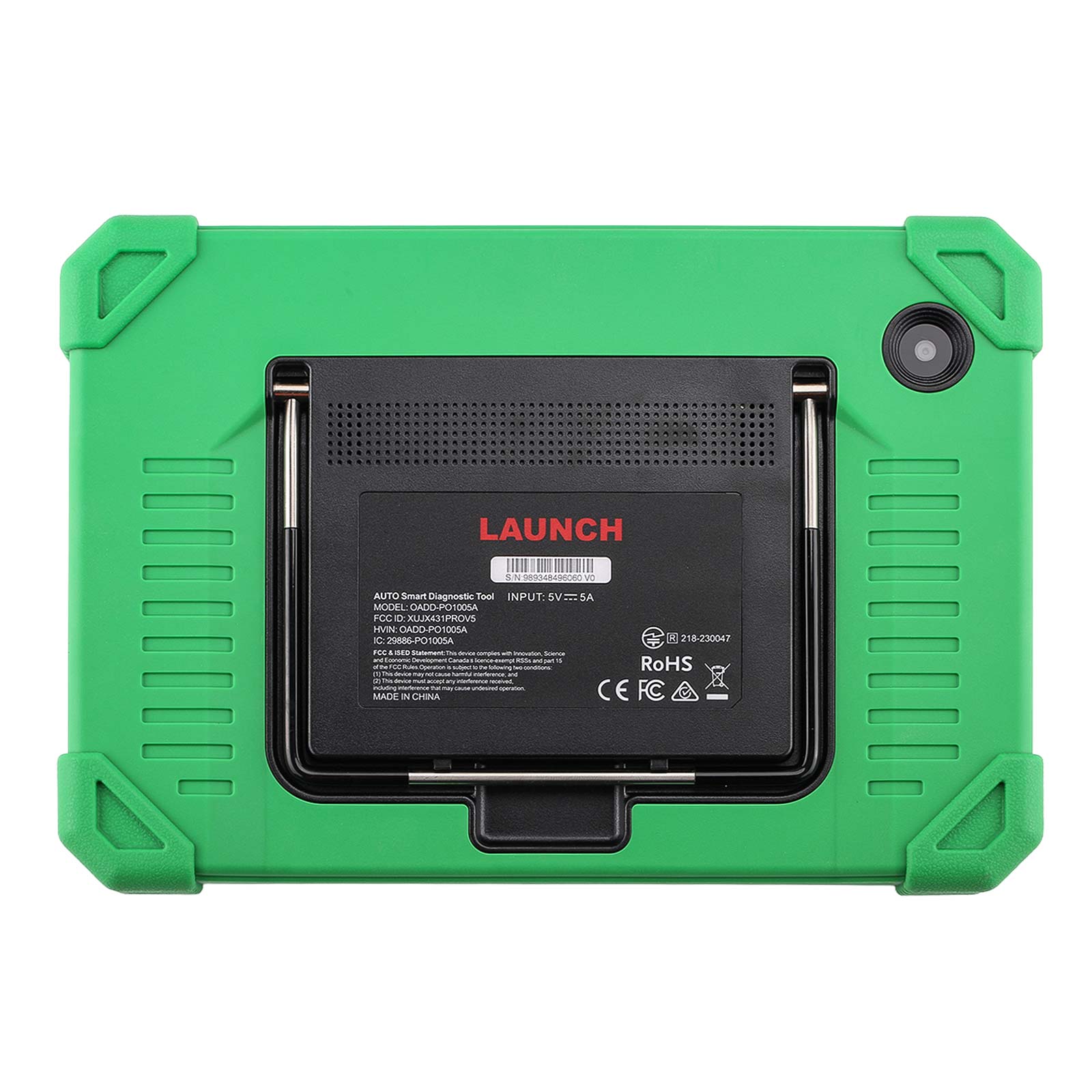

Human-Centered Industrial Design
Reinforced edges for impact protection
Swivel stand for easy support and hanging
Dust-resistant design
Powerful Hardware Upgrade
Android 10.0 OS
4GB RAM + 64GB storage
Stable system with strong compatibility
Display Upgrade
10.1-inch Gorilla Glass screen
Sunlight-readable for clear visibility
Battery Upgrade
Cells connected in series for high power output
6300mAh @ 7.6V
Strong power delivery with extended battery life
Enhanced Compatibility
New Type A port added
Supports external expansion tools such as oscilloscopes, sensors, and immobilizer programming devices
Human-Centered Industrial Design
Reinforced edges for impact protection
Swivel stand for easy support and hanging
Dust-resistant design
Specification:
X-431 PRO3S+ EV
|
OS |
Android 10.0 |
|
Display |
10.1-inch, 1280*800, fully laminated and sunlight-readable |
|
Battery |
47.88Wh(7.6V, 6300mAh) |
|
CPU |
2.0GHz, Quad-core |
|
Storage |
4+64GB |
|
Camera |
Rear camera, 8MP |
|
WIFI |
2.4GHz/5Ghz (b/g/n) |
|
Interface |
Type-A, Type-C |
|
Operating Temperature |
0℃~50℃ |
|
Dimension |
274*190.5*40.5 (mm) |

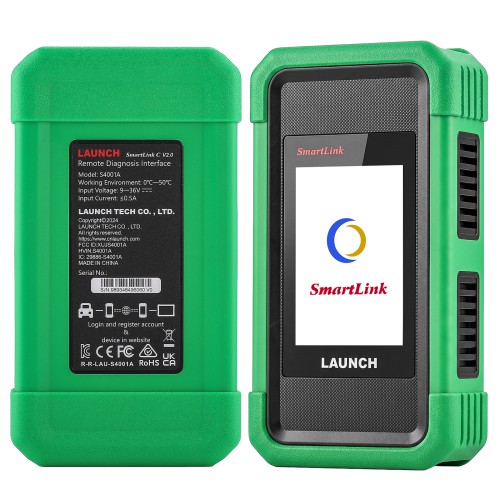

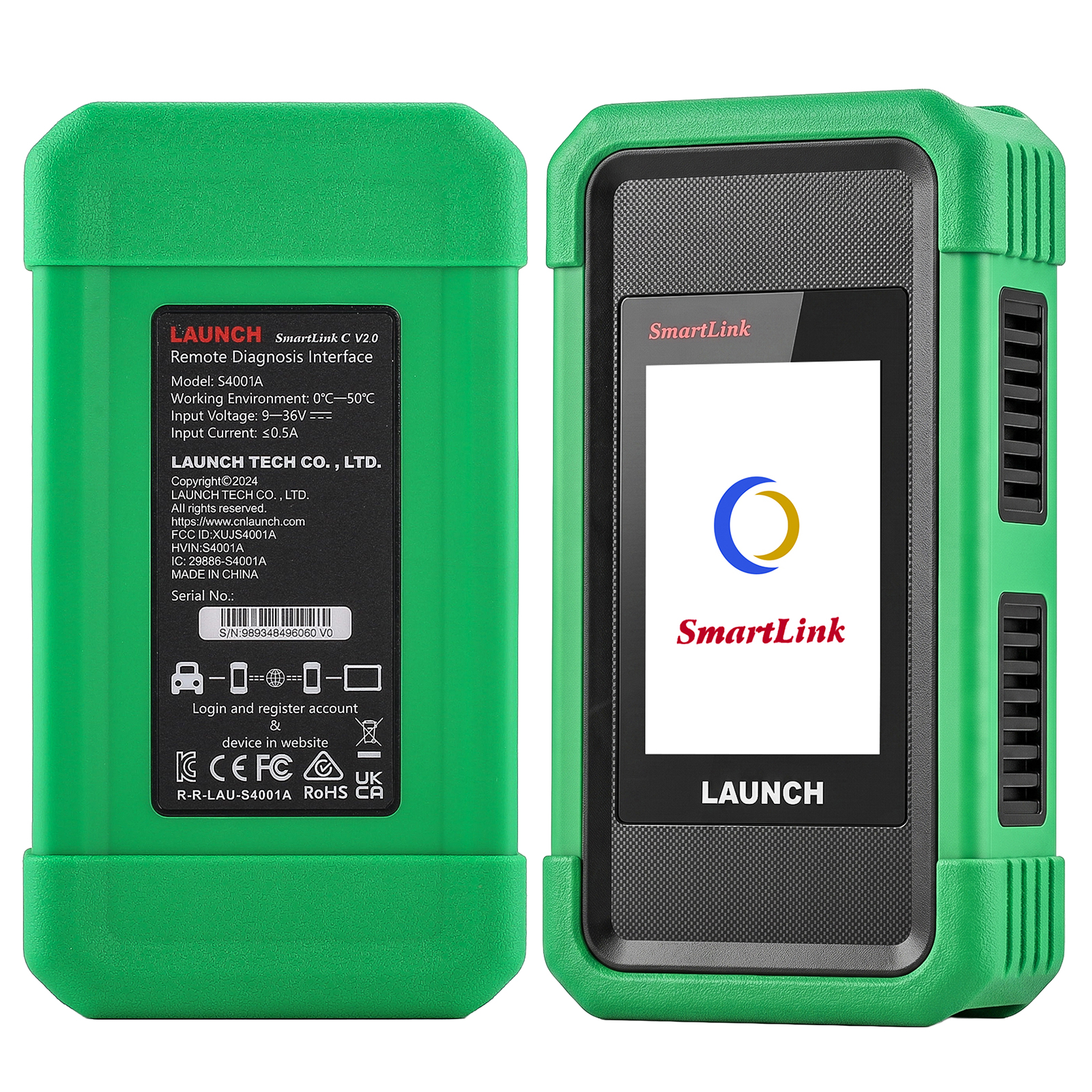

SmartLink C V2.0
|
Display |
3.95”, 320*480 |
|
RAM |
256MB |
|
Storage |
8GB |
|
Communication |
Local Diagnosis: WIFI/USB SmartLink Remote Diagnosis: Ethernet |
|
Interface |
DB15, Type B USB, RJ45, DC |
|
Working Temperature |
9V DC~36V DC |
|
Dimension |
200*110*47 (mm) |

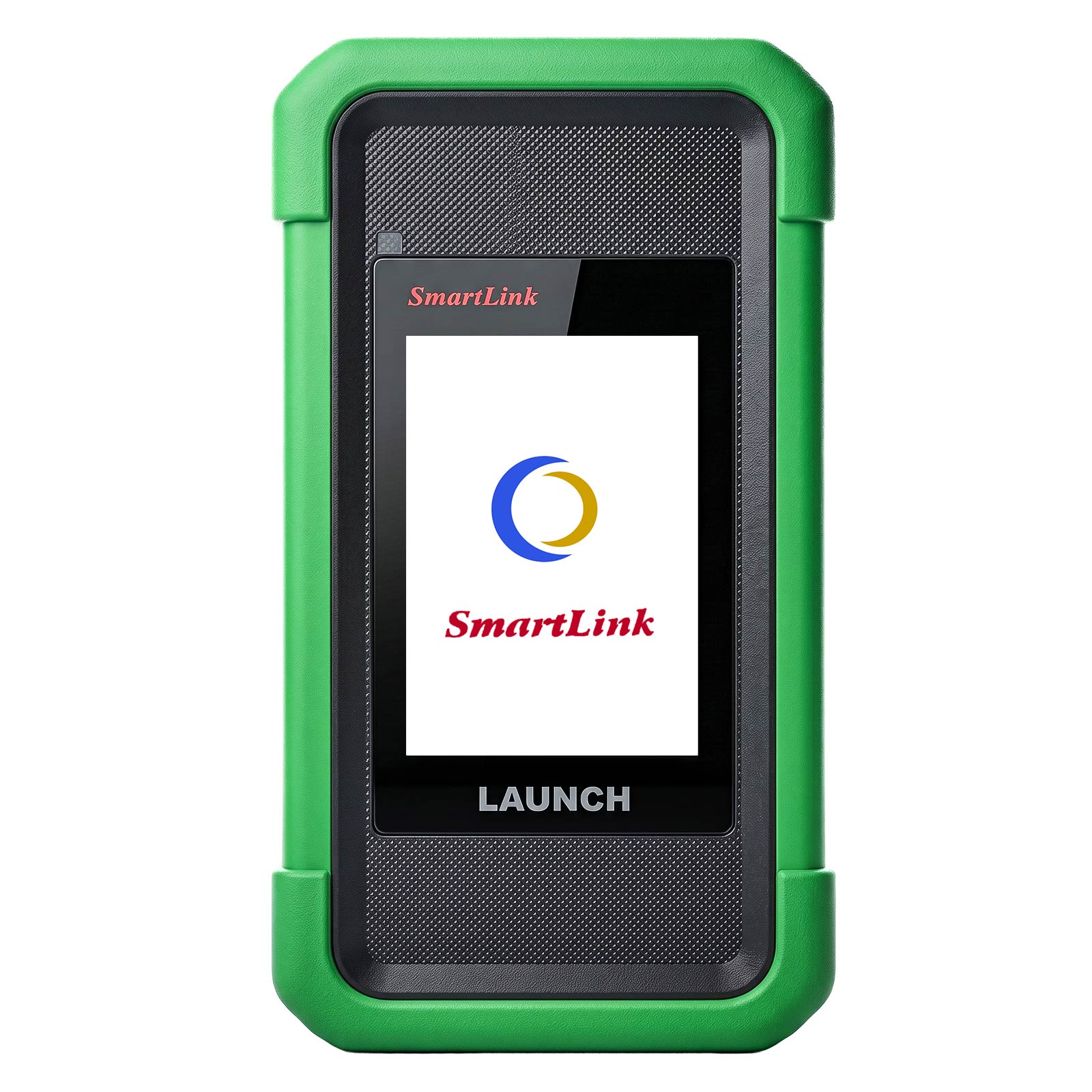

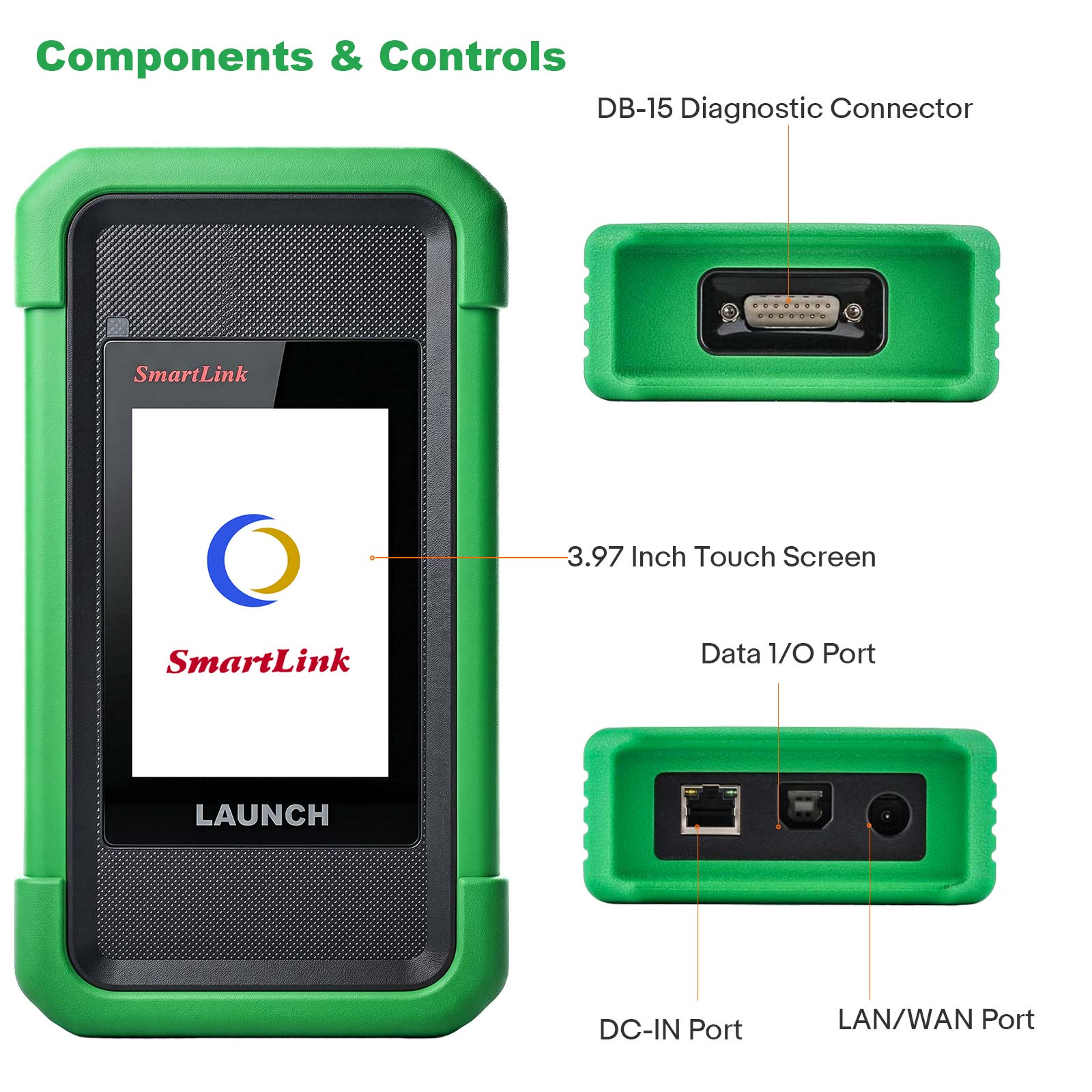

Features of the SmartLink C V2 Connector:
Fully Laminated Screen Design
Prevents dust from entering the screen
Prevents fogging
Enhanced Wi-Fi Signal
Optimized Wi-Fi antenna and module
Improved Heat Dissipation
Additional cooling vents
More Secure Connection
OBD16 changed to DB15 for improved connection stability
Test cable secured to the interface with screws
Multi-Protocol Support
Supports CANFD protocol
Supports CAN2.0
Supports DOIP protocol
Supports J2534 standard
Supports D-PDU standard
Super Remote
Request remote technician service support
Supports remote service via X431 diagnostic devices
Supports remote service via specialized diagnostic devices (original equipment)
Supports remote service via third-party diagnostic devices

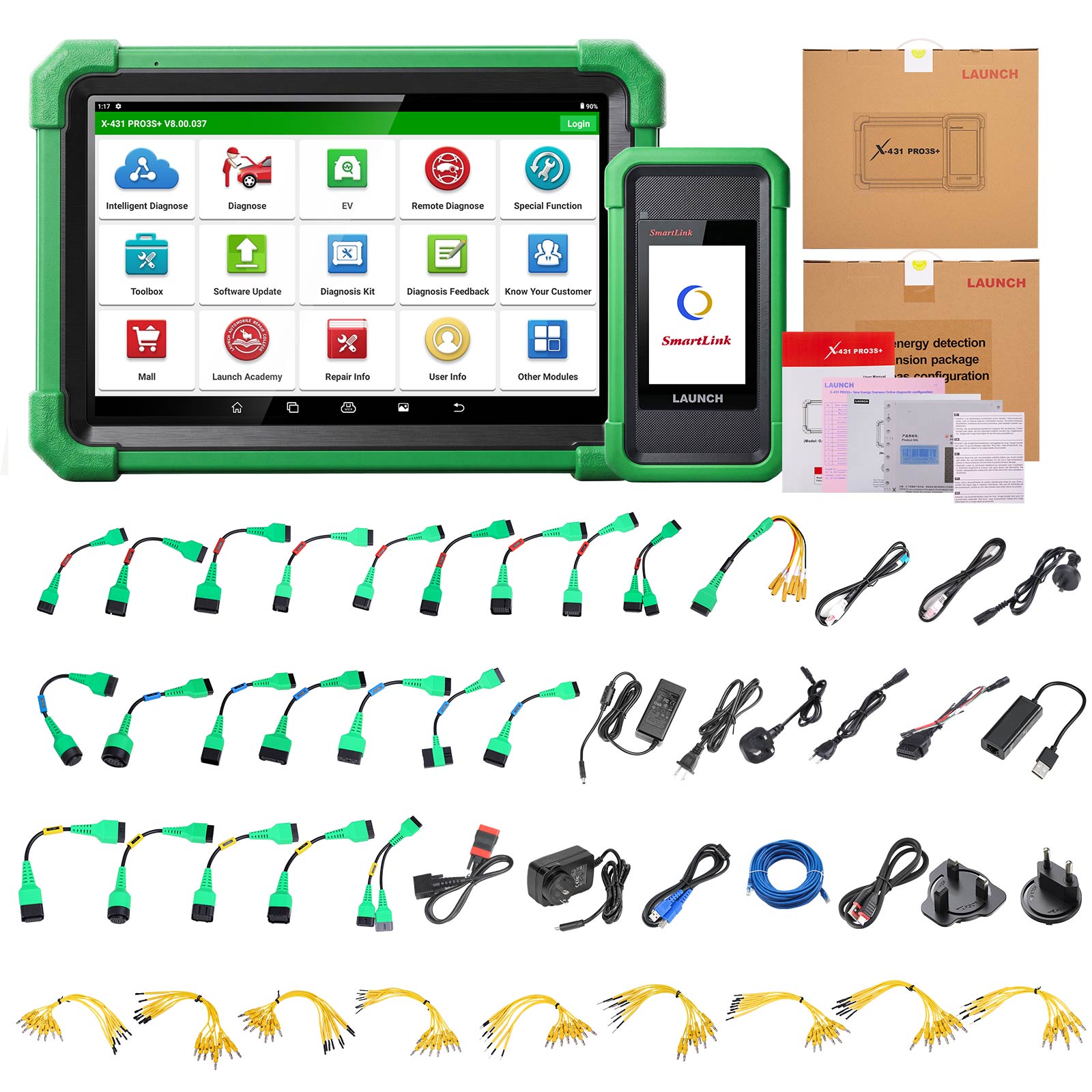

Package includes:
1pc x LAUNCH X-431 PRO3S+ Tablet
1pc x SmartLink C V2 Connector
1pc x remote diagnosis box V2.0 (New Energy)
1pc x DB15F to HD15F test mainline
1pc x Smartlink dedicated RJ45 to RJ45 connection cable
1pc x British standard conversion head
1pc x European gauge conversion head
1pc x Power Adapter(5V 5A)
1pc x Type A to type C USB data cable
1pc x USB A-type to B-type data cable

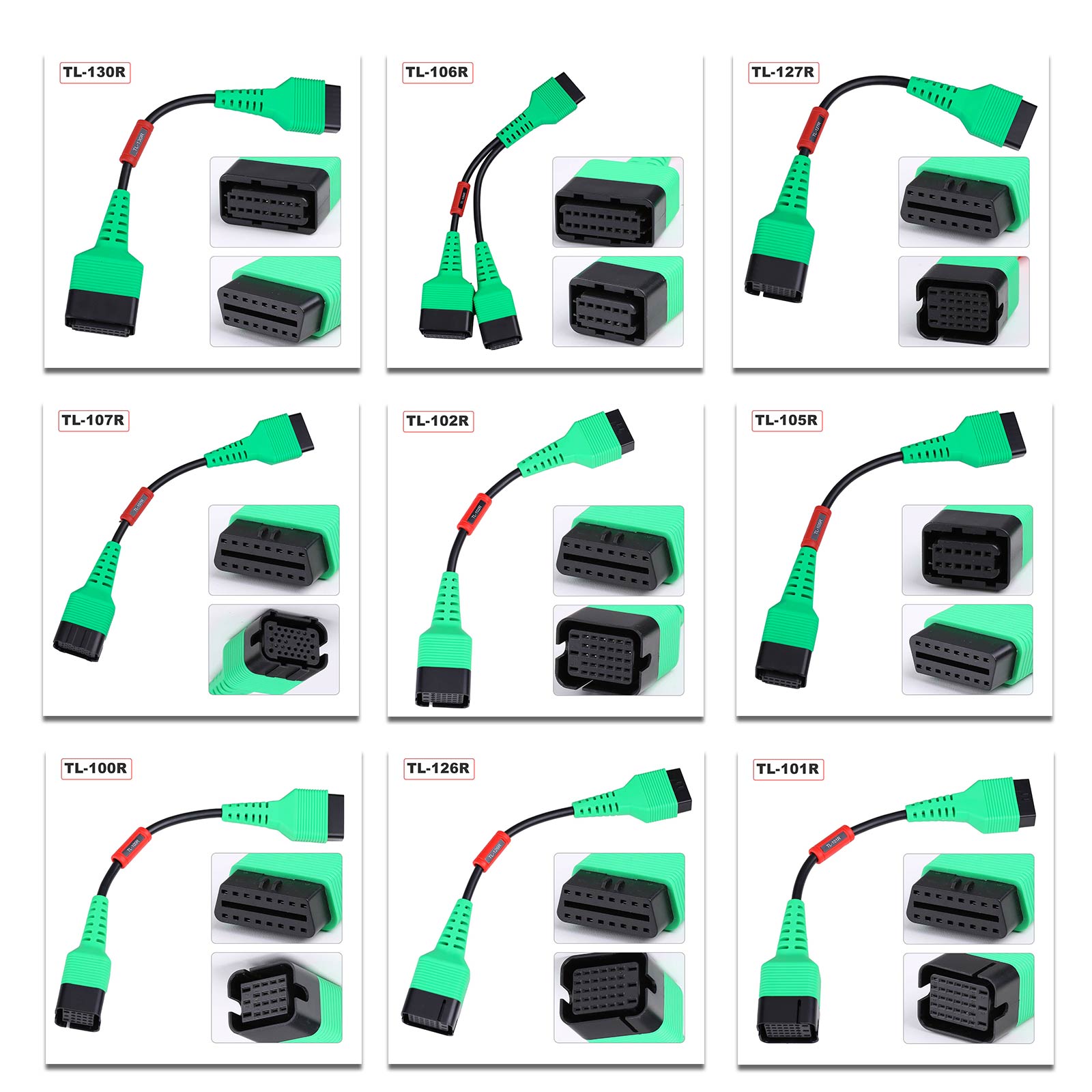

1pc x TL-130R cable
1pc x TL-106R cable
1pc x TL-127R cable
1pc x TL-107R cable
1pc x TL-102R cable
1pc x TL-105R cable
1pc x TL-100R cable
1pc x TL-126R cable
1pc x TL-101R cable

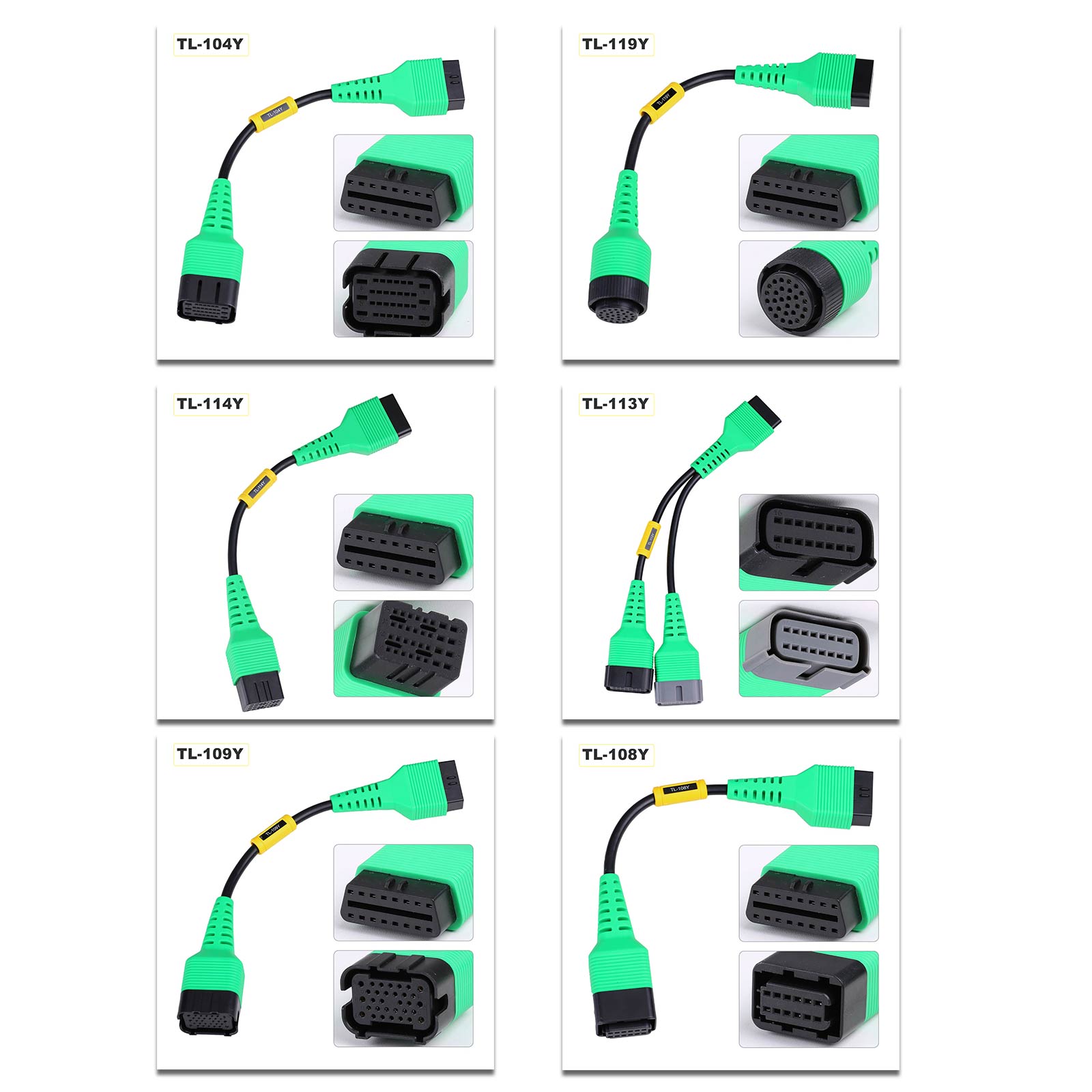

1pc x TL-104Y cable
1pc x TL-119Y cable
1pc x TL-114Y cable
1pc x TL-113Y cable
1pc x TL-109Y cable
1pc x TL-108Y cable

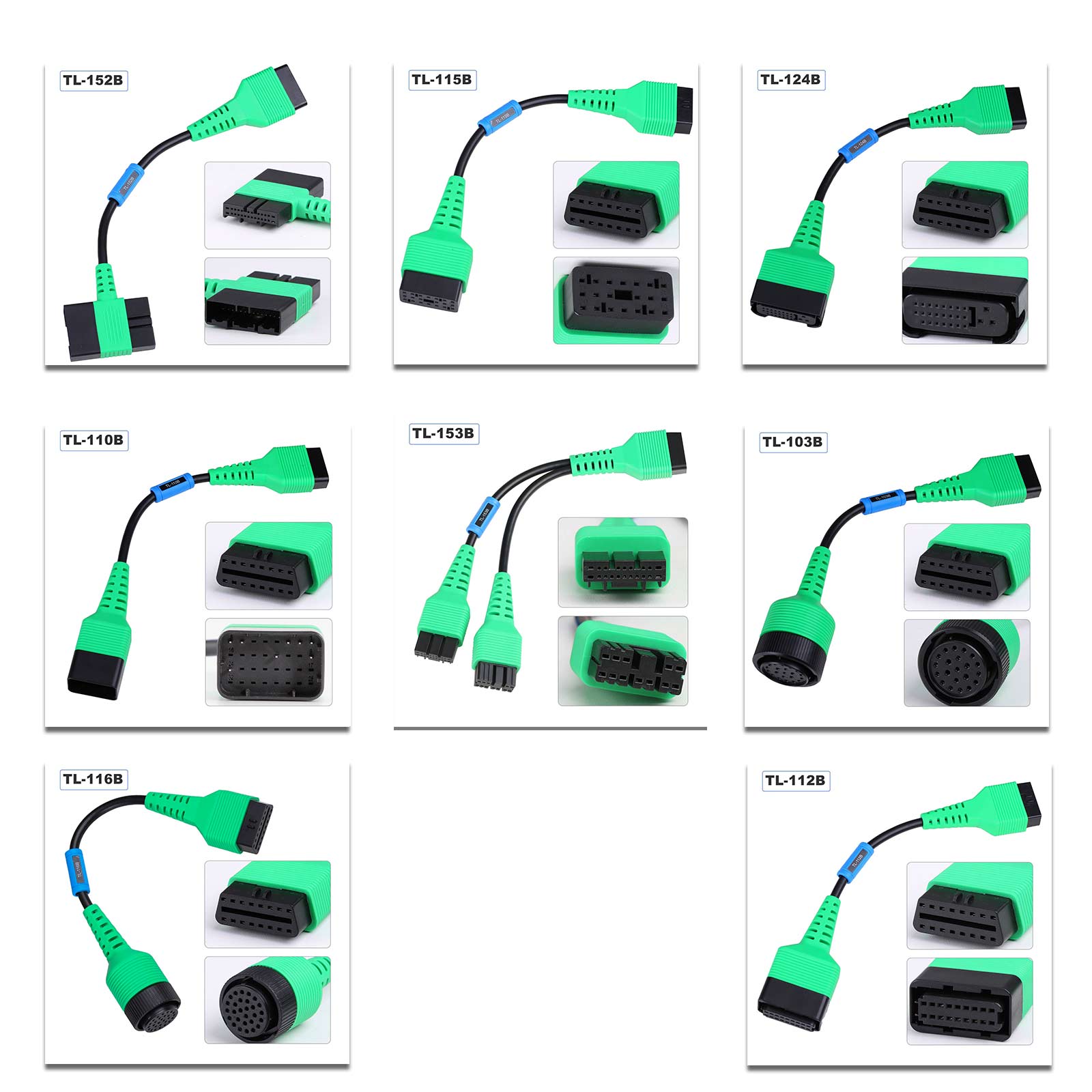

1pc x TL-152B cable
1pc x TL-115B cable
1pc x TL-124B cable
1pc x TL-110B cable
1pc x TL-153B cable
1pc x TL-103B cable
1pc x TL-116B cable
1pc x TL-112B cable
