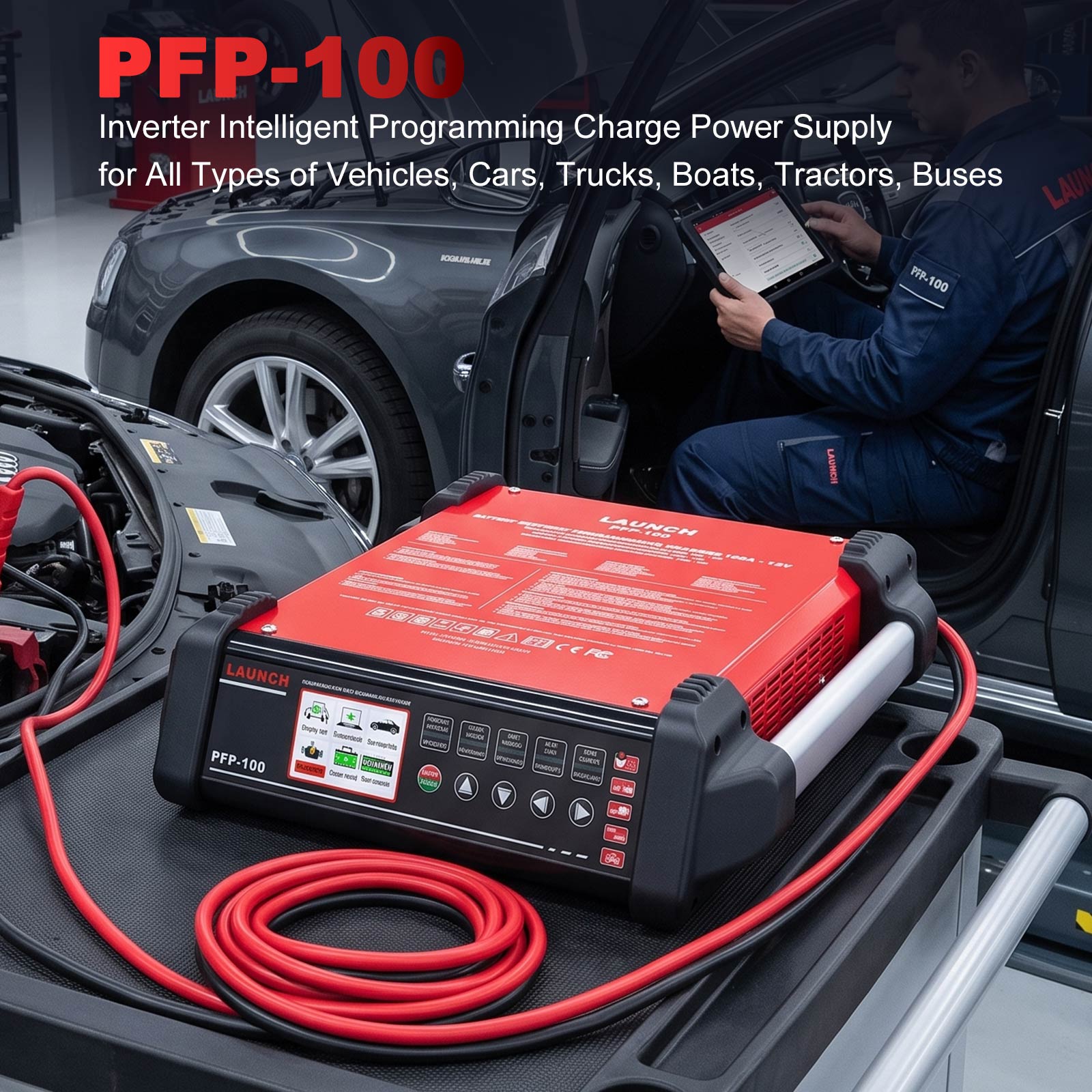

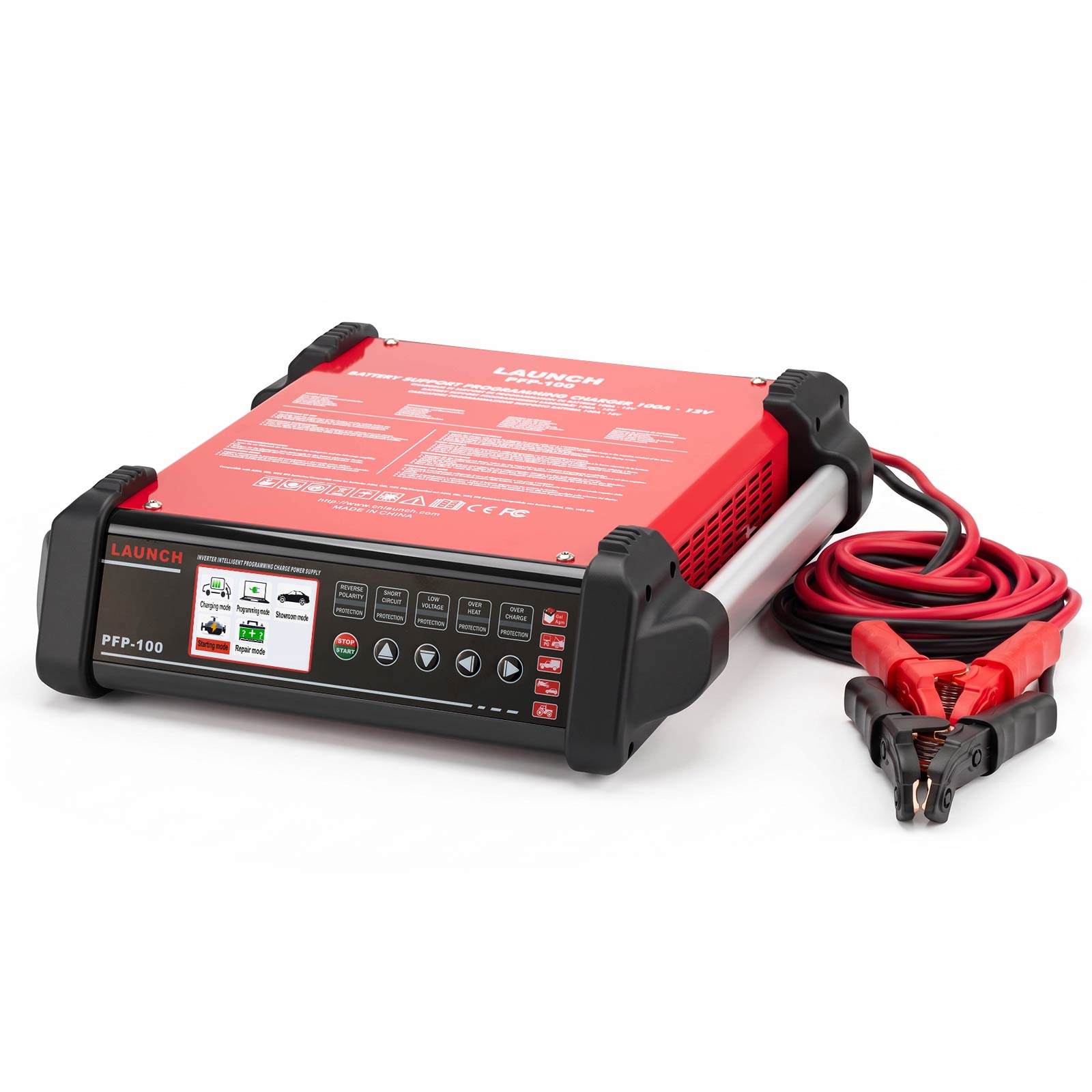

LAUNCH PFP-100 Inverter Intelligent Programming Charge Power Supply for All Types of Vehicles, Cars, Trucks, Boats, Tractors, Buses

Produktbeschreibung

7. Can be used during static vehicle maintenance, testing, and electronic control system programming; prevents damage to vehicle control components and data loss due to low battery power during vehicle programming or other testing.


Product Advantages:


Intelligent lithium battery adapter, supporting flexible voltage and current adjustment for different vehicle models, adapting to the needs of various lithium battery brands, offering stronger compatibility and more efficient charging.



Innovative voltage and current stabilization technology, spark-free technology, intelligently shielding against current and voltage surges.



Features multiple operating modes including charging, showroom operation, voltage regulator programming, faulty battery repair, and vehicle starting.

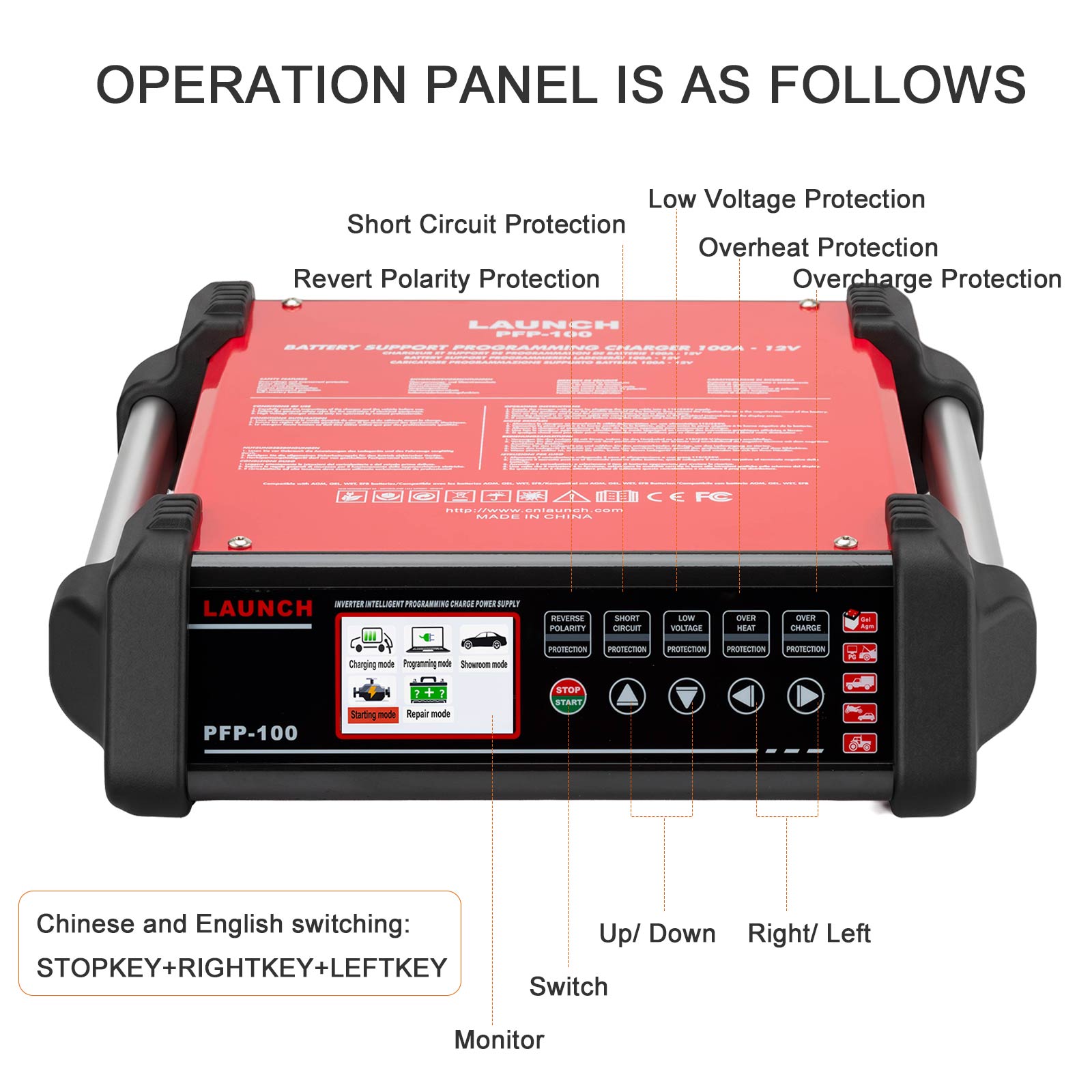

Equipped with protection functions such as no-battery alarm, overload, overheating, overcharge, short circuit, and reverse polarity protection.



Unique 10-segment intelligent charging technology.



High output current. Stable output 1~150A, max 150A.



High efficiency, low heat generation, and high energy conversion efficiency.

Product Functions:


Charging Mode:

For charging the battery under normal conditions. lf the battery has been left idle for a long time or has suffered a discharge deeply, it may be necessary to forced start and recovery. lt is necessary to make different selections as to whether the battery is inside or outside the vehicle and the machine will process the selection differently. The next step is to select the type of battery in order to carry out different charging voltages and currents. A proper and correct selection will allow the charger to better charge the battery and protect it.


Programming Mode:

lt provides a stable voltage to the vehicle electrical system to support the reprogramming/reflashing of the ECU. The battery needs to be charged to full capacity level first to avoid voltage instability due to charging. The reprogramming/reflashing voltage can be adjusted as required. Please operate correctly and adjust to the appropriate voltage. A stable voltage source will enable the ECU system to be successfully reprogrammed and reflashed.



Showroom Mode:

Long-term parked showroom vehicles can easily become unusable due to low battery power, resulting in serious battery loss and damage.This showroom mode will continually charge the battery as needed, with a small current to ensure that the battery is always fully charged and protected.

Repair Mode:

This Mode will be based on the charger to make a judgment on the status of the battery, and then prompt whether to repair. lf you need to repair please manually select repair, and follow the instructions to repair.

Starting Mode:
It has a whole vehicle activation function. When the power supply detects that the battery voltage is too low, the power supply cannot start normally. It can easily deal with the battery depletion, quickly replenish the power, and restore the vehicle's power.





Product Specifications:



Operating Voltage: 110V/220V

Frequency: 50~60Hz

Input Power: 1800W

Maximum Effective Current: 150A

Charging Voltage: 12V

Programming Mode: 2~14.8V/2~150A

Dimensions: 44*41*14CM

Net Weight: 9Kg
