The detection and maintenance of the power system is important for new energy vehicles. By viewing the waveform diagram, the maintenance progress can be improved. This product integrates the functions of a multimeter and a dual-channel oscilloscope, which can be used for two purposes. The brand-new diagnostic APP is user-friendly, easy to use and convenient, supports the function of saving and opening waveforms locally.

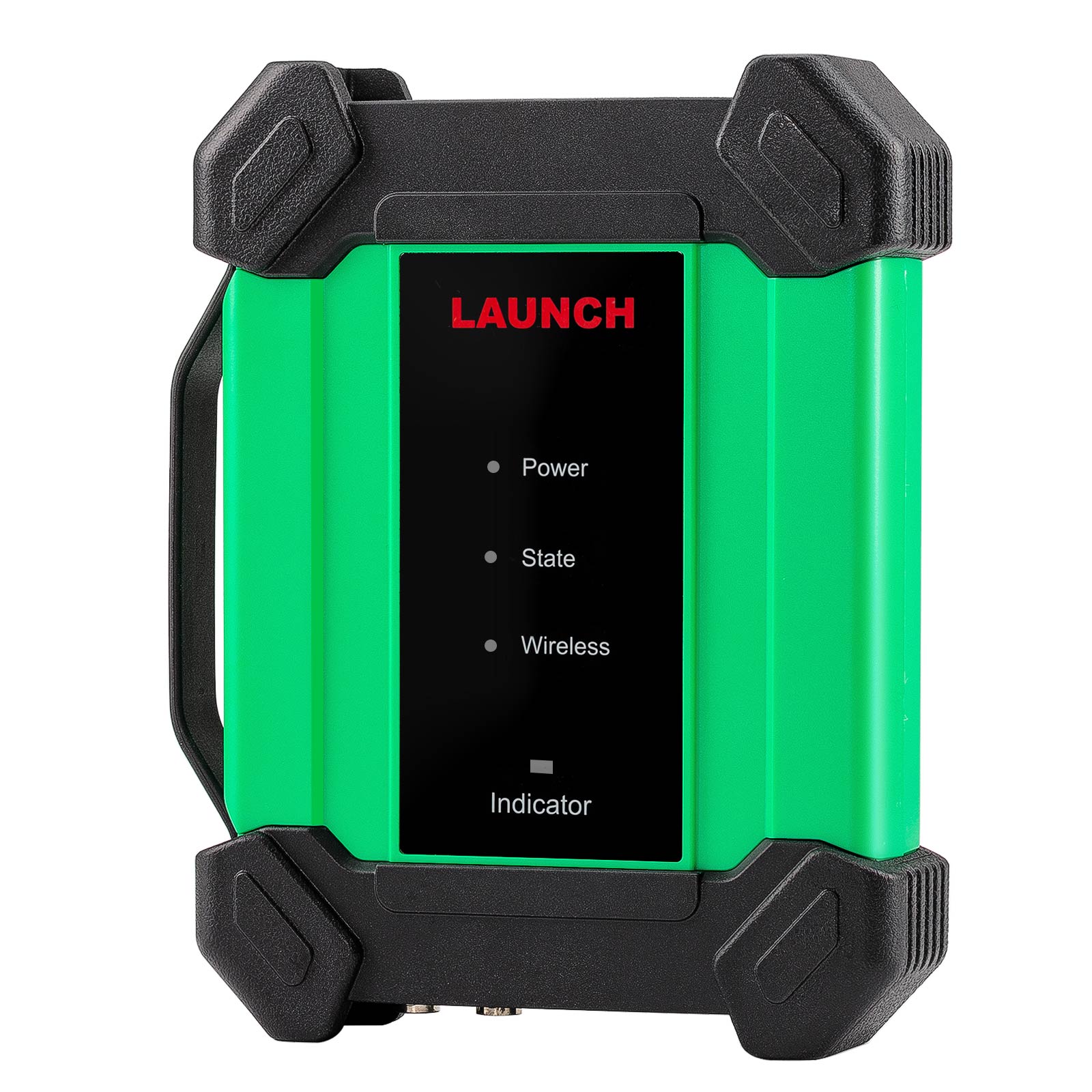

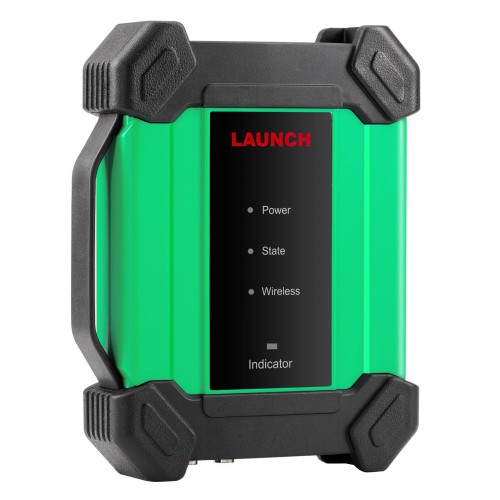

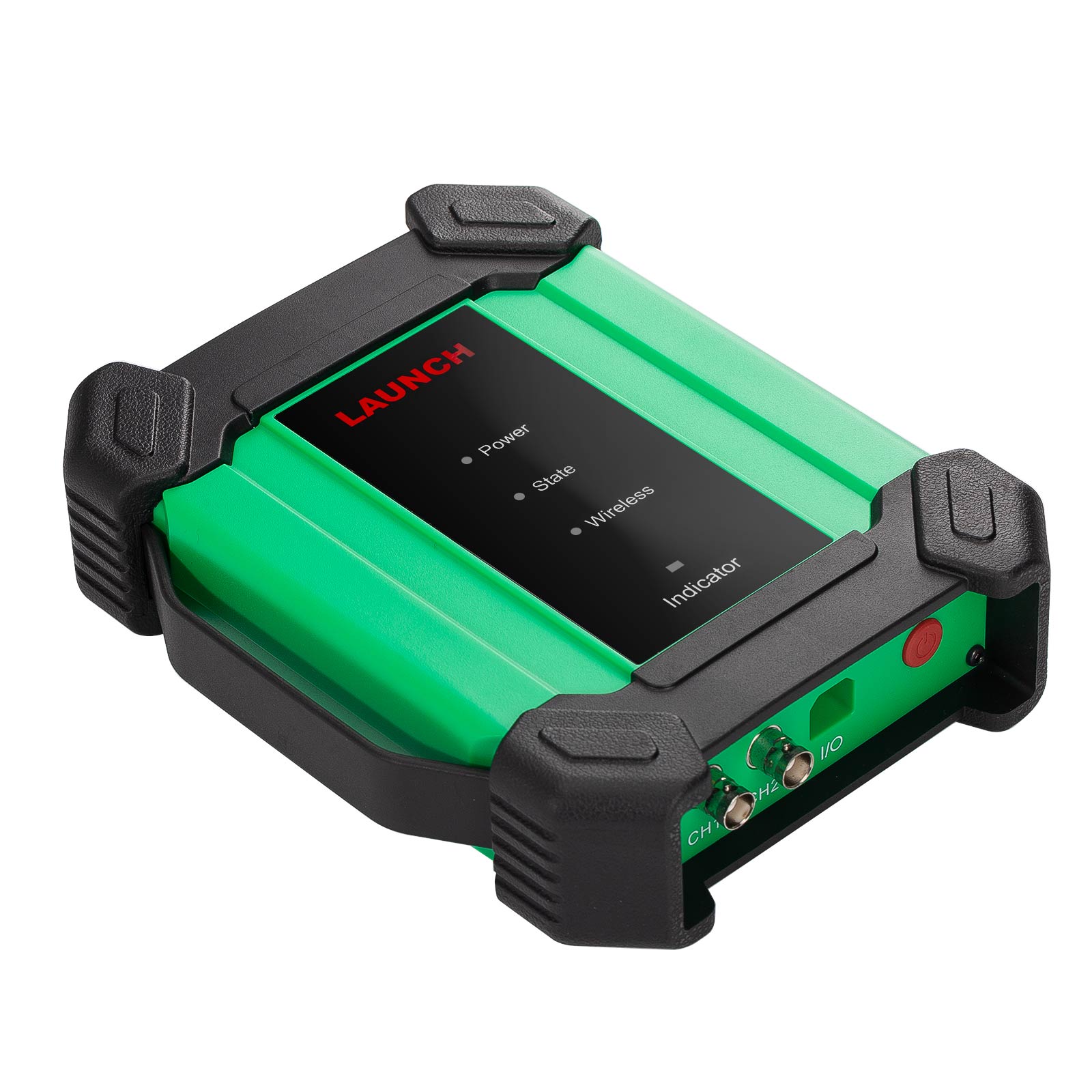

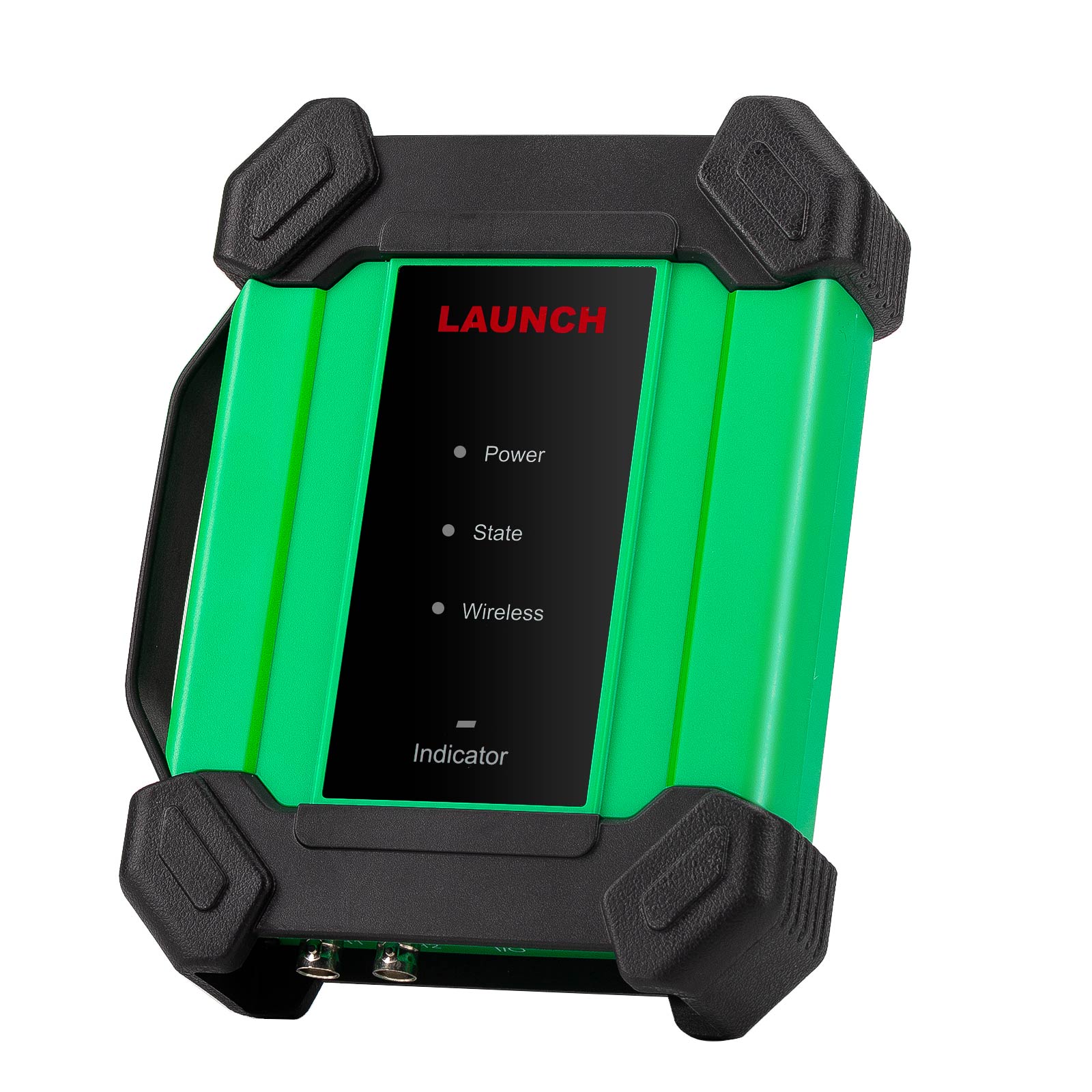

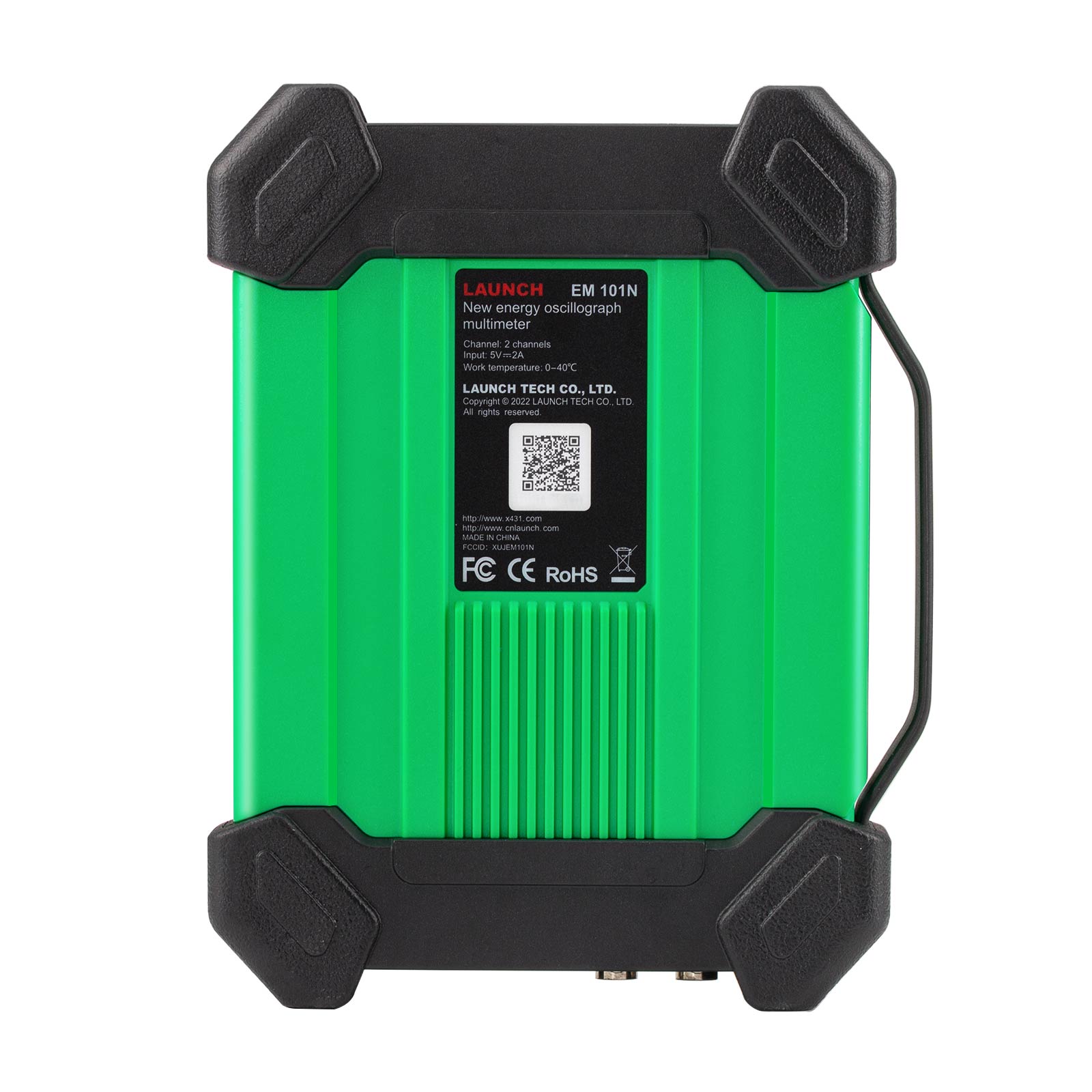

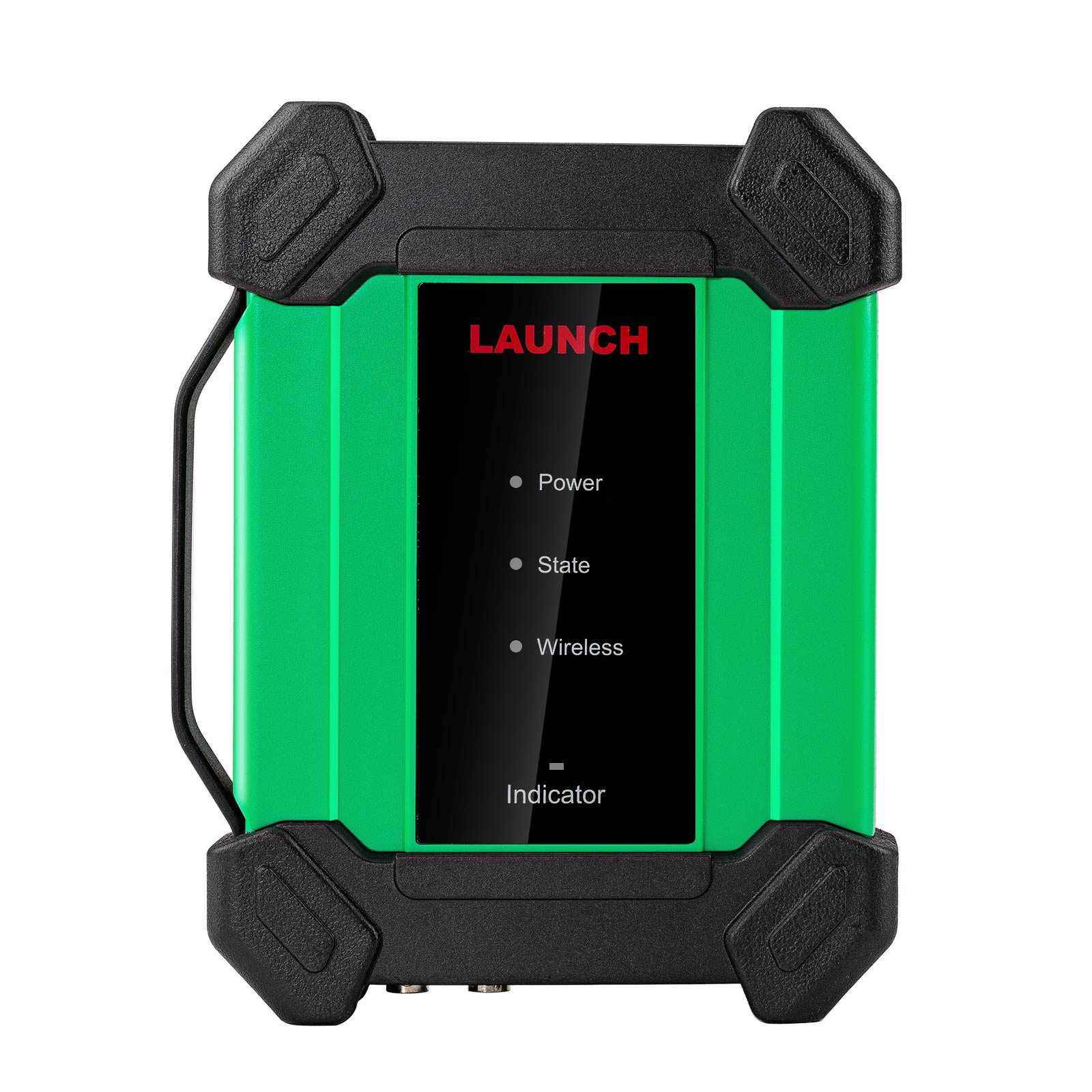

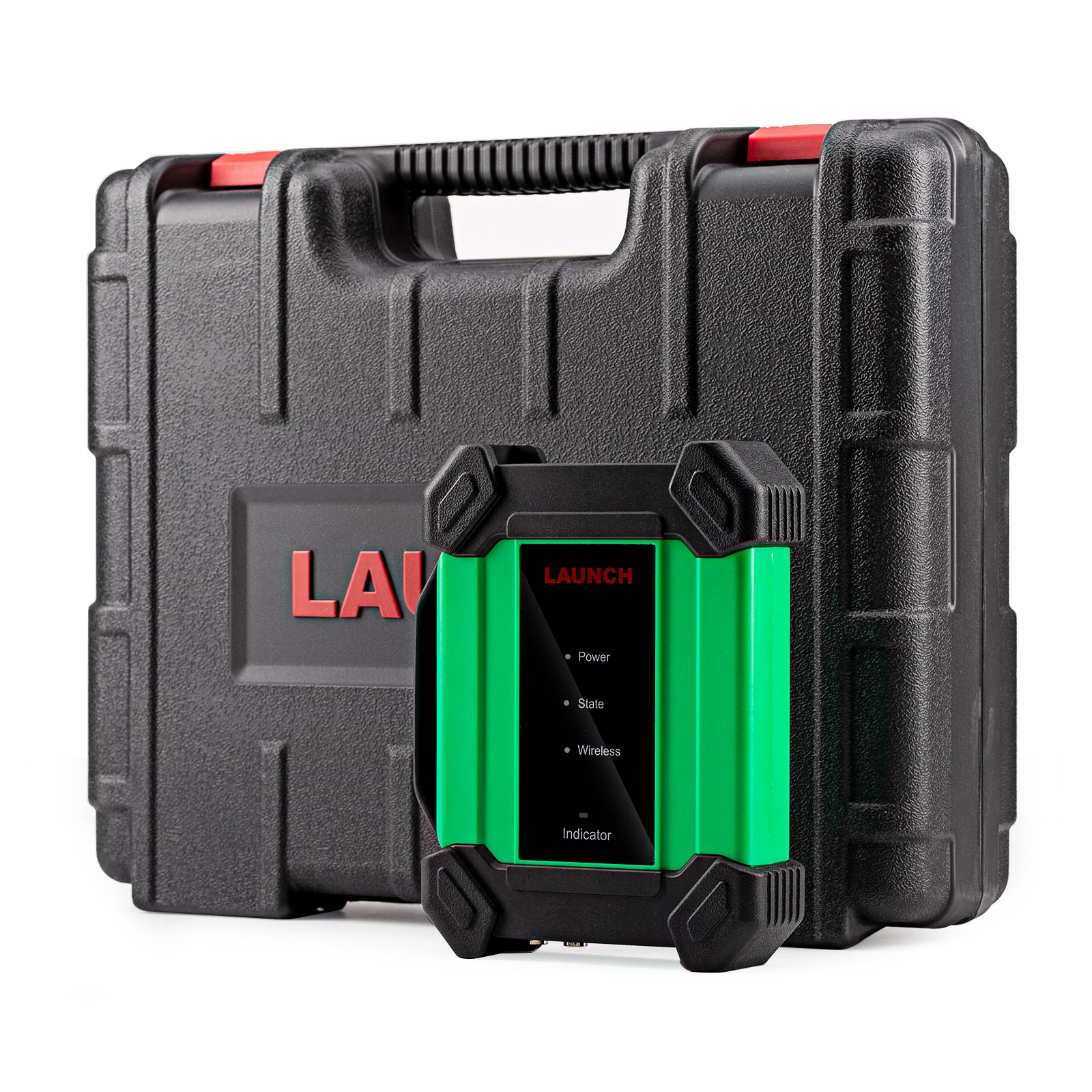

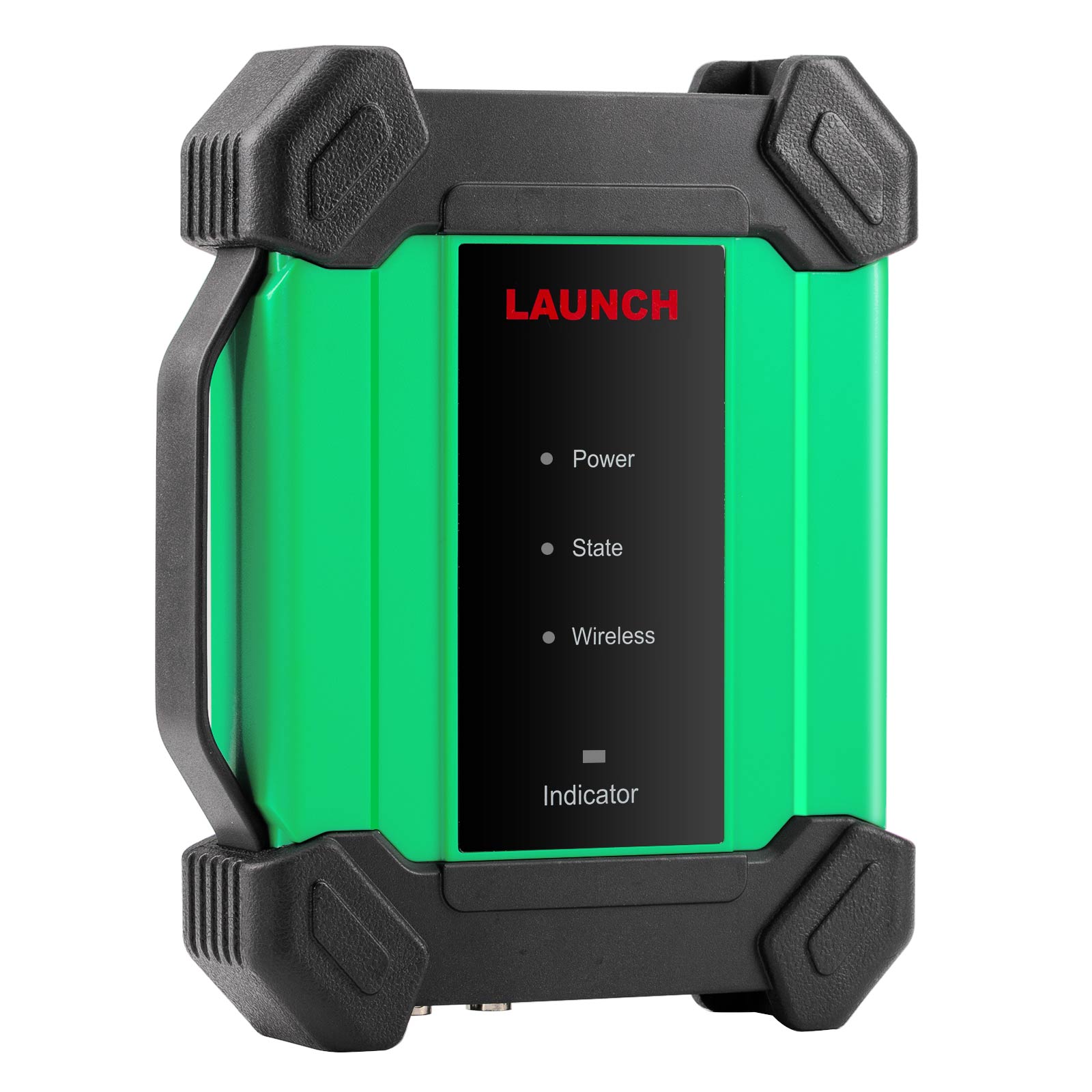

LAUNCH EM101N EV Oscilloscope & Multimeter
The detection and maintenance of the power system is important for new energy vehicles. By viewing the waveform diagram, the maintenance progress can be improved. This product integrates the functions of a multimeter and a dual-channel oscilloscope, which can be used for two purposes. The brand-new diagnostic APP is user-friendly, easy to use and convenient, supports the function of saving and opening waveforms locally.

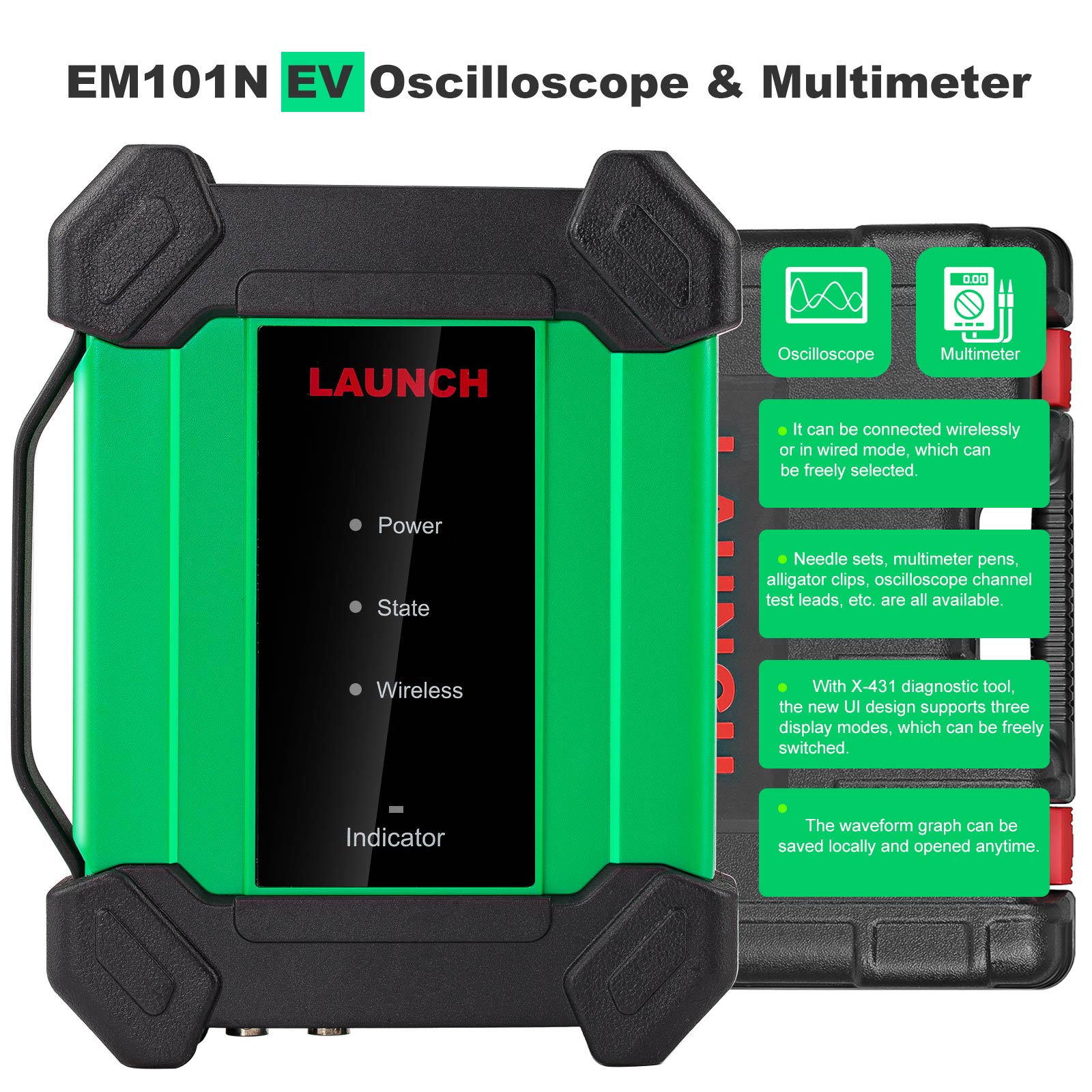

LAUNCH EM101N Features:
1. Combined with the characteristics of dual-channel oscilloscope and multimeter.
2. The anti-fall rubber sleeve increases the protection of the product, and the unique fuse plug-in design is convenient for replacement.
3. With X-431 diagnostic tool, it can be connected wirelessly or in wired mode, which can be freely selected.
4. With X-431 diagnostic tool, the new UI design supports three display modes, which can be freely switched.
5. Needle sets, multimeter pens, alligator clips, oscilloscope channel test leads, etc. are all available.
LAUNCH EM101N Specifications:
DC Voltage: Automatic range, test range: ±600V
AC Voltage: Automatic range, test range: ±600V
DC Current: Automatic range, test range: ±10A
(It is necessary to connect an external sensor for large range current.)
AC Current: Automatic range, test range: ±10A. Average value measurement
(It is necessary to connect an external sensor for large range current.)
Resistance: Automatic range, test range: 0~6MΩ
On and off: Tweet when less than 30Ω
Diode: 0.5V—2.0V
Battery Capacity: 3100mAh
Bandwidth: 10MHz

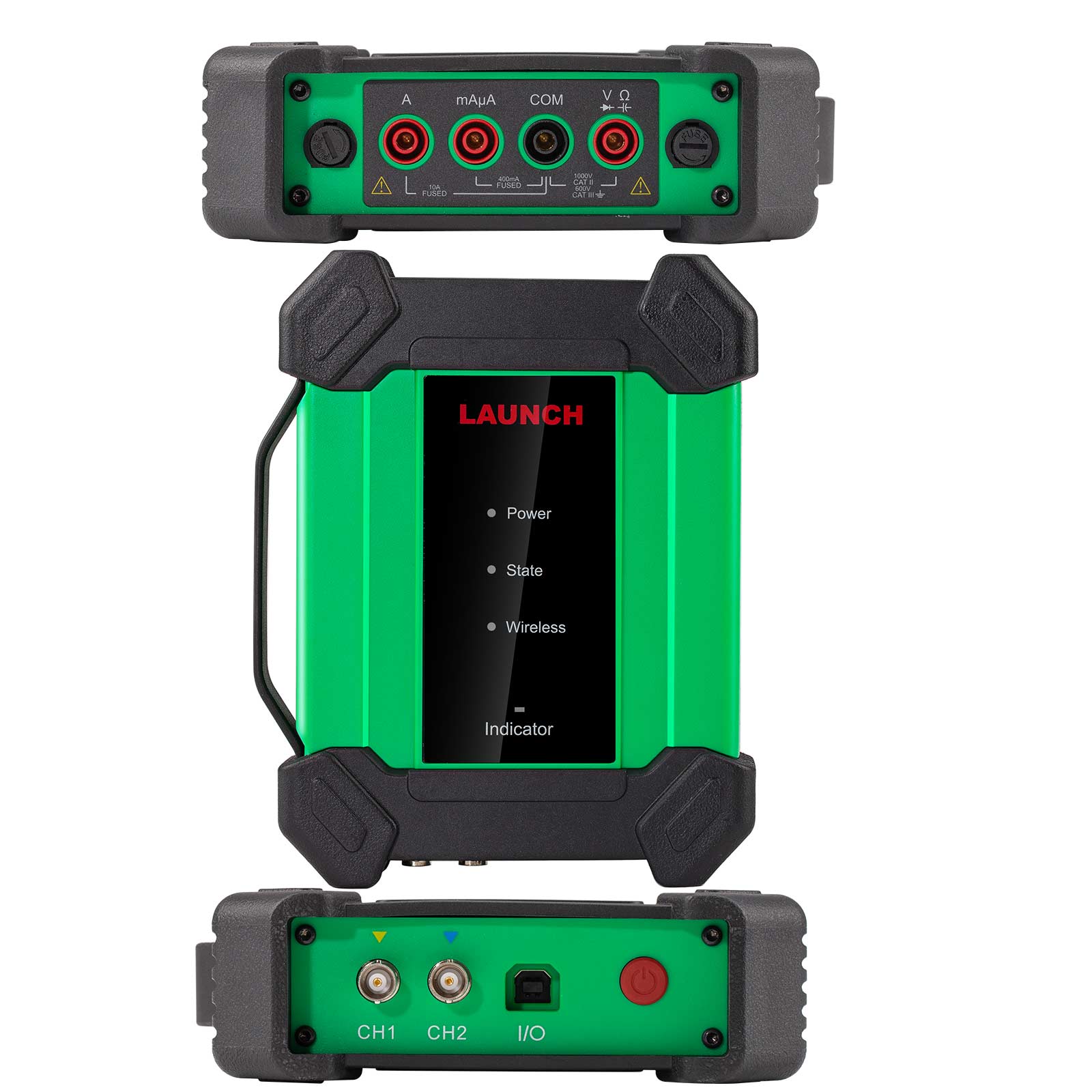

Channel: Two analog channels
Real-time Sampling Rate (Max): 50MHz/s
Time Base Range: 1us/div～10s/div, step by 1～2～5 times
Sampling Mode: Normal sampling, peak detection, average
Buffer Memory: 1M
Input Coupling: DC, AC, grounded
Input Resistance: 1MΩ±2%, Parallel with 15pF±5pF
Vertical Sensitivity: 2mV/div～5V/div
Vertical Resolution: 8bits
Maximum Input Voltage: 40V peak value（DC + AC peak value）
Probe Attenuation Factor: 1X, 10X, 100X（probe support required)
Trigger Type: Edge trigger, pulse width trigger
Trigger Mode: Auto, Normal, Single
Automatic Measurement: Peak-to-peak value, Average value, Maximum value, Minimum value, Top value, Bottom value, Frequency, Period

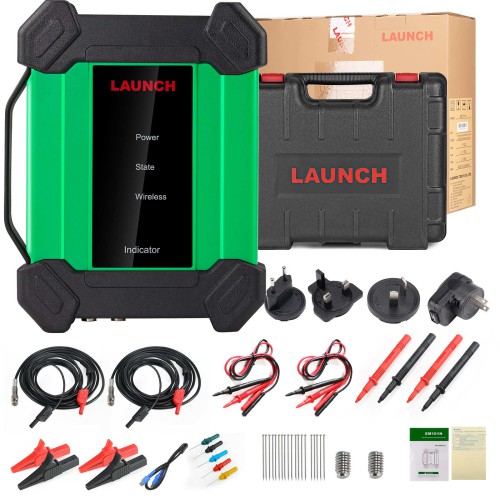

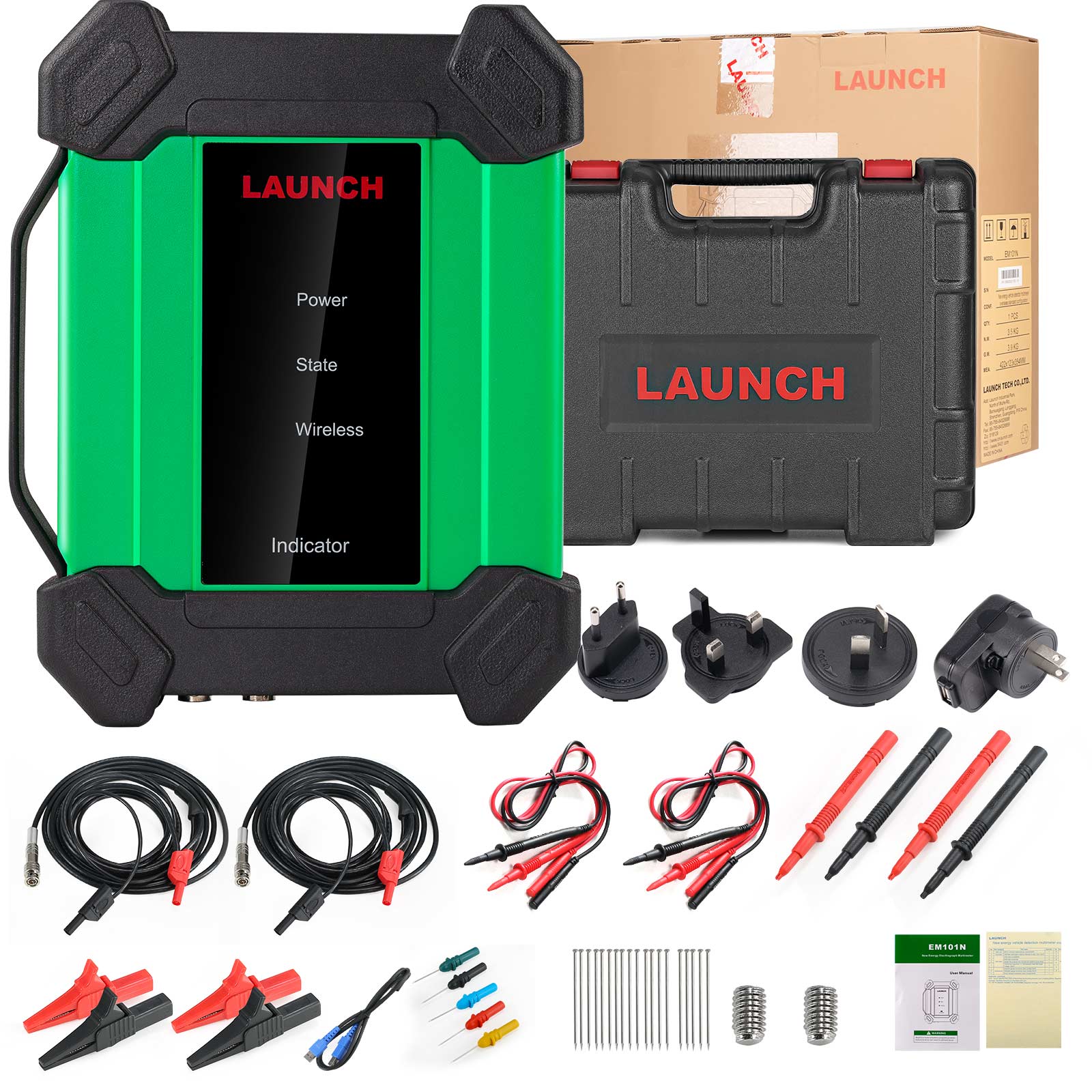

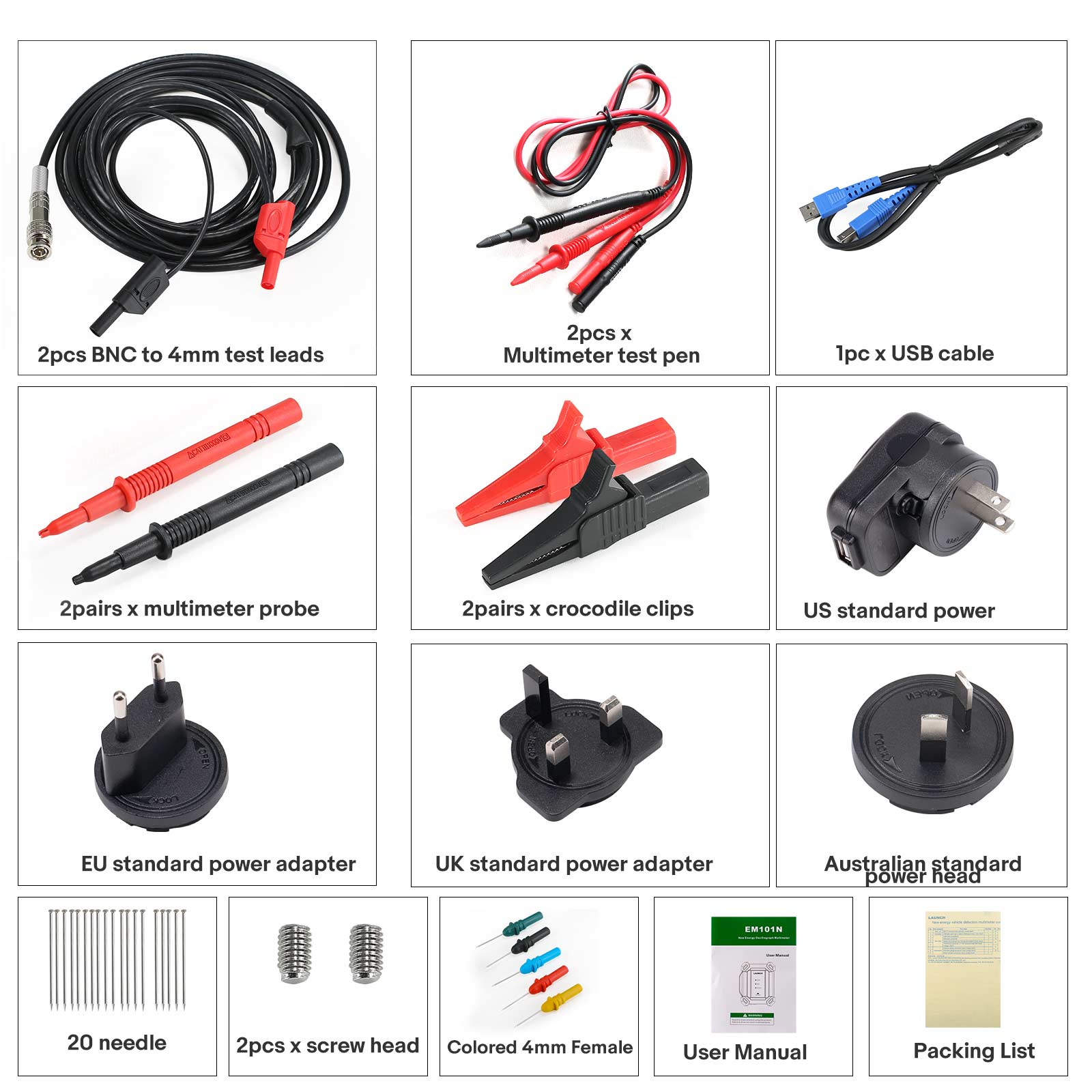

LAUNCH EM101N includes:
1pc x EM101N main unit
1pc x BNC to 4mm test leads
1pc x Multimeter test pen(black+red)
1pc x Multimeter probes(black+red)
1pc x Crocodile clips
1pc x Black probe pins suite(5probes+20pins+2caps)
1pc x Type A-Type B USB cable
1pc x Power adapter
1pc x User manual
