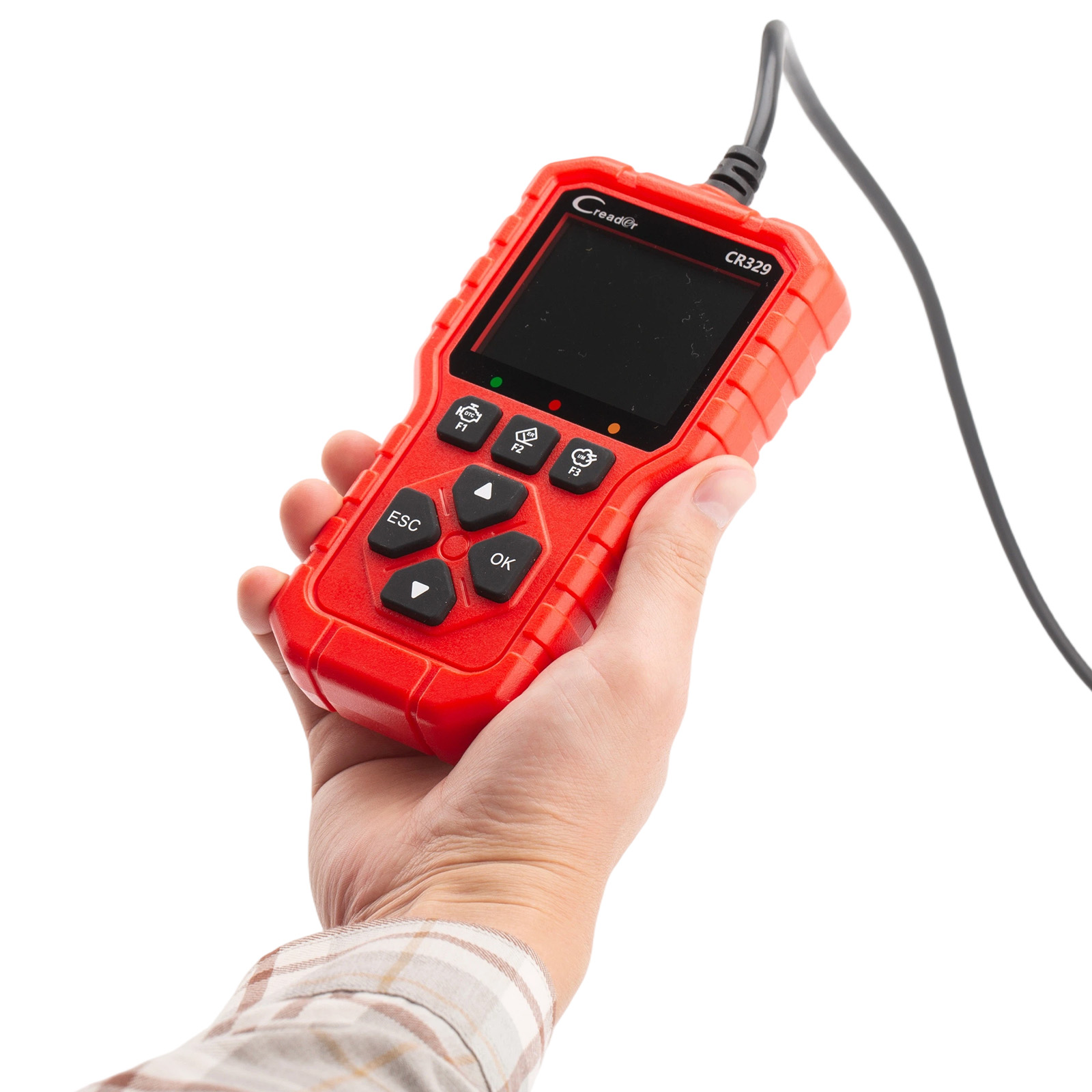

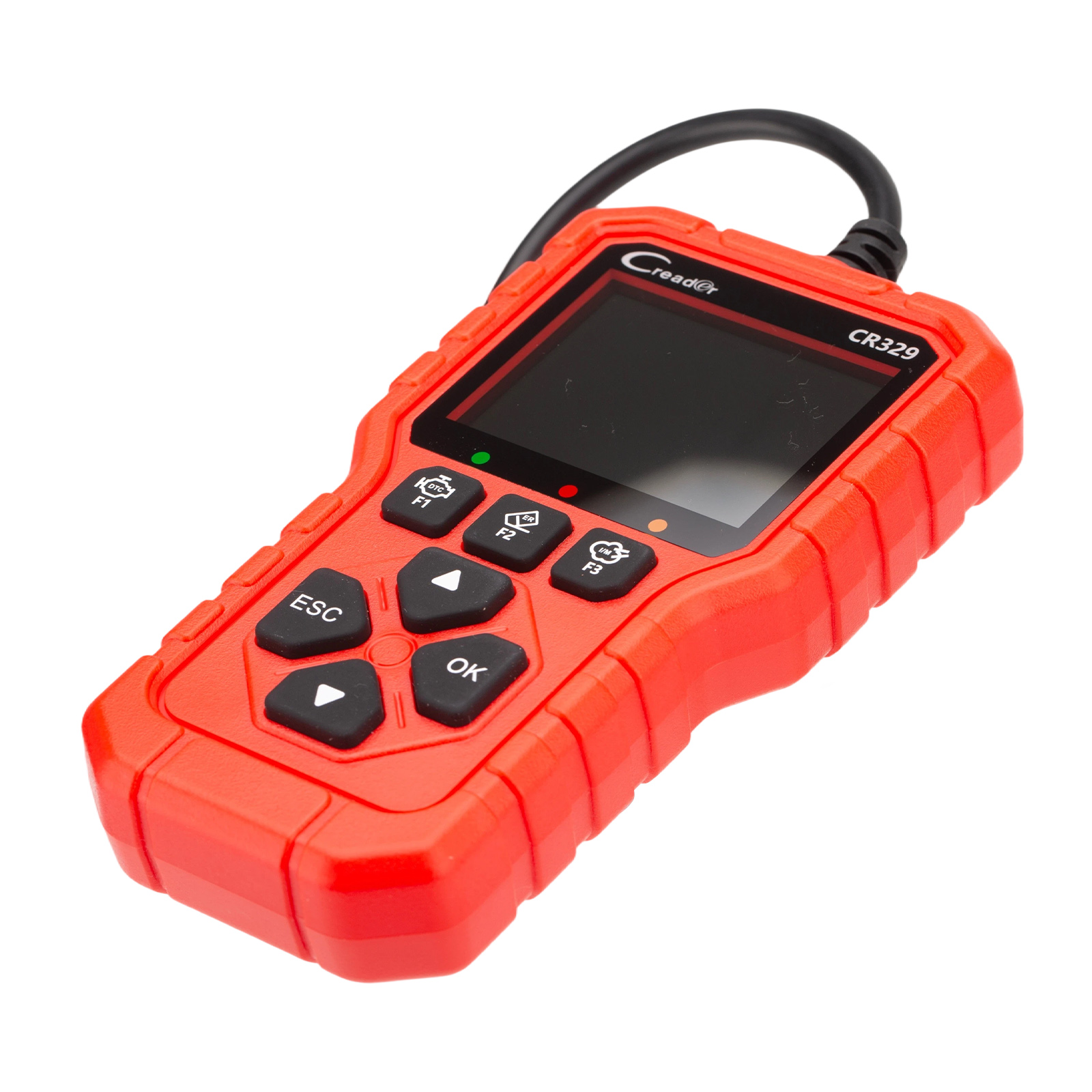

AUTO 6% OFF LAUNCH Creader CR329 Passenger Car Scan Tool - Standard E-commerce Package

Produktbeschreibung

It supports the ISO15765, ISO9141, ISO-14230, and SAE J1850 protocols.

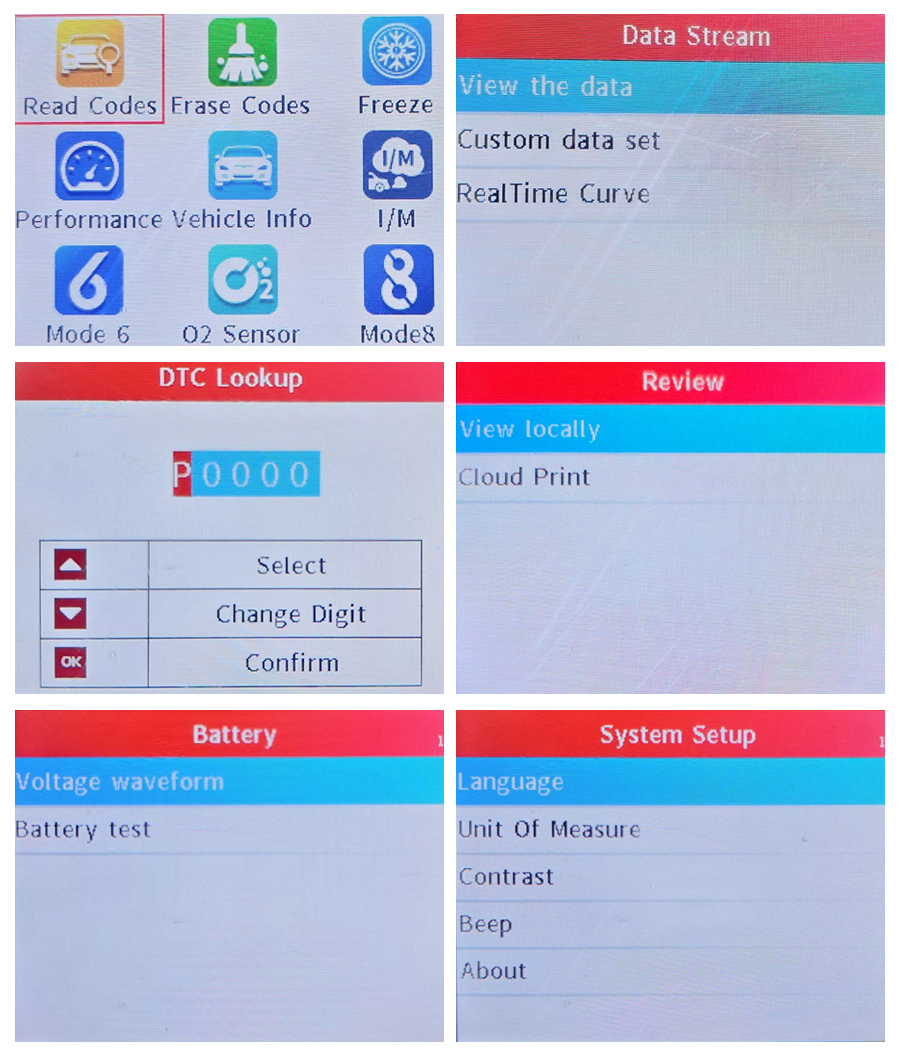

Product Function Display:

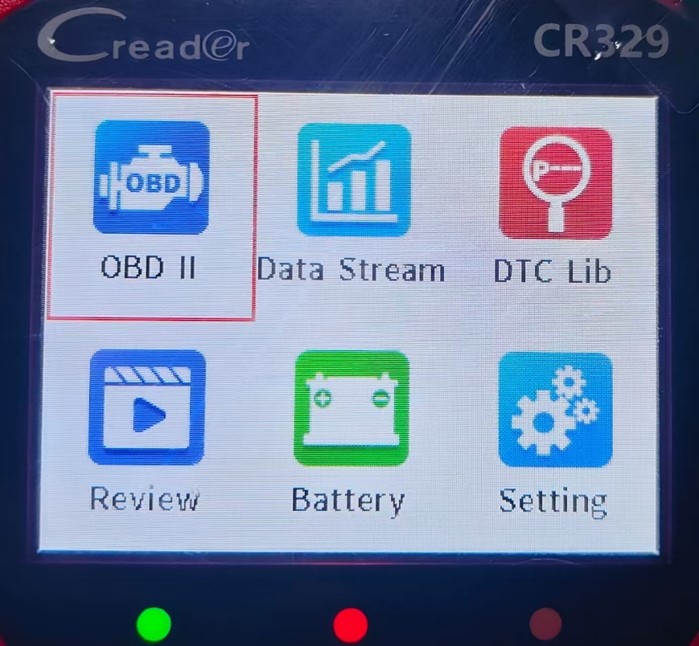

Main Interface:

OBD II(Vehicle diagnostic system)

Data Stream

DTC Lib(DTC Library)

Review

Battery(Battery testing)

Setting




OBD II-Vehicle Diagnostic System Function Display:



Read Codes, Erase Codes, Freeze, Performance, Vehicle Info, I/M, Mode 6, O2 Sensor, Mode 8

Data Stream:

View the Data – Display single data stream as curve

Custom Data Set – Filter data stream items

Real Time Curve – Select two data streams to display curve

DTC Lib:

One-Click Precise Diagnosis · Trouble Code Lookup · Extensive DTC Database

Supports Multiple Languages: English, French, Spanish, German

Enter Trouble Code → 2. Adjust Characters as Prompted → 3. Press [OK] to Confirm Query

Review

View Locally – Supports viewing fault data from the last detection and allows preview before printing.

Cloud Print – Print via QR code

Battery

Voltage Waveform – A graphical representation of voltage changes over time.

Battery Test – Detects battery performance via voltage measurement.

System Setup:


1. Language

Supports 10 languages: English, French, Spanish, German, Italian, Russian, Portuguese, Polish, Dutch, and Japanese.



2. Unit Of Measure

Allows flexible unit settings to ensure data is displayed in a format familiar to the user.



3. Contrast

Contrast refers to the difference in brightness between the brightest and darkest areas on the screen.

High contrast: Images appear sharper with distinct blacks and whites.

Low contrast: The screen may look hazy with blurred details.

Adjust contrast using the Up and Down button.



4. Beep

The device includes a buzzer, which can be turned ON or OFF.



5. About

Displays the device version number.

How to Use?


Connection Steps:



1. Turn off the ignition switch and ensure the vehicle is in a safe condition.



2. Locate the DLC (Data Link Connector), usually found below the steering wheel or on the driver-side dashboard.

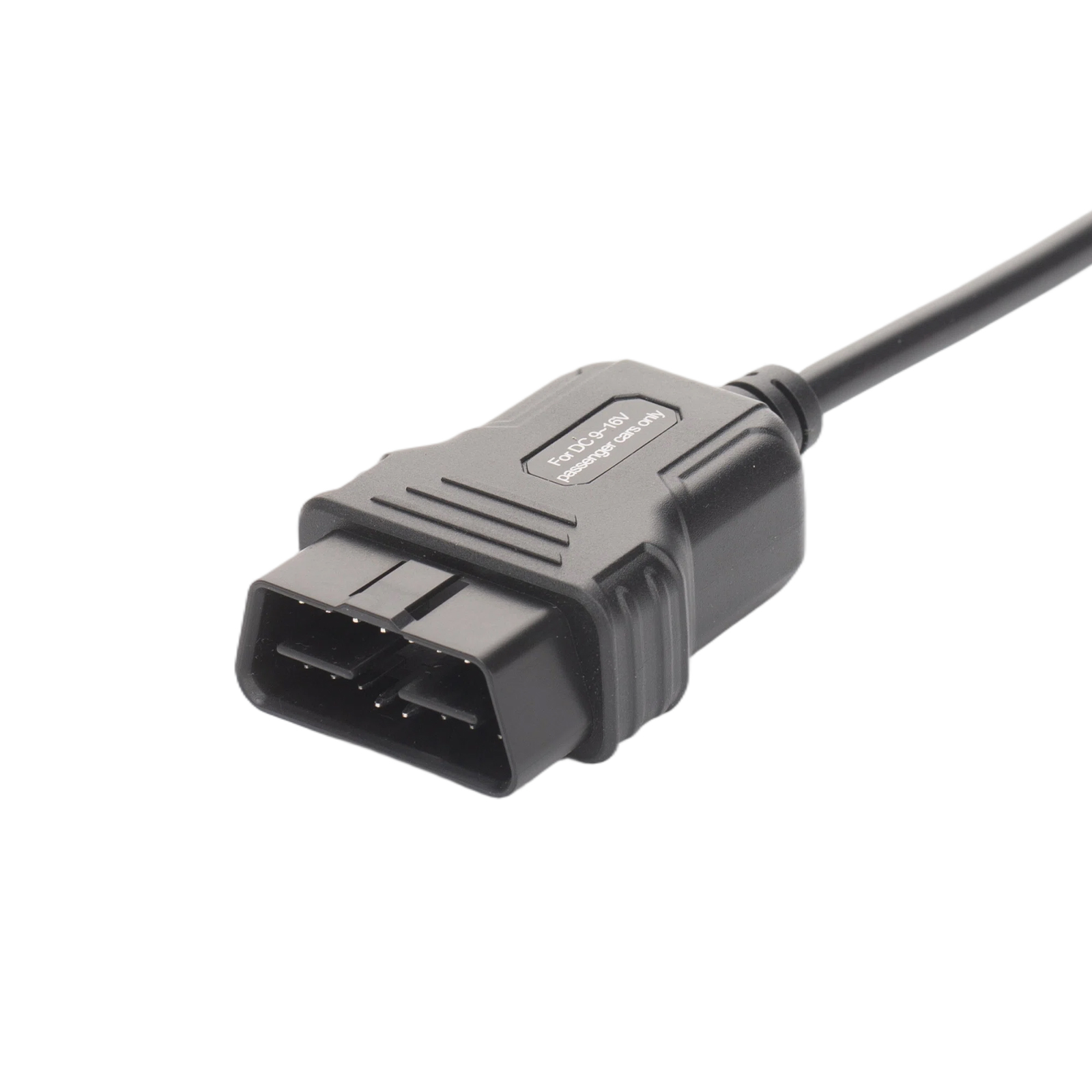

3. Connect the diagnostic cable to the vehicle's DLC interface.



4. Turn on the ignition switch (the engine may remain off or running). The device will automatically launch the diagnostic system


Diagnostic Procedure:



1. Connect the Device: Turn on the ignition after connecting to the DLC, and the device will automatically start up.



2. Access the Main Interface: Once the system identifies the vehicle, you will enter the main function screen.



3. Select a Function: Choose the required function, such as trouble code inquiry, data playback, or auxiliary functions.



4. Follow On-screen Prompts: Complete the detection by following the guidance on the screen—simple and efficient.

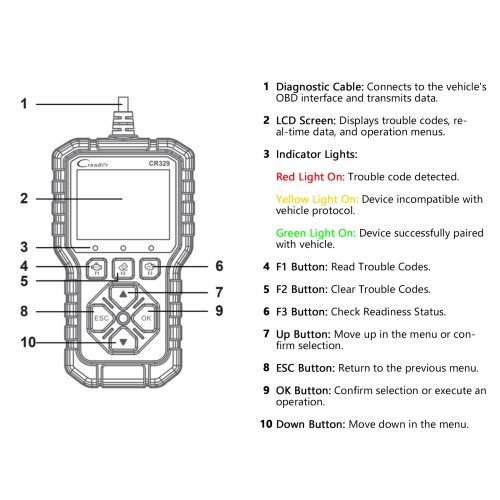

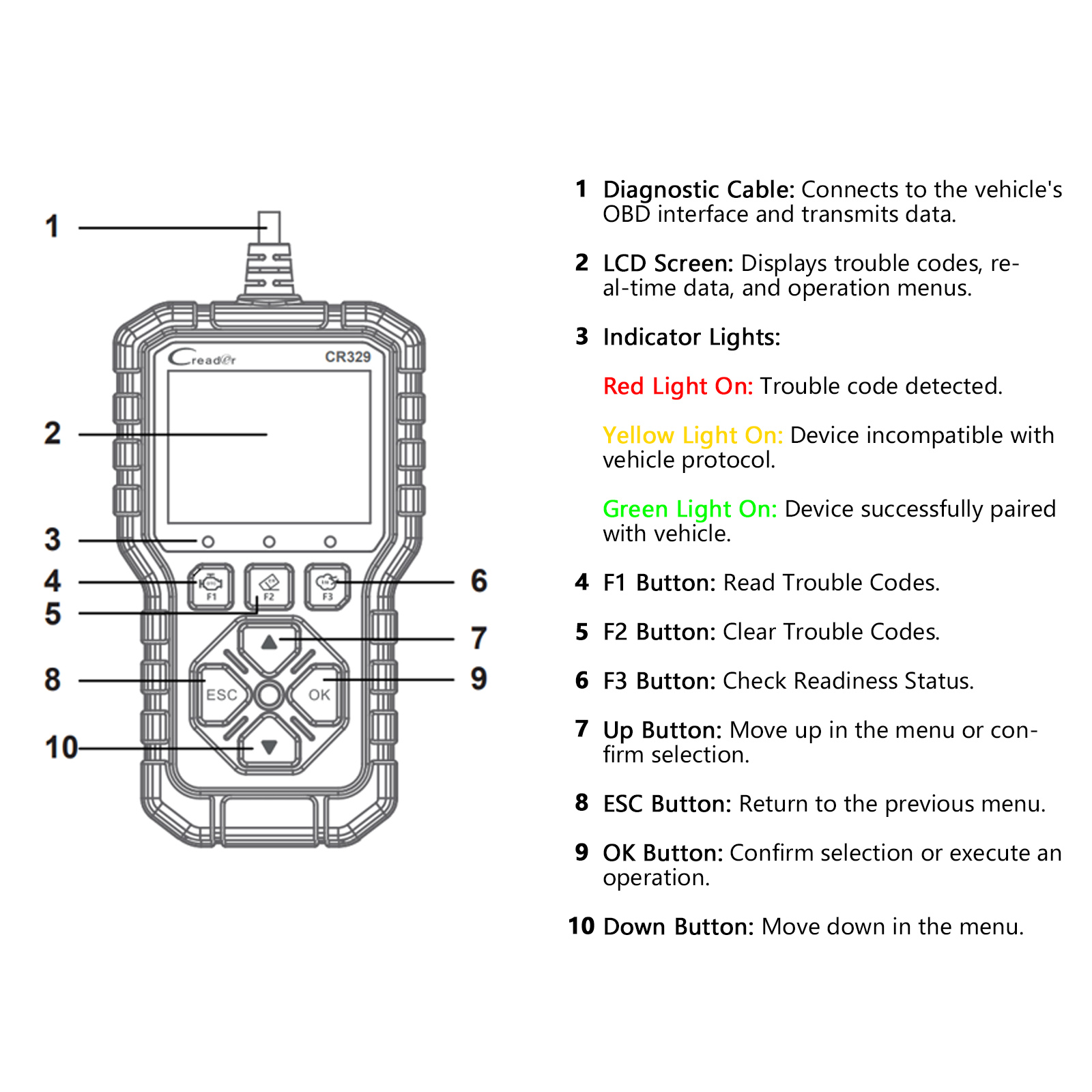

Product Structure:

Product Specifications:


Screen: 2.8inch

Storage: 32Mbit Flash

Working temperature: 0℃~50℃

Voltage: 12V

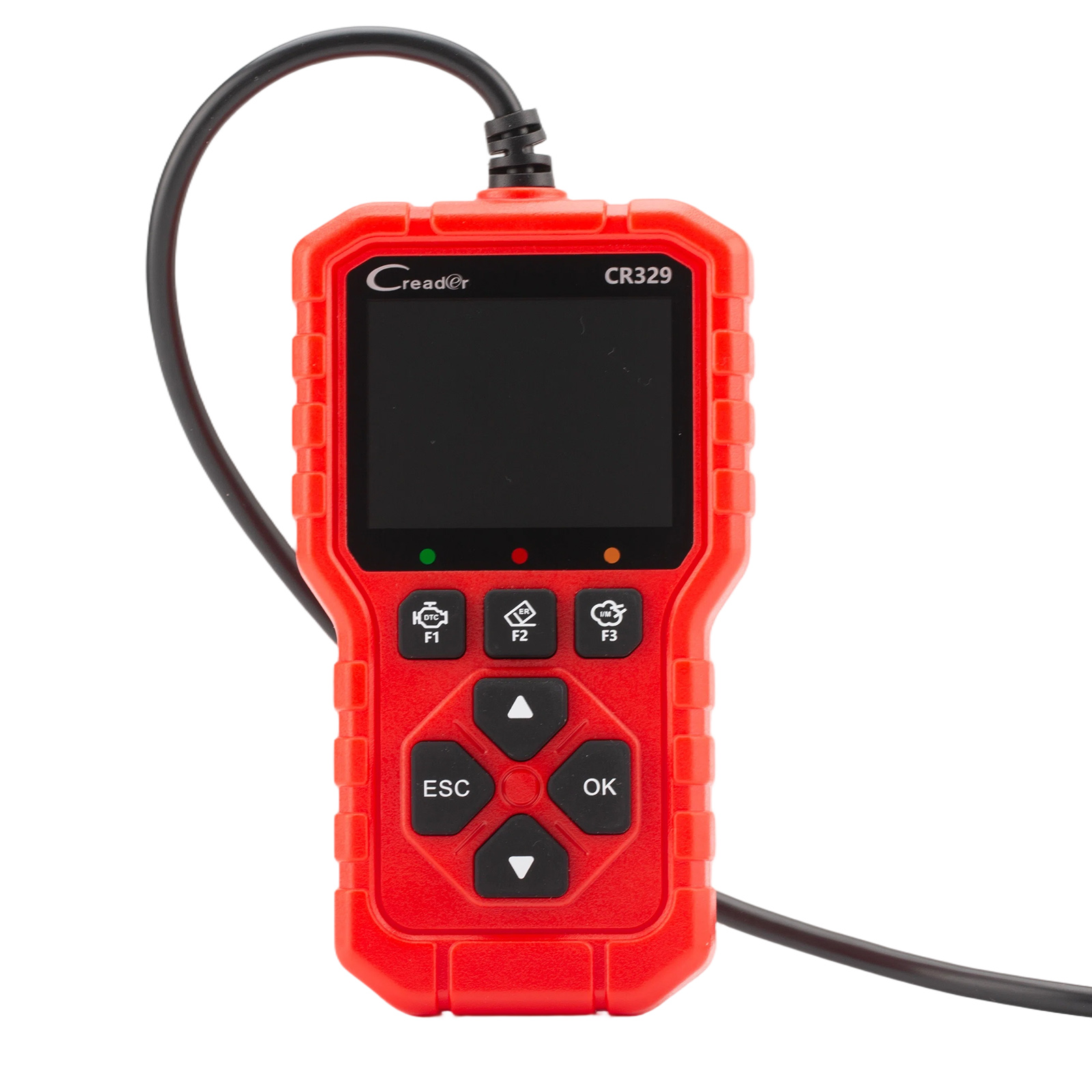

Buttons: Up，Down，OK，ESC，F1 (Read DTCs)，F2 (Clear DTCs)， F3 (I/M Readiness Status)

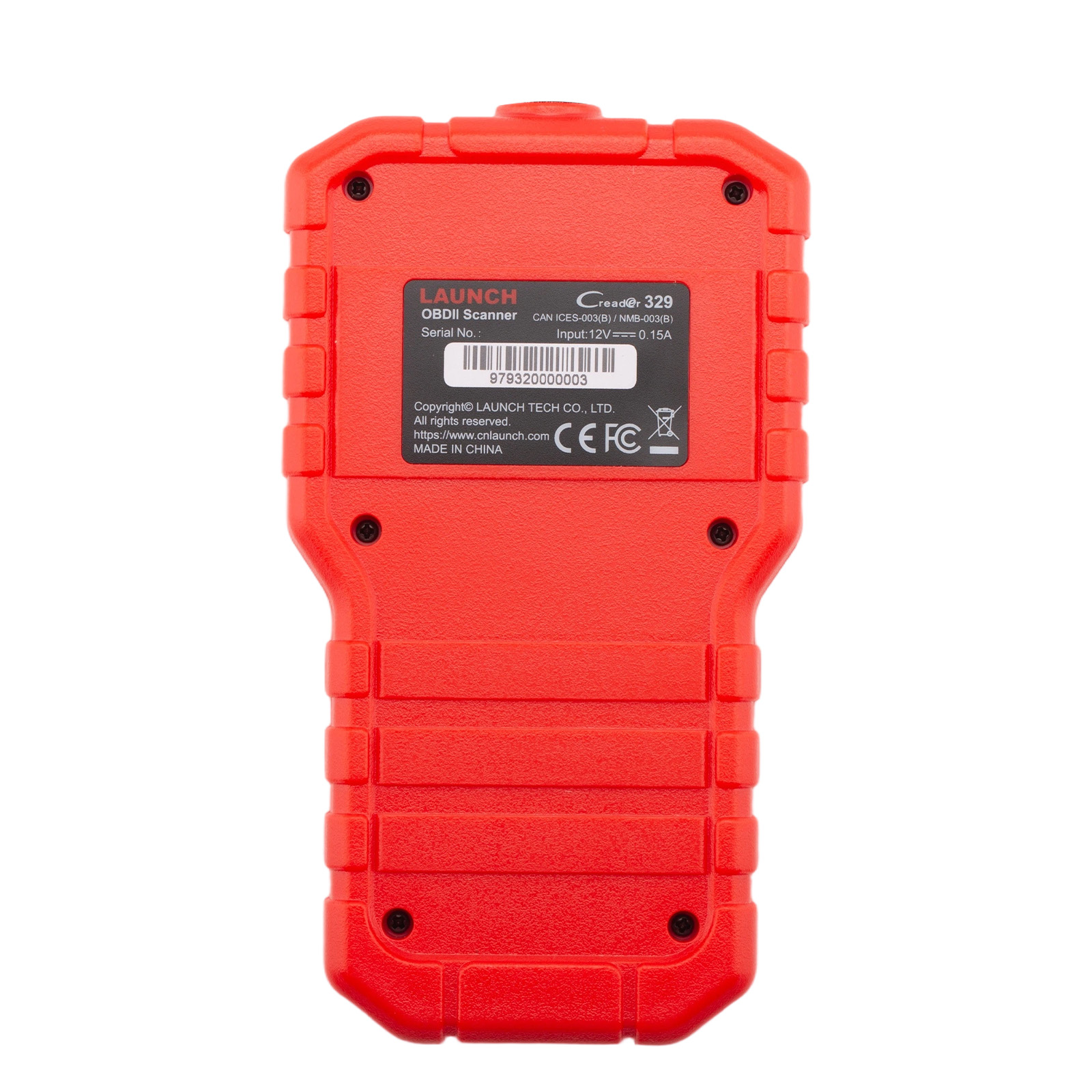

Certificates: CE, FCC, IC, ROHS

Languages: 10 languages – English, French, Spanish, German, Italian, Russian, Portuguese, Polish, Dutch, Japanese.

Size: 160*90*28mm

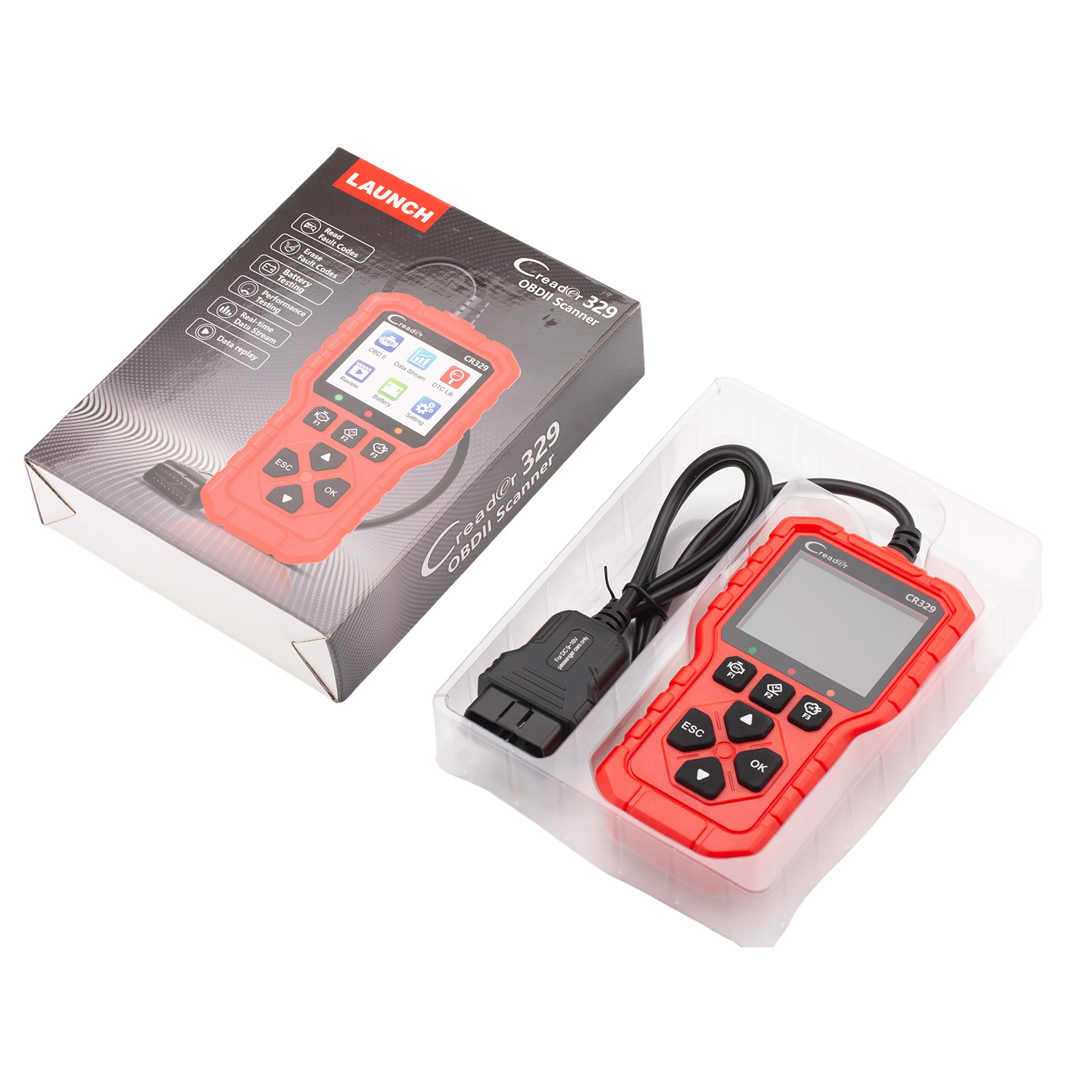

Package includes:

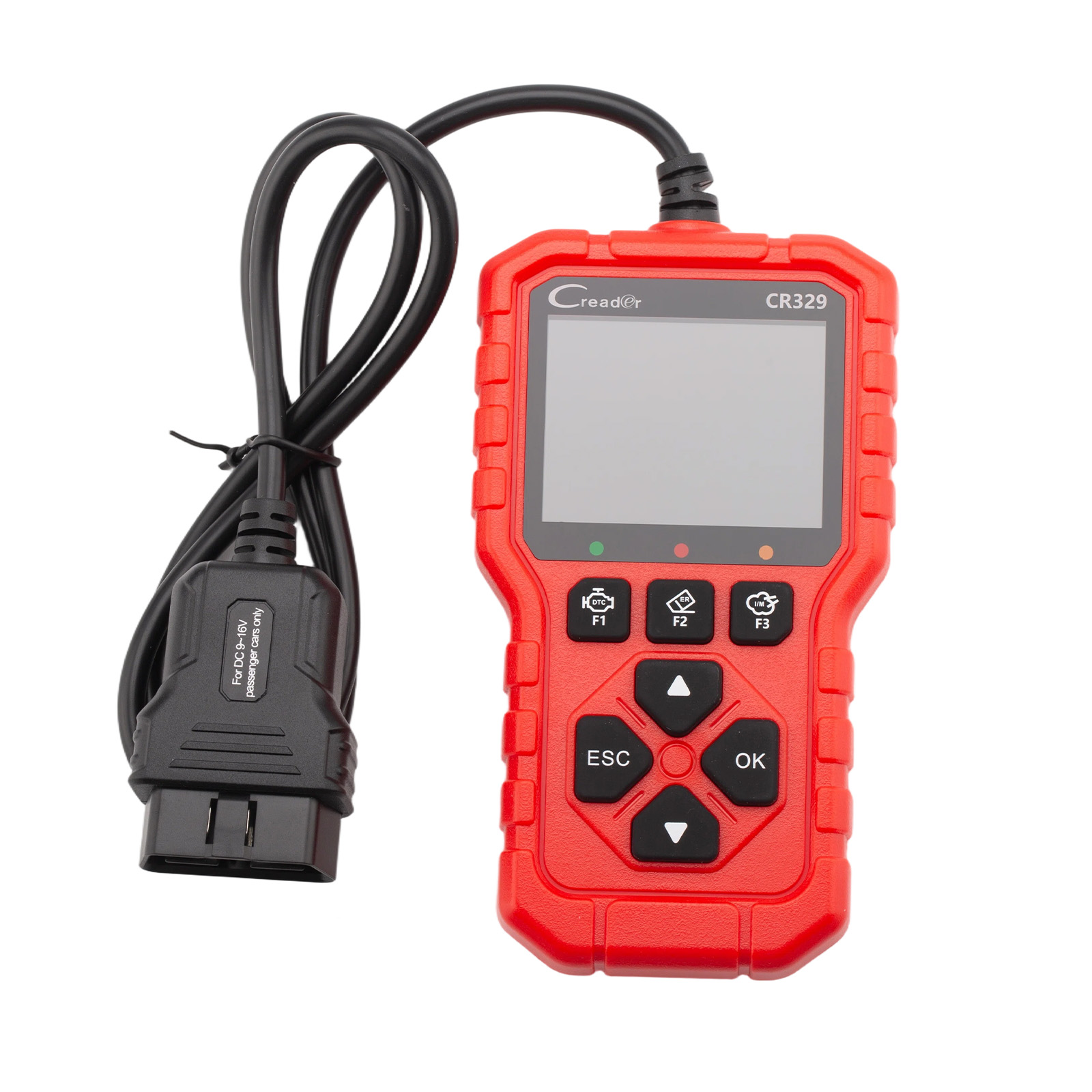

1pc x Main Unit with Diagnostic Cable

1pc x Quick Start Guide

1pc x GPSR

1pc x Desiccant
