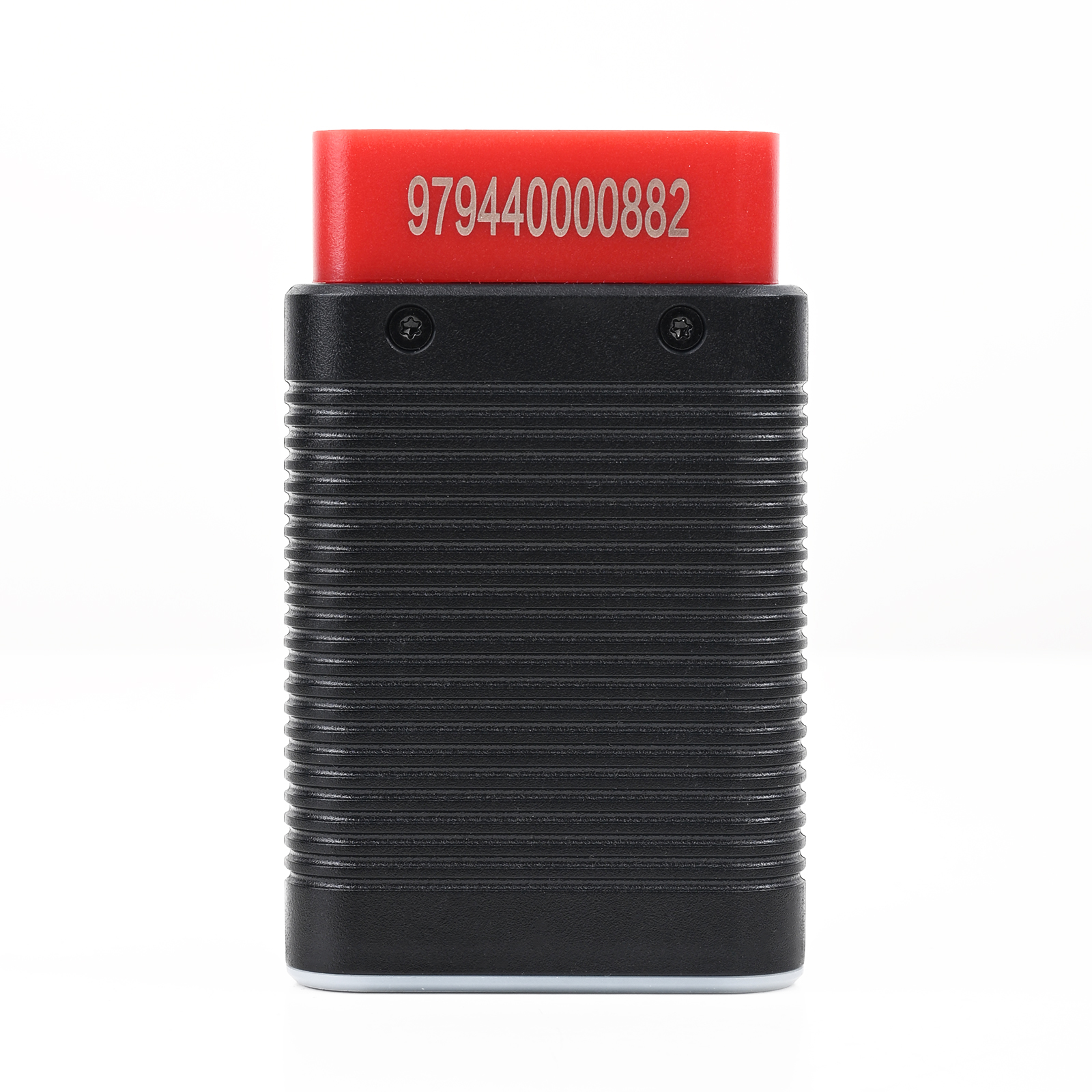

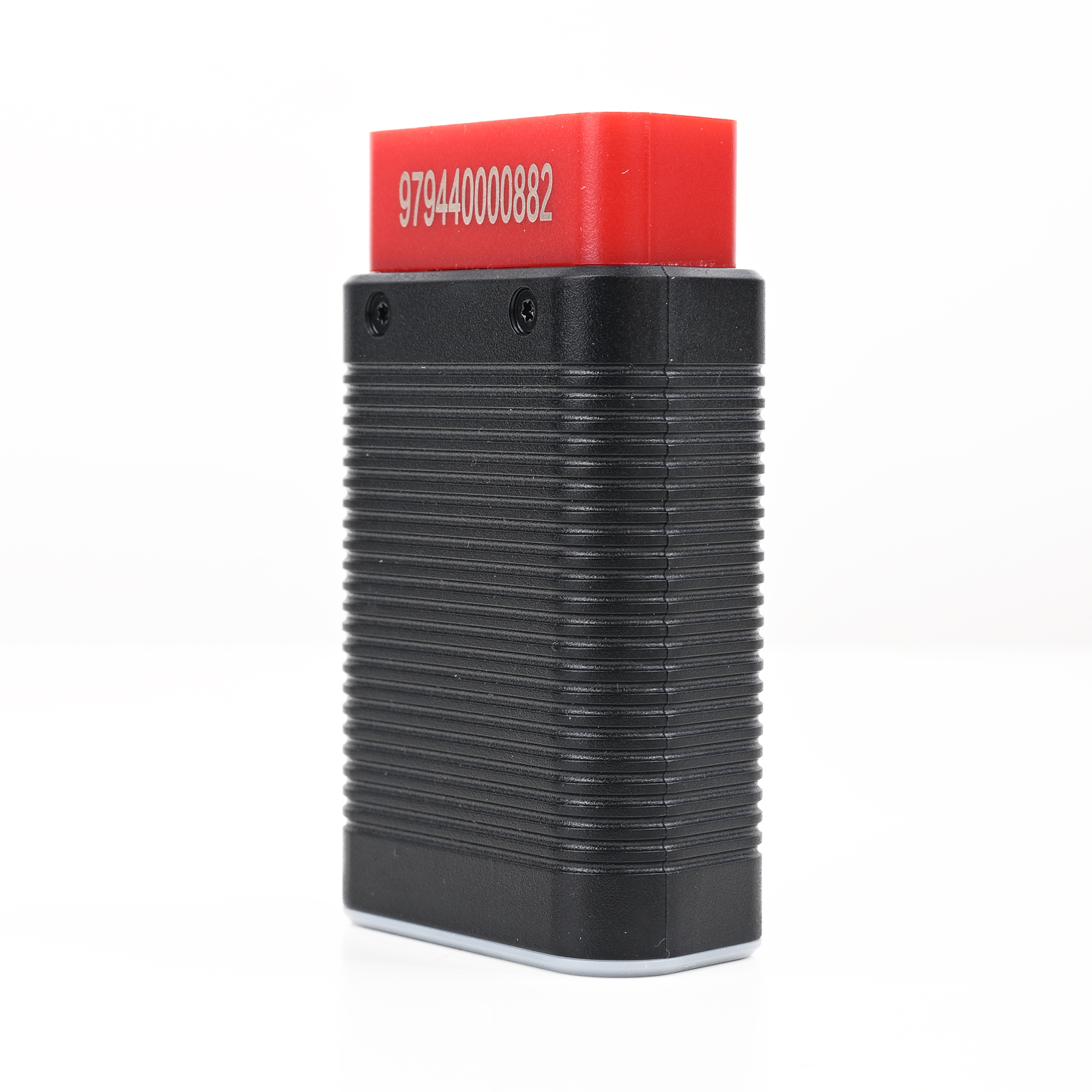

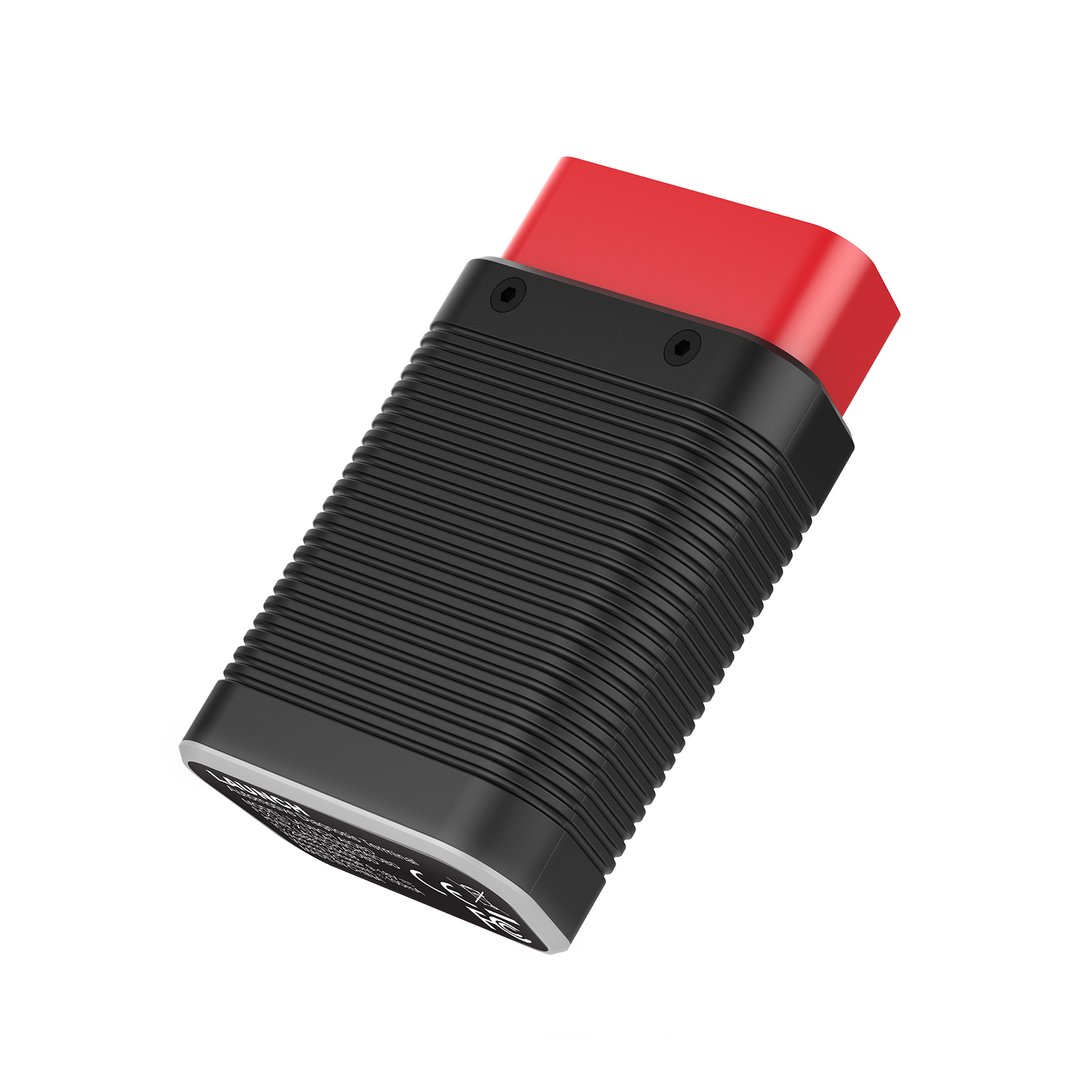

AUTO 6% OFF LAUNCH AIOBD (NueraDiag) Automotive Diagnosis Terminal Global Version

Produktbeschreibung

LAUNCH AIOBD (NueraDiag) automotive diagnosis connector needs to be used with a mobile phone APP. The connector and the mobile phone APP communicate via Bluetooth. When the connector is connected to the vehicle and within the communication range, professional diagnosis of the vehicle can be performed through the mobile phone APP.

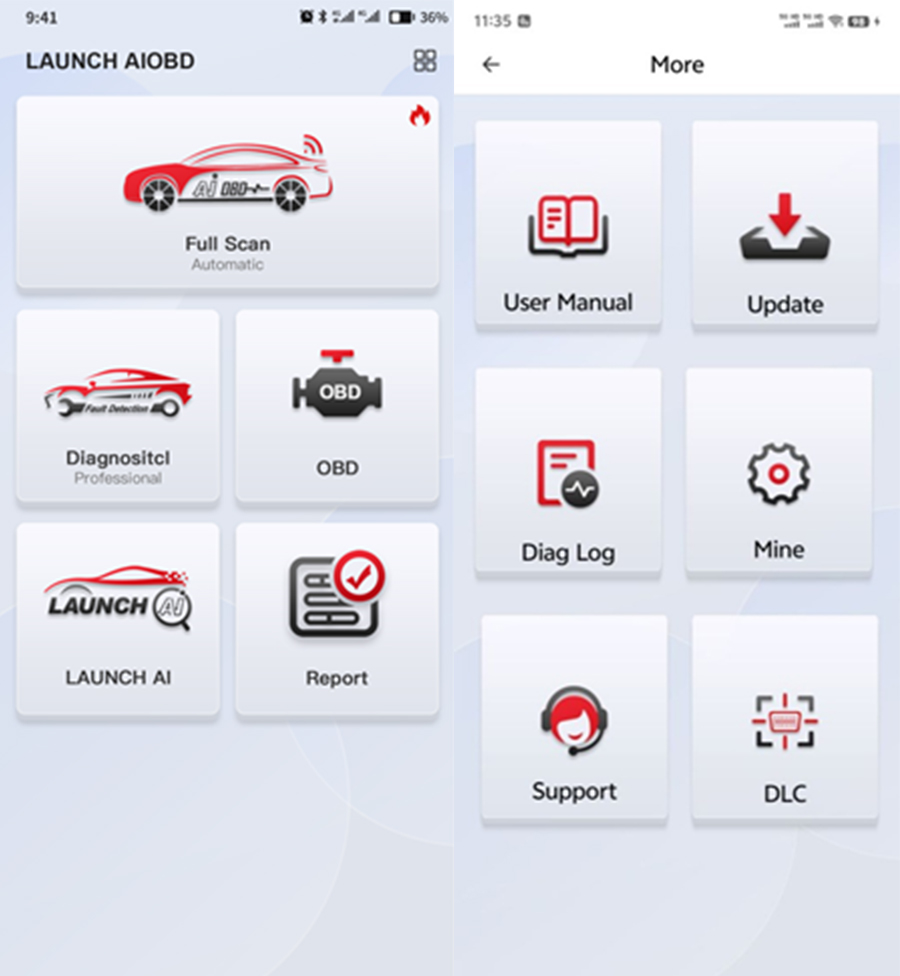

How to Download the App:


1. For iOS devices, search for "LAUNCH AIOBD" in the official App Store.

2. For Android devices, search for "LAUNCH AIOBD" in the official Google Play store.

3. Alternatively, you can directly download the QR code on the packaging to go to the corresponding app store.

Product Features:


User Friendly
New users automatically search for connectors to activate and register, NO need for manual activation.

One-click OBD Data Report

Generate a comprehensive OBD static data report with one click. Supports ten OBD modes, Smog Check, and OFBCM. Reports can be generated and shared, and are free for life.

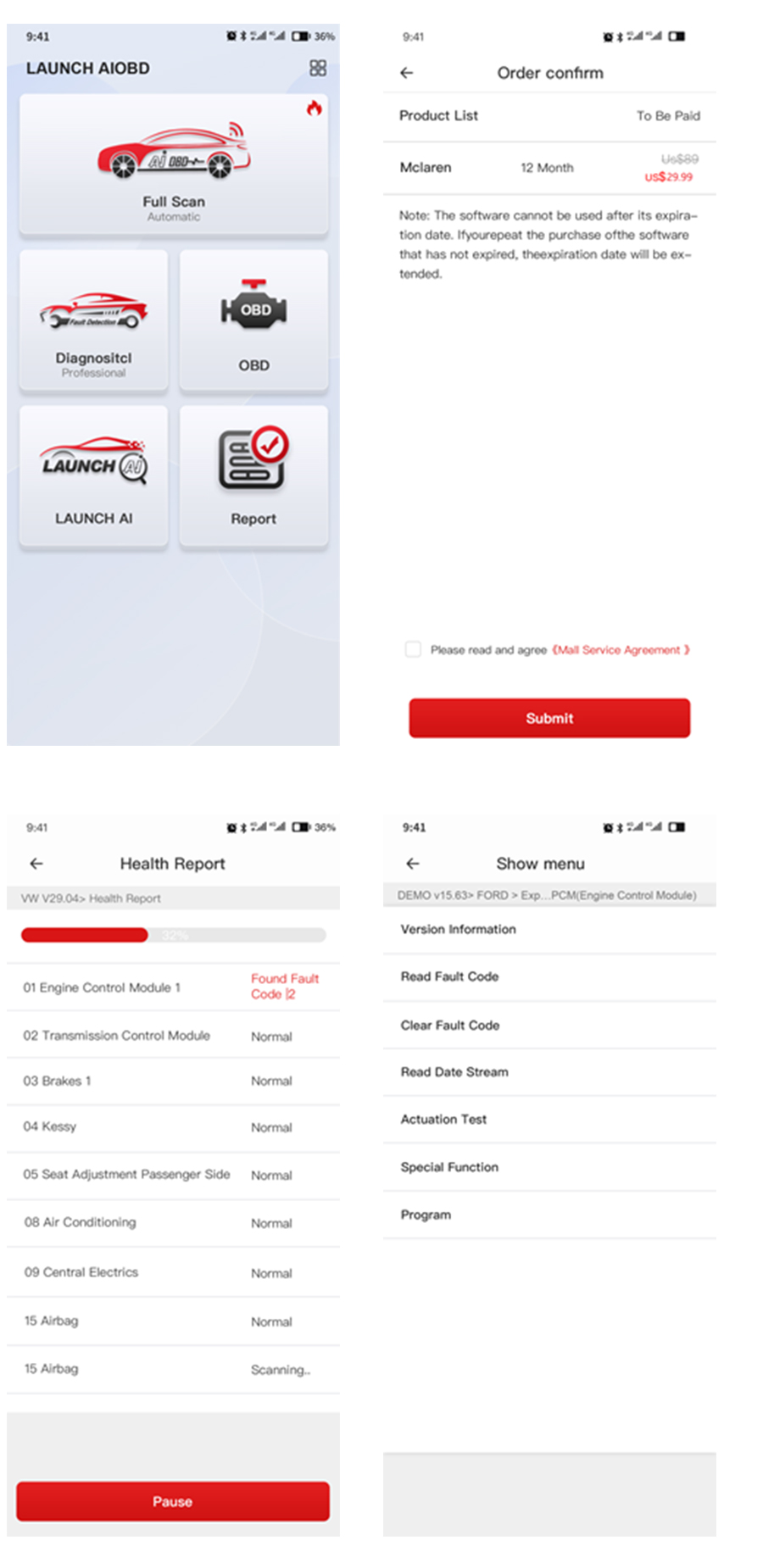

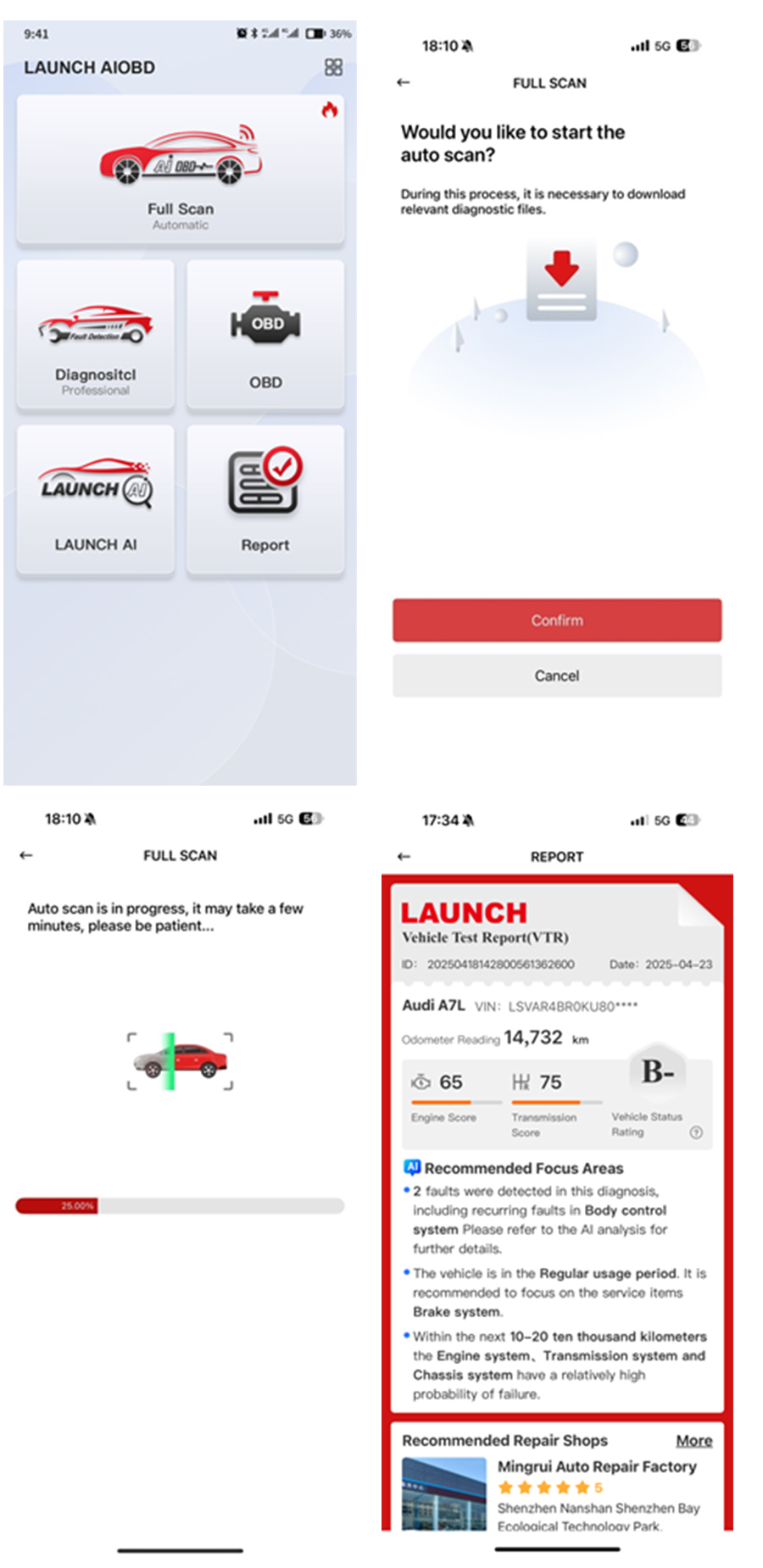

Full Scan

Full Scan automatically detects and generates professional diagnostic reports with one click. Ideal for individual car owners, it's easy to use. If you haven't purchased the software for your vehicle, you can scan the report first. Only the OBD report will be displayed. Other system faults and professional analysis reports are available only after unlocking the software. Paid features include AI analysis, predictive maintenance recommendations, work hours, and replacement parts recommendations. The software can be upgraded through Update, regardless of whether it's already been purchased. However, only the vehicle model you've purchased can be used for professional traditional diagnostics in Diagnostic.



Full Scan's interactive design offers highly consistent functionality, simple operation, and a clean interface. Traditional connector products require multiple menus for selection.



Saving Historical Reports

1. After purchasing, the vehicle test report generated by Full Scan can be analyzed professionally by AI, recommending nearby repair shops, displaying fault information for different systems, including required parts, repair hours, and costs. It also summarizes the vehicle's historical diagnostic faults, showing the top 10 fault types for that model, and proactively adding maintenance information. Combined with the vehicle's historical faults and maintenance information, predictive maintenance service recommendations are provided.


2. The diagnosis performed in the Diagnostic and OBD menus provides vehicle model fault information and fault explanations, and allows for quick fault code query. If AI analysis is not performed, the report is free of charge.


LAUNCH AI Function Description

1. What is the specific problem with the vehicle? (DTC analysis)
2. What is the estimated cost of repair? (Labor, parts, etc.)
3. Who can help me fix it? (Nearby repair shops that specialize in this type of vehicle)
4. How to repair it specifically? (Repair plan or repair instructions)



Product Functions:


Free OBD2 Functions	Description
AutoOBD	Automatically reads all static OBD data and generates a report, supports clearing fault code.
Live	Select data to display real-time data in a line chart.
Read/Clear Code	Read/Clear fault code
OBFCM	European emissions-related data, with report generation and sharing capabilities.
Smog Check	Support Smog Check
Freeze Frame	Support Freeze Frame
Mode 6	Mode 6 (vehicles without Mode 6 display Mode 5 data, including oxygen sensor data).
Mode 8	Request vehicle system control.
MIL Status	Engine status.

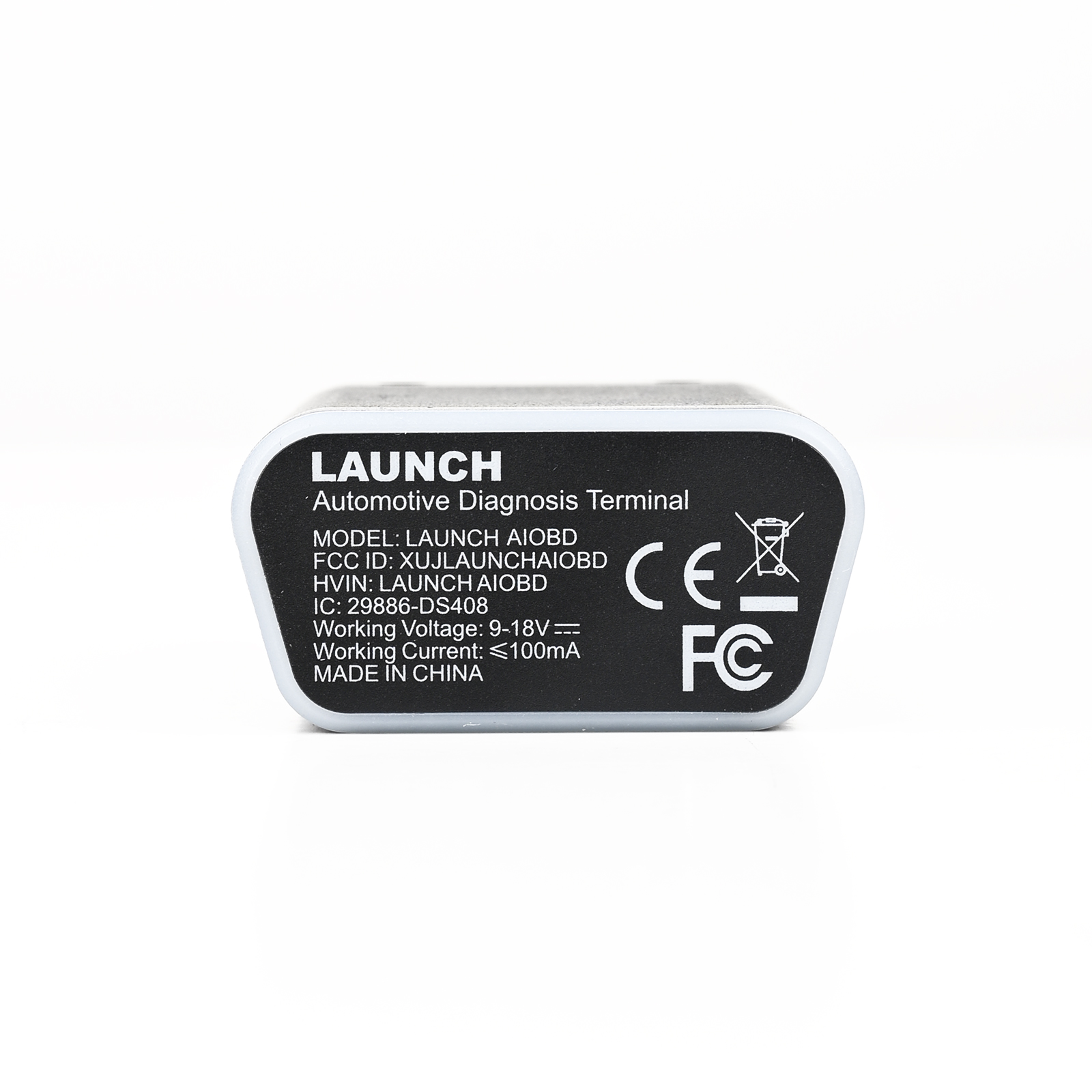

Product Specifications:


MCU: GD32F405

Operating voltage: DC 9-18V

Operating current: ≤100mA @12V DC

Operating temperature: -10°C to 50°C

Storage temperature: -20°C to 70°C

Storage humidity: 10% to 93%

Dimensions: 74*47.1*24mm

Communication method: Bluetooth

CAN: support

K-line: support

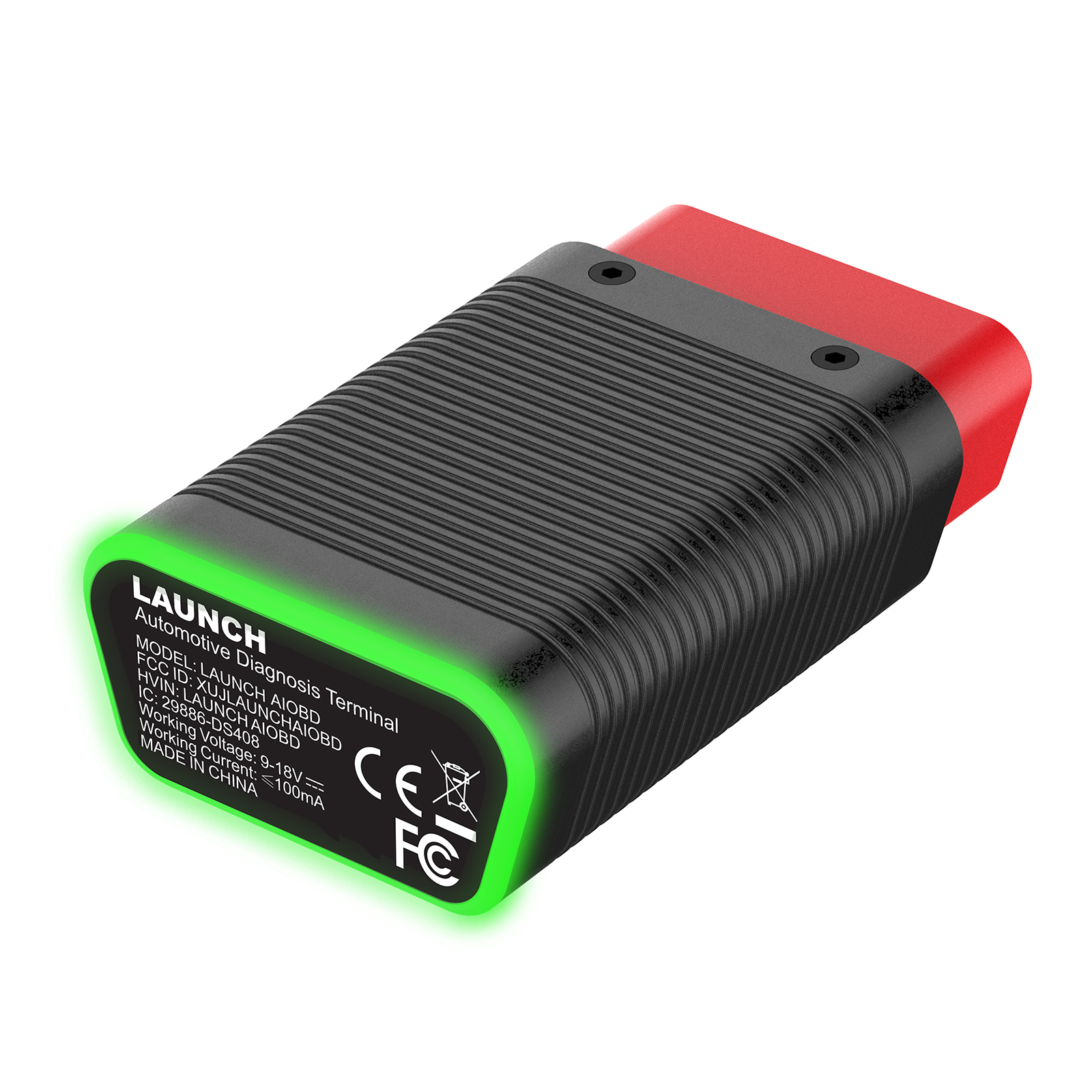

Green light: Connector powered

Blue light: Bluetooth connected

Blue light: Flashing: Bluetooth communication

Red light: Upgrade unsuccessful

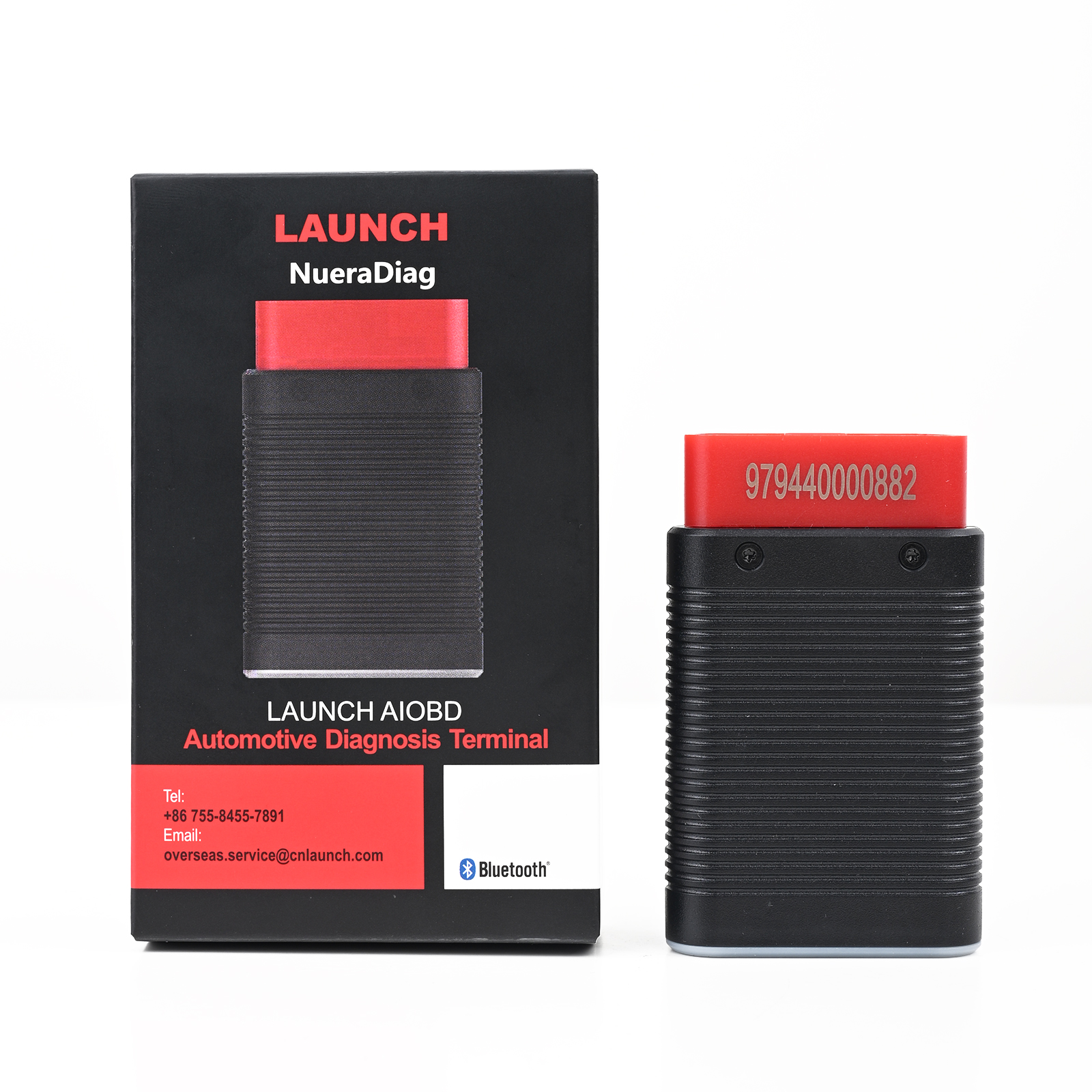

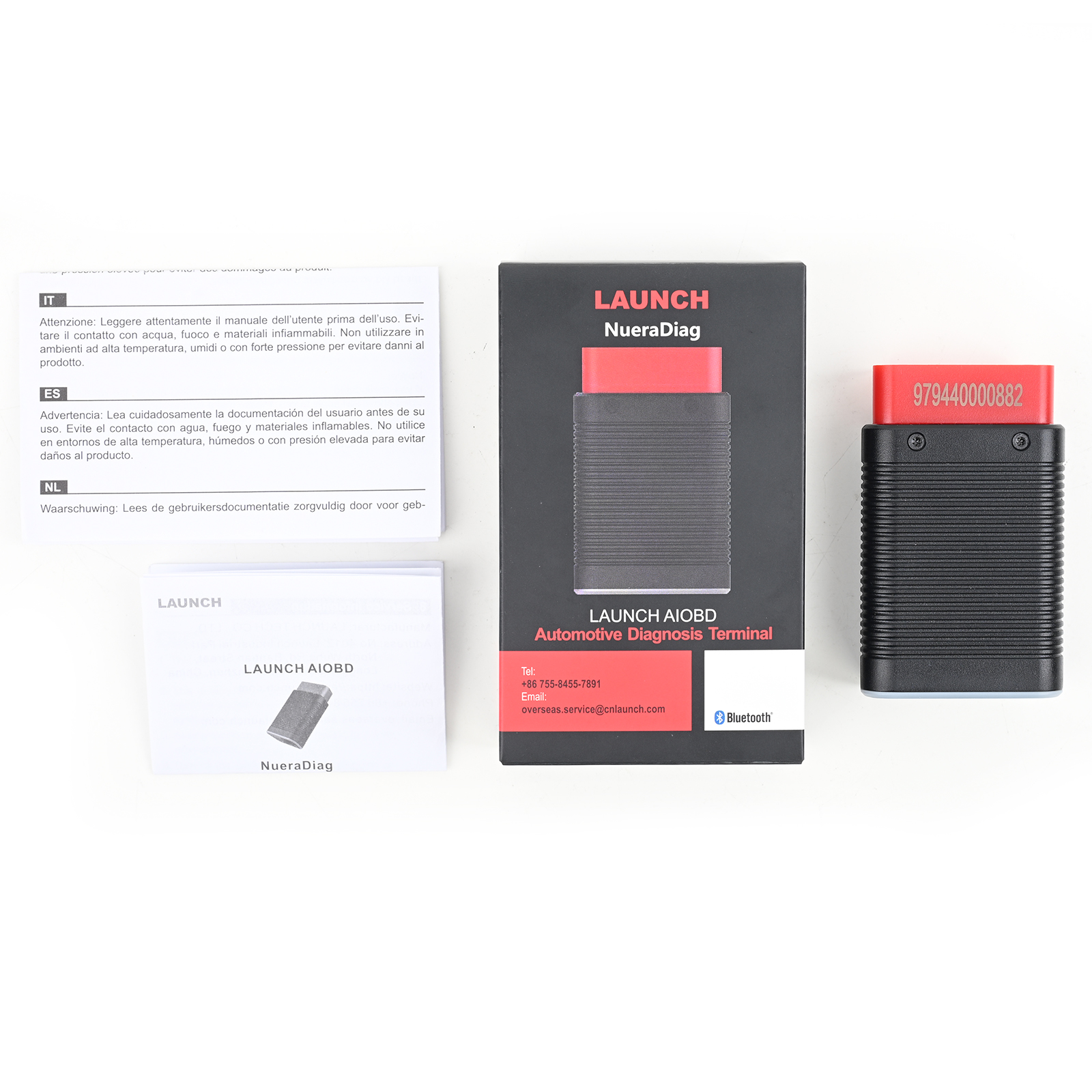

Package includes:



1pc x LAUNCH AIOBD (NueraDiag) Automotive Diagnosis Terminal Global Version
