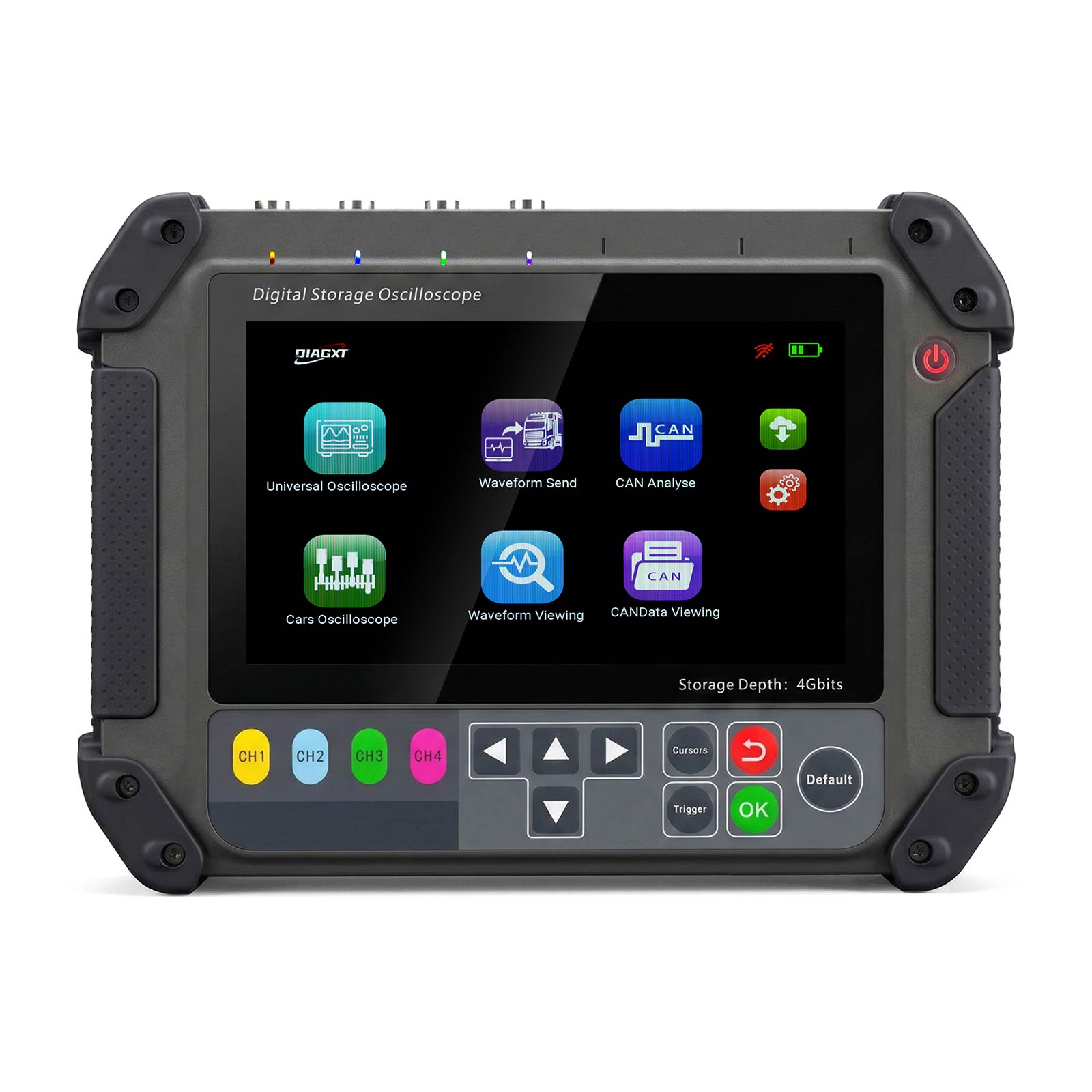

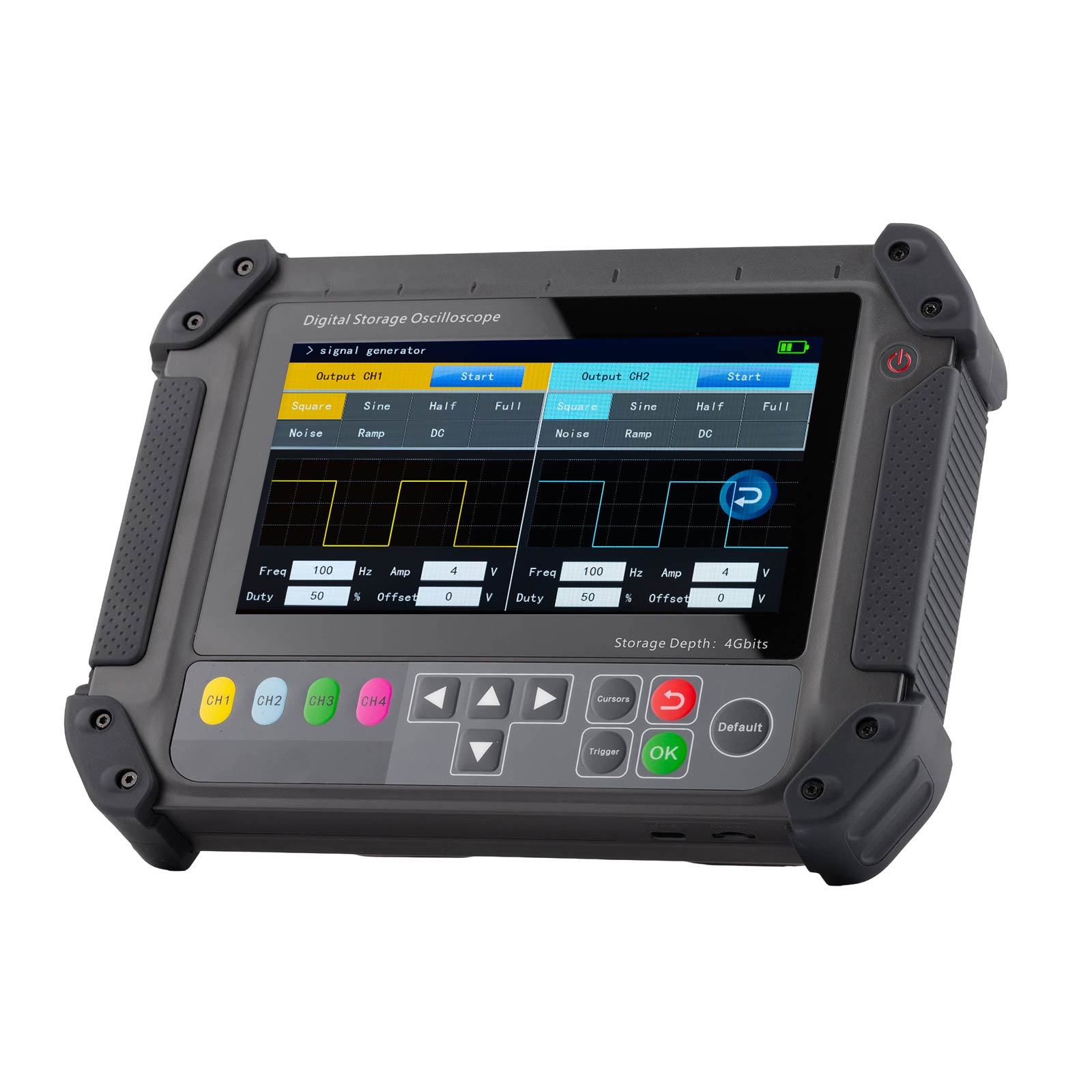

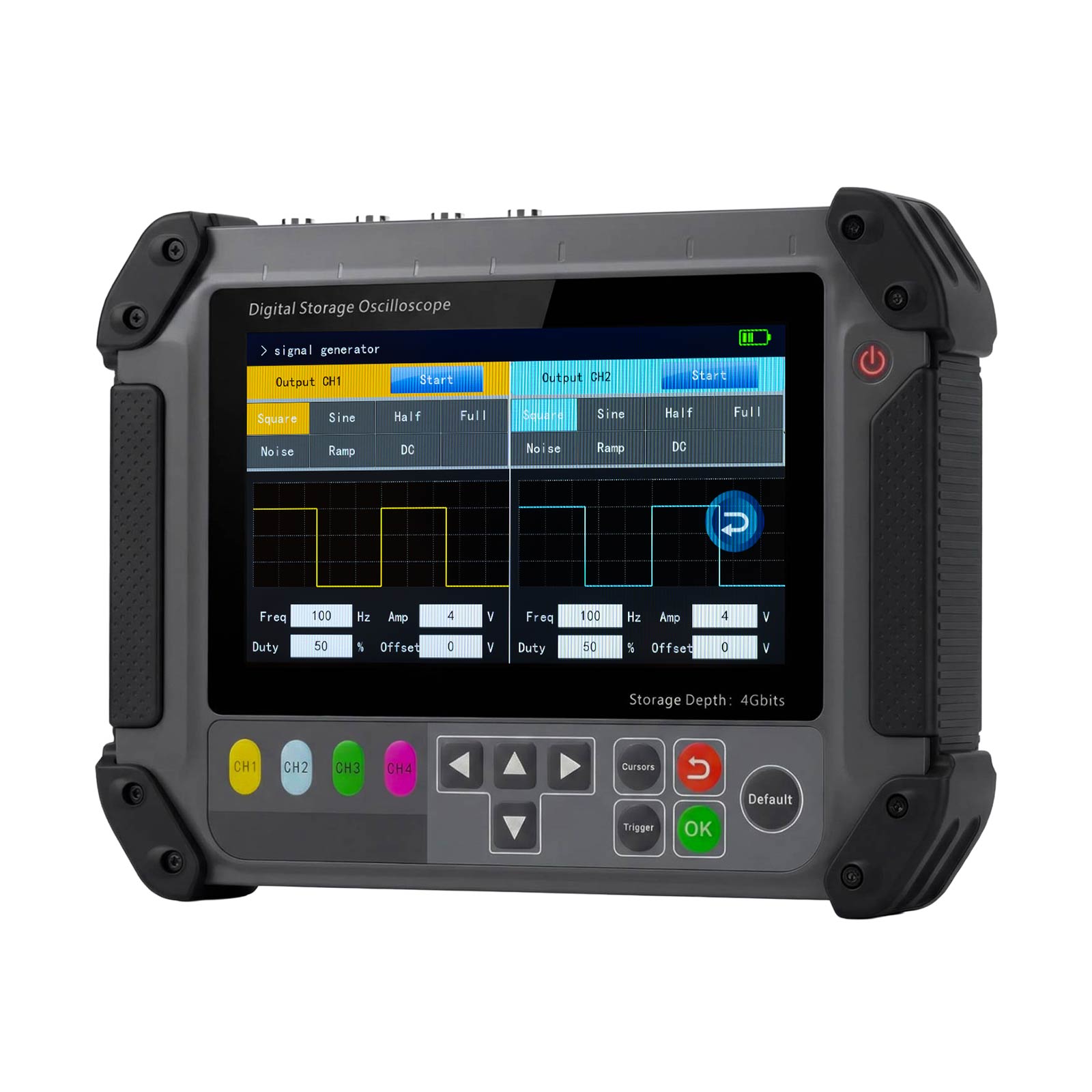

DIAGXT T80 Universal Oscilloscope & Automotive Oscilloscope, Store, Parse, Modify, Send CAN Bus Data, Beginner-friendly with 4G Memory

Produktbeschreibung

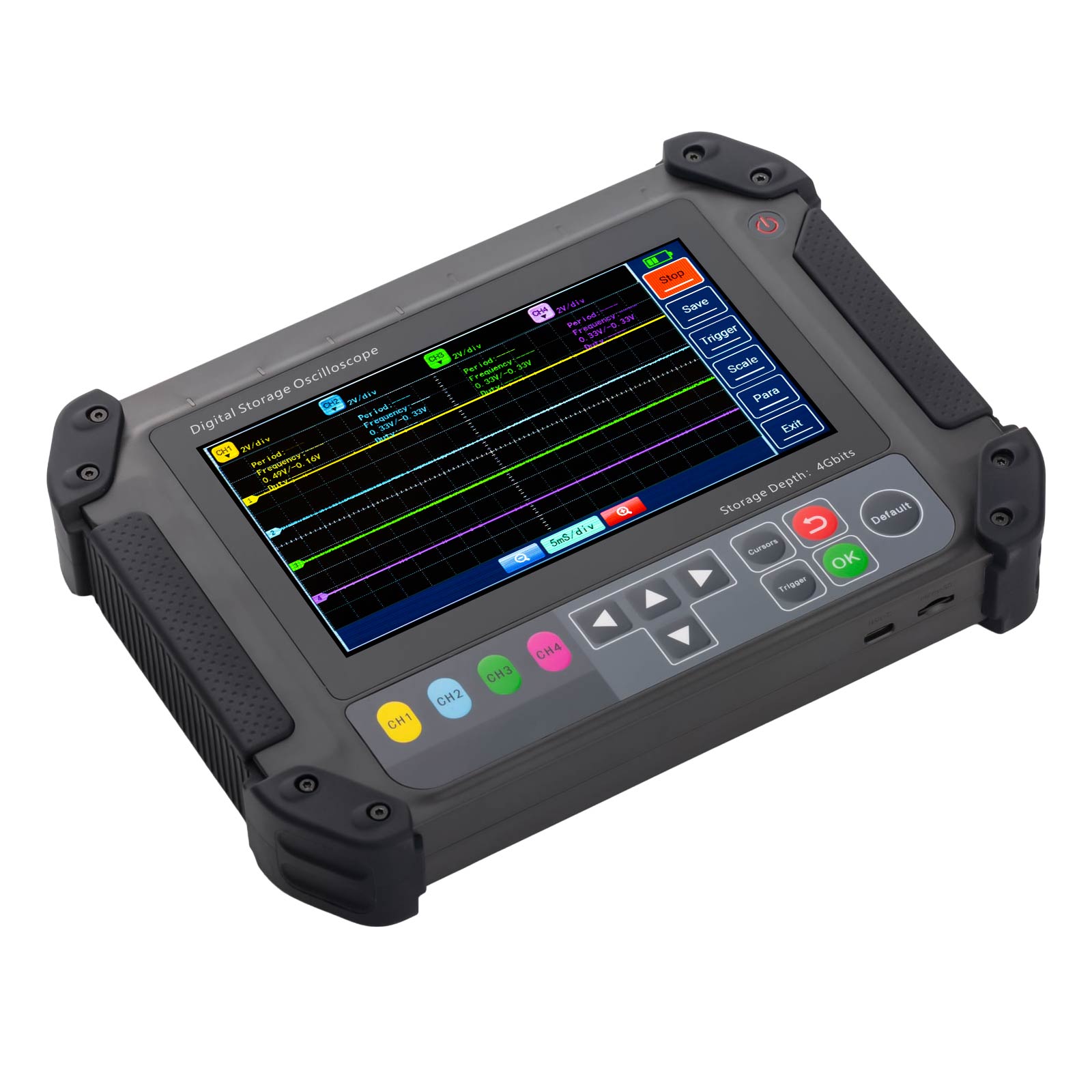

7.There is a multimeter with a basic function. With it, you catch the waveform of interest. Hold the screen multi-touch, operate and zoom in like a mobile phone, zoom out the moving waveform.

Highlights:


Up to 4G Storage

Temporarily store up to 4G of data for users to query.

Standard Database

Provide users with 400 standard timing waveforms for diesel engines.

CAN Analysis

View CAN bus waveform, can store, mordify and send CAN data.



Single channel sampling rate of 200M, storage of 4G

Convenient and efficient car oscilloscope

CAN bus data storage, parsing, modification and sending

Send timing waveform

Complete manufacturer waveform library data.


Advantages:


1. Adopts the handheld design. It is more portable and not limited by 220V power supply. At the same time, compared with the PC version, it is not limited by laptops;

2. Adopts touch operation.  It is convenient for waveform adjustment; and easy to use with physical buttons；

3. With a memory of up to 4G. It can temporarily store waveform of more than ten minutes in the memory and can be viewed repeatedly at will. Ordinary oscilloscopes only have the information of the current screen;

4. Adds an "Options" menu, which presets the amplitude and time base based on the characteristics of each vehicle component. To measure, users simply click the corresponding sensor name, eliminating the complex setup process and making it more suitable for new beginner;

5. Features a save function. Complete waveform can be permanently saved to an SD card for easy future reference. Furthermore, data, not images, is saved. This can also be viewed on a PC. The waveform can also be exported;

6. With a waveform transmission function. It can send the correct timing signal to the vehicle ECU. This is convenient for checking timing errors. For example, if a vehicle fails to start and maintenance personnel suspect a timing signal failure, this function can be used to send the correct waveform to the ECU. If the injectors, spark plugs, etc. are activated at this time, it means that there is indeed a problem with the vehicle's original signal;

7. Send data from the manufactures’ waveform library, or send self-collected waveform. If our waveform library does not have the corresponding waveform, the user can collect waveform from the same model vehicle as a database;

8. With the vehicle CAN bus analysis function; it can collect, analyze, modify, save and send CAN bus data, which is a function that other oscilloscopes also do not have;

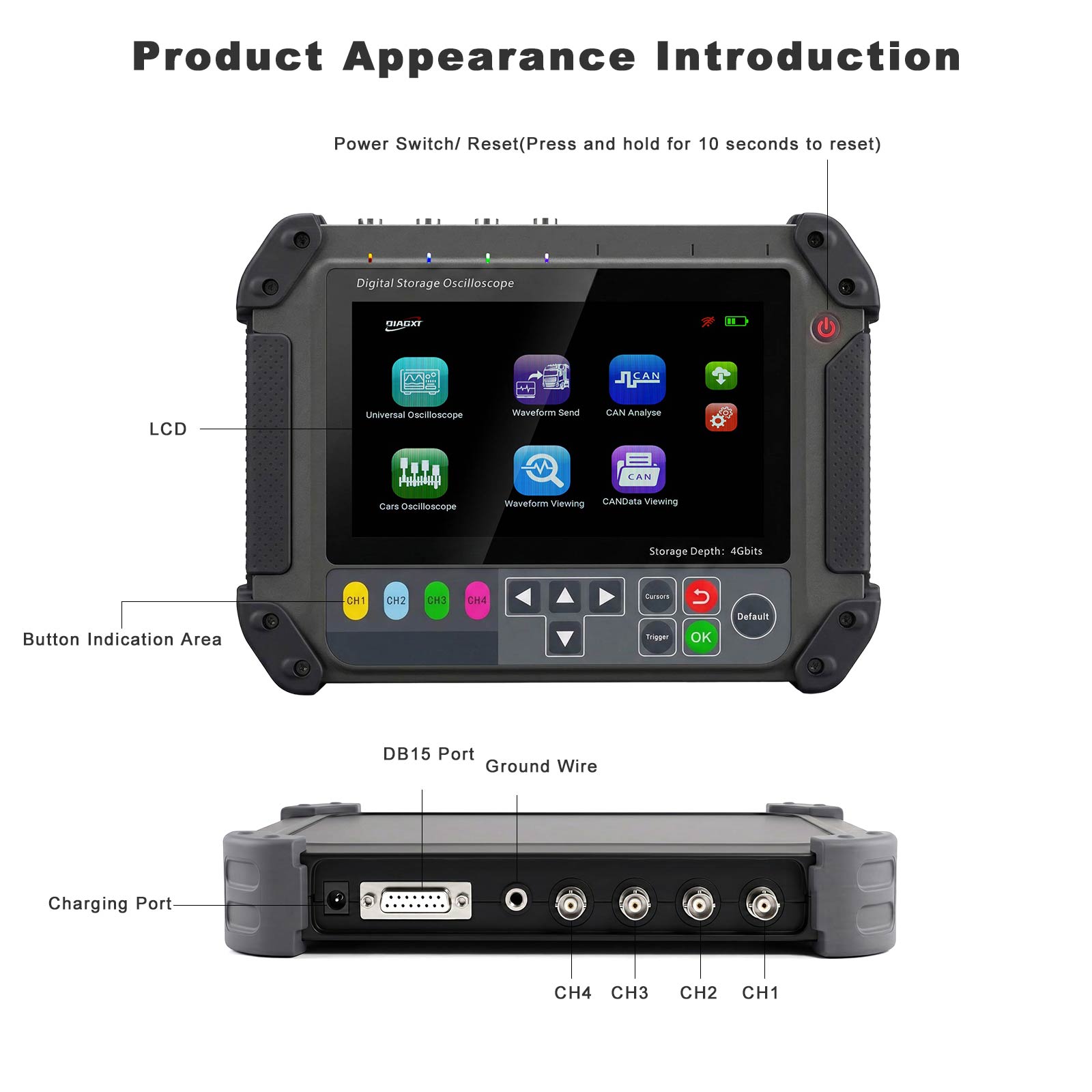

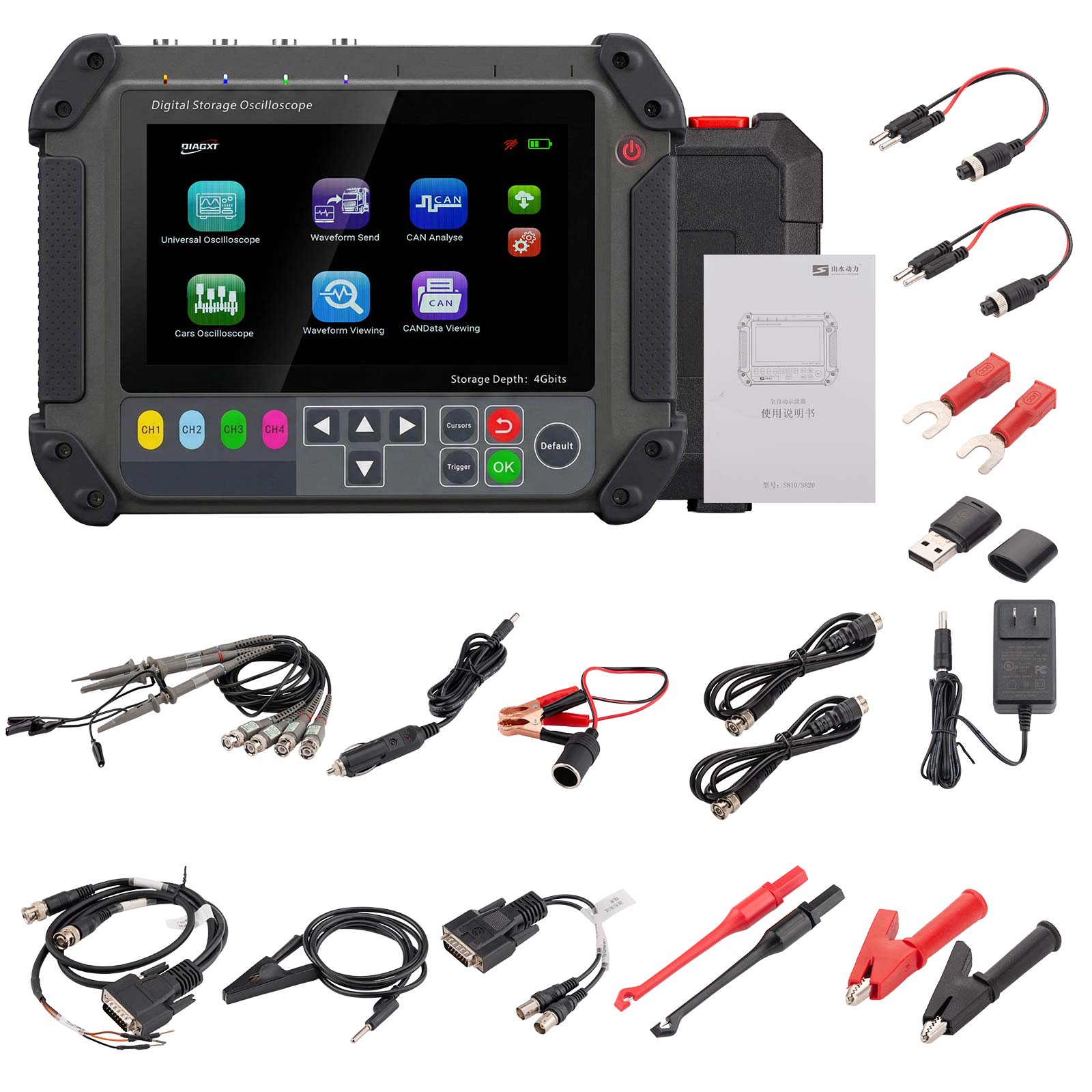

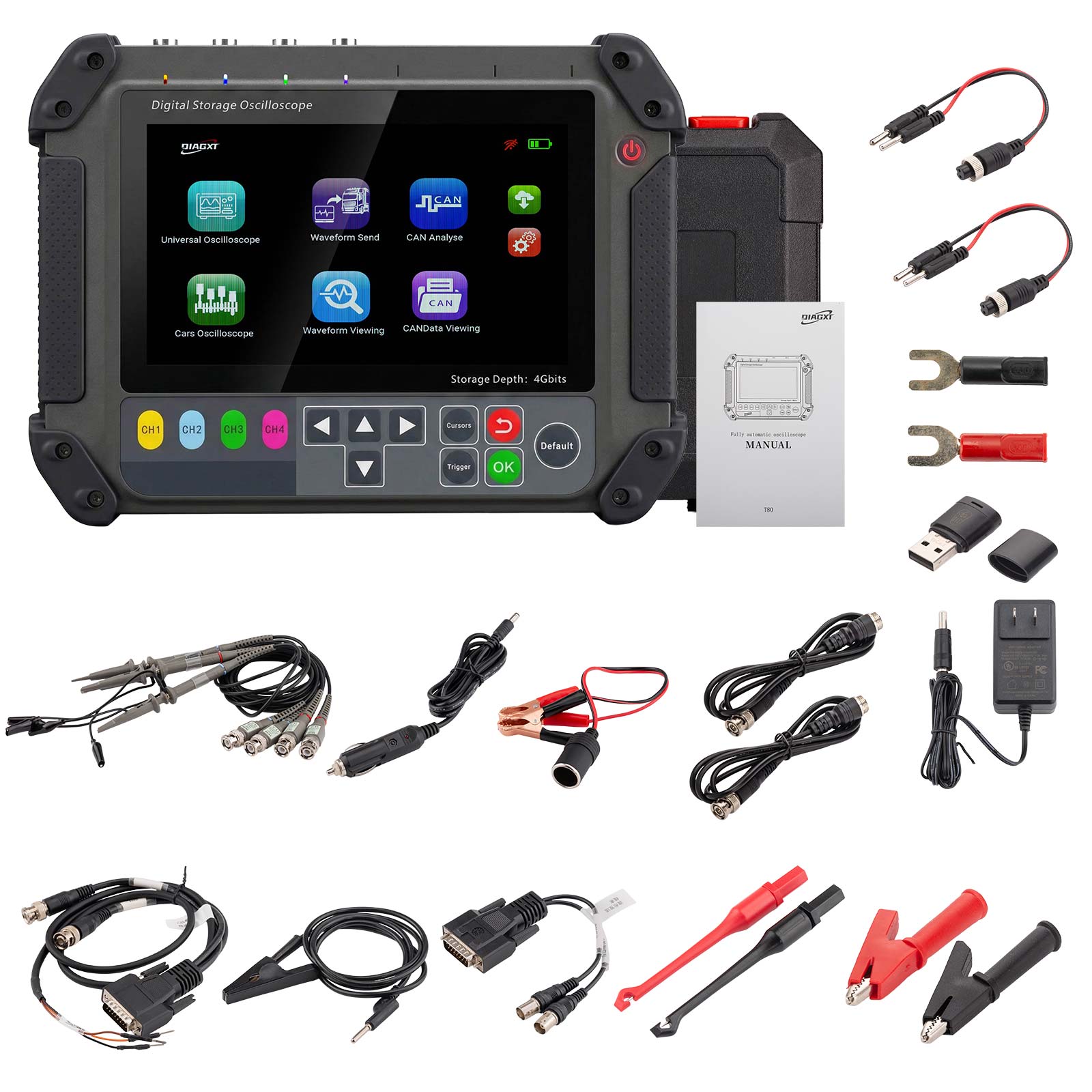

9. Equipped with more convenient interfaces and adapters to collect signal acquisition.

Product Functions:


Number Of Channels: 4

Trigger Types: Ascending edge, descending edge, bilateral edge

Waveform Data Decoding: CAN, UART, SPI

Raw Data Is Saved And Viewed：Support

CAN Bus Data Parsing (Support Protocol-Based Parsing): Support

CAN Bus Data Saving: Support

CAN Bus Data Editing: Support

CAN Bus Data Sending: Support
