Produktbeschreibung

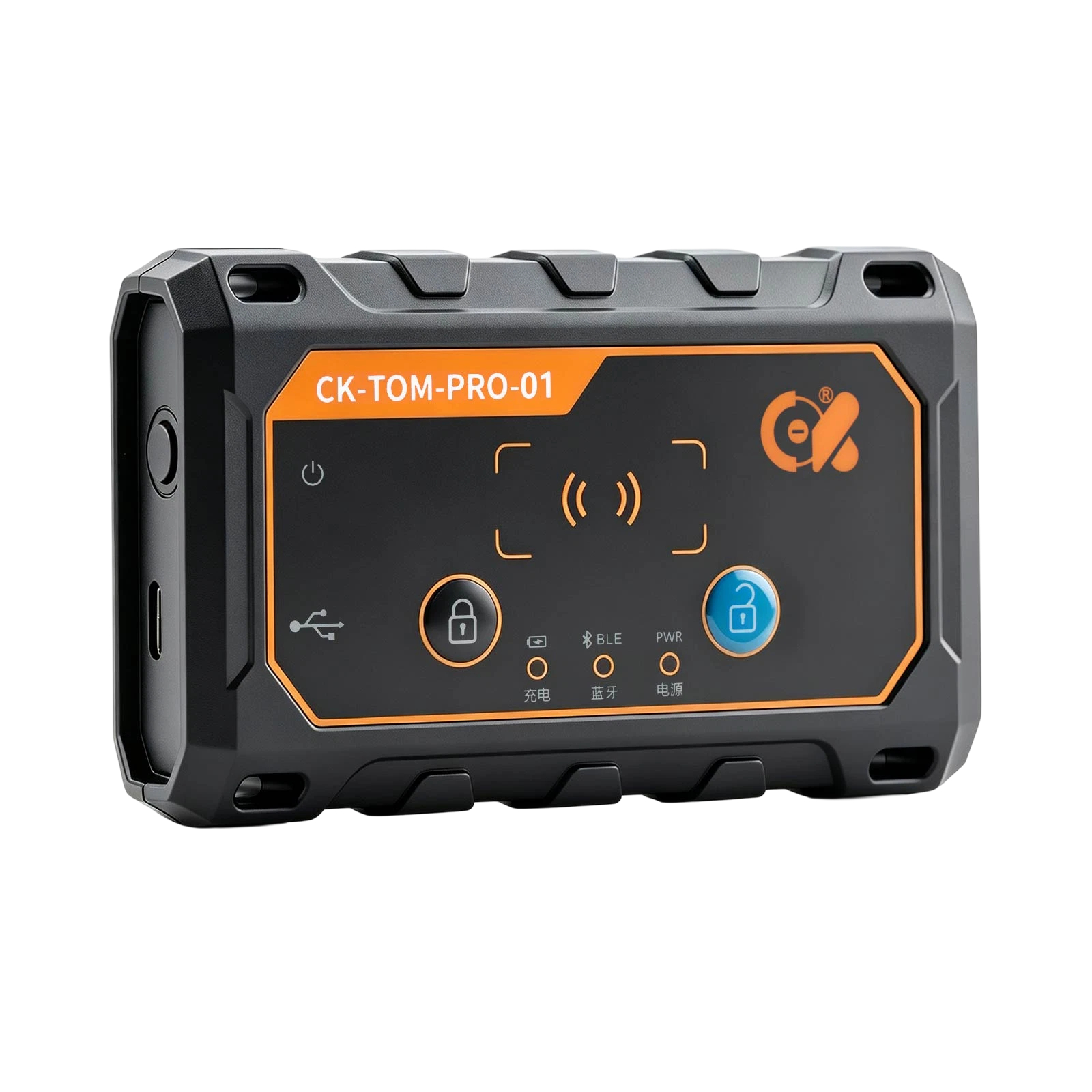

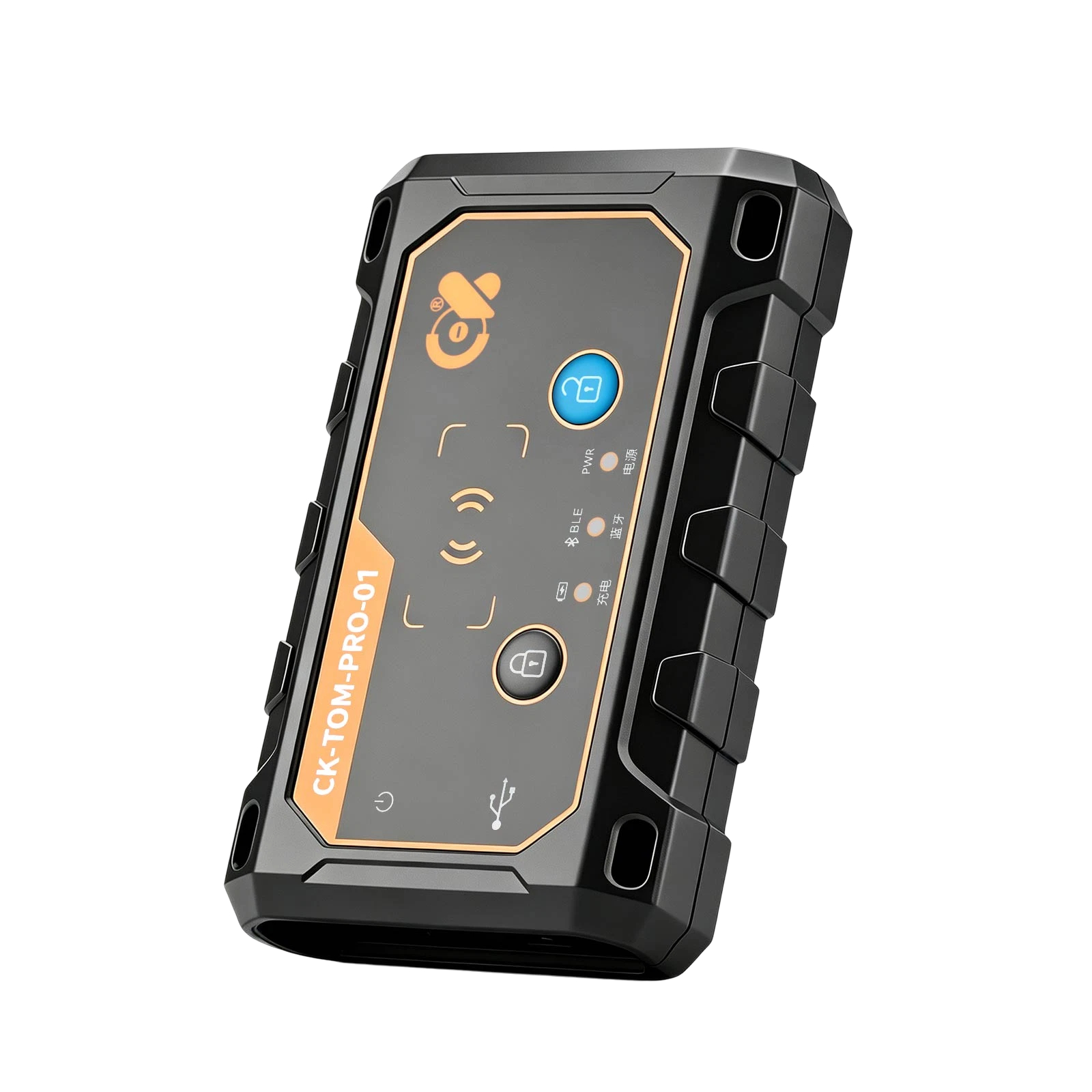

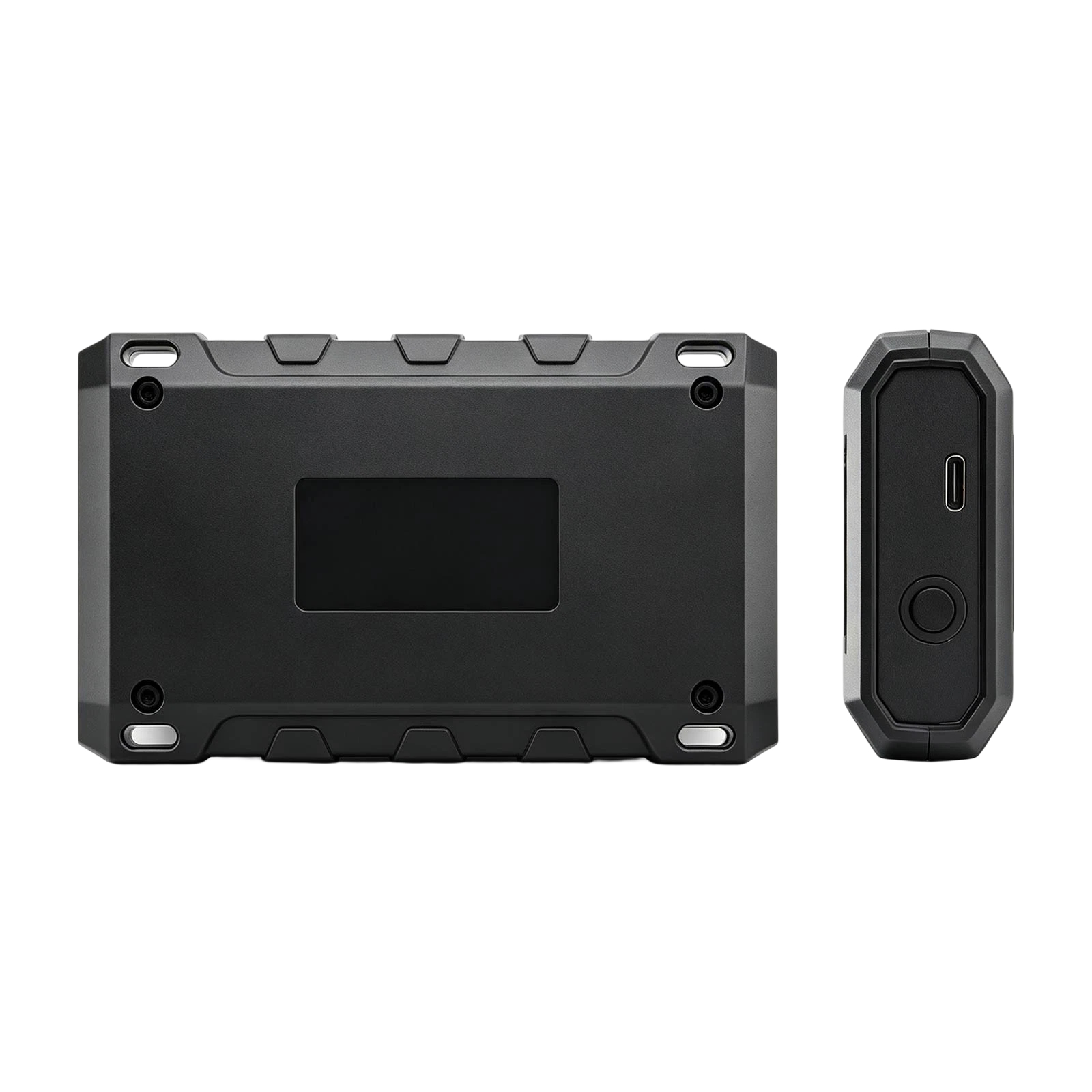

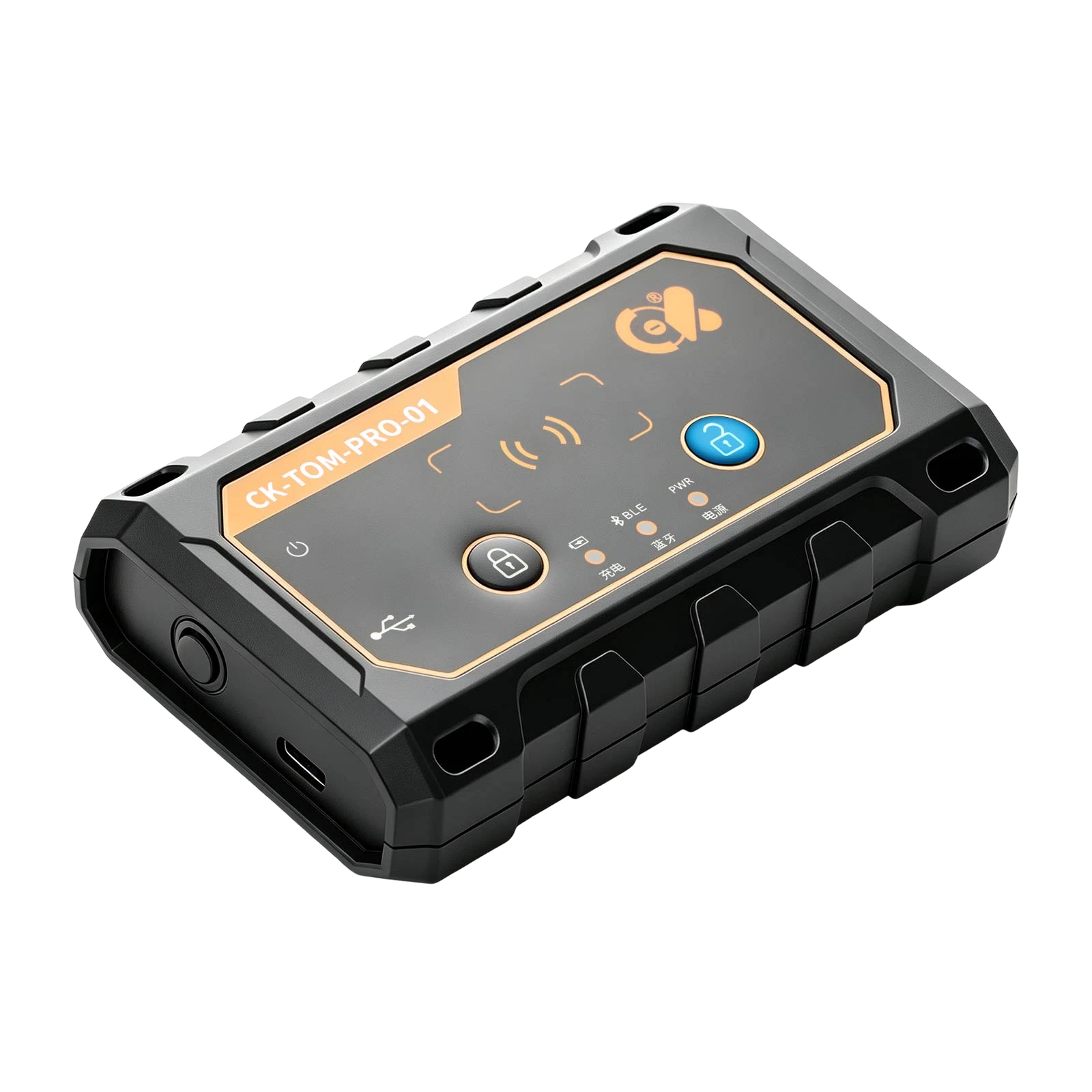

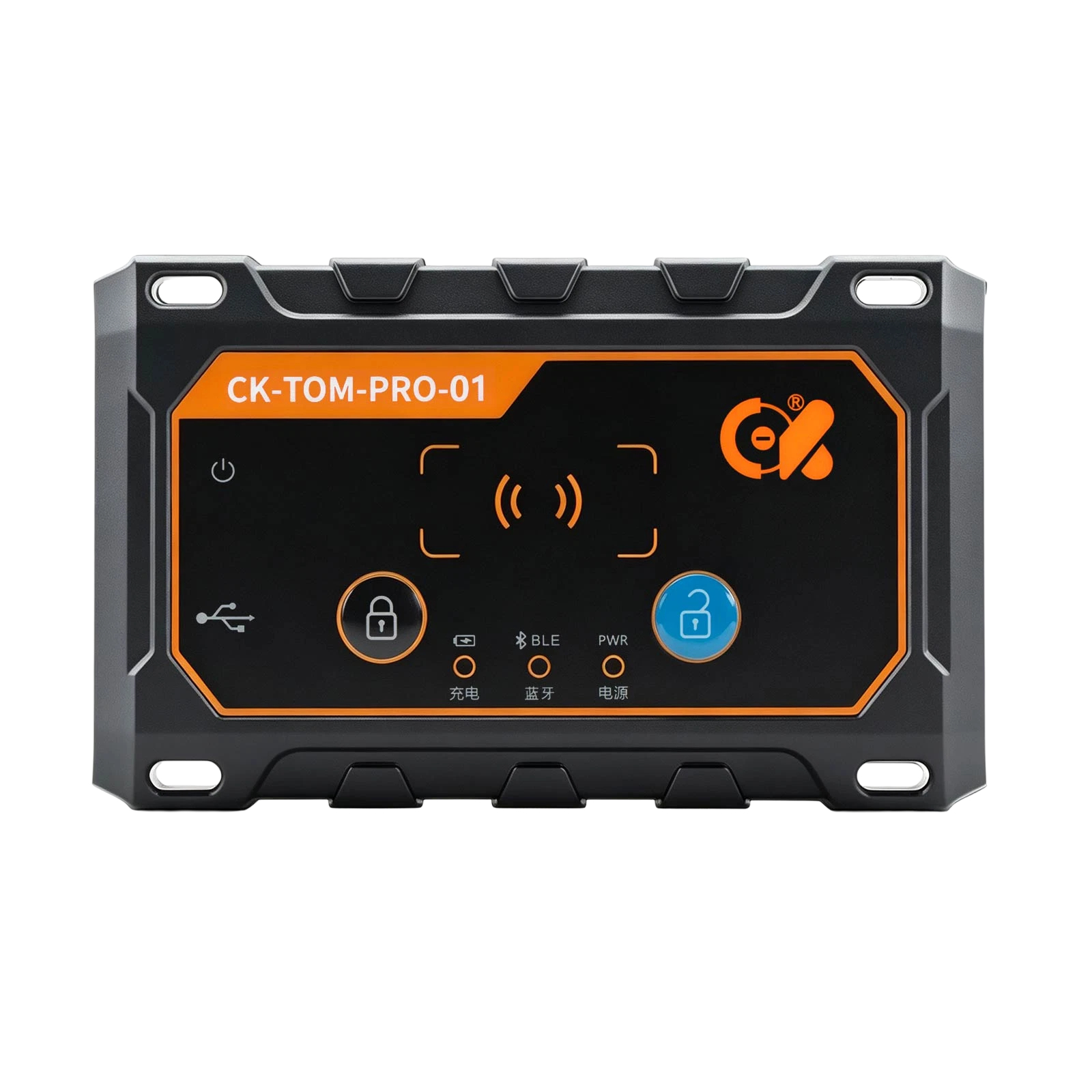

CK-TOM-PRO-01 Key Matching Device for Toyota/Lexus, Supports 8A-AA, 8A-BA, Read/Write Key Data, Match the Vehicle
The CK-TOM-PRO-01 is a special matching device designed for Toyota/Lexus vehicle keys. By connecting to the 'Huidao CK' app via Bluetooth, it can read key information, match the vehicle, and write key data. It can also be used directly as a temporary key. With its simple operation and high stability, it is a professional portable tool for Toyota/Lexus vehicle key repair and matching.
Key models supported: 8A-AA, 8A-BA.
Product Advantages:
The 8A-AA and 8A-BA keys for Toyota and Lexus adopt a proprietary encryption architecture, making them impossible to re-use through traditional resetting methods. This solution effectively breaks through technical barriers, adapts to various tools on the market, and is highly compatible. The entire process uses a non-destructive operation mode, eliminating the need for disassembly, welding, or cracking the keys, while preserving their original form. The operation process is standardized and concise, with a low threshold for use, requiring no professional training. The device can also be used as a temporary key.

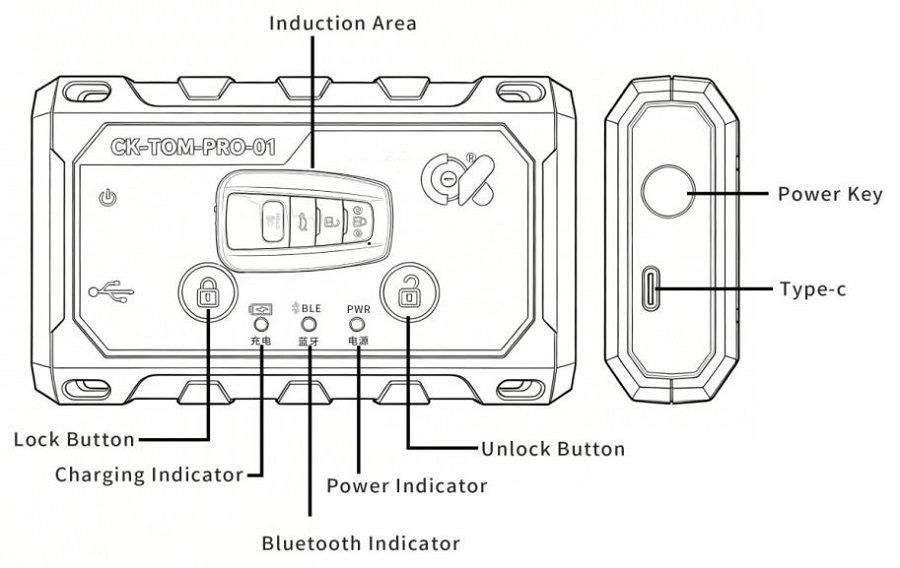

Product Structure:
Power key: Press for three seconds to turn on/off
Charge status indicator: When charging with the power supply, the indicator turns green.
Bluetooth light: The blue light indicates that Bluetooth is connected.
Power indicator: Red light on indicates the device is turned on, while red light off indicates the device is turned off.
Locking key: When used as a temporary key, it locks the vehicle.
Unlock key: Used to unlock the vehicle when used as a temporary key.
How to use CK-TOM-PRO-01?
Step 1: Connect the device.
Step 2: Read the original car key information.
Step 3: Match.
Step 4: Write new key data (optional).

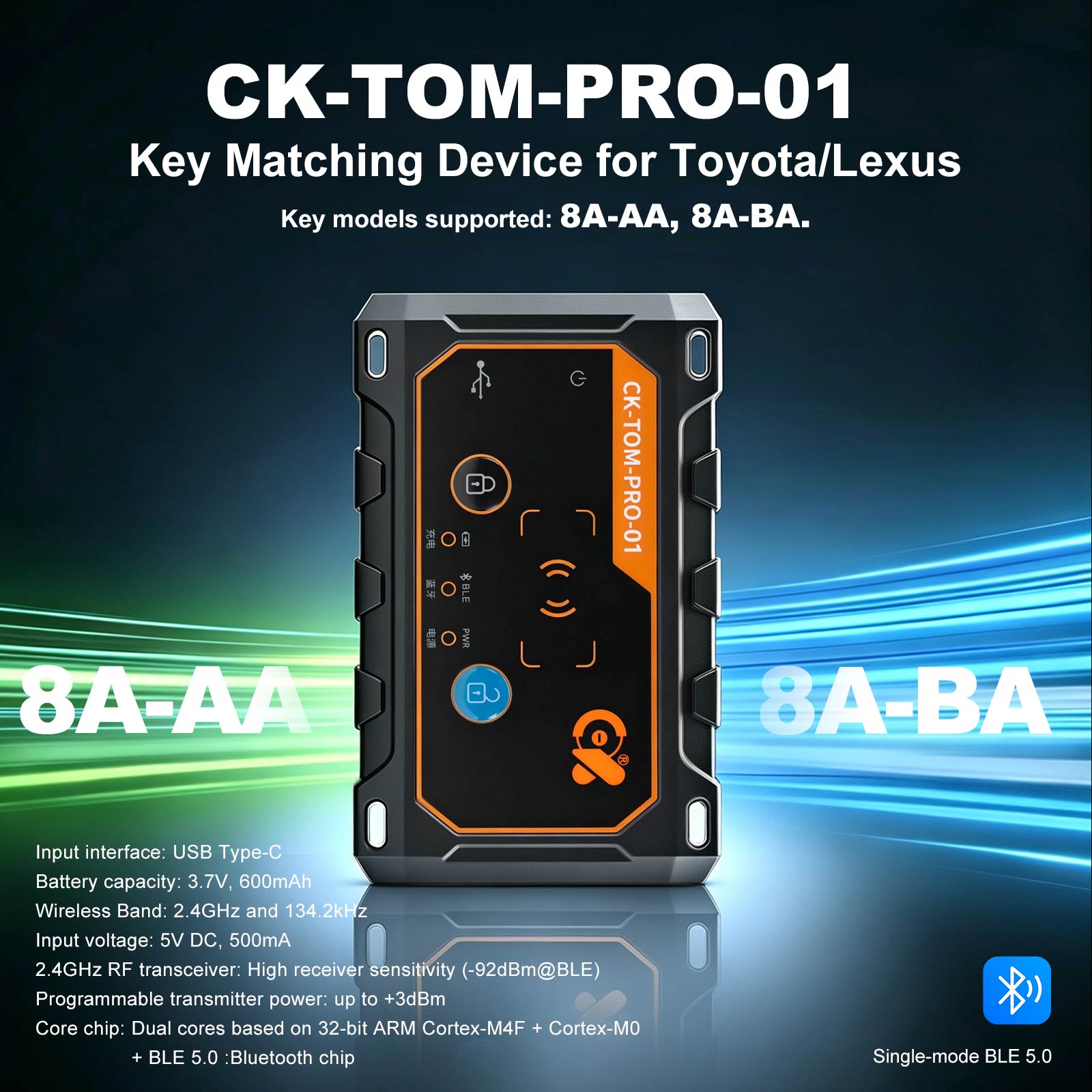

Product Parameters:
Input interface: USB Type-C
Core chip: Dual cores based on 32-bit ARM Cortex-M4F + Cortex-M0 + BLE 5.0 :Bluetooth chip
Battery capacity: 3.7V, 600mAh
Bluetooth: Single-mode BLE 5.0
Wireless Band: 2.4GHz and 134.2kHz
Input voltage: 5V DC, 500mA
2.4GHz RF transceiver: High receiver sensitivity (-92dBm@BLE)
Programmable transmitter power: up to +3dBm
Operating Temperatur: -10°C~50°C
Storage temperature: -15°C~60°C
Exterior dimensions: 110X68X27MM
Material: ABS eco-friendly material
Package includes:
1pc x CK-TOM-PRO-01 for Toyota Key Matching Device
