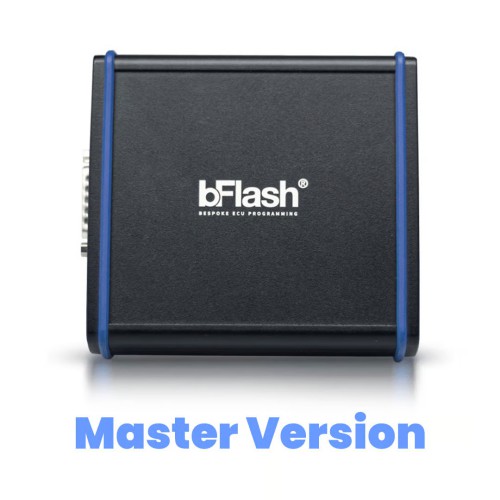

bFlash ECU Programming Tool Master Version

Produktbeschreibung

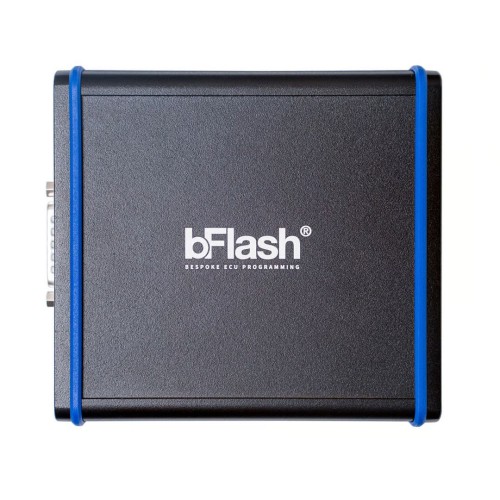

bFlash ECU Programming Tool Master Version

Specs:
Manufacturer: bFlash
Configuration: Master
Condition: New

bFlash Master is a must-have tool for every chip tuning professional, calibration engineer, and ECU/TCU repair shop. With the Master tool, you have freedom in reading and writing unencrypted tuning files and/or have your network of Slave tools.

bFlash Master is packed with 6 powerful features: high-speed flashing, basic and advanced datalogging, diagnostics, real-time tuning, CAN-Bus recording, and datalogging review. Our user-friendly software automatically identifies ECU and the checksum is automatically corrected by the tool during the writing process.

bFlash is a tool trusted by automotive professionals around the world.

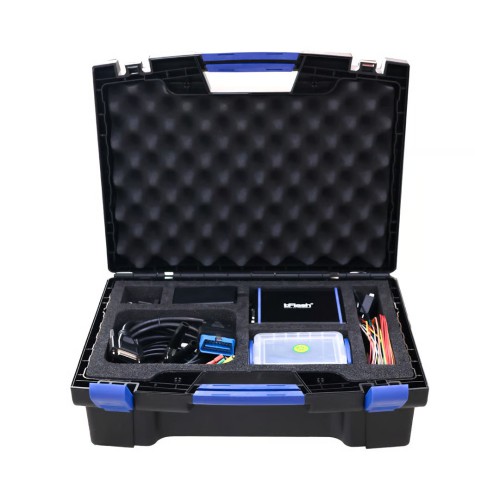

What is included in the bFlash kit?

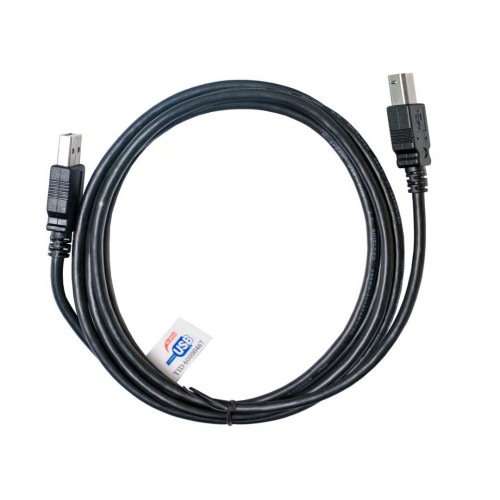

• USB cable

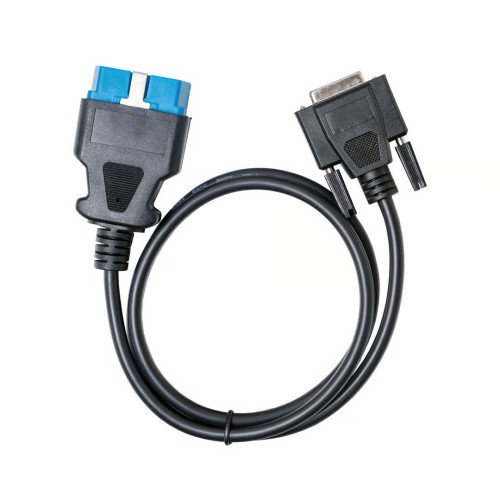

• OBD2 cable

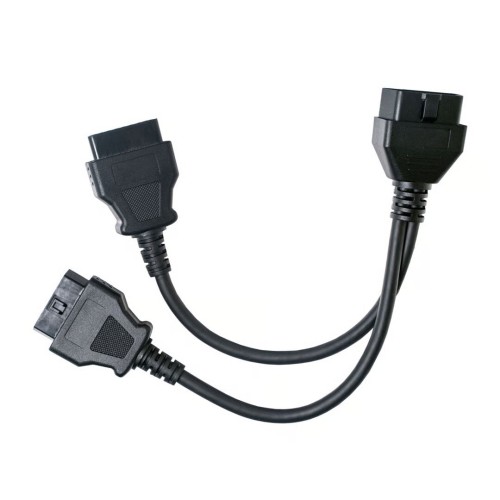

• OBD2 Y-splitter

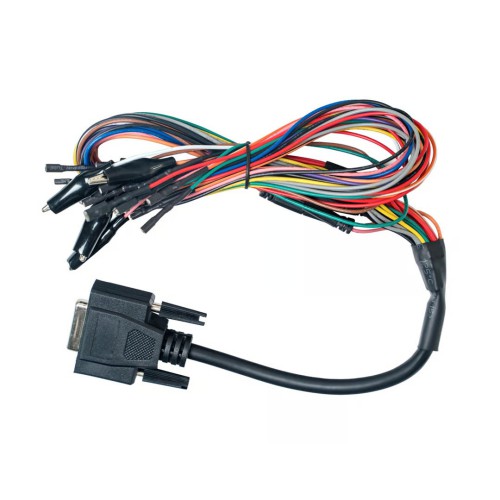

• Universal BOOT+BENCH cable

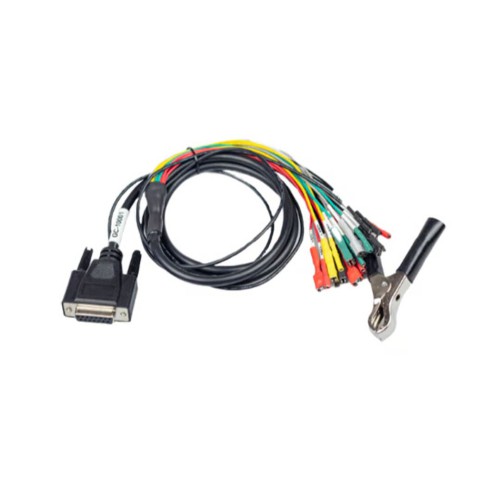

• Universal BENCH Cable for TCU

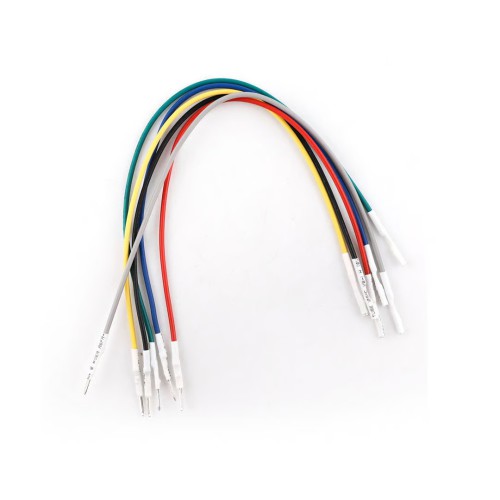

• MDG1 Micro Pin Adapter Cables

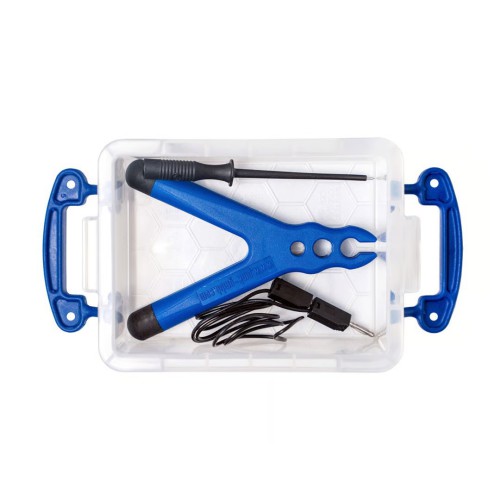

• Tripod probe positioning kit

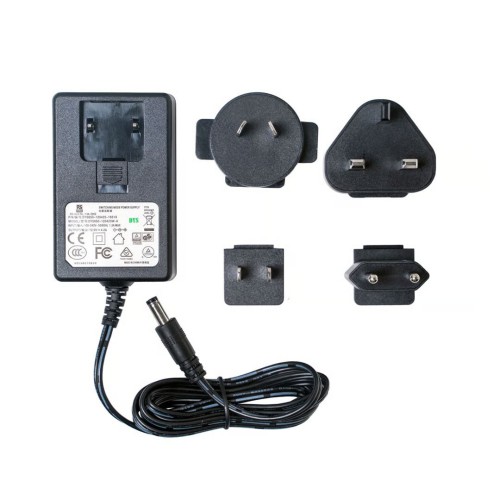

• 4.2A Power supply with EU/US/UK/AUS adapters
• kit contains one cable of each

bFlash ECU Programming Tool Master Version Features:

• OBD/BENCH/BOOT ECU+TCU read&write unencrypted files
• ECU+TCU DTC read/clear
• ECU+TCU Datalogging
• CAN Bus recording module
• Real-time tuning module

bFlash ECU Programming Tool Master Version Requirements


• An up-to-date version of Microsoft Windows 10 or 11
• Microsoft .NET 4.6.2
• Desktop/laptop PC running Microsoft Windows with x86 or x64 processor (Intel® Core™ i3 or up, Ryzen 3 or up)
• At least 1366x768 px screen resolution
• Minimum 4 GB RAM
• Minimum 2 GB of free disk space
• One free 2.0 USB port
• Internet access with 2 Mbps or higher bandwidth

bFlash is a unique revolutionary chip tuning tool for which combines functions of a flasher, diagnostic scanner, data logger, CAN bus analyzer and visualizer for WinOLS.

bFlash was created by BC Consulting, one of the leading suppliers of calibration software solutions for European cars. Since bFlash is more than just an ECU programming tool, it cannot be compared to any traditional flashers that lack many important features for tuning and for everyday use.

The bFlash developers studied OEM tools used by factory calibration engineers, their features and capabilities. On the basis of their specifications, they decided to create their own tool, equally advanced in terms of hardware, but with a simple and intuitive interface and user-friendly reference system.

bFlash advantages:

• High speed and safety at the level of OEM tools;
• Diagnostics, data logging and emulation for WinOLS;
• Easy to use interface;
• Built-in help system;
• Regular software updates;
• 5 years warranty.

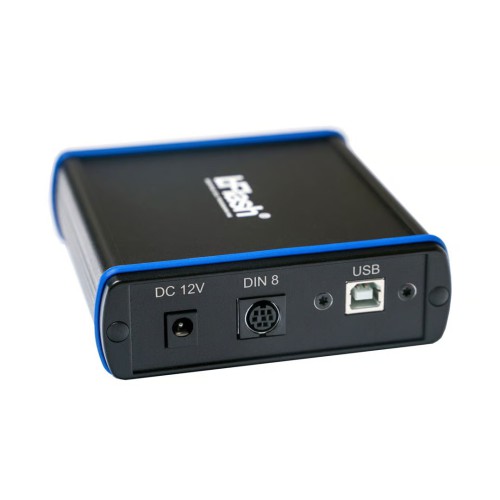

Hardware
At the heart of our hardware design you’ll find the NXP MPC57xx Microcontroller, it’s the same MCU used by several OEM programming and/or debugging tools which ensures ultra-fast data exchange with the car’s ECU. The remaining hardware components are used for the various programming methods that are supported by bFlash, like OBD CAN, BDM, Boot, DoIP Ethernet, Flexray, Jtag and many more.

Key components

Processor NXP MPC57xx (3 individual cores, 160Mhz);
Flexray: Dual TJA1080 A/B channel 10 mbit/s, with bus cold start ability;
DoIP: DP83848C PHY up to gigabit ethernet with integrated 1:1 magnetics;
CAN bus: Dual TJA1051 able to communicate imultaneously on 2 bus;
JTAG Buffers: logic shifter with logic bus protection and automatic 3.3/5V power supply switch. Up to 25 mhz;
USB: FTDI FT2232H.

Software
bFlash is a highly advanced and extremely reliable ECU programming tool. bFlash can read and write over 400 different ecu types, covering over 6000 different model/engine combinations. The programming is either done by OBD (CAN, K-Line, Ethernet), In Bench mode (connecting directly to the ECU without opening it), BDM (background debugging module), Bootmode, JTAG. bFlash unique feature — the developer mode which allows you to add your own (new) protocols and/or RSA keys for a specific ECU.

bDiag is a complete error code reader that has a native module for almost all car brands. bFlash will first give you the manufacturer specific code with description and where available also the OBD2 code. Thanks to DTC Finder function in the bManager, you can easily deactivate any of the found error codes in the ECU file.

bLog is a complete and fast solution to have access to manufacturer specific real time parameters. The module contains built-in presets to record only the required parameters and also supports factory protocols for most car brands. Thanks to the chart analysis feature in bManager, text information is converted to 2D and 3D graphics that are easy to view and analyze. Log files can be used both for tuning, as well as for diagnostics and error identification.

bSpy is a vehicle network spy tool, allowing you to trace virtually any bus communication in the car. It can be used for troubleshooting, diagnostics and repair but a more practical example of it’s use would be the capability to trace and save the communication and files that the OEM diagnostic tool is sending to the car.
