Produktbeschreibung

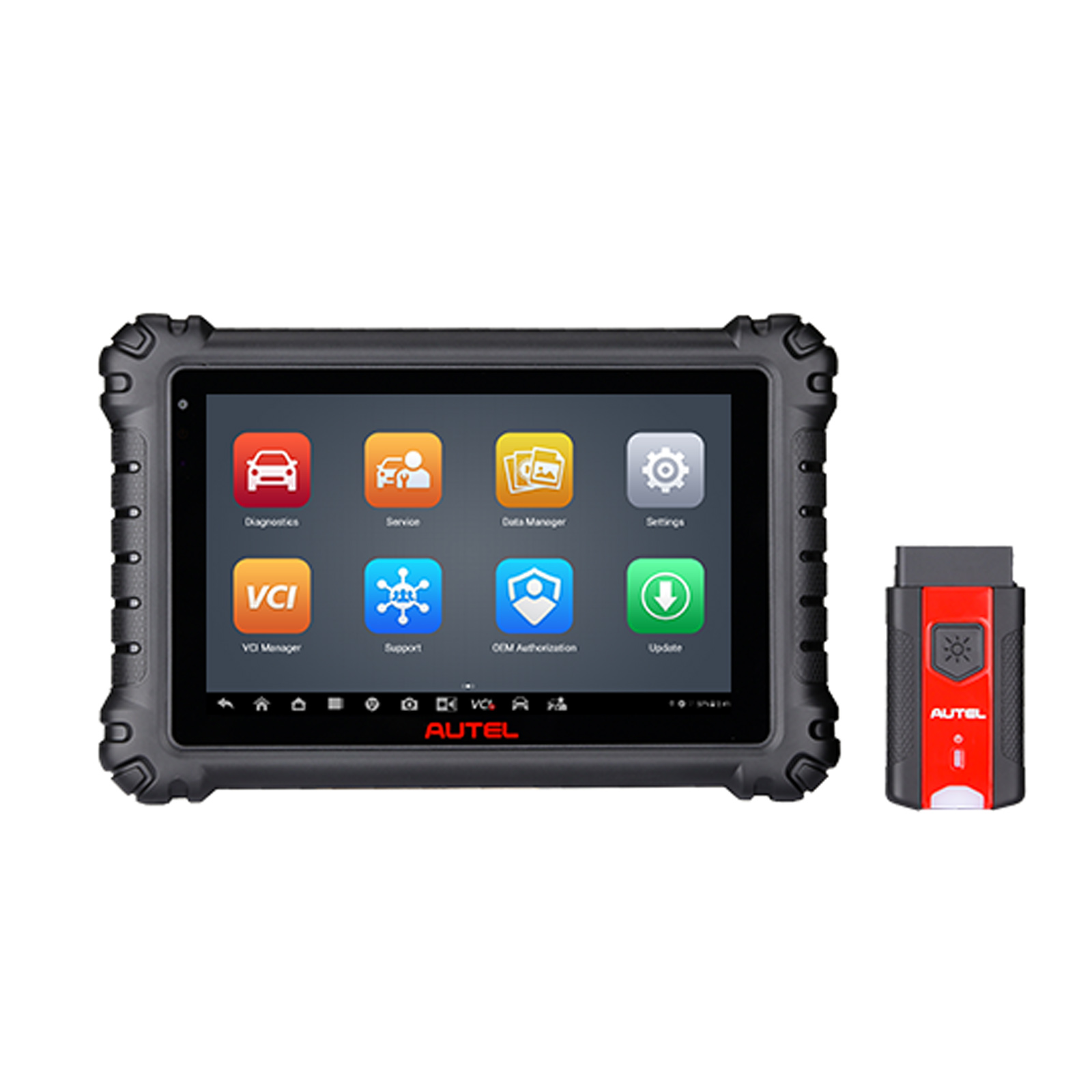

Autel MaxiCOM MK906S Pro
The MaxiCOM MK906S PRO is an advanced smart wireless diagnostics device providing specialized automotive diagnostic service for customers. Featuring the powerful octa-core processor, an 8.0-inch TFT-LED capacitive touchscreen, and long-distance wireless communication, based on the multitasking mobile operating system, and combined with the best possible coverage of OE-level diagnostics, the MK906S Pro performs comprehensive and efficient vehicle diagnostics and analysis.
Product Features:
Hardware:
8-inch, 1920 x 1200 high-resolution touchscreen tablet, Qualcomm 660 Octa-core processor with 128 GB storage and running Android 10.0 operating system.
Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera and 16 MP rear camera.
MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols
Software:
Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
AutoScan: Scan all available systems
Read/Erase Codes, View Freeze Frame and Live Data
Perform Active Tests (bi-directional controls), Coding and Adaptations
AutoVIN/Scan VIN for rapid vehicle identification
New Features(With additional purchase of the MaxiBAS BT506 battery and electrical system tester.)
Battery analyzation capability
Cloud-based Reports and Data Management
Product Specifications:
Operating System: Android 10.0
Processor: Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory: 4GB RAM & 128GB On-board Memory
Display: 8 inch TFT-LCD with 1920*1200 resolution & capacitive touch screen
Connectivity: WiFix2(802.11a/b/g/n/ac 2x2 MIMO)/BT v.2.1 + EDR/GPS/USB 2.0 (Two USB HOST Type A, one USB mini device)/HDMI 2.0/SD Card (Support up to 256GB)
Camera: Rear: 16 Megapixel, Autofocus with Flashlight Front:16 Megapixel
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone/Dual Speakers/3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 11600mAh 3.8V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage: 12V/3A Adapter
Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD): 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight: 2.18kg (4.81 lb.)
Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
Package includes:
1pc x main unit
1pc x MaxiVCI V200
