AUTEL MaxiSYS Ultra EV Advanced EV Diagnostics with MaxiFlash VCMI High-voltage System Diagnostics Battery Pack Diagnostics SOC & SOH Analysis
Sofort Kaufen: €4,999.00
Versand:
Kostenloser Versand
Express VersandserviceLieferzeiten: DHL:5-7 Arbeitstage. Yanwen: 7-12 Arbeitstage. See details »
Gewicht:
14.0KG
Paket:
68cm*20.5cm*49cm
( Inch: 26.7*8.05*19.24 )
Rückkehr:
Erstattung: innerhalb 30 Tagen. Der Kunde verträgt Versandkosten Read details »
Produktbeschreibung

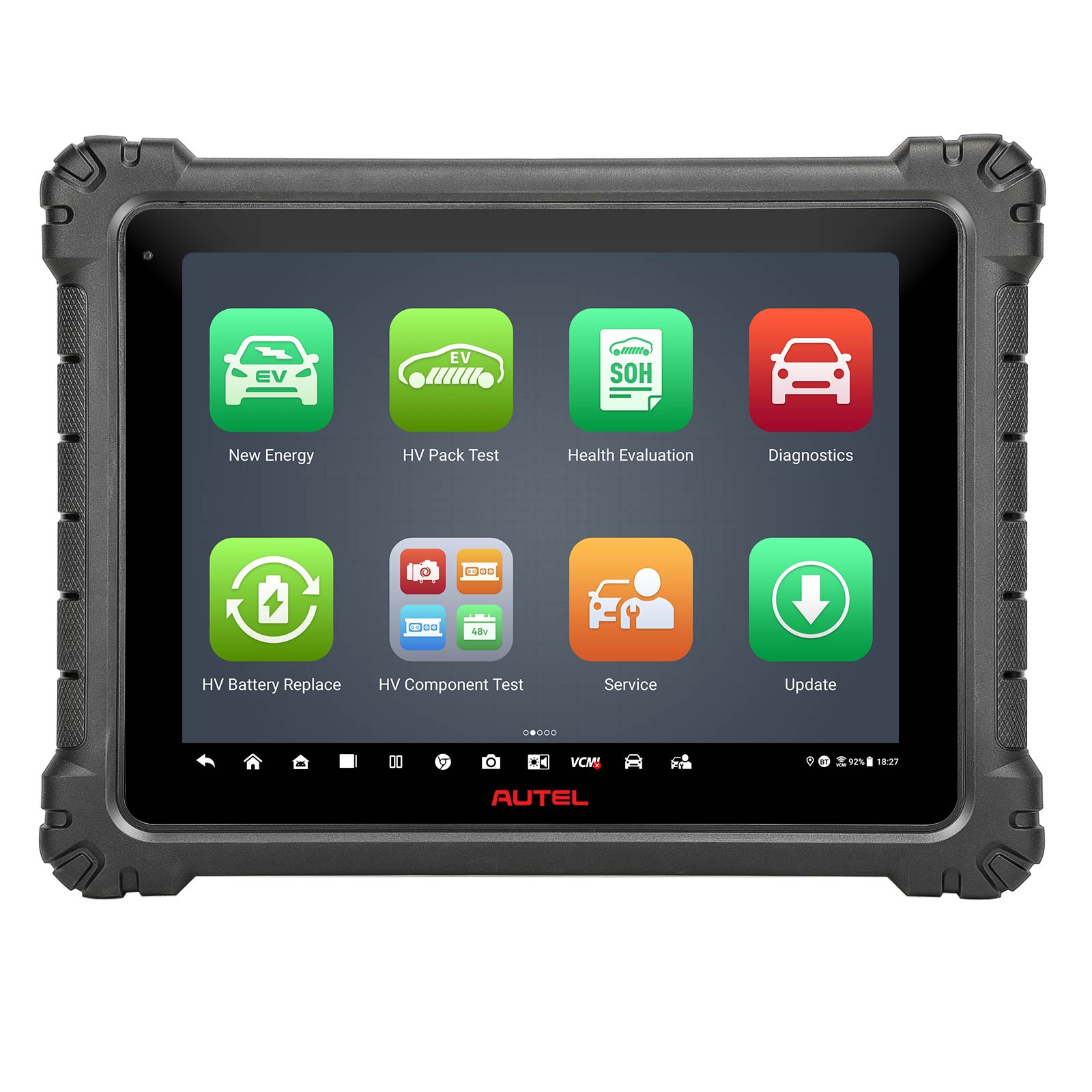

Autel Maxisys Ultra features a 13-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components
AUTEL MaxiSYS Ultra EV Advanced EV Diagnostics with MaxiFlash VCMI High-voltage System Diagnostics Battery Pack Diagnostics SOC & SOH Analysis

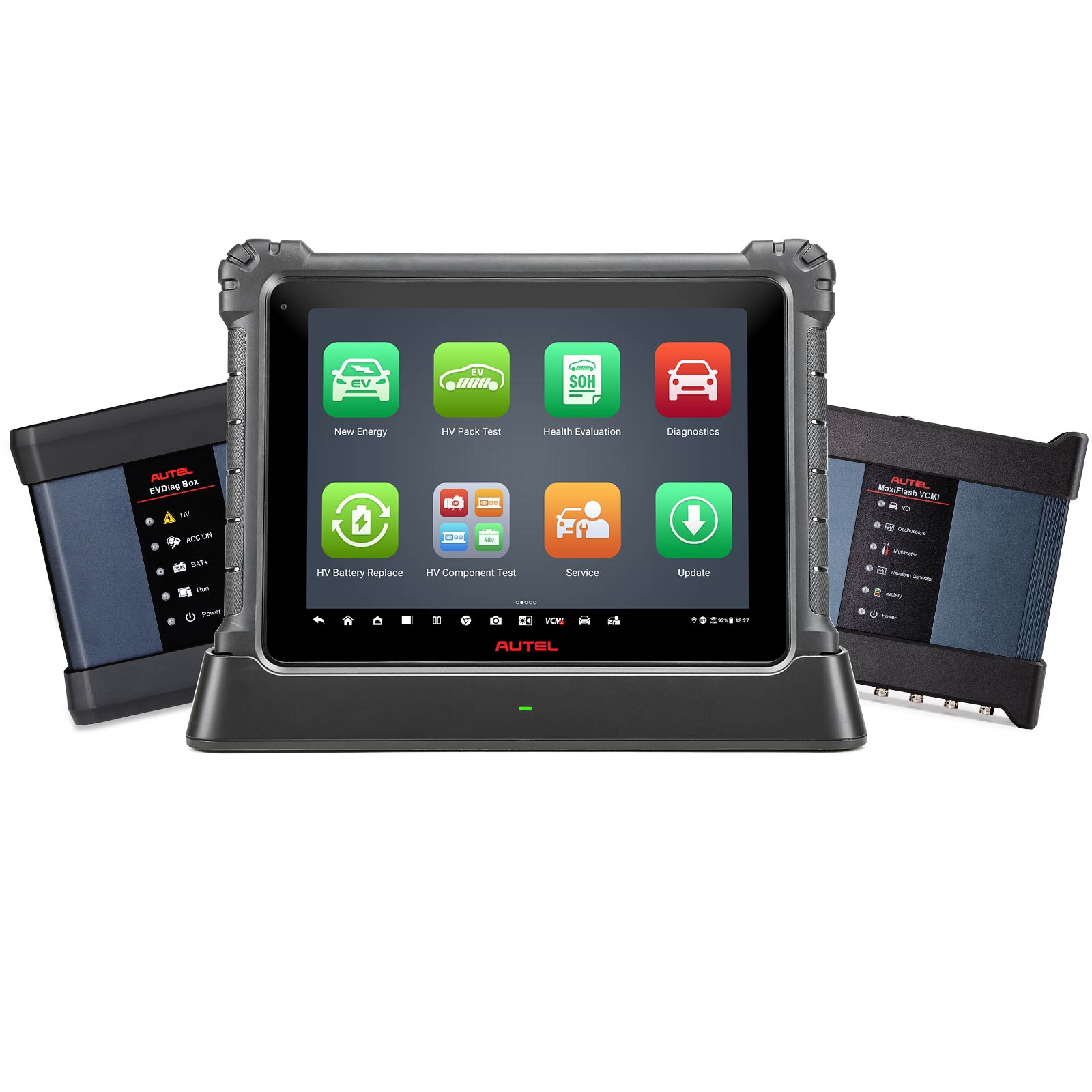

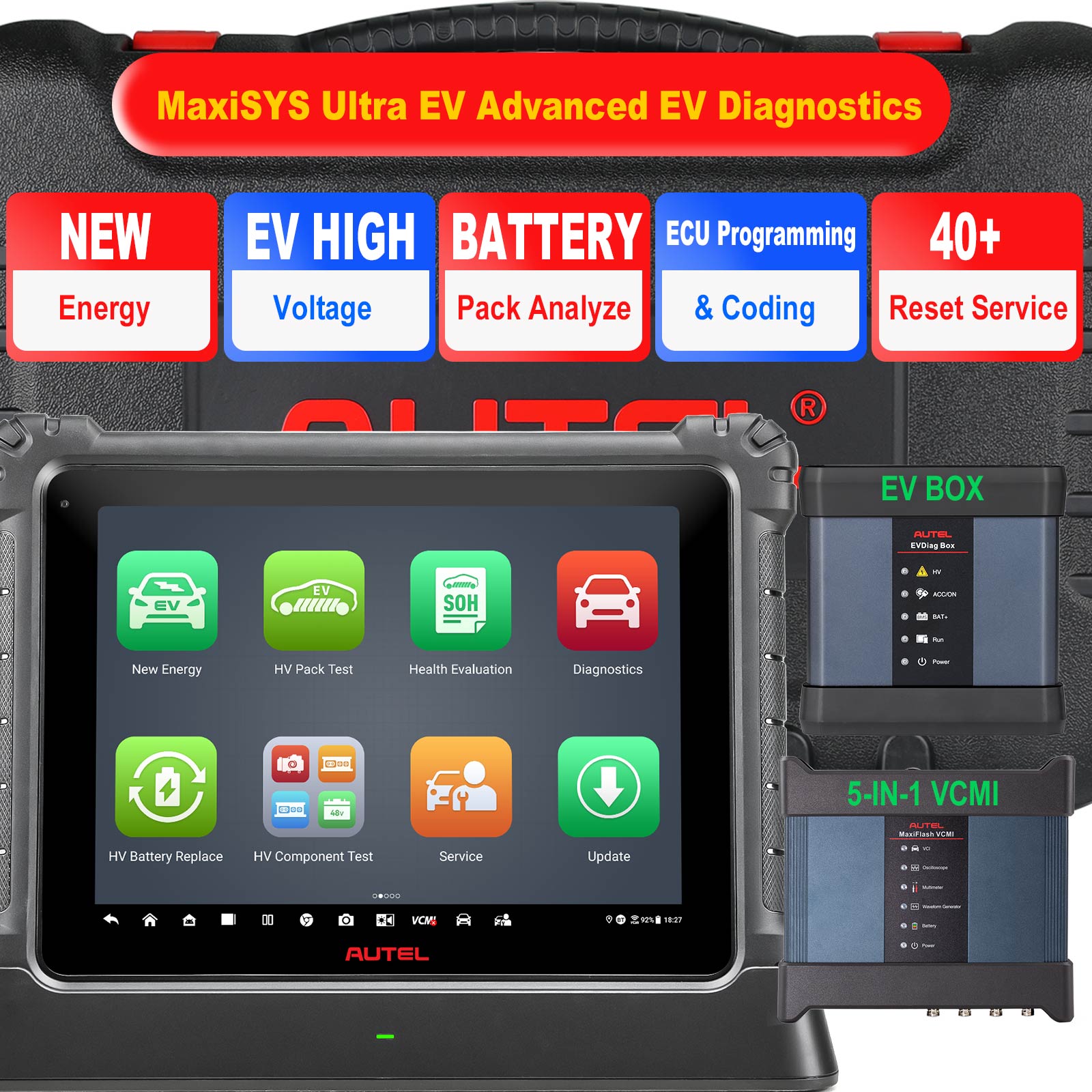

The MaxiSys Ultra EV is a new generation of advanced diagnostics for electric, hybrid, gas, and diesel vehicles. The Ultra EV provides a comprehensive analysis of electric and hybrid vehicles with expanded topology mapping and battery pack analysis that can be performed via OBD or directly with included specialty cables and jumpers. The Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing. The 12.7-inch Ultra EV touchscreen tablet comes equipped with the MaxiFlash VCMI (5-in-1) measurement device, Bluetooth-enabled vehicle communication interface and J2534 pass-thru programming device, and a dedicated EVDiag box.
Ultra Highlights:
1. One Year Free Update Online on Autel Official Website
2. Support New VCI Protocols: D-PDU/ SAE J2534/ RP1210/ DoIP/ CAN FD
3. Updated Version of MK908P/ MS908P/ Elite/ MS909/ MS919; All-in-one comprehensive scanner for large repair workshops;
4. Advanced VCMI 5-In-1 Device: VCI, OSCILLOSCOPE, MULTIMETER, WAVEFORM GENERATOR, CAN BUS CHECK
5. Provide Latest OE Level Coverage for 99.99% Makes in The Market: for more than 80 US Domestic, Asian and European vehicles, including supercar
6. Split-Screen Multi-Application Navigation with Super Fast Running Speed, Greatly Improving Your Work Efficiency;
Supported Language: English Only
Ultra Highlights:
1. One Year Free Update Online on Autel Official Website
2. Support New VCI Protocols: D-PDU/ SAE J2534/ RP1210/ DoIP/ CAN FD
3. Updated Version of MK908P/ MS908P/ Elite/ MS909/ MS919; All-in-one comprehensive scanner for large repair workshops;
4. Advanced VCMI 5-In-1 Device: VCI, OSCILLOSCOPE, MULTIMETER, WAVEFORM GENERATOR, CAN BUS CHECK
5. Provide Latest OE Level Coverage for 99.99% Makes in The Market: for more than 80 US Domestic, Asian and European vehicles, including supercar
6. Split-Screen Multi-Application Navigation with Super Fast Running Speed, Greatly Improving Your Work Efficiency;
Supported Language: English Only
Product Features:
Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles.
Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data.
Comprehensive diagrams of high-voltage system block, components and sockets; Step-by-step system disassembly instructions.
State of Charge and State of Health analysis for true battery condition.
Battery pack analysis can be performed via OBD or analyze the pack directly with included specialty cables and jumpers; the Ultra EV screen displays detailed graphics and in-depth connection guidance to provide safe and secure testing.
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error.
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize.
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Product Comparison Between MS909EV and Ultra EV:
Product Comparison Between MS909EV and Ultra EV:
| Model | MS909EV | Ultra EV |
| Connection | Bluetooth MaxiFlash VCI | Bluetooth MaxiFlash VCMI |
| Screen | 9.7inch touchscreen | 12.9inch touchscreen |
| Battery | 15,000mAh | 18,000mAh |
| Processor | 2.2GHz+1.8GHz octa-core | 2.2GHz+1.8GHz octa-core |
| Memory | 128GB SSD/ 4GB RAM | 256GB SSD/ 4GB RAM |
| Camera | 16MP rear/16MP front | 16MP rear/5MP front |
| Docking Station | × | Included |
| EVDiag Box | Included | Included |
| Operating System | Android 10.0 | Android 7.0 |
| Automatic Detection | Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
Auto-VIN/Auto-Scan Scan VIN/Plate Scan |
| Secure Gateway Access | Authorized FCA Access With AutoAuth account |
Authorized FCA Access With AutoAuth account |
| License Plate Reader | Available on select vehicles | Available on select vehicles |
| Vehicle Coverage | U.S., European and Asian electric, gas and diesel, and hybrid vehicles | U.S., European and Asian electric, gas and diesel, and hybrid vehicles |
| OBDII Test Modes | All 10 test modes | All 10 test modes |

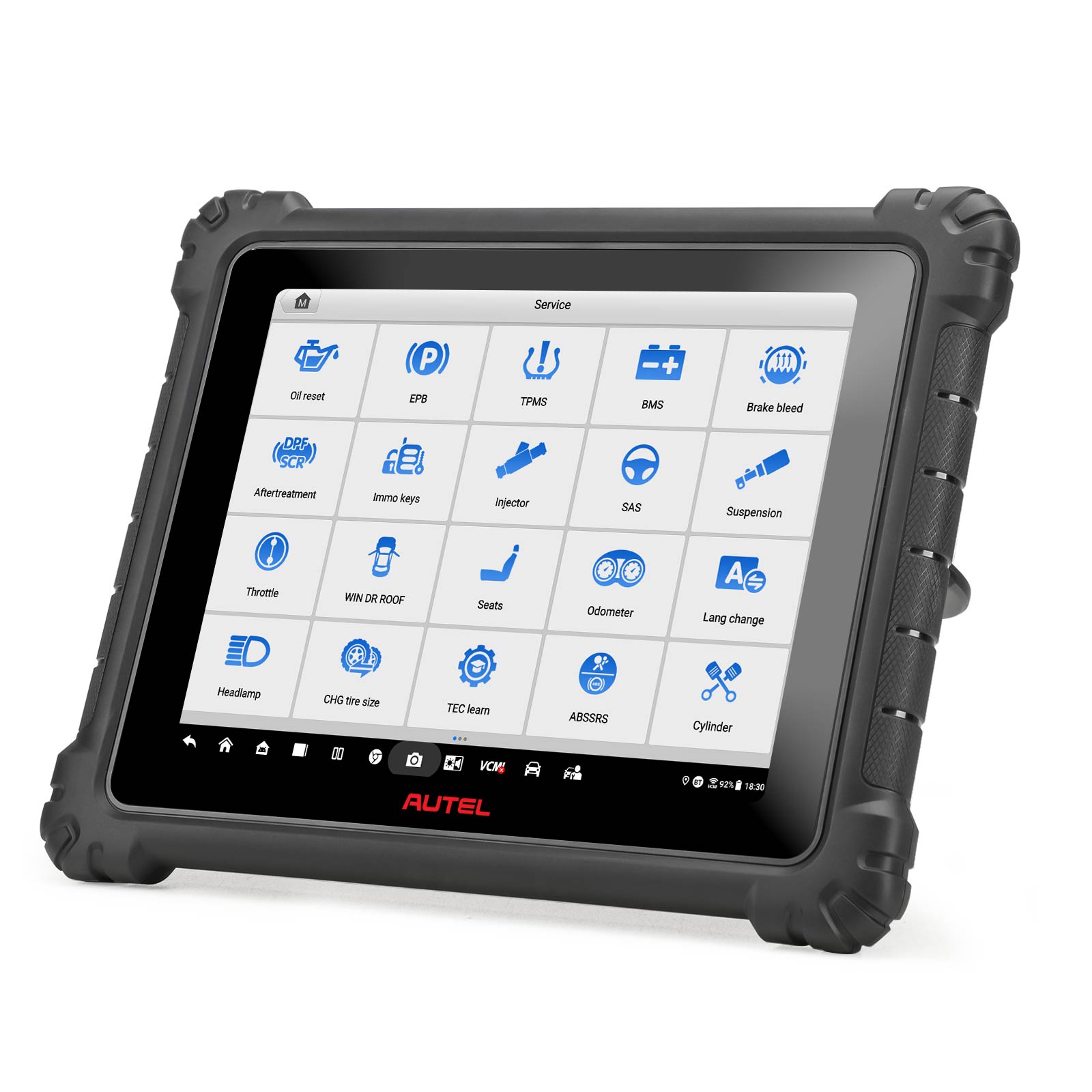

| Service Resets | 36 service features | 36 service features |
| Diesel PM | Reset diesel emissions Light&medium duty vehicles |
Reset diesel emissions Light&medium duty vehicles |
| System Diagnostics | Access all modules in all systems | Access all modules in all systems |
| High-voltage System Diagnostics | Diagrams of high-voltage system block | Diagrams of high-voltage system block |
| Battery Pack Diagnostics | SOC and SOH analysis | SOC and SOH analysis |
| Component Activations | Bi-directional control | Bi-directional control |
| Enhanced Functions | Coding&adaptations | Coding&adaptations |
| ADAS Calibration | ADAS Upgrade & Frame Kit Purchase required |
ADAS Upgrade & Frame Kit Purchase required |
| Cloud Services | Remote programming & Report storage | Remote programming & Report storage |
| Topology Module Mapping | Color coded all system status screen on supported vehicles | Color coded all system status screen on supported vehicles |
| Oscilloscope | × | VCMI 5-in-one devic, VCI multimeter, waveform generator, CAN Bus tester |
Product Specifications:
Operating System: Android 7.0
Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory: 4GB RAM & 256GB On-board Memory
Display: 12.7 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (Two USB HOST Type A, one USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
Camera: Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Power and Battery: 18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)

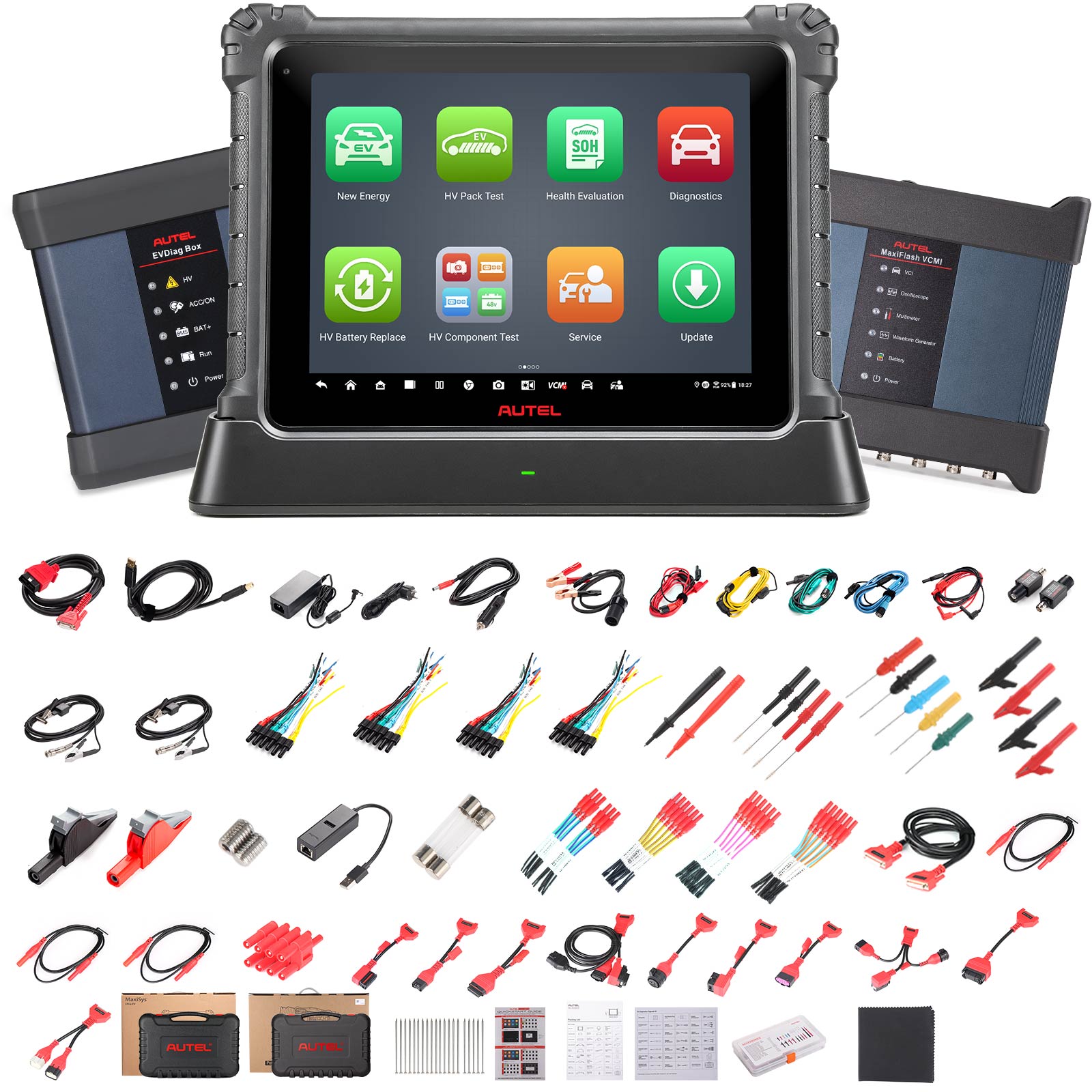

Package includes:
1pc x main unit
1pc x MaxiFlash VCMI

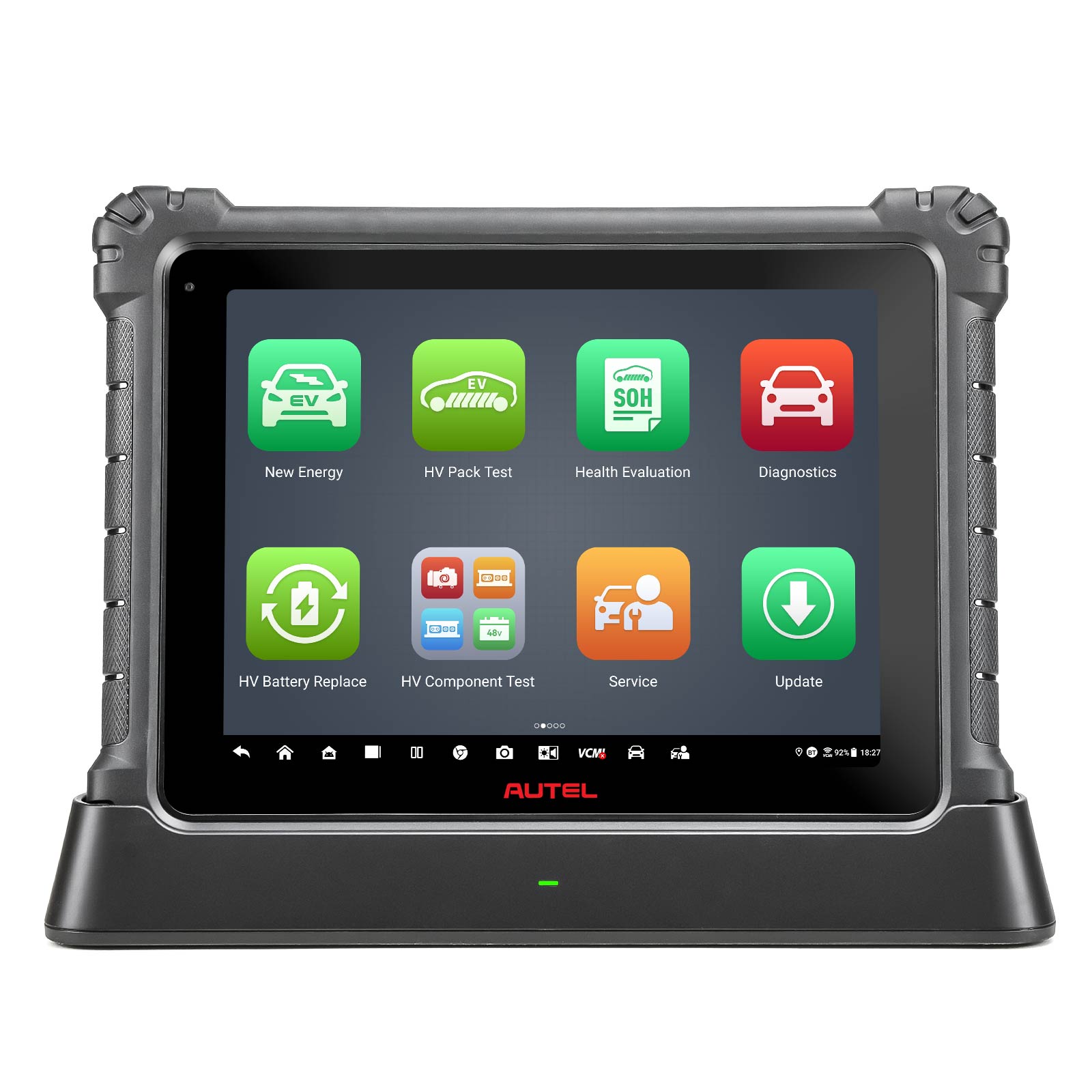

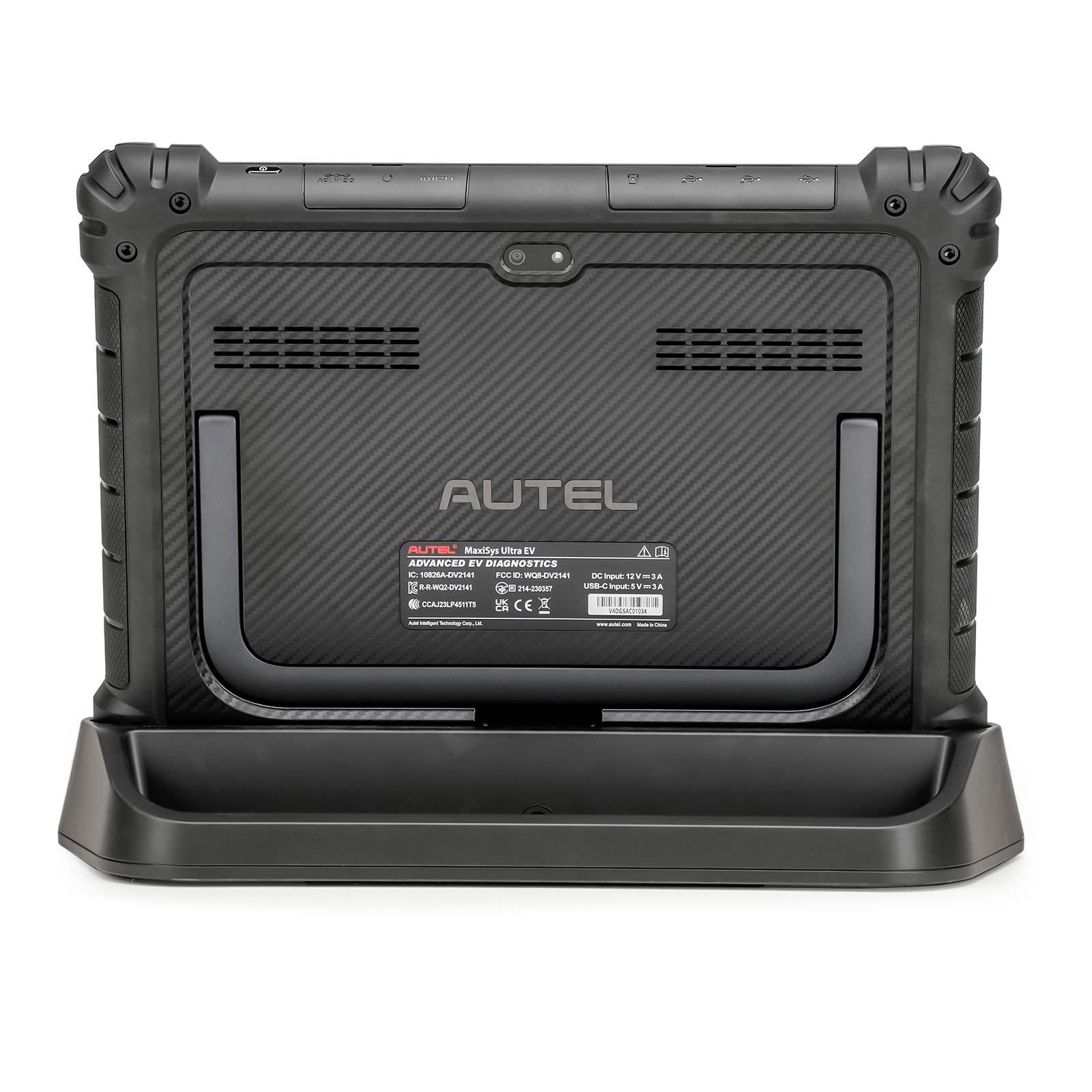

1pc x docking station
1pc x main cable V2.0
1pc x USB 2.0 cable V2
1pc x AC/DC adapter(12V)
1pc x auxiliary power outlet adapter
2pcs x light fuses 6x30mm
1pc x clamp cable
4pcs x scope test lead
2pcs x multimeter test lead
2pcs x secondary ignition pickup
2pcs x attenuator 20:1
4 x 6pcs breakout leads
1 x 2pcs multimeter probe
2 x 2pcs flexible back-pinning probe
1 x 5pcs back-pinning probe red/green/blue/yellow/black
2pcs x back-pinning probe screw
20pcs x back-pinning probe replacement needle
2 x 2pcs small crocodile clip
1 x 2pcs large dolphin clip
1pc x quick reference guide
1pc x packing list
1pc x soft cloth
1pc x tool box
1pc x USB to Ethernet adapter
1pc x carrying case 687x170x470mm
EV Diagnostics Upgrade Kit
1pc x EVDiag box
6pcs x breakout lead 1
6pcs x breakout lead 2
6pcs x breakout lead 3
6pcs x breakout lead 4
1pc x EVDiag box main cable BPTC0001/01
3pcs x breakout lead extension cord
4pcs x dual banana plug
1pc x adapter BPTC0101/01
1pc x adapter BPTC0102/01
1pc x adapter BPTC0103/01
1pc x adapter BPTC0201/01
1pc x adapter BPTC0202/01
1pc x adapter BPTC0203/01
1pc x adapter BPTC0204/01
1pc x adapter BPTC0205/01
1pc x adapter BPTC1101/01
1pc x adapter BPTC1102/01
1pc x DB25 snake cable BPTJ0001/01
1pc x packing list
1pc x carrying case
