Produktbeschreibung

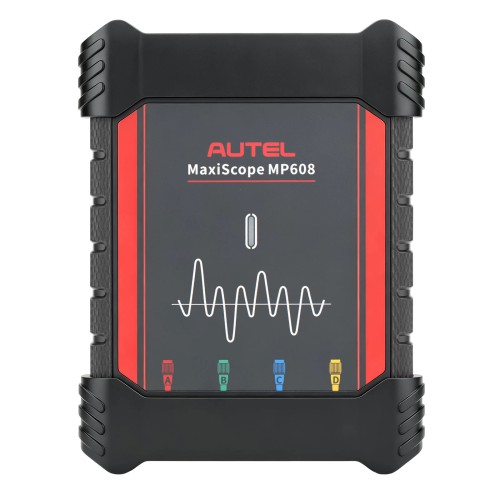

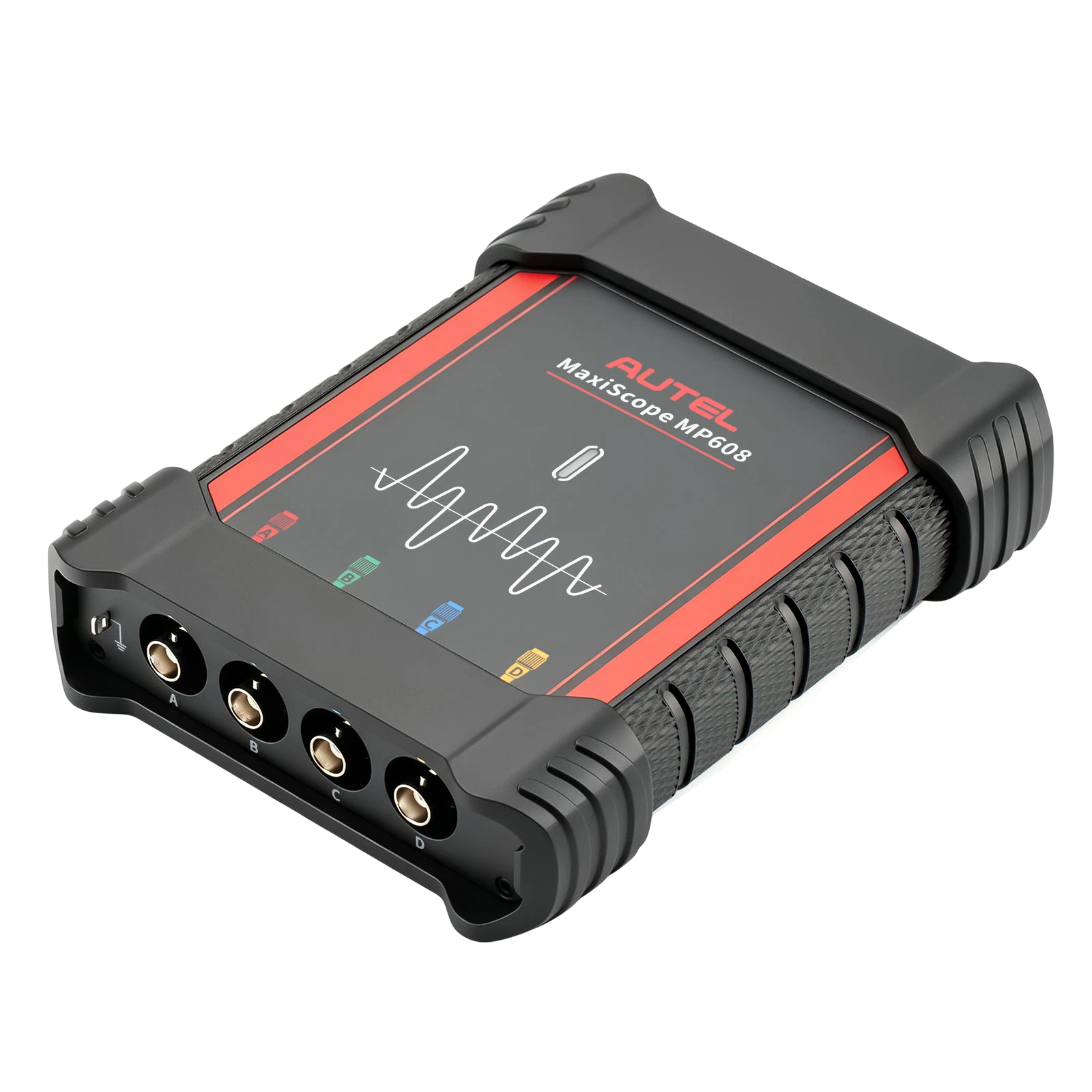

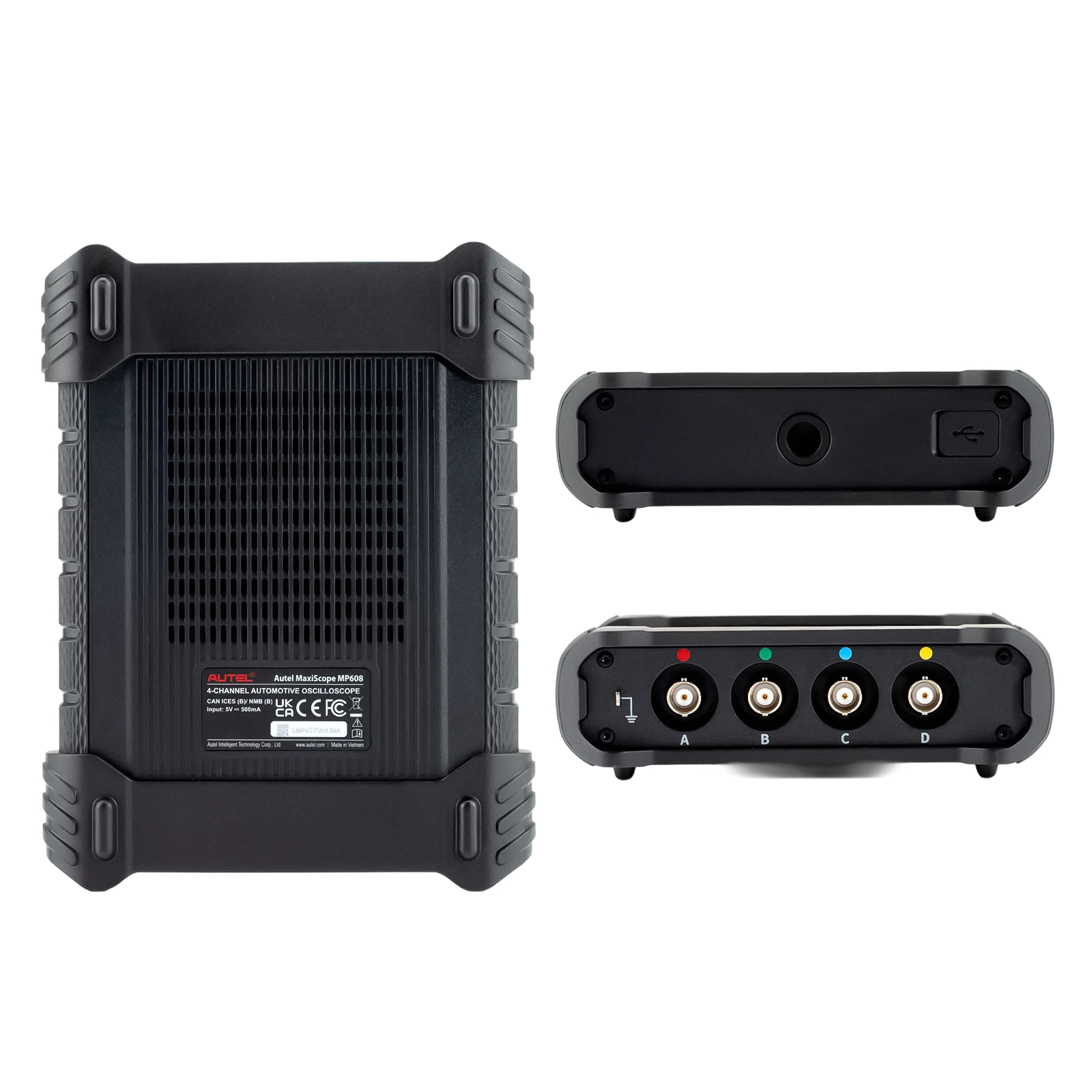

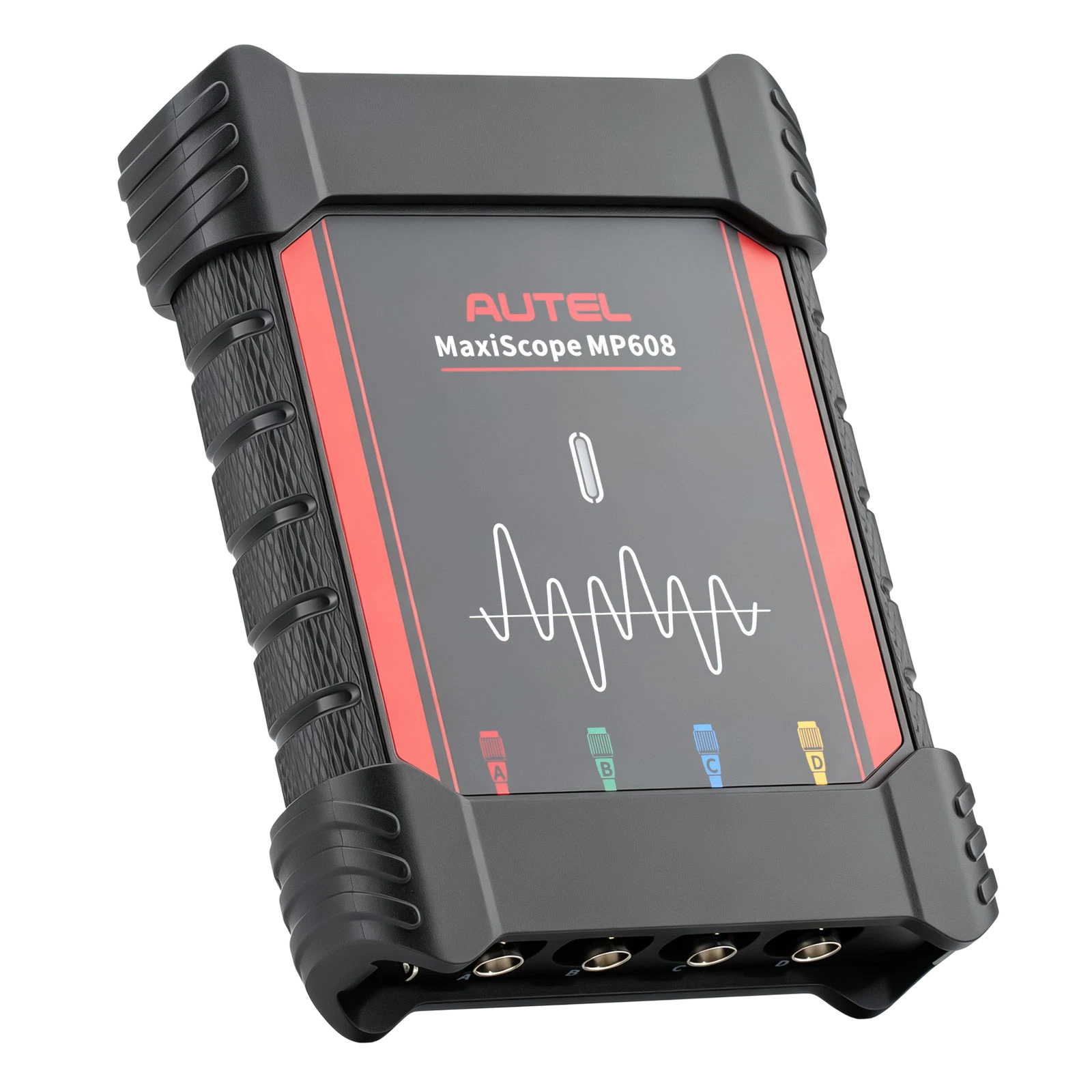

AUTEL MaxiScope MP608 4-Channel Automotive Oscilloscope for Advanced Vehicle Electrical Diagnostics
AUTEL MaxiScope MP608 4-Channel Automotive Oscilloscope for Advanced Vehicle Electrical Diagnostics

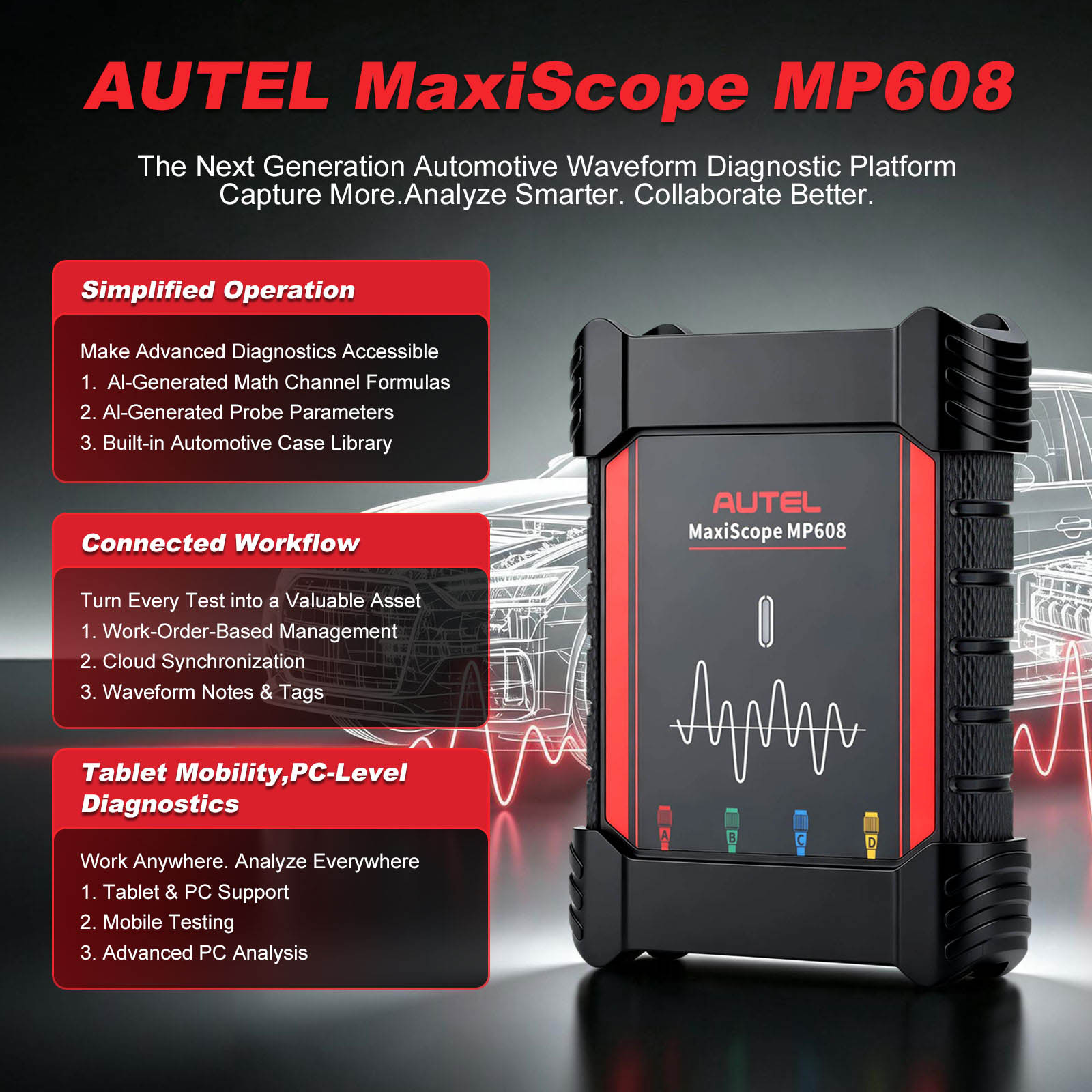

Autel MaxiScope MP608 is a professional 4-channel automotive oscilloscope that transforms a Windows PC or compatible MaxiSYS tablet into a powerful waveform diagnostic platform. Featuring 12-bit resolution and ±1% measurement accuracy, the MP608 delivers precise signal capture for advanced electrical, electronic, and network diagnostics. Designed to simplify complex troubleshooting, it offers advanced trigger actions for intermittent fault detection, customizable math channels, serial bus decoding, and guided automotive test procedures. Compatible with Autel's Lastest-Generation Tablets, including MaxiSYS MS906 MAX, MS906PRO2-TS, MS909S II, MS908CV II, MS909CV, and Windows PCs, the MP608 provides technicians with a complete solution for analyzing vehicle signals, identifying root causes faster, and improving diagnostic confidence. Covered by a one-year limited warranty.

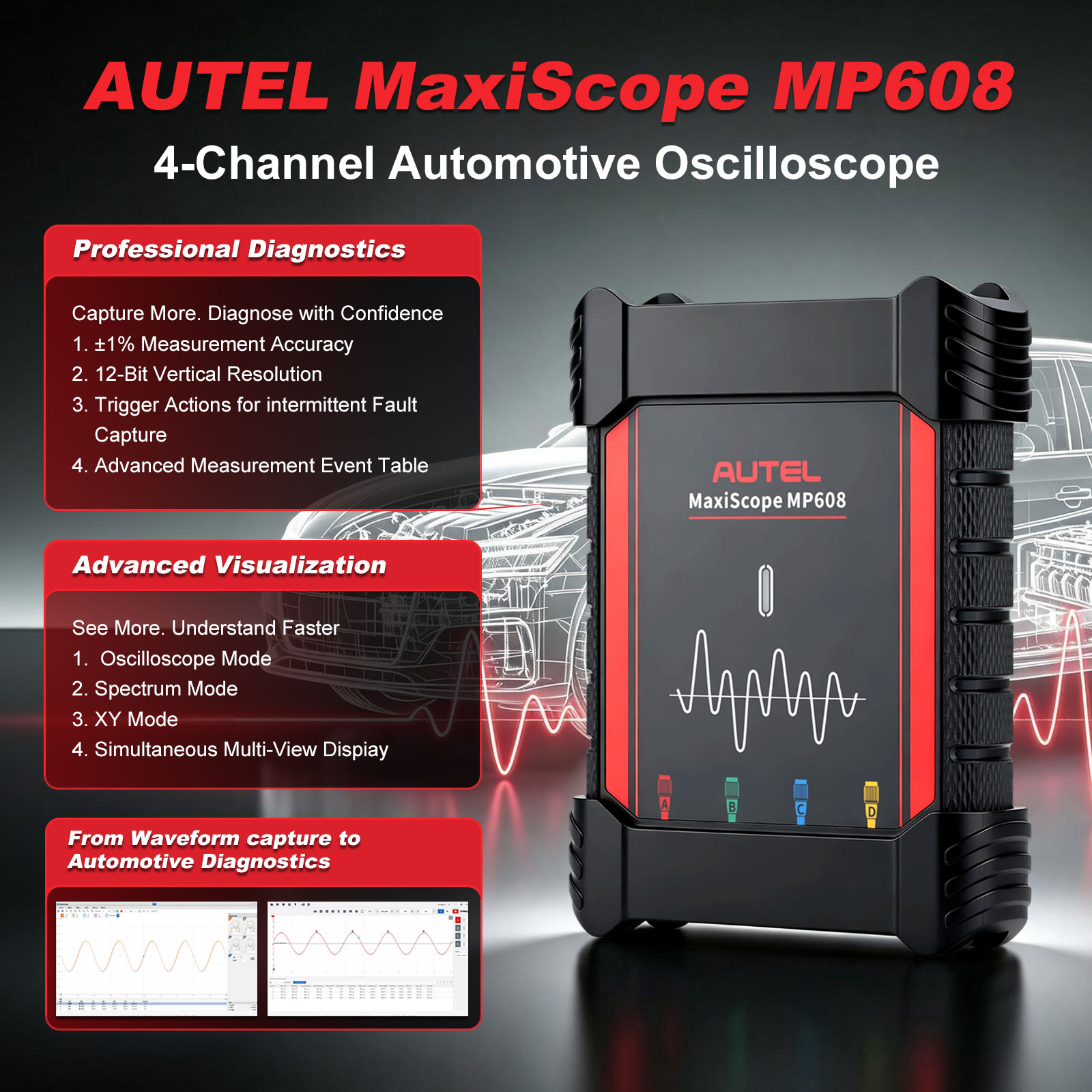

Product Features:

Compatible with Autel's Lastest-Generation Tablets, including MaxiSYS MS906 MAX, MS906PRO2-TS, MS909S II, MS908CV II, MS909CV,  and Windows PC.
12-Bit Resolution with ±1% Measurement Accuracy for precise waveform capture and analysis.
Advanced Trigger Actions automatically capture intermittent and hard-to-reproduce faults.
Custom Math Channels simplify complex waveform calculations and signal analysis.
Automatic Probe Configuration reduces setup time and minimizes configuration errors.
Built-In Automotive Test Library with guided procedures, reference waveforms, and connection diagrams.
Serial Bus Decoding for multiple protocols. including CAN, CAN FD, LIN, FlexRay, UART, and I²C.
Complete Diagnostic Kit Included with test leads, ignition pickup, probes, attenuators, carrying case, and accessories.
Free online software update through the Internet

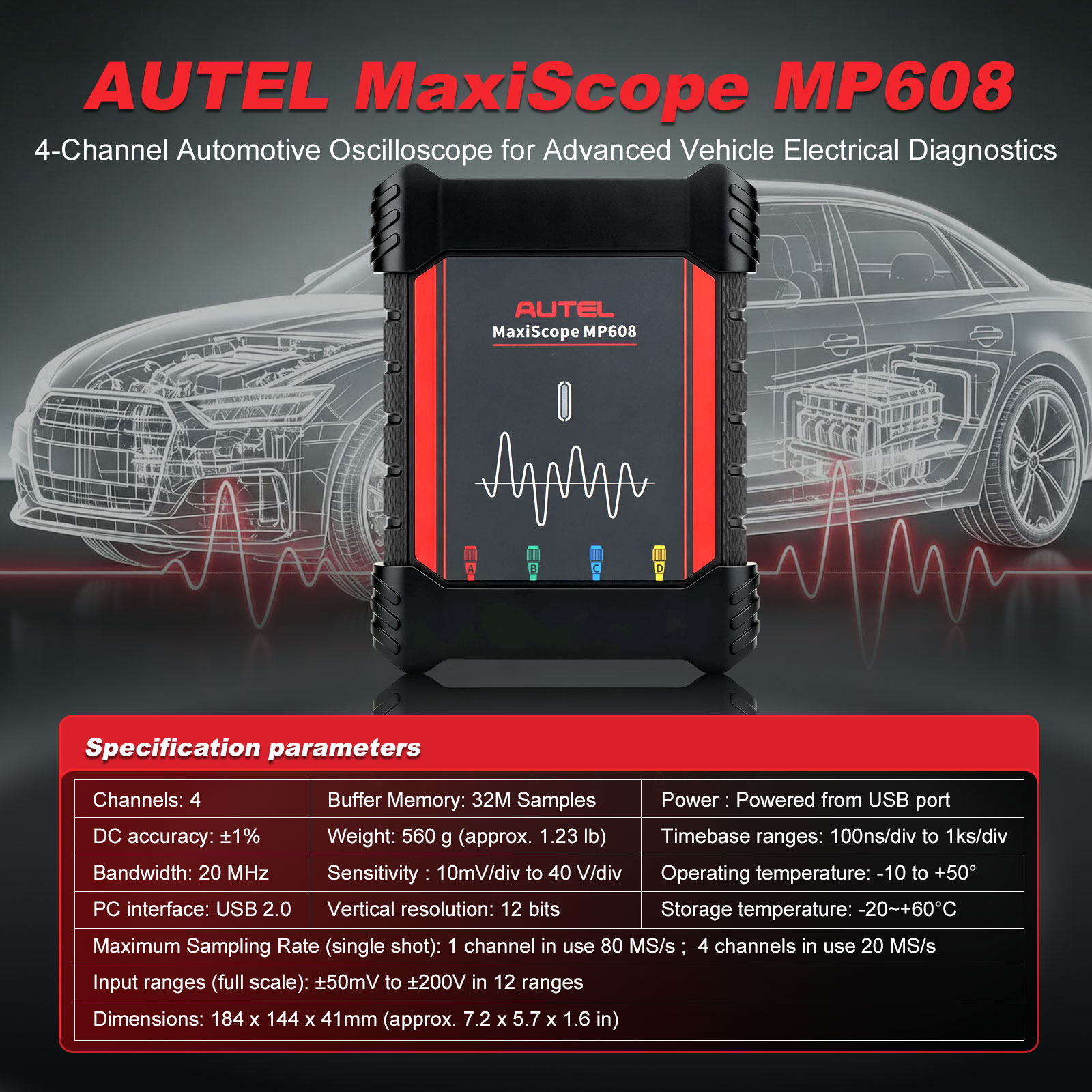

Product Specifications:

Channels: 4
Vertical resolution: 12 bits
DC accuracy: ±1%
Sensitivity : 10mV/div to 40 V/div
Input ranges (full scale): ±50mV to ±200V in 12 ranges
Bandwidth: 20 MHz
Buffer Memory: 32M Samples
Timebase ranges: 100ns/div to 1ks/div
Maximum Sampling Rate (single shot): 1 channel in use 80 MS/s ;  4 channels in use 20 MS/s
PC interface: USB 2.0
Power requirements: Powered from USB port
Dimensions: 184 x 144 x 41mm (approx. 7.2 x 5.7 x 1.6 in)
Weight: 560 g (approx. 1.23 lb)
Operating temperature: -10 to +50°
Storage temperature: -20~+60°C

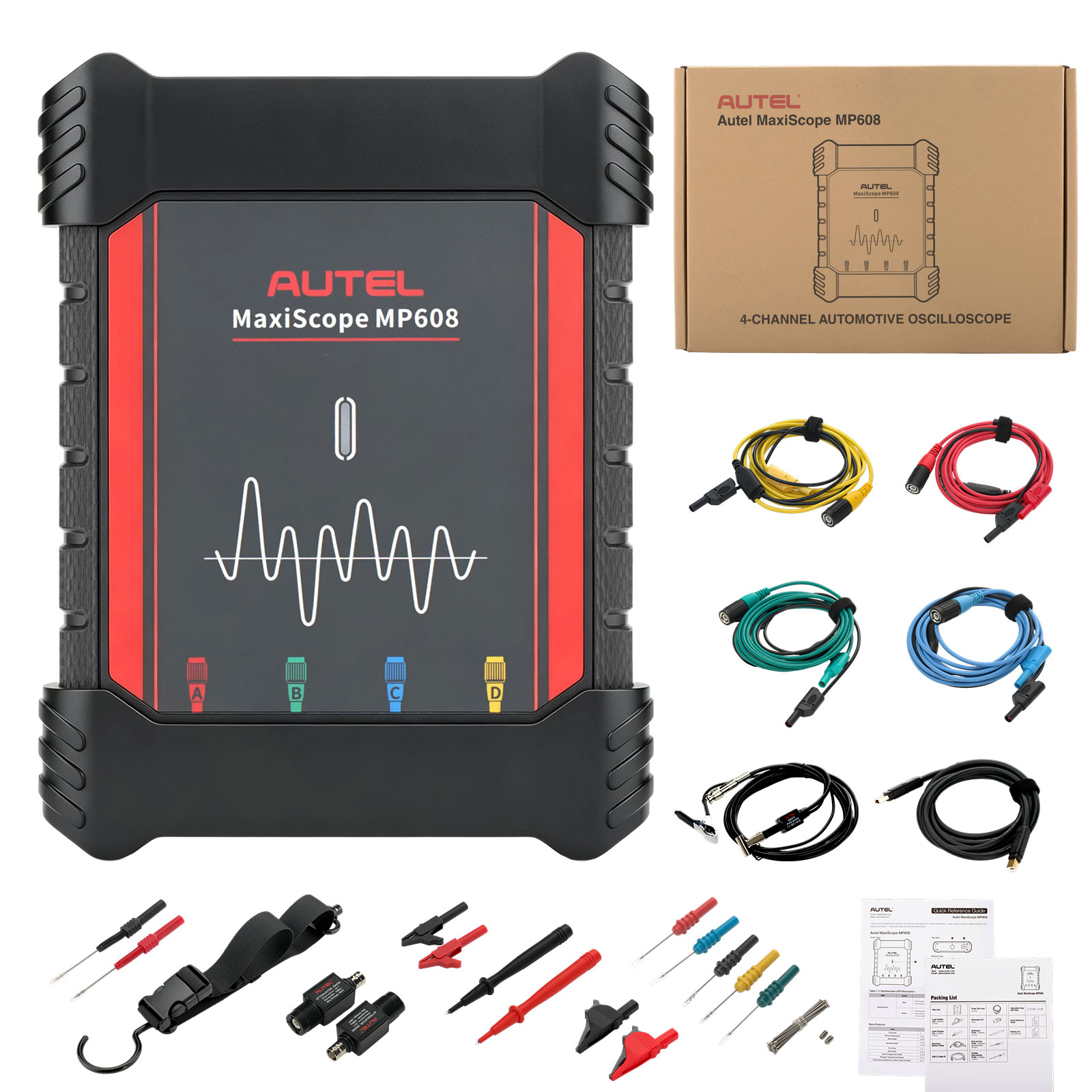

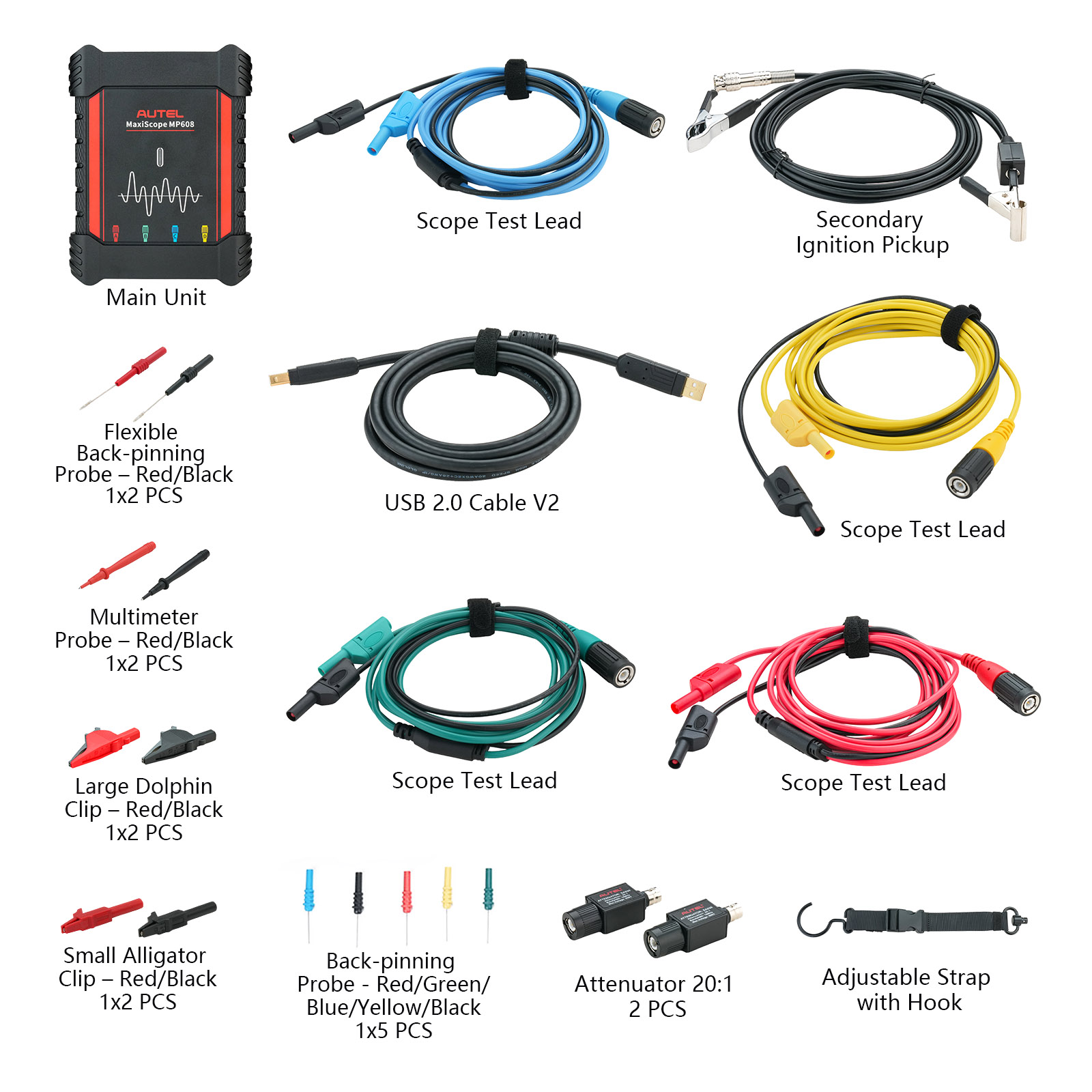

Package includes:

1pc x main unit
4pcs x scope test leads

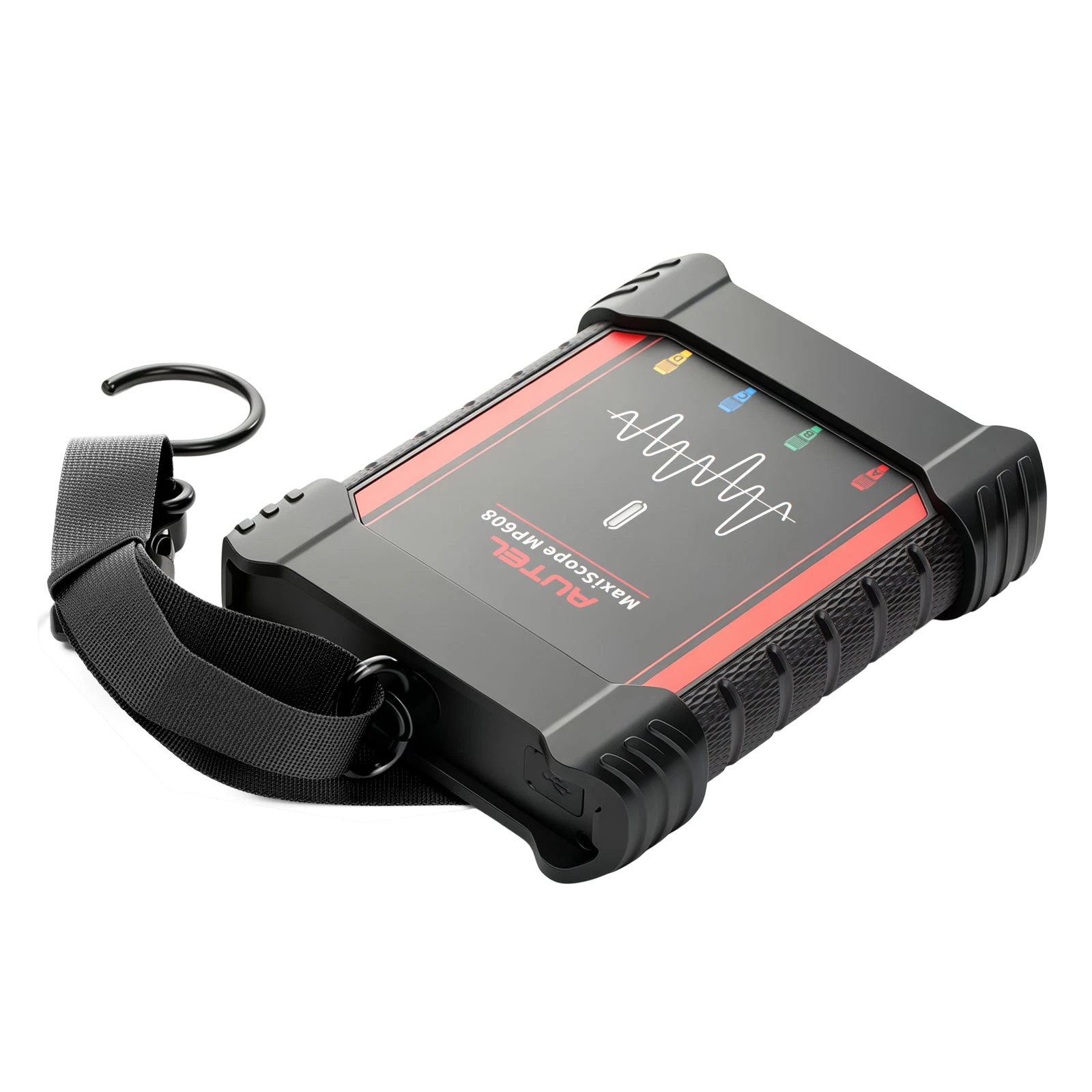

1pc x adjustable strap with hook
2pcs x large dolphin clips red/black
2pcs x attenuator 20:1
2pcs x small alligator clips red/black
2pcs x multimeter probes red/black
1pc x secondary ignition pickup
5pcs x back-pinning probe red/green/blue/yellow/black
2pcs x flexible back-pinning probe red/black
1pc x USB 2.0 cable V2
1pc x packing list
1pc x quick reference guide
