Produktbeschreibung
- IM608 II improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI.
- Add bulit-in DoIP and CAN FD protocol (don’t need converter)
- Support remote expert function
- EU Version,EU Ship and 2 Years Free Update

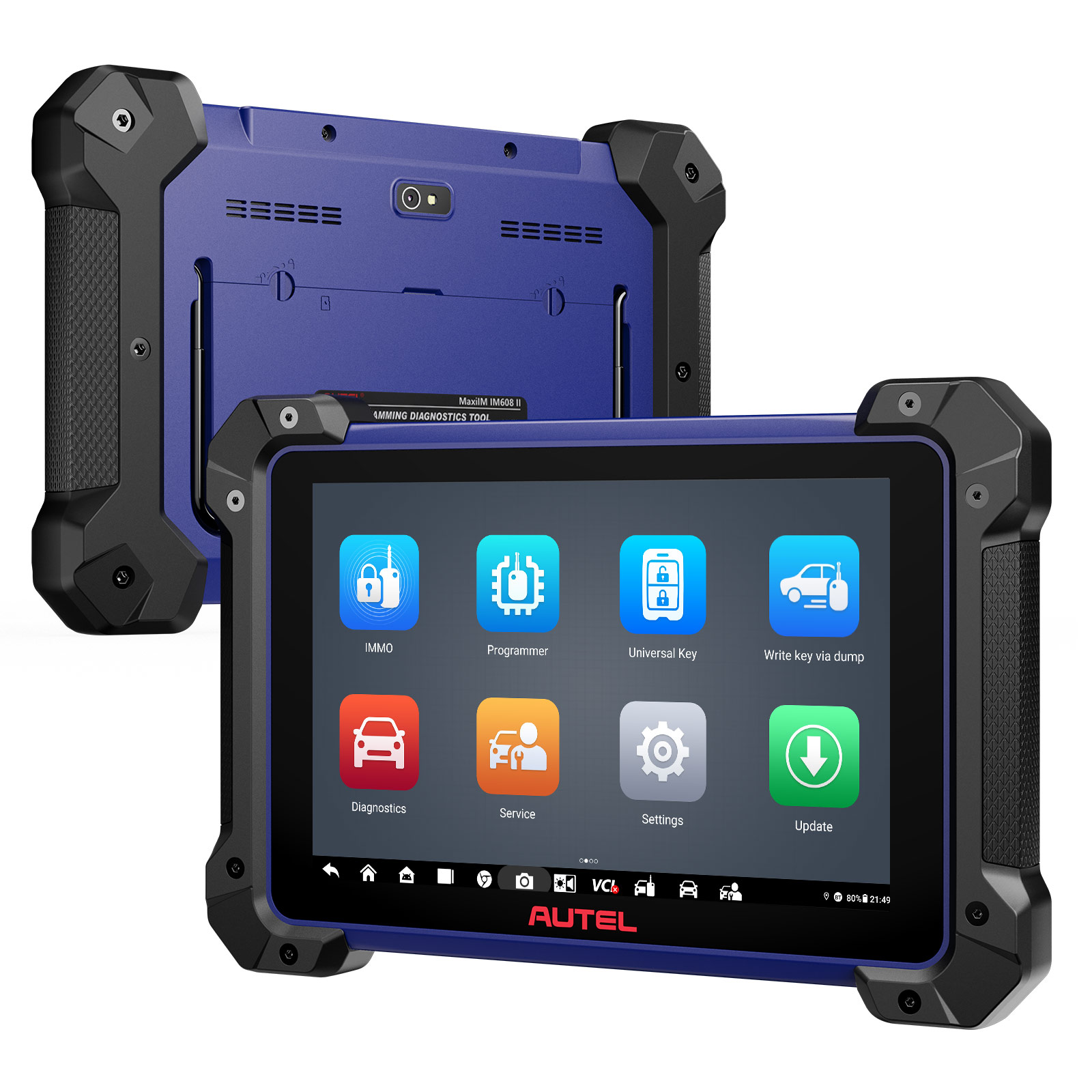

Autel MaxiIM IM608 II (IM608 PRO II) Automotive All-In-One Key Programming Tool All key Lost No IP Limitation
Autel IM608 II is the most advanced key programming toolthat combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one tablet. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.
Note: MaxiIM IM608ProⅡ/IM608SⅡ/IM608Ⅱ is specifically designed for legal automotive repairs. This requires users to have legitimate access to the vehicle, either by legally having the vehicle key, or having the vehicle owner’s permission using the key.
2 Years Free Update
Highlights:
- IM608 II = IM608 PRO II=IM608S II
- 10.1-inch LCD Capacitive Touchscreen
- Ambient Light Sensor – detects ambient brightness
- No Area/IP Restrictions, You Can Used It All Around the World without Limitation
- Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration
- 2 Years Free Update Online (After 2 Years, IM608 II Software Subscription Cost 772EUR/ Year)
- Smart Mode and Expert Mode Solution In One Tool to Easy Operation, Works for 85% Cars In the Wordwide, Include BMW, BENZ, VW, AUDI etc
- Works for 85% cars in the worldwide, Including BMW, BENZ, VW, AUDI, etc. make your work simple and easier, Best Choice for Locksmith and Workshop
- Support Multi-Language: Both Diagnostic Software and IMMO Software Support Multi-Language. (The default language is English, the language can be changed into German, Swedish, Italian, Portuguese, French,Russian,etc.)
- EU Vesion,EU Ship
Extended modules(Optional):
- with AUTEL APB112 Smart Key Simulator: for Mercedes Benz All Key Lost
- with Autel Toyota 8A Blade AKL Kit: for Programming of Toyota/ Lexus/ Scion 8A Blade Keys
- with Autel G-BOX3: Offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 CUs and supports on-vehicle and on-bench Fast Mode in Mercedes-Benz All Keys Lost scenario.
- with Autel APB130 Adapter: for VW MQB NEC35XX Add Key
- with Autel MV108/MV108S/MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.
Unable to activate SGW license, currently only available to purchase FCA
What's the difference between IM608 II and IM608?
- IM608/Pro II has improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI.
- Supports CAN protocol read and write without a password
- Add bulit-in DoIP and CAN FD protocol (don't need converter)
- Chip Emulation, Ignition coil detection(No need APB112)
- Add new vehicle identification methods such as VIN Scan & License Scan
IM608 II vs IM608 Pro vs IM508S vs IM508
Item |
|
Autel IM508
|
Autel IM508S
|
Autel IM608 Pro
|
Autel IM608 Pro II
|
Accessories |
VCI |
|
|
JVCI |
JVCI+ |
Programmer |
XP200 |
XP200 |
XP400 Pro |
XP400 Pro |
Hardware
Parameter |
CPU |
4x 1.6GHZ (A9) |
4x 1.8GHZ (A55) |
4x 1.3GHZ (A7)
2x 1.7GHZ (A55) |
4x 2.2GHZ (A73)
4x 1.8GHZ (A53) |
OS |
Android 4.4 |
Android 11 |
Android 4.4.2 |
Android 10.0 |
Memory |
1G RAM, 64G Flash |
4G RAM, 64G Flash |
2G RAM, 64G Flash |
4G RAM, 128G Flash |
Display |
7 inch |
7 inch |
10.1 inch |
10.1 inch |
Resolution |
1024*600 |
1024*600 |
1920*1200 |
1920*1200 |
Battery |
5000mAh |
5000mAh |
15000mAh |
15000mAh |
VCI Connection |
|
|
BT2.1/USB |
BT5.0/USB |
DoIP |
No |
No |
Need converter |
Yes, no need converter |
|
CAN FD |
Need converter |
Need converter |
Need converter |
Yes, no need converter |
Diagnostic Function |
Diagnostic |
Basic diagnostic |
Basic diagnostic |
Comprehensive diagnostic |
Comprehensive diagnostic |
Coding |
No |
No |
Yes |
Yes |
Programming |
No |
No |
BMW, Mercedes online programming |
BMW, Mercedes online programming |
Immobilizer Function |
Immo programming |
Most immo functions, Mercedes etc requires XP400 Pro |
Most immo function, Mercedes etc requires XP400 Pro |
Full immo function |
Full immo function |
Programmer |
Read/Write EEPROM |
Read/Write EEPROM |
Read/Write EEPROM, MCU |
Read/Write EEPROM, MCU |
Key Tool Function |
Yes |
Yes |
Yes |
Yes |
Remote Expert |
No |
No |
No |
Yes |
Main Features of Autel IM608 II:
- High-End Configurations: Extraordinarily powerful Qualcomm SDM660 Octa-core Processor; Android 10.0; 10.1-inch LED capacitive touch screen with 1920x1200 resolution; 4GB RAM + 128GB ROM; built-in 16-megapixel rear camera with autofocus and flashlight.
- Complete IMMO Functions: Auto Detect Make/Model/Year/System, Read PIN/ CS (All K~ey Lost), Generation K~ey, K~ey Learning/ Remote Learning, IMMO ECU Reset/ Adaptation/ Refresh/ Coding, BMW CAS4/3/2 Key Learning, Backup/ Restore IMMO Data...
- Powerful Key Programming: EEPROM Read/Write; MCU Read/Write; Immobilizer Read/Write; Engine Read/Write; Mercedes Infrared Key Read/Write; Remote Frequency Detection…
- Enhanced XP400 Pro: XP400Pro enables the programming of infrared ke~ys for Mercedes vehicles and IC Chip keys on late-model Hyundai KIA vehicles, etc.
- Smart Mode & Expert Mode: Smart Mode(For DIYers & Home Mechanics) and Expert Mode(For Skilled Technicians). You can choose the mode as needed, which is much more efficient and time-saving.
- Advanced ECU Coding: Match, Learn, Code the newly replaced ECU after the replacement of ECUs/ modules. Refresh Hidden Functions, such as Daytime Running Lights, Auto Side Mirrors Folding, Auto Park Functions, etc.
- Bi-Directional Control/ Active Test: Allowing you to perform various active/functional tests to check the integrity of a system or component and the operating conditions of various car systems or sub-systems.
- OE-Level All Available Car Systems: Autel IM608S II can perform OE-Level diagnosis on all car electronic systems(ABS, SRS, Engine, Transmission, Brake and etc) that you can find only on most sophisticated scan tools. With complete capabilities for codes, live data, active tests, ECU information, adaptation, matching and etc.
- 36+ Service Functions: With 36+ commonly used services includes Oil Reset, EPB, BMS Reset, ABS Bleeding, Airbag Reset, DPF Reg., IMMO Service, Injector Coding, SAS Calibration, Suspension Calibration, Throttle Adaption, Gear Learning, Language Change, Headlight Matching, A/F Setting, etc.
AUTEL IM608 II Main Functions :
1. Powerful Key Programming:
Upgraded Version of IM608 PRO, the professional key programming tool of Autel IM608S II can work for 85% of Cars In worldwide, Including BMW, BENZ, VW, AUDI, etc. It can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle.
1). Read PIN / CS (All Key Lost)
2). Key Generation
3). Key / Remote Learning
4). Backup / Restore IMMO Data
5). IMMO ECU Reset / Adaptation / Refresh / Coding
6). BENZ 3rd Generation IMMO Add Key, All Key Lost, Key Learning
7). BMW FEM / BDC Key Learning and ECU Adaptation
8). BMW CAS4/3/2 Key Learning
9). VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Key Lost
2. Complete IMMO Functions:
1). Smart Mode(Guided and Automated Key Learning Function)
2). Read PIN(Add Key/All Key Lost)
3). Key Generation/Key Learning/Remote Learning
4). IMMO ECU Reset/Adaption
5). IMMO ECU Refresh/Coding
6). Backup/Restore IMMO Data
7). BENZ 3rd Generation IMMO Add Key, All Key Lost via OBD
8). Read/Write/Erase Benz ESL_W209 / W906 Data
9). Benz OE NEC Key Learning
10). VW MQB Key Learning via OBD
11). VW/Audi 4th/5th Generation IMMO Key Learning
12). VW/Audi/BMW Key Unlock
13). BMW FEM/BDC Key Learning and Adaption
14). BMW CAS4/3/2/1 Key Learning
15). BMW EWS3 Key Learning
16). Volvo Smart Key/Fobik Smart Key Learning
17). 2015-2019 Jaguar Land Rover Write Key via Dump
Upgraded XP400 PRO Provide Excellent Experience:
Autel XP400Pro is a replacement for XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more. Also, added functions for EWS3, W209, NEC, and more.
XP400 Pro adds support for following Chips:
1. EEPROM-->AMD-->AM29FXXX series chip
2. EEPROM--> FUJITSU-->MB29FXXX series chip
3. EEPROM-->ST-->M29FXXX series chip
4. Engine control module-->ST-->M29FXXX series chip
5. IMMO-->BENZ-->ESL_W209_W906 (Motorola) read/write/erase function
6. IMMO-->BMW-->EWS3 module read/write function
7. REMOTE_RENEW(renew key)-->NEC-->V51 and V5 chip read/write/erase
3.Advanced Key Programming Functions
1. Exclusive Smart Mode to guide Key Programming
2. Auto Read IMMO Data via OBD
3. One-tap Key Programming via OBD & Easy-to-use Remote Programming
4. With the newly upgraded key programmer XP400 Pro
4. Advanced ECU Coding:
Autel diagnostic tool IM608S II Reliable Key & ECU Coding Tool is with MaxiFlash J-2534 connector, a SAE J2534-1 & -2 compliant PassThru reprogramming interface device, it can work with OEM software to replace the existing software or firmware in the ECU, program new ECUs and fix software-controlled drivability issues and emission issues.
1). Refresh the Hidden Features to Change Settings Already in the Vehicle: Disable Annoying or Unneeded Car Functions like automatic start/stop.
Setup New ECU Modules: Make sure the newly-installed ECU modules work in harmony with the rest of the vehicle system after repair or replacement.
2). Enhance Vehicle Performance: make the moving pointer perform self-check, display the amount of fuel consumption, activate beep sound, one press to close all windows, flash all brake lights during emergency braking, make turn signal light & rear fog light alternatively flash, activate & deactivate daytime running lights …
3). Fix Complex ECU-controlled Issues: low fuel efficiency, mysterious power loss, unknown fault in mechanical parts …
5. Bi-Directional Control/Active Test:
Autel IM608S II Bi-directional scan tool can output commands to a vehicle’s ECUs, read the ECU data, and monitor the operation of the a~ctuators. Through active tests on certain components, such as fuel pumps, a/c fan, inside mirrors, headlamps, windows, and horns, this bidirectional scanner will let you quickly know whether a specific system, component or subsystem is functioning properly or not, helping you locate the car issues precisely.
- EVAP Test, EGR Test
- Injector Buzz Test
- Fuel Pump & Valve Tests
- Switch Cylinder Correction Off/On
- Turn Wipers/Windows/Mirror/Sunroof/ Headlamp On/Of
6. 36+ Services Functions:
Autel MaxiIM IM608S II scanner includes 40+ services like Oil Reset, EPB Reset, TPMS, BMS, Brake Bleed, Aftertreatment, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABSSRS, Cylinder, VGT Learn, Speed & PTO, Clutch, Trans Adapation, Airbag Reset, A/F Setting, Automatic Start/Stop, Electronic Water Pump Start, EGR, VIN, FRM Reset, Transport Mode, HV Battery, ACC, AC, Rain/Light Sensor.
Oil Reset: Reset the oil life systems every time the oil and oil filter are changed;
Brake Reset: Deactivate and activate the brake control system, assist with brake fluid control;
SAS Reset: Perform steering angle sensor calibration and clear records;
BMS Reset: Evaluate the battery charge state, monitor the closed-circuit current, register the battery;
ABS Bleeding: Bleed the air in brake system to restore ABS brake sensitivity;
Throttle Relearn: Initialize the throttle actuators to the default state;
DPF Regeneration: Clear particulate from the DPF filter.
Injector Coding: Code the injector after replacing or adjusting to correct the fuel injection volume of each cylinder more accurately.
Suspension Calibration: Adjust the vehicle height sensor for level calibration when replacing the vehicle height sensor or control module in the air suspension system.
7. OE-Level All Systems Diagnosis:
Autel MaxiIM IM608S II professional scan tool has the same diagnostic capabilities that are previously only available to “dealership” tool. It can access and scan all available modules on 80+ American, European and Asian makes and models including ABS, SRS, ECM, TCM, Brakes, BCM, TPM and etc to read and clear codes, view live data stream of multiple sensors, perform active tests and retrieve ECU info.
1000+ Extensive Vehicle & Functionality Coverage:
1. Support Diagnostics & IMMO Programming for 10,000+ Models;
2. Support Models Up to 2022;
3. All System Diagnostics and Advanced Maintenance Services;
4. Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;
5. BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;
6. Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;
7. GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;
8. Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;
9. Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;
10. FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;
11. Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020
12. Jaguar LandRover -- Add Key / All Key Lost up to 2019
13. Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump
Autel IM608 II has its key programming function covering more than 95% vehicles from 2000 and forward, and 80% of their key programming function can be finished by OBD methods.
- For Audi: A1,A3,A4,A5,A6,RS4,B6,B7,RS5,RS6,A4 Allroad, A8, S8, Q3, RSQ3, Q5, Q7, R8, TT
- For Seat: Alhambra, Altea, Altea, Cordoba, CupraLeon, Exeo, Ibiza, Leon, Mii,Toledo
- For Skoda: Citigo, Fabia India, Fabia,Kamiq, Karoq, Octavia, Rapid India, Rapid, Roomster, Superb, Yeti
- For VW: Amarok, Arteon, Atlas, Beetle,Bora, BoraGli, Caddy, Crafter, EOS, Fox Africa, Fox EU, Fox, GTI, Gol County, Gol(5U), Gol(5W), Golf PLUS, Golf/ Rabbit(1K), Golf6 ESTATE, Jetta, Parati, Passat, Phaeton, Polo, Scirocco, Sharan, Suran, T-Roc, Tiguan, Touareg, Touran, Transporter5/Multivan
- For Fiat: 500,500L, 500X prox, Albea, Boxer, Daily, Doblo, Doblo New, Ducato, Egea, Fiorino, Freemont, Idea, Grande punto, Jumper, Linea, Marea, Nemo, Ottimo, Palio, Palio RST, Panda, Perla, Promaster, Punto, Sinea, Stilo, Viaggio
Excellent Service Support:
1. Superior Mechanics Assistant:
In addition to the MaxiCOM standard features and special functions, there are also a host of enhanced features that are specifically designed for common repair shop work, including; Relearn parking brake pad position after replacement, Force fuel injector regeneration and adjustment, Battery registration and reset, Sensor relearning after repair or replacement.
2. Shop Manager:
You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.
3. Data Manager:
The best solution for the data related operations, you can store, print, and review the saved files in Image, PDF,Review Data, Apps Uninstall or Data Logging.
4. Remote Desk:
You can directly get ad-hoc remote support from Autel via Team Viewer software.
Product Specifications:
Operating System |
Android 10 |
Processor |
Qualcomm SDM660 Octa-core Processor (2.2GHz ) |
Memory |
4GB RAM &128GB On-board Memory |
Display |
10.1-inch LED capacitive touchscreen with 1920x1200 resolution |
Connectivity |
Wi-Fi(802.11a/b/g/n/ac) |
USB 2.0 |
SD Card (Support up to 64GB) |
Sensors |
Light sensor for brightness auto adjust |
Power and Battery |
15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
Input Voltage |
12V (9-24 V) |
Power Consumption |
6.5W |
Operating Temp |
0 to 50°C (32 to 122°F) |
Storage Temp |
-20 to 60°C (-4 to 140°F) |
Dimensions(WXHX D) |
300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
Weight |
NW: 1.58 kg (3.48 lb.) |
Protocols |
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |

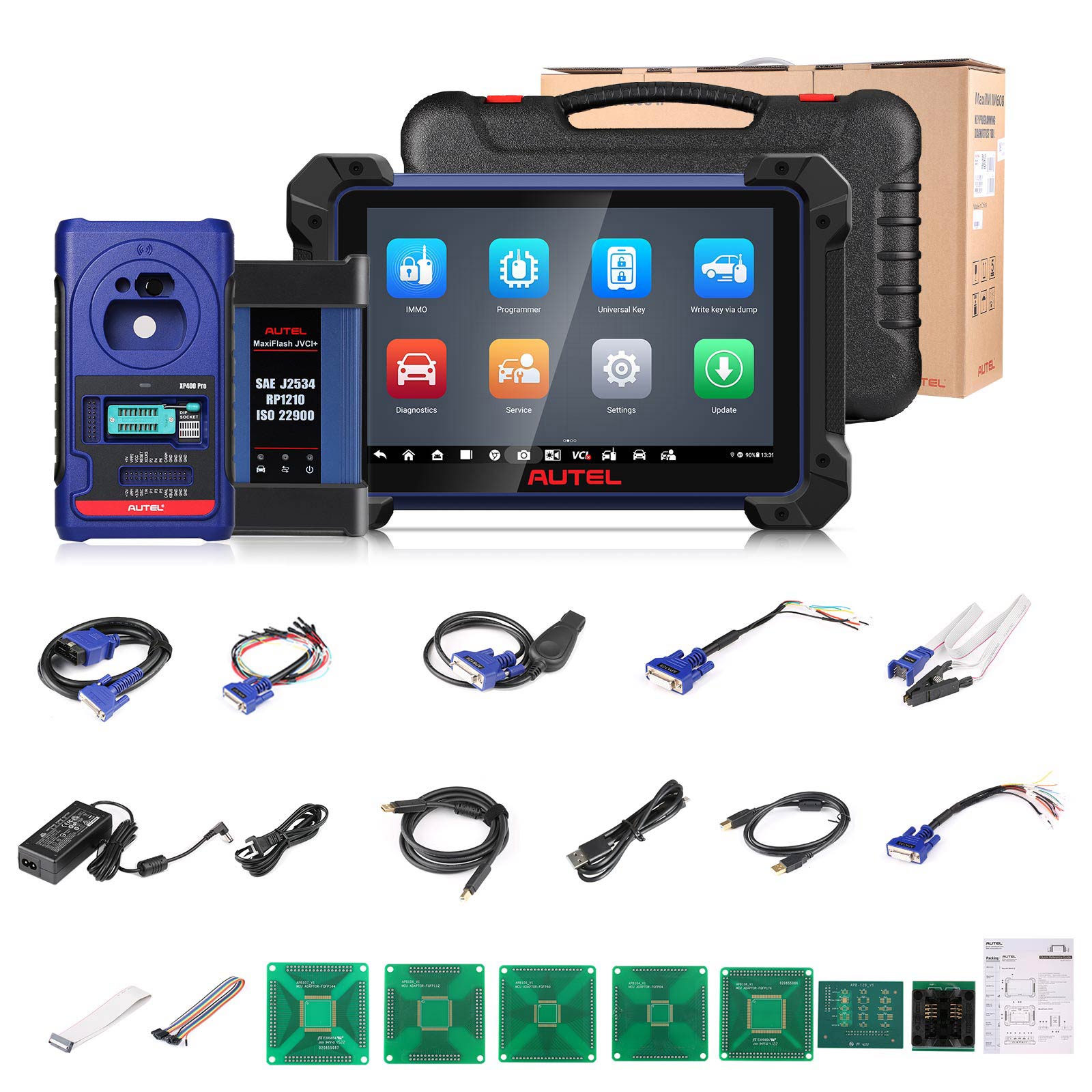

Package Includes:
1pc x IM608 II Tablet
1pc x XP400 Pro Key Programmer
1pc x JVCI+ ECU Reprogrammer
1pc x Carry Case
1pc x Main Cable
1pc x USB Cable (2m)
1pc x Connect Cable
1pc x Mini USB Cable
1pc x AC/DC Adapter (12V)
1pc x AAC001
1pc x APC101 (USB Cable)
1pc x APB129 (EEPROM Adapter)
1pc x APB125 (Mercedes Infrared Collector)
1pc x APB104 (MCU_FQFP64)
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB109
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Signal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Clamp)
1pc x APA108 (MCU Clamp)
1pc x APA109 (MC9S12 Clamp)
1pc x USB to Ethernet Adapter
1pc x Packing list
1pc x Quick reference guide
About Delivery
EU Warehouse Shipping: 3-5 working days. We have stocked up hot sale items in EU(Czech) Warehouse ,which is more convenient for you. Free TAX, faster shipping with cheaper price.
Yanwen Express: 9-14 working days ,we will prepay the tax,then do not need customers to pay tax for most european counties
( We will send by Yanwen Express by default because of EU high Customs tax. If Customers need the faster DHL shipping method and willing to pay the high tax .Pleasee leave message to us in time after placing the order)
DHL Shipping: 3-5 working days, To help you clearance we will help declare a lower price on the invoice. If address is remote area, customer need pay remote freight or we will ship by Normal Post or Yanwen Express.
Note:
1.All of the items will be shipped to PAYPAL Shipping Address,please confirm your address on PAYPAL before you buy.
2.Your order will be usually shipped out the same or next business days once the payment is made, except on weekends and holidays.
Contact information:
Email:
Sales@DiagOBD2.deSkype:
diagtool.deMobile:+86 15223201143
WhatsApp: +86 15223201143Handy Version: Bitte scannen das Bild, koennen Sie per Handy Kaufen!!!
