Yanhua ACDP-2 VW MQB IMMO KM Package with Module 33/34 for VW MQB48 & RH850 Key Programming Mileage Correction

Yanhua ACDP-2 VW MQB IMMO Mileage Correction Package with Module 33/34

Modules included in package:

ACDP-2 Programming  Module
ACDP Module 33 MQB-33
ACDP Module 34 MQB-34

Package Features:

ACDP 2 Programmer with License A801

Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP). This module is a necessary basic configuration for other modules.

#MQB-33 Module with License A608

Supports VW the 4th/4.5th generation and MQB 5A etc. IMMO and mileage correction

#MQB-34 Module with License A609

Support VW RH850 series R7F7xx0x chip model instruments (5A) IMMO and mileage correction (5A/5C)

Package Functions:

1. Support IMMO and mileage correction for Volkswagen 4 generation,  4.5 generation, MQB48-5A instrument with D70F3524(A2C00889000)/D70F3525(A2C0081589600)/D70F3526(A2C81589700/А2С99606600)/D70F3529/D70F3532(A2C81589500/A2C81589501)/D70F3524(A2C00889000)/D70F3535(A2C81589200)/D70F3536/D70F3537(A2C81589300/A2C81589800) chip model.
2. Support IMMO and mileage correction for the 4th generation instrument with D70F3423 + 95320 chip model.
3. Support IMMO and mileage correction for D70F3426 + 95128 chip model MQB 5A instrument.
4. Support IMMO and mileage correction for RH850 series D7F701401, D7F701402, D7F701407 chip model 5A instrument
5. Support mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701405, R7F701406, R7F701407, chip model 5C instrument.
6. For 2019-2022 VW Polo/VW Virtue, need buy R7F701402-B Interface Board extra
7. For VW MQB 5D, Golf 8, Teramont, Viloran, Tavendor, Lamando, Tiguan L…mileage correction, need buy R7F701401/21-5D Interface Board extra

Module 33 Support List:

D70F3524(A2C00889000)
D70F3525(A2C81589600)
D70F3526(A2C81589700/A2C99606600)
D70F3529
D70F3532(A2C81589500/A2C81589501)
D70F3535(A2C81589200)
D70F3536
D70F3537(A2C81589300/A2C81589800)

Module 34 Supported odometer number(not limited to):

R71F701401/R7F⁷01402/R7F7014075A:
83A920700B, 83A920700, 8V0920740B, 81A920740L, 51G920640D, 55G920790, 2GD920790A, 5GD920790, 5NG920640C, 5NG920650C, 5ND920650C, 5NG920654, 2GG920640, 3GB920640,
3GB920790, 56G920790, 3VD920740B

R7F701401/R7F701402/R7F701404/R7F701405/R7F701406/R7F7014075C:
3GB920640A, 3GB920640B, 3GB920640C, 3GD920640D, 19G920640B, 19G920640C, 19D920640B, 19D920640C, 17G920640A, 2GD920640B, 2GD920640C, 5GD920640D, 5ED920860C, 19G920650B,
19G920650C, 55G920650A, 55G920650B, 55G920650C, 5HG920340, 5HG920340A, 5HG920340B, 5HG920340C, 5NG920640D, 5NG920650D, 2GG920640A, 51G920640E

D70F3423 +95320: 31G920850B, 18G920860B, 31G920850A, 18G920860A, 31G920850F, 34D920850C, 31G920850C, 34D920850E, 31G920860A, 34D920850G

D70F3426+95128: 5GG920640, 5GG920860, 5GG920860A, 5G0920861A



Package List:

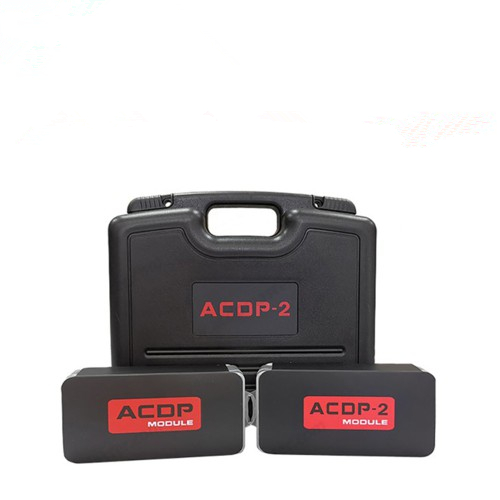

1 full set x Yanhua ACDP-2
1 full set x MQB-33 module
1 full set x MQB-34 module
