A6 Automobile Pipeline Smoke Leak Detector with Pressure Gauge Test Leak in Vehicle Pipe Systems for Cars, Motorcycles, Snowmobiles, ATV, Boats
A6 Automobile Pipeline Smoke Leak Detector with Pressure Gauge Test Leak in Vehicle Pipe Systems for Cars, Motorcycles, Snowmobiles, ATV, Boats

This automotive diagnostic leak detector is designed for testing leaks in vehicle pipe systems. It can be used on all cars, motorcycles, snowmobiles, ATV, light trucks, boats, etc.
Product Features:

smoke establishment more quickly
built-in air pump, not limited by the site
liquid observation window
equipped with overheat protection device
equipped with pressure gauge
leakage detection of various pipeline systems
air test mode
smoke test mode
lightweight, simple and durable

How to use it?

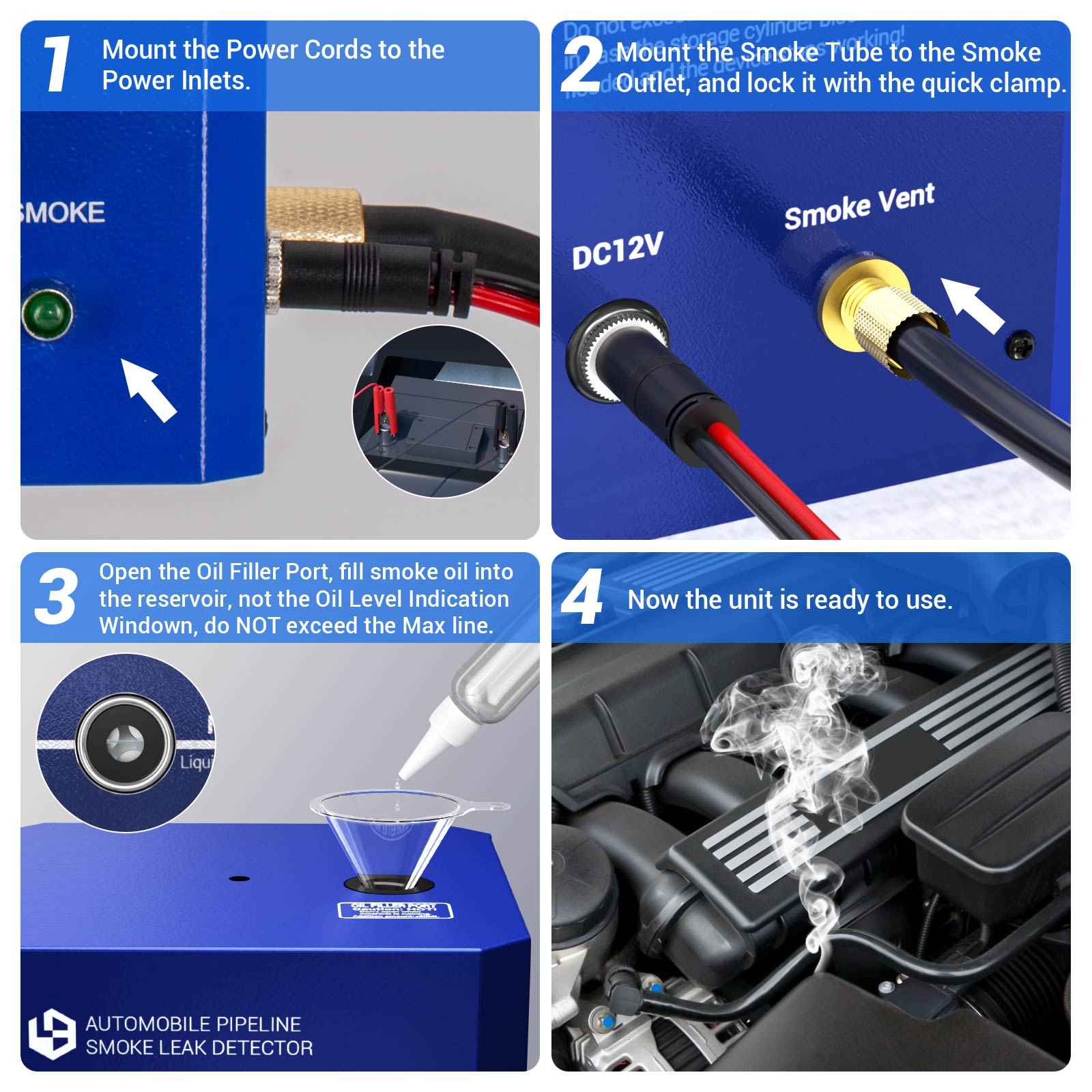

Prepare the Unit
1.Mount the Power Cords to the Power Inlets.
Note: Red plug to red socket and black plug to black socket.
2.Mount the Smoke Tube to the Smoke Outlet, and lock it with the quick clamp.
Note: Use the Velcro Strap to collect the Power Cords and the Smoke Tube before storage.
3.Open the Oil Filler Port, fill smoke oil into the reservoir, note the Oil Level Indication Window, make sure the oil level do NOT exceed the Max line. If the smoke oil is overfilled, turn the unit upside down to drain some oil out.
4. Now the unit is ready to use.

Note: Pay attention to the Oil Level Indication Window before use. If the oil level is close to the bottom, the unit will need a refill.

Test Run

1.Connect 12V vehicle battery with the clamps on the Power Cords. The Power Indicator will be ON and the unit will start generating air pressure.
Note: red clamp to positive (+), and black clamp to negative (-).

2.Block off the smoke nozzle on the Smoke Tube with fingertip, the Pressure Gauge will indicate the real time output pressure.

3.Switch on the smoke mode switch, the smoke mode indicator will be ON. The unit will start producing smoke.

Product Specifications:

Power Supply: DC12V /6A
Flow Rate: <8L/Min
Test hose:1.5m
Power cable:1.5m
Oil filling: 30ml
Air source: internal air pump
Size: 310 x 270 x 285mm
Gross weight: 5KG
Test pressure: 15psi
High temperature protection: YES

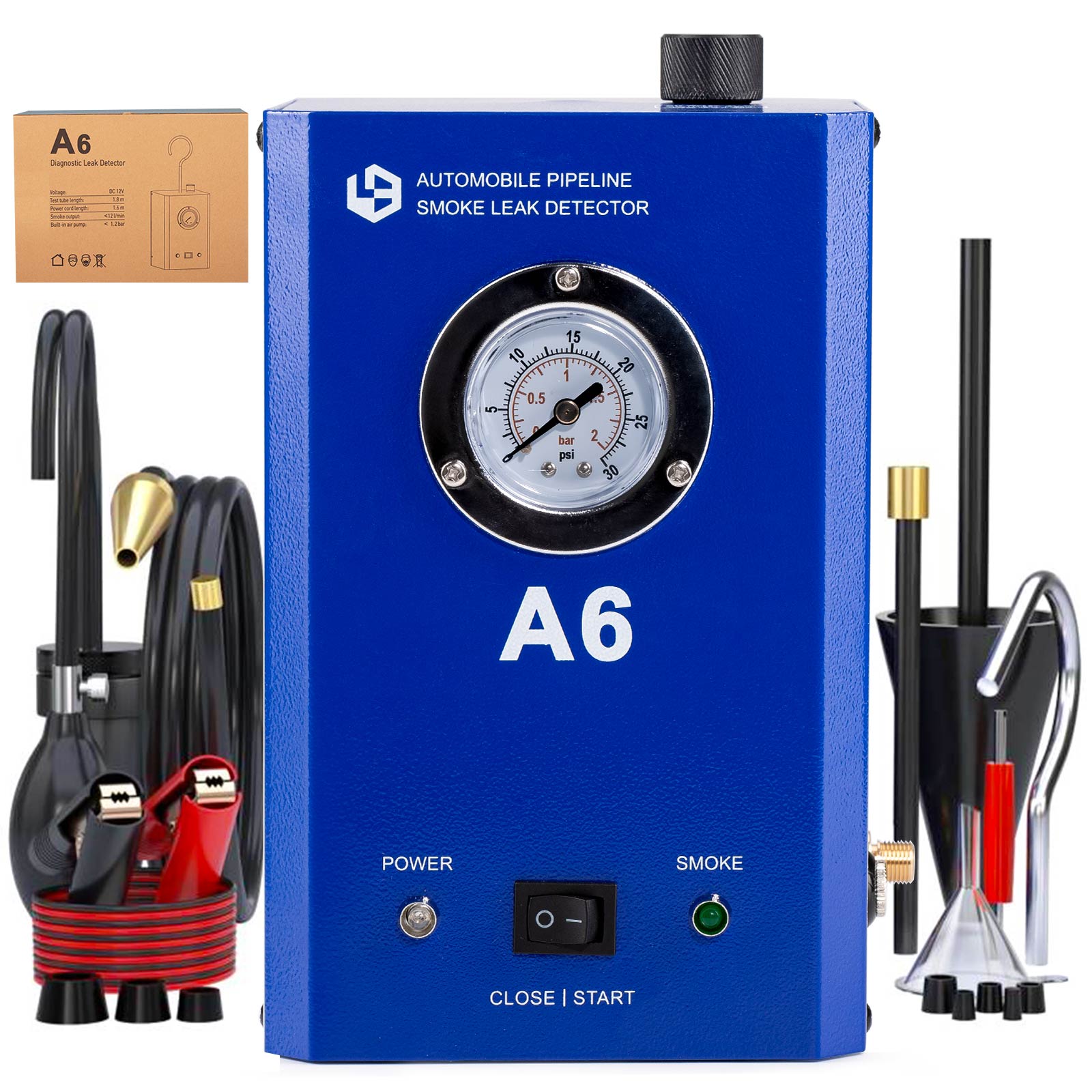

Package Includes:

1pc x Main Unit
1pc x Inflatable Adaptor
1pc x Power Cords
1pc x Smoke Tube
1pc x Intake Adaptor Core
1pc x User Manual
1pc x Certification
