July Sale EU-Schiff GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS & Key Synchronization Solder-free Matching CAS Data Read, Write and Program
Neueste Preis: €59.99Sofort Kaufen: €54.00
10% off
Versand:
Kostenloser Versand
Flat Rate VersandserviceLieferzeiten : 12-25 Arbeitstage.See details »
Gewicht:
0.4KG
Paket:
20cm*15cm*5cm
( Inch: 7.85*5.89*1.96 )
Rückkehr:
Erstattung: innerhalb 30 Tagen. Der Kunde verträgt Versandkosten Read details »
Produktbeschreibung

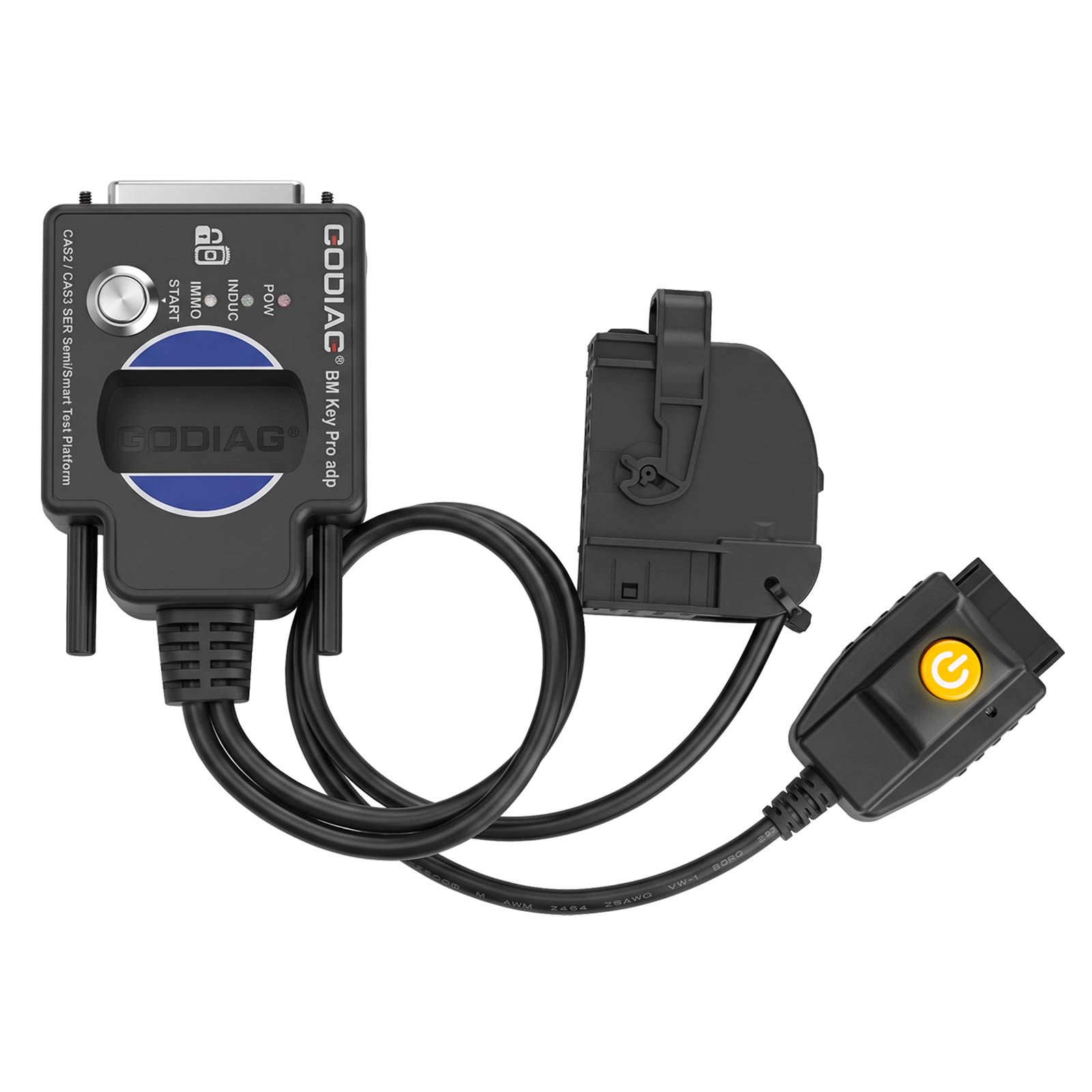

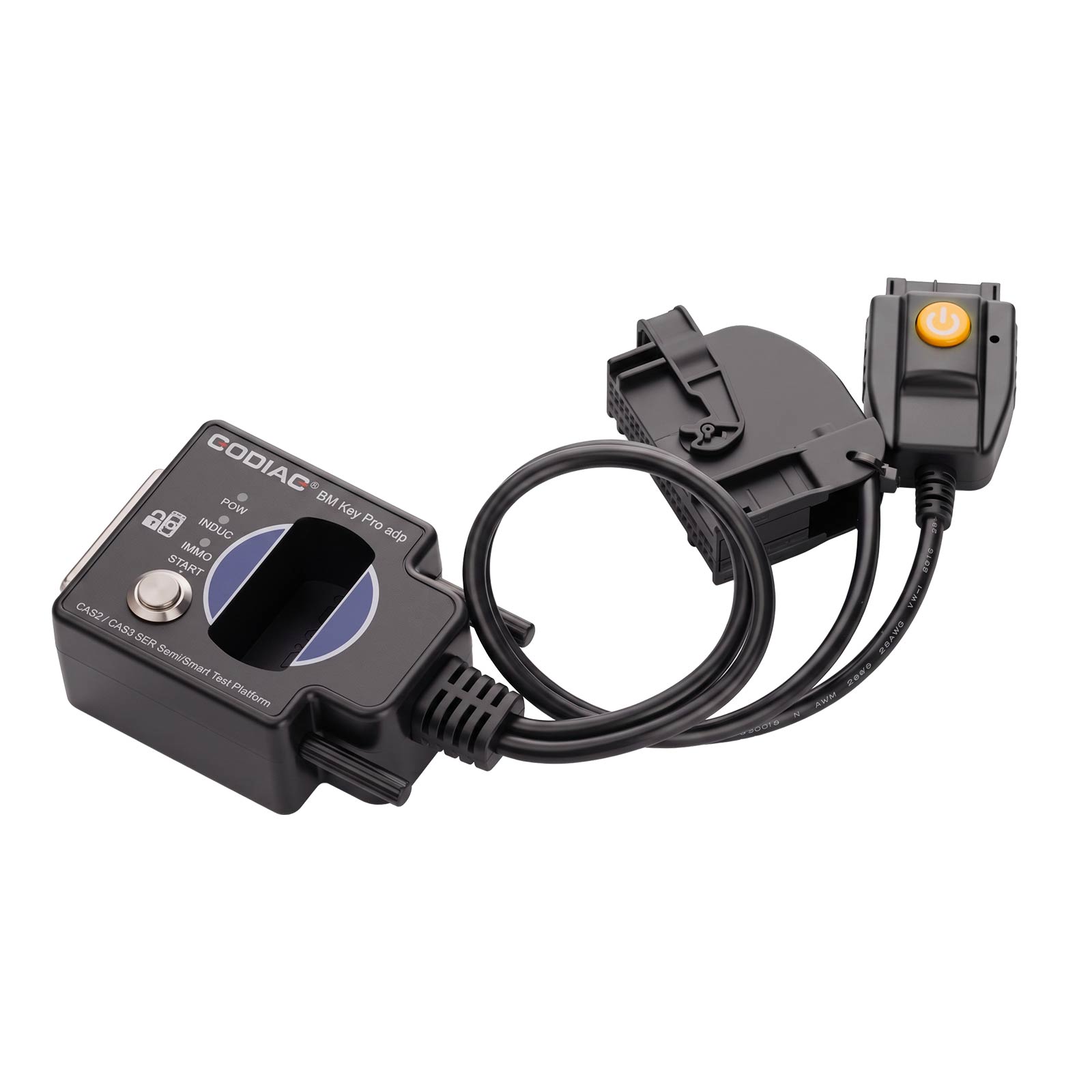

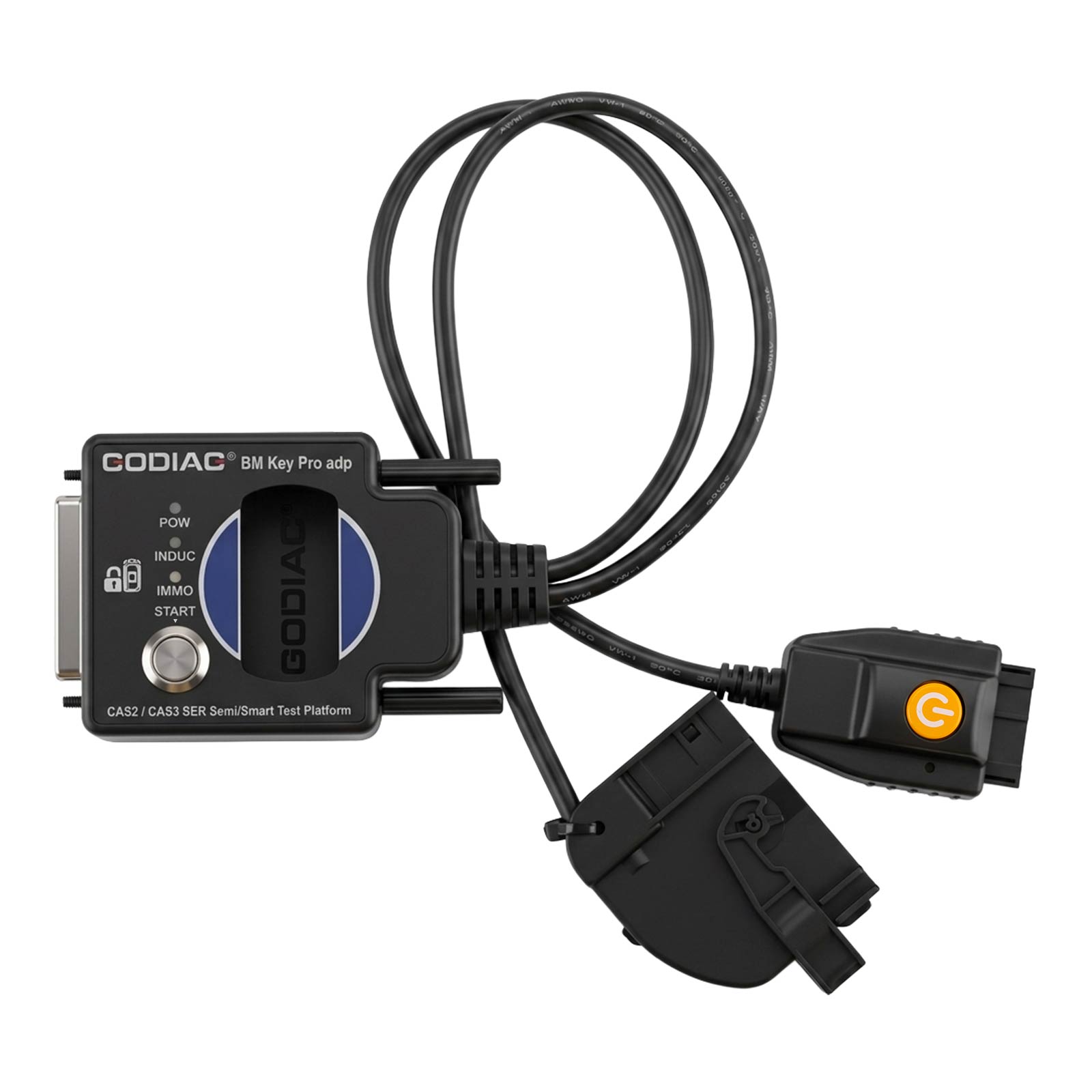

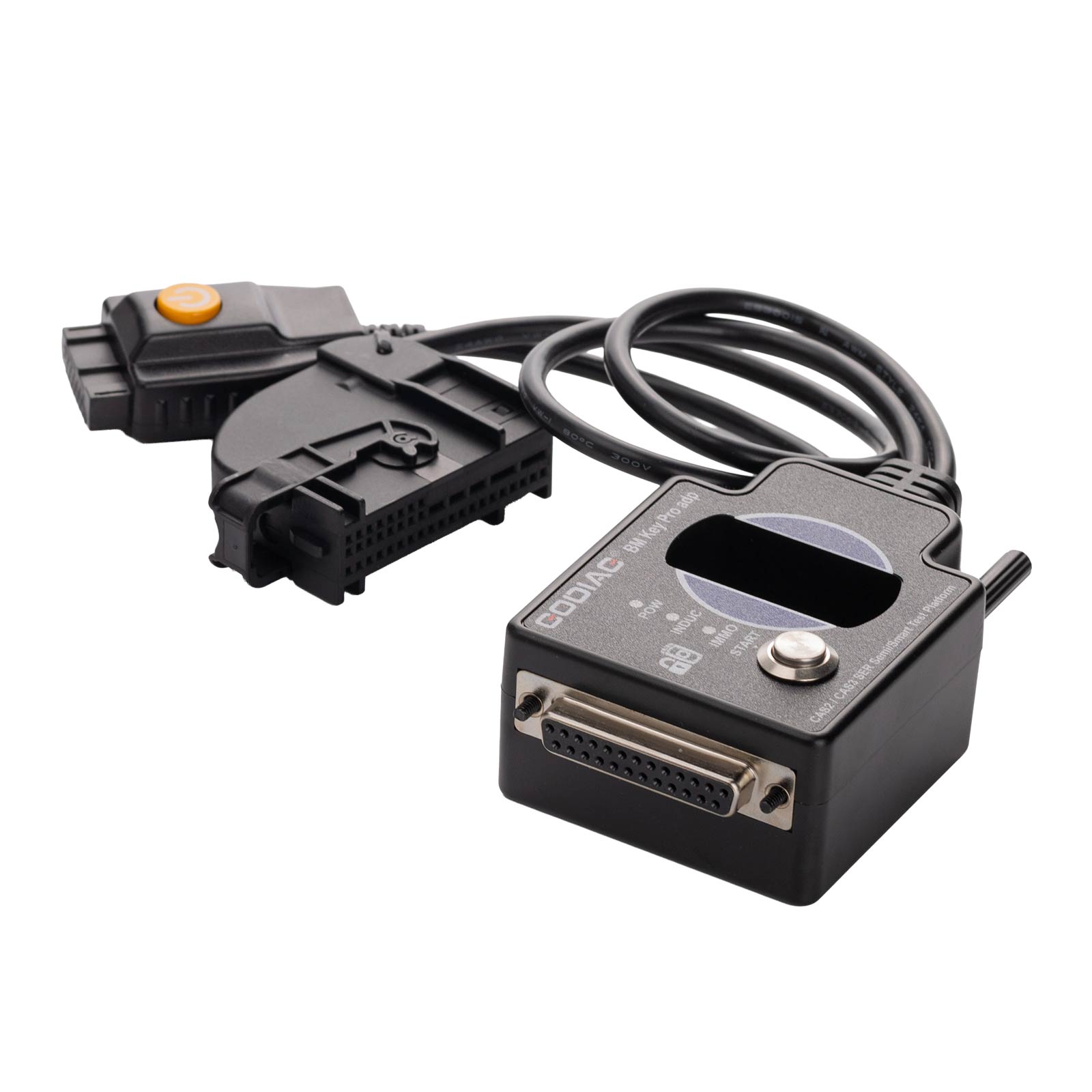

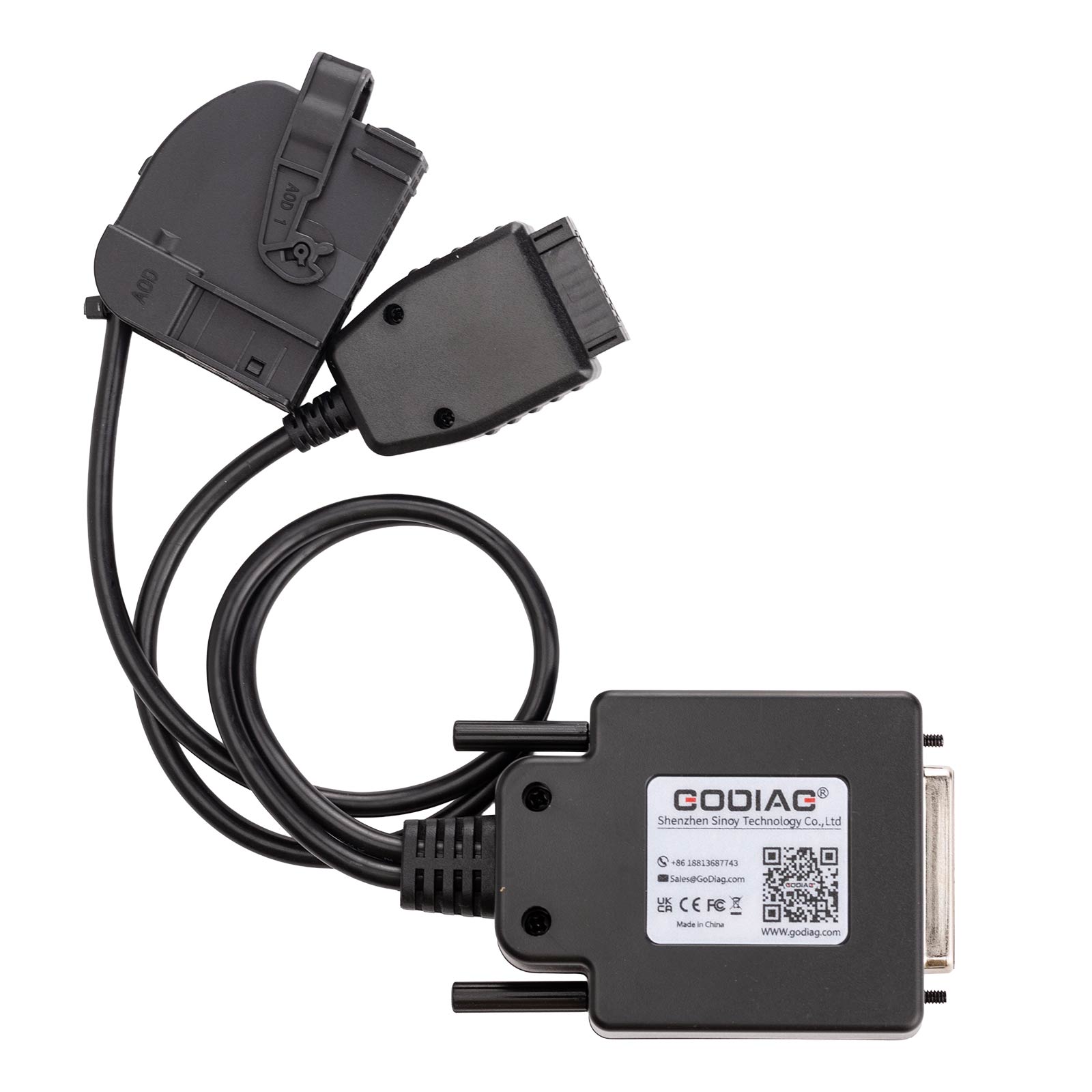

GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS & Key Synchronization Solder-free Matching CAS Data Read, Write and Program
GODIAG CAS2 CAS3 SER Semi Smart Test Platform Detect CAS & Key Synchronization Solder-free Matching CAS Data Read, Write and ProgramGodiag CAS2 CAS3 SER Semi Smart Test Platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS2 / CAS3,CAS3+ CAS3++ programming engineers. It can cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / CGDI BMW / Lonsdor devices, etc., to perform all key lost matching or key addition operations. This product is suitable for magnetic semi-intelligent or smart keys.
For LONSDOR , data cannot be read and written through the OBD2 bench method. This is because these devices cannot perform 100kbCANbus independent communication with the BMW IMMO module.
For LONSDOR, you can only use a programmer to read out the CAS2 semi-intelligent CAS3 3+ data, perform key matching, and after successful matching, use GODIAG CAS2 CAS3 SER Semi Smart Test Platform to perform key synchronization detection.
Use GODIAG CAS2 CAS3 SER Semi Smart Test Platform to perform IMMO module and key synchronization detection. After confirming that the key is matched successfully, you can avoid the vehicle being unable to start due to unsuccessful key matching.
Note: Godiag CAS2 CAS3 SER Semi Smart Test Platform does not support mechanical key CAS2 and cannot be used with diagnostic equipment or with GT100 GT100+.
Product Features:
1. Detect CAS and key synchronization
2. Solder-free matching CAS2/CAS3 serial smart key
3. CAS data reading, writing and programming
4. All keys lost /adding keys matching
5. CAS key data backup
6. CAS module function judgment
Product Functions:
1.Check wheteher CAS2 / CAS3, CAS3+ CAS3++ modules and magnetic semi-intelligent/smart keys are synchronized.
2.Cooperate with the key programming devices like Xhorse Key Tool Plus Pad / Xhorse vvdi 2 / bmw vvdi bim tool / CGDI BMW / Lonsdor devices, etc., to perform all key lost matching or key addition operations.
3.CAS2 / CAS3, CAS3+ CAS3++ module diagnostics
4.CAS2 / CAS3, CAS3+ CAS3++ module programming
1. Connect the CAS2/CAS3, CAS3+ CAS3++ module and the key programming diagnostic device according to the connection diagram.
3.After successfully identifying the CAS information, select “Get Key Info” and “Save Key Info”.

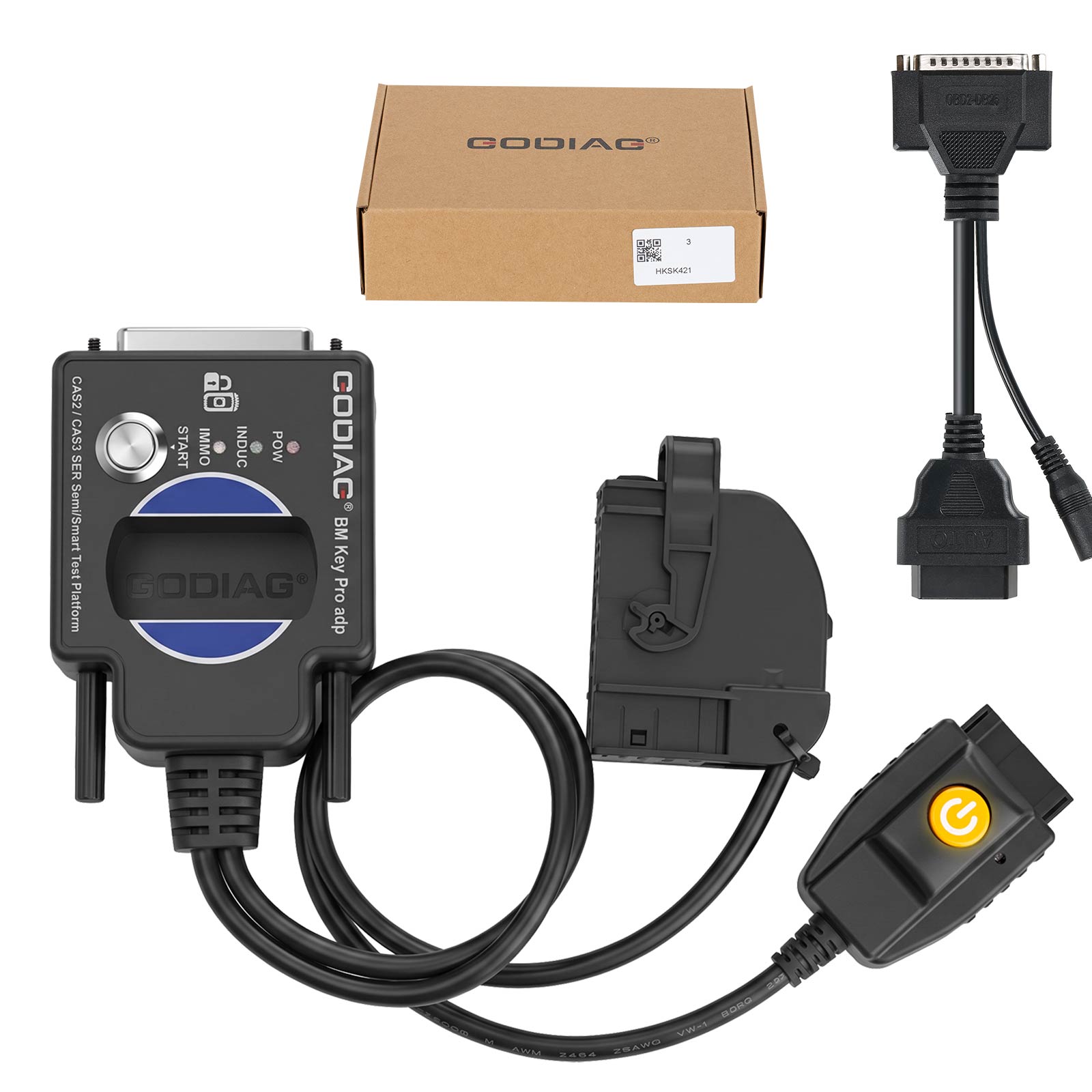

Package Includes:
1pc x GODIAG CAS2 CAS3 SER Semi Smart Test Platform

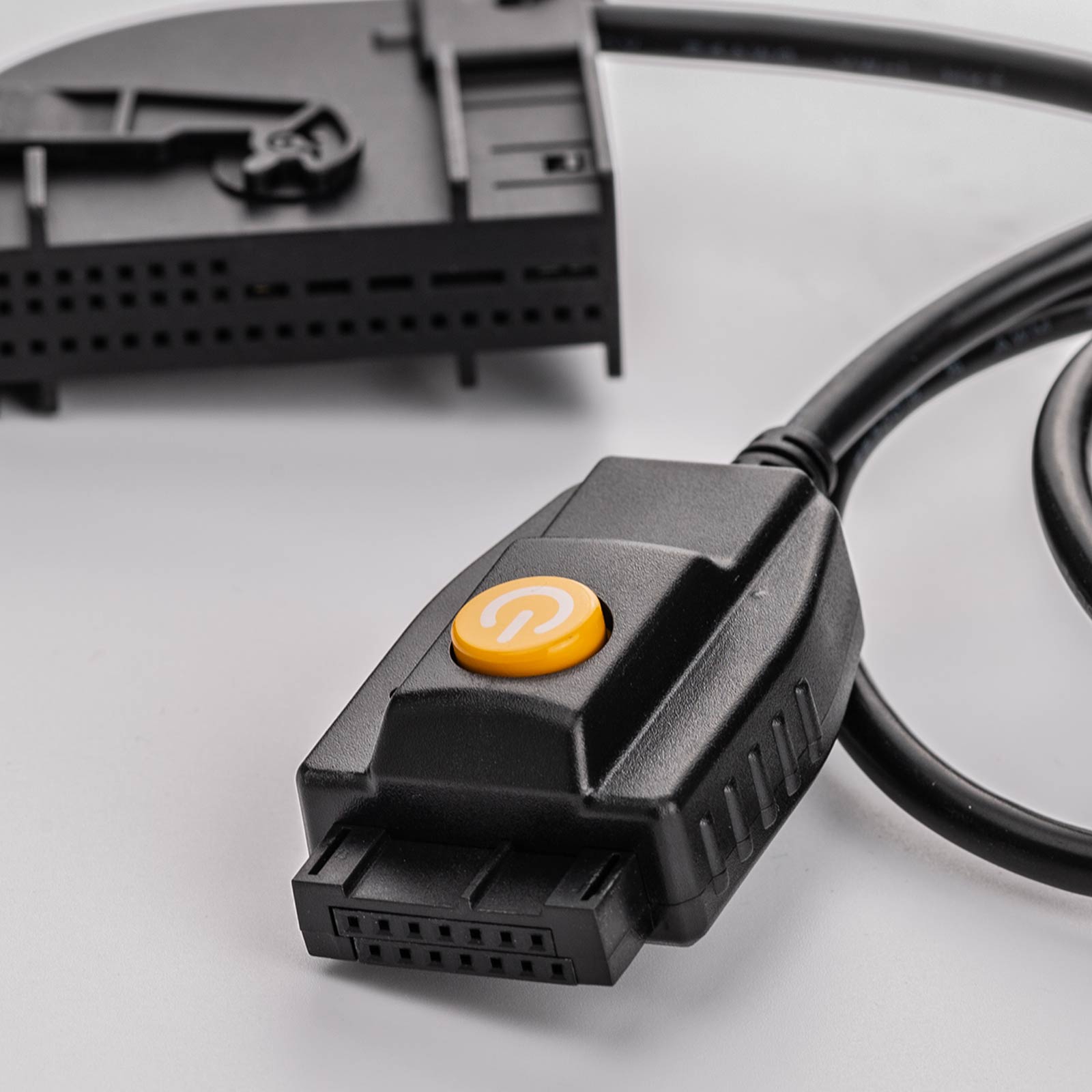

1pc x OBD2 to DB25 Cable
Module and key synchronization detection:
Check whether the CAS2 / CAS3, CAS3+ CAS3++ module and the magnetic semi-intelligent smart key can be synchronized:
Step 1: Connect the CAS2/CAS3, CAS3+ CAS3++ modules according to the connection diagram.
Step 2: Put the key into the key sensing area.
Step 3: Connect the power supply and the corresponding power indicator light will light up. The start/stop button light is on. The coil sensor light will flash. [Indicates that the module can send out the key sensing signal normally. If the key and the module are synchronized, the light will flash regularly or stay on. If the key and module are out of sync, the flashing will be irregular and will stop after one minute.]
Step 4: Press the start switch. [If the key is synchronized with the CAS module, the IMMO synchronization detection indicator light will light up and the internal buzzer of the machine will sound. If the key is not synchronized with the CAS module, the IMMO synchronization detection indicator light will not light up and the internal buzzer of the machine will not sound.]
Step 5: Press the analog start and stop button, the IMMO synchronization detection indicator light will go out after 3 seconds. Press the analog start/stop button again and the IMMO synchronization detection indicator light will light up.
The following uses Xhorse vvdi2 device to perform BMW CAS2/CAS3, CAS3+ CAS3++ semi-intelligent/smart key programming and matching operations:
1. Connect the CAS2/CAS3, CAS3+ CAS3++ module and the key programming diagnostic device according to the connection diagram.
2 Select “key learn—CAS Key Learn---Connect”.
3.After successfully identifying the CAS information, select “Get Key Info” and “Save Key Info”.
4.Select an unused key position, be sure to select the “prepare dealer key with programmer” menu, and use the VVDI2 key programmer to generate the key. If the key is placed in the GODIAG CAS2 CAS3 SER Semi Smart Test Platform key sensing area, the dealer key will not be generated.
5.After programming the dealer key, put the key into the Godiag CAS2 CAS3 SER Semi Smart Test Platform induction port for testing. For test steps, please refer to “Synchronous Detection of Module and Key”.
If the IMMO light cannot light up, enter the VVDI2 menu “Key Learn—CAS/EWS Information—Connect—Synch DME-CAS or Synch CAS-ELV”. [When performing synchronization, the key must be placed in the key sensing area of the VVDI2 device.]
1pc x GODIAG CAS2 CAS3 SER Semi Smart Test Platform
1pc x OBD2 to DB25 Cable
