Yanhua ACDP 2 BMW Full Package with Module 1/2/3/4/7/8/11 + License for BMW Key Programming Cluster Correction

Yanhua Mini ACDP-2 Programming Master BMW Full Package with Module1/2/3/4/7/8/11 Total 7 Authorizations Added B48/N20/N55/B38 Bench Board

Yanhua Mini ACDP-2 with Module1/2/3/4/7/8/11 BMW Full Package Includes as below:

1. Yanhua Mini ACDP-2 Basic Module
Mini ACDP-2 Features:
No need to remove chip
No need to soldering
No need to cut the line
No need to lift the pin
Pin intelligent detection
Data reading and writing is safe and reliable

Connection upgrade
USB direct connection, plug and play
wifi connection, more freedom.

Data transfer upgrade
Data preservation and transmission, faster, more stable, more secure

2. CAS Module (Module1)
(1) Support CAS1 – CAS3+ IMMO key programming by OBD or ICP mode, Mileage reset, Read/Write EEPROM and FLASH data.
(2) Support CAS4/CAS4+ IMMO key programming in circuit programming (ICP), Mileage reset, Read/Write EEPROM and FLASH data.
(3) newly add CAS4/CAS4+ OBD Function

3. FEM/BDC Module (Module2)
Support FEM/BDC IMMO key programming by ICP or OBP mode, Mileage reset, Recover/Backup data.

4. ISN Module (Module3)
Read/write N20/N55/N13 ISN code via OBD.
Read/write MSV80/MSD85 ISN code without opening DME shell.
Read/write other DME ISN code by opening DME shell.

5. Read and write BMW M35080, 35160DO WT etc EEPROM (Module4)
Read and write BMW M35080, 35160DO WT etc EEPROM, erase 080DOWQ, 080DOWT, 160DOWQ, 160DOWT, M35128 models.

6. Refresh BMW Keys (Module7)
Refresh BMW E chassis/F chassis key to make BMW keys can be used repeatedly.

7. Yanhua Mini ACDP Module8 BMW FRM Footwell Module (Module8)
Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data.
The advantage of BMW FRM of ACDP: Integrated data reading/writing, data conversion in one programmer; no need to write other cars'data; no need to coding. Simple and efficient.

8. Yanhua Mini ACDP Module11 Clear EGS ISN (Module11)
Scope of application:
For connecting BMW 6HP/8HP gearbox

9.B48 bench interface board (Newly Added)
Read the ISN of B48 without wiring

10. N20/N55/B38 bench interface board (Newly Added)
No need to open the DME shell, No need to drill the hole, No need to insert the cable. Read/Write N20/N55/B38 DME ISN
Will extend the function of cloning N20/N55/B38

Yanhua Mini ACDP2 Highlights:

Test car NO longer needs engines
YANHUA car keys programming NO longer need soldering iron
Car locksmith NO longer needs soldering work.
The first in the world
Programming no need soldering

Yanhua Mini ACDP IMMO/Mileage Programming

No need to remove chip
No need soldering
No need to cut the line
No need to lift the pin

Module1 BMW CAS1-CAS3+Key Programming via OBD
Read CAS EEPROM
Add Keys
Reset Mileage
Back up or recover CAS
All keys Lost

Module1 BMW CAS4/CAS4+
Read CAS4 EEPROM without soldering/welding
Add Keys without soldering/welding
Reset Mileage without soldering/welding
Back up or recover CAS without soldering/welding
All keys Lost without soldering/welding

Module2 BMW FEM/BDC
All keys lost without soldering/welding
Add keys without soldering/welding
Delete Keys without soldering/welding
Enable/Disable keys without soldering/welding
Read Key ID
Repair/Replace FEM Module without soldering/welding
Reset Mileage without soldering/welding

Module3 Read and Write ISN Code
N20(mevd1724, mevd172P, mevd1729), N13(mevd1725, ), N55(mevd172, mevd1726, mevd172G, mevd172S, MEVD17, ), MSV80, MSD81, MSD85, MSD85HY, MSD87, MSV90, MEVD1728(s63), mev1722, med172, mevd1727, dde701_edc17c50, BMSX….

Module4 BMW 35080, 35160DO WT Read & Write
Read and write BMW M35080, 35160DO WT etc EEPROM

Module7 Refresh BMW Keys Module
Refresh BMW E chassis/F chassis key to make BMW keys can be used repeatedly.


Module8 BMW FRM FRM Footwell Module
Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data. Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data.


Module11 Clear EGS ISN (Module11)
Functions includes as below:
EGS State
Clear ISN
Reset Adaptation
Backup Coding
Recover Coding

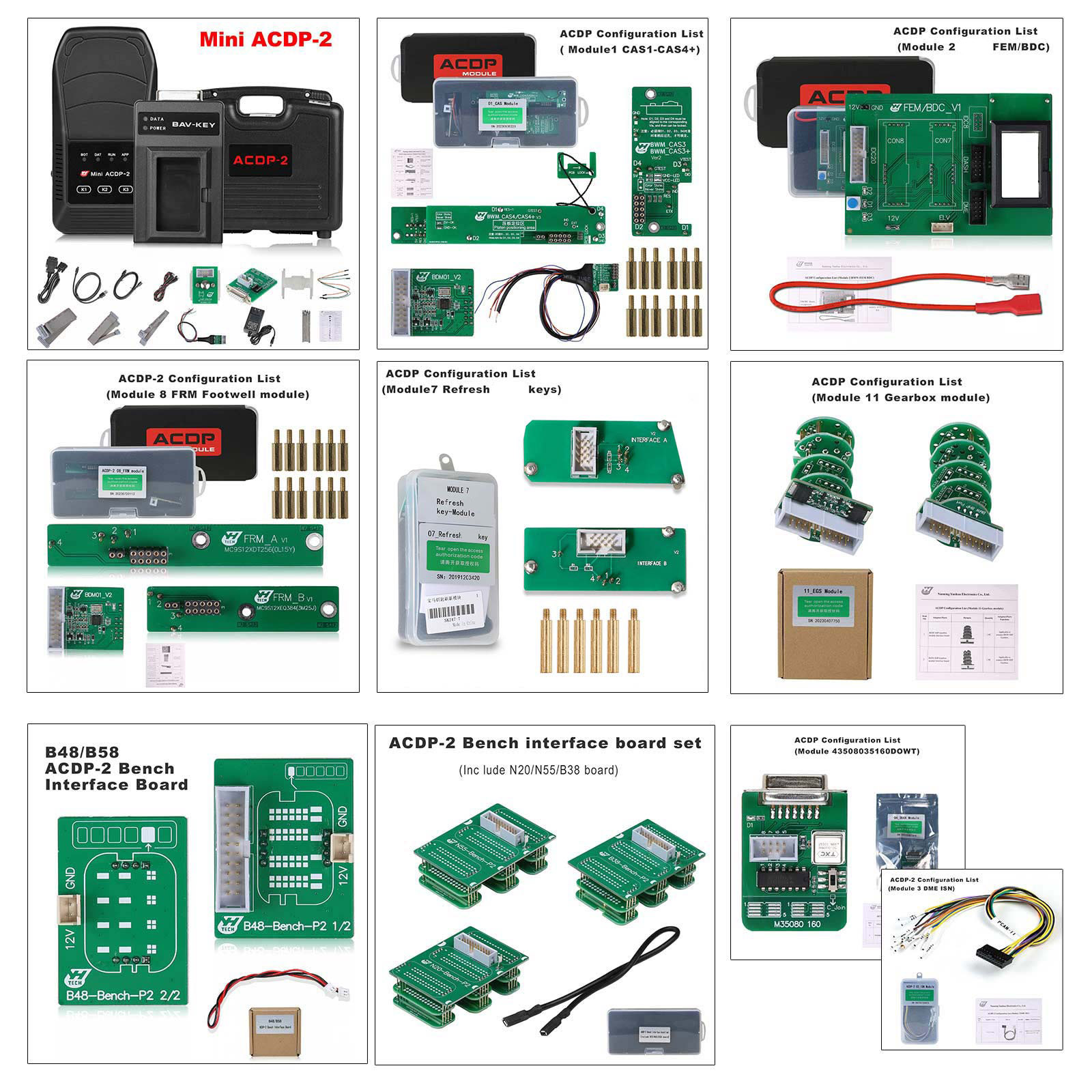

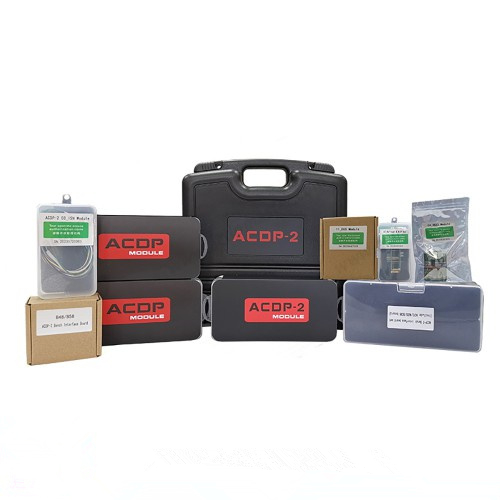

Yanhua Mini ACDP-2 Master Basic Configuration Package List:

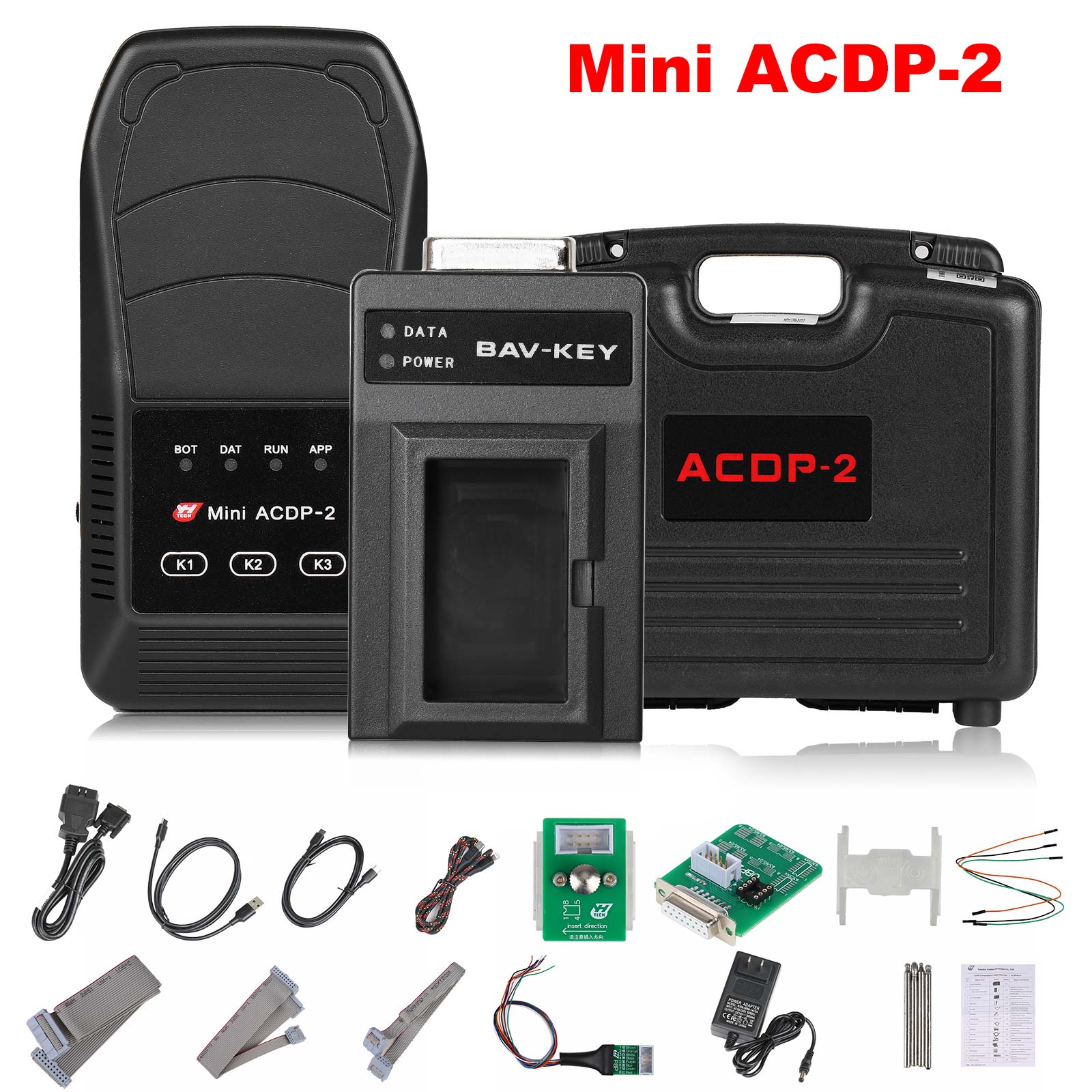

1set x ACDP-2 Programmer Master

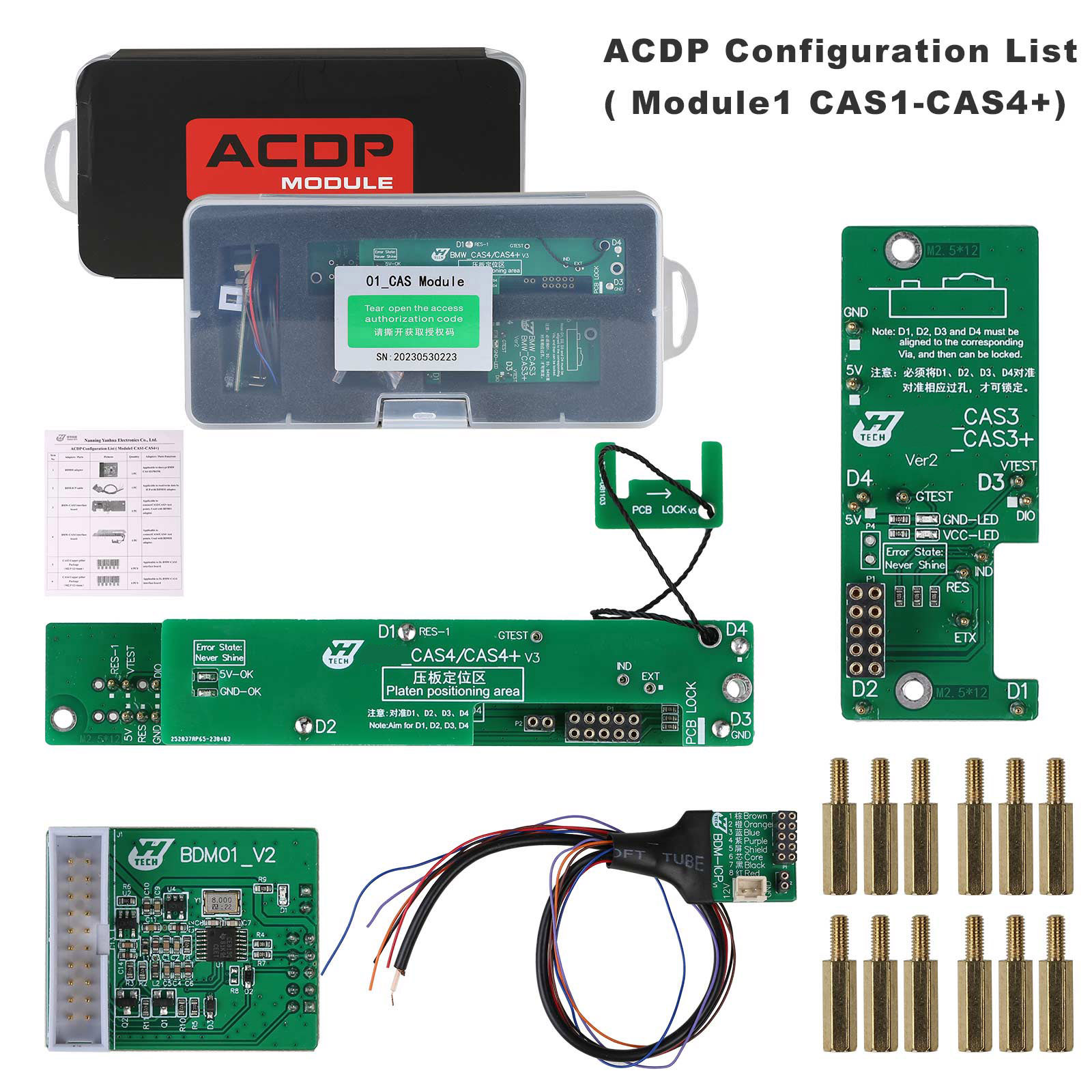

Adaper List (Module1)
1pc x BDM01 adapter
1pc x BMW-CAS3 interface board
1pc x BMW-CAS4 interface board
1pc x BMW CAS2/3/4 interface
1pc x CAS3 firmware package
1pc x CAS4 firmware package

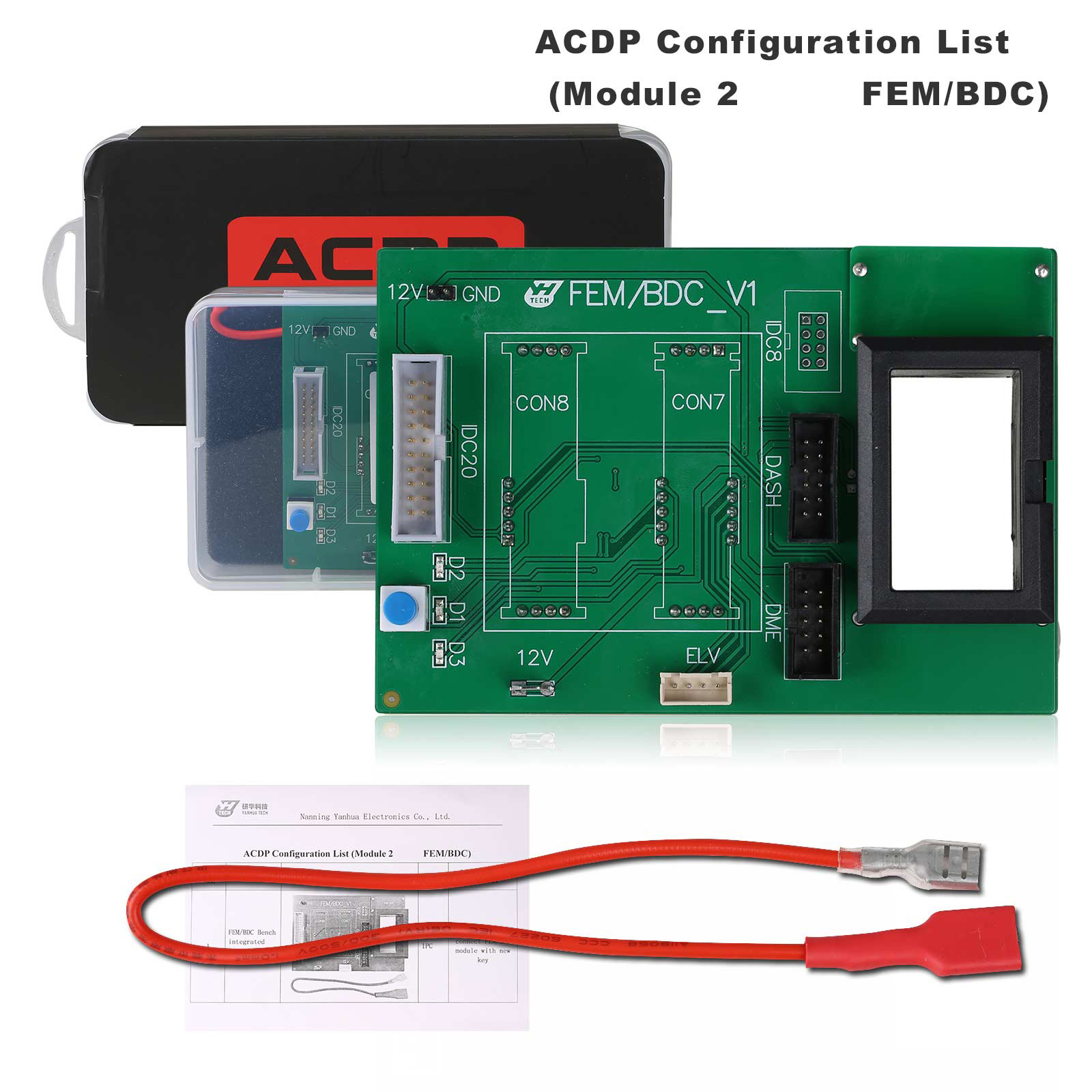

Adapter List (Module2)
1pc x FEM bridge
1pc x BDC bridge
1pc x Desktop OBD transfer board
1pc x BMW FEM/BDC test platform
1pc x Single-pin double-head cable
1pc x FEM bridge firmware package
1pc x BDC bridge firmware package

Adapter List (Module3)
1pc x BMW-N13 port board
1pc x N20 caliper for opening the hole of shell
1pc x N13 firmware package of interface board

Adapter List (Module4)
1pc x Yanhua Mini ACDP Programming Master BMW 35080 & 35160DO Adapter

Adapter List (Module 7)
1pc x BMW F chassis（HUFXXXX）Key interface board
1pc x BMW F chassis（5WKXXXX）Key interface board
1pc x BMW Key simulator
6pcs x BMW Key Refresh Module Copper Pillar Package (M2*14+3)

Adapter List (Module8)
1pc x BMW FRM module (FRM Footwell module), 0L15Y chip Interface board
1pc x BMW FRM module (FRM Footwell module), 3M25J chip Interface board
12pcs x BMW FRM module (FRM Footwell module), Copper pillar package (Single head six angle stud M2.5*12+6mm)

Adapter List (Module11)
1pc x BMW gearbox module interface board

B48 bench interface board (Newly Added)
N20/N55/B38 bench interface board (Newly Added)
