Produktbeschreibung
VXSCAN PT1000 is the best electrical tester for reducing diagnostic time in all 8 to 50 volt vehicle electrical systems. It is short circuit protected, and its internal circuit breaker will trip if it becomes overloaded. The long extension cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.

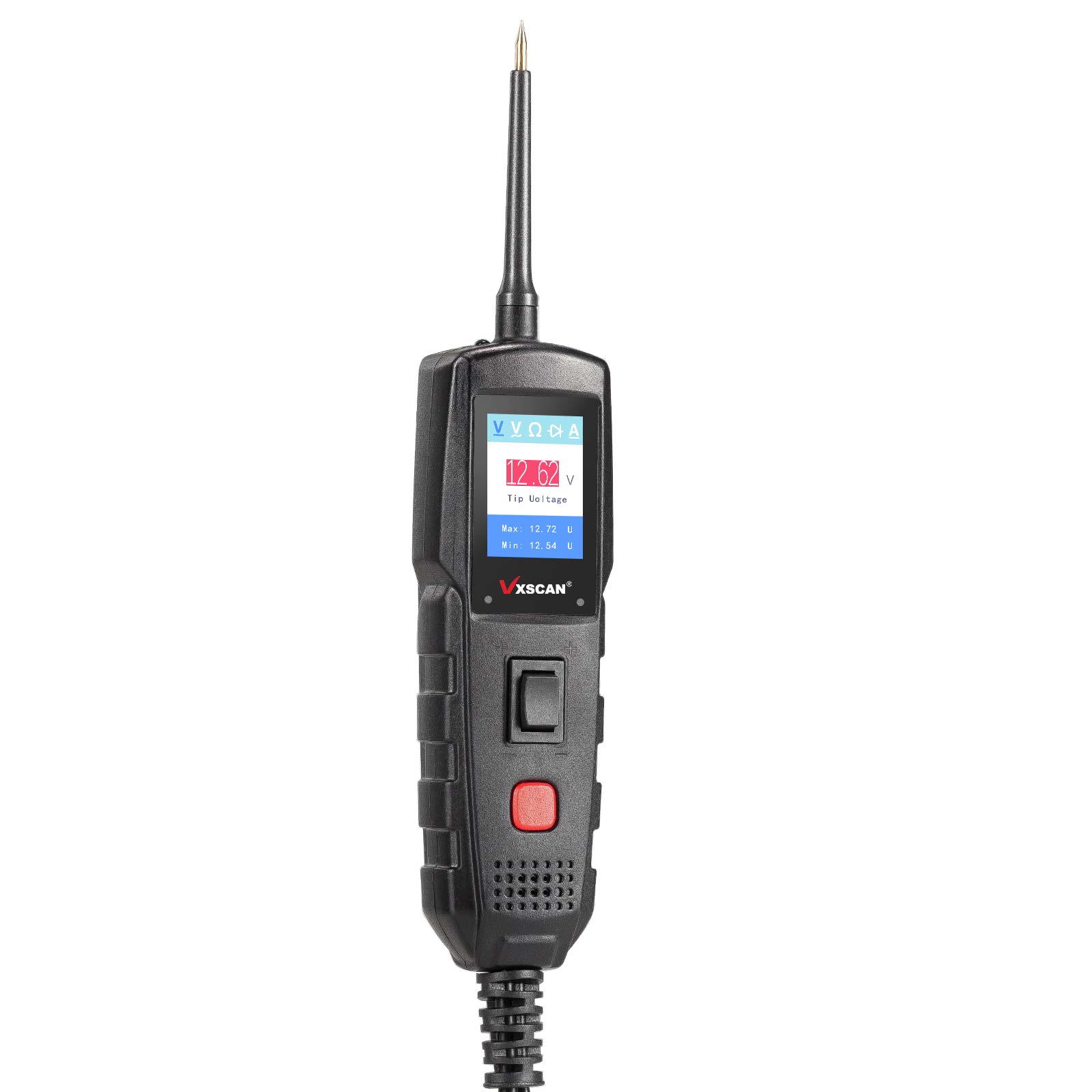

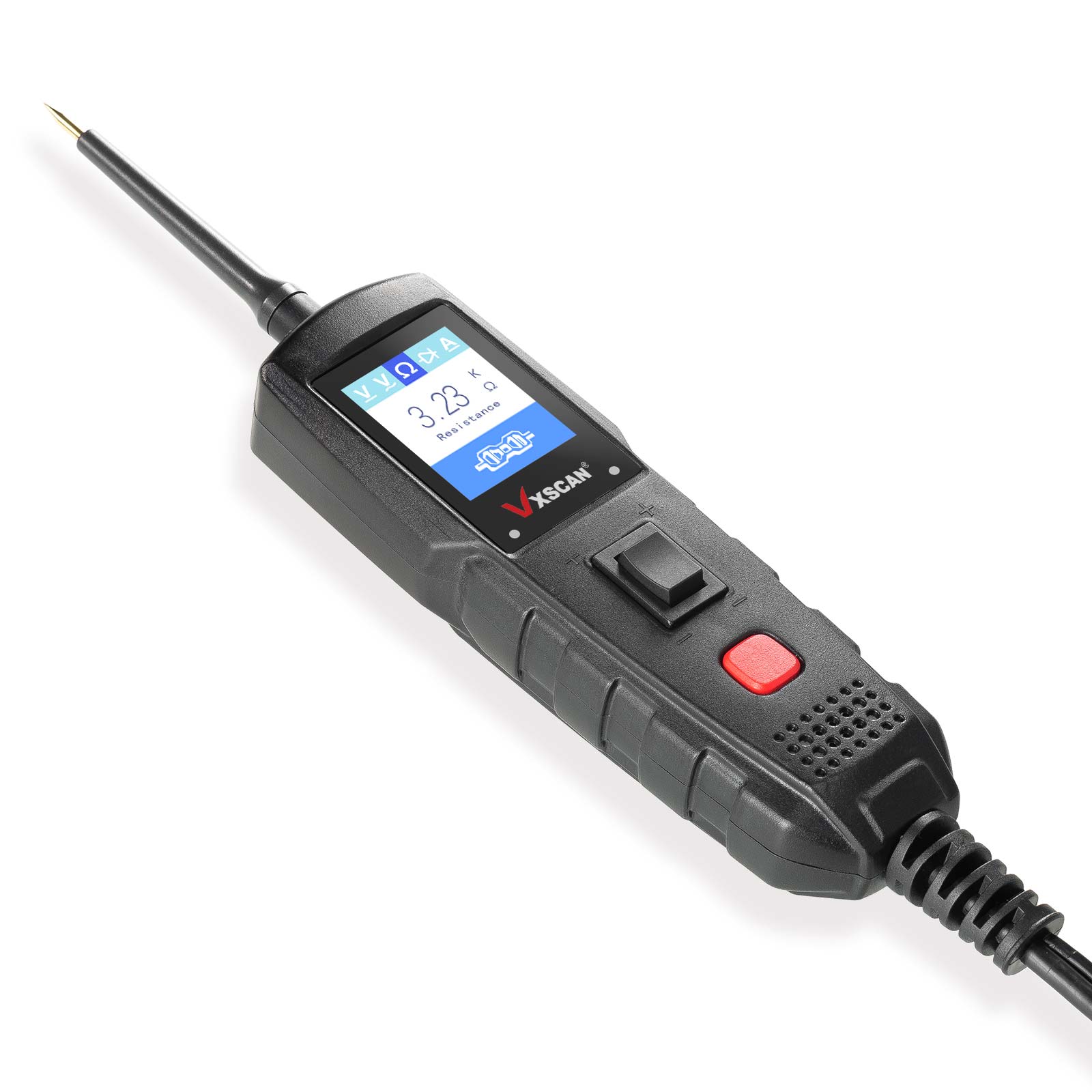

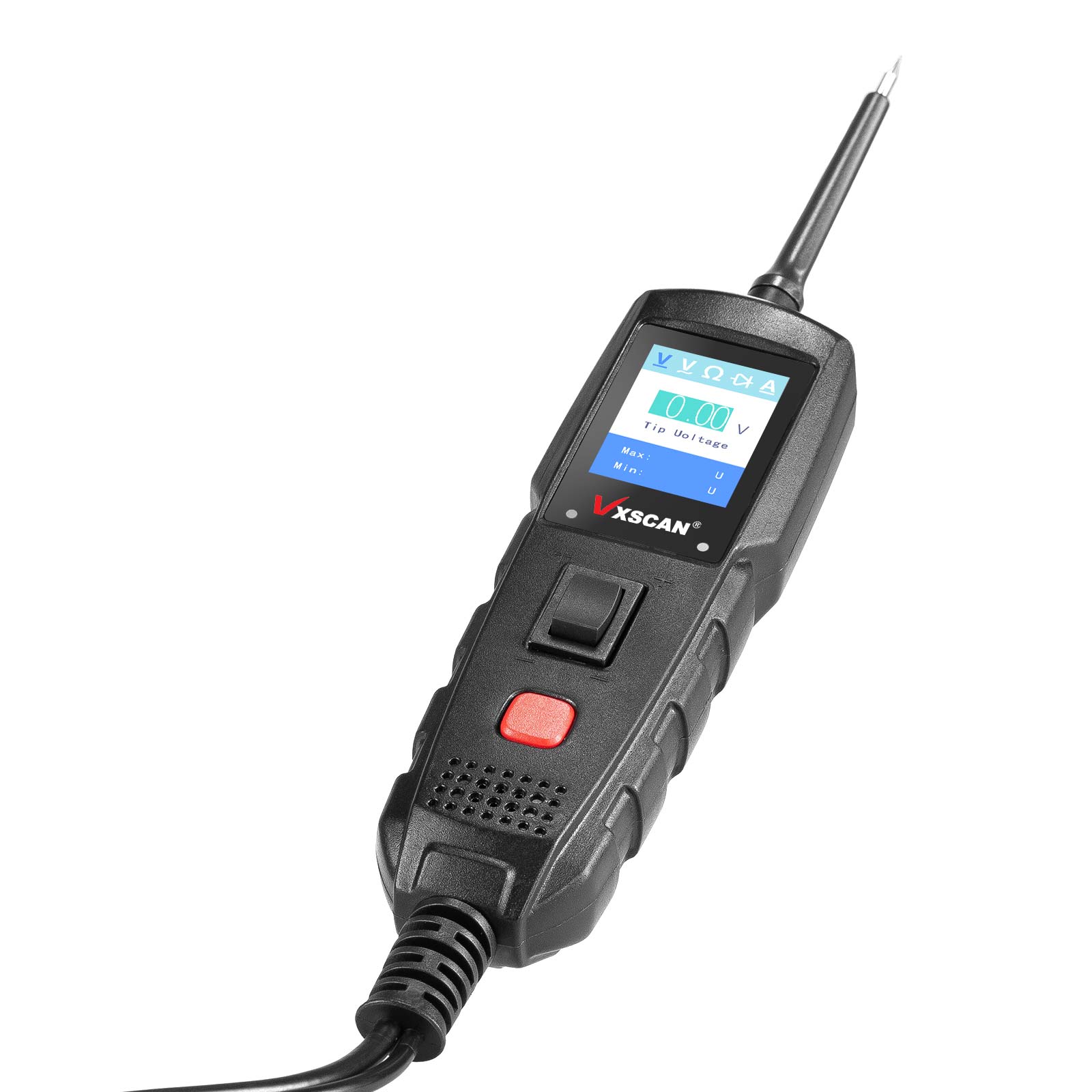

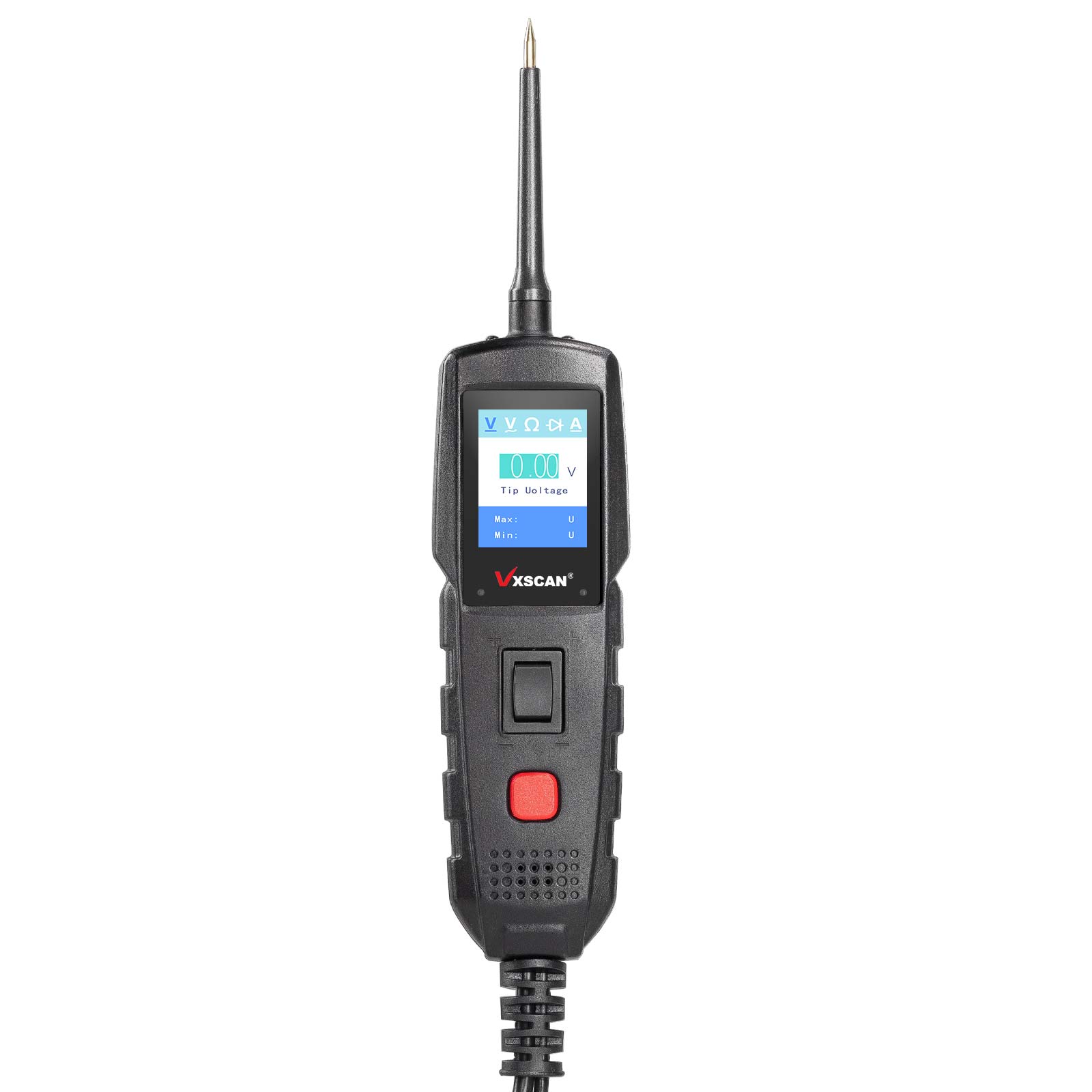

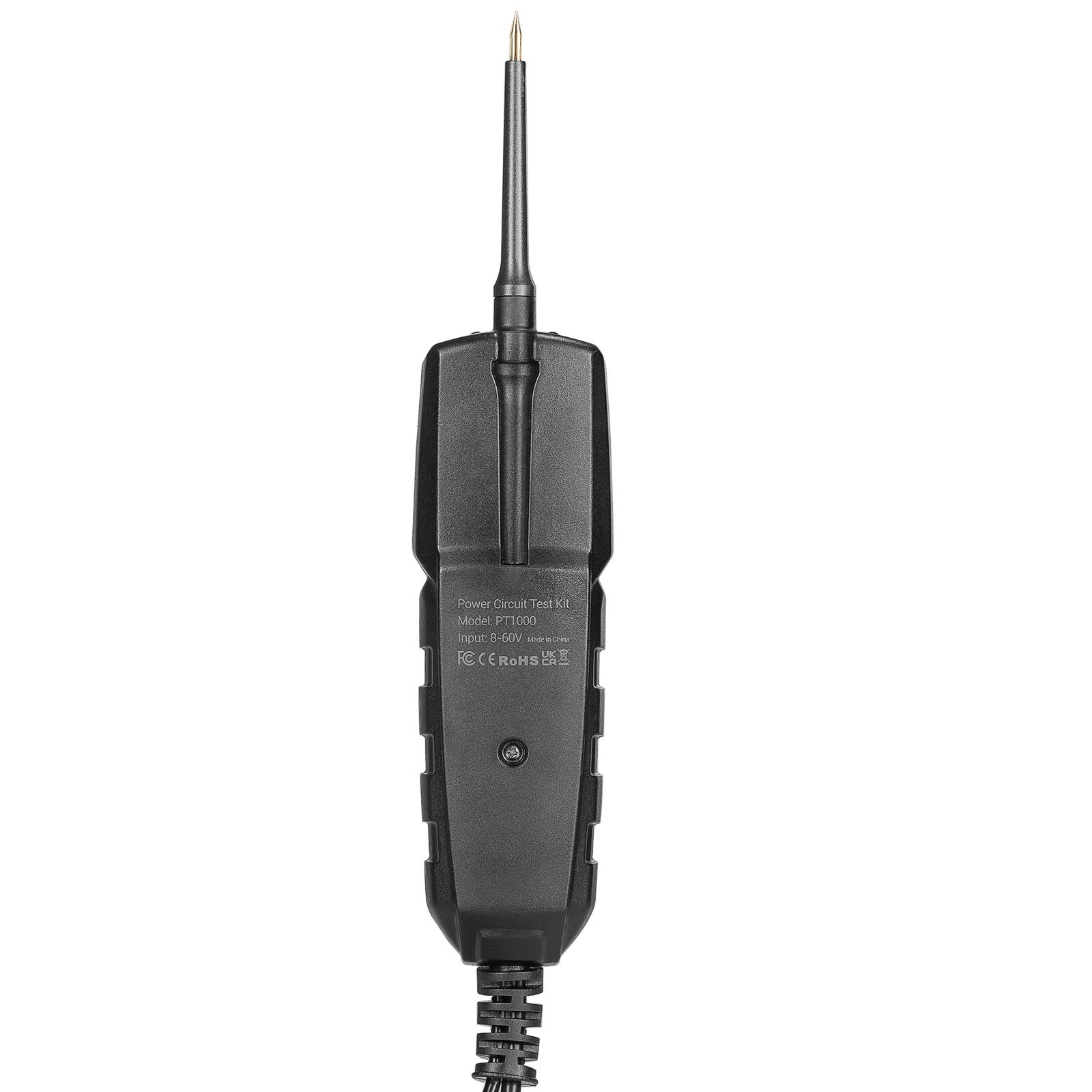

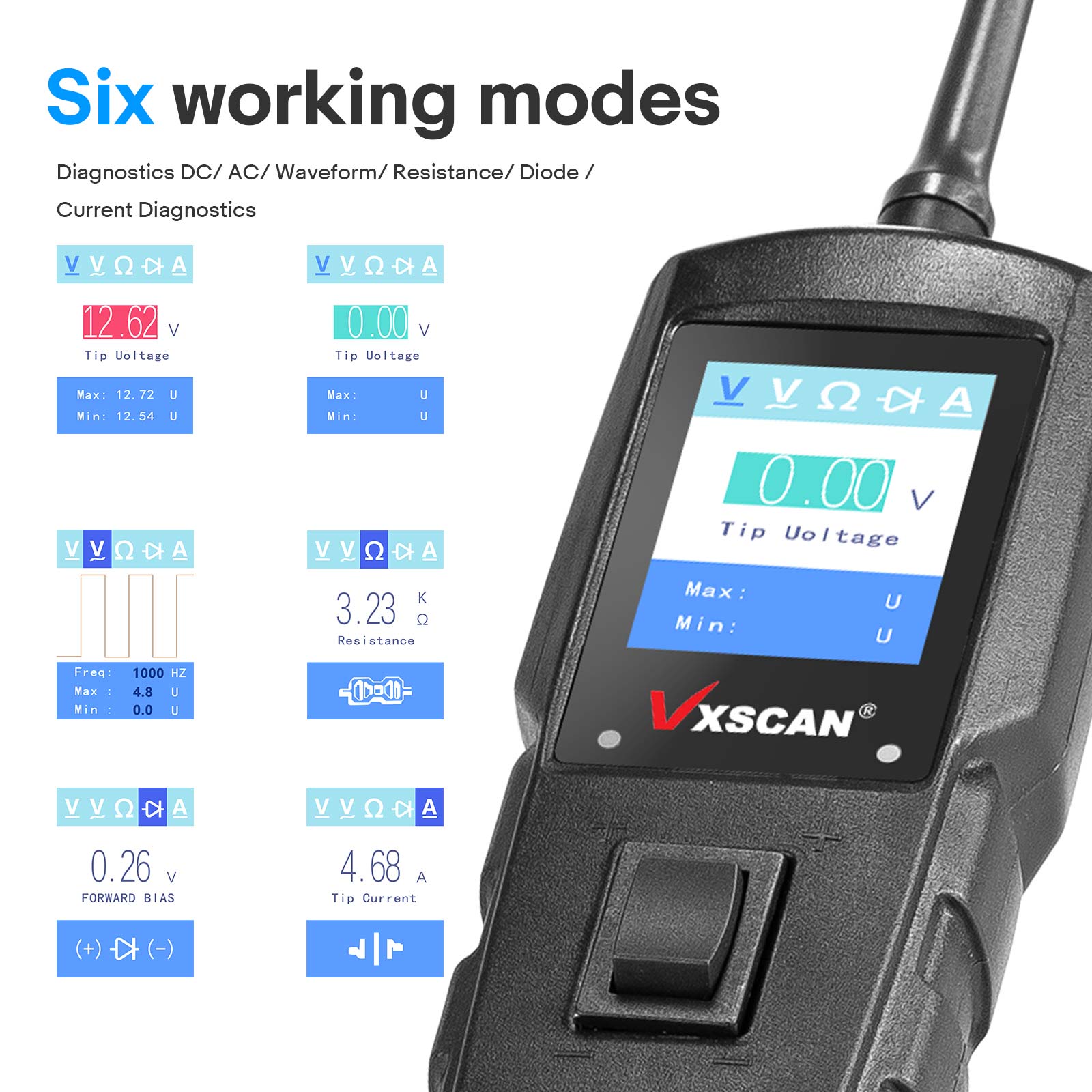

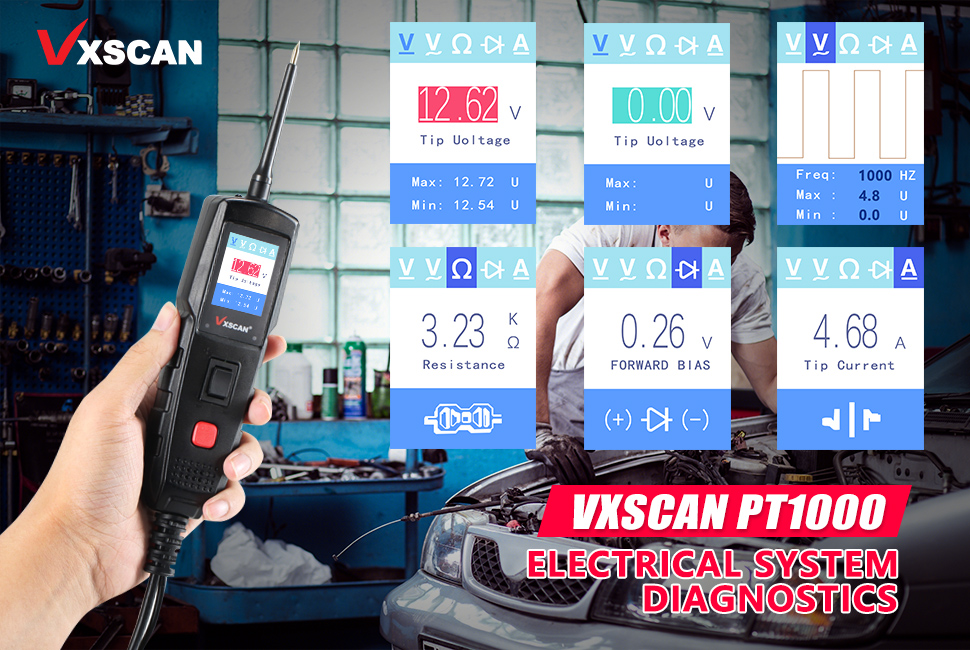

VXSCAN PT1000 Vehicle Super Electrical Diagnostics DC/ AC/ Waveform/ Resistance/ Diode / Current Diagnostics
VXSCAN PT1000 is the best electrical tester for reducing diagnostic time in all 8 to 50 volt vehicle electrical systems. It is short circuit protected, and its internal circuit breaker will trip if it becomes overloaded. The long extension cable allows you to test along the entire length of the vehicle without constantly searching for suitable vehicle grounds.
Product Features:
Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation.
Allows you to read voltage, current and resistance at the fingertip.
With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
Simultaneously uses the hot lead and the ground lead to activate components right in your hand.
Instantly identifies positive, negative and open circuits.
Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses.
It can be used to test waveforms, but it cannot be used to test ignition signals.
Instantly checks continuity of switches, relays and diodes.
Circuit breaker protected.

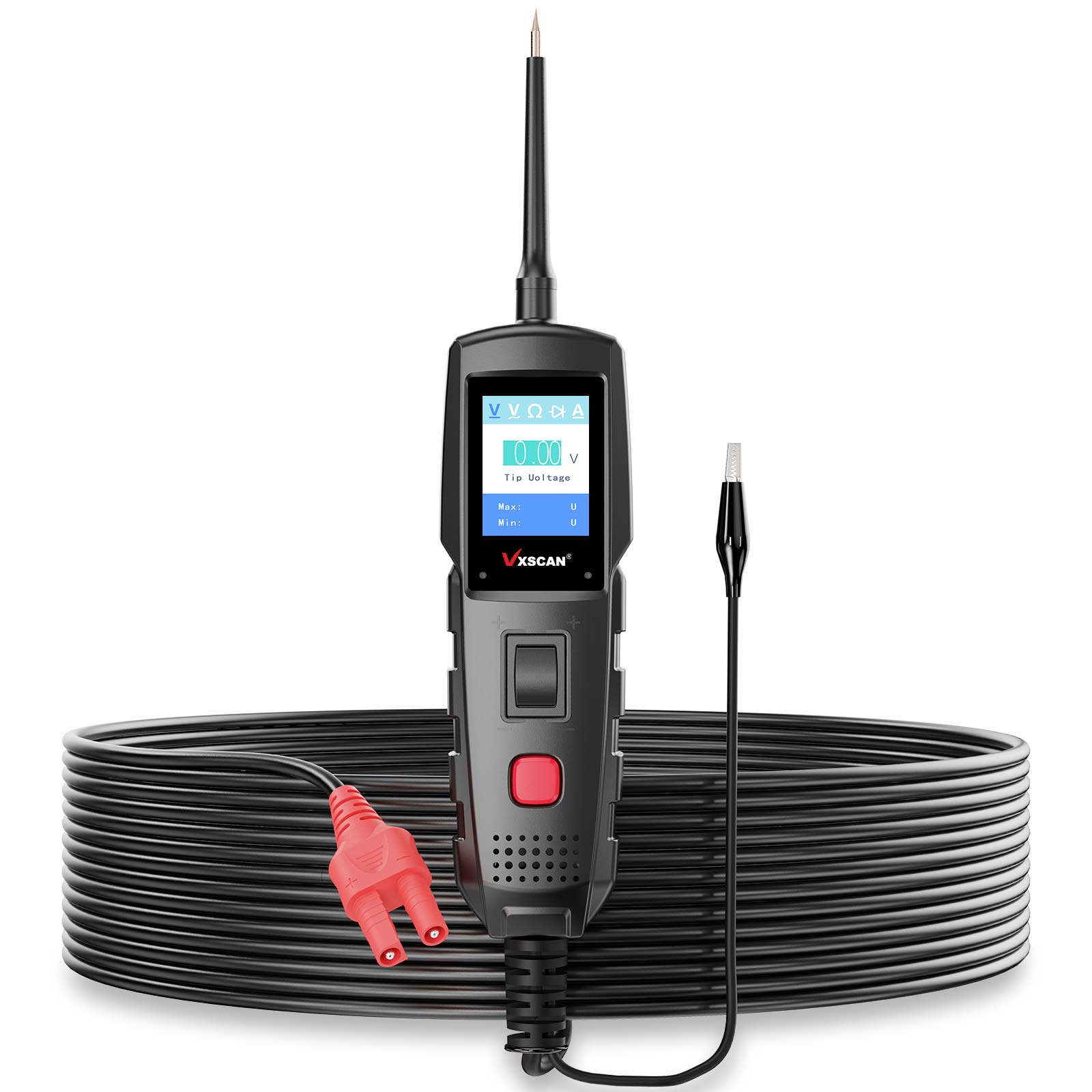

20ft (extendable) cable provides excellent accessibility to test along the vehicle.
Extremely easy to use and highly reliable.
Built-in Flashlight enables you to work in the dark
Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
Product Functions:
1. Determine at a glance if a circuit is positive, negative, or open without having to reconnect clips from one battery pole to another.
2. Test for continuity with its built-in auxiliary ground lead.
3. By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
4. Test for poor ground contacts instantly without performing voltage drop tests.
5. Follow and locate short circuits without wasting fuses.
6. Press the power switch and the probe tip will output current, which can test the current of motors, light bulbs, etc.
7.There is a protective action during waveform testing and resistor and diode detection. The probe head will not output positive and negative poles to ensure that the circuit and components under test are not burned.

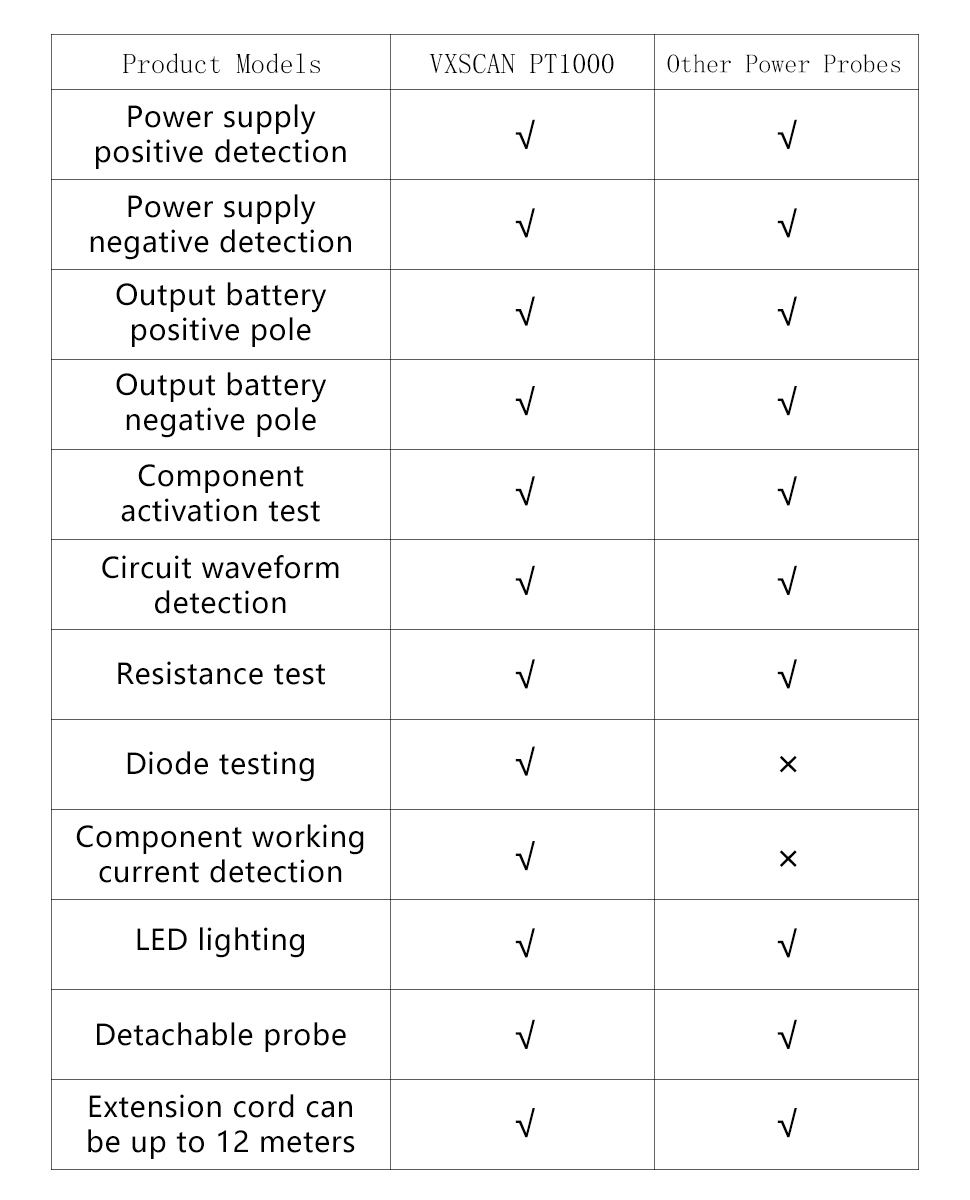

Product Comparison:
Product Specifications:
Display TFT color display (160x128 dpi)
Operating Temperature 0 to 60℃(32 to 140'F)
Storage Temperature -40 to 70°℃ (-40 to 185℃F)
External Power 12.0 or 24.0 V power provided via vehicle battery

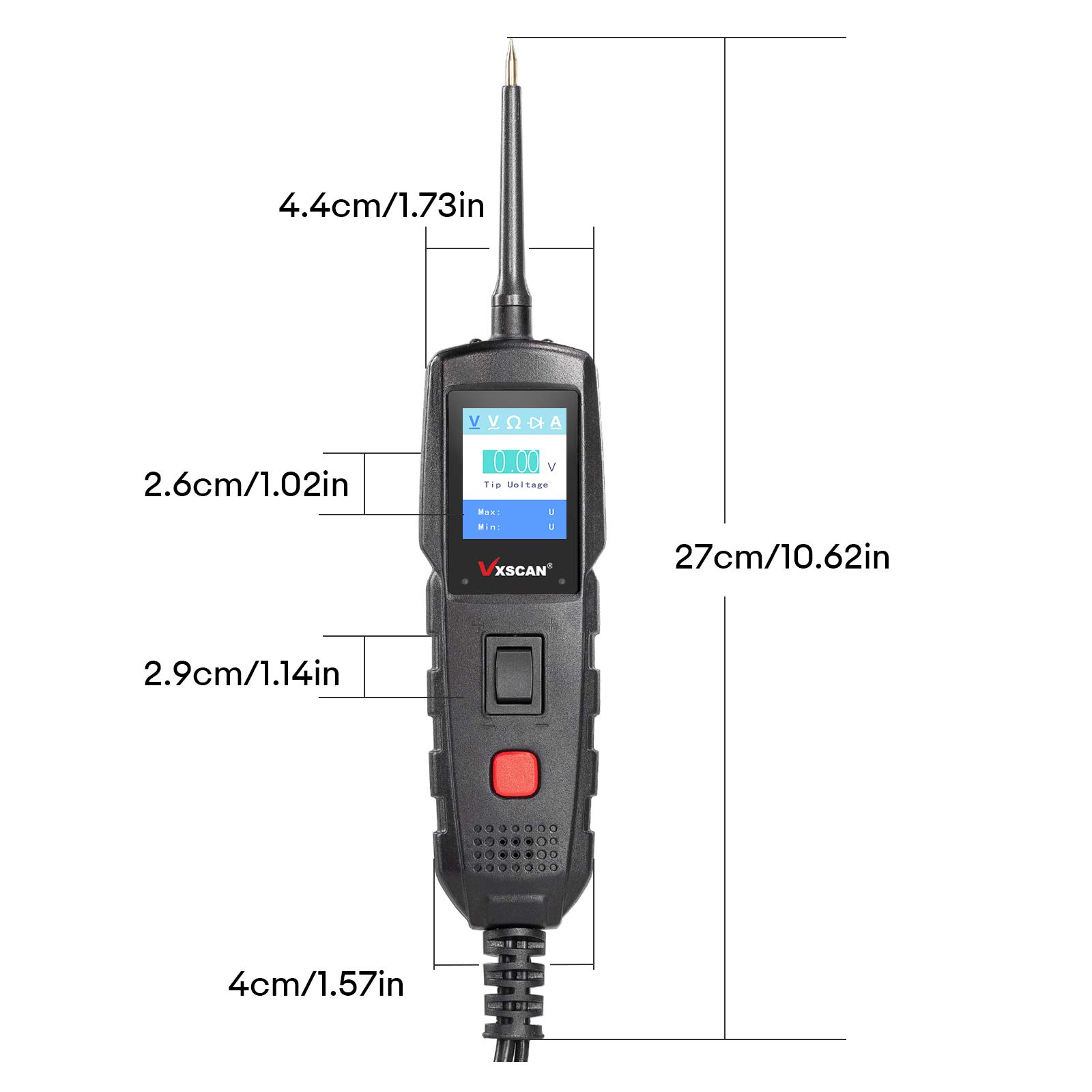

Dimensions (L*W*H) 200*50*35mm(7.87*1.97*1.38in)
Net Weight 0.1Kg(0.22LB)

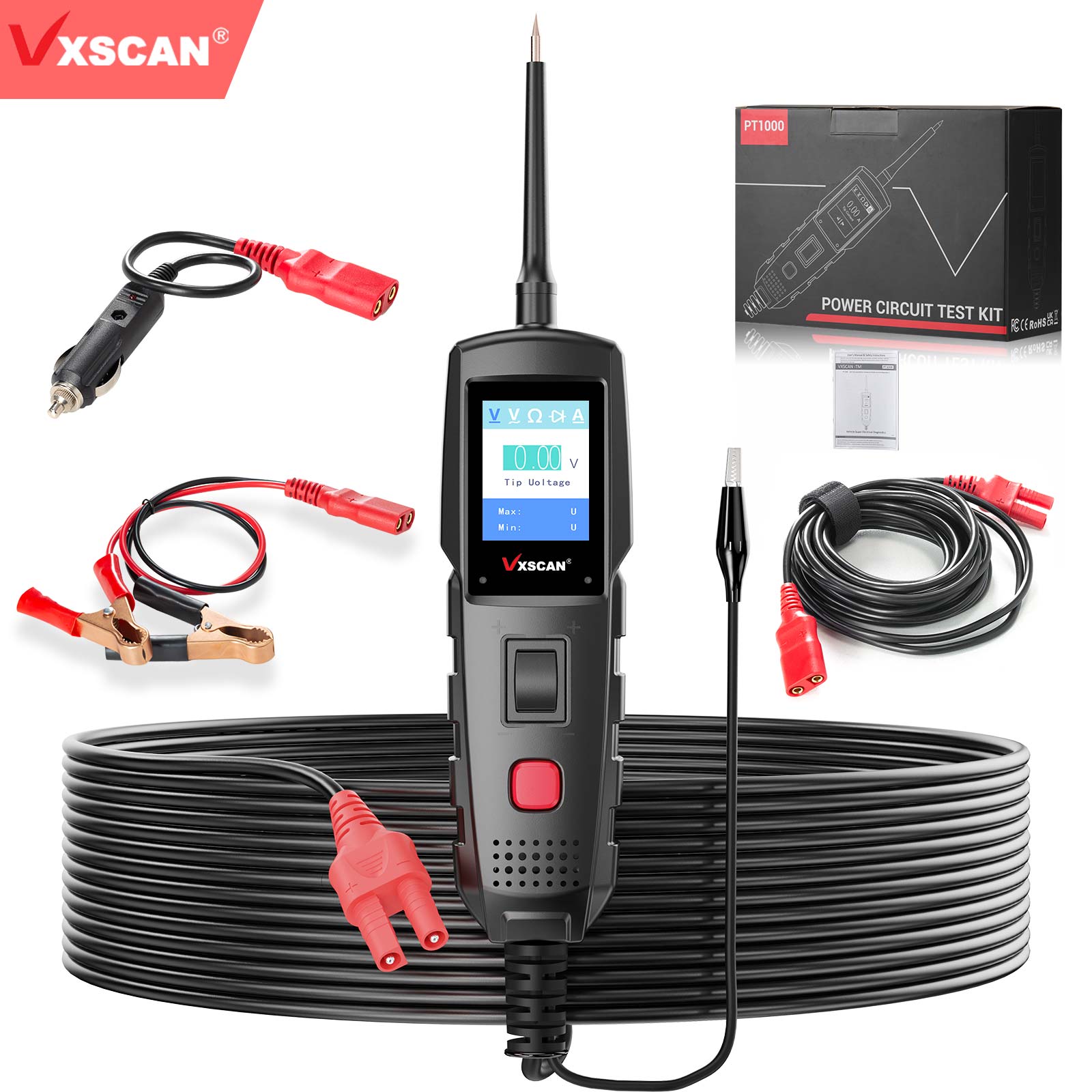

Package Includes:
1pc x Cigarette lighter adapter
1pc x Battery hookup clips
1pc x Probe tip
1pc x Extension cable (20ft.)
1pc x Rugged blow molded case
1pc x Power assist cable
1pc x User's manual
