NO Tax OBDSTAR X300 Classic G3 A1+A2 Support Programming of E-cars, Motorcycle, Marine (jet-ski) EU Version Free SendKey SIM+Motorcycle Cable Set

Produktbeschreibung

OBDSTAR X300 Classic G3 A1+A2 Support Programming of E-cars, Motorcycle, Marine (jet-ski) EU Version 2 Years Free Update EU Version

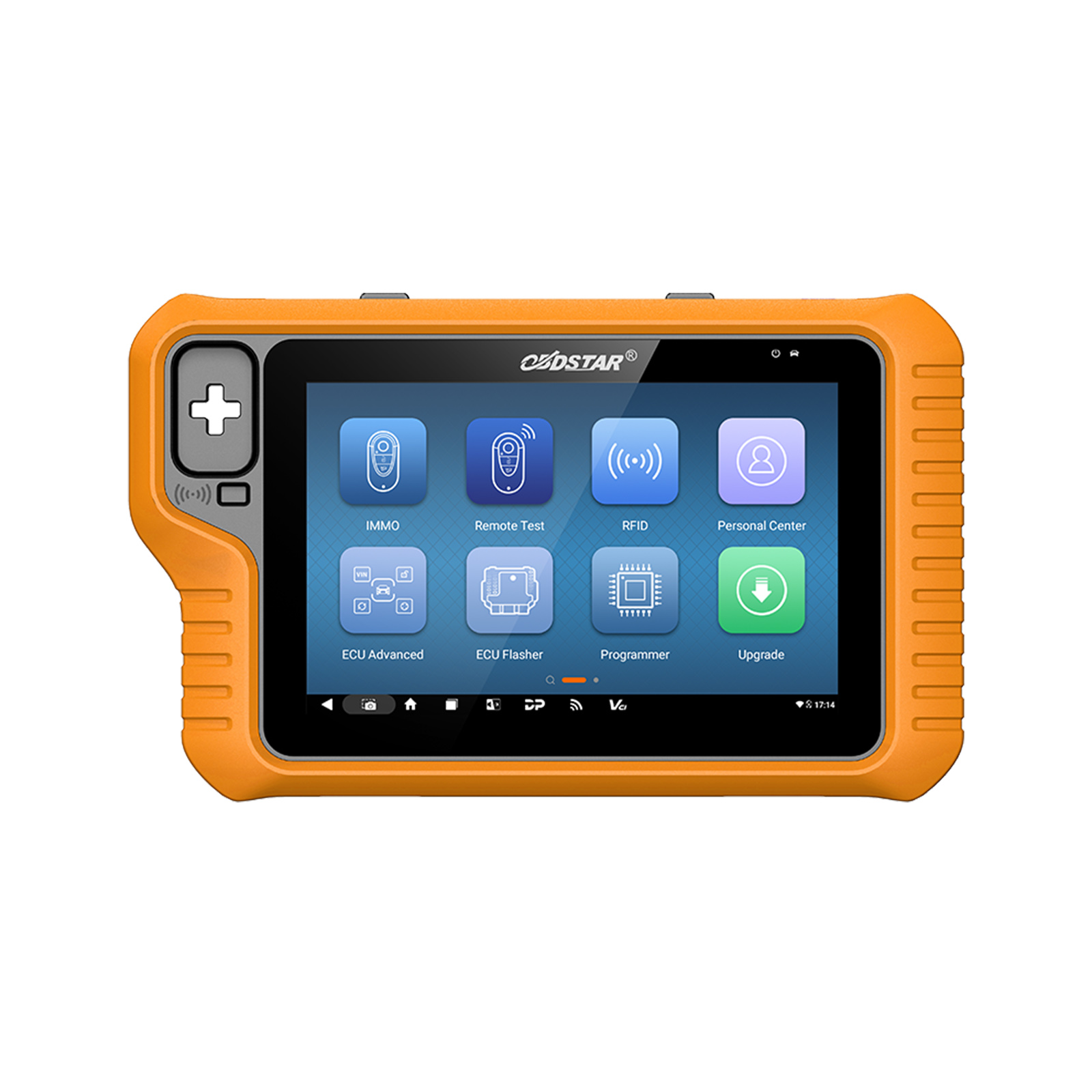

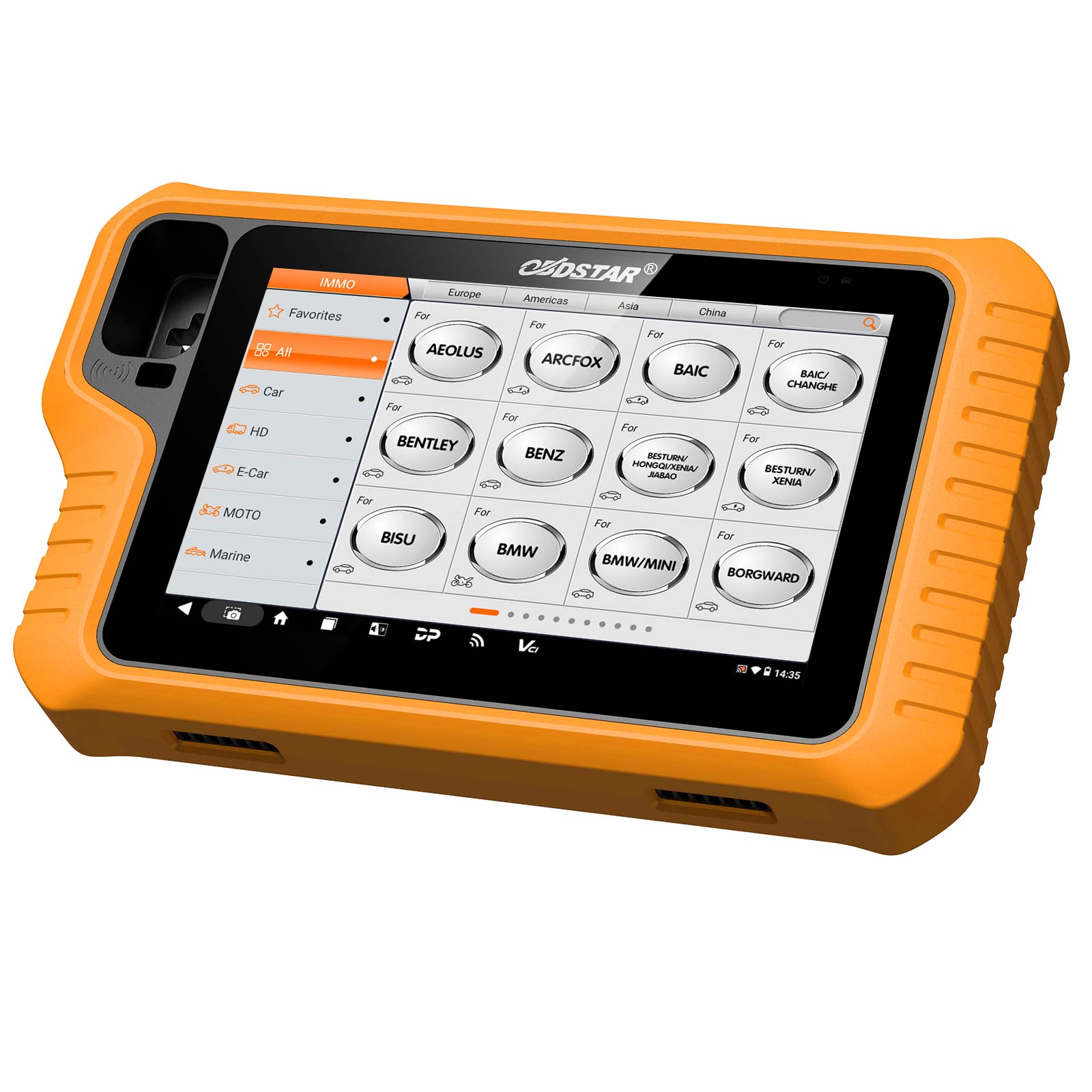

OBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, Jet Ski, etc. A good helper for an automotive locksmith master.

Highlights:

1. Two Years free update online
2. Update version of X300 DP Plus
3. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
4.  Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
5.  Comes with MP001 (replace P003/P003+ adapter) and P004 adapters in default
6.  Language: ONLY English
7.  Paid software activation service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn device into a all-in-one tool
8. Free Send Key SIM+Motorcycle Cable Set

Attention:
Optional Gift: Key silm or Motorcycle cables set(M034, M037, M040, M041, M042, M043, M053, M054) Please select the gift you prefer when place order

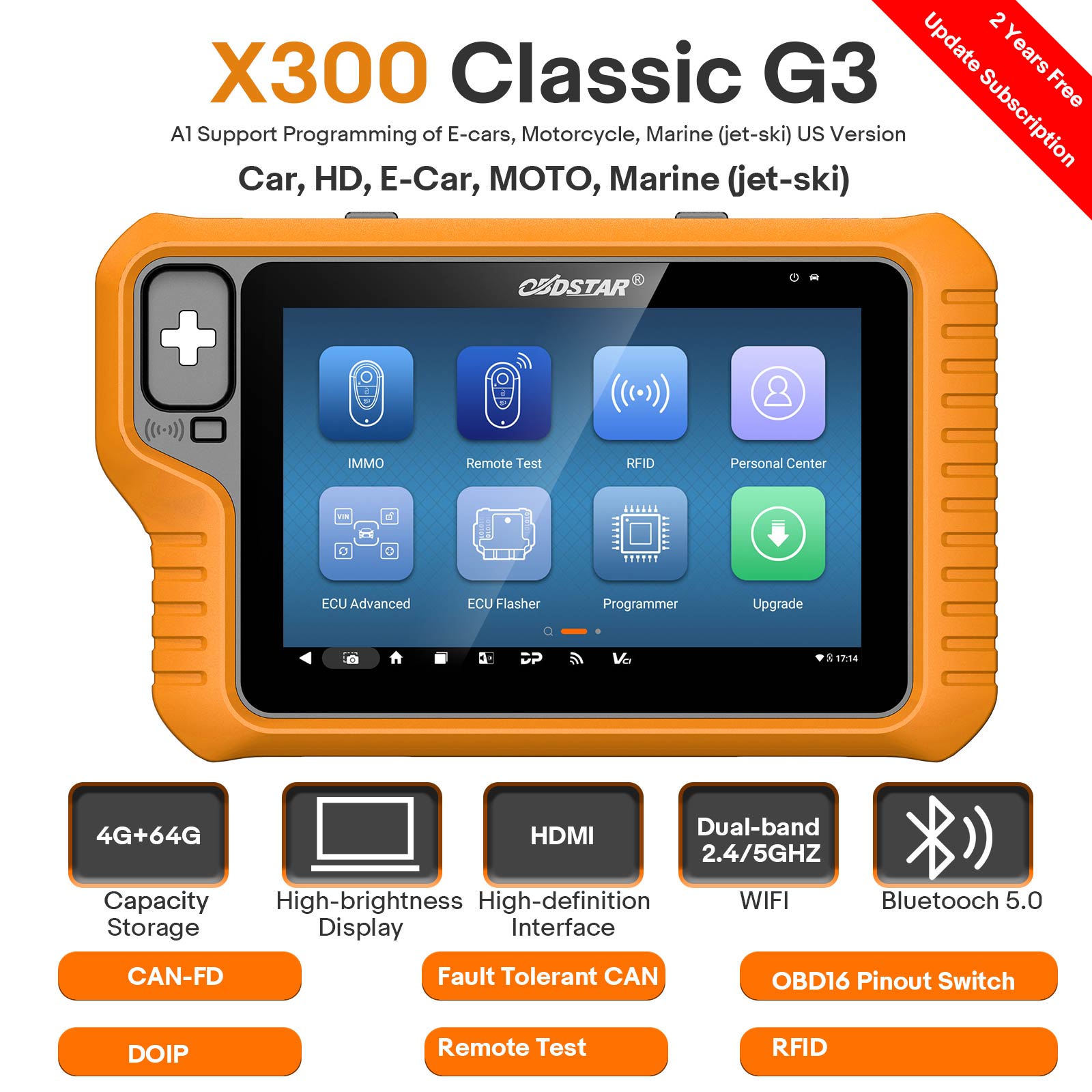

X300 Classic G3 Features:

1. Built in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;
2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
3. Support WIFI/Bluetooth Dual-band 2.4/5GHZ
4. Language: ONLY English, can't change to other language.
5. Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform and the other functions are available.
6. Two Years free update.

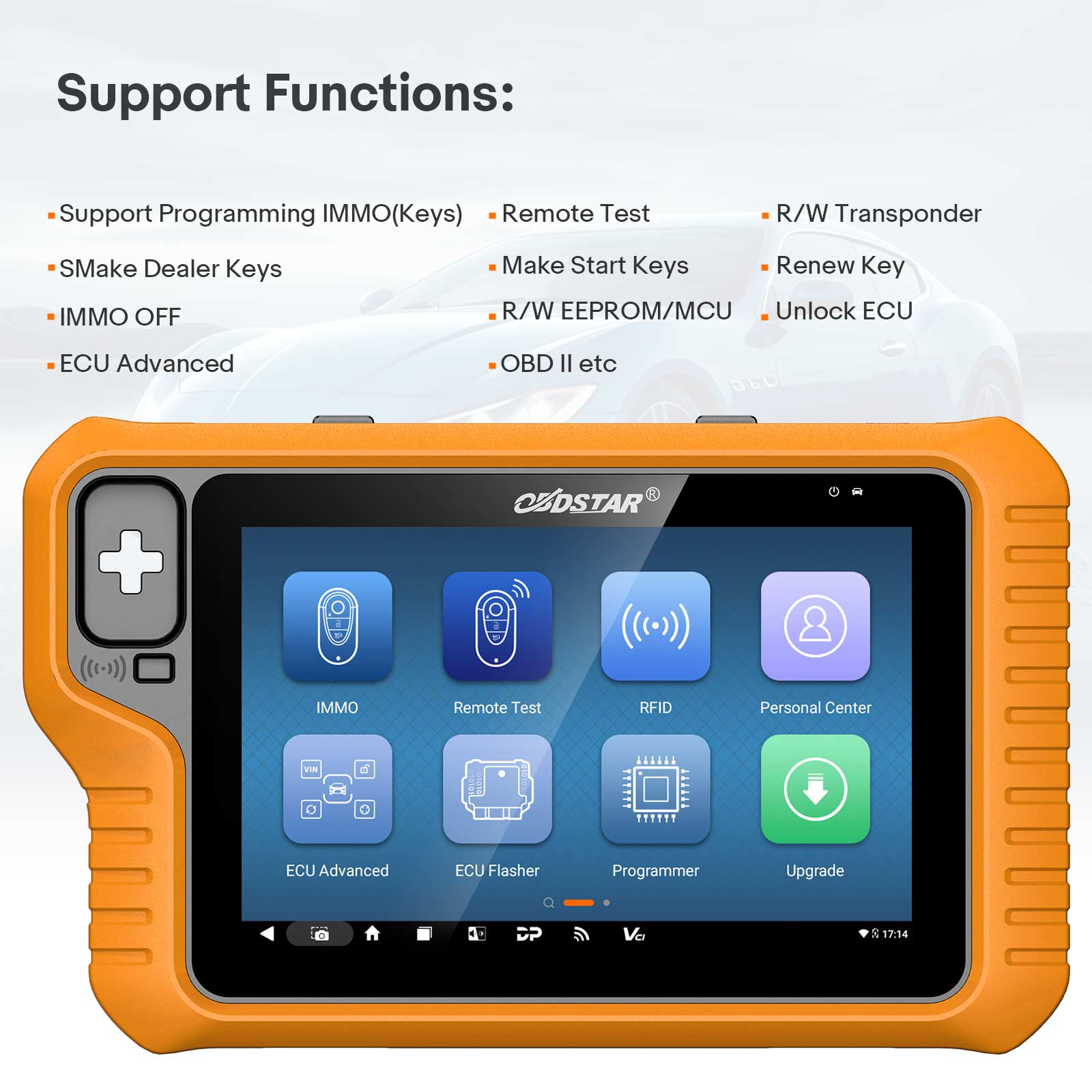

X300 Classic G3 Functions:

Programming IMMO(Keys),
Remote Test,
R/W Transponder,
Make Dealer Keys,
Make Start Keys,
Renew Key,
IMMO OFF,
R/W EEPROM/MCU,
Unlock ECU,
ECU Advanced,
OBD II etc.

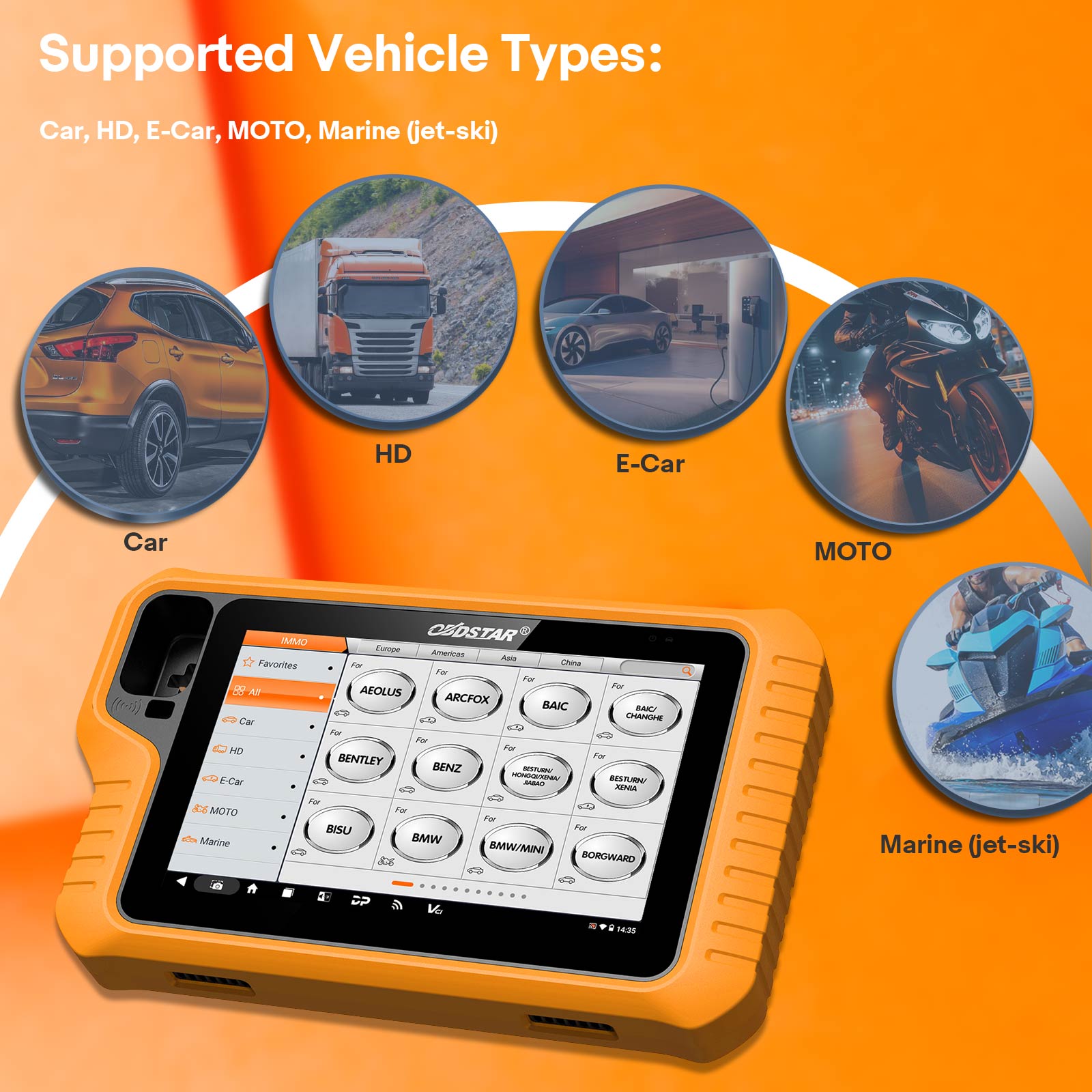

Supported vehicles:

Car, HD, E-Car, MOTO, Jet Ski

Advanced Functions:

1. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITALJET and others;
2. Support Marine key programming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAP MOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.
8. Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform and the other functions are available.


OBDSTAR X300 Classic G3 Vs. X300 DP Plus:


Product		KEY Classic G3	X300 DP PLUS
Specifications	Operation system	Android 11	Android 5.1.1
	OTA	V	×
	Screen recording	V
	Wireless screen casting	V	×
	CPU	Dual-core Cortex-A72 +Quad-core Cortex-A53	Exynos4418 qual core ARM cortex A9
	Battery	9000mA	3700mA
	Storage capacity	4+64GB	1+32GB
	LCD	8.0 inch fully laminated sunlight readable screen	8.0 inch
	LCD resolution	1280*800	1280*800
	Camera	Rear camera 800W pixels,auto-focus	Rear camera 500W pixels
	Bluetooth	Bluetooth 5.0
	External interfaces	RJ-45v	×
		HDMIV	X
		TYPE-A.TYPF-C	TYPE-A,TYPE-C
	WiFi	Dual-band 2.4G/5GHZ	2.4G
	VCl	STM32H723	STM32F407
		CANFD built inv	CANFD Adapter Required
		DOIP built inv	×
		Fault Tolerant CAN built inv	×
		All other common protocol types	All other common protocol types
	RFID	Built inv	P001 Required
	Remote Test	Built inv	RT100 Required
	Renault Converter	Built inv	Renault Converter Required

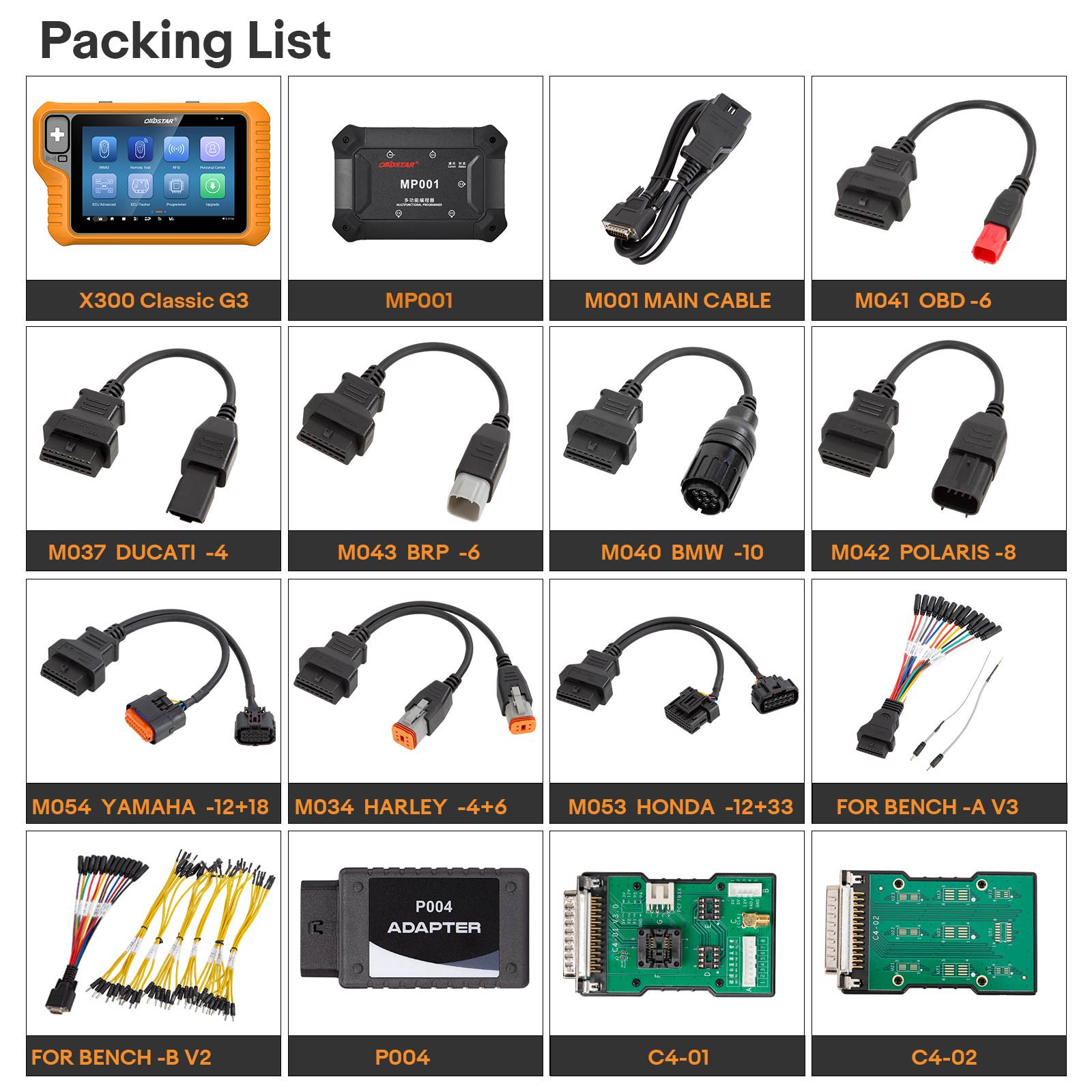

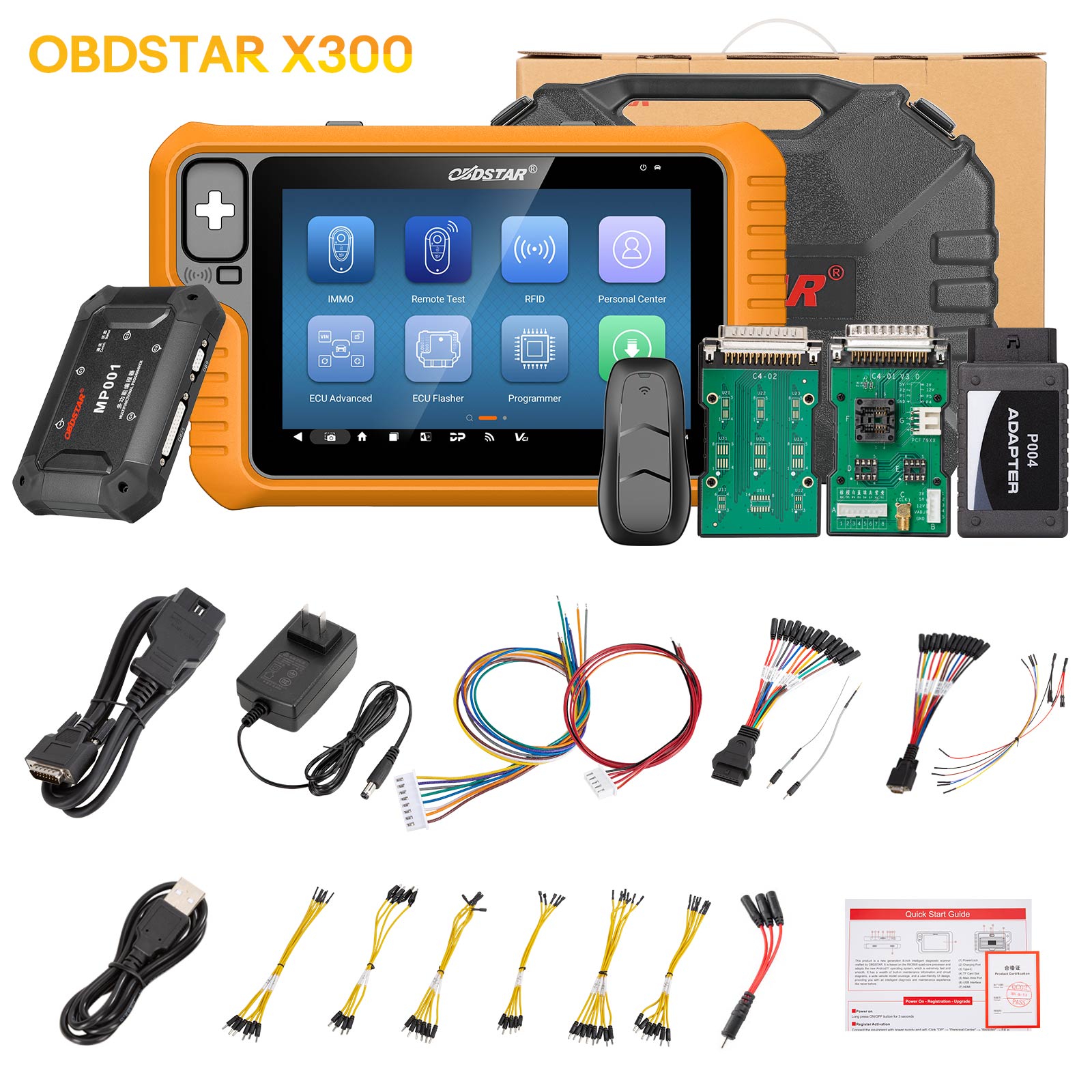

Package Includes:

1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x W006 clock frequency wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness

Free Gift Kits:
1pc x Key SIM + USB to Type-C Cable
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA


OBDSTAR X300 Classic G3 FAQ:

Q1: Can the X300 Classic G3 be equipped with Airbag Reset, Cluster Recalibration, ECU Flasher and other functions?
A1: Yes, please contact us or our our dealers for details.

Q2: I would like to have the list of supported models & features of this tool, where can I get it?
A2: You can download the coverage of the tool from the "Function Manual" on the product page of our official website, and we usually synchronize the update at the end of each month.

Q3: Is X300 Classic G3 compatible with all the functions of KEY MASTER DP PLUS?
A3: No, X300 Classic G3 is mainly targeted at automotive electronics repairers or professional locksmiths, so it does not include the diagnostic and maintenance functions of KEY MASTER DP PLUS (except for Manual Service Lamp Reset), but it adds a lot of new special functions.

Q4: Can I use the accessories of an old product I have previously purchased?
A4: Yes, in order to save locksmith costs, X300 Classic G3 is compatible with the following adapters or cables that have been purchased by previous users:
1. P002 adapter, P003 adapter, Key Sim adapter;
2. CAN DIRECT KIT, TOYOTA-24/27/30 CABLE;
3. NISSAN-40 BCM CABLE, NISSAN/ RENAULT 16+32 CABLE;
4. FCA 12+8 CABLE;
5. TOYOTA 8A cable, FORD all key lost cable.

Q5: What is ECU Unlock function of X300 Classic G3?
A5: The ECU Unlock fucntion is developed so that used ECU modules can be used in other identical vehicles. If you install a used ECU into another vehicle without unlocking it, it will report a fault and cannot be used normally.
