Orange 5 Super Pro V1.36 V1.35 Full Actived Professional Programming Device with Smart Dongle
Art.-Nr.SE163-F
Ausverkauft.
Sofort Kaufen: €249.00
Hot Items,EU Ship No Tax
LAUNCH X431 With Best Offer
Any help,please contact WhatsApp: +86 15223201143
LAUNCH X431 With Best Offer
Any help,please contact WhatsApp: +86 15223201143
Rückkehr:
Erstattung: innerhalb 7 Tagen. Der Kunde vertr?gt Versandkosten Read details ?
€249.00
Ausverkauft.
Kostenloser Versand
Produktbeschreibung
Orange 5 super pro programmer is a professional programming device for memory and micro-controllers. Unique feature of the current series programmers is its built-in macro language to write down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.
Orange 5 Super Pro V1.36 V1.35 Full Actived Professional Programming Device with Smart Dongle
Orange 5 super pro programmer is a professional programming device for memory and micro-controllers. Unique feature of the current series programmers is its built-in macro language to write down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.
Product Features:
Software Version:V1.36 and orange 5 super pro v1.35 full function.
Language:English,Russian
Systems: WIN XP/ WIN7 (32bit and 64 bit)
Note: Dongle use to 08-airbag and 09-dashboard modules.
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.
OEM Orange5 user review:
All functions open 1 - 10 except car radio get error
Tested reading usual eeproms all good
Tested immo login code from dump, tms vw works
The adaptor solder
Top 3 Reasons to Choose Orange 5 Super Pro:
1.If you buy our orange 5 super pro ,we will send orange 5 v1.36 software as a gift.

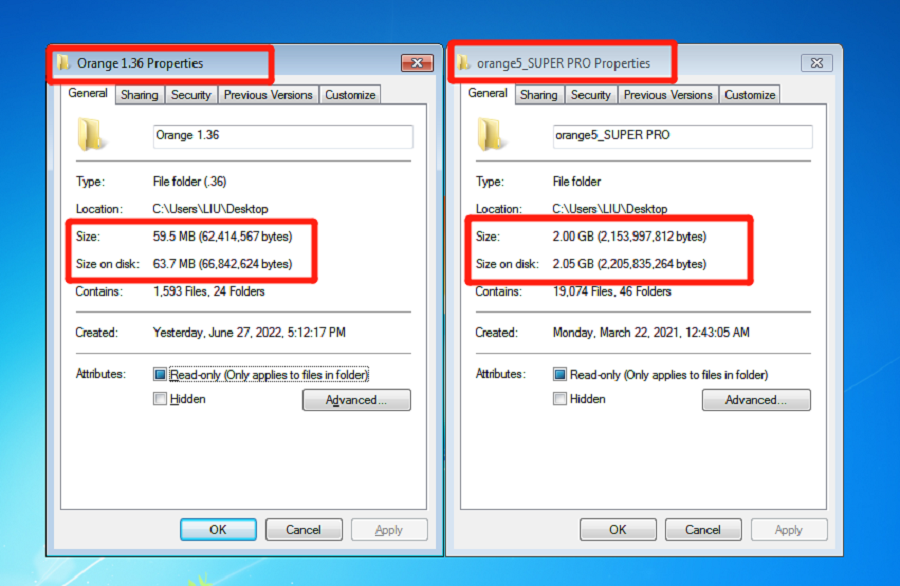

2.It support more scripts and Wiring diagrams,v1.36 just about 60MB ,but super pro is 2GB .
3.Orange 5 super pro add many new licenses : 08-airbag and 09-dashboard.A-car radio,B-airbag,C- immo&pin,D-car mileage,E-motorbike mileage,F- dash tractor
Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
New Licenses:
MCU ( Infineon，ST and MicroChip)
Renesas: H8SX，HD64F，V850 UART，V850 SPI，RH850 V3，RL78
Special_05
AIRBAG
Dash
Fujitsu
F-DASH Tractor
EEPROM
A/B/C/D/E moudels
The Differences Between Orange 5 Plus and Orange 5 Super Pro :

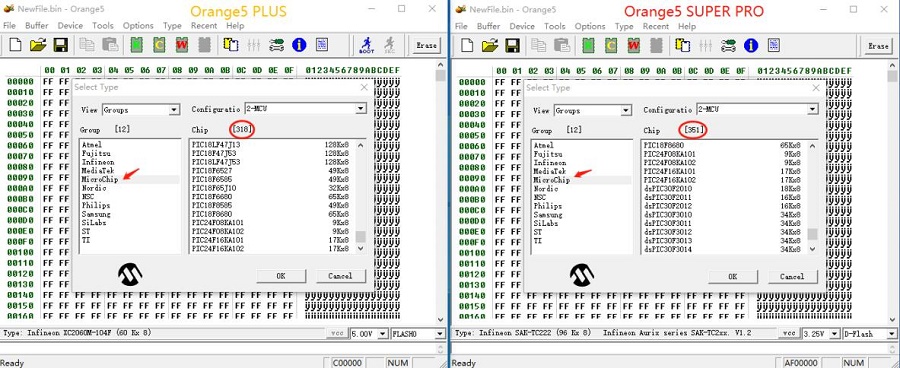

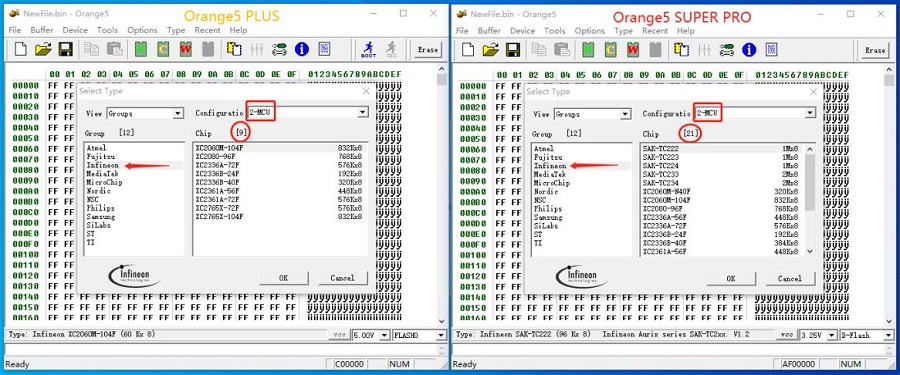

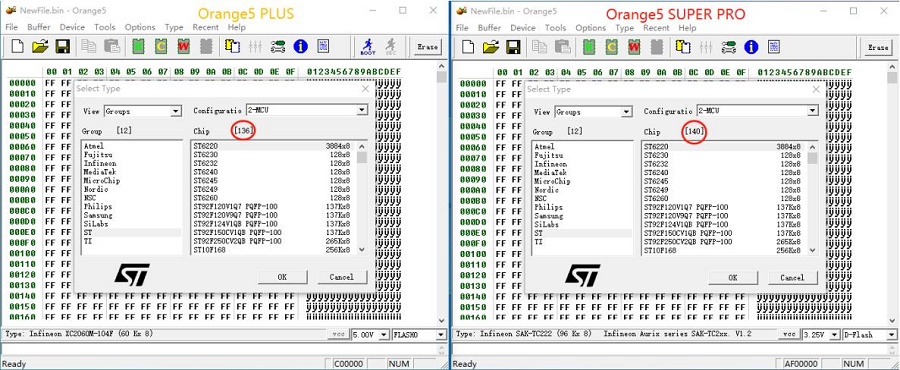

We have more chip models than others in Infineon, ST and MicroChip of MCU, as shown in the figure:

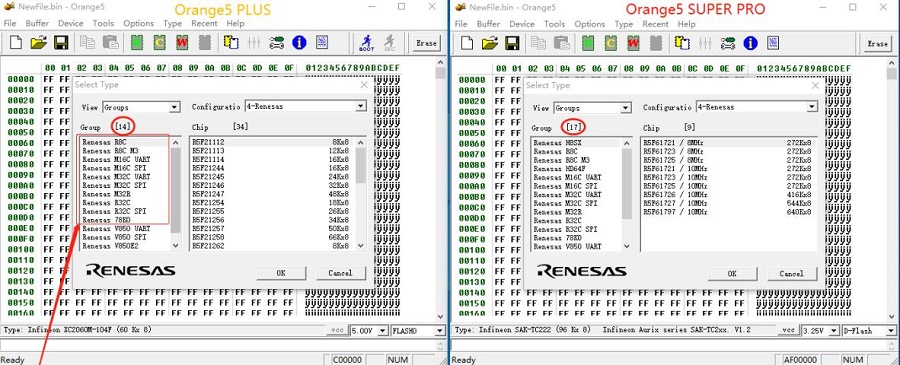

Renesas: We have more licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others
Our 17 models have activated the license and can be used normally, more than others, such as H8SX, V850 UART, V850 SPI, RH850, etc.
We guarantee that everything displayed can be used, no fake stuff, so we will not show this module option in the file we send to customers
Although Orange5 plus has 14 models, but only 10 modules in the red frame can work, meanwhile, Orange 5 Super Pro's 17 models have activated the license and can be used normally, more than others, such as H8SX, V850 UART, V850 SPI, RH850, etc.
Although Orange5 plus has 14 models, but only 10 modules in the red frame can work, meanwhile, Orange 5 Super Pro's 17 models have activated the license and can be used normally, more than others, such as H8SX, V850 UART, V850 SPI, RH850, etc.

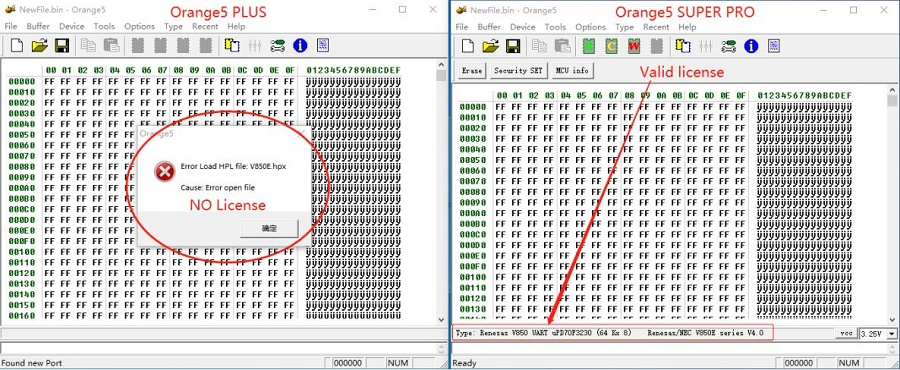

Orange 5 plus has these buttons,but there is no licenses, so it can't work!
The Greatest Advantages of Orange 5 super Pro Programmer:

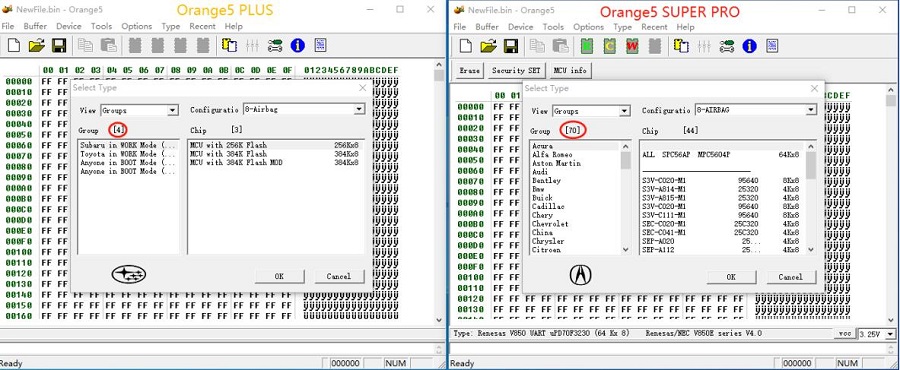

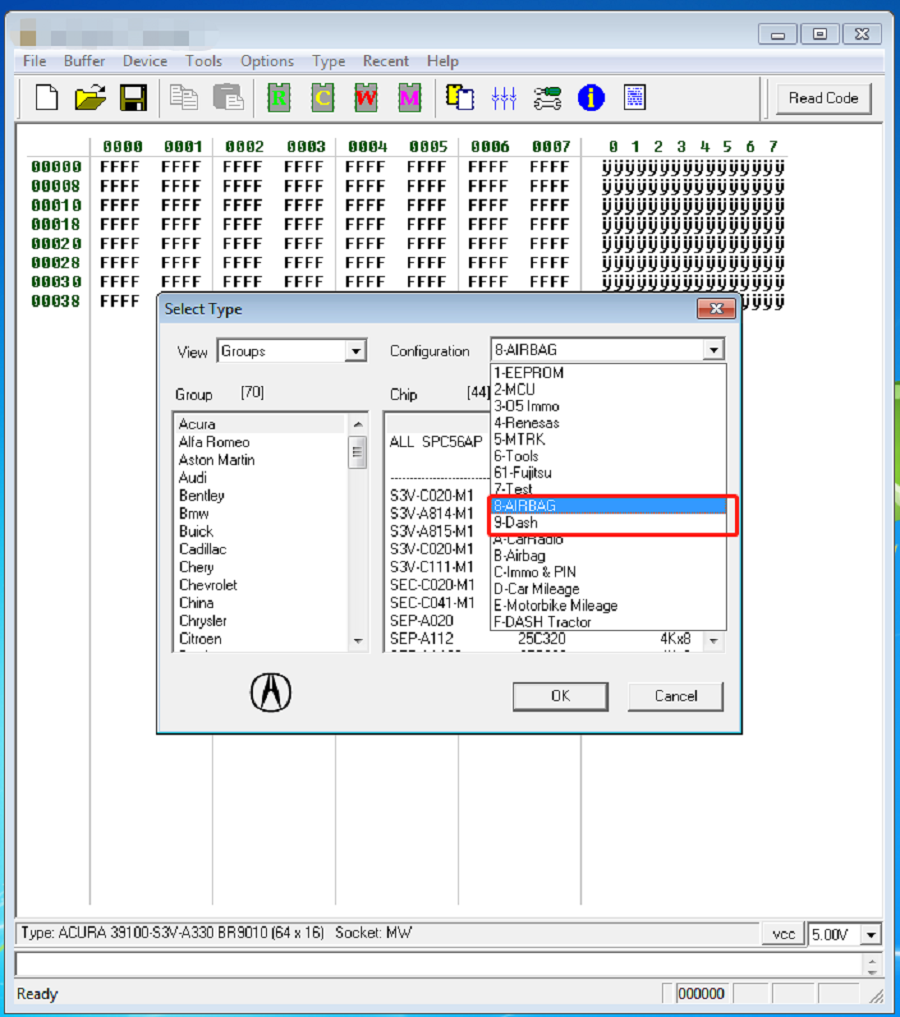

AIRBAG: 2020 database, 70 car brands, mostly with help files (wiring diagrams, etc.) ✔
Dash: 2020 database, 70 car brands, including cars, trucks, motorcycles, snowmobiles, tractors, construction machinery, etc., and most of them have help files such as wiring diagrams✔

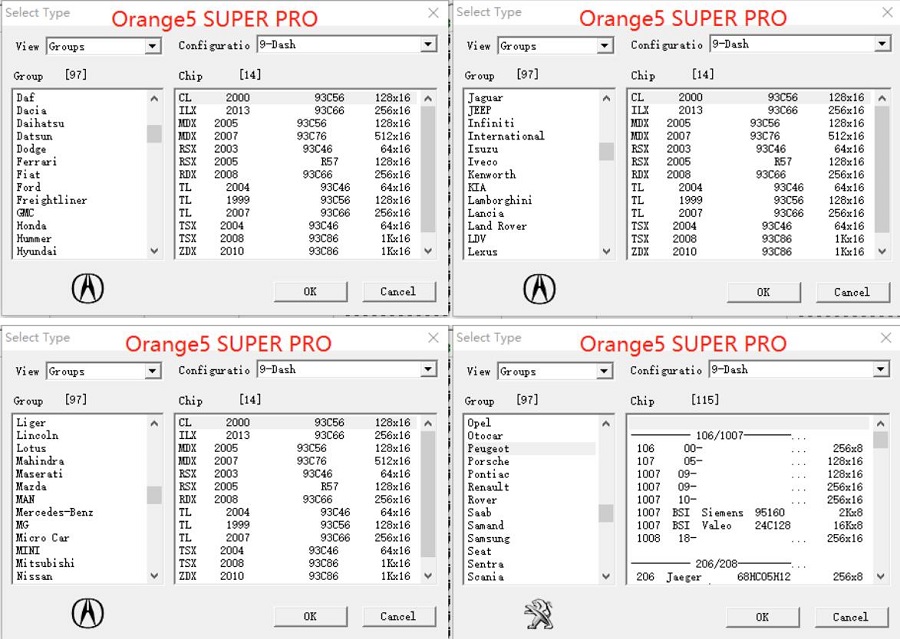

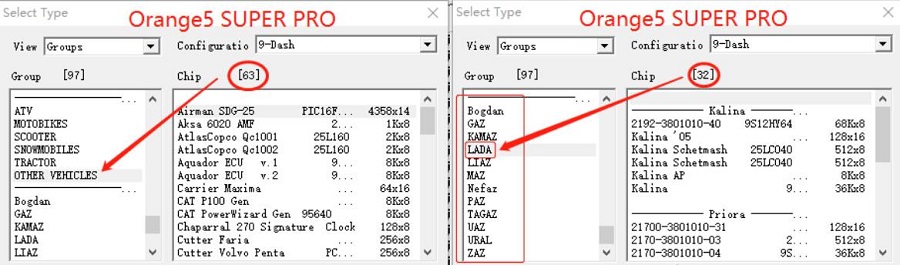

The following screenshot shows part of Dash's model list:
Fujitsu: We have this module, but other products do not have this moduleWe have 61-Fujitsu series, MB90 series, 91/95/96 series DASHBOARD ECT. Others has no these moudels

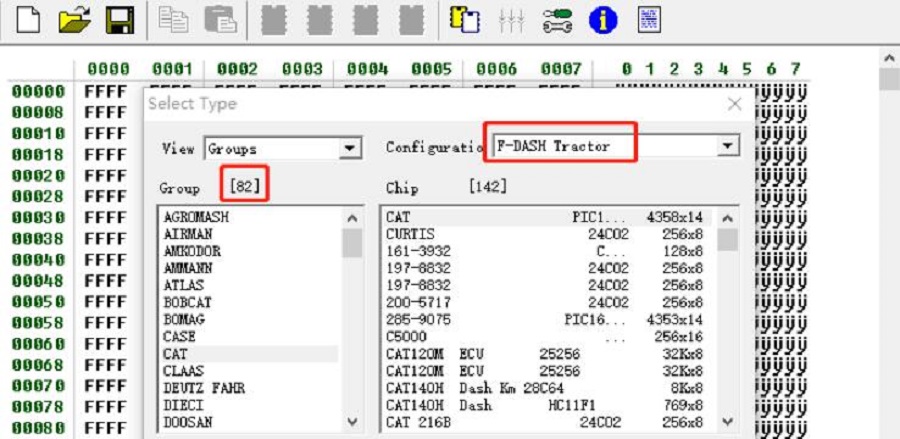

F-DASH Tractor:
Orange 5 Super Pro Technical Info:
USB power supply (USB2.0/3.0)
Universal easy to plug panel ZIF16 for EEPROM
Control of contacts in the sockets
Two expansions compatible with Orange4 and Omega MTRK
Protection against overcurrent
Overload voltage protection
Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.
Orange5 Super Pro Software Download URL: https://mega.nz/file/6c4nBQJb#StikKVtqZ0ucFEP1WqDkCOlKeI5PwbD7ZslH70rt3ZQ
Orange5 Super Pro Software Download URL: https://mega.nz/file/6c4nBQJb#StikKVtqZ0ucFEP1WqDkCOlKeI5PwbD7ZslH70rt3ZQ
Orange5 Super Pro Programmer Chip List:
IMMO HPX 9V0
EEPROM: MicroWire, 4Wire, Adesto, AKM, Altera, Amic, Atmel, BOSCH, Catalyst, Chingis, Dallas/Maxim, EON, ESMT, EXEL, Fairchild, Fujitsu, GI, GigaDevice, Grundig, HOLTEK, Hynix, ITT, KHIC, Macronix, MicroChip, Micron, for Mitsubishi, for Motorola, NEC, NSC, Numonyx, OKI, PCT, Philips, Pioneer, PMC, Ramtron, Rohm, Samsung, Seiko, for Siemens, Sony, Spansion, SST, ST, Winbond, Xicor, XUSSR, YMC, MCU, Atmel, Infineon, MediaTek, MicroChip, Nordic, NSC, Philips, for Renesas, for Samsung, SiLabs, ST, TI, for Motorola, for Freescale, MC68HC11, MC68HC12
Package Includes:
1pc x Orange 5 Super Pro Programmer
1pc x Smart Dongle
1pc x Smart Dongle
