OBDSTAR MS50 BASIC Motorcycle Diagnostic Equipment(Key Programming Coding Odometer Adjustment Functions Need to be Purchased Individually )

Produktbeschreibung

OBDSTAR MS50 Basic Version Motorcycle Diagnostic Tool

MS50 BASIC is a portable motorcycle diagnostic tablet which is used for motorcycle maintenance and repair. It is a new generation of intelligent motorcycle diagnostic equipment tailored for motorcycle technicians. With its super performance and concise appearance, every detail of  MS50 BASIC reflects fine workmanship.

Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, MS50 BASIC brings users professional diagnosis experience.

Main Basic Functions of MS50 BASIC

I. New android 5.1.1 operation system;
II. Simple and intuitive menu guidance allows you to quickly understand how to use the tablet;
III. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
IV. Menu selection is more convenient and quick;
V. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
VI. Wi-Fi connection to the internet, one-click software upgrade;
VII. One-click remote help function, OBDSTAR technical staff offer remote assistance;
VIII. Support most of the Asia and Europe models.
Advanced Functions of MS50 BASIC

① The first fault guidance, help data, technical bulletin, diag socket, and so on help you diagnose accurately and efficiently;
② Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
③ Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.
Product Details:










Supported Vehicles List


Area	Brand
Asia	AEON, BAJAJ, HARTFORD, HERO, HONDA, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA
Europe	APRILIA, BENELLI, PIAGGIO, ROYAL ALLOY, VESPA
China	CNABS, CNENG

The Comparison Among MS50 STANDARD, MS50 BASIC, MS50 STANDARD+SPECIAL KIT and MS50 BASIC+SPECIAL KIT


Function	Area	Brand	MS50 STD	MS50 BASIC	MS50 STD+SPECIAL KIT	MS50 BASIC +SPECIAL KIT
MOTO DIAG	Asia	AEON	√	√	√	√
		BAJAJ	√	√	√	√
		BENELLI(DSK)	√	×	√	×
		HARTFORD	√	√	√	√
		HERO	√	√	√	√
		HONDA	√	√	√	√
		HYOSUNG	√	×	√	×
		KAWASAKI	√	√	√	√
		KYMCO	√	√	√	√
		PGO	√	√	√	√
		ROYAL ENFIELD	√	√	√	√
		SUZUKI	√	√	√	√
		SYM	√	√	√	√
		TVS	√	√	√	√
		YAMAHA	√	√	√	√
	Europe	APRILIA	√	√	√	√
		BENELLI	√	√	√	√
		HM	√	×	√	×
		HUSQVARNA	√	×	√	×
		KTM	√	×	√	×
		PIAGGIO	√	√	√	√
		ROYAL ALLOY	√	√	√	√
		VESPA	√	√	√	√
	China	CNENG	√	√	√	√
		CNABS	√	√	√	√
		CFMOTO	√	×	√	×
		HAOJUE	√	×	√	×
		QJBENELLI	√	×	√	×
		SHINERAY	√	×	√	×
		ZONTES	√	×	√	×
	Americas	ACELLERA	√	×	√	×
ECU Programming(Open Limit)	Asia	HONDA	×	×	√,in development	√,in development
Odometer adjustment （With P001 By EEPROM）	ALL	ALL	×	×	√	√
ECU Programming &CLONE		APRILIA	×	×	√	√
		PIAGGIO	×	×	√	√
		VESPA	×	×	√	√
IMMO Function	Europe	APRILIA	×	×	√	√
		PIAGGIO	×	×	√	√
		VESPA	×	×	√	√
	Asia	HONDA	×	×	√	√
		YAMAHA	×	×	√	√
		SUZUKI	×	×	√	√
		KAWASAKI	×	×	√	√


Additional Payment for Adding Authorization

1. MS50 BASIC supports MS50 STD configuration if the authorization is added.(Accessories: M019  M028  M030 will be sent for free)
2. MS50 BASIC supports Special KIT configuration if the authorization is added.(Adapters of Special KIT need to be bought individually)
a.Key Programming, Coding
b.ECU Programming &CLONE
c.Odometer adjustment

Package Includes

1pc x MS50 BASIC Tablet
1pc x M001A Main Cable
1pc x M002 Power Cable
1pc x M003A Multi-functional Jumper
1pc x N004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005 KAWASAKI
1pc x M006 KAWASAKI
1pc x N012A SUZUKI
1pc x N015A HONDA
1pc x M018A  YAMAHA
1pc x N021A AEON/BENELLI/BENELLI DSK/QJ BENELLI
1pc x N026 SYM
1pc x N027 KYMCO/KAWASAKI
1pc x N041 EURO V
1pc x 12V2A Charger
1pc x Packing List

The picture of the MS50 BASIC Accessories included:


The Comparson of Accessories Included Between MS50 STANDARD and MS50 BASIC

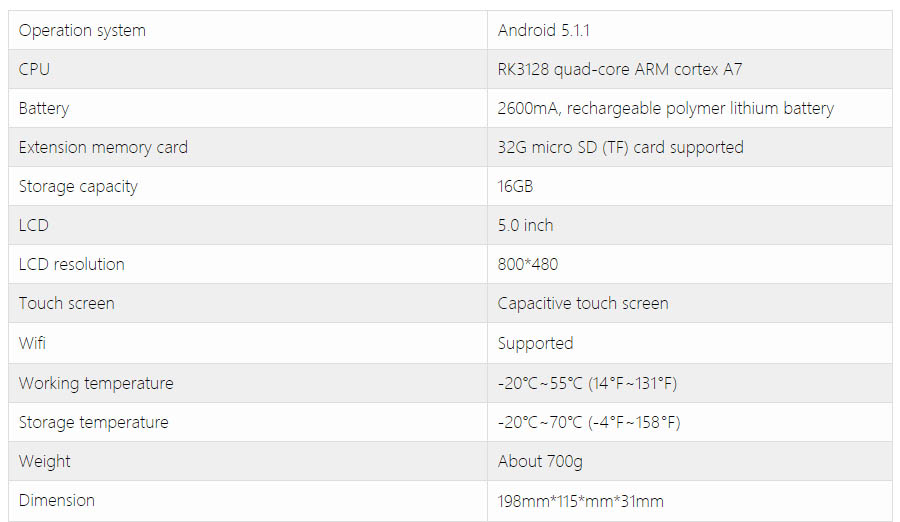

The Specifications of MS50 BASIC is as below:
